LG Éclair (QP5) 320W Powerful Sound, 3.1.2 Ch LG's Smallest Dolby Atmos Soundbar, with Meridian, DTS: X, Low Vibration Subwoofer, Dolby Vision/ HDR 10, eARC, HDMI In/ Out, BT, USB, Optical, LG Sound bar App.

Features

Gallery

Specs

Reviews

Support

QP5

LG Éclair (QP5) 320W Powerful Sound, 3.1.2 Ch LG's Smallest Dolby Atmos Soundbar, with Meridian, DTS: X, Low Vibration Subwoofer, Dolby Vision/ HDR 10, eARC, HDMI In/ Out, BT, USB, Optical, LG Sound bar App.

()

CES 2021 Innovation Awards

LG QP5 >

Home Audio or Video Components & Accessories

LG Sound Bar App.

The LG Sound Bar exclusive app lets you set up and control various functions of the LG Sound Bar. Through this application, the User can configure various features and control sound effects of LG Sound Bar.

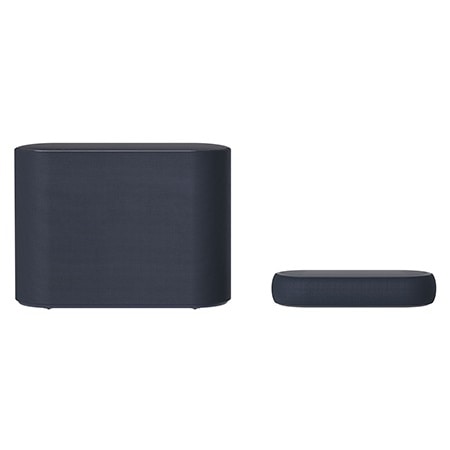

A soundbar and a subwoofer are placed on a marble floor, soundbar and subwoofer facing opposite sides

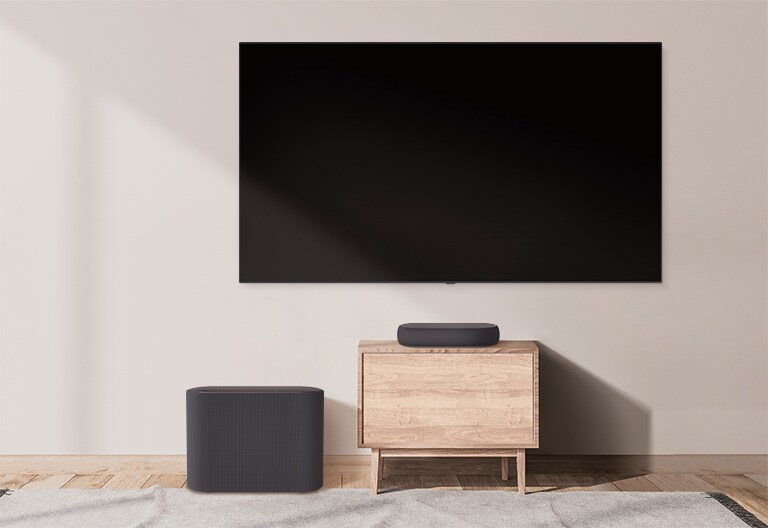

Made smaller for harmony with your home.

There is a bulky soundbar placed on a wide cabinet and a subwoofer placed on the left. The scene changes and a compact soundbar appears on a smaller cabinet and a subwoofer placed on the left.

There is a collage of three images - soundbar and subwoofer in a white living room on the left side, close-up of a right side of soundbar in the middle, and soundbar and subwoofer placed on a wooden cabinet on the right side of a collage image.

3.1.2 Channel and Dolby Atmos In a Compact Design

3.1.2 Channel Audio and Dolby Atmos place sound all around you for a more realistic audio experience. The new LG Eclair QP5 is the complete package with powerful, immersive audio in a more compact size.

A compact soundbar placed on a white floor, then the sound units inside are shown - a vibrational sound wave effect coming out from a soundbar. The scene changes to show exterior of soundbar and the scene once again changes and a soundbar is placed in a cozy living room.The sound wave effect once again comes out from a soundbar.

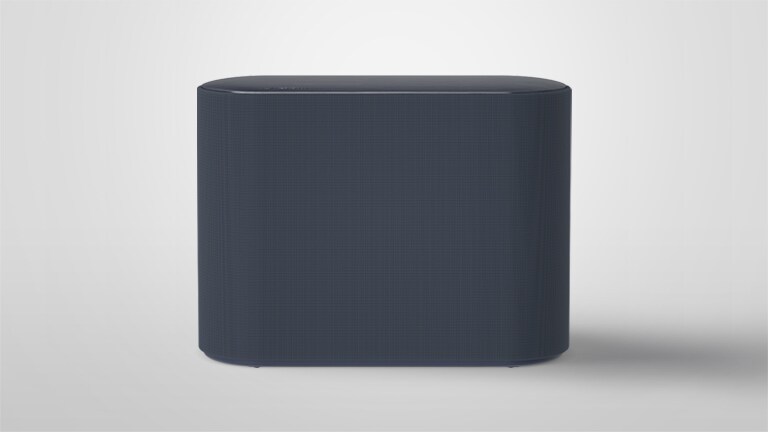

Clear and Loud Sound With Less Vibration

The compact LG Eclair QP5 has a bi-directional subwoofer that minimizes vibration at any volume. This gives you clear, high-quality sound with less distortion, so you can enjoy movies and music without worrying about disturbing others.

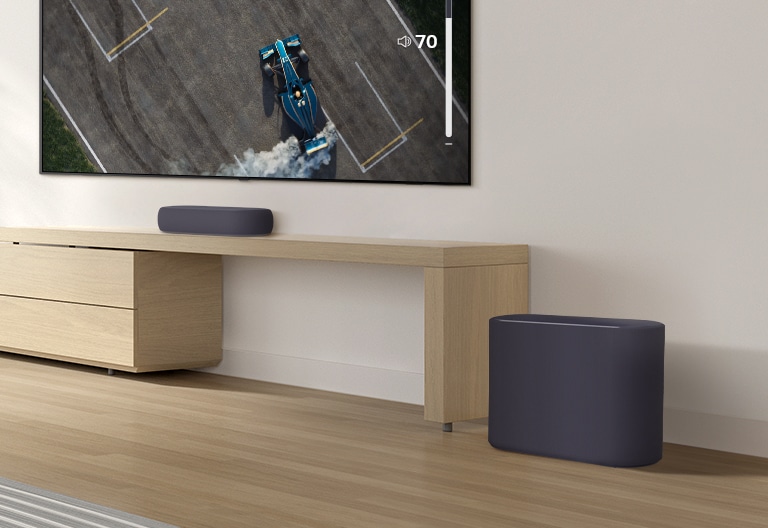

A soundbar is placed on a wooden table, a subwoofer is placed on a wooden floor. A mild sound wave effect comes out from the subwoofer on a floor. There is a TV placed above a soundbar. A racing car on a TV screen is driving very fast and violently and the GUI of TV volume is going up.

Deep and Clear Bass With Less Shake

The Eclair's bi-directional subwoofer also minimizes vibration. So you get to experience the same big bass as a full-size soundbar but with less speaker shake.

A subwoofer is placed on a white floor. The scene changes to zoom into two components inside the subwoofer that are slightly vibrating and sound wave effects coming out from the two components. The scene changes to zoom out once again and show the exterior of a subwoofer.

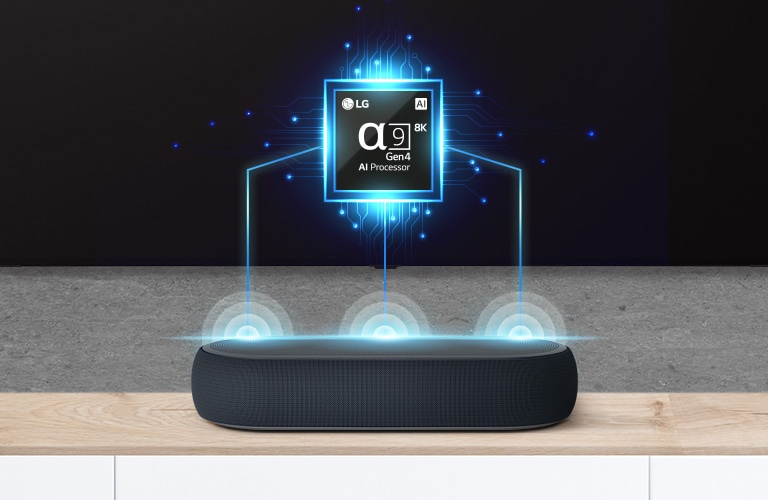

Upgrade Your Soundbar With Your LG TV’s AI Processor

The upgraded 2021 Alpha 9 AI Processor helps your LG Soundbar to produce better sound. TV Sound Mode Share allows the soundbar to use the TV’s processing power and AI Sound Pro to make everything you hear clearer and more consistent, even from different content sources. Only an LG Soundbar and LG TV combination lets you experience your TV at its best.

*TV Sound Mode Share may vary by TV models.
**TV AI Processor version varies by TV models.

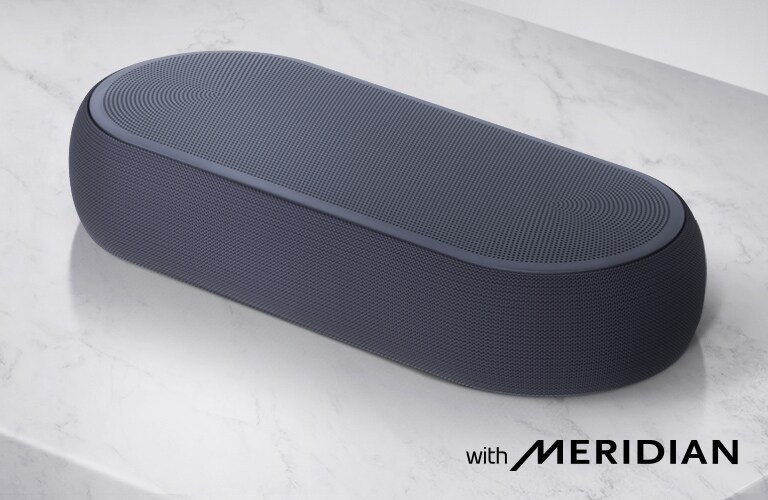

with MERIDIAN

Creating Better Sound Together

Since 1977, Meridian has delivered innovative and elegant high-performance audio solutions that have redefined how people enjoy their music and movies. As the pioneer of High Resolution Audio and the master of Digital Signal Processing (DSP), they have played an integral role in the development and adoption of pioneering technologies.

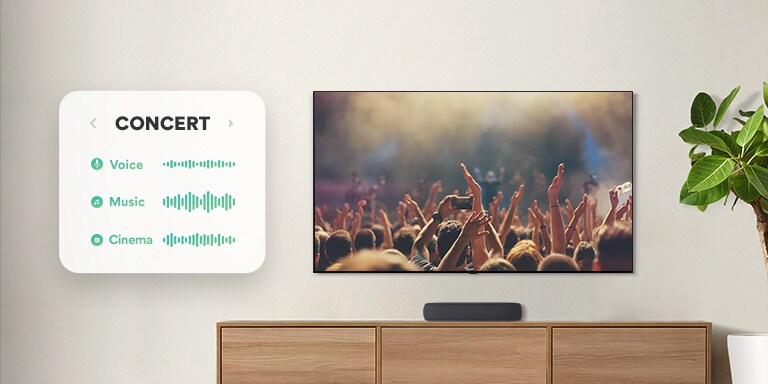

Upgraded AI Sound Pro With LG Eclair

Adaptive audio uses an upgraded algorithm to identify voices, effects, and frequencies then optimizes the sound by genre for a more immersive experience with every scene.

TV is on the wall. TV shows people clapping at the concert, the channel is switched to a movie scene with a driving car in a forest, and channel once again is switched to News and an anchor is speaking. LG Soundbar is right below TV on a wooden shelf.

Audio Connection With No Compromise

HDMI eARC (Enhanced Audio Return Channel) allows lossless transmission of uncompressed 5.1 ch and 7.1 ch audio, and even HBR(High Bit Rate) audio such as Dolby Atmos^® and DTS: X^® on compatible TVs.

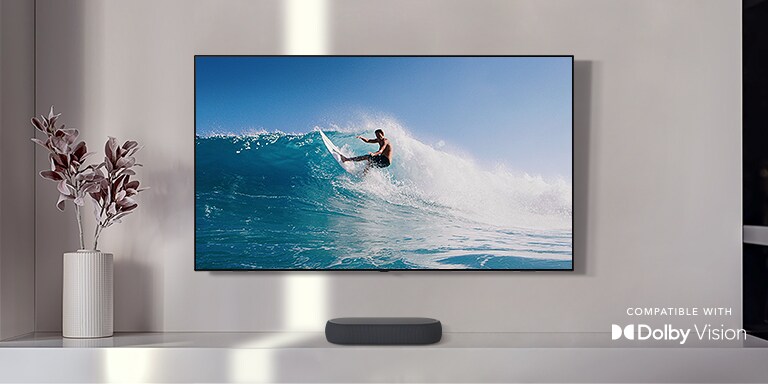

4K Content Seamlessly In-Sync

The LG Eclair QP5 delivers 4K content, including HDR and Dolby Vision, with minimal loss to quality or performance for a fully connected TV & audio experience.

The New LG Eclair — A Soundbar to Match Your Standards

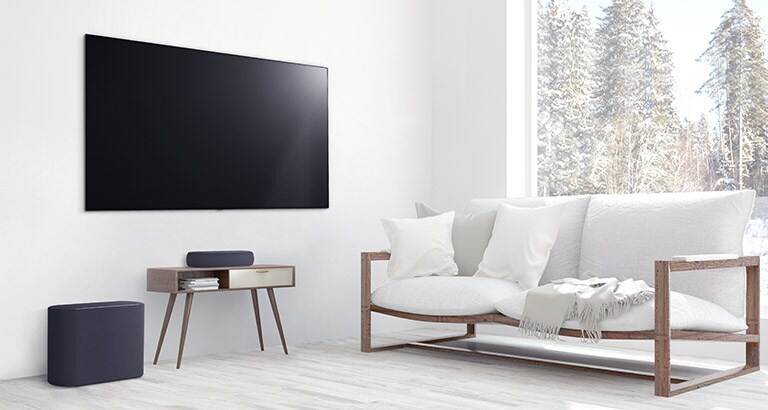

A soundbar is placed on a small tea table, a subwoofer placed on the left side and TV is placed above a soundbar. The room is overall white.

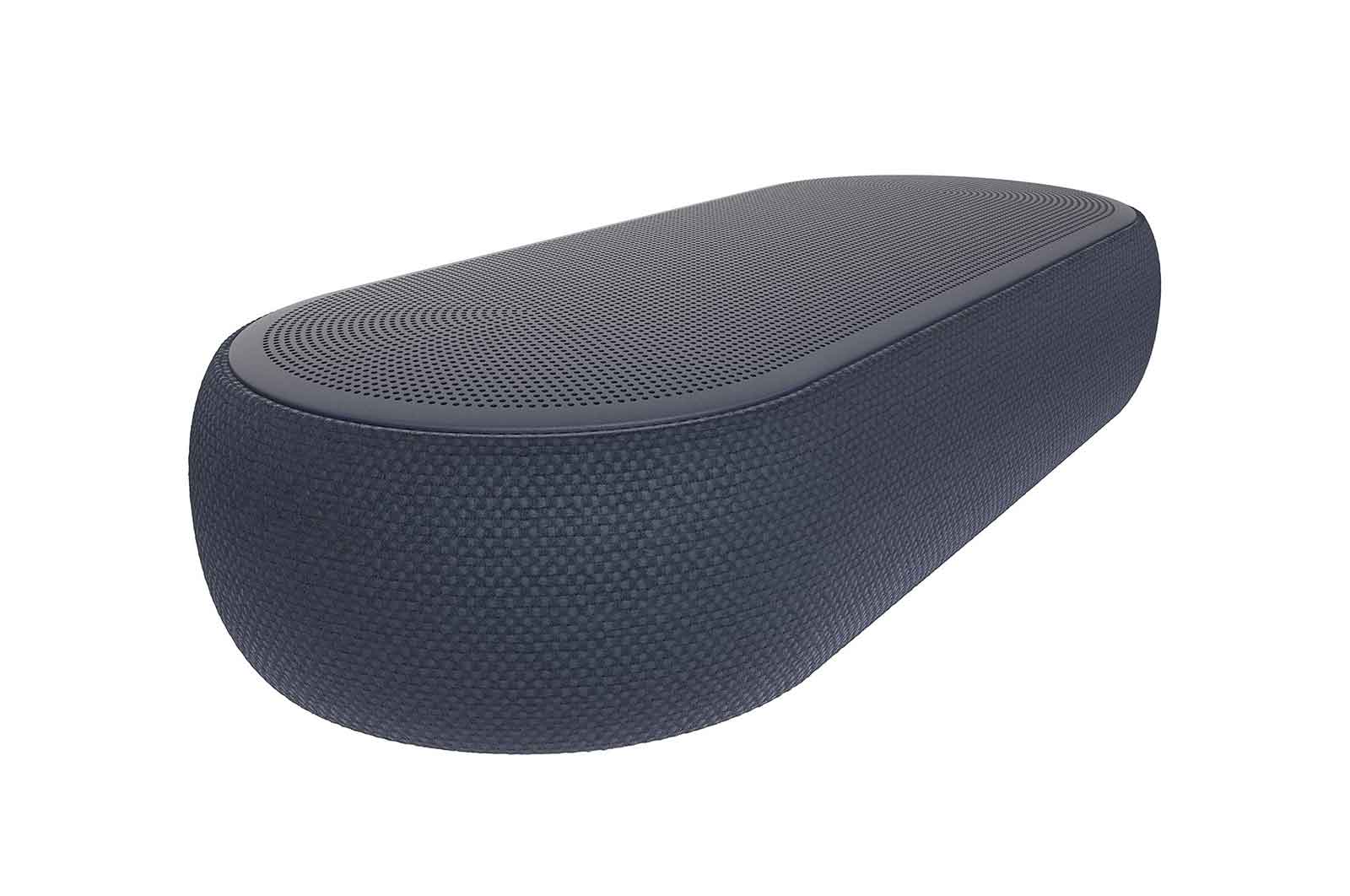

A New Look to Match Your Taste

A stylish and compact design fits elegantly anywhere in the house.

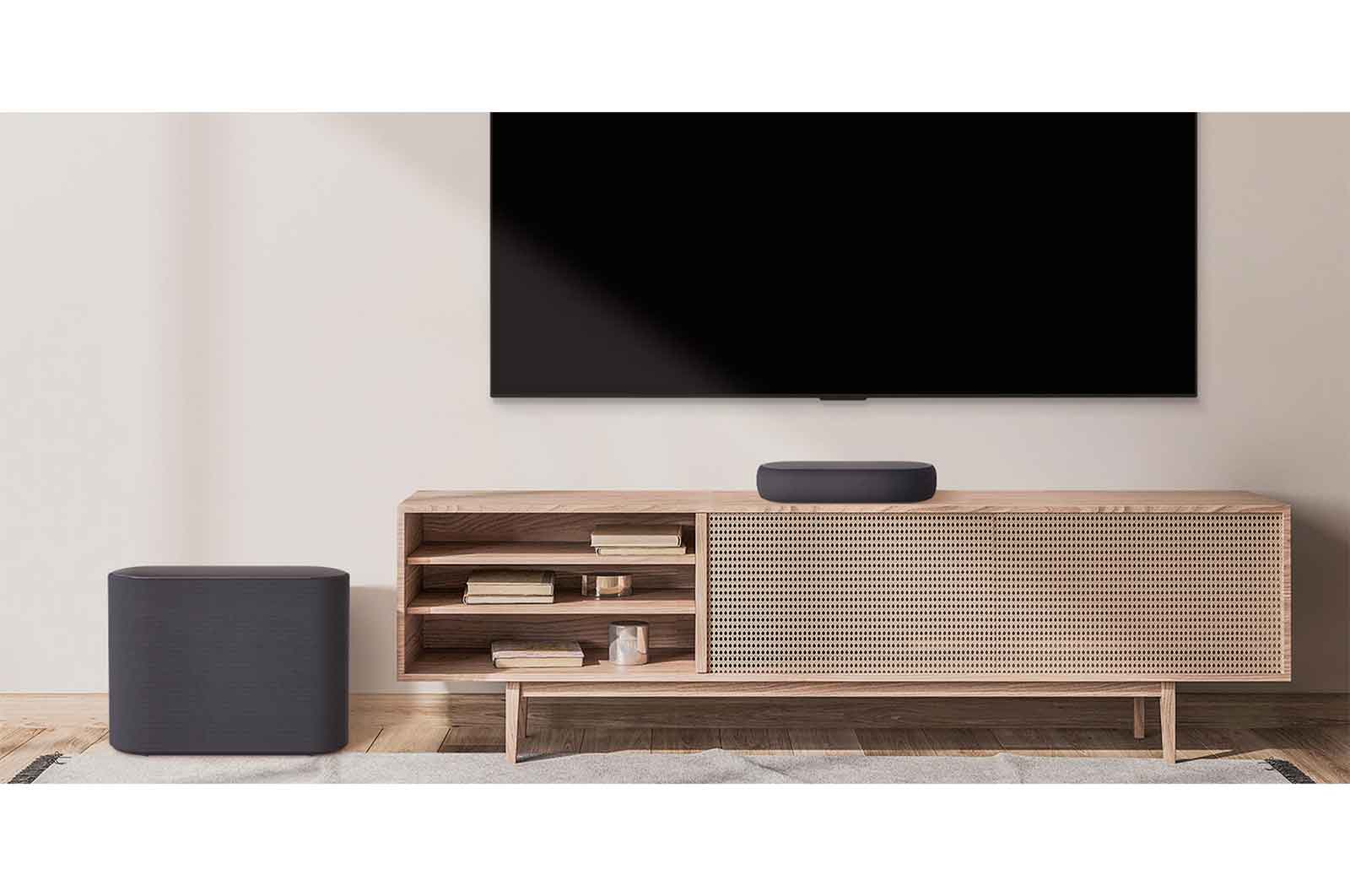

A soundbar is placed on a wooden cabinet under TV and subwoofer is placed on the left side. A sound wave effect is coming out from the soundbar.

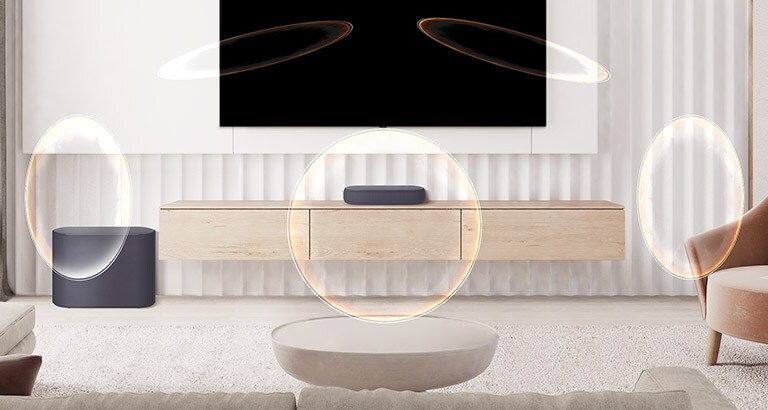

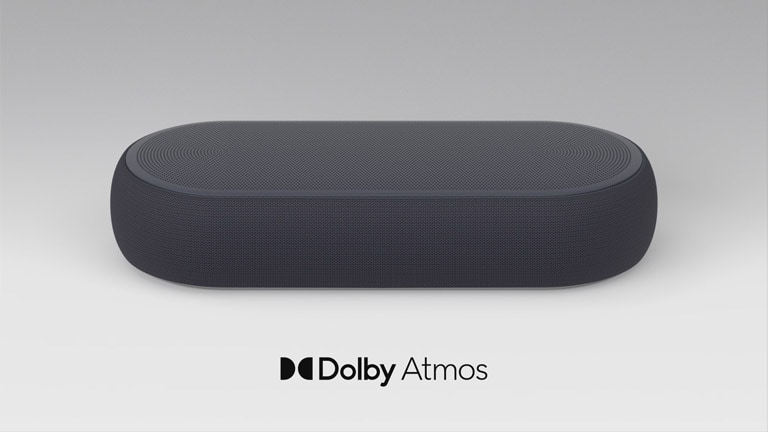

3.1.2 Channel Audio with Dolby Atmos

3.1.2 Channel Audio and Dolby Atmos surround you in sound for a more lifelike audio experience.

A subwoofer is placed on a white floor. Two components inside the subwoofer are shown.

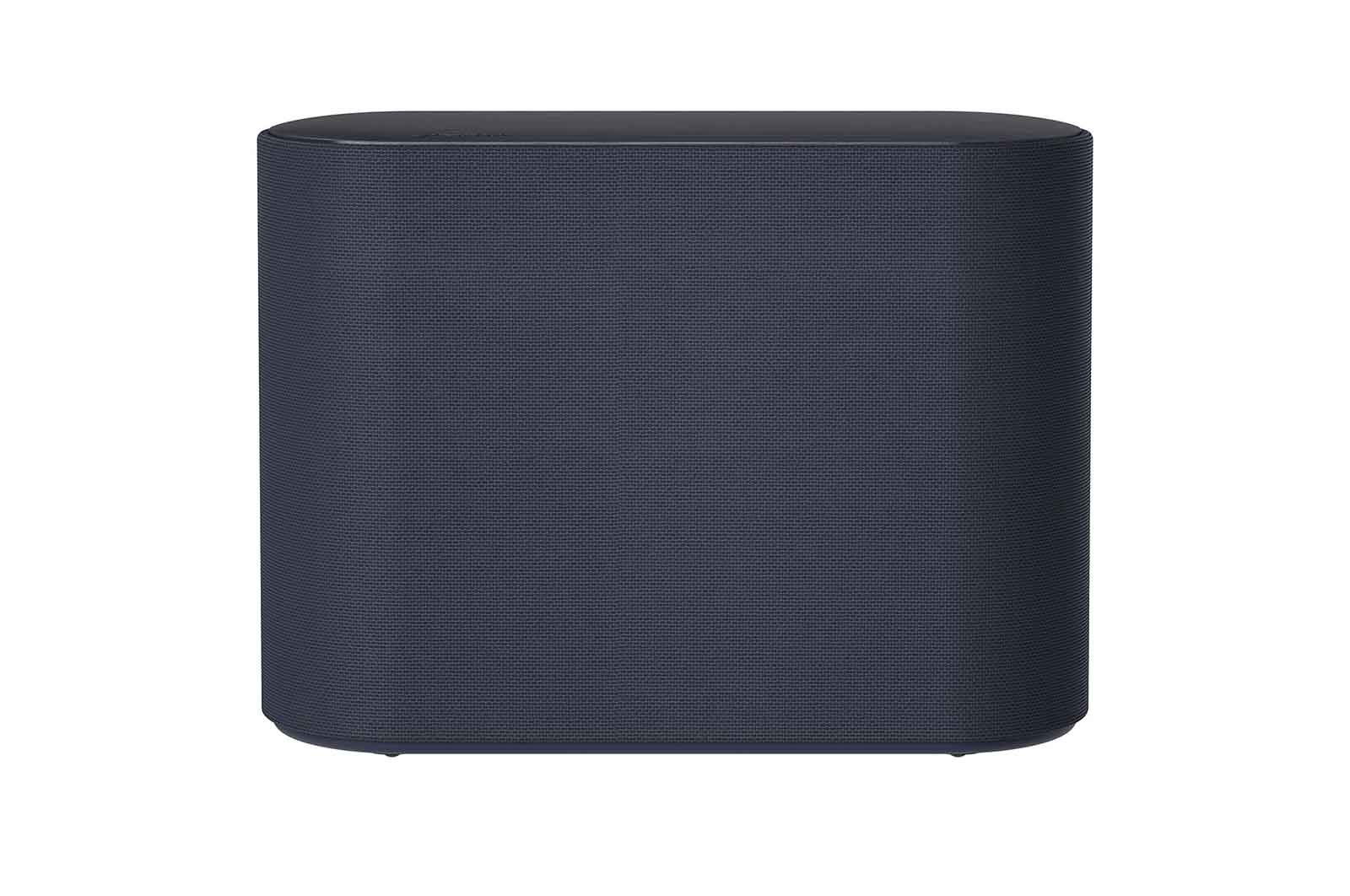

Low-vibration Subwoofer

The LG Eclair QP5 has a bi-directional subwoofer that minimizes vibration for worry-free movie nights.

LG Éclair (QP5) 320W Powerful Sound, 3.1.2 Ch LG's Smallest Dolby Atmos Soundbar, with Meridian, DTS: X, Low Vibration Subwoofer, Dolby Vision/ HDR 10, eARC, HDMI In/ Out, BT, USB, Optical, LG Sound bar App., QP5

All Spec

MODEL INFORMATION

Model Name

QP5
Mainset / Subwoofer Color

Black / Black

SIZE(W X H X D, MM)

Main (w/ Foot )

296 x 59.9 x 126
Matching TV size (`20 New)

101.6cm (40) ↑
Subwoofer

388 x 291 x 185

MATERIAL

Main - Front / Top / Bottom

Jersey / Metal / Mold
Subwoofer - Front / Body

Jersey / Wood

WEIGHT(KG)

Main

1.55Kg
Subwoofer

7.7Kg
Gross Weight

12.0Kg

CARTON BOX

Size (W x H x D) mm

456 x 435 x 266

NUMBER OF CHANNELS

Number of channels

3.1.2ch

OUTPUT POWER(THD 10%)

Total

320W
Front

20W x 2
Center

20W
Top

20W x 2
Subwoofer

220W (Wireless)

SPEAKER UNIT_FRONT(L/R)

SPL

82dB
System

Closed
Woofer Unit

5.08cm (2)
Impedance

4ohm

SPEAKER UNIT_CENTER

SPL

82dB
System

Closed
Woofer Unit

5.08cm (2)
Impedance

4ohm

SPEAKER UNIT_TOP(L/R)

SPL

82dB
System

Closed
Woofer Unit

5.08cm (2)
Impedance

4ohm

SPEAKER UNIT_SUBWOOFER

SPL

85dB
System

Closed
Woofer Unit

13.335cm (5.25)
Impedance

3ohm

NO. OF SPEAKER UNIT

Number of speakers

7EA

CONNECTIVITY_GENERAL

Optical

Yes (1)
HDMI 2.1 (HDCP 2.3) - In / Out

Yes (1) / Yes (1)
HDR10 / HDR10+

Yes / No
Dolby Vision

Yes
USB

Yes

CONNECTIVITY_WIRELESS

Bluetooth Version

4.0
Bluetooth Codec - SBC / AAC

Yes / Yes
Wi-Fi (2.4G / 5G)

No

DISPLAY INFORMATION

LED Indicator Color

Yes (3 Color, 3 EA)
Display Type

No

SOUND EFFECT

AI Sound Pro

Yes
Standard

Yes (w/ Meridian)
Cinema

Yes
Game

Yes
Dolby ATMOS

Yes
DTS:X

Yes

SOUND CONTROL

User EQ - RCU / App

No / Yes
Night Time On/Off - RCU / App

No / Yes
Dynamic Rage On/Off - RCU / App

No / Yes
Auto Volume Leveler On/Off - RCU / App

No / Yes
SFX (Default)

Yes
TV Sound Share - TV "AI Sound Pro"

Yes

CONVENIENCE

Remote App - iOS / Android OS

Yes / Yes
Smart Phone File Playback

Yes
NSU / FOTA

No / Yes
Control with your TV Remote (Vol+/-, Mute)

Yes / Yes
Sound Sync - Bluetooth(LG TV) / Optical

Yes / Yes
Auto Power On/Off - Bluetooth (LGTV) / Optical

Yes / Yes
Auto Power On/Off - RCU / APP

No / Yes
A/V Sunc (0~300ms) - RCU / APP

No / Yes
HDMI SIMPLINK

Yes
HDMI Audio Return Channel (ARC)

Yes
Woofer Level (-15 ~ 6dB, 1dB/Step)

Yes
HDMI Audio Return Channel (e-ARC)

Yes
Channel Level (-6 ~ 6dB, 1dB/Step) - Top / Center / Surround / Rear / Rear Top

Yes / Yes / No / No / No
Mute

Yes
Auto Dimmer

Yes
USB Host / Charge

Yes / No
Built-in Music

Yes (1)
Bluetooth Stand-By

Yes

AUDIO FORMAT(BITSTREAM)

LPCM

Yes
Dolby Atmos

Yes
Dolby TrueHD

Yes
Dolby Digital Plus

Yes
Dolby Digital

Yes
DTS:X

Yes
DTS-HD Master Audio

Yes
DTS-HD High Resolution

Yes
DTS Digital Surround

Yes
AAC / AAC+

Yes

FILE FORMAT

FLAC - C4A / USB

No / Yes
OGG - C4A / USB

No / Yes
WAV - C4A / USB

No / Yes
MP3 - C4A / USB

No / Yes
WMA - C4A / USB

No / Yes
AAC - C4A / USB

No / Yes

SPOTIFY SUPPORTED

Spotify Connect

No

POWER_MAIN

Adapter

19V, 3.42A
Power Off Consumption

0.5W ↓
Power Consumption

30W (TBD)

POWER_SUBWOOFER

Type (SMPS)

100~240V, 50/60Hz
Power Off Consumption

0.5W ↓
Power Consumption

33W (TBD)
Wireless Frequency

5GHz

ACCESSORY_MANUAL

Web Manual (File)

Yes (Full)
Built-in Manual (Book) (Simple or Full)

Yes (Simple)
Open Source - Yes (Full or Simple) / No

Yes (Full)
Warranty Card

Yes

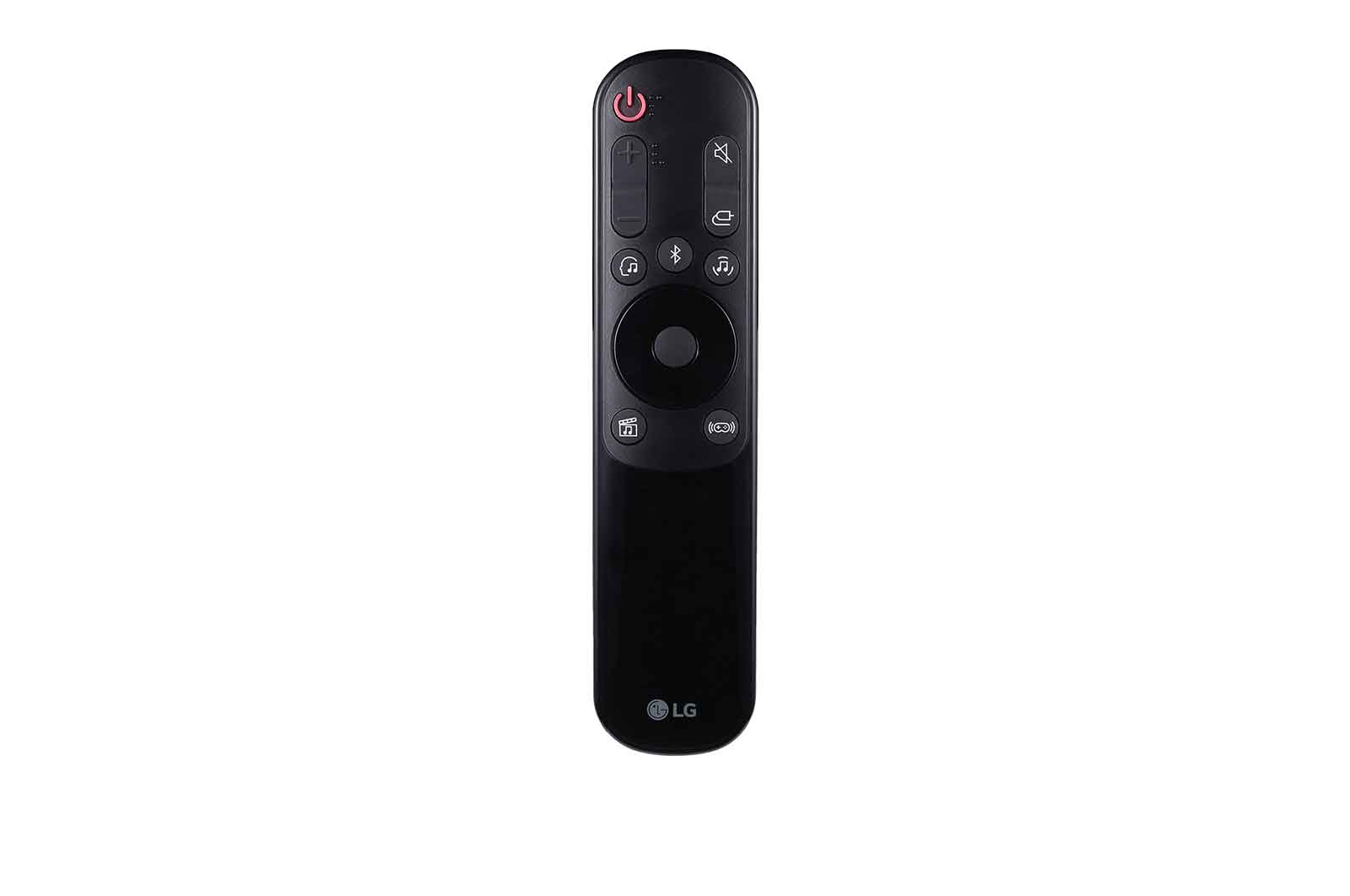

ACCESSORY_REMOTE CONTROL

Battery (Size)

AA x 2
Battery Built-in

Yes

ACCESSORY_OTHERS

Optical Cable

Yes

PRODUCT DETAILS

Net Quantity

1 N
Country of Origin

China
Manufactured By

LG ELECTRONICS(HUIZHOU)INC. HUI TAI FACTORY NO.1 XINDA ROAD, HUI TAI INDUSTRIAL PARK OF ZHONGKAI DEVELOPMENT ZONE,HUIZHOU CITY, GUANGDONG, CHINA .
Imported By

LG ELECTRONICS INDIA PVT. LTD. PLOT NO – 4, TECHZONE – 2, GREATER NOIDA, UTTAR PRADESH , INDIA -201308
