Pixel Configuration
3 in 1 SMD
Pixel Pitch(mm)
3.906
Module Resolution (WxH)
64x64
Module Dimensions(WxH,mm)
250x250
Weight per Module (kg)
0.90
No. of Modules per Cabinet (WxH)
2 × 2
Cabinet Resolution (WxH)
128 × 128

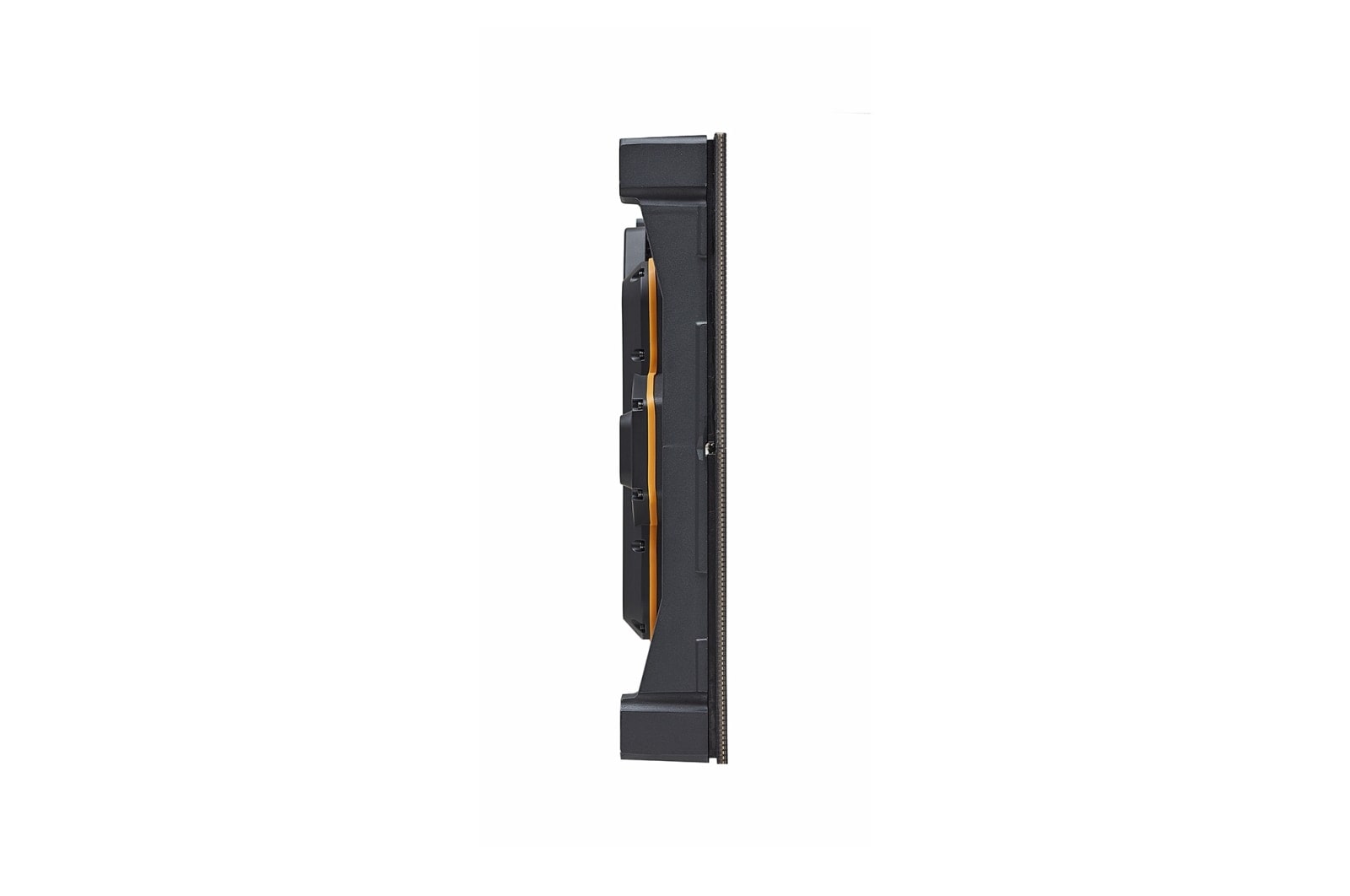

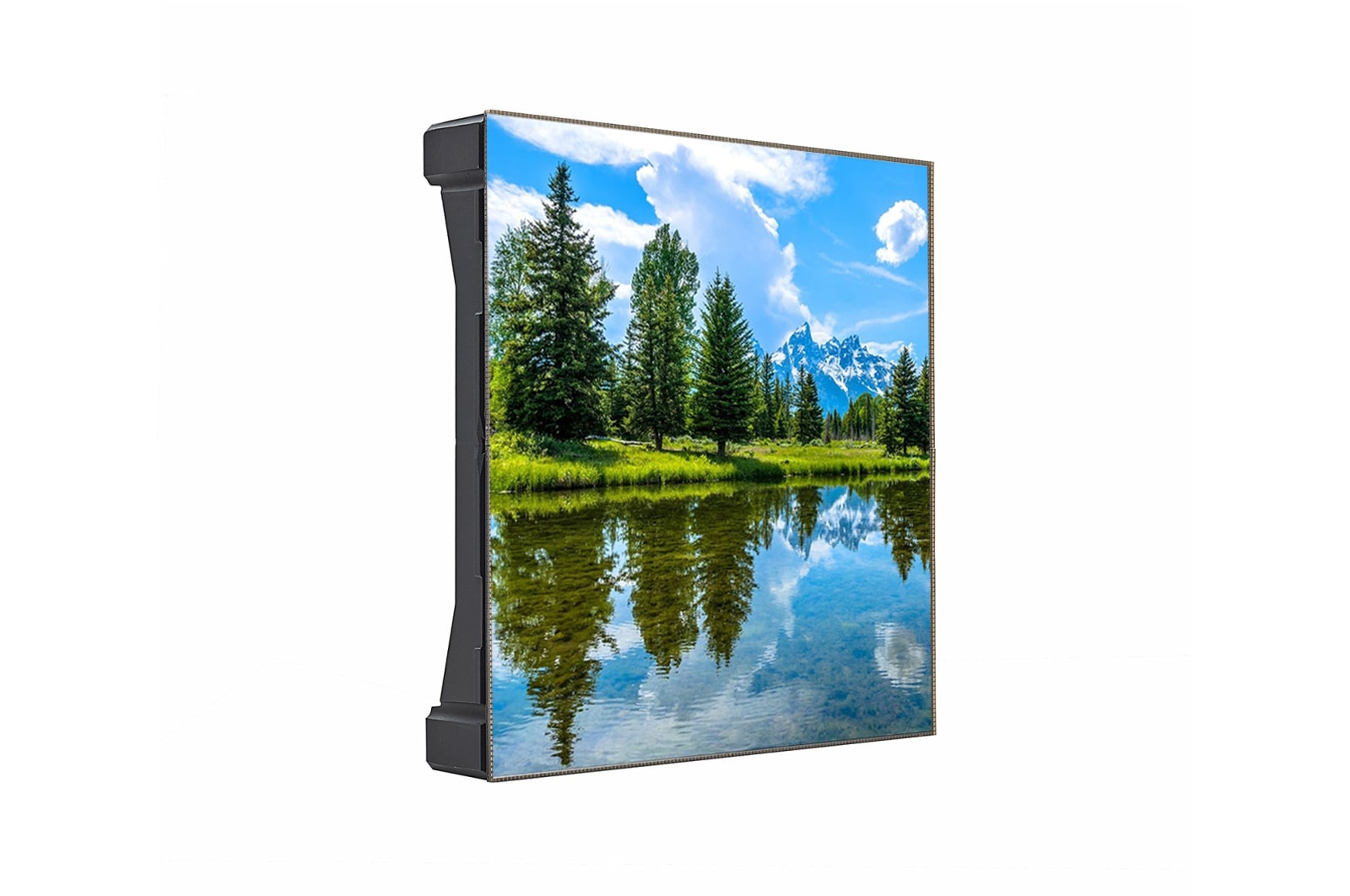

Cabinet Dimensions (W x H x D, mm)
500 × 500 × 84.5
Cabinet Surface Area (㎡)
0.250
Weight per Cabinet (kg/unit)
15.1
Weight per Square Meter (kg/㎡)
64.0
Physical Pixel Density (pixels/㎡)
65,536
Flatness of Cabinet (mm)
±0.5
Cabinet Material
Die casting Aluminum
Service access
Front
Max. Brightness (After Calibration, nit)
3,000
Color Temperature (K)
3,500-9,000
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
160
Brightness Uniformity
≥97%
Color Uniformity
±0.003Cx,Cy
Contrast Ratio
5,000
Processing Depth (bit)
14
Lifetime (Half Brightness)
100,000
Operating Temperature (°C)
-10 to +45
Operating Humidity
0-80% RH Non-condensing
IP Rating Front / Rear
IP65 / IP65
Power Consumption (W/cabinet, Max.)
240
Power Consumption (W/cabinet, Avg.)
80
Power Consumption (W/m², Max.)
960
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Certification
CE,FCC,ETL
Controller
LCIN010
