Pitch Name
P1.56
Pixel Configuration
Micro LED
Pixel Pitch (mm)
1.56
Screen Resolution (W × H)
1,920 × 1,080
Module Dimensions (W x H, mm)
300 × 112.5
No. of Modules per Screen (W × H)
10 × 15 (Total 150)
Screen Dimensions (W × H × D, mm, Including Bezel)
3,005 × 1,742 × 54.9 (Thickest 57.4)
Screen Surface Area (m²)
5.063
Weight per Screen (kg)
190
Physical Pixel Density (pixels/m²)
409,600
Flatness of Cabinet (mm)
±0.2
Cabinet Material
Steel
Service Access
Front
Max. Brightness (After Calibration, nit)
500 / (Peak.) 1000
Color Temperature (K)
3,200 - 9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
160
Brightness Uniformity
95%
Color Uniformity
±0.015 Cx, Cy
Contrast Ratio
25,000 : 1 @ 10lux
Processing Depth (bit)
20 (HDR10, HDR10 Pro)
Power Consumption (W/Screen, Max.)
1,050
Power Consumption (W/Screen, Avg.)
500
Power Consumption (W/m², Max.)
208
Power Consumption (BTU/h/Screen, Max.)
3,583
Power Consumption (BTU/h/Screen, Avg.)
1,706
Power Consumption (BTU/h/m², Max.)
710
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Lifetime (Half brightness)
100,000
Operating Temperature (°C)
0 to +40
Operating Humidity
10-80% RH
IP Rating (Front / Rear)
IP50 / IP20
Speaker
Built-in (10 W + 10 W)
Wi-Fi / Bluetooth
Yes
Certification
Safety 60950-1, EMC Class A,
BS 476 Part 7 Class 1
Environment
RoHS
Controller
Embedded

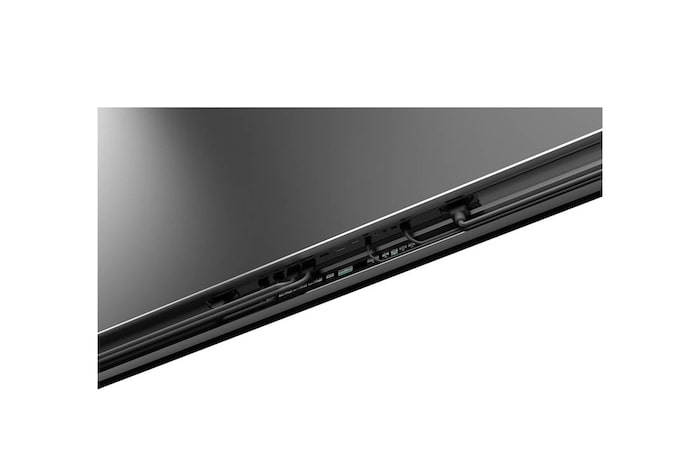

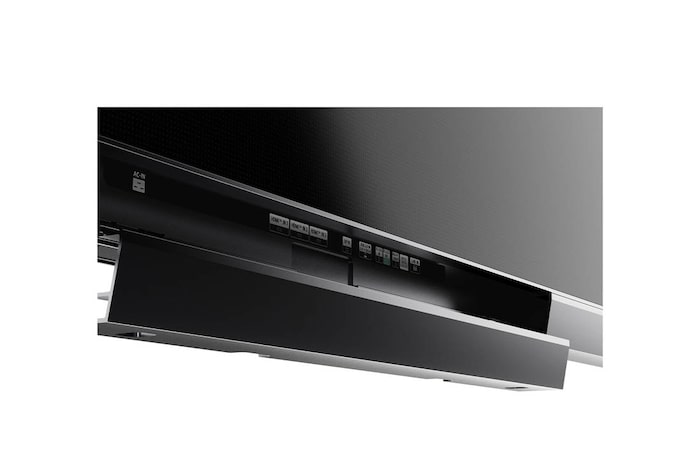

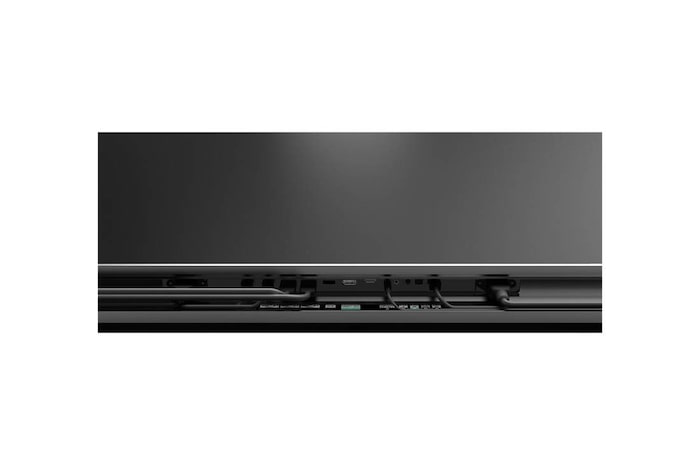

I/O Port
HDMI (3), DP (1), USB, LAN, RS-232C In/Out, IR,
Optical Digital Audio Out
Remote Control
IR Remote (In-box), Magic Remote (In-box)
Side by Side Installation
Yes (1 × N)
3rd Party Compatibility
Crestron Connected®
