* 1/4 波長板
* 画像はイメージです。
* IK 評価は 0 から 10 までの尺度で外部の影響に対する耐性の度合いを表しています。(10 が最高の保護レベル。)
* 画像はイメージです。

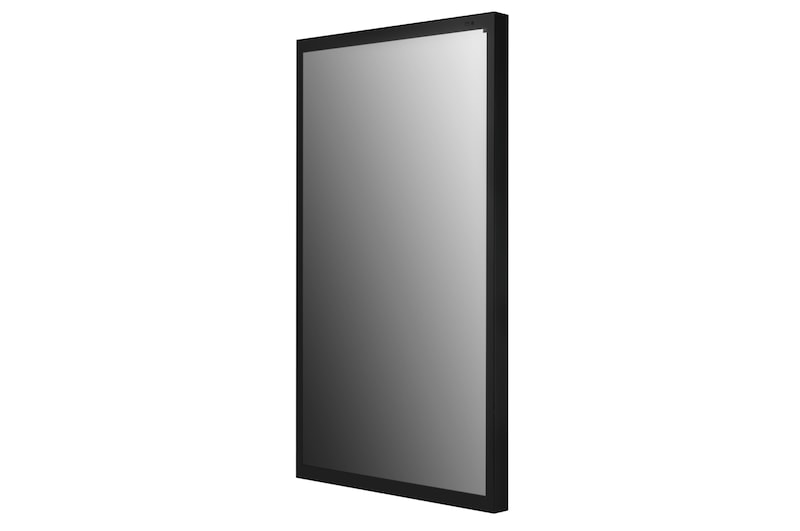

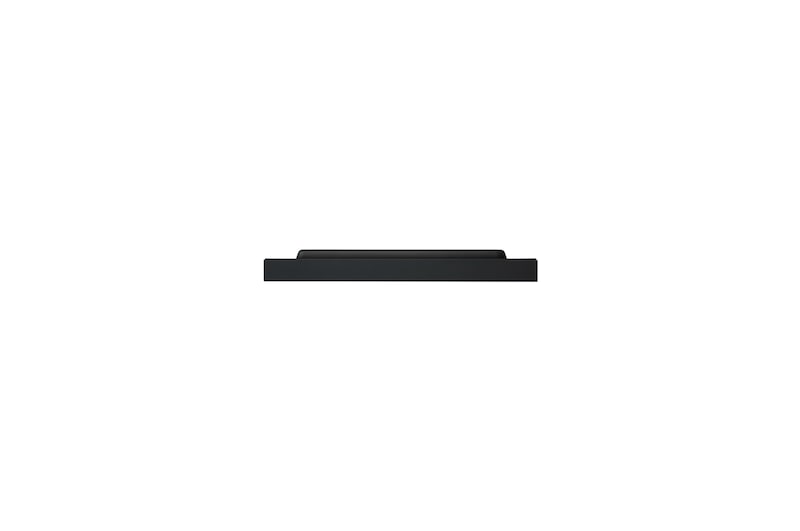

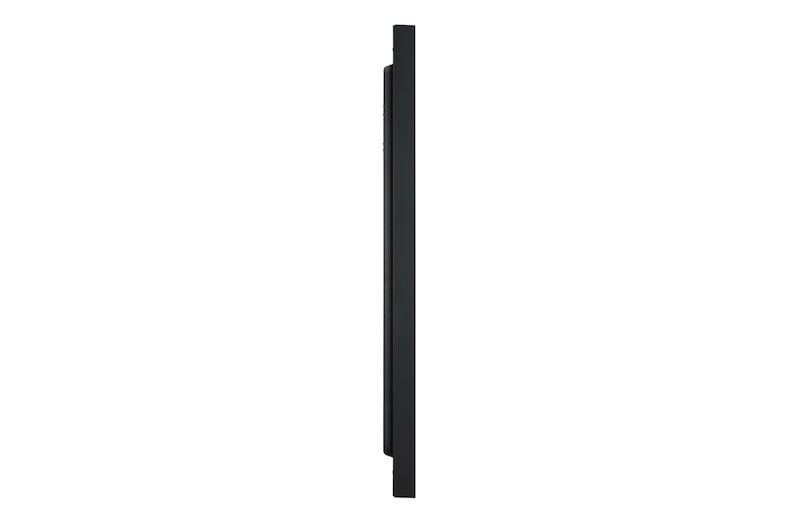

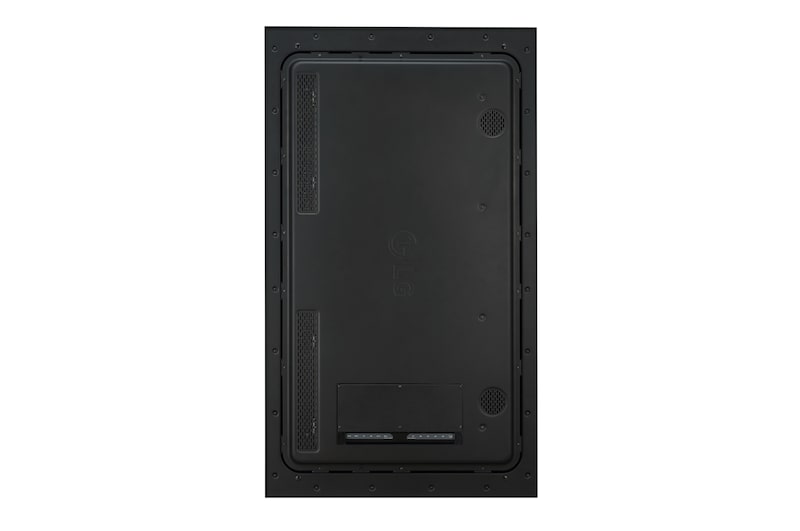

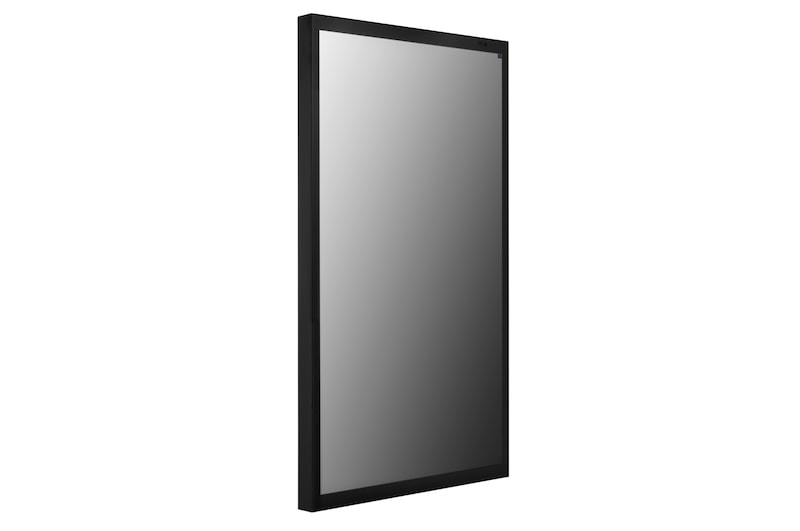

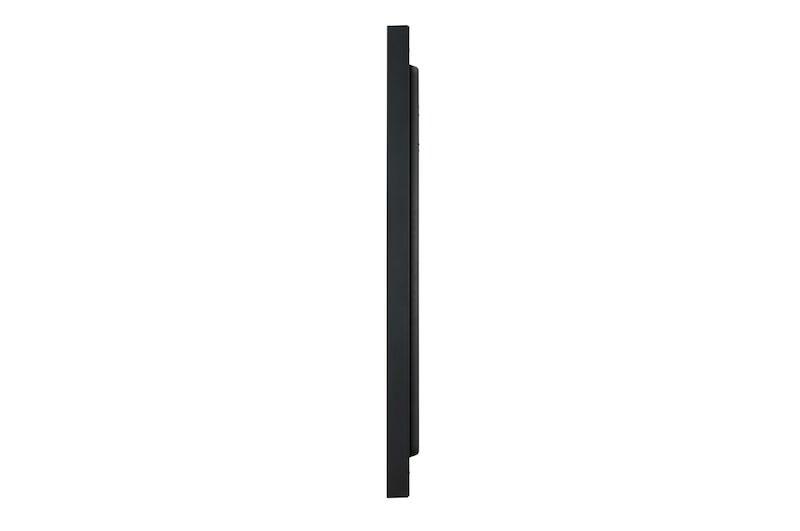

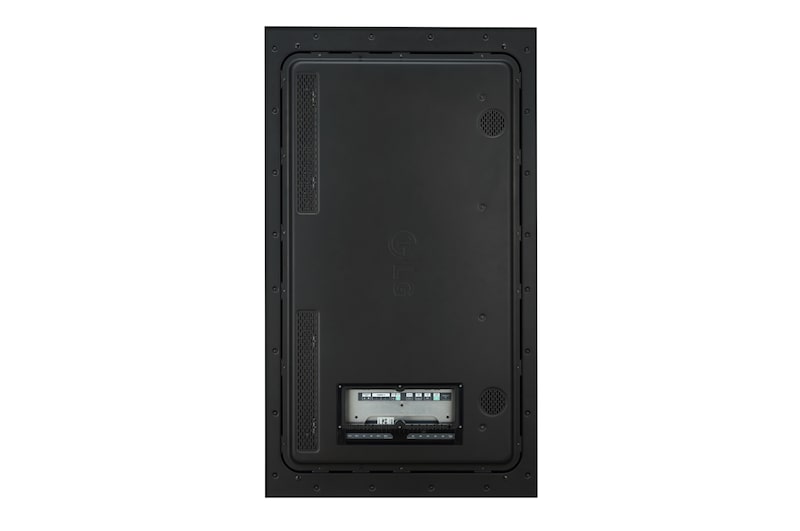

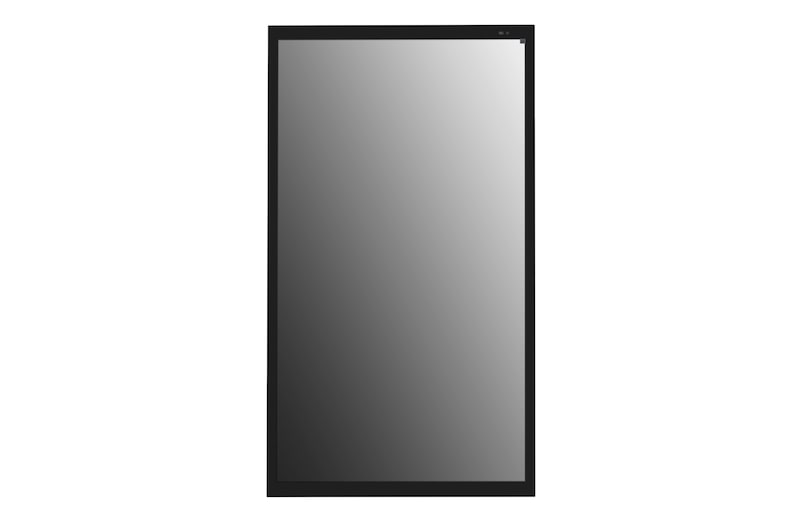

ギャラリー
全てのスペック
LANGUAGE
-
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
POWER CONSUMPTION
-
BTU (British Thermal Unit)
1126 BTU/Hr(Typ.), 1364 BTU/Hr(Max.)
-
DPM
3.5W(WOL Off), 8W(WOL on)
-
Max.
400W
-
Power off
0.5W
-
Typ.
330W (Full White)178W (IEC 62087)
ACCESSORY
-
Basic
Remote Controller, Manual(EIG, IG), Regulation Book, Phone to RS232C Gender, HDMI Cable, POWER CABLE, Battery, Screws
-
Optional
なし
CERTIFICATION
-
Safety
CB / NRTL
-
EMC
FCC Class "A" / CE / KC / VCCI
-
ERP / Energy Star
あり / なし
CONNECTIVITY
-
HDMI In
あり(2 個)
-
HDMI Out
なし
-
IR Out
なし
-
Audio In
なし
-
Audio Out
なし
-
Daisy Chain
なし
-
DP In
あり(HDCP 2.2)
-
DP Out
なし
-
DVI-D In
なし
-
External Speaker Out
あり
-
HDMI In (HDCP Ver.)
2.2
-
IR In
なし
-
RGB In
なし
-
RJ45(LAN) In
あり(2 個、LAN 1 個/ HDbaseT 1 個)
-
RJ45(LAN) Out
あり
-
RS232C In
あり
-
RS232C Out
あり
-
Touch USB
なし
-
USB In
USB2.0 Type A(2 個)
DEDICATED FEATURE - TOUCH
-
Interface
該当なし
-
Accuracy (Typ.)
該当なし
-
Available Object Size for Touch
該当なし
-
Multi Touch Point
該当なし
-
Operating System Support
該当なし
-
Protection Glass Thickness
該当なし
-
Protection Glass Transmission
該当なし
-
Response Time ("Paint" app on Windows 10 PC)
該当なし
ENVIRONMENT CONDITIONS
-
Operation Humidity
10 % to 80 %
-
Operation Temperature
-30 °C to 50 °C
FEATURE - HARDWARE
-
Acceleration(Gyro) Sensor
あり
-
Auto Brightness Sensor
あり
-
BLU Sensor
あり
-
Current Sensor
なし
-
FAN (Built-in)
あり
-
Humidity Sensor
あり
-
Internal Memory (eMMC)
16GB
-
Local Key Operation
なし
-
Pixel Sensor
あり
-
Power Indicator
あり
-
Proximity Sensor
なし
-
Temperature Sensor
あり
-
Wi-Fi/BT (Built-in)
なし
FEATURE - SOFTWARE
-
Fail over
あり
-
Play via URL
あり
-
SNMP
あり
-
Beacon
なし
-
Screen Share
なし
-
Video Tag
あり(ビデオタグ 4 個)
-
Auto Set ID
あり
-
Backlight Sync
あり
-
Booting Logo Image
あり
-
Brightness Compensation
なし
-
Cisco Certification
なし
-
Control Manager
あり
-
Crestron Connected
なし
-
External Input Rotation
あり
-
Gapless Playback
あり
-
Group Manager
あり
-
HDMI-CEC
あり
-
ISM Method
あり
-
Local Contents Scheduling
あり
-
Local Network Sync
あり
-
Network Ready
なし
-
No Signal Image
あり
-
OS Ver. (webOS)
webOS 4.0
-
PBP
あり(2PBP)
-
PIP
あり
-
PM mode
あり
-
Pro:Idiom
あり
-
RS232C Sync
あり
-
Scan Inversion
なし
-
Screen Rotation
あり
-
Setting Data Cloning
あり
-
SI Server Setting
あり
-
Smart Energy Saving
あり
-
Status Mailing
あり
-
Tile Mode Setting
あり
-
USB Plug & Play
あり
-
Wake on LAN
あり
-
webRTC
あり
-
W/B Setting by Grey scale
なし
PROTECTION GLASS
-
Anti-Reflective
あり
-
Degree of Protection
YES (IK10)
-
Infrared - Resistance (IR)
あり
-
Shatter-Proof
あり
-
Tempered / Chemical strengthening
強化
-
Thickness
5mm
MECHANICAL SPECIFICATION
-
Bezel Color
Black
-
Bezel Width
T/R/L/B : 38.4/26/26/38.4mm
-
Carton Dimensions (W x H x D)
1446 x 890 x 207mm
-
Handle
なし
-
Monitor Dimensions (W x H x D)
1292.5 x 737.4 x 88.0mm
-
Monitor Dimension with Stand (W x H x D)
該当なし
-
Packed Weight
46Kg
-
VESA Standard Mount Interface
該当なし
-
Weight (Head)
40Kg
-
Weight (Head+Stand)
該当なし
OPS COMPATIBILITY
-
OPS Power Built-in
なし
-
OPS Type compatible
なし
PANEL
-
Aspect Ratio
16:9
-
Transparency
該当なし
-
Contrast Ratio
1,000:1
-
Viewing Angle (H x V)
178º x 178º
-
Back Light Type
直下型
-
Brightness
4,000nit (Typ.), 3,200nit (Min.)
-
Color Depth (Number of Colors)
1670 万色
-
Color Gamut
NTSC 72%
-
Dynamic CR
500,000:1
-
Life time
50,000 時間(代表値)
-
Native Resolution
1920 x 1080 (FHD)
-
Operation Hours (Hours/Day)
24/7
-
Panel Technology
IPS / M+
-
Portait / Landscape
あり / あり
-
QWP (Quarter Wave Plate)
あり
-
Refresh Rate
60Hz
-
Response Time
9ms (G to G)
-
Screen Size (Inch)
55
-
Surface Treatment (Haze)
Haze 3%
POWER
-
Power Supply
AC 100-240V~, 50/60Hz
-
Power Type
内蔵電源
SPECIAL FEATURE
-
Conformal Coating (Power Board)
あり
-
Direct Sunlight
あり
-
IP Rating
IP56
-
Overlay Touch Compatibility
該当なし
-
Power Protection
あり
-
Smart Calibration
該当なし
-
Tilt (Face down)
Max. 15 degree
-
Tilt (Face up)
該当なし
SOUND
-
Speaker (Built-in)
なし
SOFTWARE COMPATIBILITY
-
Connected Care
あり
-
Mobile CMS
なし
-
Promota
なし
-
SuperSign Cloud
なし
-
SuperSign CMS
あり
-
SuperSign Control+
あり
-
SuperSign WB
なし
-
