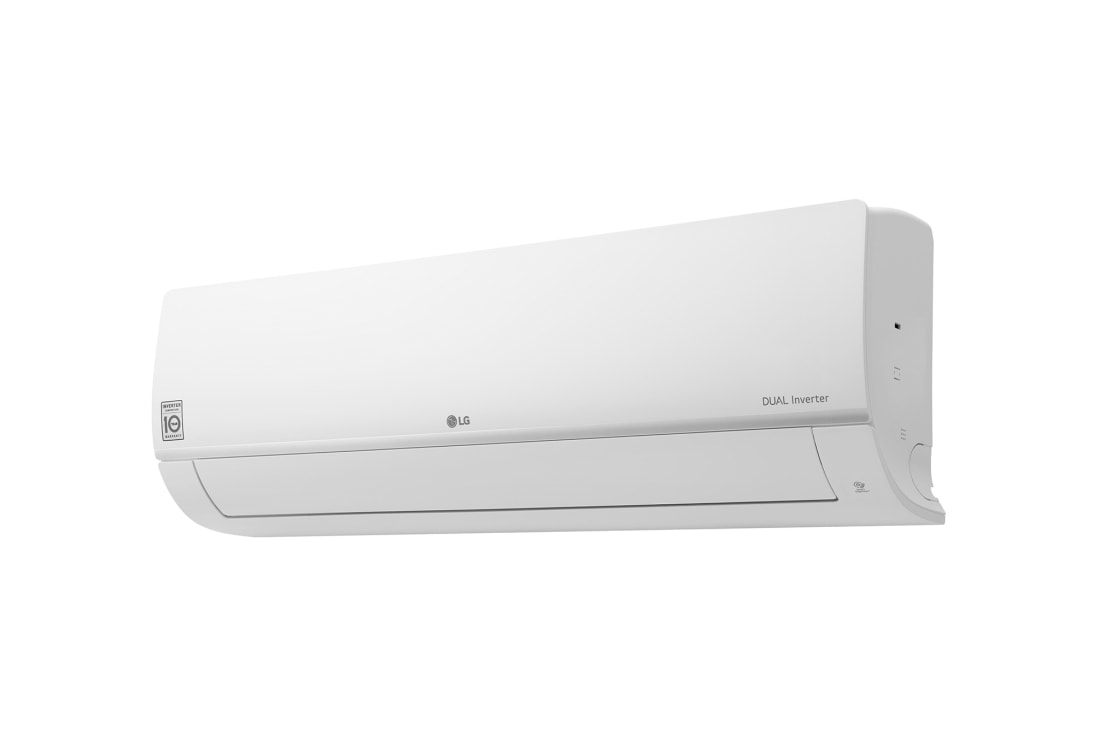

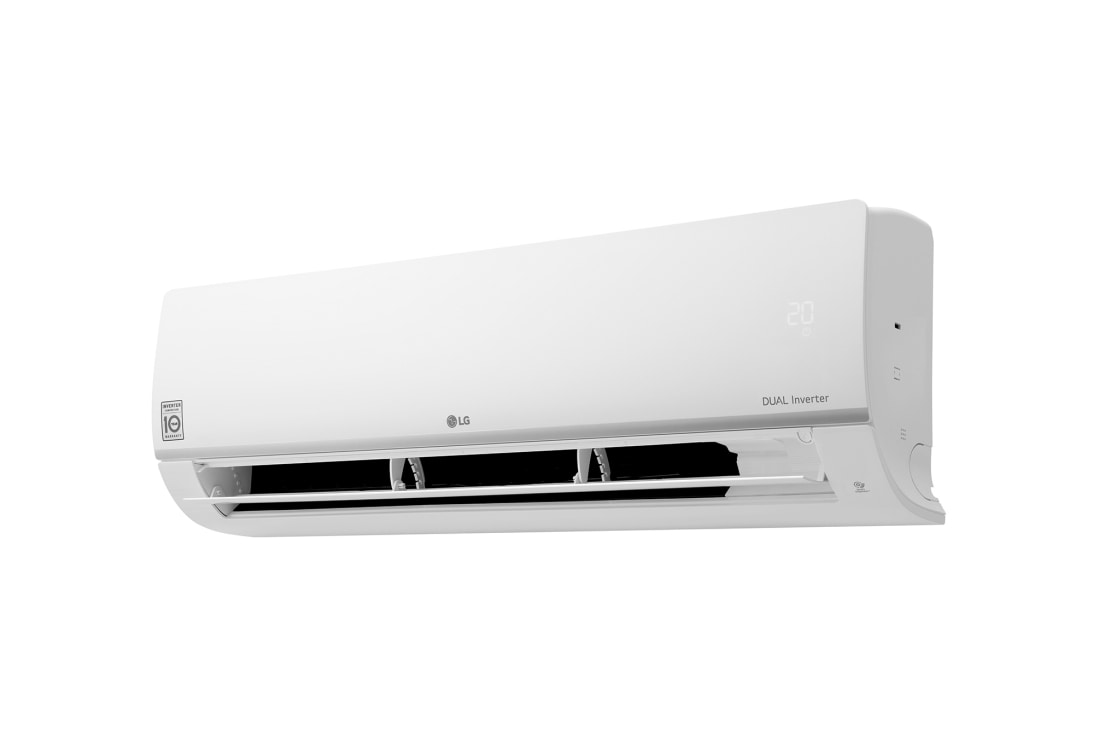

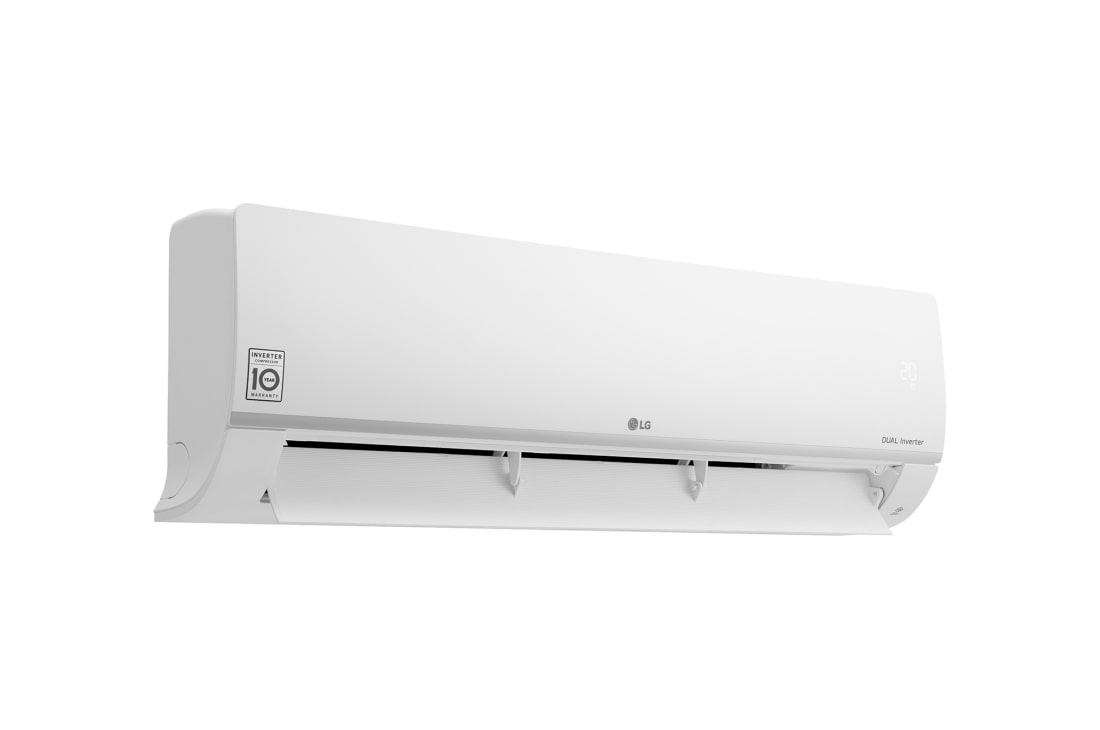

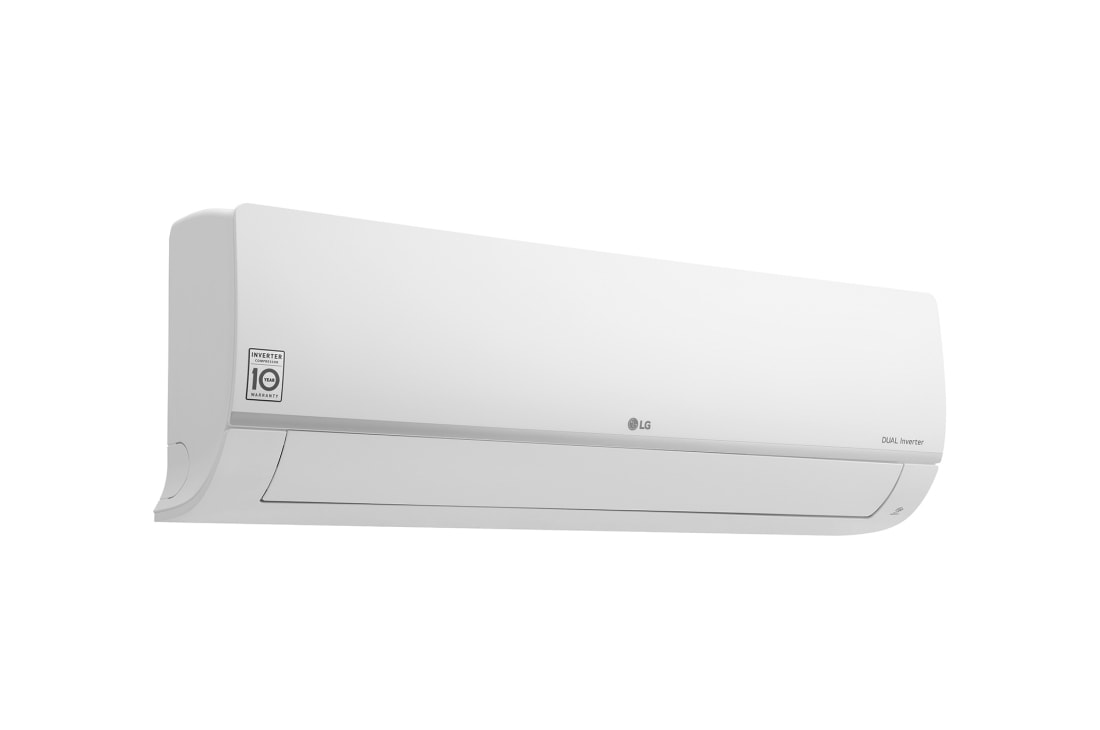

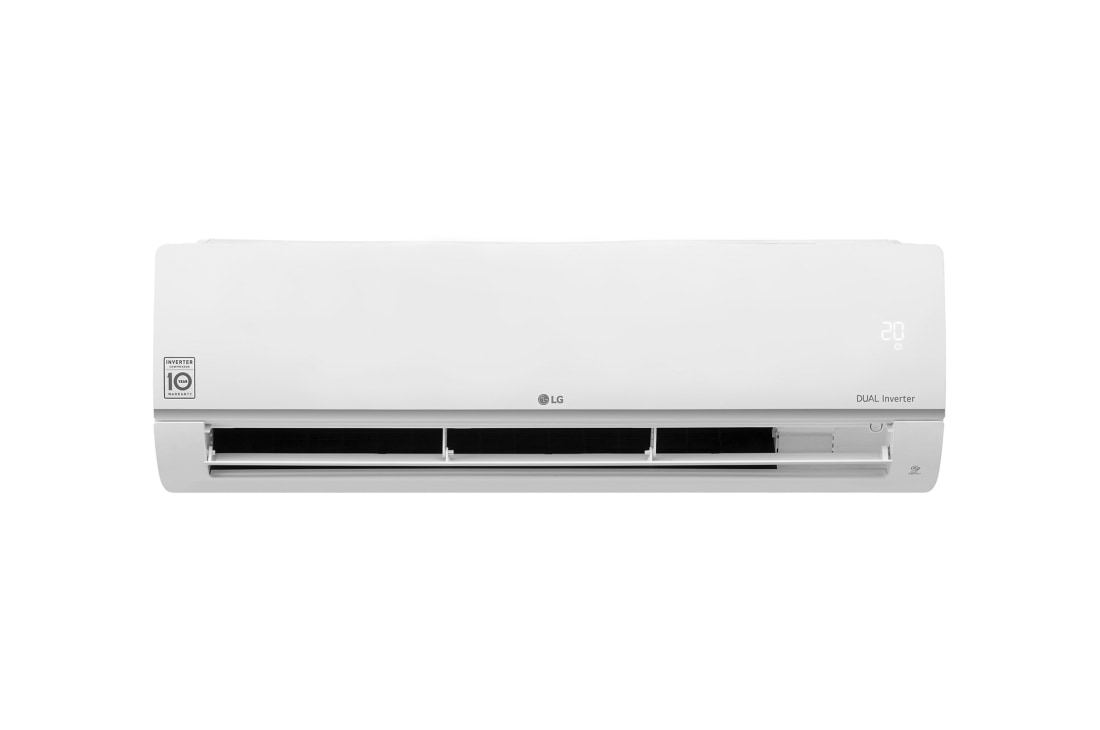

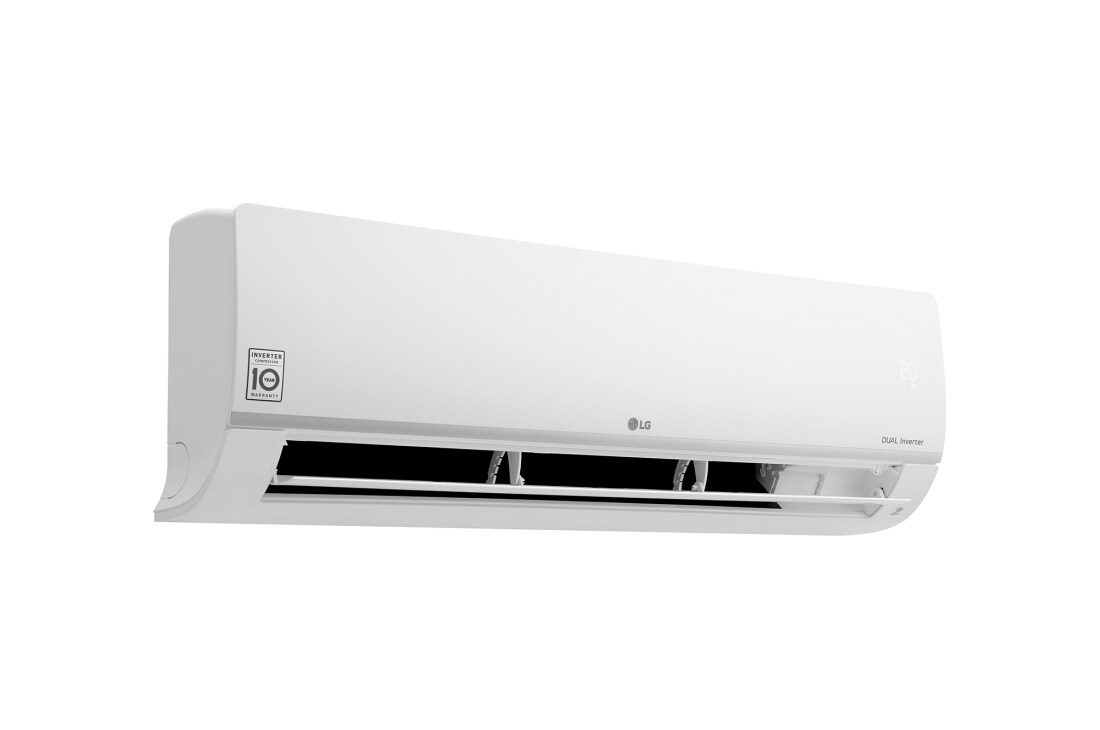

DUALCOOL Inverter AC 2 Ton, I Control Ampere, Energy Saving, Fast Cooling

Key Features

component-OBScountrySelectDesc

DUALCOOL Inverter AC 2 Ton, I Control Ampere, Energy Saving, Fast Cooling

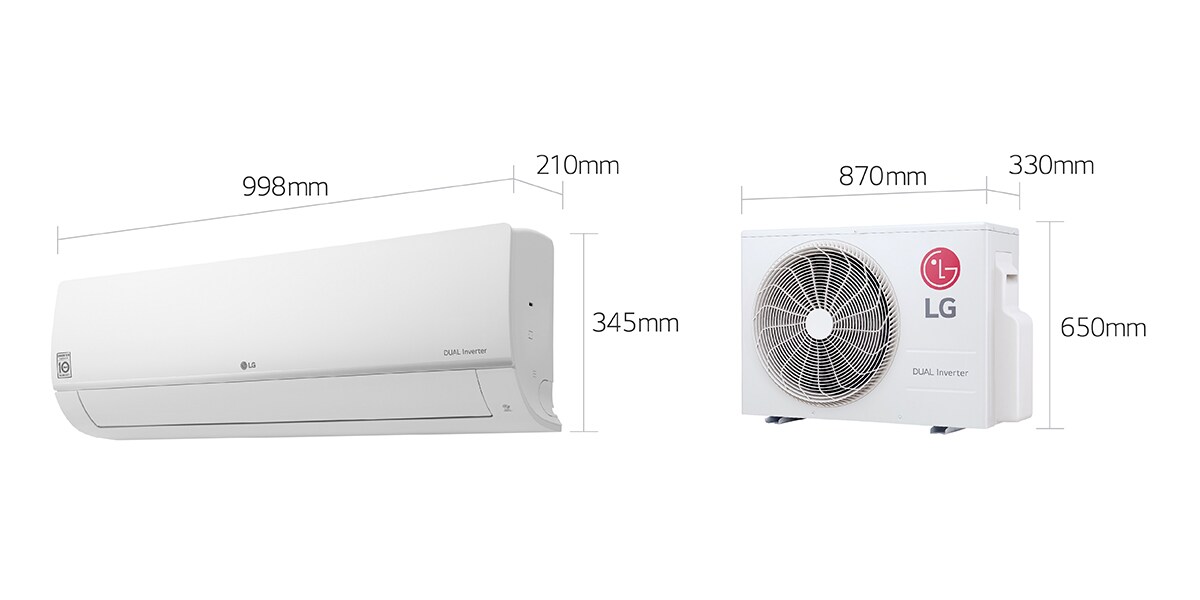

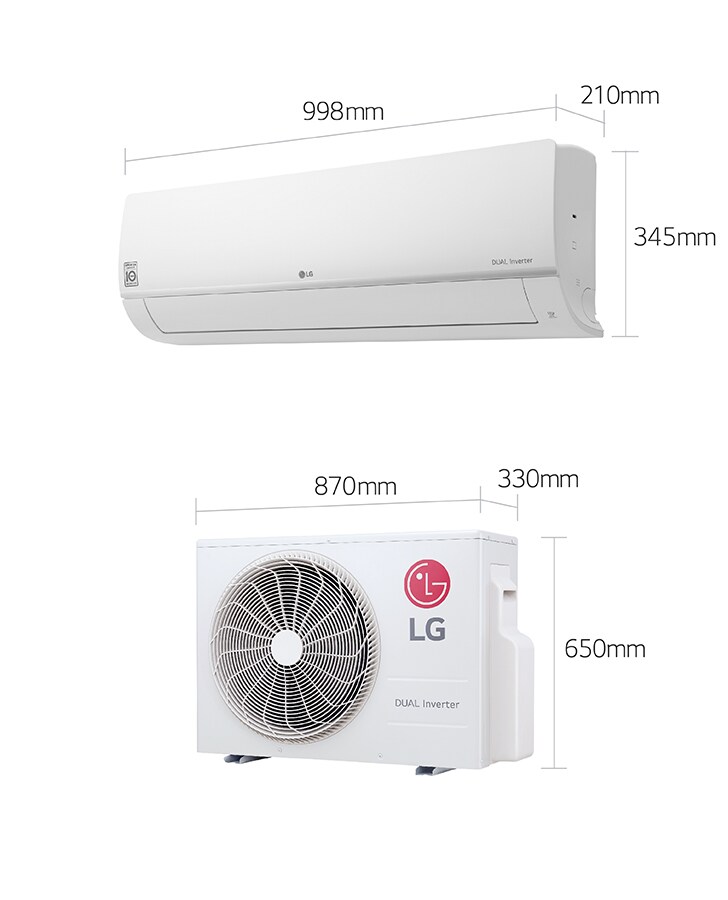

Dimensions
BMP-26K BMP-26K
Summary
  • Capacity
    2 Ton
  • Dimension
    998 x 345 x 210
  • MAIN TECHNOLOGY
    I-CONTROL AMPERE
  • ADDITIONAL BENEFIT
    Durability (65℃ Max. Temp.)
GENERAL
  • Cooling Capacity (T1) (kW)
    7.03
    Cooling Capacity (T1) (Btu/h)
    24,000
  • Cooling Capacity (T3) (kW)
    6.1
    Cooling Capacity (T3) (Btu/h)
    20800
  • Heating Capacity (kW)
    7.18
    Heating Capacity (Btu/h)
    24500
  • Power Input (T1) - Rated/Max (W)
    2,329/3,700
    Power Input (T3) - Rated (W)
    2773
  • Power Input (Heating) - Rated/Max (W)
    2,240/3,700
    Running Curent (T1) - Rated/Max (A)
    10.4/17.00
  • Running Curent (T3) - Rated (A)
    12
    Running Curent (Heating) - Rated/Max (A)
    10.00/17.00
  • EER (T1/T3) (W/W)
    3.02/2.20
    EER (T1/T3) ((Btu/h)/W)
    10.30/7.50
  • COP (W/W)
    3.21
    Power Supply (Ø , V , Hz)
    1Ø, 220-240V, 50Hz
  • Power Factor - Cooling (%)
    97.4
    Power Factor - Heating (%)
    97.4
  • RPM - Cooling (S-H/H/M/L/S-Low)
    1600/1200/1000/850/700
    RPM - Heating (S-H/H/M/L/S-Low)
    1600/1200/1000/850/700
  • Air Flow Rate - Heating Indoor, Max (m3/min (CFM))
    19.5 (688)
    Air Flow Rate - Heating Outdoor, Max (m3/min (CFM))
    49 (1730)
  • Moisture Removal (l/h)
    2.5
    Sound Pressure Level (Indoor) - Cooling, H/M/L/SL (dB(A)+1)
    44/41/37/28
  • Sound Pressure Level (Indoor) - Heating, H/M/L (dB(A)+1)
    44/41/37
    Sound Pressure Level (Outdoor) - Cooling, Rated (dB(A)+1)
    55
  • Sound Pressure Level (Outdoor) - Heating, Rated (dB(A)+1)
    52
    Refrigerant & Charge (at 7.5m) (g)
    R410A, 1400
  • Additional Refrigerant charge (g/m)
    20
    Compressor - Type
    Dual Inverter Compressor
  • Power Supply Cable (N x mm2)
    3 x 2.5
    Power and Transmission Cable (N x mm2)
    4 x 1.0 ( including Earth)
  • Piping Connections - Liquid Side (mm (in))
    6.35 (1/4)
    Piping Connections - Gas Side (mm (in))
    15.88 (5/8)
  • Drain Hose (O.D, I.D) (mm (in))
    21.5,16.0 (0.85,0.62)
    Dimension - Product dimensions (mm)
    998 x 210 x 345
  • Dimension - Indoor (W x H x D) (in.)
    39.3 x 8.3 x 13.6
    Dimension - Package dimensions (mm)
    1071 x 282 x 428
  • Dimension - Indoor (W x H x D) (inch)
    42 x 11.1 x 16.8
    Dimension - Product dimensions (mm)
    870 x 650 x 330
  • Dimension - Outdoor (W x H x D) (in.)
    34.3 x 25.6 x 13
    Dimension - Package dimensions (mm)
    1040 x 710 x 455
  • Dimension - Outdoor (W x H x D) (inch)
    40.9 x 27.9 x 17.9
    Net Weight - Indoor (kg (lbs))
    12.3 (27.1)
  • Net Weight - Outdoor (kg (lbs))
    45 (99.2)
    Set Weight - Indoor (kg (lbs))
    14 (30.9)
  • Set Weight - Outdoor (kg (lbs))
    49 (108)
    Operation Range - Cooling (Indoor) (°C (°F))
    18 ~ 32 (64.4 ~ 89.6)
  • Operation Range - Cooling (Outdoor) (°C (°F))
    18 ~ 54 (64.4 ~ 129.2)
    Operation Range - Heating (Indoor) (°C (°F))
    16 ~ 30 (60.0 ~ 86.0)
  • Operation Range - Heating (Outdoor) (°C (°F))
    -5 ~ 18 (23.0 ~ 64.4)
    Max. Piping Length (m (ft))
    30 (98.4)
  • Max. Elevation Dierence (m (ft))
    25 (82)
APPEARANCE
  • Indoor - Tool Code
    SK
    Indoor - Remote
    4 Way
  • Indoor - Remote Controller Type
    Wireless LCD
    AKB75415305
    Indoor - Grille Front Look
    Semi-R (silver)
  • Indoor - Display
    88 Display
    Outdoor - Tool Code
    U24A
  • Outdoor - Panel Type
    Steel
    Outdoor - Condenser Type
    Gold
FEATURE & FUNCTION
  • Pre-Filter (in Front Grille) - Anti bacteria air filter
    Yes (Top Filter)
    Functions - Vane Horizontal
    Normal
  • Functions - Temperature Control
    Thermistor
    Functions - Auto Clean
    Yes
  • Functions - Natural Wind
    Yes
    Functions - Fan Speed (SH/H/MH/M/ML/L/SL)
    7
  • Functions - Airflow Direction Control (up & Down)
    Auto
    Functions - Airflow Direction Control (left & right)
    Auto
  • Functions - Setting Temperature Range (Cooling (°C))
    16-30
    Functions - Setting Temperature Range (Heating (°C))
    16-30
  • Functions - Temperature Increment (°C)
    1
    Functions - Auto Changeover (Micom Control)
    Yes
  • Functions - Self Diagnosis
    Yes
    Functions - Timer
    24hr On/Off
  • Functions - Sleep Operation
    Yes
    Functions - Soft Dry Operation
    Yes
  • Functions - Restart Delay (minute)
    3
    Functions - Deice Control (Defrost)
    Yes
  • Functions - Display Light (On/Off)
    Yes
    Functions - Hot Start
    Yes
  • Functions - Jet Cool
    Yes
    Special Function - Wi-Fi
    Yes
  • Special Function - Fresh Dry
    Yes
    Special Function - Indirect Air
    Yes
  • Special Function - Active Energy Control
    I-Control Ampere
