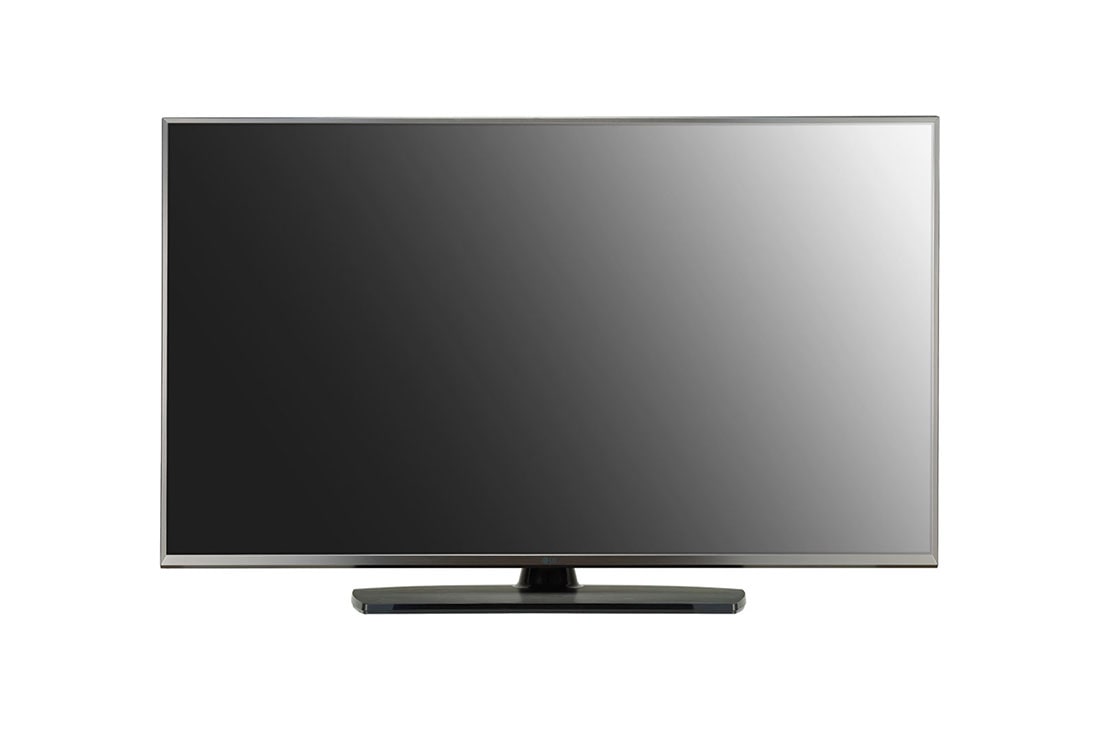

UU761H Series

Key Features

Choose your Size

component-OBScountrySelectDesc

UU761H Series
DISPLAY
  • Backlight Type
    LED (Edge)
    Resolution
    3,840 x 2,160 (4K UHD)
  • Brightness (cd/m²)
    400
    Viewing Angle Degree
    178 x 178
BROADCASTING SYSTEM
  • Analog
    Yes (PAL/SECAM)
    Digital
    DVB-T2/C (Varied by countries)
VIDEO
  • XD Engine
    Yes
    Aspect Ratio
    Yes 6 modes (TBD) (16:9, Original, Full wide, 4:3, Vertical Zoom, All-Direction Zoom)
AUDIO
  • Audio Output
    10W + 10W
    Speaker System
    2.0ch
  • Sound Mode
    Yes 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game) Yes 6 modes (India, Australia, Newzeland, Srilanka) (Standard, Cinema, Clear Voice III, Cricket, Music, Game)
    Clear Voice
    Yes (Clear VoiceⅢ)
HOSPITALITY SOLUTION
  • Solution Type
    Pro:Centric (Smart, V, Direct), Quick Menu 2.0
    Data Streaming (IP & RF)
    Yes
  • RF
    Yes (1 Tuner)
    HCAP (SDK)
    GEM/Flash/HTML5
  • Pro:Centric Application
    PCA 3.8 (TBD)
FEATURE
  • Hospitality
    Hotel Mode, Lock Mode, Welcome Screen, Insert Image, One Channel Map, External Speaker Out, Instant ON, External Power, V-Lan Tag, RJP Interface, RJP Compatibility, External Clock Compatibility, Clock (World Clock/Alarm), 360 Viewer, Auto Off/Sleep Timer, Smart Energy Saving, Motion Eye Care, Teletext/Auto Teletext (Australia 16:9 only), Conformal Coating
JACK INTERFACE
  • Set Side
    HDMI In, USB 2.0 (2), CI Slot

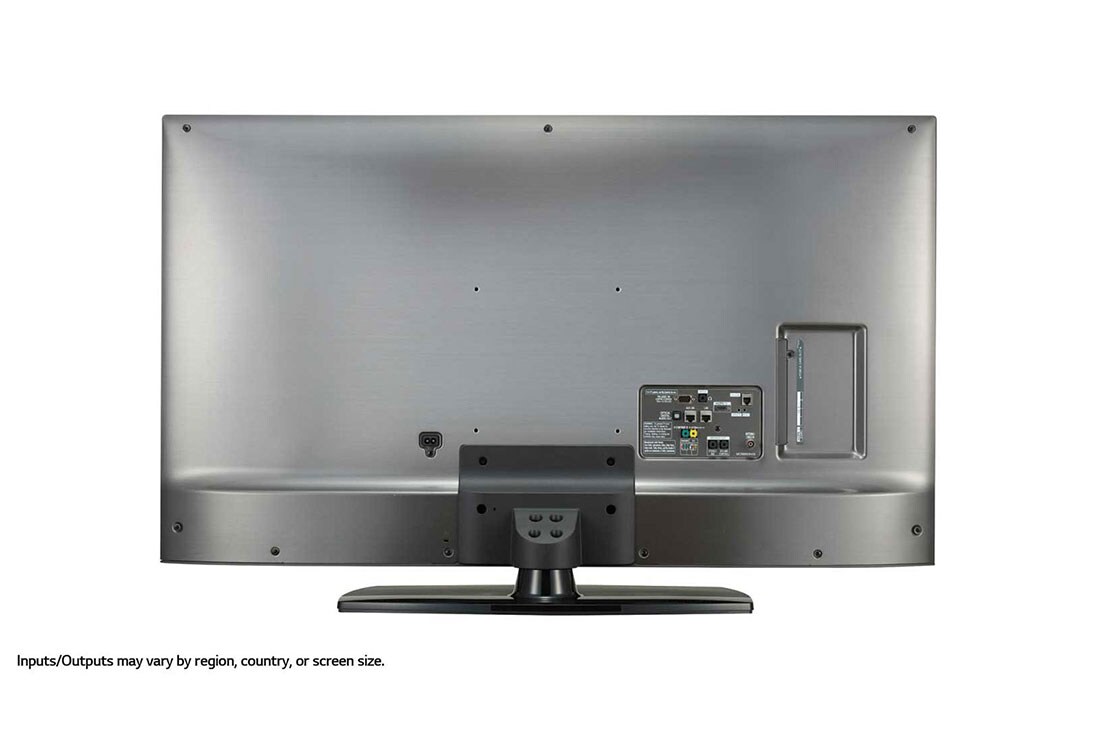

    Set Rear
    RF In, AV In, Component In (Phone Jack Type), Digital Audio Out (Optical), HDMI/HDCP Input, RS-232C (Control & Service), Headphone Out, Clock Interface (RJ12), External Speaker Out
DIMENSION (UNIT: MM)
  • Vesa
    300 x 300
    W x H x D / weight (with stand)
    1,102 x 698 x 303 / 16.3kg
  • W x H x D / Weight (without stand)
    1,102 x 644 x 36.6 / 13kg
    W x H x D / weight (Packing)
    1,192 x 737 x 190 / 19.6kg
POWER (UNIT : WATTS)
  • Voltage, Hz
    100~240V, 50/60 Hz
    Max
    155.7
  • Typical
    131.6
    Energy saving (Min / Med / Max)
    90/65/40
  • Stand-by
    0.5W↓
GENERAL
  • Region
    ASIA
COMPLIANCE INFORMATION
