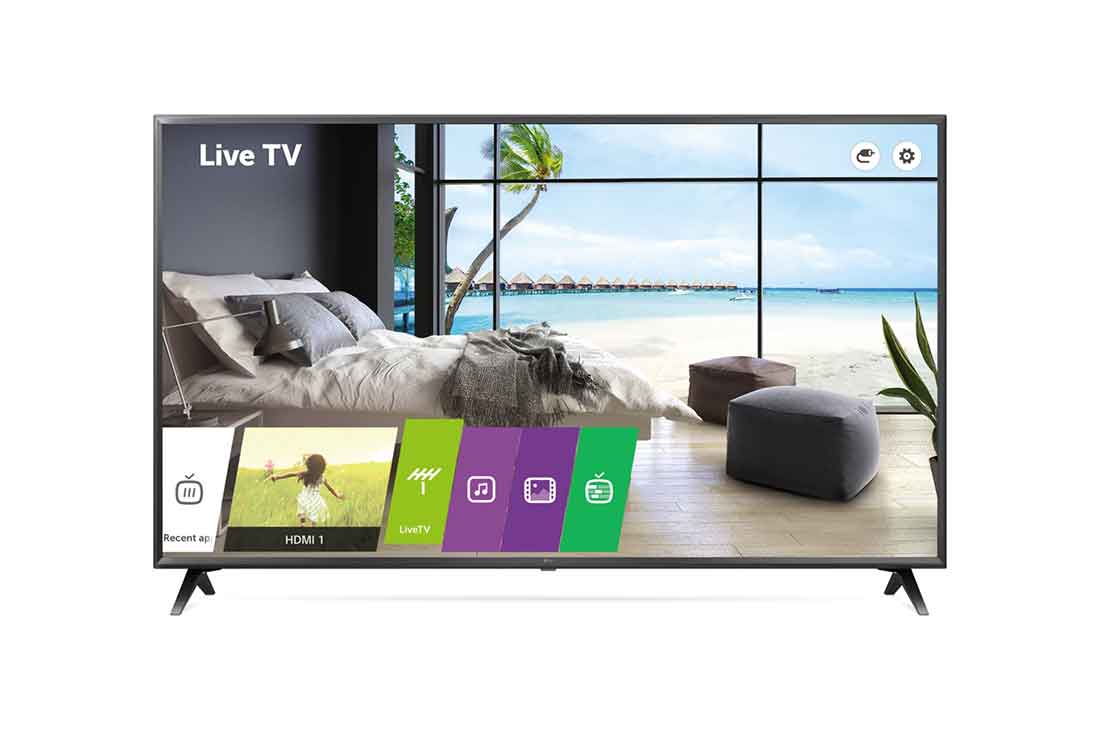

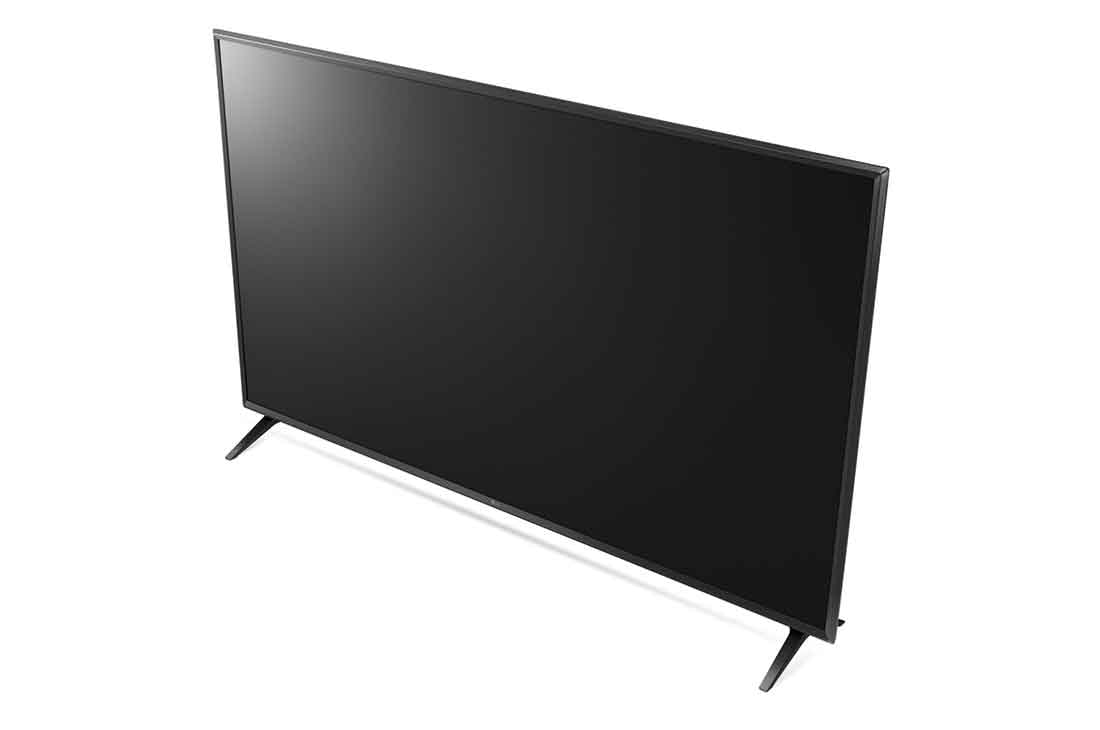

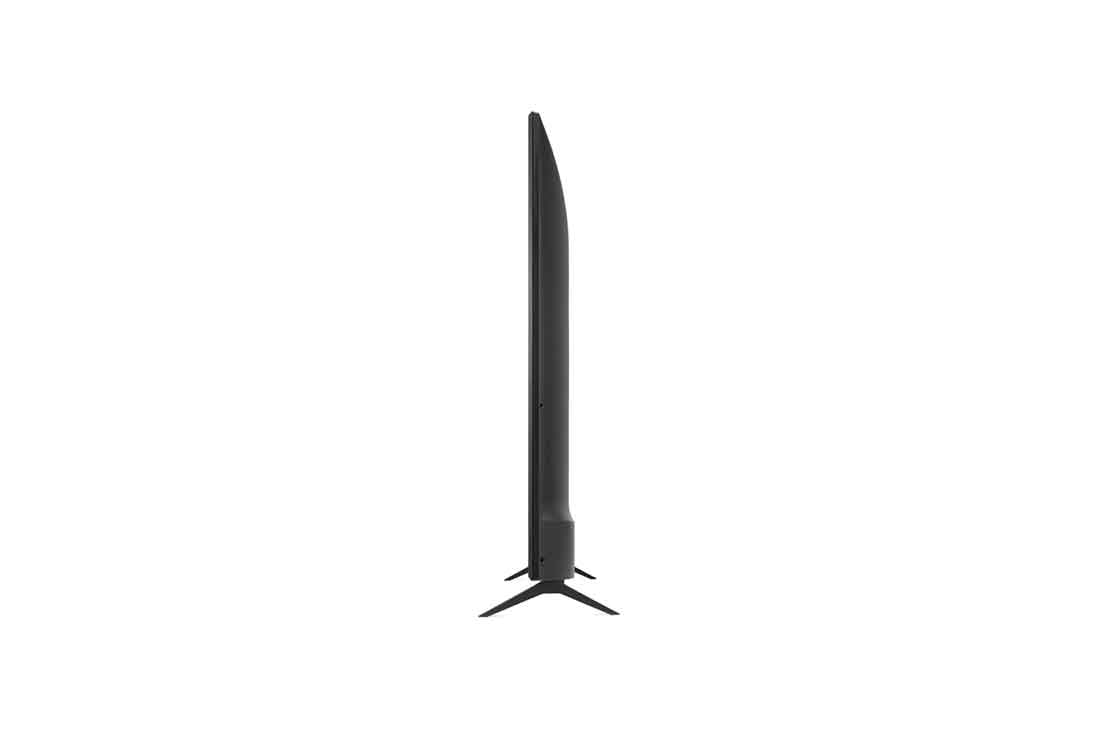

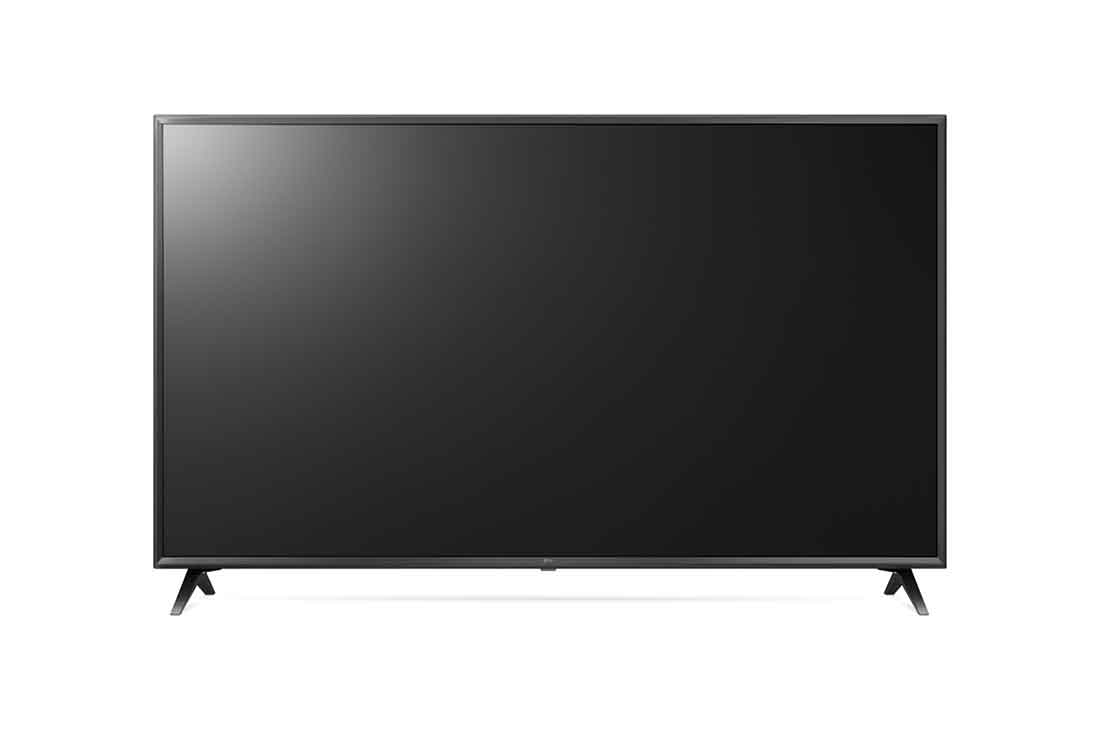

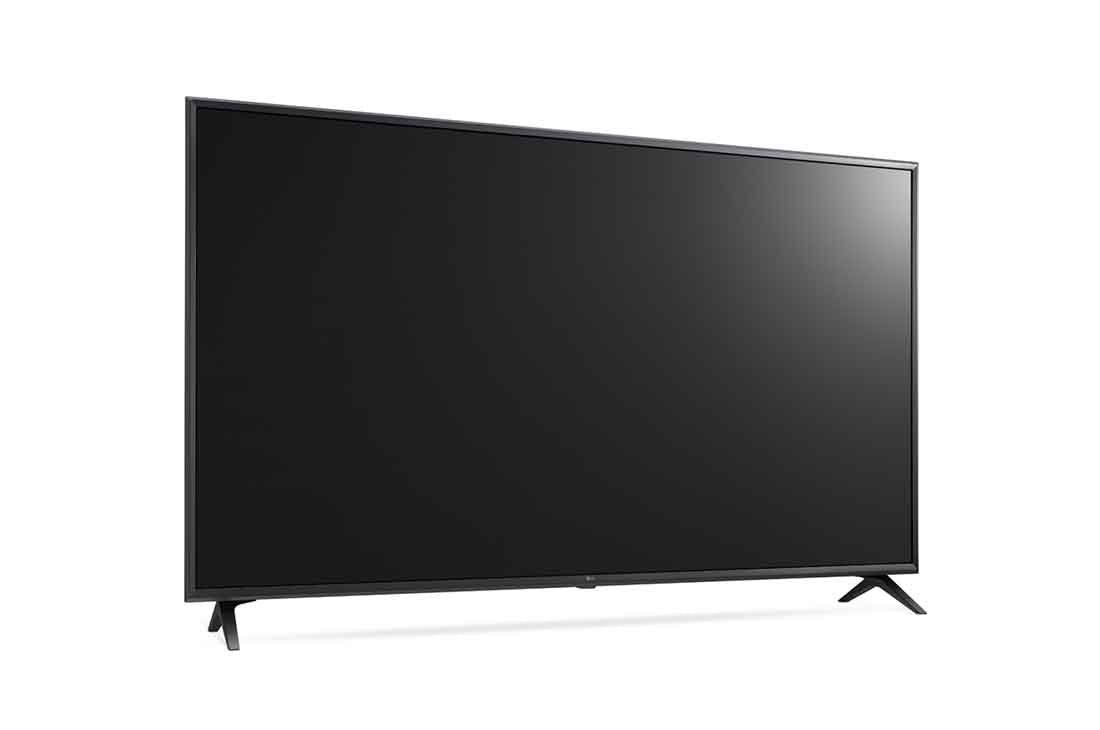

UU660H Series

Key Features

component-OBScountrySelectDesc

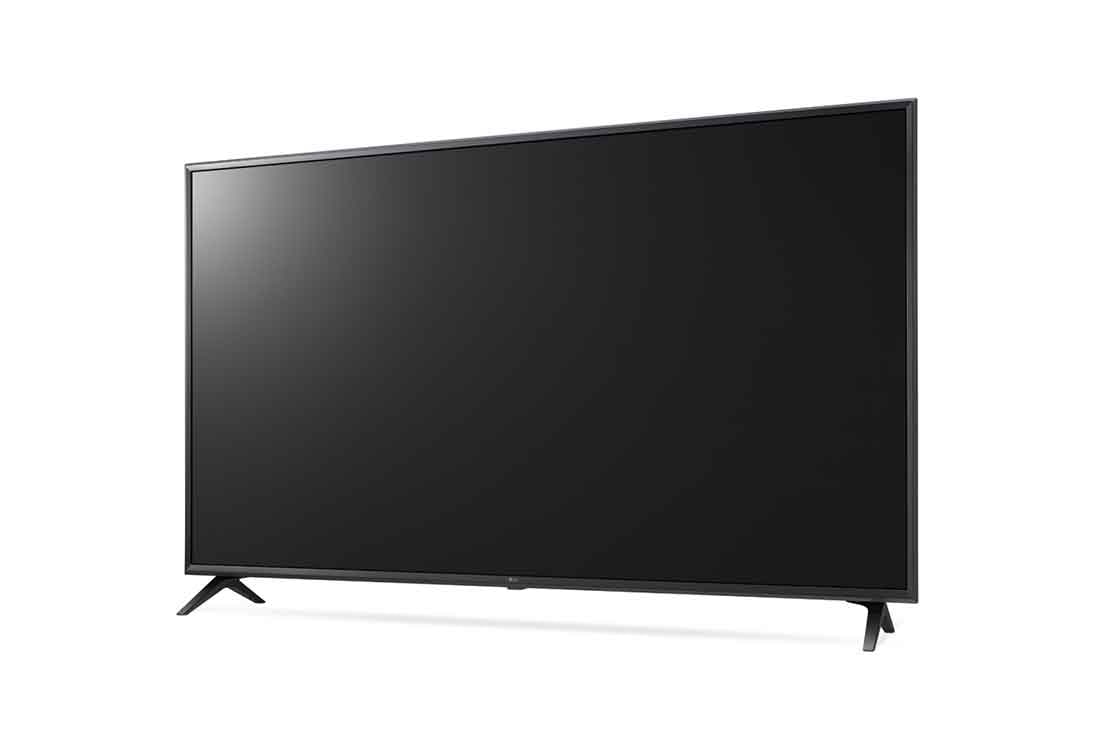

UU660H Series
PANEL
  • Screen Size
    55"
    Backlight Type
    LED (Direct)
  • Resolution
    3,840 x 2,160 (4K UHD)
    Brightness (cd/m²)
    500
BROADCASTING SYSTEM
  • Analog
    Yes (PAL/SECAM)
    Digital
    Yes (Varied by countries)
VIDEO
  • XD Engine
    Yes
    Aspect Ratio
    Yes 5 modes
    (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom)
  • HDR 10
    Yes
AUDIO
  • Audio Output
    10W + 10W
    Speaker System
    2.0ch
  • Sound Mode
    Yes 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
    Yes 6 modes (Only for India, Sri Lanka) (Standard, Cinema, Clear Voice III, Cricket, Music, Game)
    Clear Voice
    Yes (Clear VoiceⅢ)

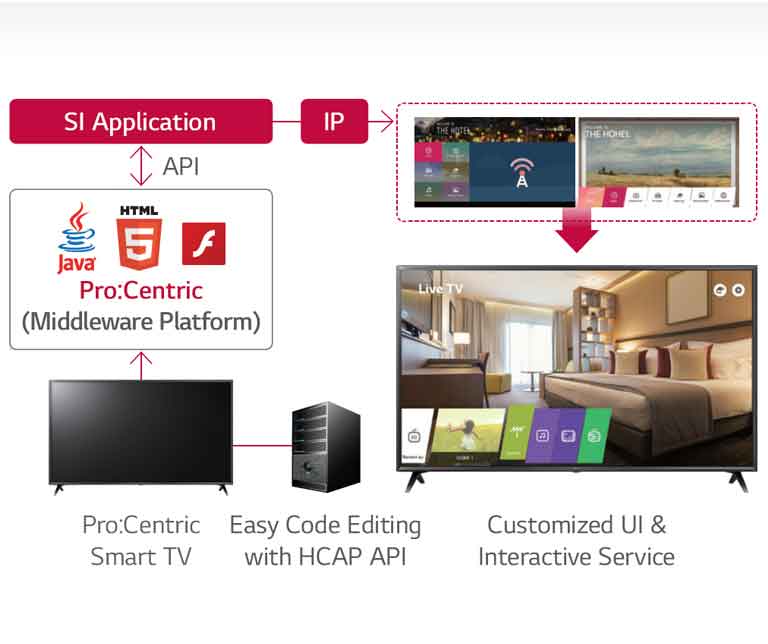

HOSPITALITY SOLUTION

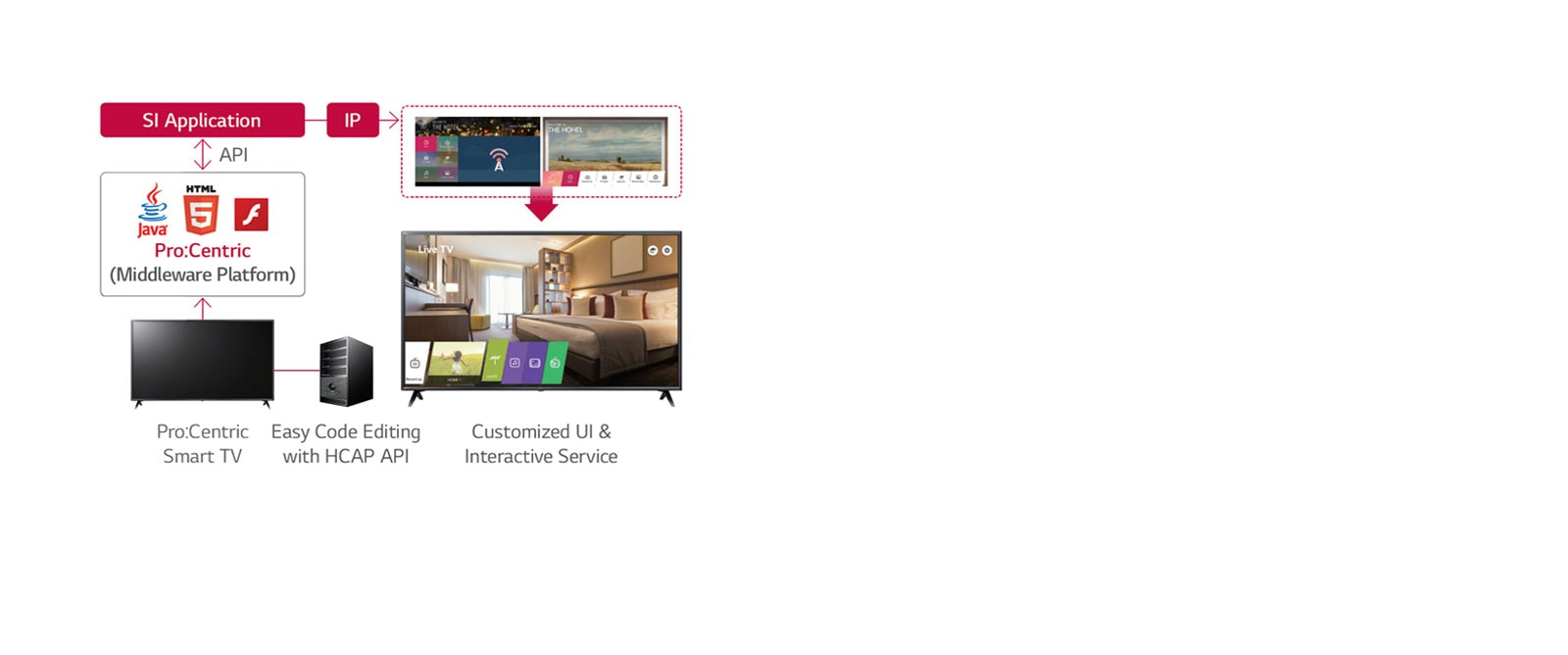

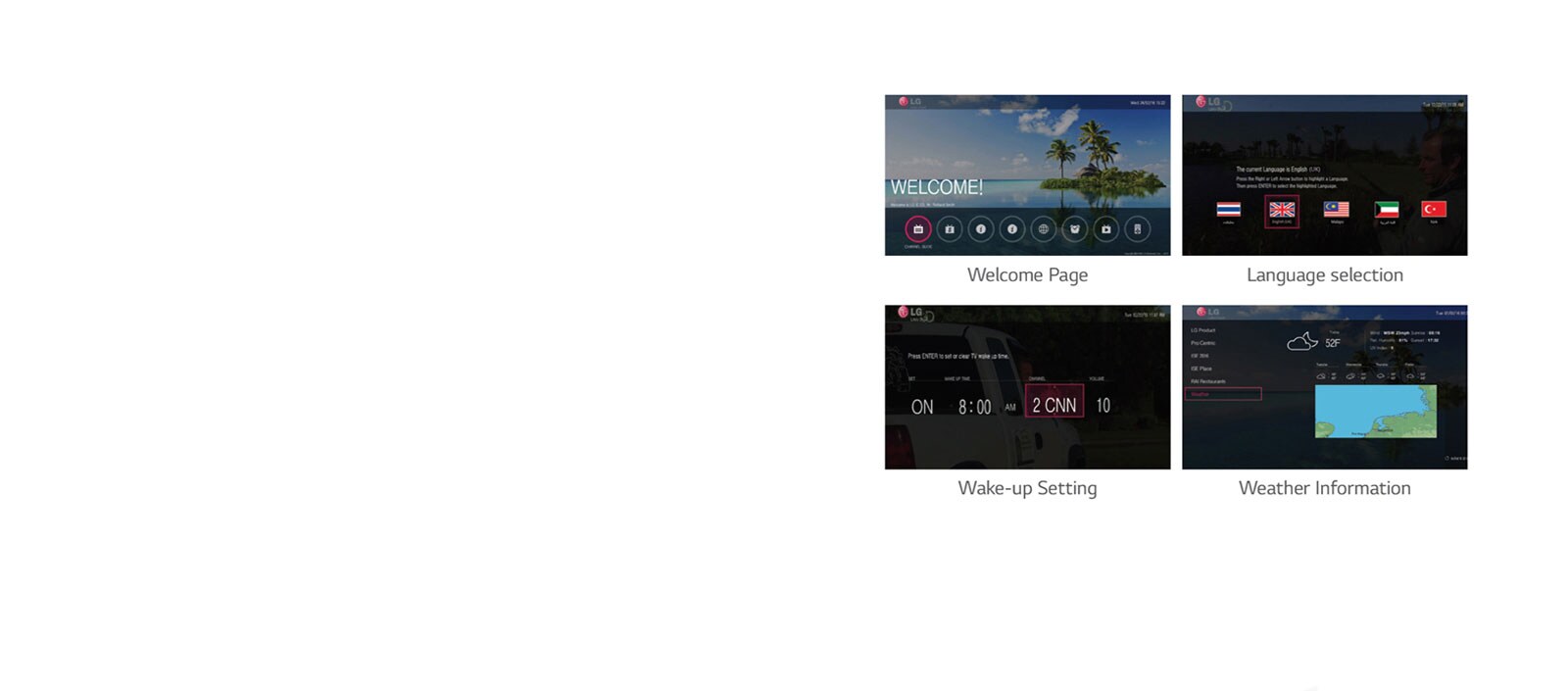

  • Solution Type

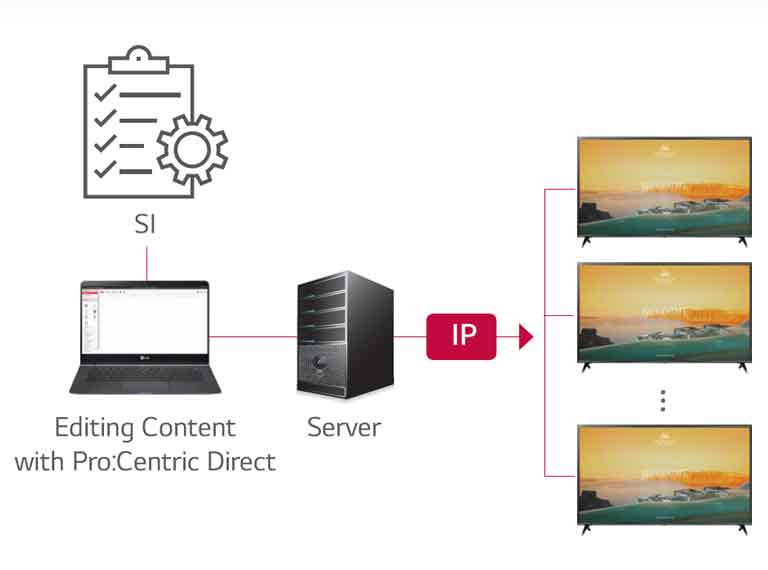

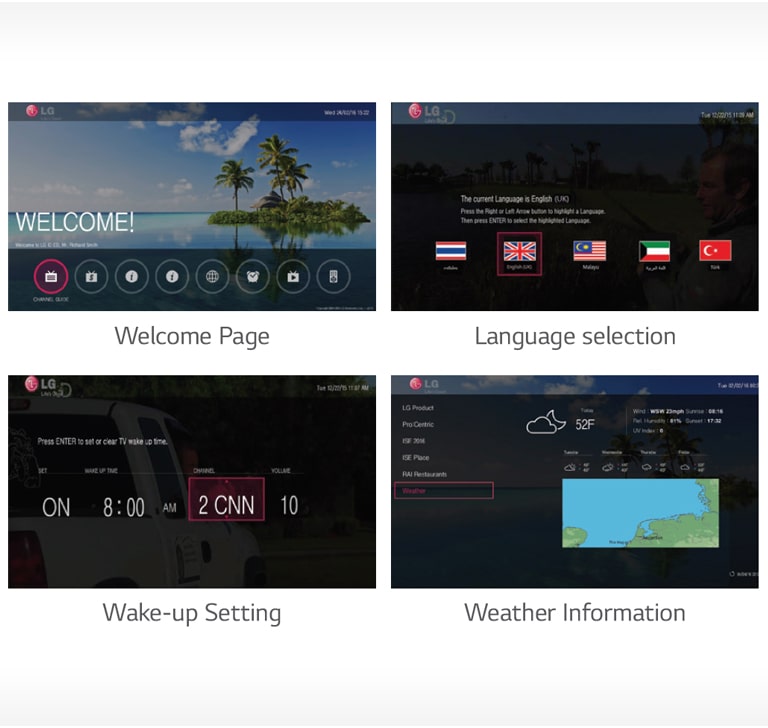

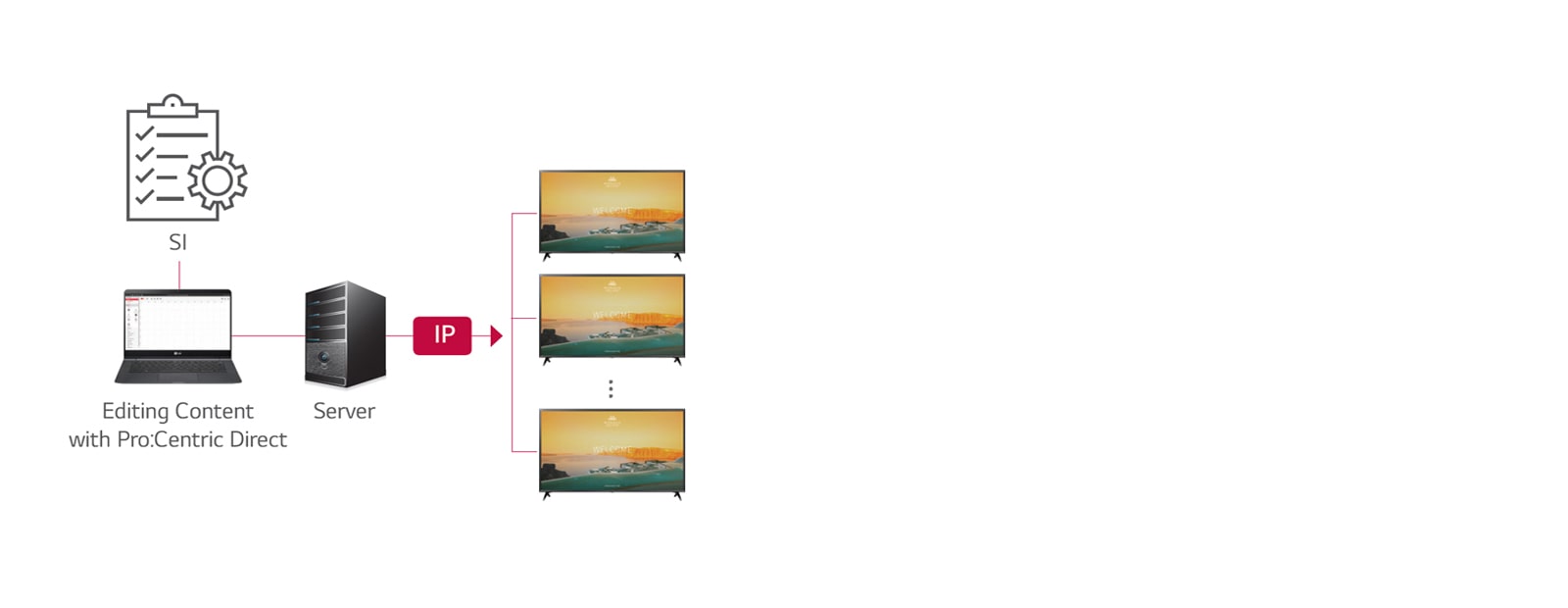

    Pro:Centric (Smart, V, Direct)
    Data Streaming (IP & RF)
    Yes
  • RF
    Yes (1 Tuner)
    HCAP (GEM/FLASH/HTML) ※ Service Carousel (TLL/XML)
    GEM/Flash/HTML5
  • Pro:Centric Application
    PCA 3.8
    DRM
    Pro: Idiom (S/W Type)
JACK INTERFACE
  • Set Side
    HDMI In, USB 2.0 (2), CI Slot

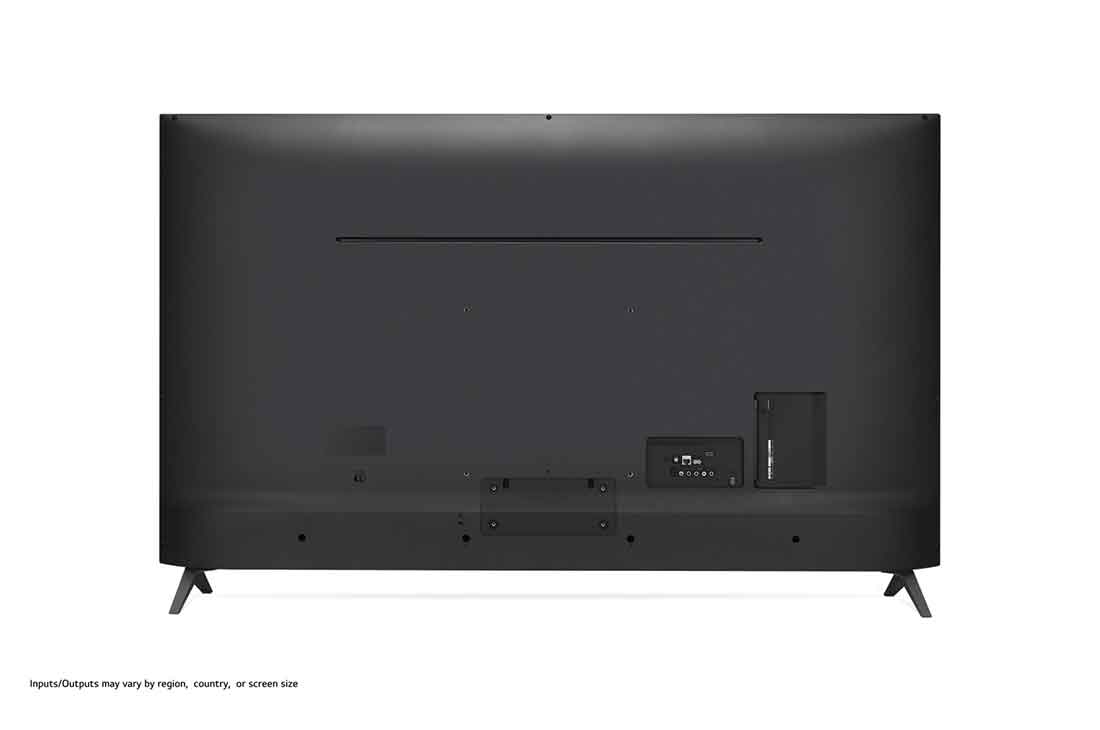

    Set Rear

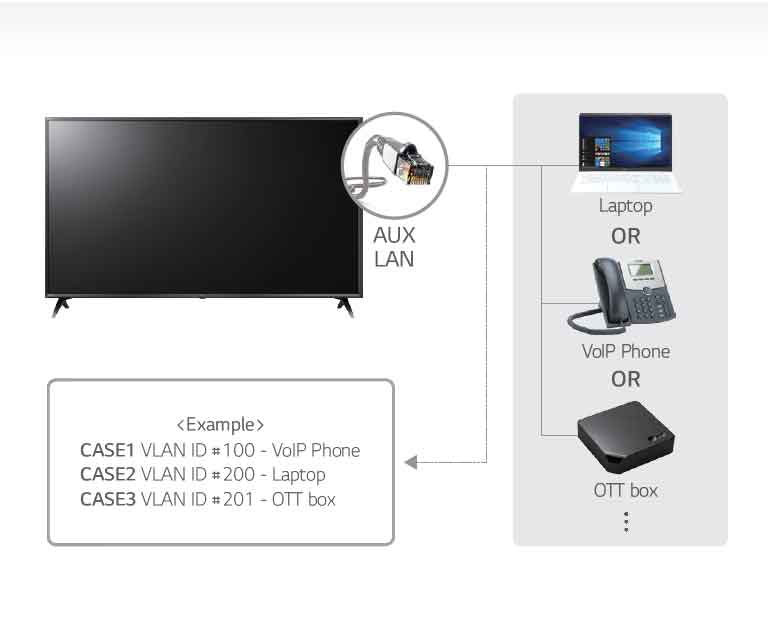

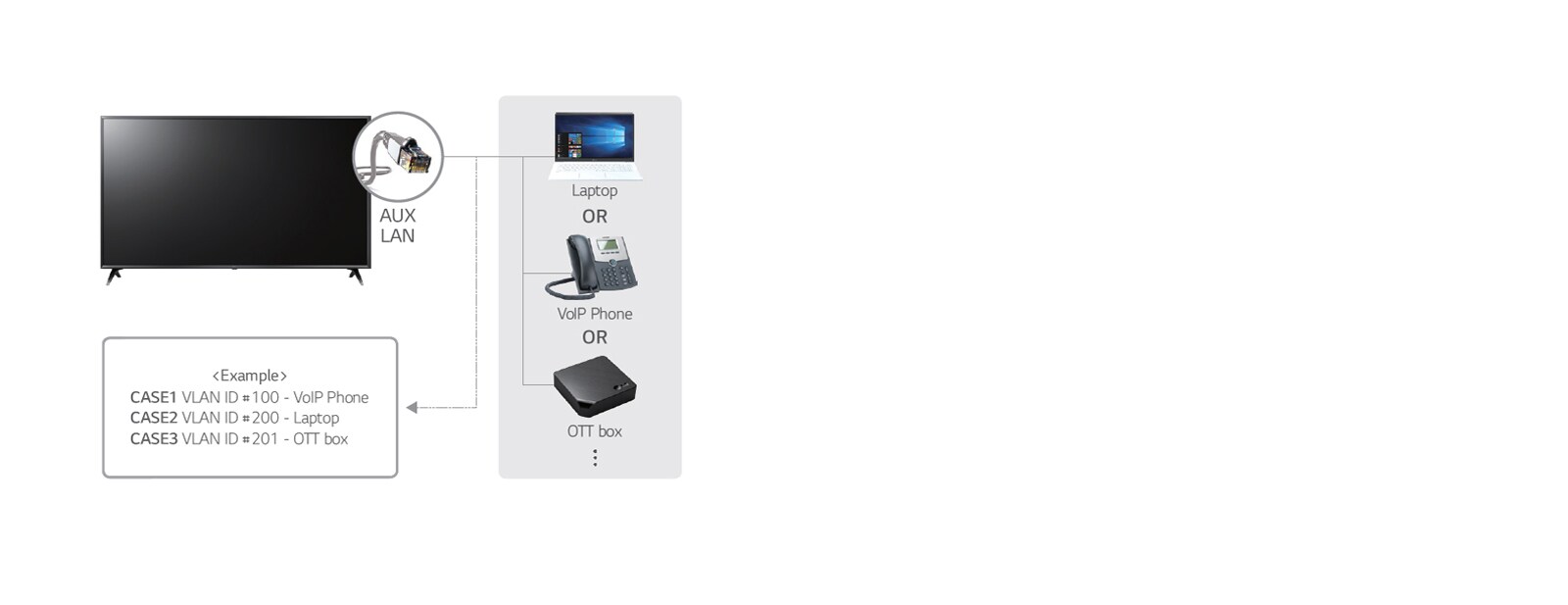

    RF In, AV In, Component in (Y,Pb,Pr-Video), Digital Audio Out (Optical), HDMI/HDCP Input (2.0), RS-232C (Control & Service), Headphone Out, Clock Interface (RJ12), RJ45 (2), External Speaker Out

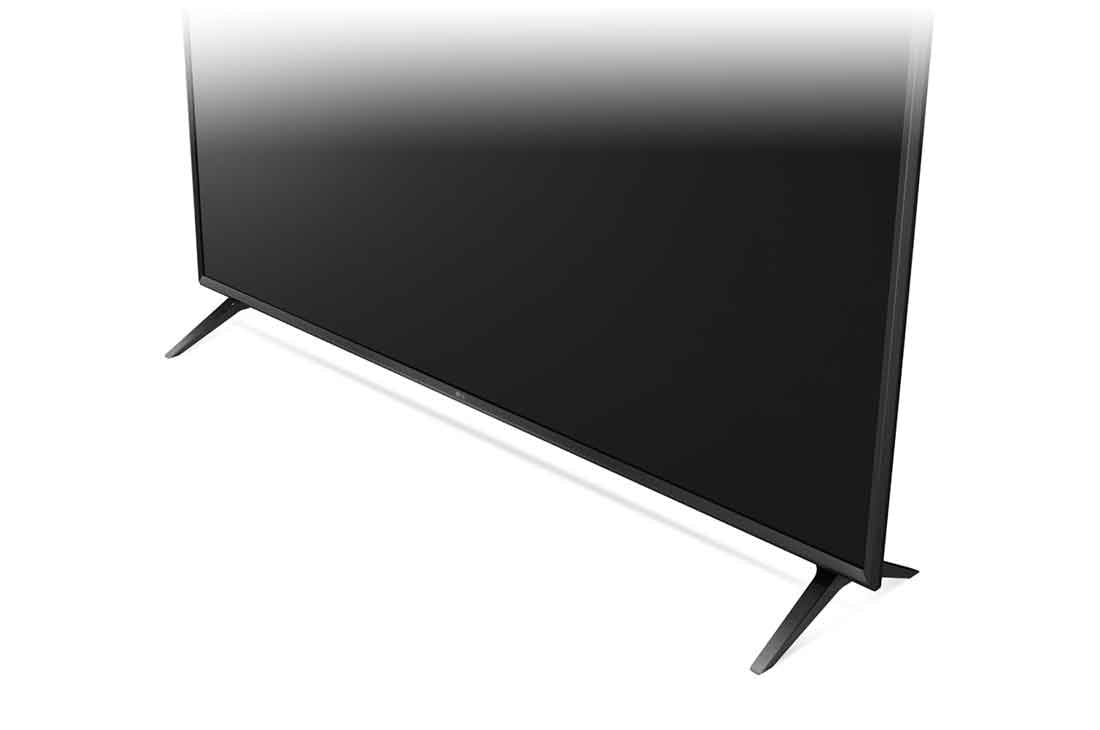

MECHANIC
  • Vesa
    300 x 300 mm
    W x H x D / Weight (with stand)
    1,247 x 785 x 231 mm/13.8kg
  • W x H x D / Weight (without stand)
    1,247 x 729 x 78 mm (SPK: 88.6)/13.7kg
    W x H x D / Weight (Packing)
    1,360 x 835 x 175 mm/18.4kg
POWER (UNIT : WATTS)
  • Voltage, Hz
    100~240V, 50/60Hz
    Max
    152.2W
  • Typical
    126.9W
    Energy saving (Min / Med / Max)
    38.07W/69.79W/101.52W
  • Stand-by
    0.5W
GENERAL
  • Region
    ASIA
