22SM3B-B component-copyModelName
SM3B Series

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (22SM3B-B)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (22SM3B-B)
    $
    $
    LG Members Price
Total
SM3B Series

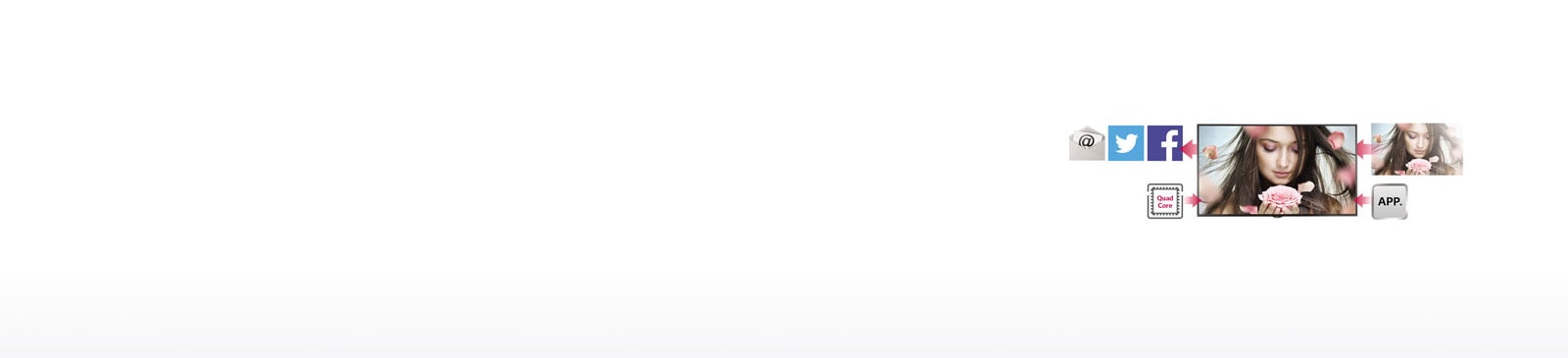

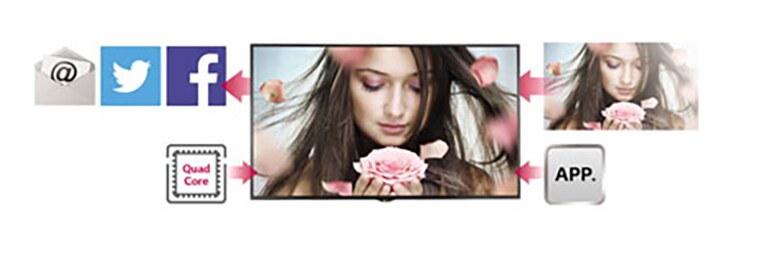

Quad Core SoC1 Quad Core SoC2

Quad Core SoC

The High Performance SoC can execute several tasks at the same time and provides smooth content playback.

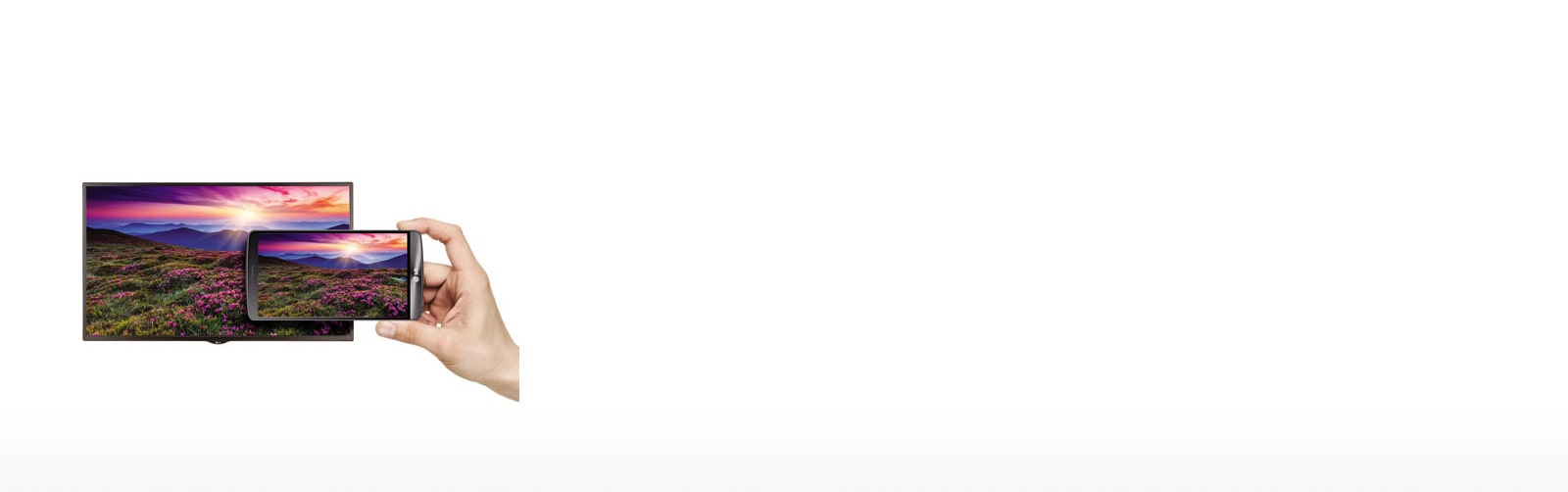

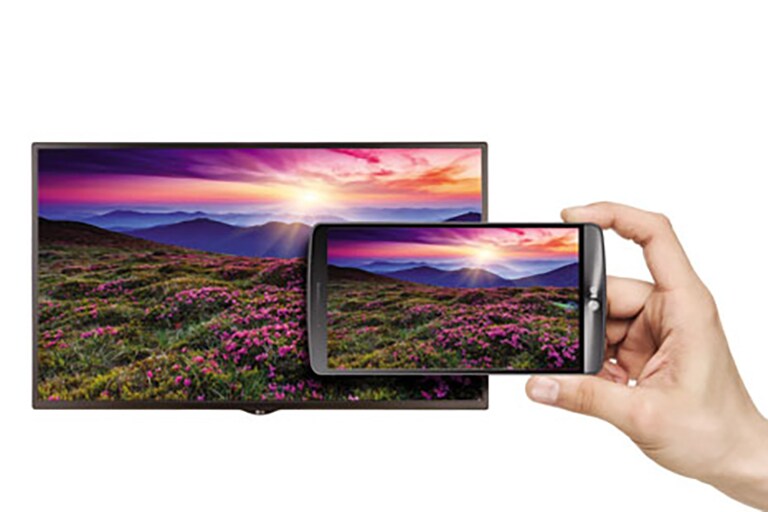

Mirroring1 Mirroring2

Mirroring

Content sharing is more convenient on a Wi-Fi network.

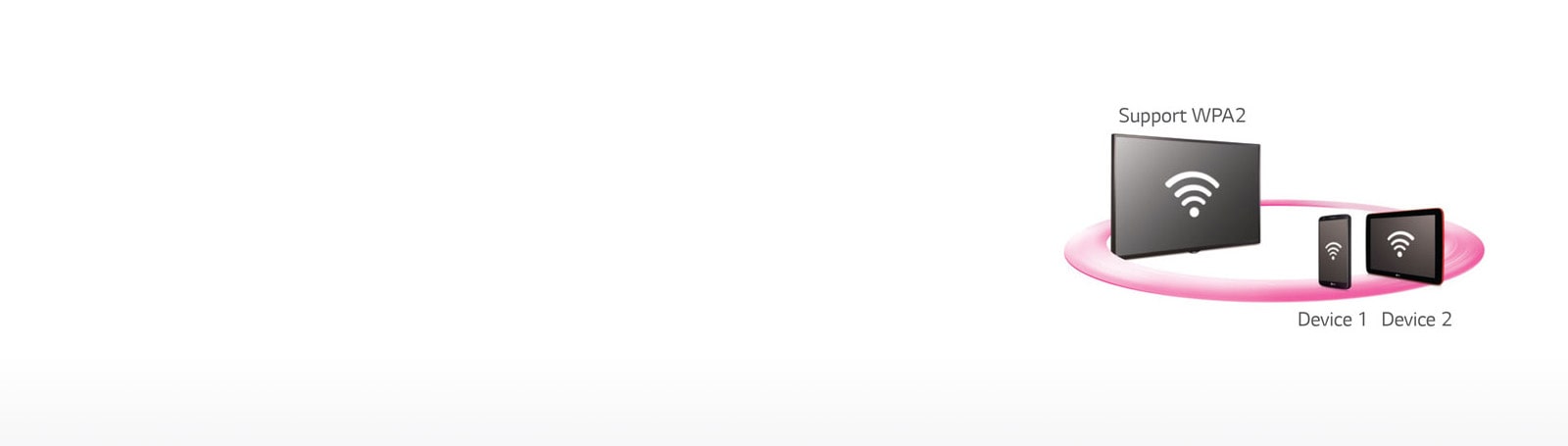

SoftAP 1 SoftAP 2

SoftAP

SoftAP software enables a TV to operate as a wireless access point for mobile devices.
LG C-Display+<br>Customer App<br>1 LG C-Display+<br>Customer App<br>2

LG C-Display+
Customer App

Find the latest production information along with reference case, OLED/LED/Video Wall configurator, manual and sales contact information.
Visit Our Web Application Go to Download App
Close
PANEL
  • Screen Size
    21.5"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Typ.,cd/m²)
    250
CONNECTIVITY - INTPUT
  • HDMI
    Yes (1), HDMI1.4b/HDCP2.2
    DP
    No
  • DVI-D
    No
    Analog (RGB)
    Yes (1)
  • Audio In
    Yes (1), RGB
    External Control (RS232C IN)
    Yes (1)
  • External Control (RJ45)
    Yes (1)
    External Control (IR receiver)
    Yes (Built-in type)
  • External Control (Pixel Sensor)
    Yes (1)
    USB (USB3.0)
    Yes (1)
  • SD Card (SDHC/Full Size)
    No
CONNECTIVITY - OUTPUT
  • DP Out
    No
    Audio Out
    No
  • Externel Speaker Out
    No
    External Control (RS232C OUT)
    No
PHYSICAL SPECIFICATION
  • Bezel Width
    16.3mm (T/R/L/B)
    Monitor Dimension (W x H x D)
    510.3mm X 302.1mm X 53.8mm
  • Weight (Head)
    3.6kg
    VESA™ Standard Mount Interface
    100mm x 100mm
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    No
    External Media player Attatchable
    No
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign W
    Control and Monitoring Software
    SuperSign C
ACCESSORY
  • Basic
    Remote Controller (include battery 2ea), Power Cord, QSG, RGB Cable, Phone to RS232C Gender
    Optional
    Pixel Sensor (KT-SP0), Wall Bracket (RW120)
GENERAL
  • Region
    Global
COMPLIANCE INFORMATION
  • component-safetyInformationNotice-en
  • component-safetyInformationNotice-locale
