22SM3G-B component-copyModelName

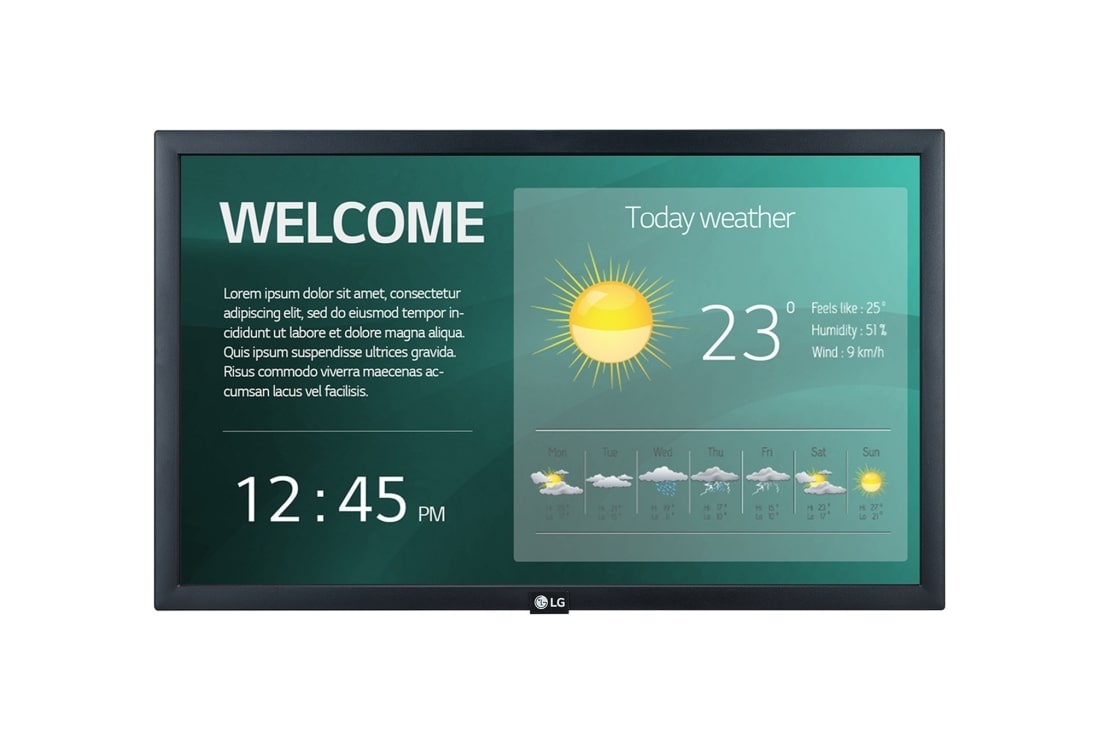

22'' Standard Signage

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (22SM3G-B)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (22SM3G-B)
    $
    $
    LG Members Price
Total

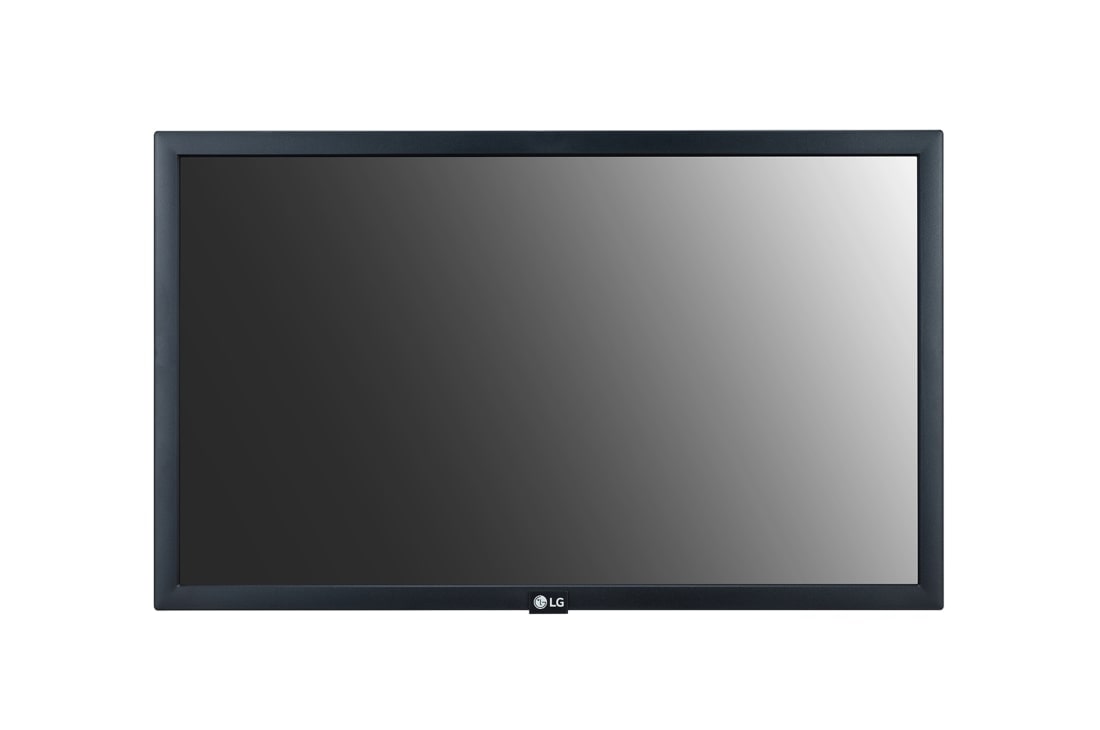

22" Standard Signage
22" Signage with More Utility for Commercial Space1 22" Signage with More Utility for Commercial Space2

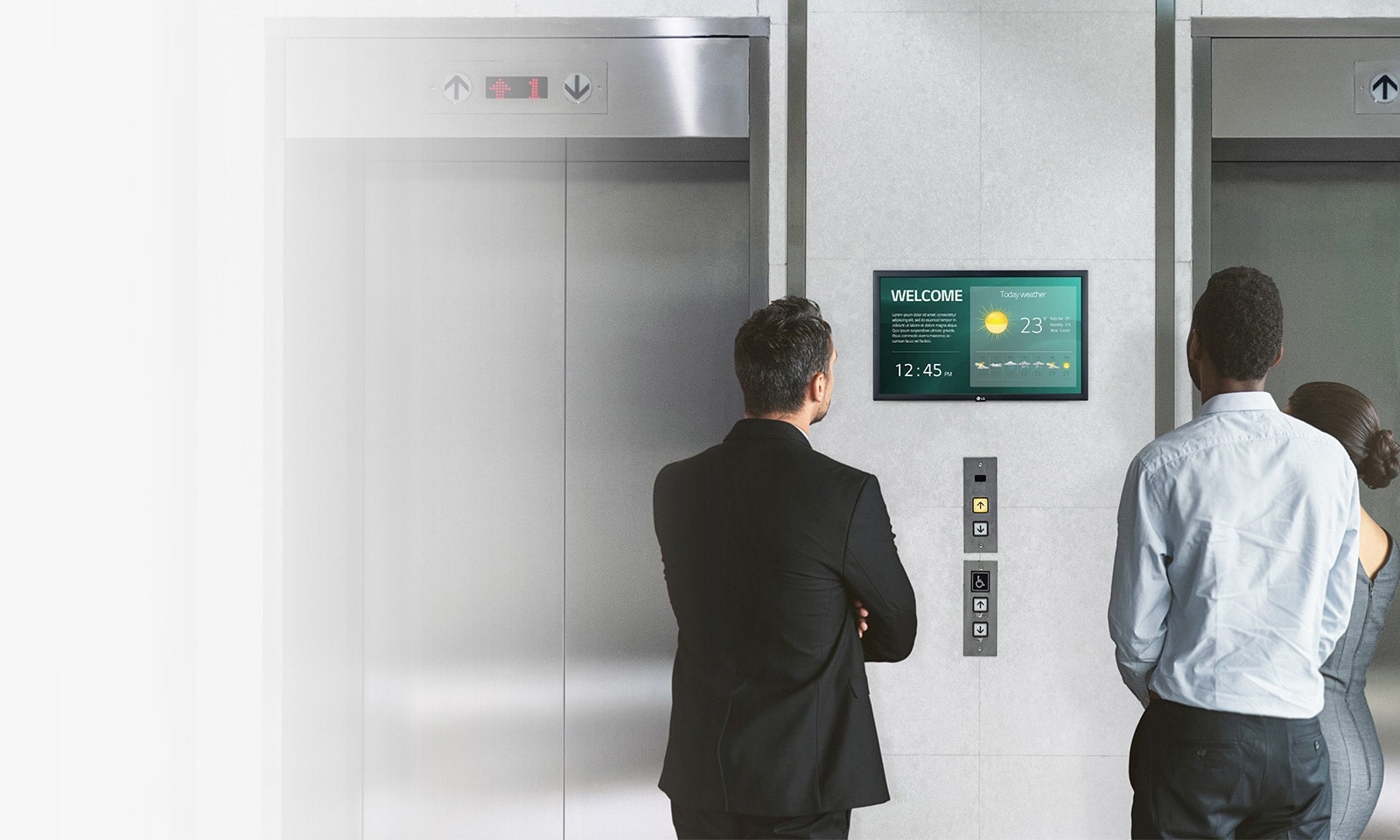

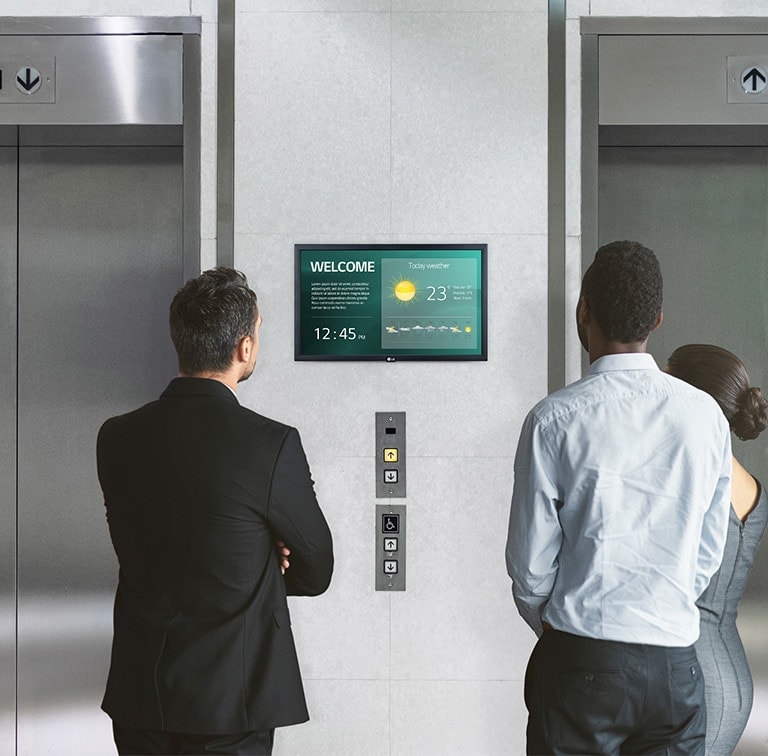

22" Signage with More Utility for Commercial Space

22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.

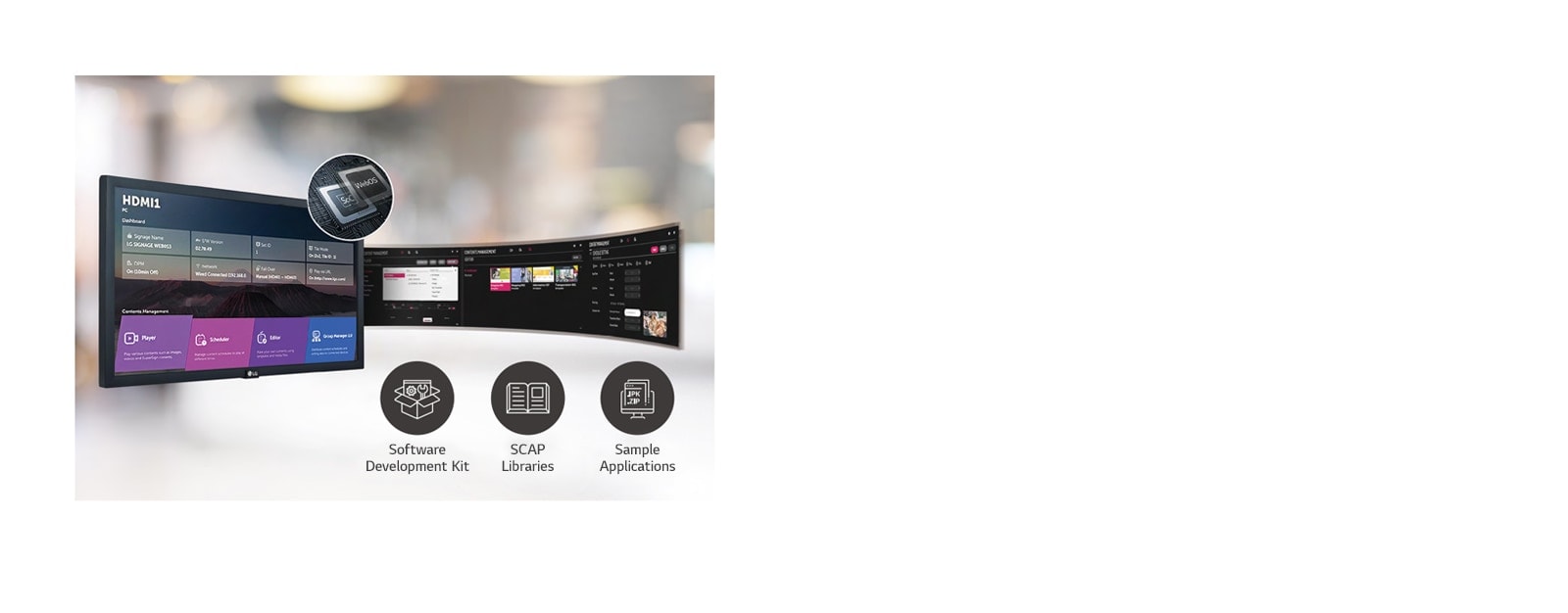

High Performance SoC with webOS1 High Performance SoC with webOS2
SMART SIGNAGE PLATFORM

High Performance SoC with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.

Various Sensor Applications1 Various Sensor Applications2
SMART SIGNAGE PLATFORM

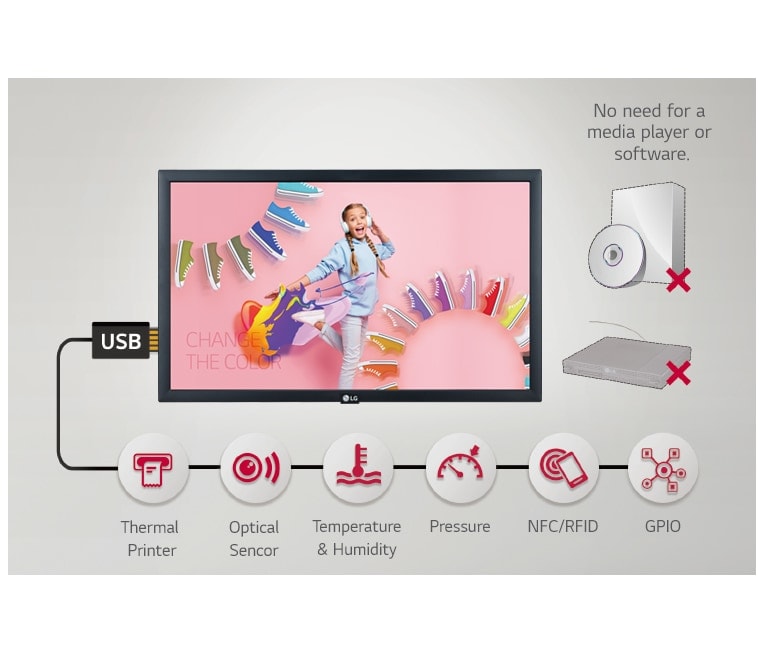

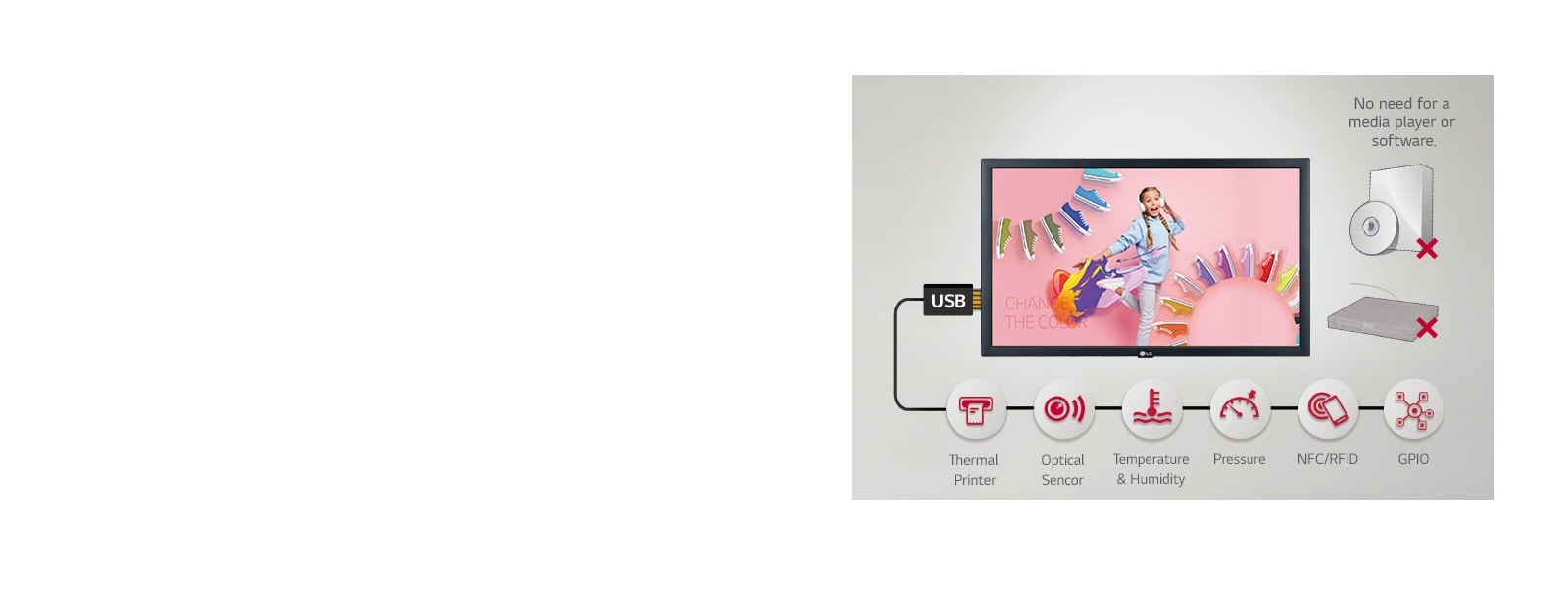

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players.

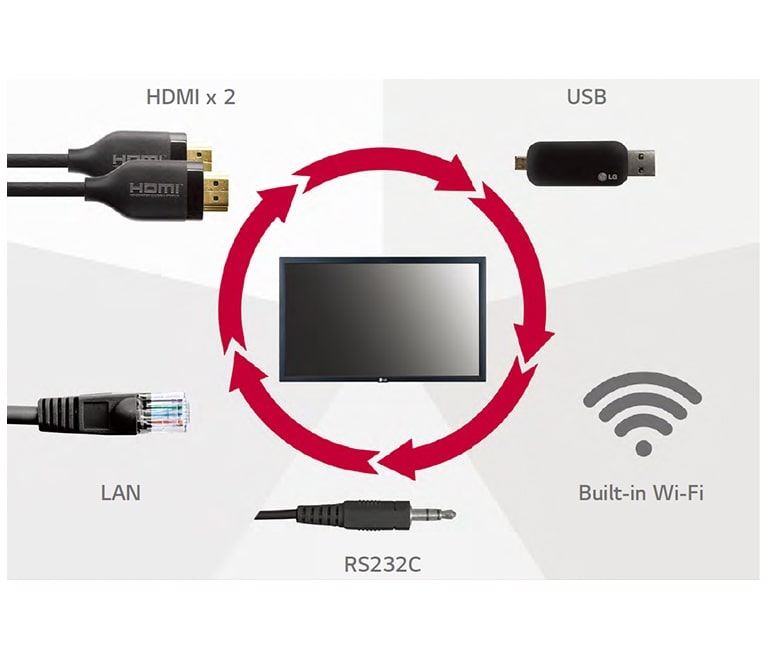

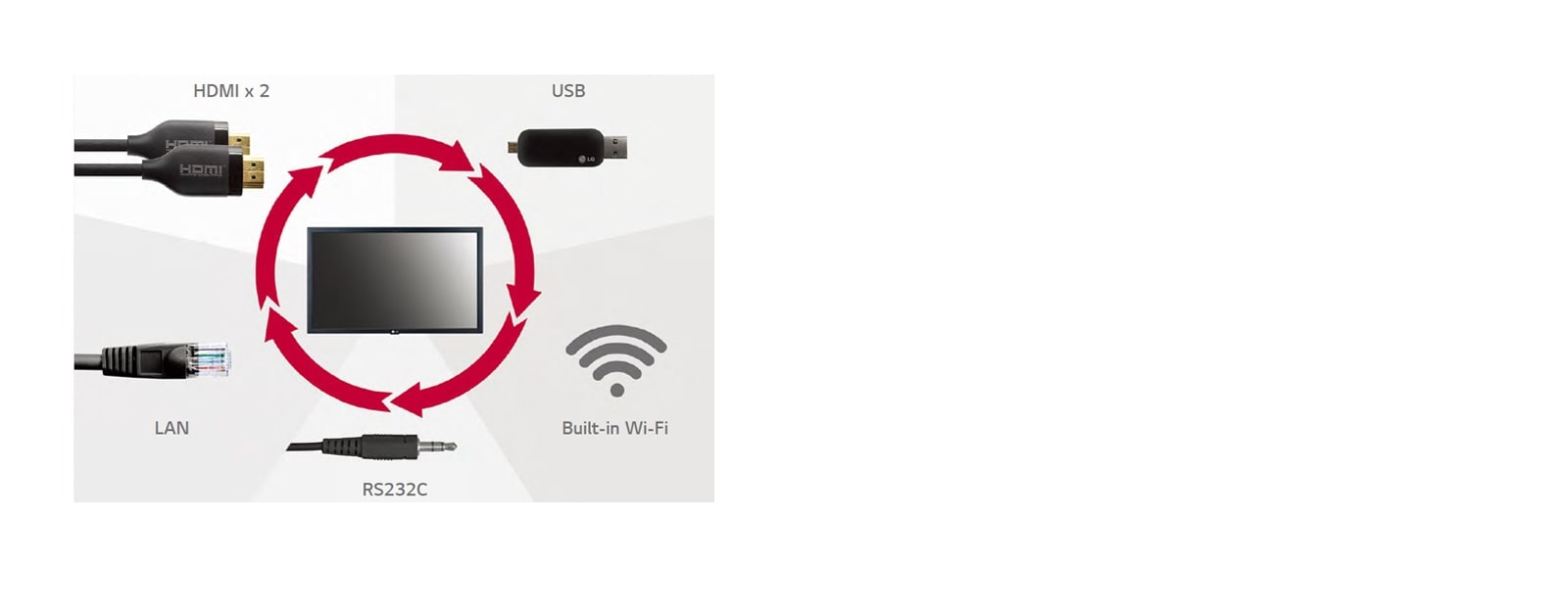

A Wide Range of Interfaces1 A Wide Range of Interfaces2
SMART SIGNAGE PLATFORM

A Wide Range of Interfaces

Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.

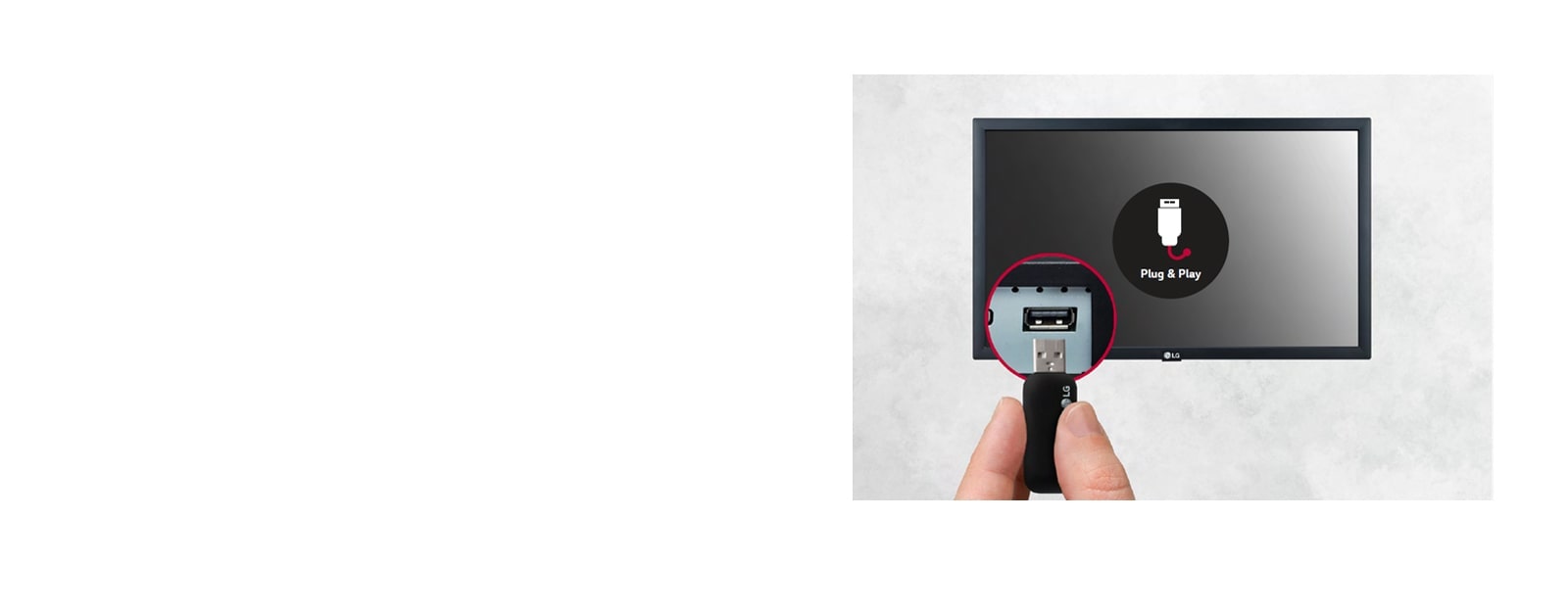

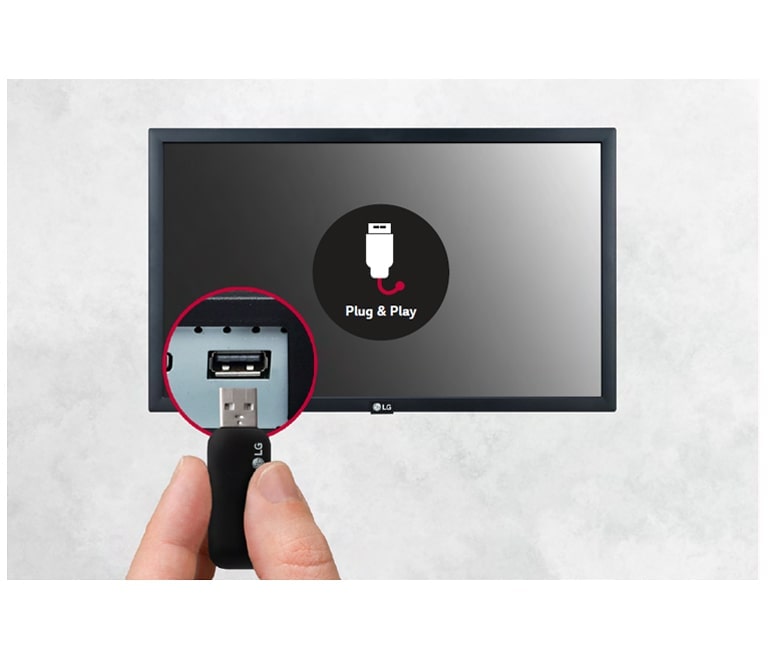

USB Plug & Play1 USB Plug & Play2
SMART SIGNAGE PLATFORM

USB Plug & Play

22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.

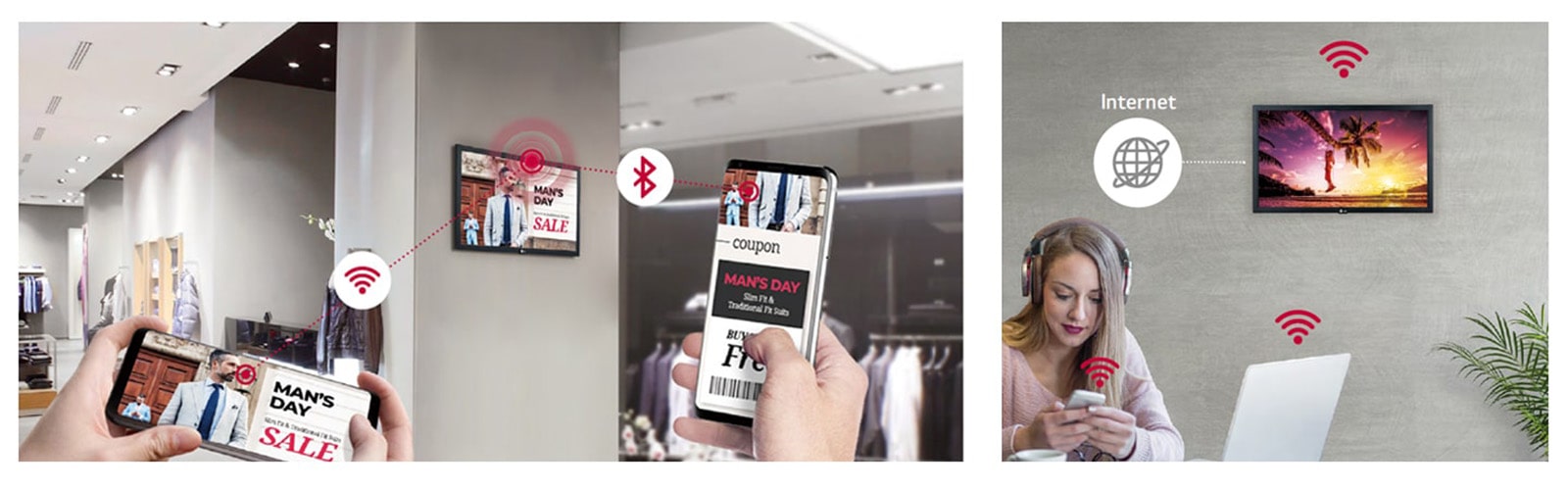

SMART SIGNAGE PLATFORM

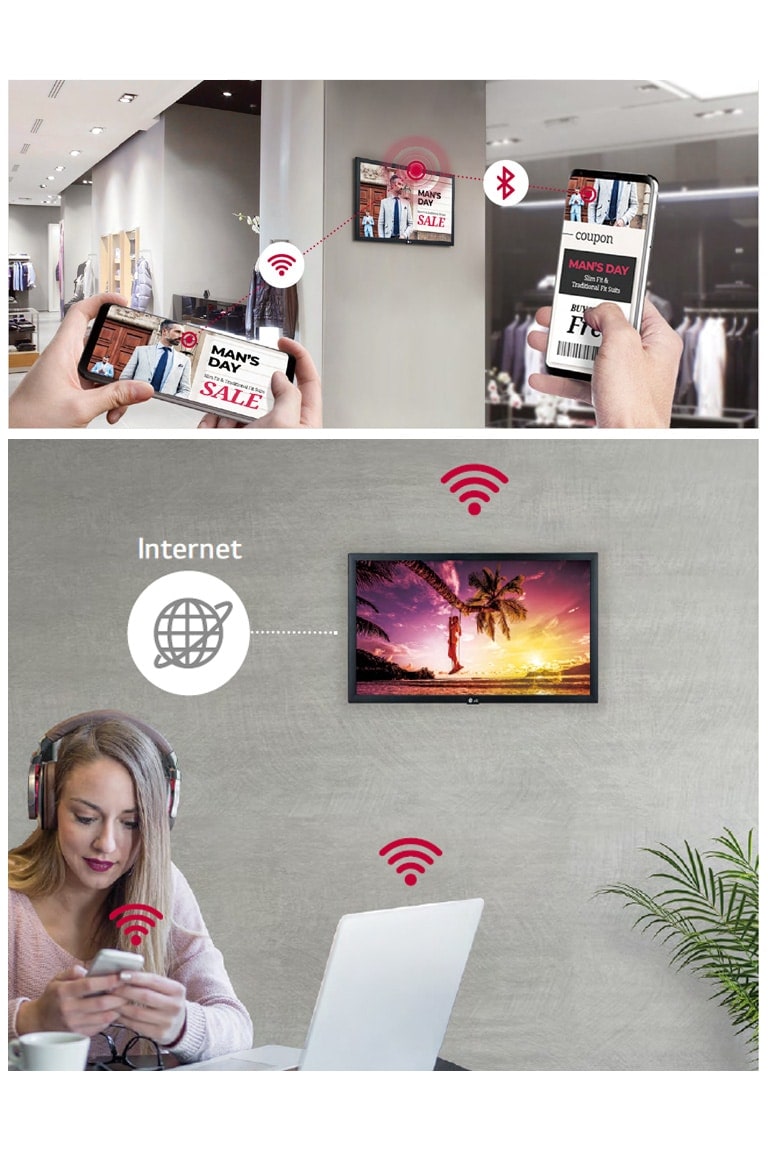

SMART SIGNAGE PLATFORM1 SMART SIGNAGE PLATFORM2

  • Content Sharing

    Content Mirroring among devices is more convenient on a Wi-Fi network.

  • Real-time Promotion

    With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.

  • Wireless Solution

    22SM3G operates as a virtual router which can be a wireless access point for mobile devices.

Remote Monitoring and Control1 Remote Monitoring and Control2
OPERATIONAL EFFICIENCY

Remote Monitoring and Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

Real-time Care Service with LG Signage365Care1 Real-time Care Service with LG Signage365Care2
OPERATIONAL EFFICIENCY

Real-time Care Service with LG Signage365Care

The maintenance gets easier and faster with the optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring stable operation of the client’s business.

* The availability of “Signage365Care” service can differ by region, so please contact the LG sales representative in your region for further details.
Close
PANEL
  • Screen Size
    21.5"
    Panel Technology
    IPS
  • Native Resolution
    1,920 x 1,080 (FHD)
    Brightness
    250 nit (Typ.)
  • Contrast Ratio
    1,000:1
    Dynamic CR
    400,000:1
  • Color gamut
    BT709 95%
    Viewing Angle (H x V)
    178 x 178
  • Color Depth
    6bit, 16.7Million Colors
    Response Time
    14ms (G to G)
  • Surface Treatment(Haze)
    25%
    Operation Hours (Hours / Day)
    16/7
  • Landscape
    Yes
CONNECTIVITY
  • Input - Digital - HDMI
    Yes(2), HDCP2.2
    Input - Audio In
    Yes(1)
  • Input - External Control - RS232C IN
    Yes(1), Phone-jack
    Input - External Control - RJ45(LAN)
    Yes(1)
  • Input - External Control - IR IN
    Yes(1), Phone-jack
    Input - USB
    USB2.0 Type A(1)
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    Even Bezel 16.3mm
  • Weight (Head)
    3.34 kg
    Monitor Dimension(W x H x D)
    510.3 x 302.1 x 53.8mm
  • VESA™ Standard Mount Interface
    100 x 100
KEY FEATURE
  • HW - Internal Memory
    8GB
    HW - Wi-Fi - Built-in
    Yes
  • HW - Sensor - Temperature Sensor
    Yes
    HW - Local Key Operation
    Yes
  • SW - webOS ver.
    webOS 4.1
    SW - Embedded CMS - Local Contents Scheduling
    Yes
  • SW - Embedded CMS - Group Manager
    Yes
    SW - USB Plug & Play
    Yes
  • SW - Fail over
    Yes
    SW - Background Image - Booting Logo Image
    Yes
  • SW - Background Image - No Signal Image
    Yes
    SW - Multi-screen - PIP
    Yes
  • SW - Multi-screen - PBP
    Yes(2)
    SW - Screen Share
    Yes
  • SW - Video Tag
    Yes(2)
    SW - Play via URL
    Yes
  • SW - Gapless Playback
    Yes
    SW - Setting Data Cloning
    Yes
  • SW - SNMP
    Yes
    SW - ISM Method
    Yes
  • SW - Status Mailing
    Yes
    SW - Control Manager
    Yes
  • SW - 3rd Party Compatibility - Crestron Connected®
    Yes (Network Based Control)
    SW - Smart Energy Saving
    Yes
  • SW - PM mode
    Yes
    SW - Wake on LAN
    Yes
  • SW - Beacon
    Yes
    SW - HDMI-CEC
    Yes (Compatibility may differ by equipment.)
  • SW - SI Server Setting
    Yes
    SW - webRTC
    Yes
  • SW - Pro:Idiom
    Yes
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    30W
    Max.
    33W
  • BTU (British Thermal Unit)
    7.17(Typ), 7.89(Max)
SOUND
  • Speaker
    Yes(1W x 2EA)
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE
  • ErP
    Yes (EU Only)
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes/Yes
  • SuperSign WB
    Yes
    SuperSign Media Editor
    Yes
  • Signage 365 Care
    Yes (The availability can differ by region.)
ACCESSORY
  • Basic
    Remote Controller, Power Cord, QSG, HDMI Cable, Phone to RS232C Gender, External IR, IR Sheet
