1,500nits FHD IP-rated Outdoor Display

Versatile Outdoor Display Fit for Your Business

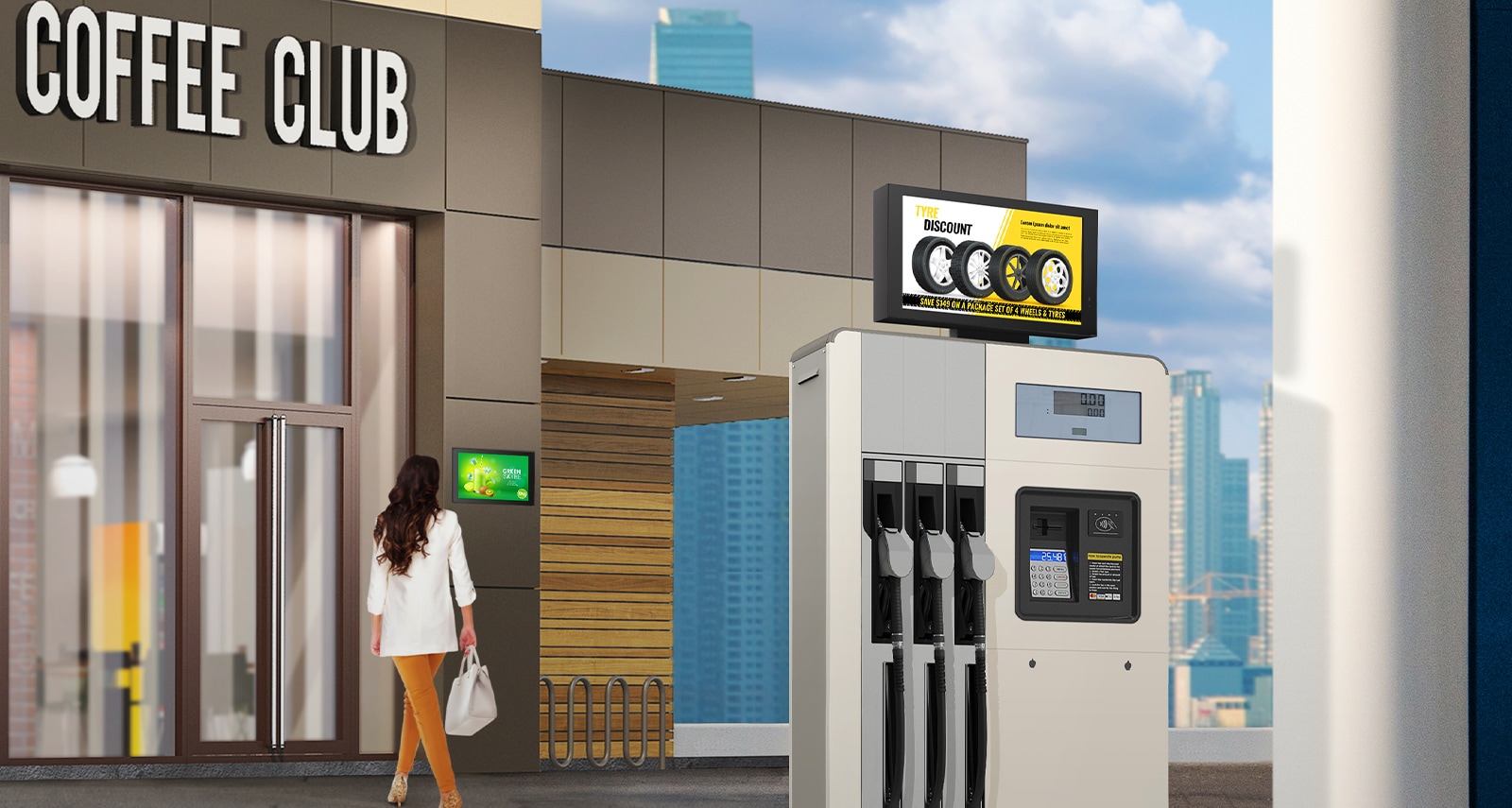

Ads for tires are displayed on a 22XE1J installed on the upper part of the gas lubricator. A lady entering a café looks at the advertisement on the 22XE1J which is installed on the wall of the building. Ads for tires are displayed on a 22XE1J installed on the upper part of the gas lubricator. A lady entering a café looks at the advertisement on the 22XE1J which is installed on the wall of the building.
* All images in this web page are for illustrative purposes only.

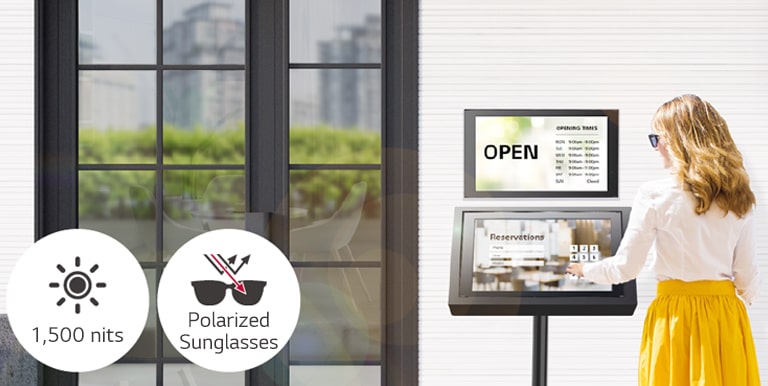

A 22XE1J is installed on the wall at the entrance of the building with another 22XE1J stand below for reservation purposes. The lady with sunglasses is using the 22XE1J screen with a touch overlay to make a reservation. The screen remains visible even when under direct sunlight. A 22XE1J is installed on the wall at the entrance of the building with another 22XE1J stand below for reservation purposes. The lady with sunglasses is using the 22XE1J screen with a touch overlay to make a reservation. The screen remains visible even when under direct sunlight.

High Visibility Under Bright Environments

With a brightness of 1,500 nits, 22XE1J boasts high visibility in bright environments. In addition, its clear visibility can deliver a variety of information even to those wearing polarized sunglasses.

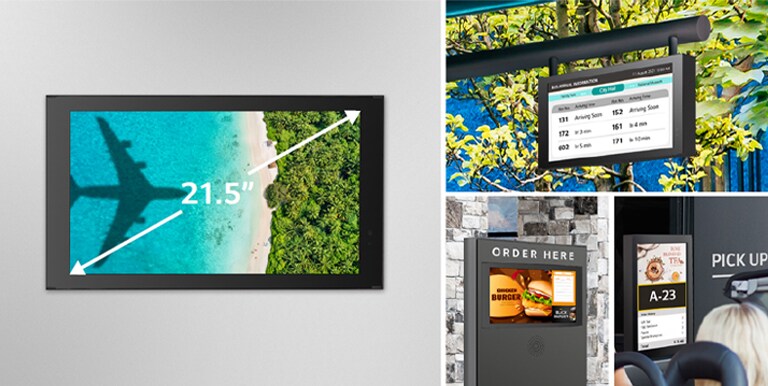

The left one shows a 22XE1J installed on the wall showing its 21.5" in size. On the right, there are various screen types: A hanging type, kiosk type, and stand-alone installation type. The left one shows a 22XE1J installed on the wall showing its 21.5" in size. On the right, there are various screen types: A hanging type, kiosk type, and stand-alone installation type.

21.5 inches of Versatile Screen Size

The small and light size of 21.5 inches allows for flexible use in various spaces. In particular, you can install the display in various way allowing for high utilization for small-medium businesses (SMB) to large businesses.

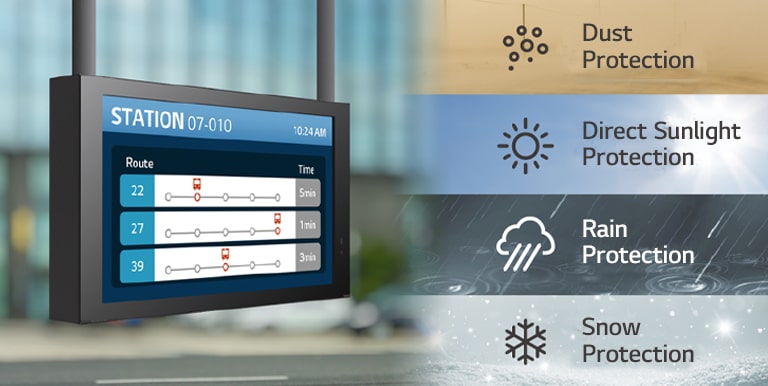

The 22XE1J is protected against dust, direct sunlight, rain, and snow. The 22XE1J is protected against dust, direct sunlight, rain, and snow.

Secured Protection with IP56 Design

The display is sealed with IP56 design for reliable operation. It’s designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, which is an essential feature for outdoor application.
A display is working well in an environment of -30~50°C. A display is working well in an environment of -30~50°C.

Wide Operating Temperature Range

22XE1J can be used under a wide range of operating temperatures which results in fewer constraints for outdoor installation.
The 22XE1J has a conformal coating making it resistant to dust and salinity in moisture. The 22XE1J has a conformal coating making it resistant to dust and salinity in moisture.

Conformal Coating

Conformal Coating* improves reliability of the circuit board, power board by protecting it against dust, iron powder, humidity, etc.
* Conformal Coating : Thin protective films/breathing membranes that filter water vapor and solid debris
The 22XE1J screen can adjust its brightness automatically according to the ambient light. The 22XE1J screen can adjust its brightness automatically according to the ambient light.

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

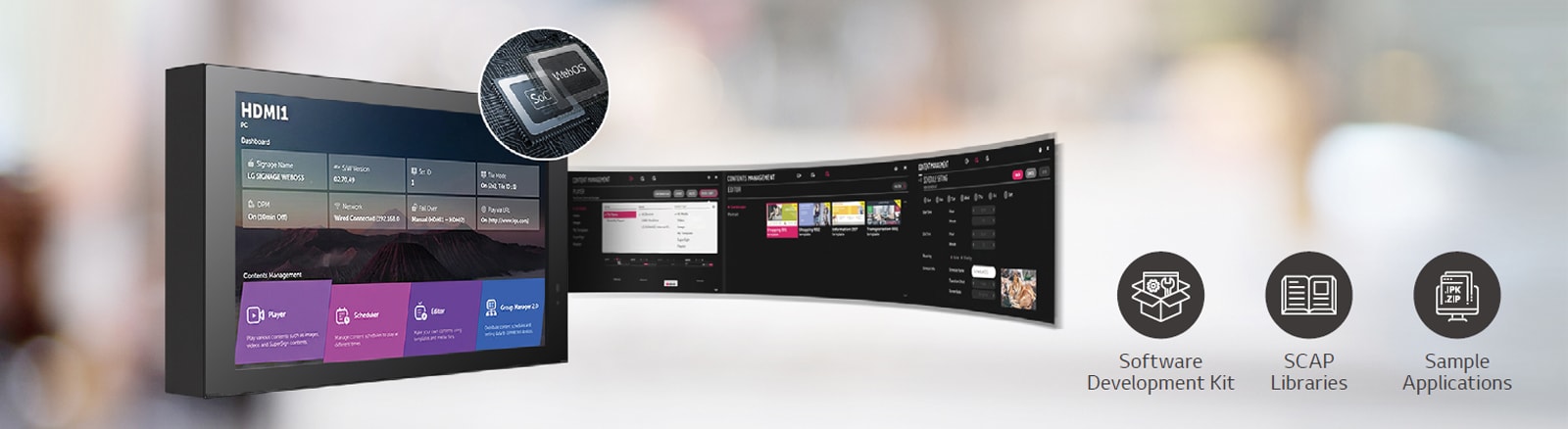

High Performance with webOS

Quad Core SoC* can execute several tasks at the same time without a separate media player. In addition, webOS 4.1 platform enhances user convenience with intuitive UI and simple app development tools.
A number of tasks that can be done simultaneously are easily arranged through the web OS platform. A number of tasks that can be done simultaneously are easily arranged through the web OS platform.
* System-on-Chip

Easy Content Distribution
& SW Update

22XE1J features embedded Wi-Fi*, Bluetooth, Beacon making it easy to distribute content wirelessly and update Firmware. In particular, using Beacon and BLE (Bluetooth Low Energy), shop manager can do various promotional activities, such as providing promotional coupons or product information to visitor in real time.

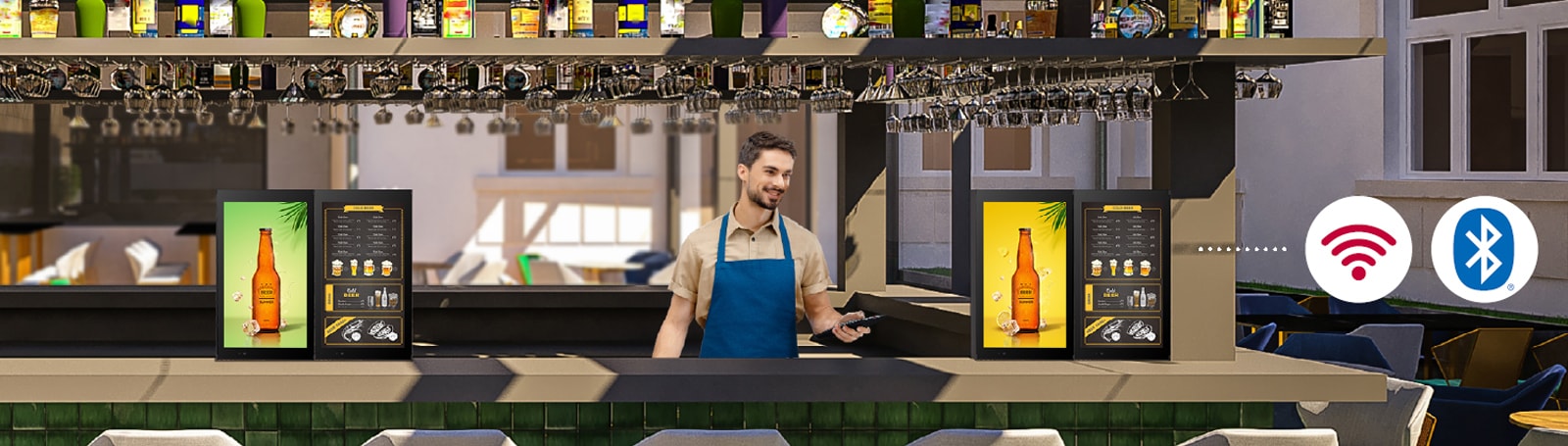

The store owner can easily distribute content and update firmware using a wireless connection such as Wi-Fi or Bluetooth. The store owner can easily distribute content and update firmware using a wireless connection such as Wi-Fi or Bluetooth.
* Wi-Fi performance may vary depending on your router and circumstance.

Web Monitoring
(Control Manager)

This is a web-based monitoring solution, which provides a ease of control for the user. It enables users to have full access anywhere, anytime from their mobile phone & PC as long as they’re connected to a network while having access to both current and past data. It allows users to monitor the unit, make any adjustments and control it remotely in real-time.
User can monitor and control their displays through mobile phone and laptop. User can monitor and control their displays through mobile phone and laptop.

Real-time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.
The LG employee is remotely monitoring the 22XE1J series installed in a different place by using cloud-based LG monitoring solution. The LG employee is remotely monitoring the 22XE1J series installed in a different place by using cloud-based LG monitoring solution.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
Close
PANEL
  • Screen Size
    21.5"
    Panel Technology
    AHVA (IPS)
  • Back Light Type
    Edge
    Aspect Ratio
    16:9
  • Native Resolution
    1920 x 1080 (FHD)
    Refresh Rate
    60Hz
  • Brightness
    1500nit (Typ, w/ Glass)
    Contrast Ratio
    1000:1 (Typ)
  • Dynamic CR
    800,000:1
    Color gamut
    NTSC 72%
  • Viewing Angle (H × V)
    178 × 178
    Color Depth
    8bit, 16.7Million colors
  • Response Time
    25ms (G to G)
    Surface Treatment (Haze)
    Anti glare, 3H (Haze 25%)
  • Life time
    50,000Hrs (Min.)
    Operation Hours (Hours/Day)
    24/7
  • Portrait / Landscape
    Yes / Yes
    QWP (Quarter Wave Plate)
    Yes (Apply on glass)
CONNECTIVITY(JACK INTERFACE)
  • Input
    HDMI (HDCP 2.2), RS232C IN, RJ45 (LAN), USB2.0 Type A (1)
    Output
    Externel Speaker Out (1, L/R, 10W+10W)
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    38.3mm (R/L), 24.0mm (T/B)
  • Weight (Head)
    8.7 kg
    Packed Weight
    10 kg
  • Monitor Dimension (W x H x D)
    557.3 x 319.8 x 66 mm
    Carton Dimensions (W x H x D) (Box outer size)
    632 x 394 x 187 mm
  • VESA™ Standard Mount Interface
    100 x 100
    Protection Glass
    Thickness 3mm, Tempered / Chemical strengthening (Chemical strengthening), Anti-Reflective, Infrared - Resistance (IR), Shatter-Proof
KEY FEATURE
  • HW
    Internal Memory 16GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Humidity Sensor, Acceleration (Gyro) Sensor, Power Indicator, FAN
    SW
    webOS ver. (webOS4.1), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (Local Network Sync), Video Tag (4, Max One HDMI input), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Status Mailing, Control Manager, Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server Setting , webRTC, Pro:Idiom
ENVIRONMENT CONDITIONS
  • Operation Temperature
    -30°C to 50 °C
    Operation Humidity
    5 % to 100 %
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    85W (Full White)
    36W (IEC 62087)
    Max.
    115W
  • BTU (British Thermal Unit)
    290 (Typ), 393 (Max)
    DPM
    0.5W↓
  • Power off
    0.5W↓
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC / VCCI
  • ErP
    Yes
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes/Yes
  • LG ConnectedCare
    Yes
LANGUAGE
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arab, Türkiye
ACCESSORY
  • Basic
    Remote Controller (including battery 2ea), Power Cord, Manual (EIG, IG), RS-232C Gender
SPECIAL FEATURE
  • Tilt (Facedown)
    Yes (Max -15º degree, Face Down) PP
    IP Rating
    IP56
  • Direct Sunlight
    Yes
