UH5F-H Series, ULTRA HD Resolution, 4 times higher than FHD

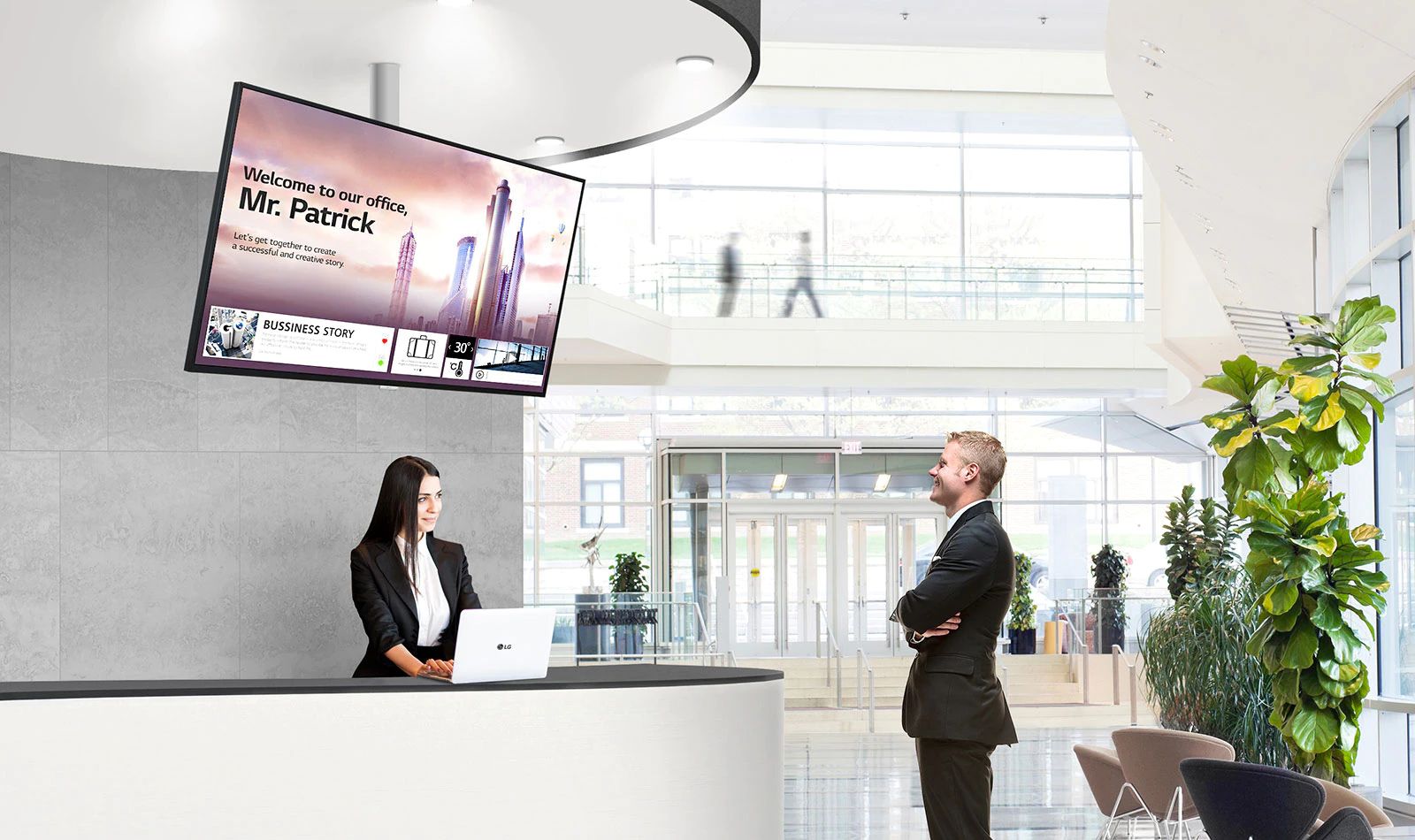

LG UHD Signage LG UHD Signage
SUPERB PICTURE QUALITY

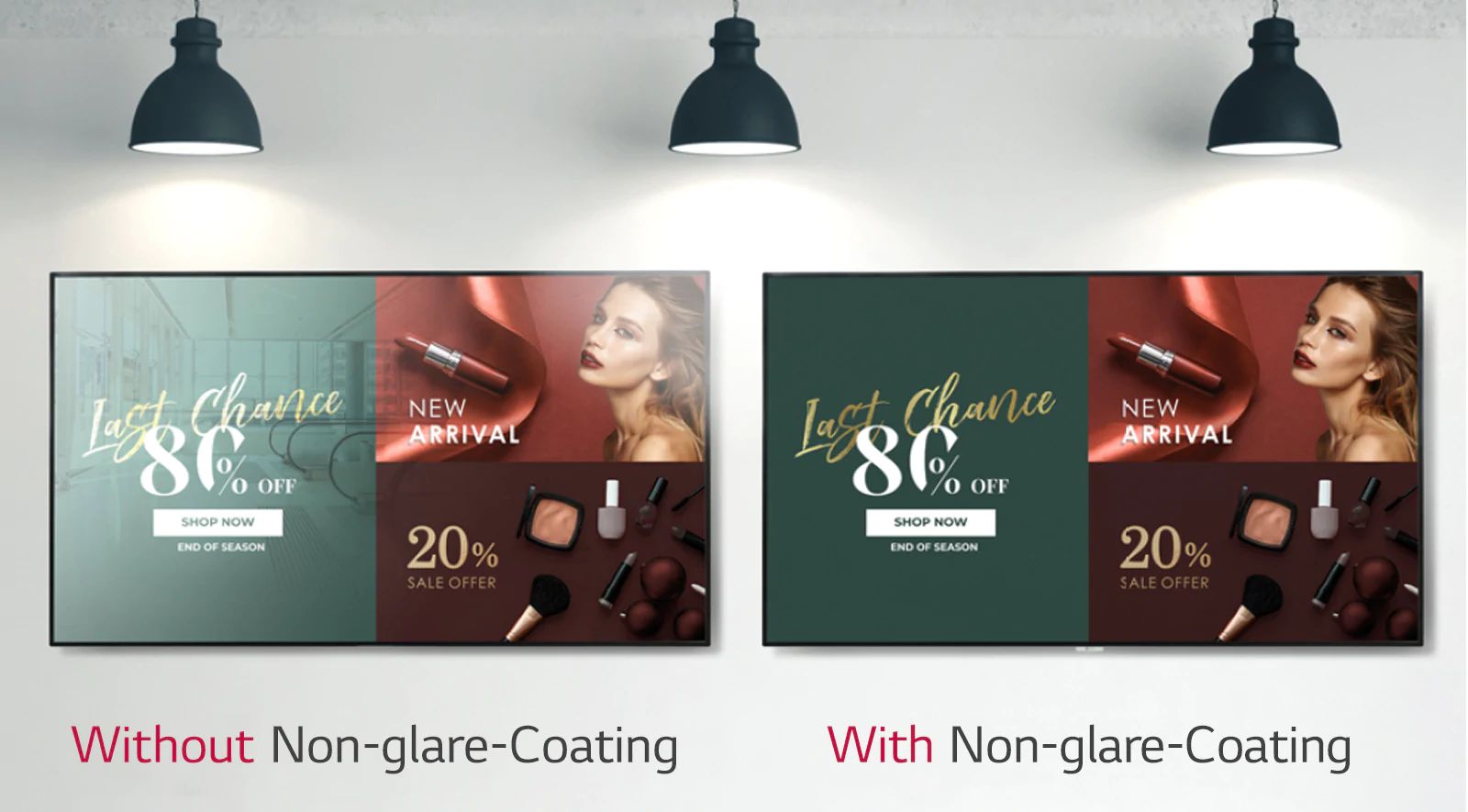

Clear View with Non-glare Coating

Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.
Clear View with Non-glare Coating. Clear View with Non-glare Coating.
SUPERB PICTURE QUALITY

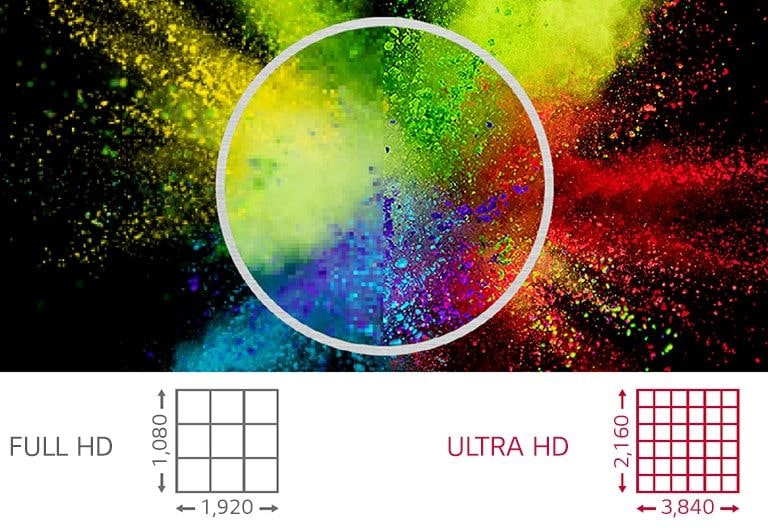

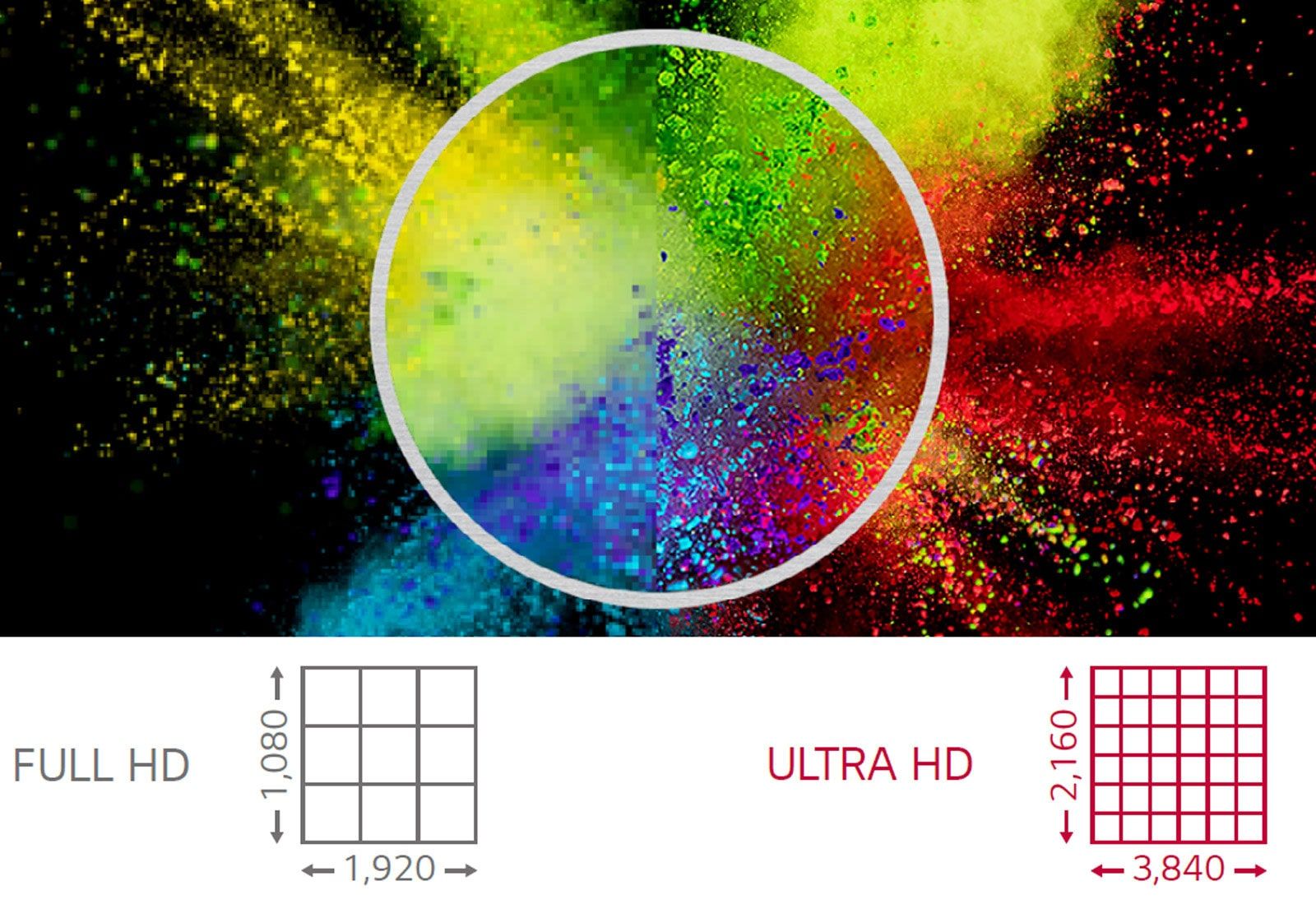

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents with no distortion.
ULTRA HD Resolution ULTRA HD Resolution
SLEEK AND PRACTICAL DESIGN

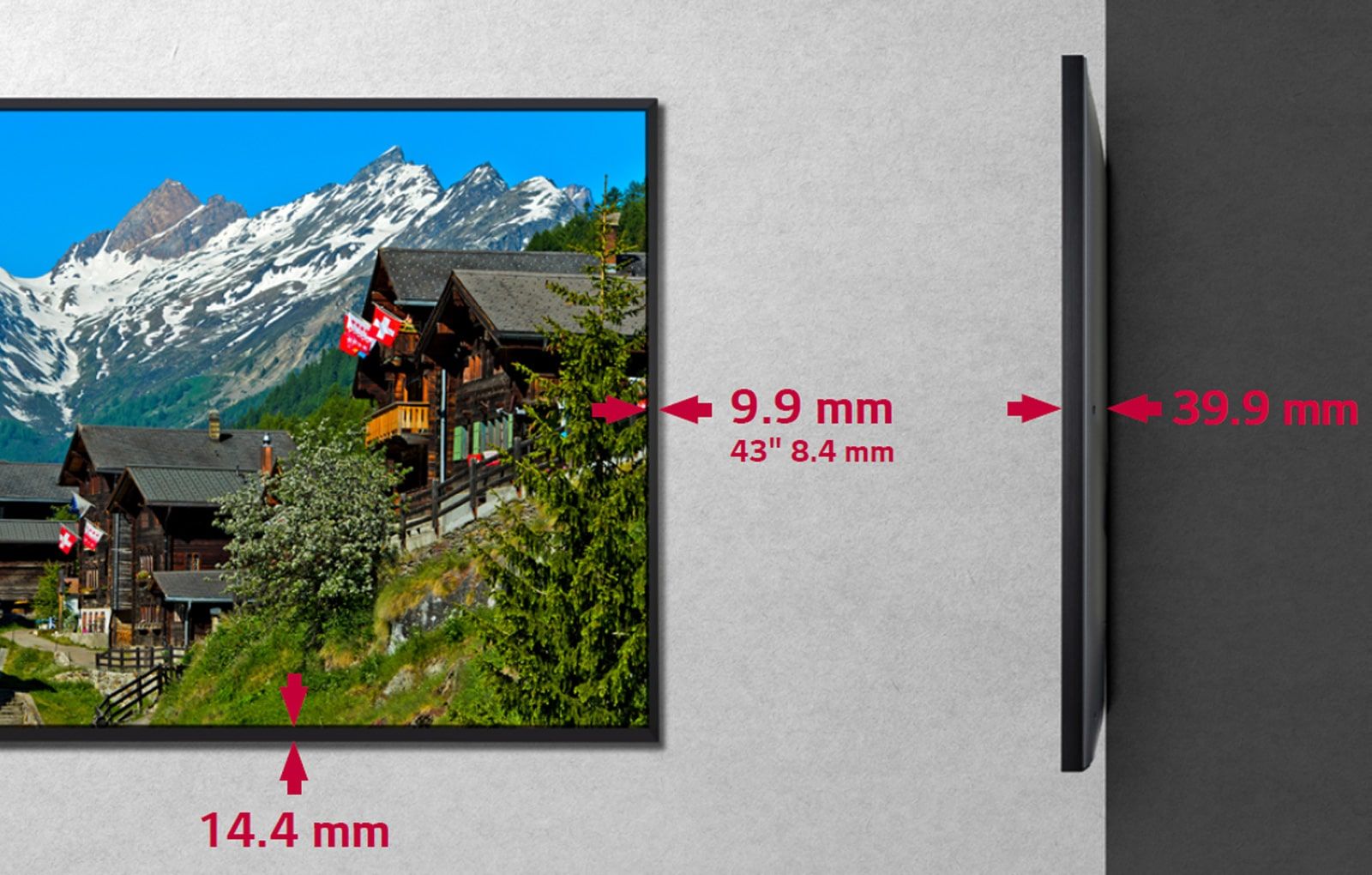

Narrow Bezel & Slim Depth

This series has a smaller bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.
Narrow Bezel & Slim Depth. Narrow Bezel & Slim Depth.
SLEEK AND PRACTICAL DESIGN

Detachable Logo and Built-in Speaker

This series is equipped with a new transparent logo which is well organized with surroundings. Also, its removable feature gives users flexibility for installation. Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.
Detachable Logo and Built-in Speaker. Detachable Logo and Built-in Speaker.
PRODUCT RELIABILITY

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
IP5x Certified Design. IP5x Certified Design.
PRODUCT RELIABILITY

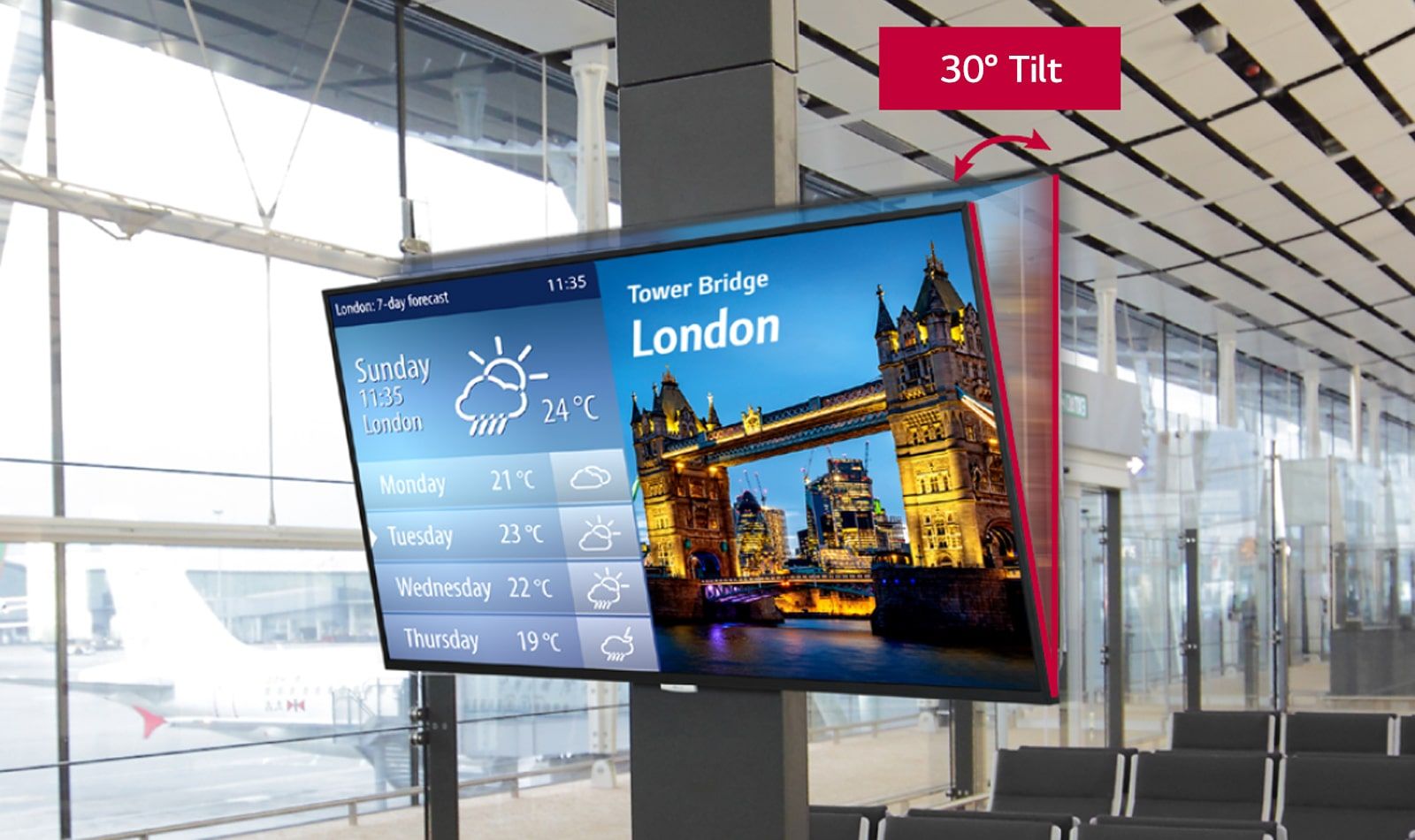

30° Tilting Installation

When a display is installed at high places, it is usually tilted for the user's comfort viewing. In consideration of this, the installation with 30 degrees of tilt* is supported.
30° Tilting Installation. 30° Tilting Installation.
*Tilt installation of up to 30 degrees facedown is supported. (In conditions within 30ºC temperature, 50% humidity)
EASY INSTALLATION

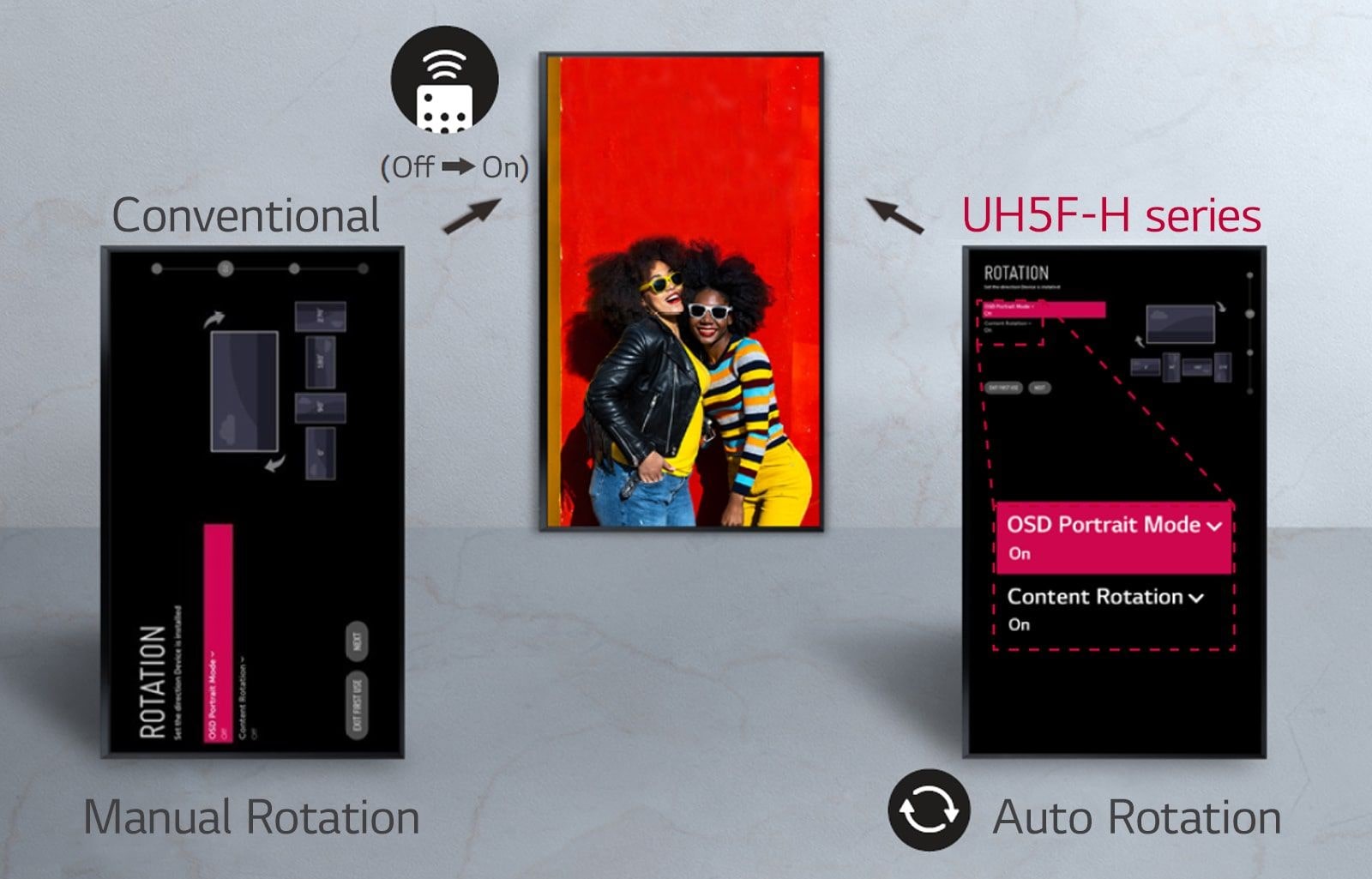

Auto Screen Rotatio

This series automatically detects its orientation (landscape or portrait mode) in the initial installation step, so manual rotation set-up process isn't required. The direction of OSD and background contents will be already set when you turn on a display at first.
Auto Screen Rotatio. Auto Screen Rotatio.
EASY INSTALLATION

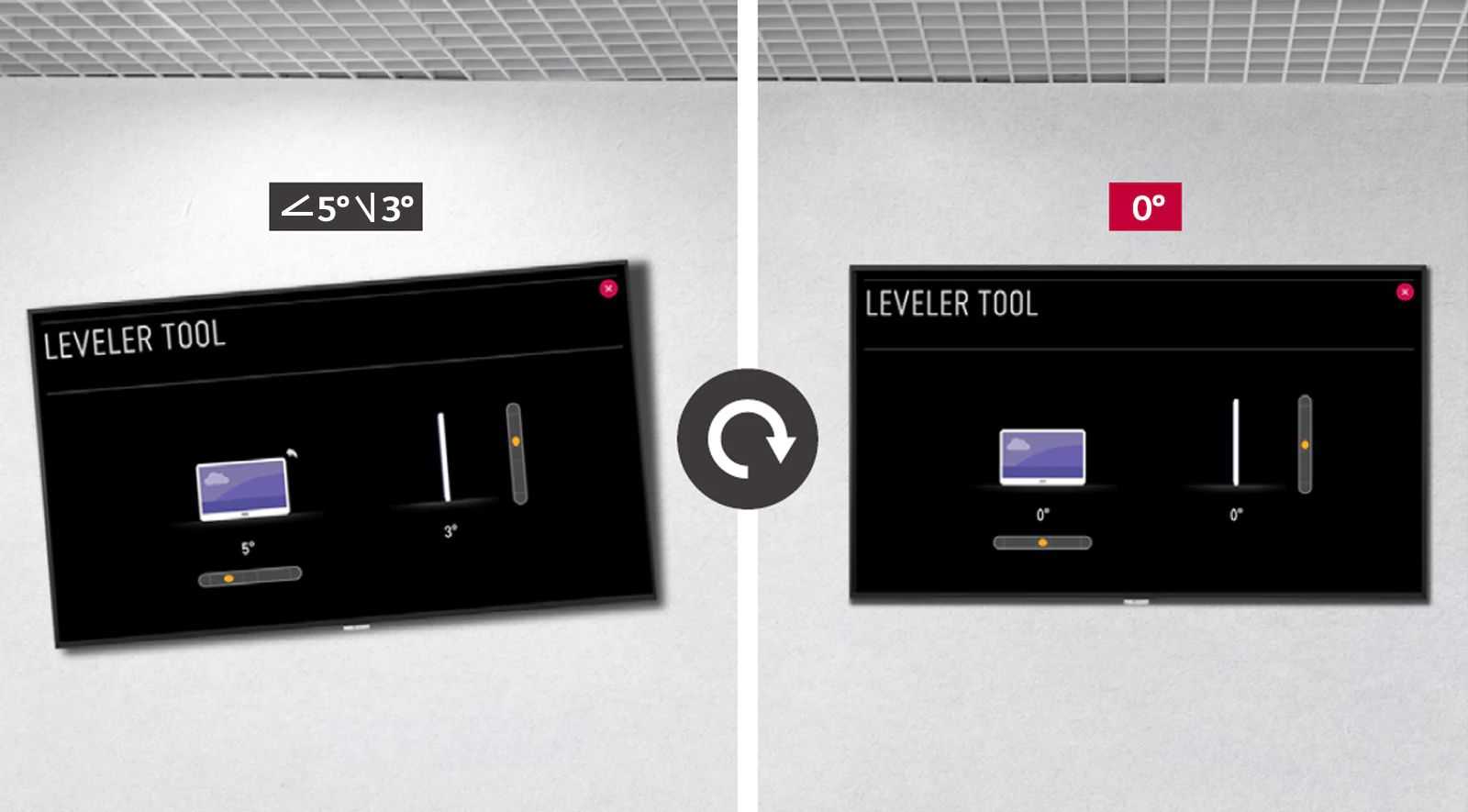

Fine Adjustment

This series is equipped with a "horizontal sensor" which shows users how the device is tilt, so that it can be precisely installed.
Fine Adjustment. Fine Adjustment.
webOS SMART SIGNAGE PLATFORM

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
High-Performance with webOS. High-Performance with webOS.
webOS SMART SIGNAGE PLATFORM

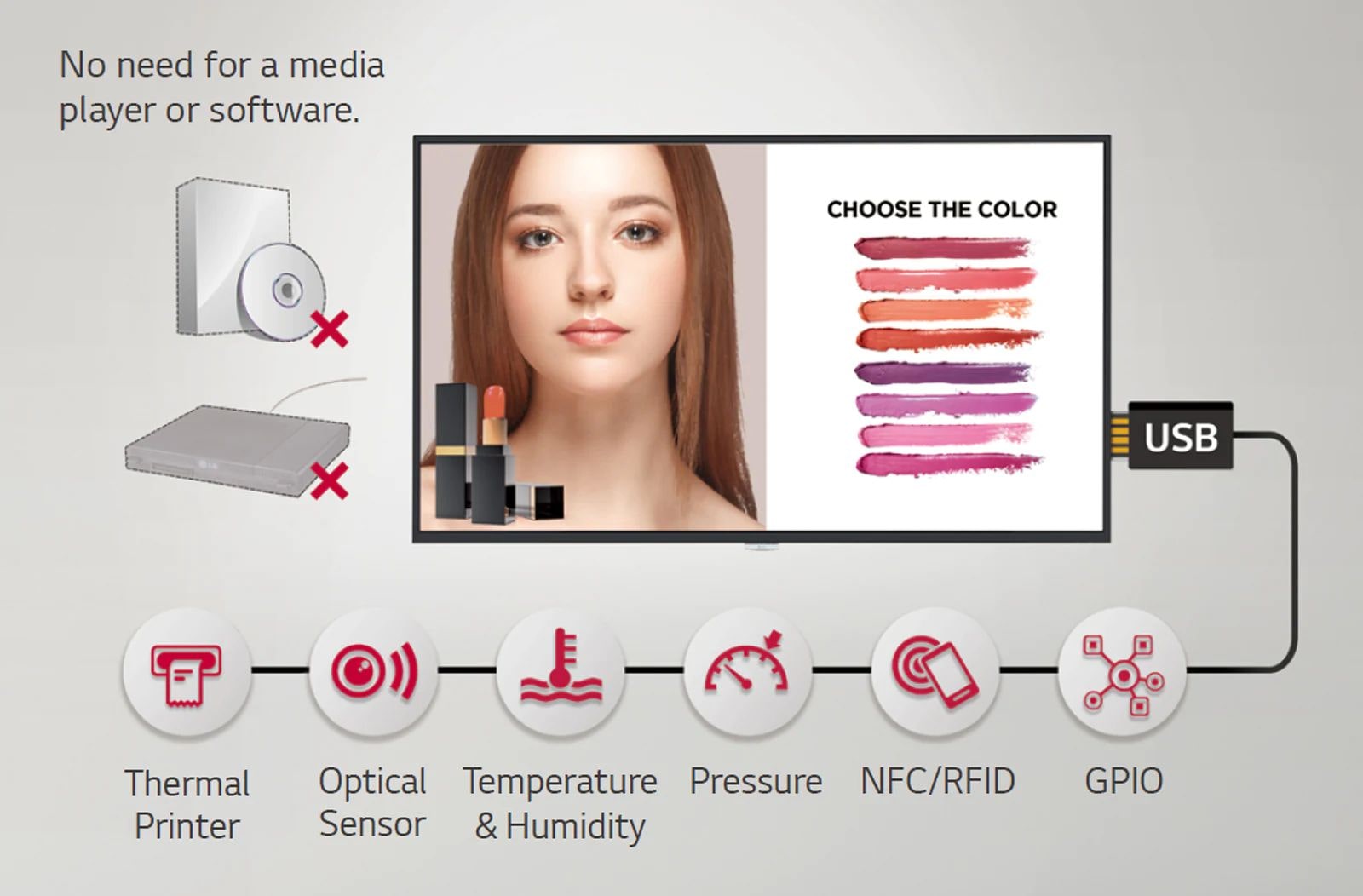

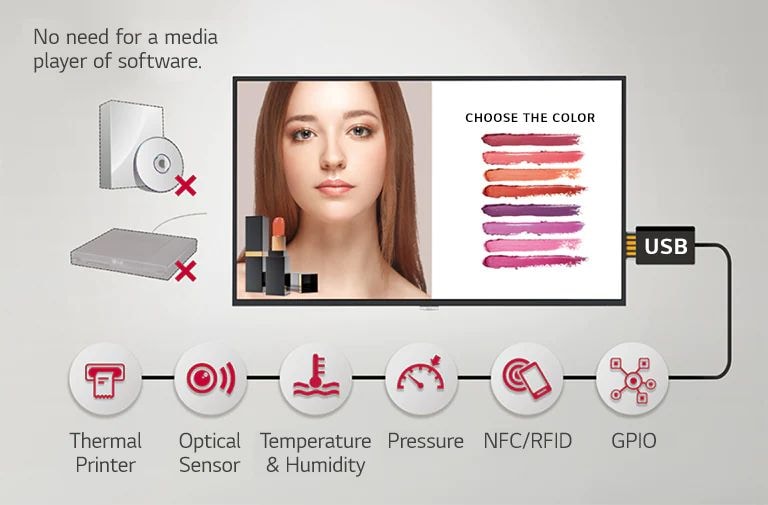

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.
Various Sensor Applications. Various Sensor Applications.
MEETING ROOM SOLUTION COMPATIBILITY

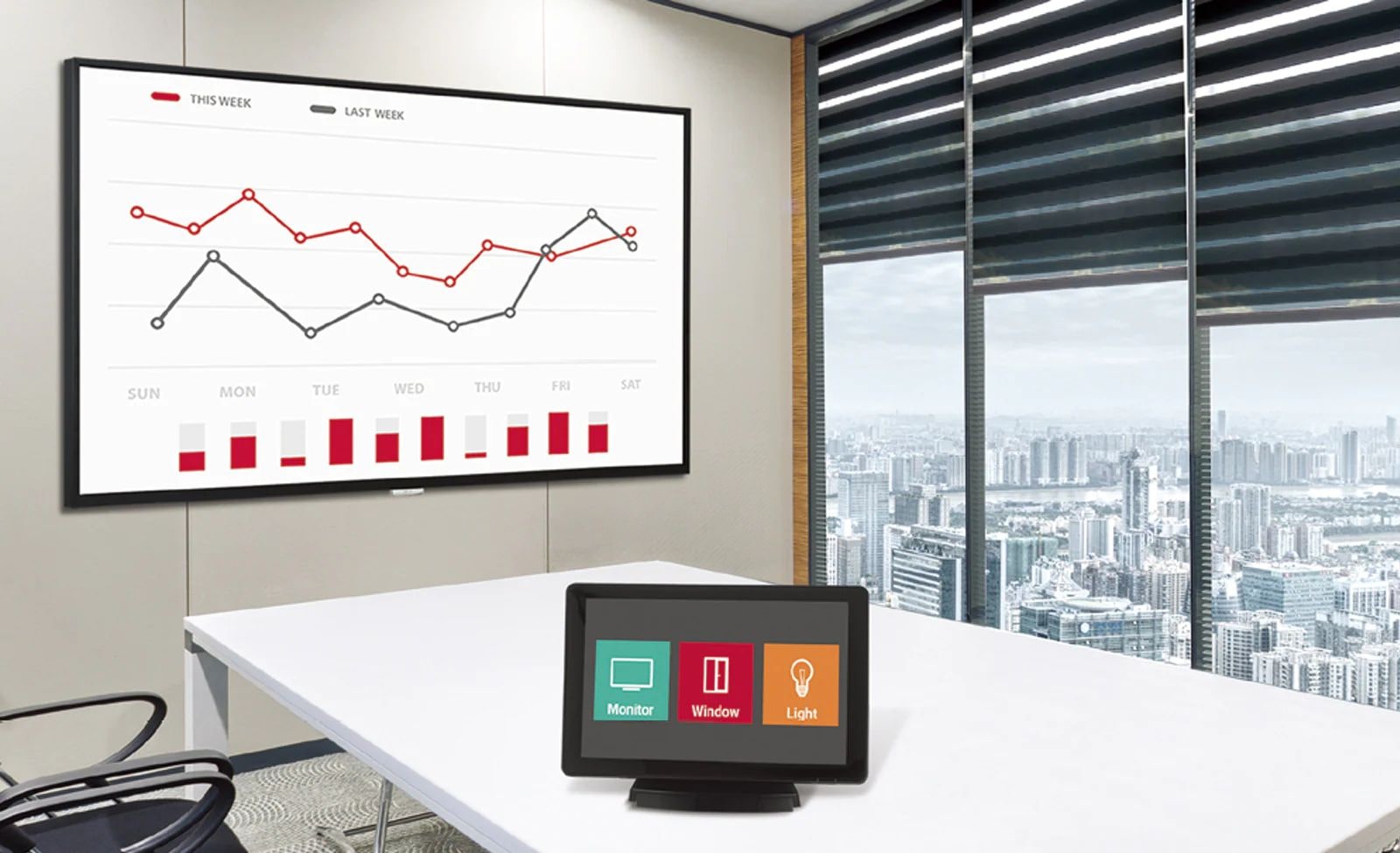

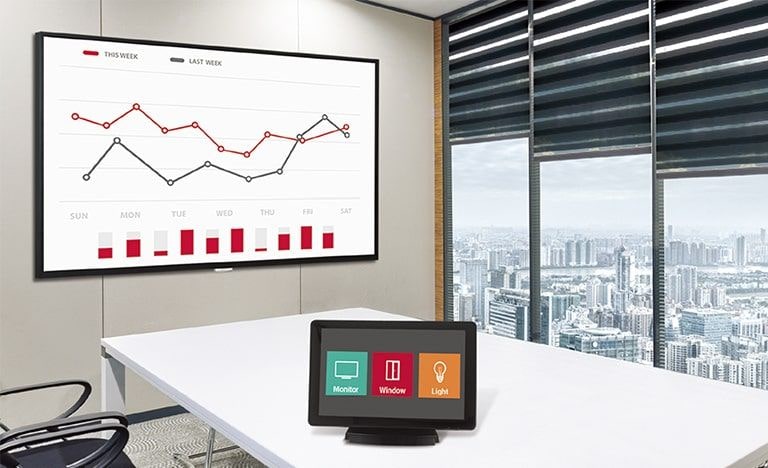

Compatible with AV Control System

The UH5F-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
Compatible with AV Control System. Compatible with AV Control System.
*Network based control.
MEETING ROOM SOLUTION COMPATIBILITY

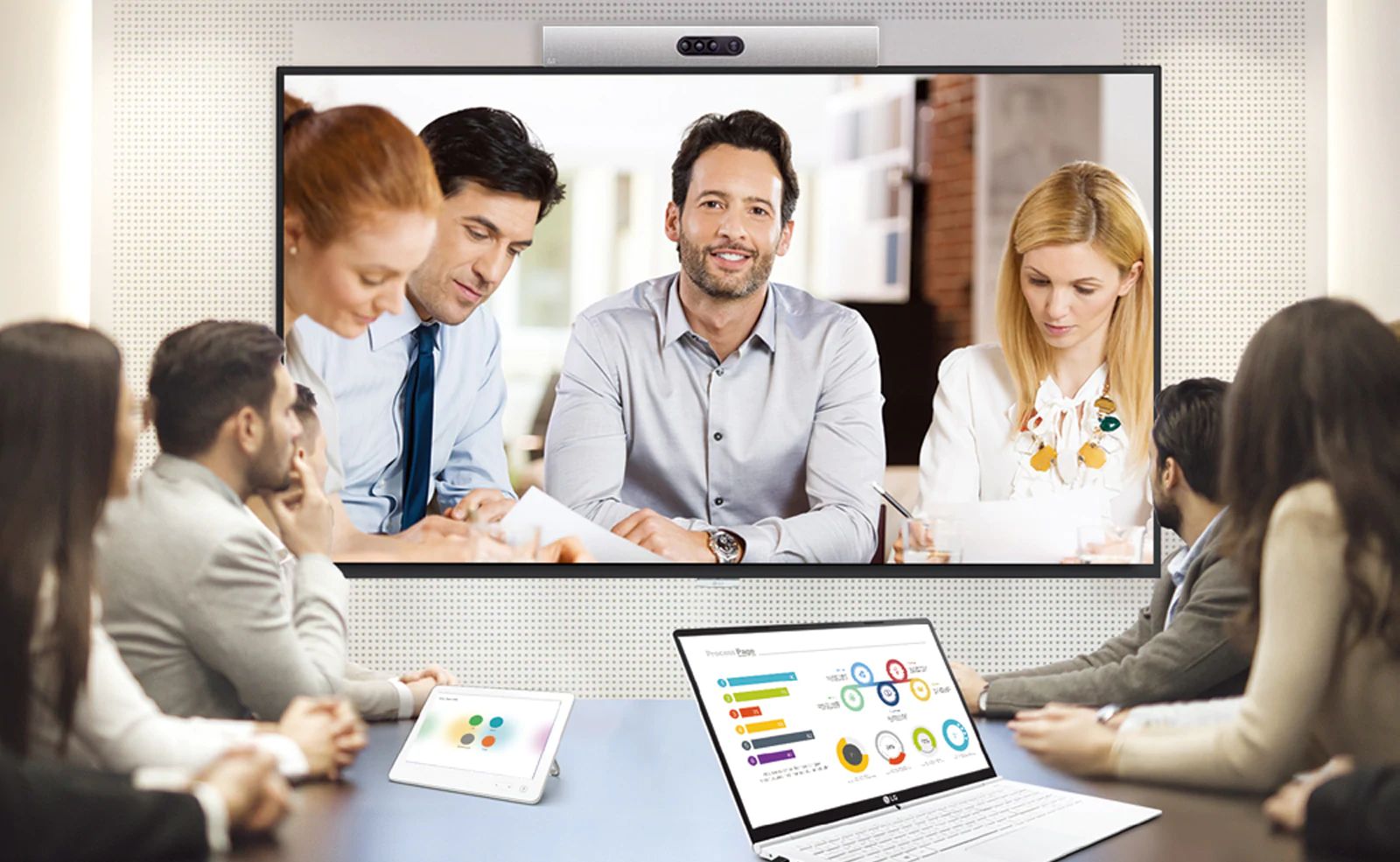

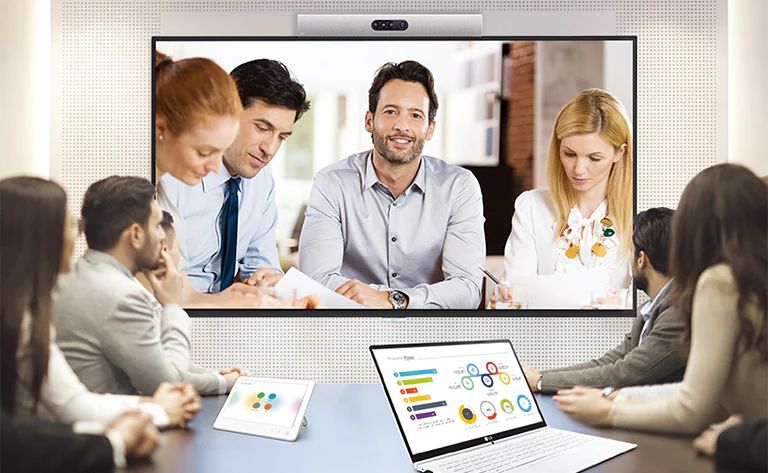

Compatible with Video Conference System

For the optimum visual meeting, the UH5F-H series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.
Compatible with Video Conference System. Compatible with Video Conference System.
*Using an HDMI cable connection.
ENERGY STAR® Certified

ENERGY STAR® Certified

Close
PANEL
  • Screen Size
    43"
    Panel Technology
    IPS
  • Back Light Type
    Edge
    Aspect Ratio
    16 : 9
  • Native Resolution
    3840 x 2160 (UHD)
    Refresh Rate
    60Hz
  • Brightness
    500nit (Typ.)
    Contrast Ratio
    1,100:1
  • Dynamic CR
    1,000,000:1
    *The luminosity ratio of Full Black / Full White color on video input condition.
    Color gamut
    BT709 95%
  • Viewing Angle(H x V)
    178 x 178
    Color Depth
    10bit, 1.07Billion colors
  • Response Time
    8ms (G to G)
    Surface Treatment(Haze)
    28%
  • Life time
    50,000Hrs (Min.)
    Operation Hours (Hours/Day)
    24/7
  • Portrait / Landscape
    Yes/Yes
CONNECTIVITY
  • Input - Digital - HDMI
    Yes(3)
    HDMI1/HDMI2 : HDCP 2.2/1.4
    HDMI3 : HDCP 1.4
    Input - Digital - DP
    Yes(1), HDCP2.2/1.3
  • Input - Digital - DVI-D
    Yes(1), HDCP1.4
    Input - Audio In
    Yes(1)
  • Input - External Control - RS232C IN
    Yes(1), 4pin Phone-jack
    Input - External Control - RJ45(LAN)
    Yes(1)
  • Input - External Control - IR IN
    Yes(1)
    Input - USB
    USB2.0 Type A(1)
  • Output - DP Out
    Yes(1), Input : HDMI1/2/3/DVI/DP/OPS
    Output - Audio Out
    Yes(1)
  • Output - External Control - RS232C OUT
    Yes(1), 4pin Phone-jack
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    T/R/L: 8.4mm, B: 14.4mm
  • Weight(Head)
    11.2Kg
    Weight(Head+Stand)
    11.8Kg
  • Packed Weight
    13.7Kg
    Monitor Dimension(W x H x D)
    962.5 x 568.0 x 39.9mm
  • Monitor Dimensions with Stand(W x H x D)
    962.5 x 613.1 x 290.0mm
    Carton Dimensions(W x H x D) (Box outer size)
    1060.0 x 660.0 x 152.0mm
  • VESA™ Standard Mount Interface
    200 x 200
KEY FEATURE
  • HW - Internal Memory
    8GB
    HW - Wi-Fi - Built-in
    Yes
  • HW - Sensor - Temperature Sensor
    Yes
    HW - Sensor - Auto Brightness sensor
    Yes
  • HW - Sensor - Acceleration(Gyro) Sensor
    Yes
    HW - Local Key Operation
    Yes
  • SW - webOS ver.
    webOS 4.1
    SW - Embedded CMS - Local Contents Scheduling
    Yes
  • SW - Embedded CMS - Group Manager
    Yes
    SW - USB Plug & Play
    Yes
  • SW - Fail over
    Yes
    SW - Background Image - Booting Logo Image
    Yes
  • SW - Background Image - No Signal Image
    Yes
    SW - Sync Mode - RS-232C Sync
    Yes
  • SW - Sync Mode - Local Network Sync
    Yes
    SW - Multi-screen - PIP
    Yes
  • SW - Multi-screen - PBP
    Yes(4)
    SW - Screen Share
    Yes
  • SW - Video Tag
    Yes(4)
    SW - Play via URL
    Yes
  • SW - Rotation - Screen Rotation
    Yes
    SW - Rotation - External Input Rotation
    Yes
  • SW - Gapless Playback
    Yes
    SW - Tile Mode Setting
    Yes(Max. 15x15)
  • SW - Setting Data Cloning
    Yes
    SW - SNMP
    Yes
  • SW - ISM Method
    Yes
    SW - Auto Set ID
    Yes
  • SW - Status Mailing
    Yes
    SW - Control Manager
    Yes
  • SW - 3rd Party Compatibility - Crestron Inside
    Yes *Network based control
    SW - Smart Energy Saving
    Yes
  • SW - PM mode
    Yes
    SW - Wake on LAN
    Yes
  • SW - Beacon
    Yes
    SW - HDMI-CEC
    Yes *Compatibility may differ by equipment.
  • SW - SI Server Setting
    Yes
    SW - webRTC
    Yes
  • SW - Pro:Idiom
    Yes
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    75W
    Max.
    110W
  • BTU (British Thermal Unit)
    256 BTU/Hr(Typ.), 375 BTU/Hr(Max)
    Smart Enegy Saving
    60W
  • DPM
    0.5W
    Power off
    0.5W
SOUND
  • Speaker
    Yes
CERTIFICATION
  • Safety
    CB/NRTL
    EMC
    FCC Class "A"/CE/KC
  • ErP / Energy Star
    Yes/Energy Star 8.0
OPS COMPATIBILITY
  • OPS type compatible
    Yes
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes/Yes
  • SuperSign WB
    Yes
    SuperSign Media Editor
    Yes
  • Signage 365 Care
    Yes (The availability can differ by region.)
LANGUAGE
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic
ACCESSORY
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
    Optional
    Stand(ST-653T), Wall bracket(LSW240B), VESA Adapter(AM-B220S), OPS Kit(KT-OPSF)
SPECIAL FEATURE
  • Tilt (Facedown)
    Yes (Max 30º degree, 30ºC temperature, humidity 50%)
    IP Rating
    IP5x
