49VH7C component-copyModelName

Artistic Immersion, Overwhelming Attractiveness

LG Artistic Immersion, Overwhelming Attractiveness, 49VH7C, thumbnail 1

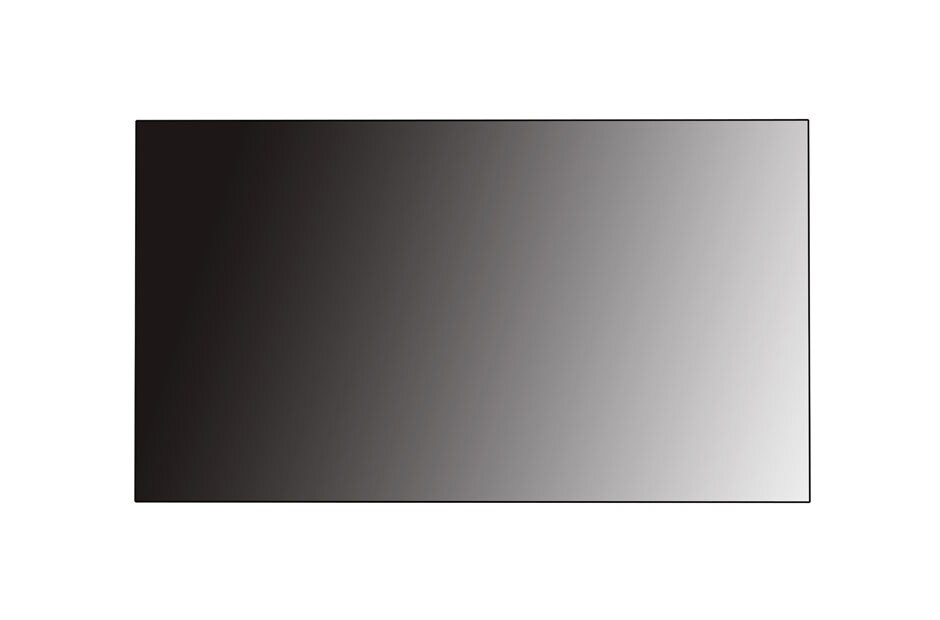

LG Artistic Immersion, Overwhelming Attractiveness, 49VH7C, thumbnail 2

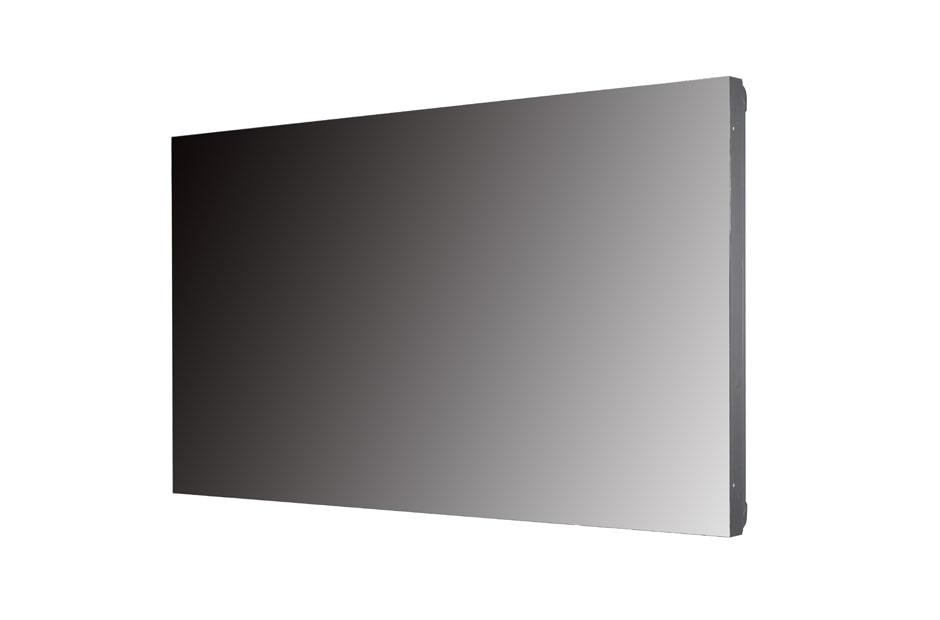

LG Artistic Immersion, Overwhelming Attractiveness, 49VH7C, thumbnail 3

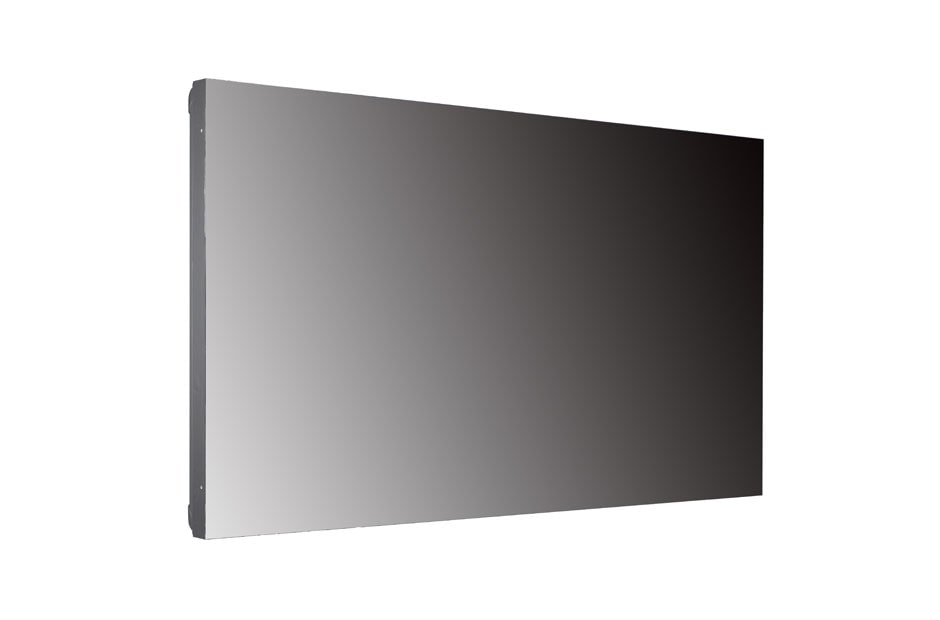

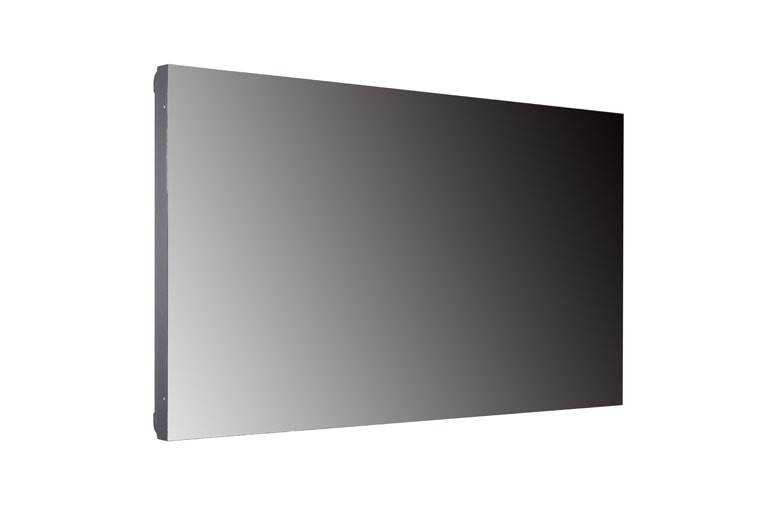

LG Artistic Immersion, Overwhelming Attractiveness, 49VH7C, thumbnail 4

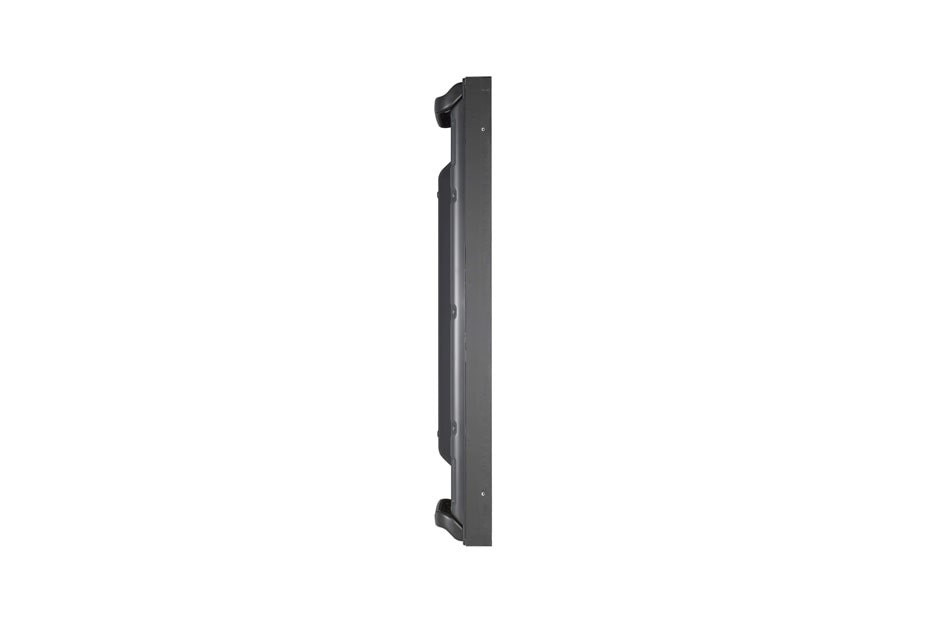

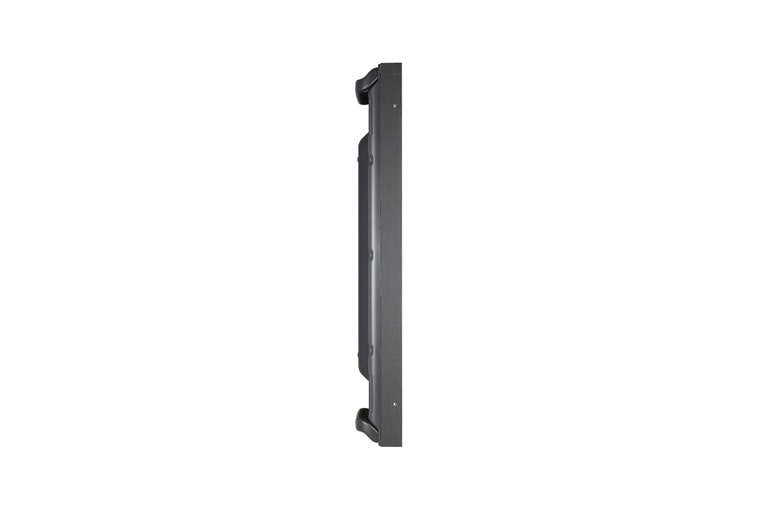

LG Artistic Immersion, Overwhelming Attractiveness, 49VH7C, thumbnail 5

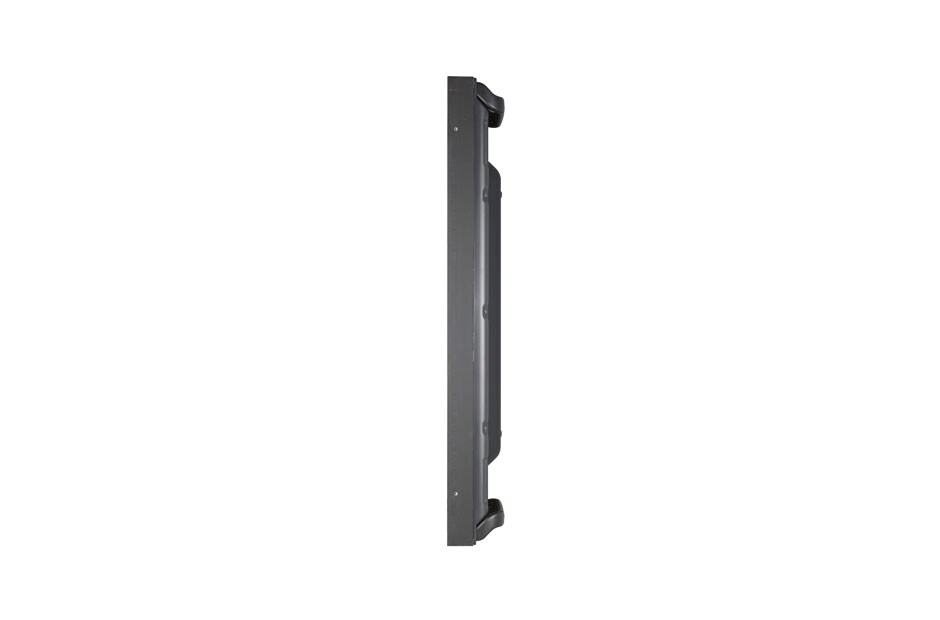

LG Artistic Immersion, Overwhelming Attractiveness, 49VH7C, thumbnail 6

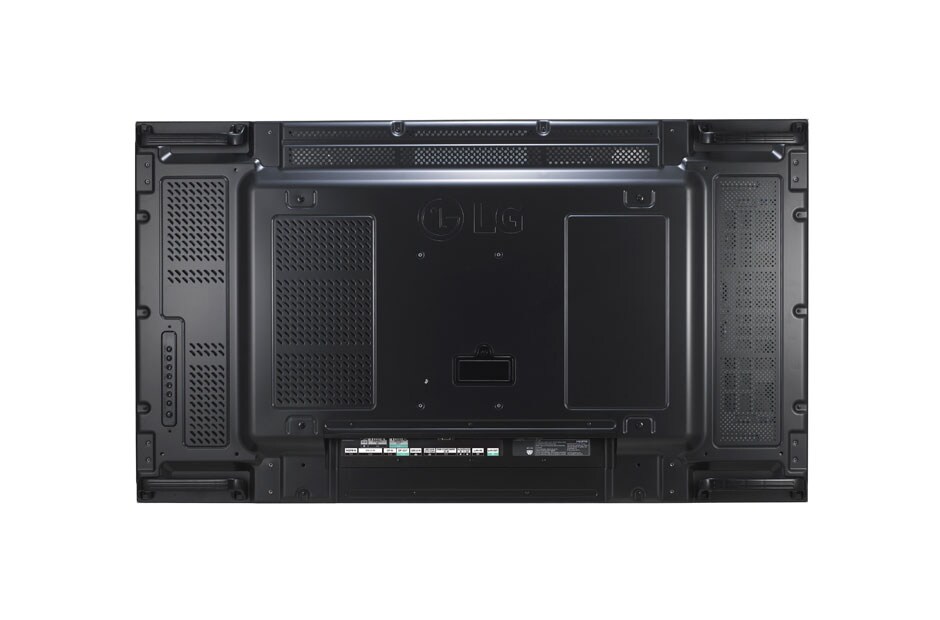

LG Artistic Immersion, Overwhelming Attractiveness, 49VH7C, thumbnail 7

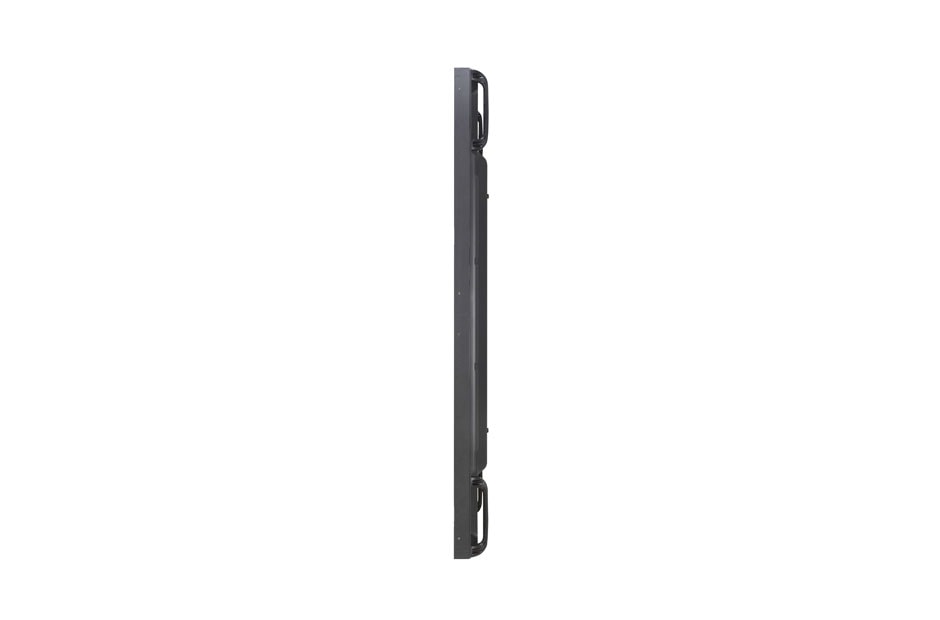

LG Artistic Immersion, Overwhelming Attractiveness, 49VH7C, thumbnail 8

ADD TO WISHLIST

Discontinued

49VH7C component-copyModelName

Artistic Immersion, Overwhelming Attractiveness

Key Features

Brightness : 700cd/m2
Surface Treatment : Hard coating (2 H), Anti-glare low reflection treatment of the front polarizer(Haze 3 % (Typ))
Bezel : 0.9 mm (T/B/L/R even bezel)
Depth : 86.2 mm
Interface : HDMI / DVI / RGB / IR, Daisy-chain (DP, RS232C, RJ45)

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness : 700cd/m2
Surface Treatment : Hard coating (2 H), Anti-glare low reflection treatment of the front polarizer(Haze 3 % (Typ))
Bezel : 0.9 mm (T/B/L/R even bezel)
Depth : 86.2 mm
Interface : HDMI / DVI / RGB / IR, Daisy-chain (DP, RS232C, RJ45)

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Artistic Immersion, Overwhelming Attractiveness

Borderless Design

Narrow Bezel

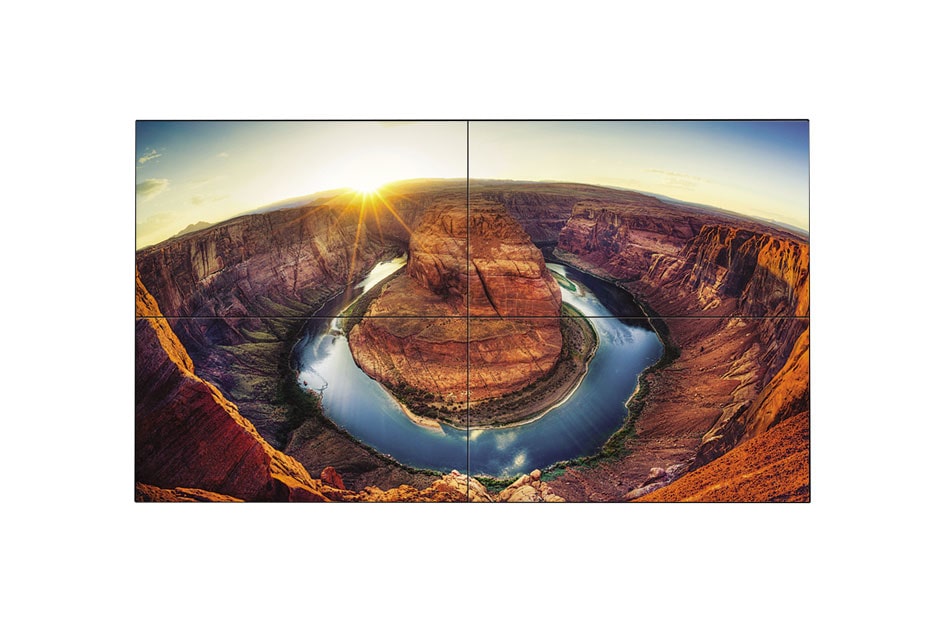

Borderless design with its 0.9mm even panel bezel* and 1.8mm BtB(Bezel to Bezel)** size, verifi ed by Nemko***, enables immersive and seamless viewing experiences on assembled video wall screens.

Smart Platform

Built-in SoC* and Synced Playback

The optimized built-in quad-core SoC in the 55VH7B/VM5B, 49VH7C/VM5C can play various content formats and eliminates the need for an external media player. Using its built-in SoC, each display plays its video tile without lag for synchronized content playback.

Smart Platform

webOS 2.0

The webOS 2.0 platform provides easy and
convenient tools to create contents. LG's SDK*
and technical supports make content development and management easier.

Superior Picture Quality

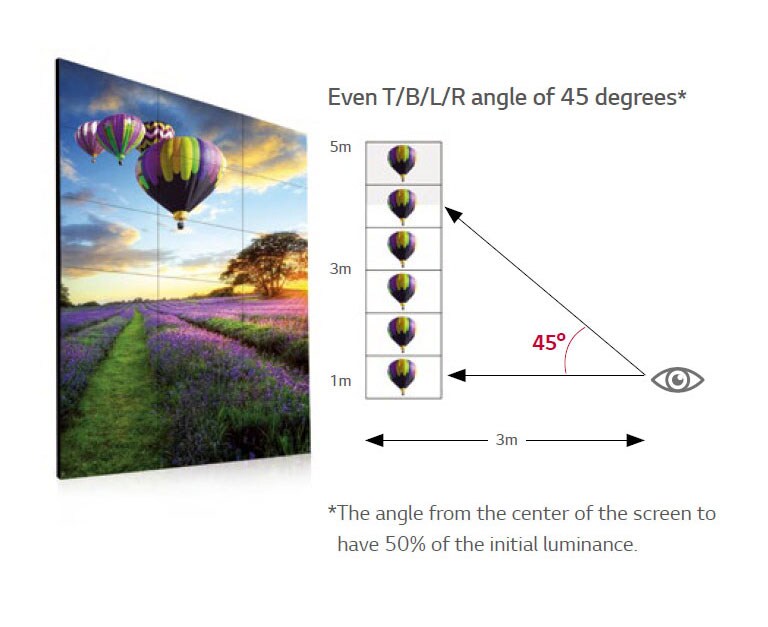

Clear Viewing Angle

The 55VH7B/VM5B, 49VH7C/VM5C ensures clear picture quality even when installed in stacks of more than four. This is very favorable for the quantity of video walls installed in large spaces.

Superior Picture Quality

Uniform Brightness

LG's LED backlight technology guarantees high uniformity in brightness to ensure a clear picture. On other screens, certain spots may appear darker than others, but the new 55VH7B/VM5B, 49VH7C/VM5C generates high visibility and a consistent brightness across the whole screen.

Superior Picture Quality

Video Wall Image Creation

Through Video Wall Image Creation (VIC) technology, color and brightness differences are compensated in circuit part with an algorithm to make the panels into a same characteristic so that each video wall maintains the consistent white balance.

Superior Picture Quality

Image Gap Reduction

The 55VH7B/VM5B, 49VH7C/VM5C includes an image improvement algorithm that can adjust to objects located in the boundary of bezel for a seamless viewing experience.

Enhanced Content Management

LAN Daisy Chain Performance
A LAN daisy chain allows you to execute commands to control and monitor the screens and even update their firmware.

Convenient Options

Guide Bracket / Classifi ed Port

A guide bracket is an attachment that ensures the video wall remains flat.
The classified in/out port prevents errors when connecting a daisy chain.

Convenient Options

Control Buttons

With 8 control buttons, it's easy to operate various functions of the 55VH7B/VM5B, 49VH7C/VM5C, such controlling the OSD (On Screen Display) and changing the input source.

PANEL

Screen Size

49"

Resolution

1,920 x 1,080 (FHD)
Brightness

700 cd/m2

CONNECTIVITY

Input

HDMI, DP, DVI-D, OPS, Audio, USB 2.0, USB 3.0, RGB

Output

DP, Audio
External Control

RS232C, RJ45, IR Receiver

PHYSICAL SPECIFICATION

Bezel Width

0.9mm (Top/Bottom/Left/Right even bezel) / 1.8mm *B to B : Panel Bezel + Panel Bezel

Monitor Dimension (W x H x D)

1,075.6 x 605.8 x 86.2 mm
Weight (Head)

17.5 kg

VESA™ Standard Mount Interface

600 x 400mm

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

STANDARD(CERTIFICATION)

Safety

UL / cUL / CB / TUV / KC

EMC

FCC Class "A" / CE / KCC
ErP / Energy Star

NA / Yes (Energy Star 7.0)

MEDIA PLAYER COMPATIBILITY

OPS type compatible

Yes

External Media player Attatchable

Yes (MP500/MP700)

SOFTWARE COMPATIBILITY

SuperSign-w lite

Yes

SuperSign-c

Yes

ACCESSORY

Basic

Remote controller, Power cable, DP cable, Manual, IR receiver, RS-232C cable, LAN cable, Guide bracket, Screws

Optional

Wall mount (Landscape: WM-L640V, Portrait: WM-P640V), OPS kit (KT-OPSA), HDBaseT (EB-B100)
