Key Features

Bezel: 2.25 mm (Left/Top) / 1.25 mm (Right/Bottom)
Depth : 89.7mm
Interface : RGB, HDMI, DVI-D, DP in/out, USB 3.0, IR, Audio in/out, RS232C in/out, RJ45 in/out
webOS 3.0+

Add to Compare

component-OBScountrySelectDesc

Key Features

Bezel: 2.25 mm (Left/Top) / 1.25 mm (Right/Bottom)
Depth : 89.7mm
Interface : RGB, HDMI, DVI-D, DP in/out, USB 3.0, IR, Audio in/out, RS232C in/out, RJ45 in/out
webOS 3.0+

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Digital Signage - Smart TV

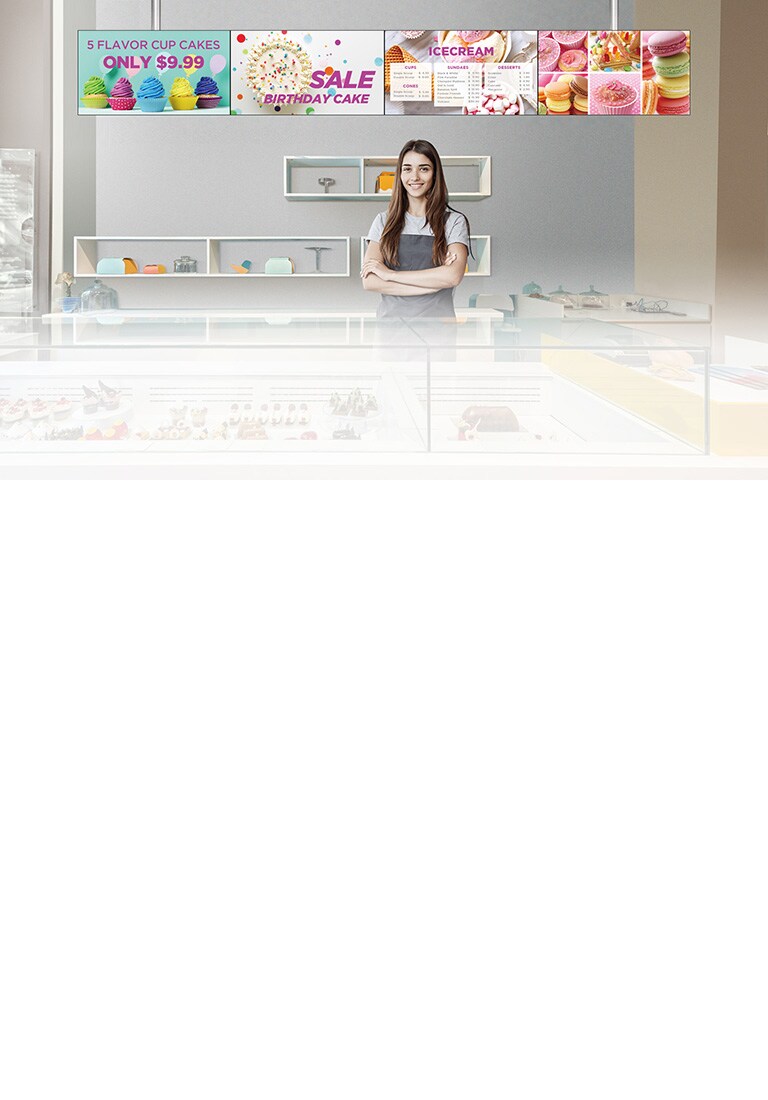

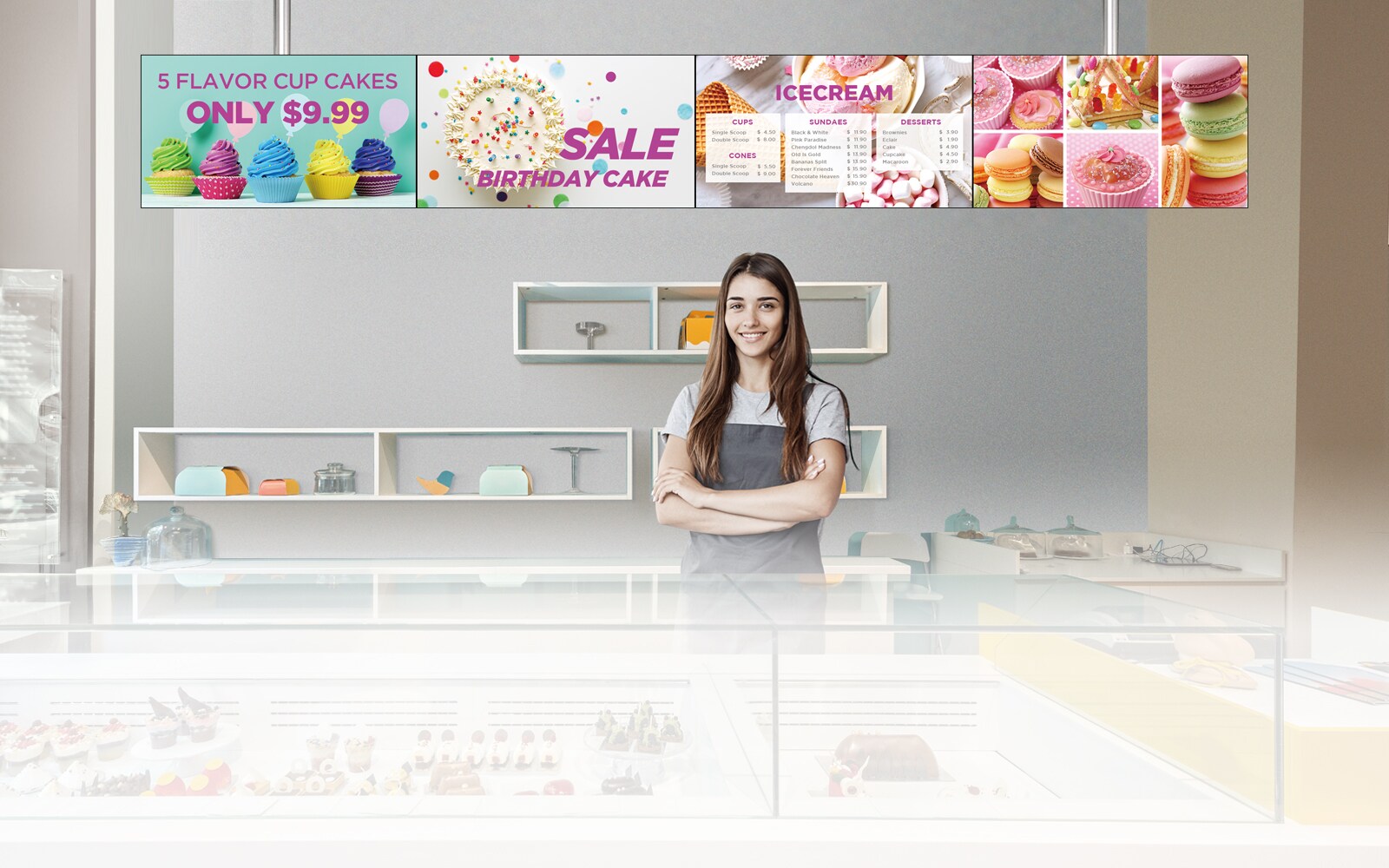

Smart Video Wall with Ultra Narrow Bezel

Video walls are key to differentiating your store's image, enriching the shopping experience of consumers, and promoting and displaying products. The 49VL5PF is an optimum model for meeting such demands, with a smart platform that enhances operational efficiency.

IMMERSIVE VIEWING EXPERIENCE

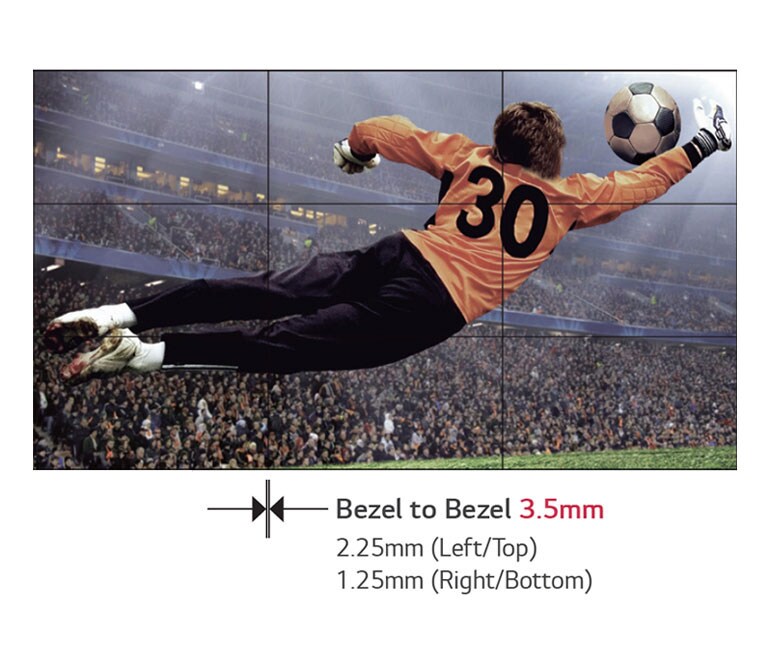

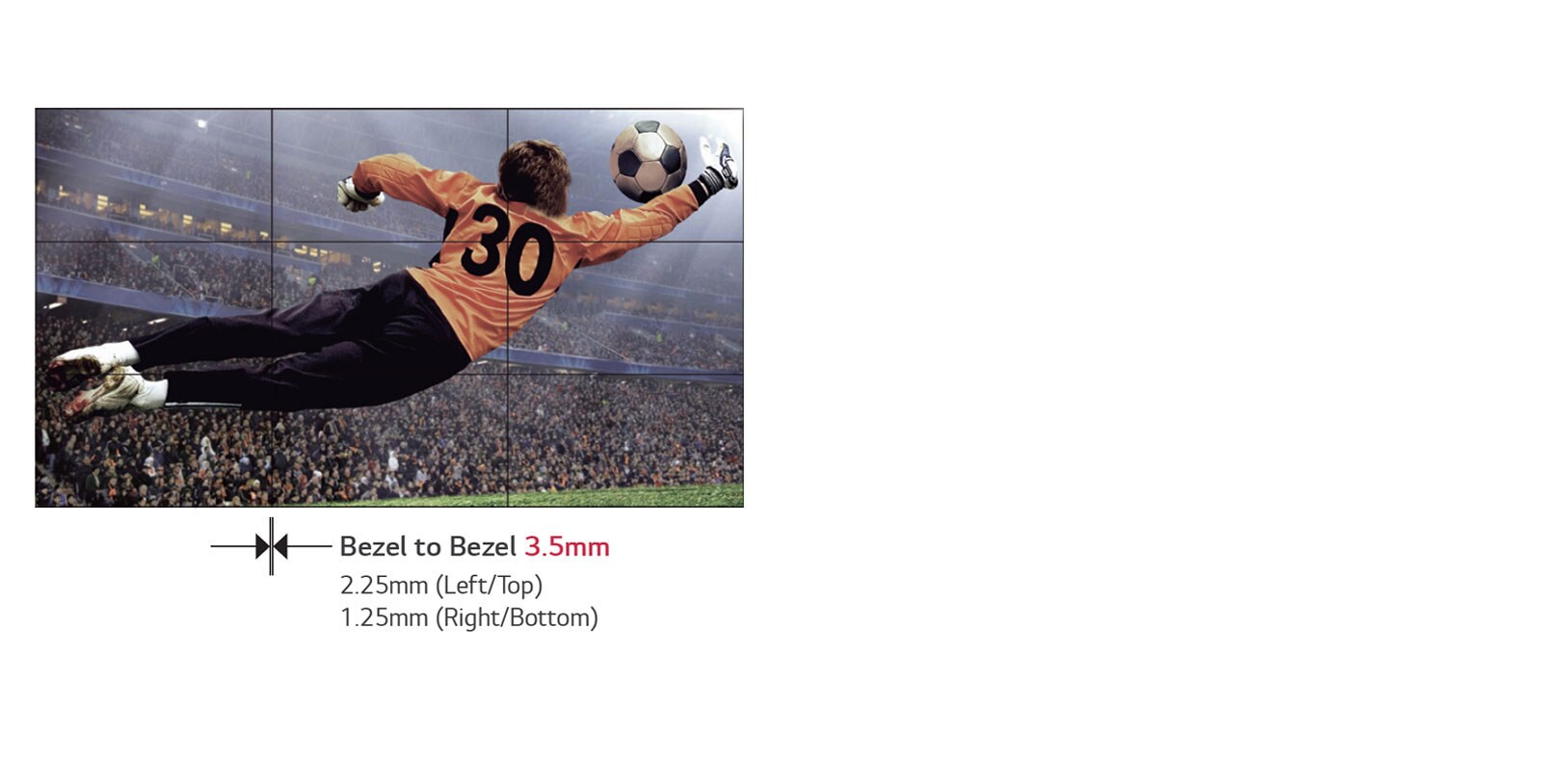

Ultra Narrow Bezel

The 3.5mm ultra narrow bezel size creates immersive and seamless viewing experiences on assembled video wall screens.

IMMERSIVE VIEWING EXPERIENCE

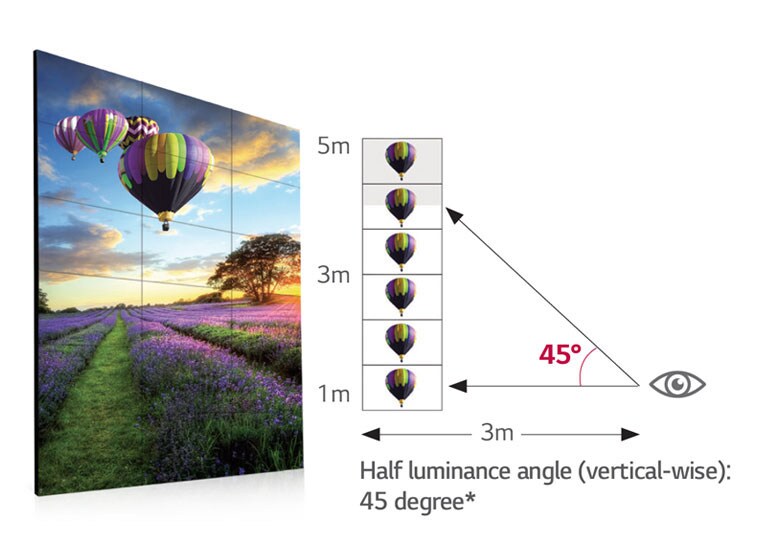

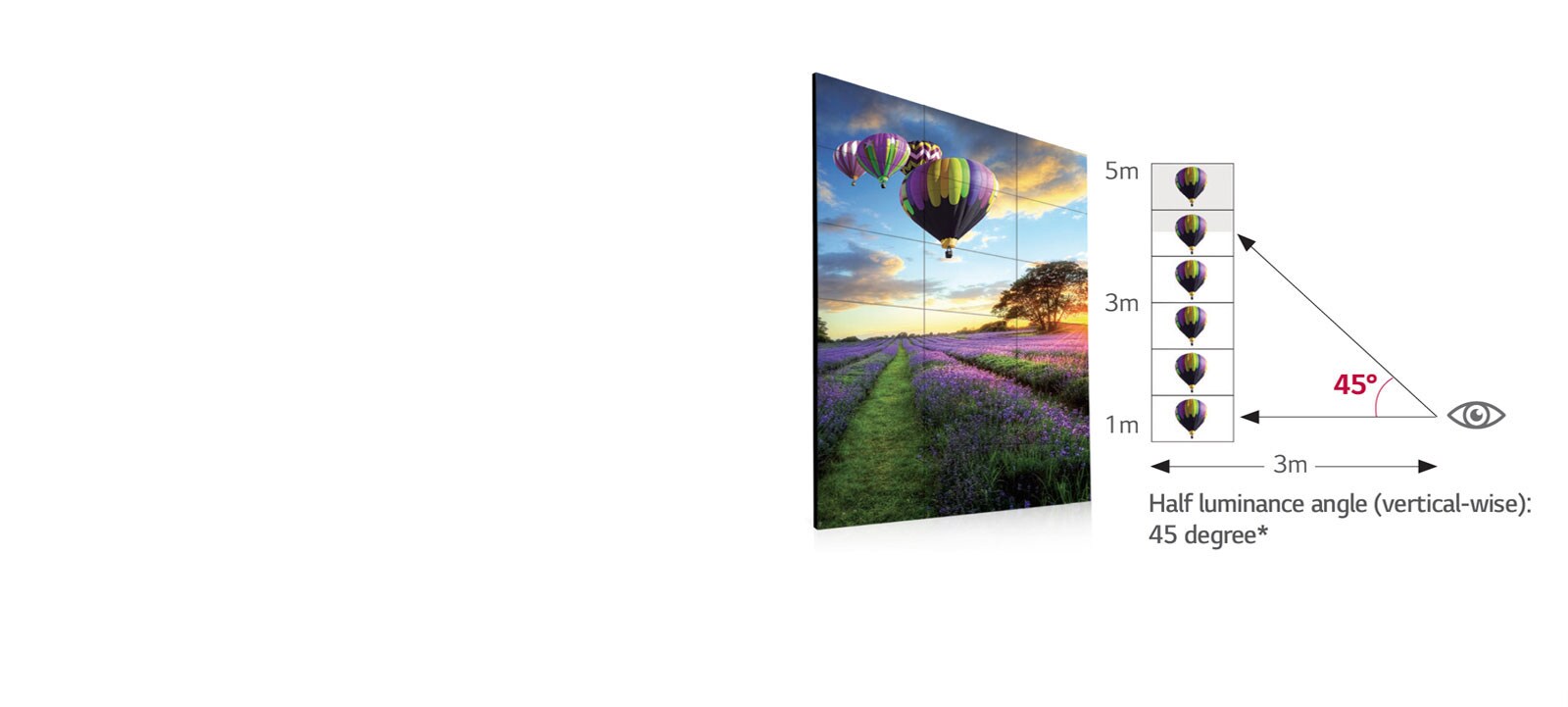

Wide Viewing Angle

Stable image reproduction is critical in video walls, as it is usually installed in places above eye level and is seen from various angles. Thanks to the IPS panel and the high half luminance angle, 49VL5PF delivers the best picture quality from any viewer position.

*The angle from the center of the screen to have 50 of the initial luminance.

IMMERSIVE VIEWING EXPERIENCE

Consistent White Balance

Through Video Wall Image Creation (VIC) technology, color and brightness differences are compensated in circuit part with an algorithm to make the panels into a same characteristic so that each video wall maintains the consistent white balance.

SMART PLATFORM / ENHANCED USABILITY

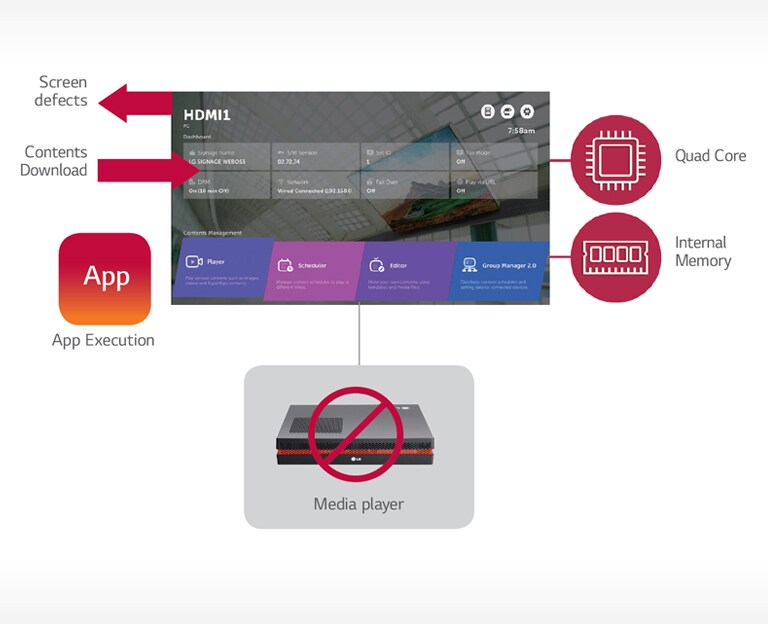

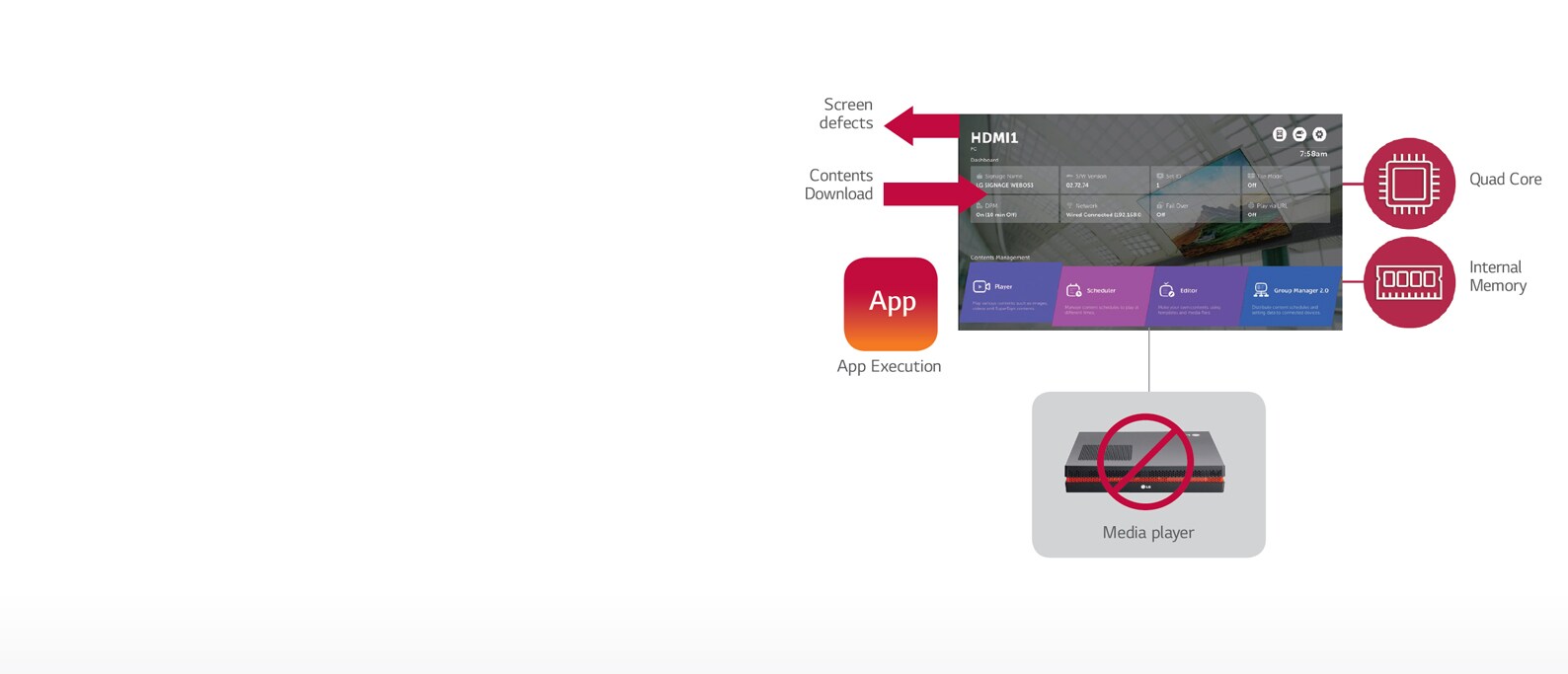

High-Performance SoC with webOS

Quad Core SoC* can execute several tasks at the same time without a separate media player, saving TCO. Due to its internal memory, pre-loaded contents are displayed without external inputs. In addition, webOS platform enhances user convenience with intuitive UI and simple app development tools.

^{*System on Chip}

SMART PLATFORM / ENHANCED USABILITY

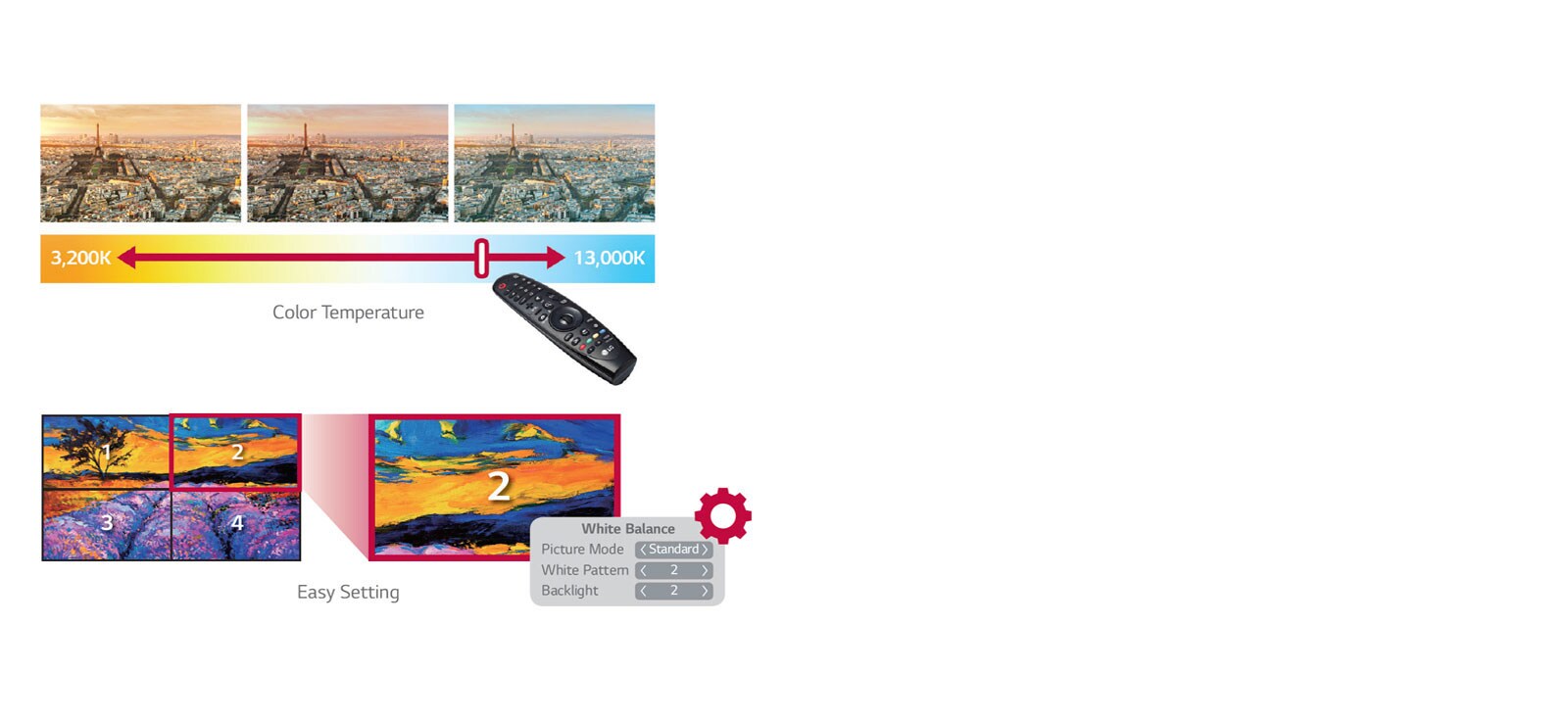

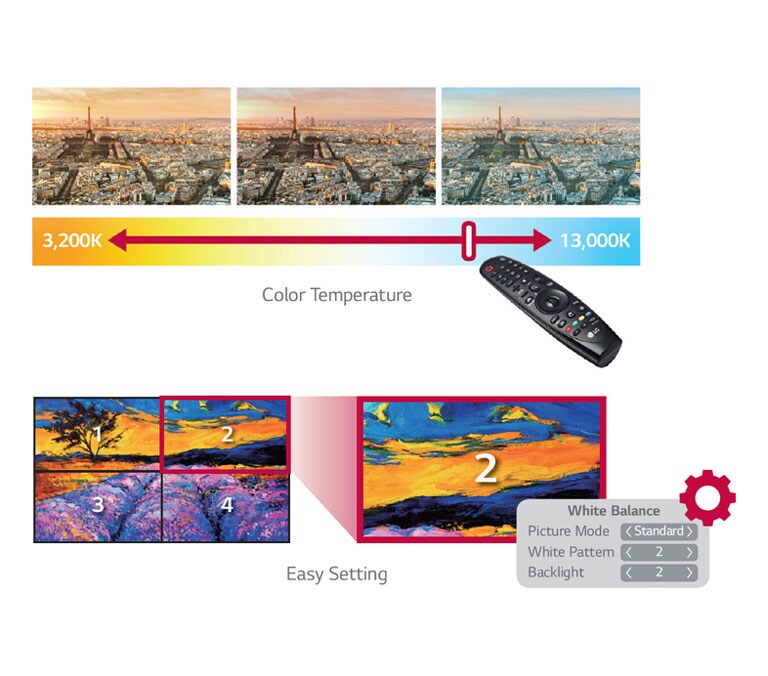

Dedicated Menu for Video Wall

Depending on the content, the color temperature of the screen can be easily adjusted by users with a remote control. Also, the settings for tile mode and white balance become more convenient because the dedicated menu is specialized based on the visual guide.

CONVENIENT MANAGEMENT

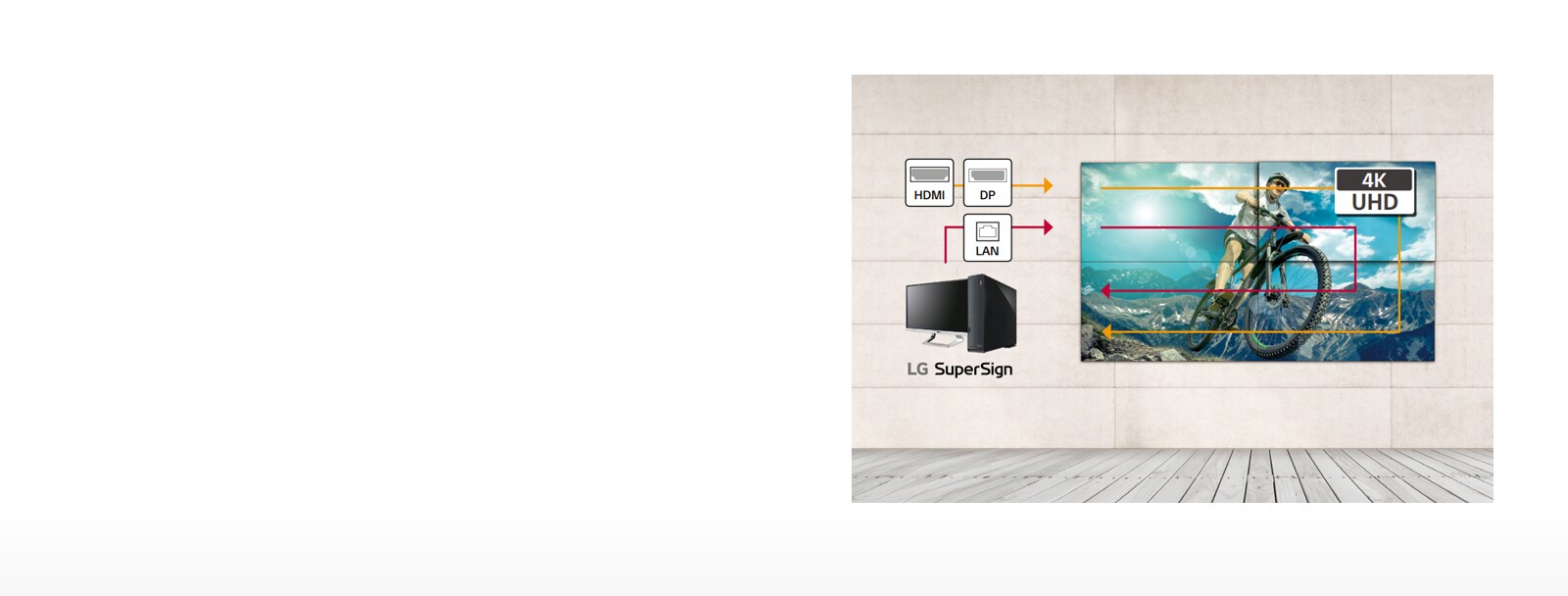

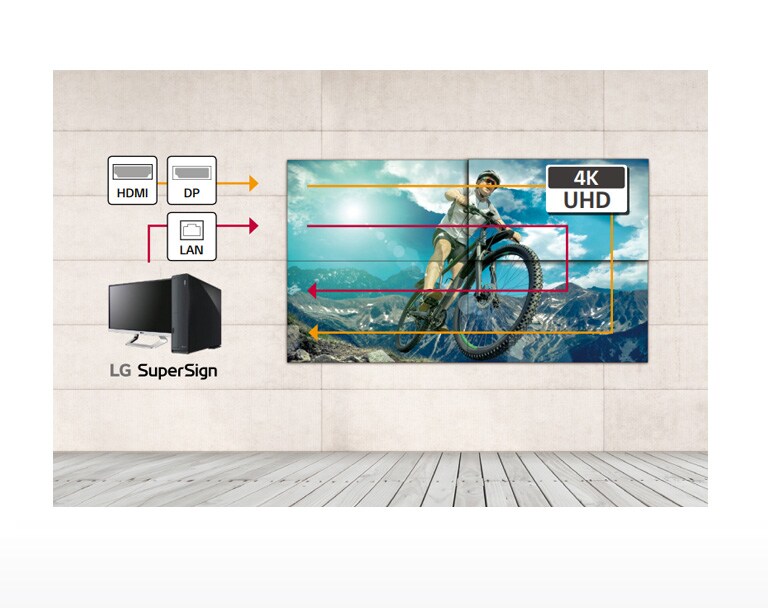

Daisy Chain Capability

A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST or Matrox graphics card.

CONVENIENT MANAGEMENT

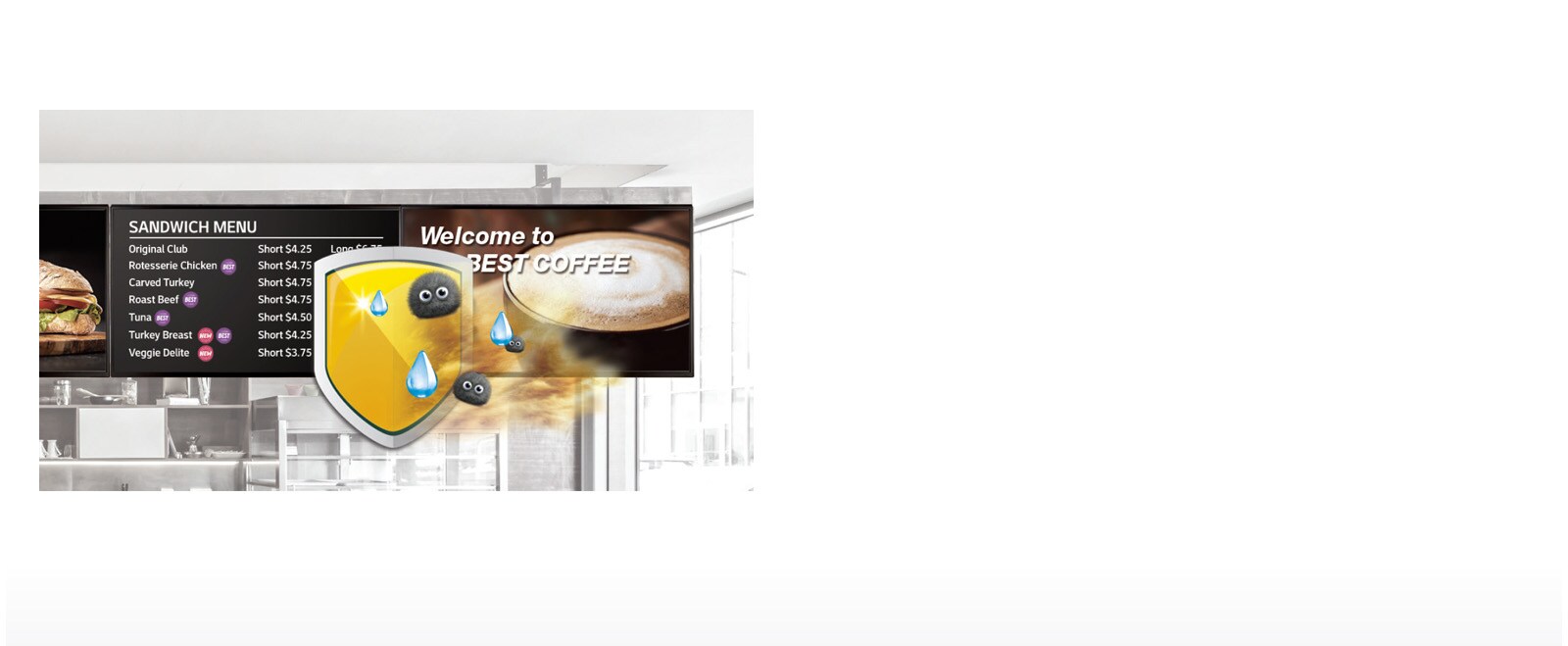

Dust & Humidity Protection

Conformal Coating Circuit board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity and other harsh conditions.

PANEL

Screen Size

49"

Panel Technology

IPS
Aspect Ratio

16 : 9

Native Resolution

1,920 x 1,080 (FHD)
Brightness (Typ., cd/m²)

450

Contrast Ratio

1,300:1
Viewing Angle (H x V)

178 x 178

Response Time

8ms (G to G)
Surface Treatment (Haze, Quarter Wave Plate)

Hard Coating (3H), Anti-Glare Treatment of the Front Polarizer (Haze 3%)

Operation Hours

24 Hrs
Orientation

Landscape & Portrait

CONNECTIVITY

Input

HDMI, DP, DVI-D, RGB, Audio, USB 3.0

Output

DP, Audio
External Control

RS232C In/Out, RJ45 In/Out, IR Receiver In

PHYSICAL SPECIFICATION

Bezel Color

Black

Bezel Width

2.25mm (L/T) / 1.25 mm (R/B)
Monitor Dimension (W x H x D)

1,077.6 x 607.8 x 89.7 mm

Weight (Head)

17.8 kg
Carton Dimensions (W x H x D)

1,214 x 778 x 263 mm

Packed Weight

22.8 kg
Handle

Yes

VESA™ Standard Mount Interface

600 x 400 mm

ENVIRONMENT CONDITIONS

Operation Temperature Range

0°C to 40°C

Operation Humidity Range

10 % to 80 %

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ. / Max.

93 W / 110 W

Smart Energy Saving

55 W

STANDARD(CERTIFICATION)

Safety

CB / NRTL

EMC

FCC Class "A" / CE / KC
ErP / Energy Star

Yes (EU Only) / Yes (Energy Star 8.0, US Only)

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control/Control+

ACCESSORY

Basic

Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan cable, DP cable, IR Receiver, Guide Bracket, Screws, Manual

Optional

Wall Mount ( Landscape : WM-L640V, Portrait : WM-P640V)
