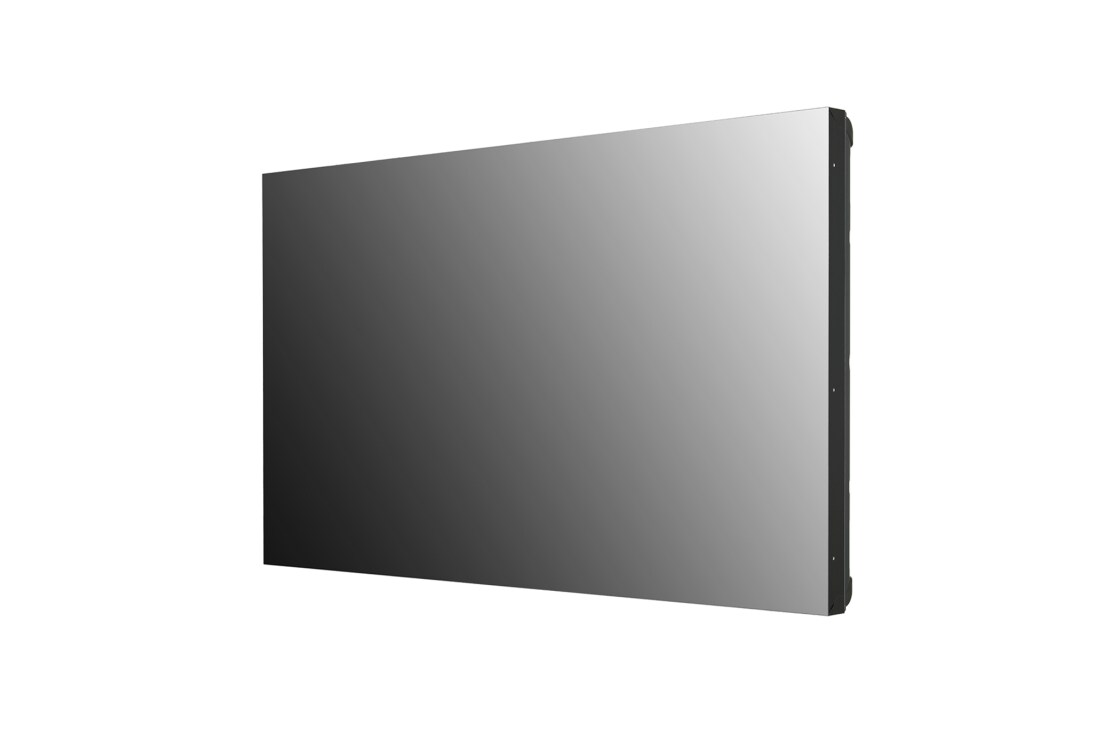

49VM5E-A component-copyModelName

VM5E Series

ADD TO WISHLIST

Discontinued

49VM5E-A component-copyModelName

VM5E Series

Key Features

Brightness(Typ.) : 500 cd/m²
Bezel : 0.9 mm (Even)
Depth : 86.2 mm
Interface : HDMI(2)/ DP/ DVI-D/ USB 2.0/ RS232C/ RJ45/ Audio/ IR

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 500 cd/m²
Bezel : 0.9 mm (Even)
Depth : 86.2 mm
Interface : HDMI(2)/ DP/ DVI-D/ USB 2.0/ RS232C/ RJ45/ Audio/ IR

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

VM5E Series

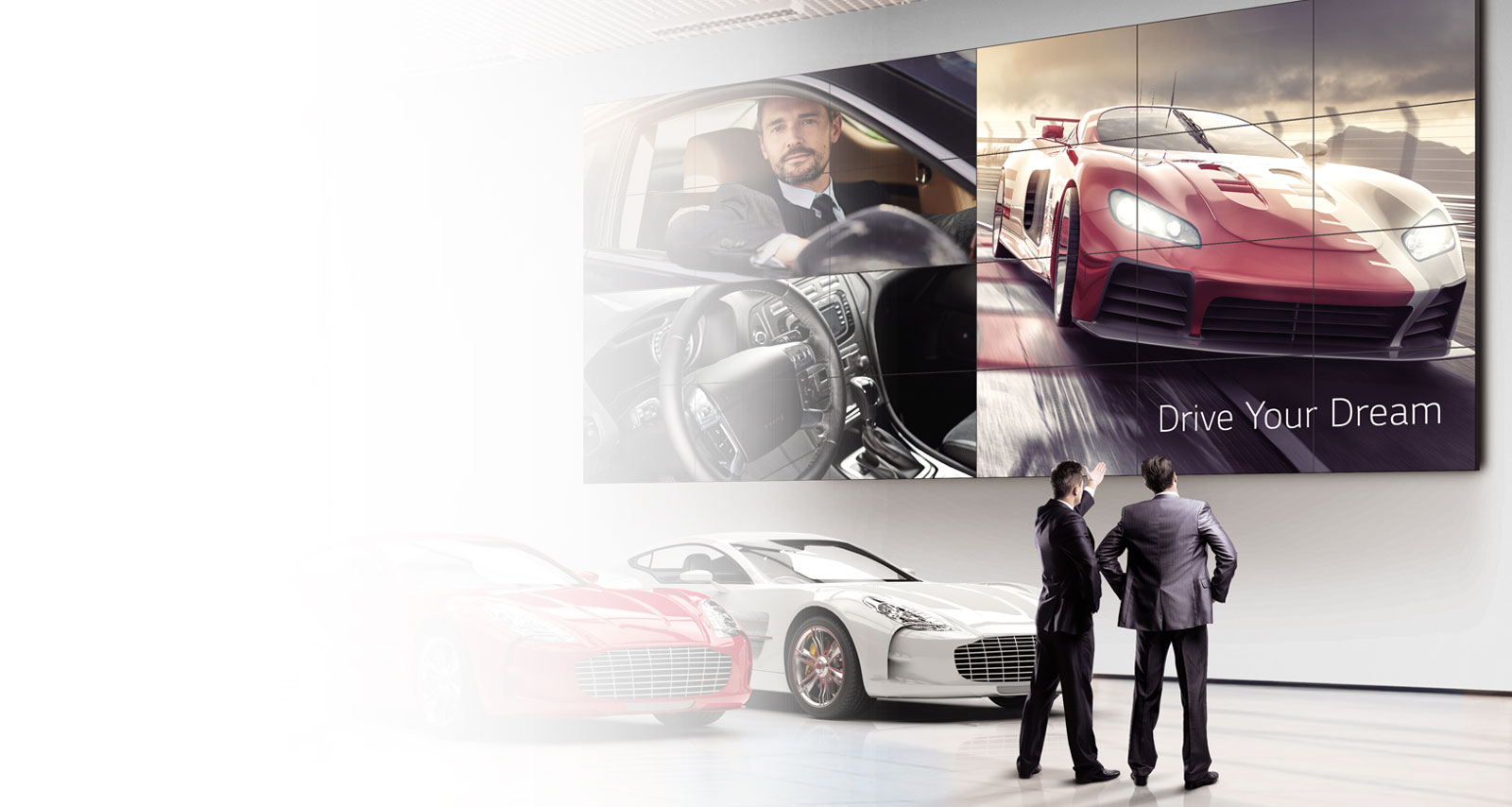

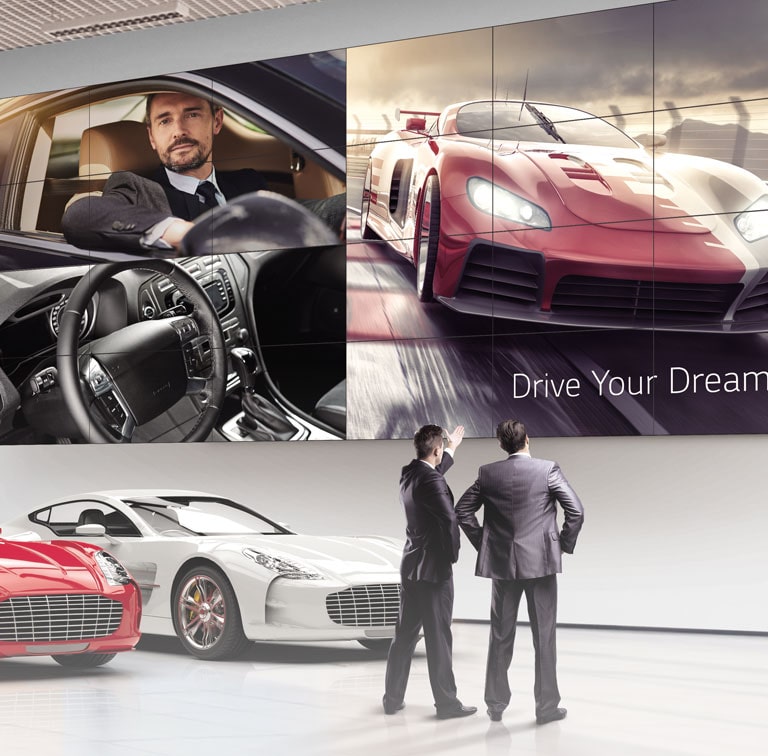

Artistic Immersion, Overwhelming Captivation

The impressive immersion generated by the extremely narrow 0.9 mm bezel becomes even more powerful with a state-of-the-art smart signage platform. Beyond the self-playing feature, the VM5E series is capable of multitasking that raises brand awareness, drives traffic to your store, and engages customers in brand storytelling.

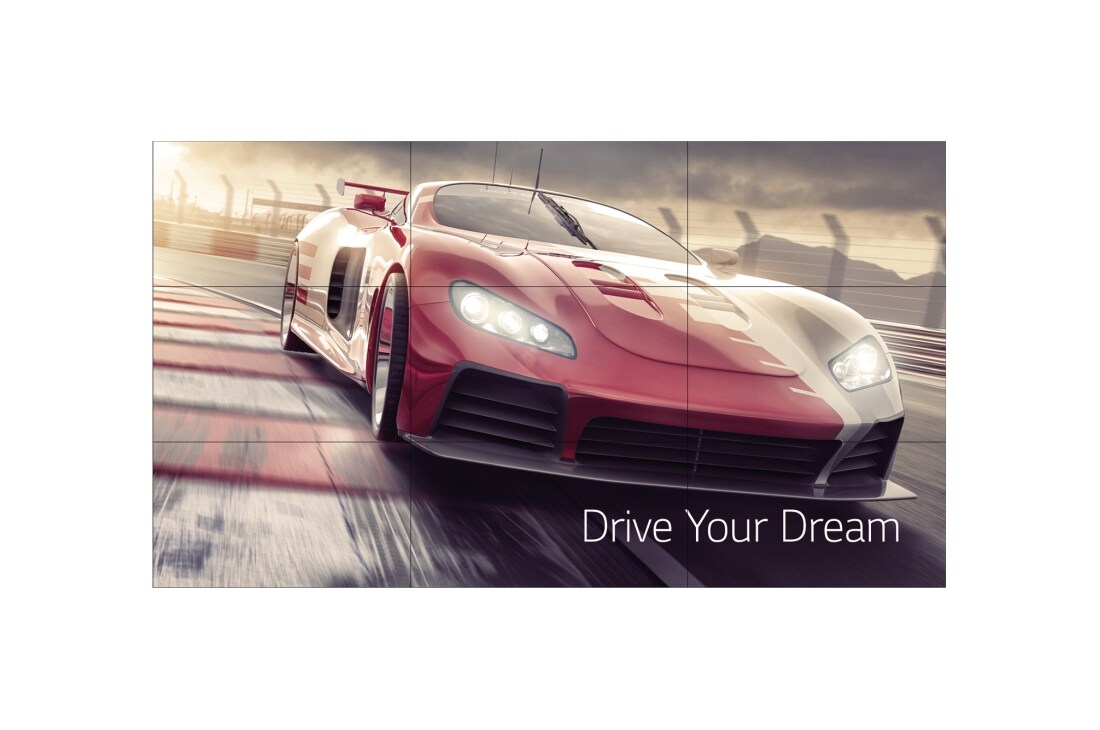

Seamless Large Screens with Extreme-Narrow Bezel 1

Achieving Incredible Immersion

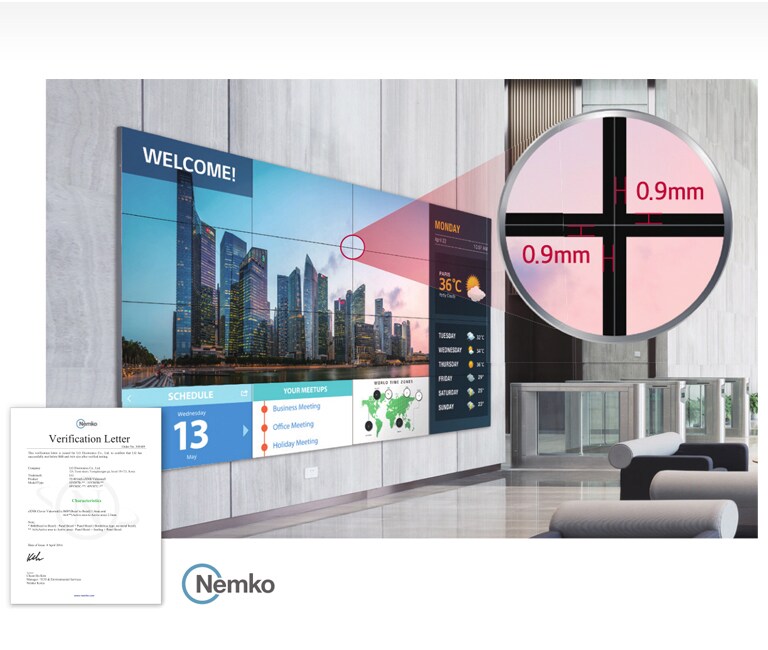

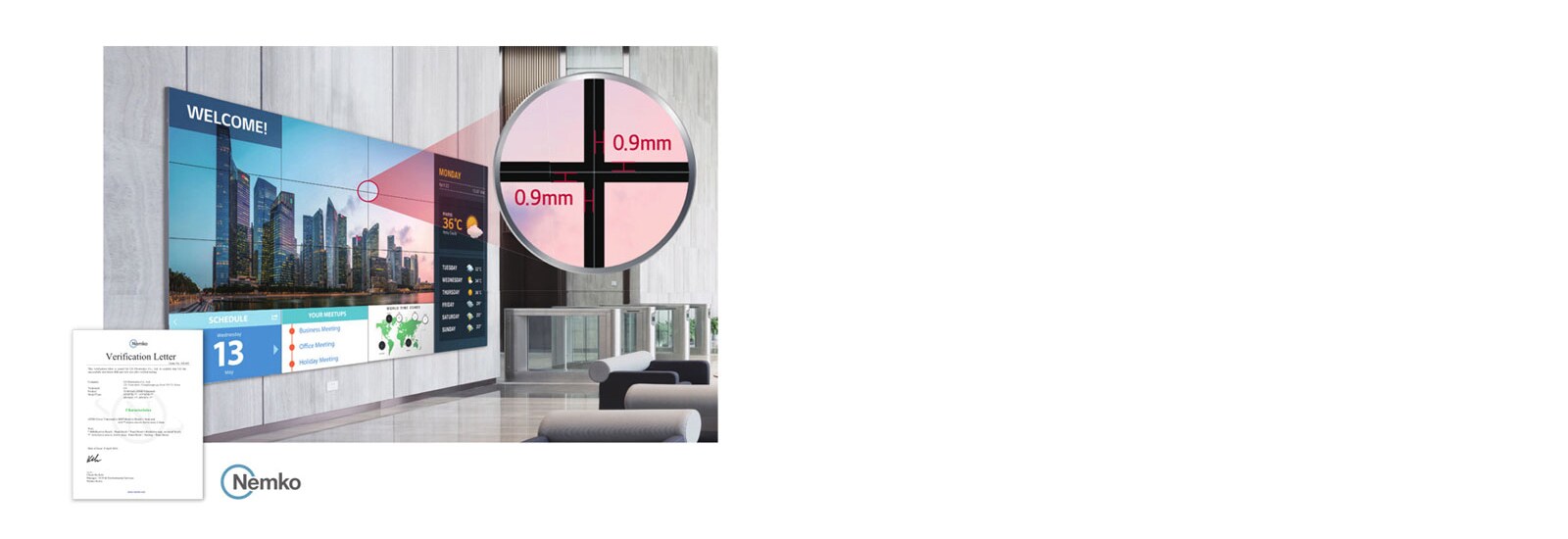

Seamless Large Screens with Extreme-Narrow Bezel

The borderless design, with its 0.9 mm* even bezel and 1.8 mm* BtB (Bezel to Bezel), verified by Nemko, minimizes bezel interference and delivers immersive and seamless content on assembled video wall screens.

*The 0.9mm even panel bezel and 1.8mm BtB size(borderless type, no metal bezel) have been verified by Nemko, a global institution that tests and certifies electrical equipment.

Achieving Incredible Immersion

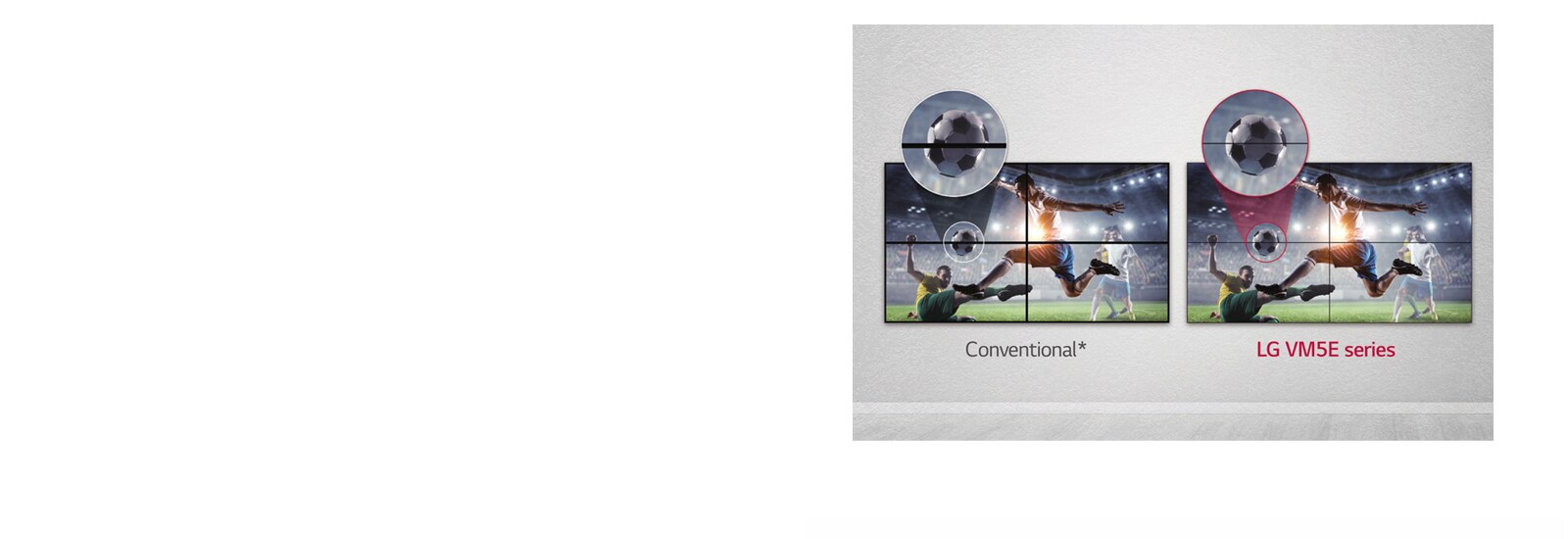

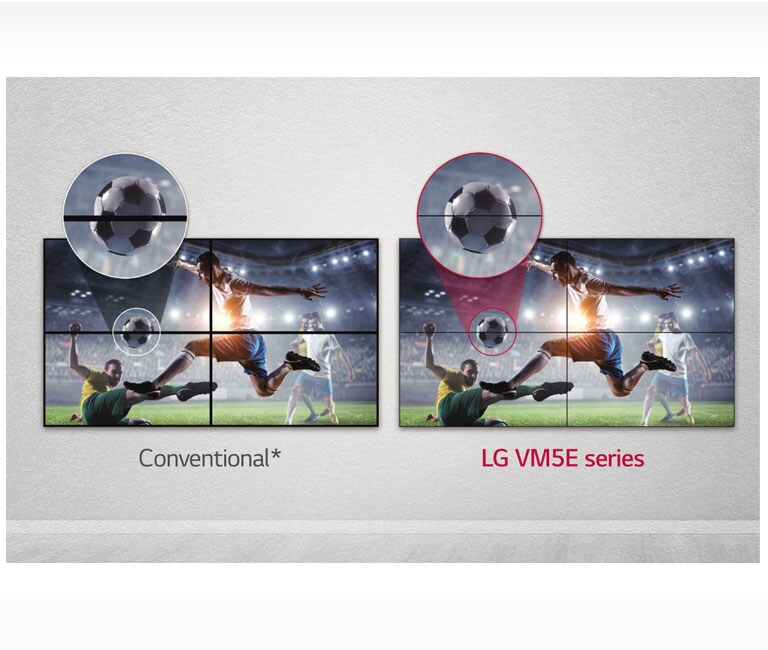

Image Gap Reduction

The VM5E series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

* The "Conventional" refers to displays which do not include an image improvement algorithm.

Vivid and Dynamic Picture Quality

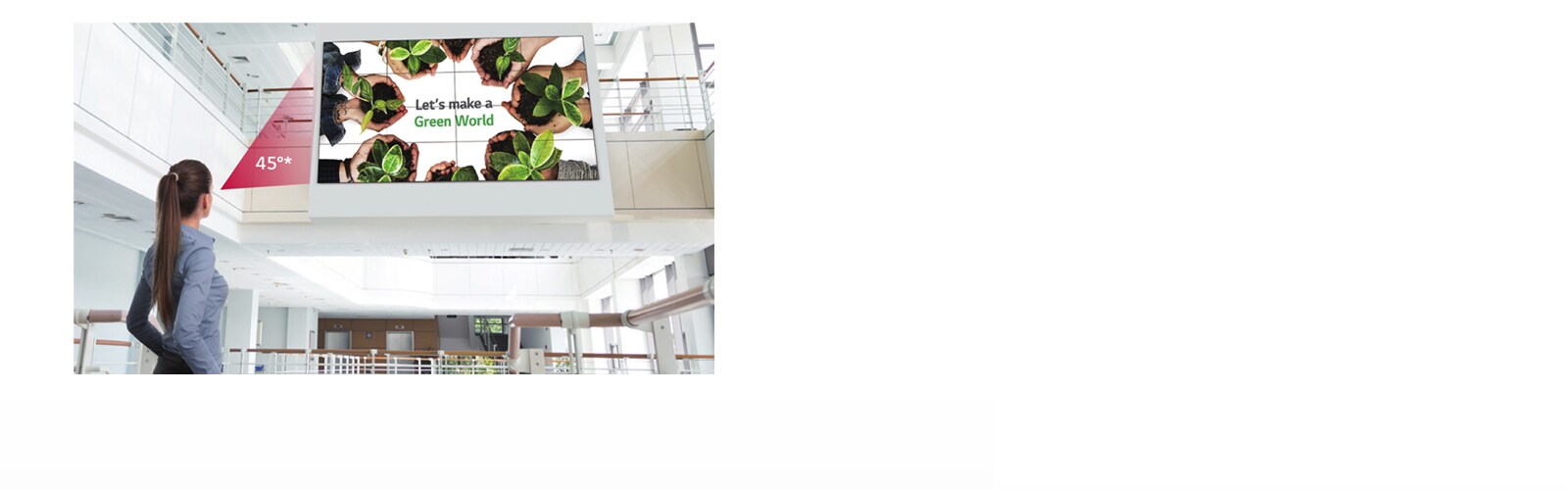

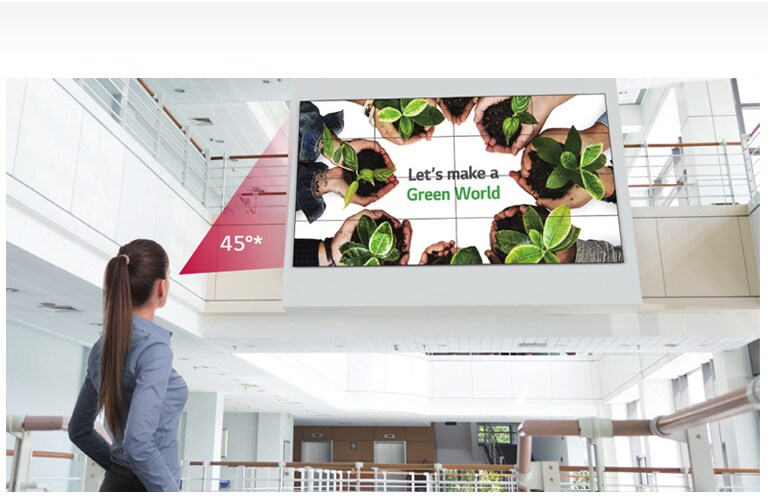

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VM5E series is high enough to display vivid colors throughout the screen with no distortion.

* Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

Vivid and Dynamic Picture Quality

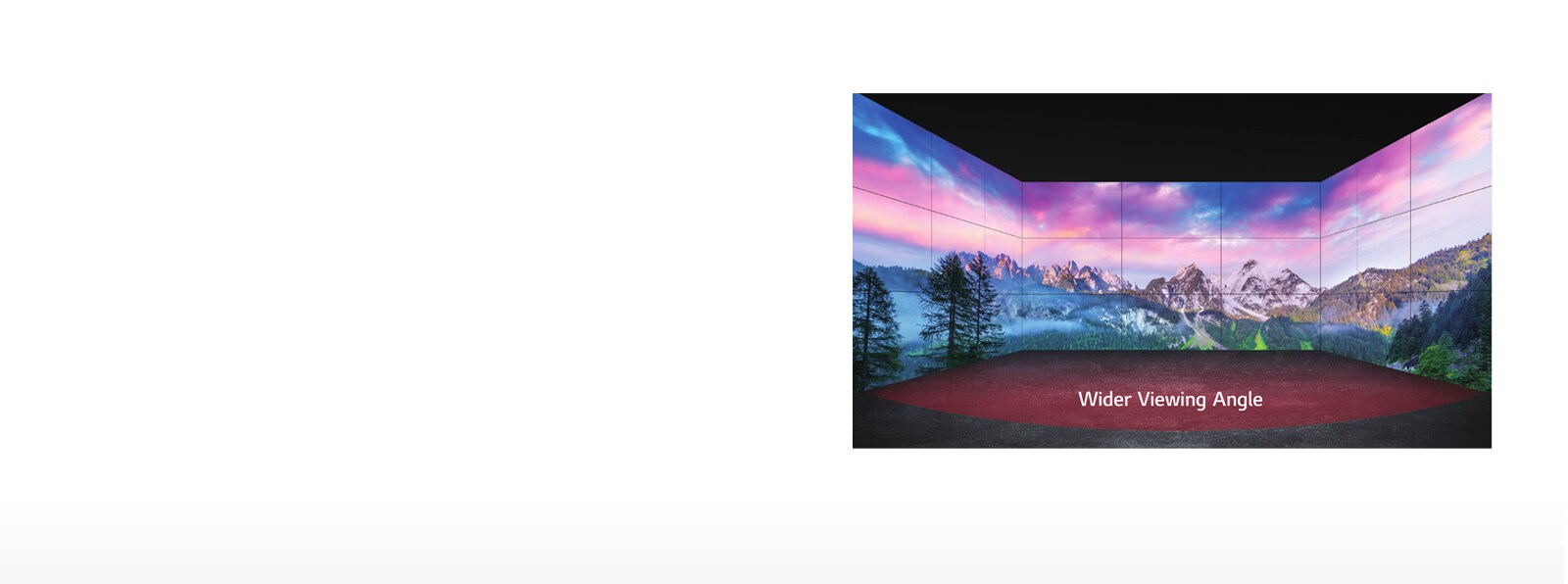

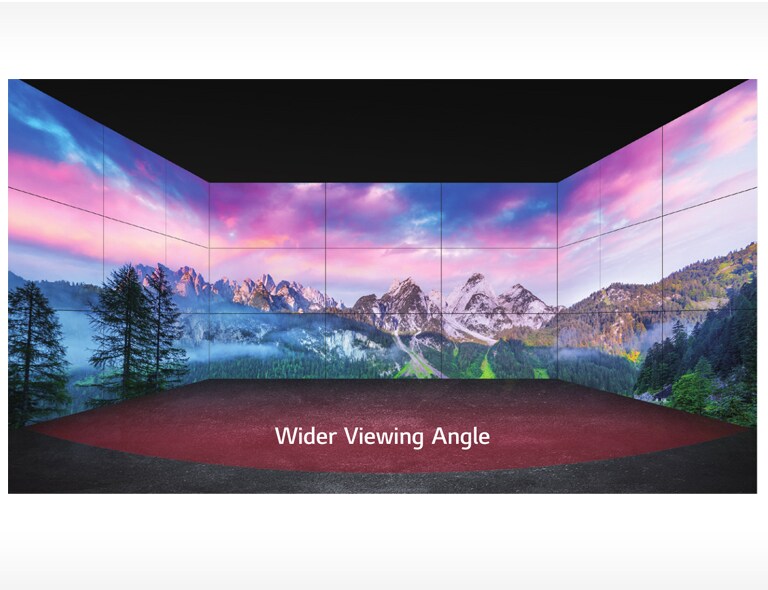

Wider Viewing Angle

It is well known that LG IPS panel technology provides better control of liquid crystals, which in turn allows the screen to be viewed at virtually any angle. Thereby, the VM5E series captivates the attention of more viewers with lifelike colors, regardless of their viewing position.

Powerful Smart Signage Platform

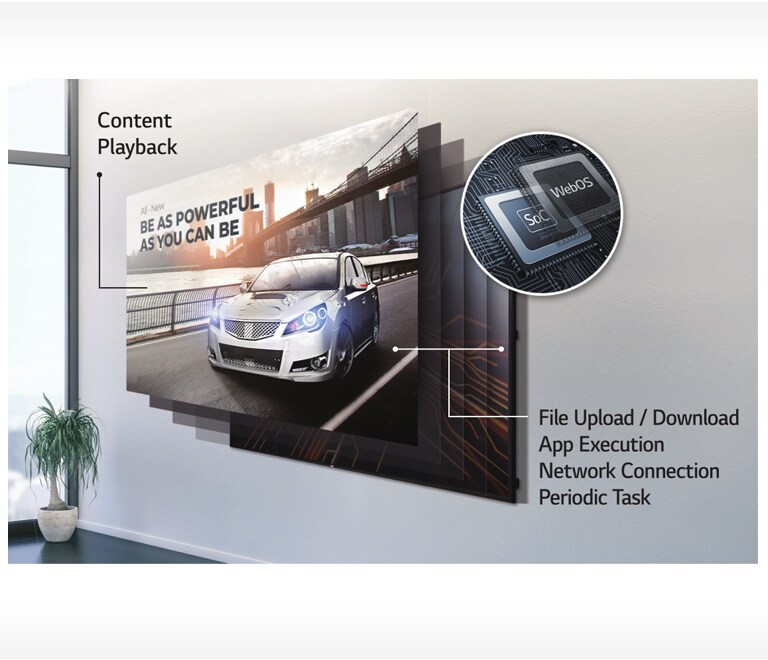

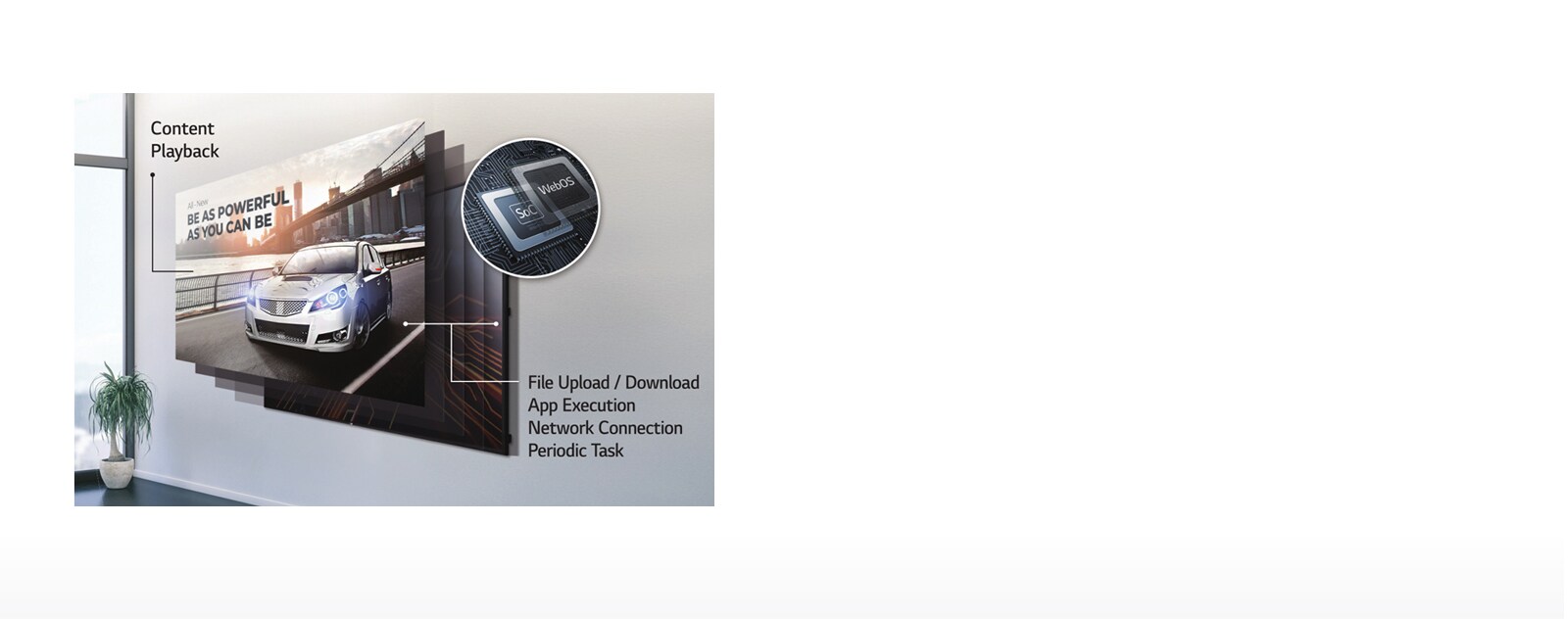

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the VM5E series can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a webbased
platform and offers SDK^{(Soft Development Kit)}, it is even easier for SIs to build and optimize.

User-Friendly Smart Signage UX

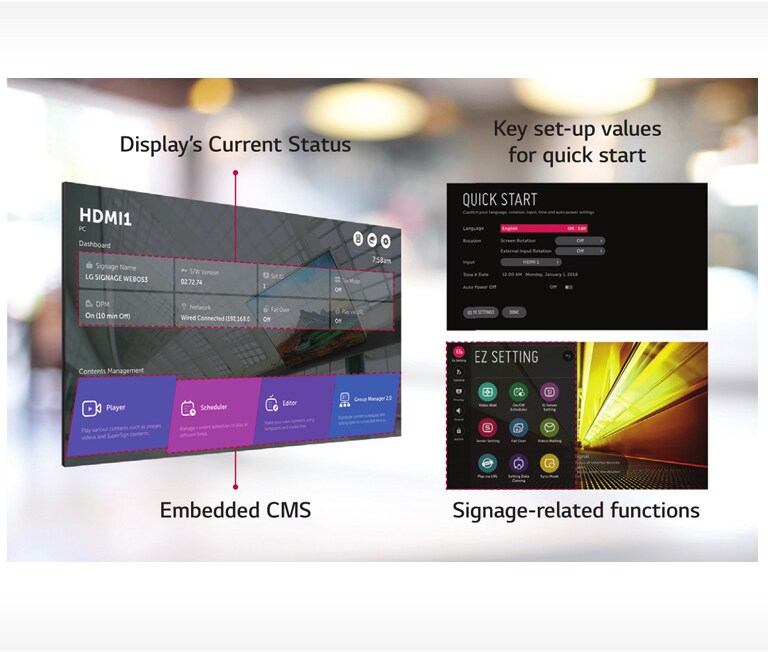

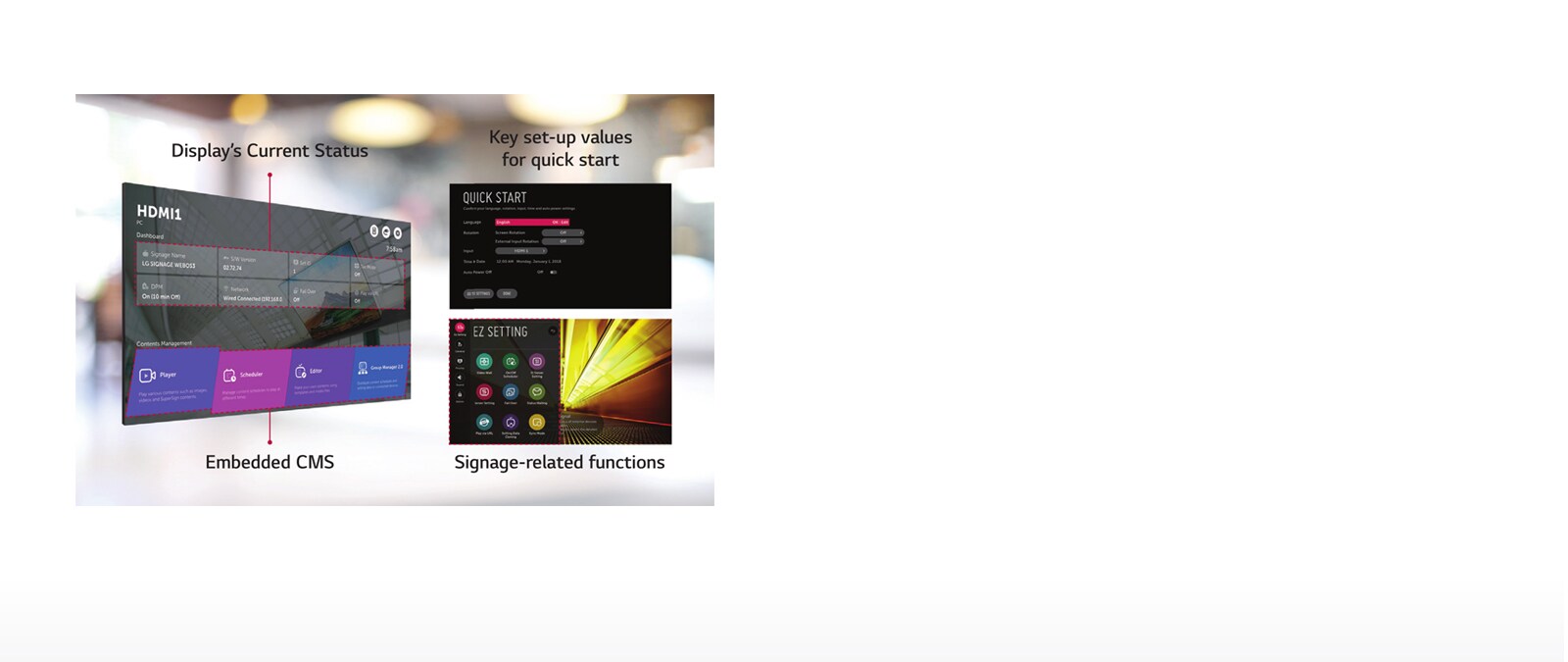

Intuitive Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trialand-error when exploring desired functions and managing displays.

User-Friendly Smart Signage UX

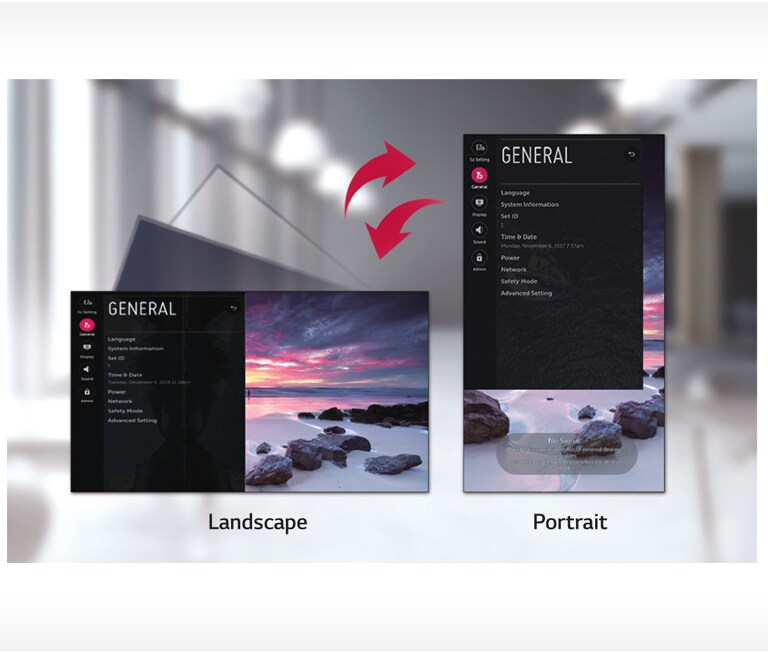

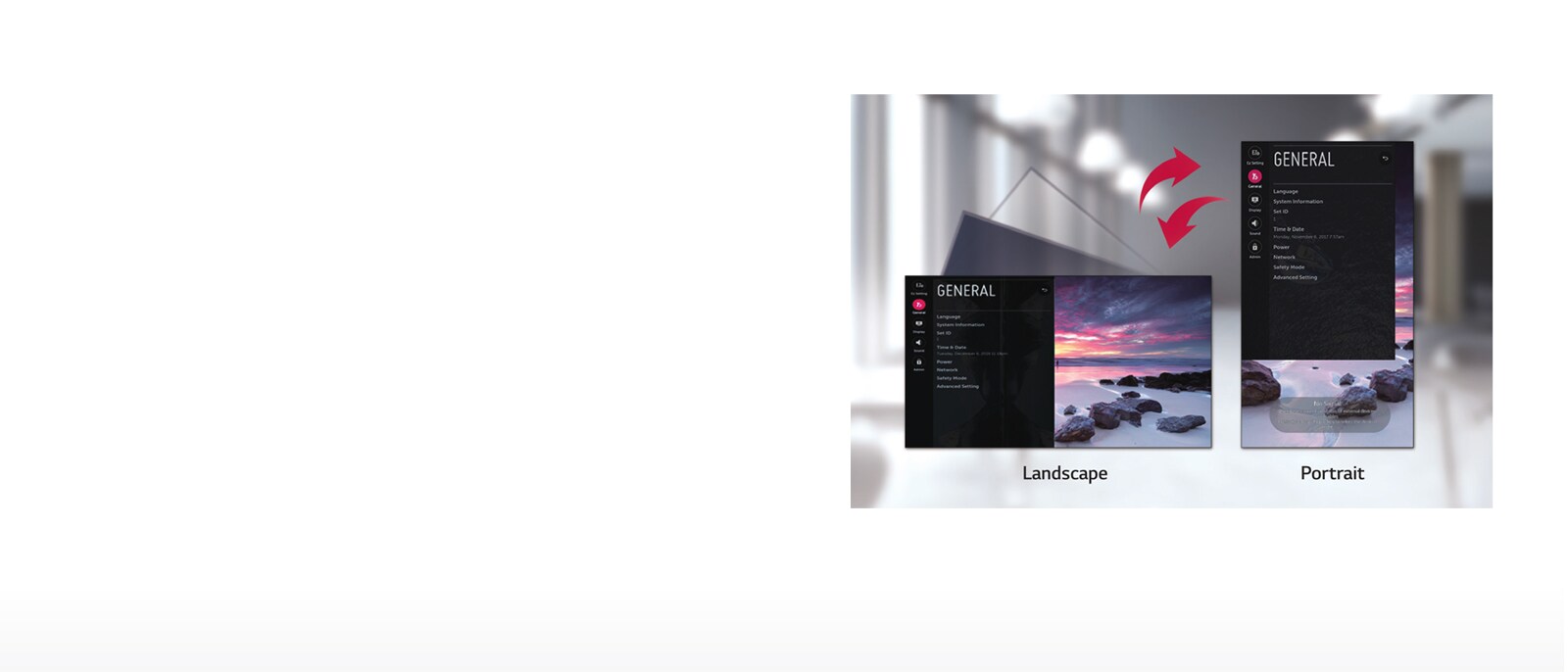

Dedicated GUI for Portrait Orientation

The conventional GUI^{(Graphic User Interface)} was designed based on landscape-oriented consumer TV usage, so OSD^{(On Screen Display)} wasn't well-suited for screens in portrait mode. The OSD of the VM5E series, however, consists of a long range menu, creating a comfortable and efficient business environment.

User Convenience

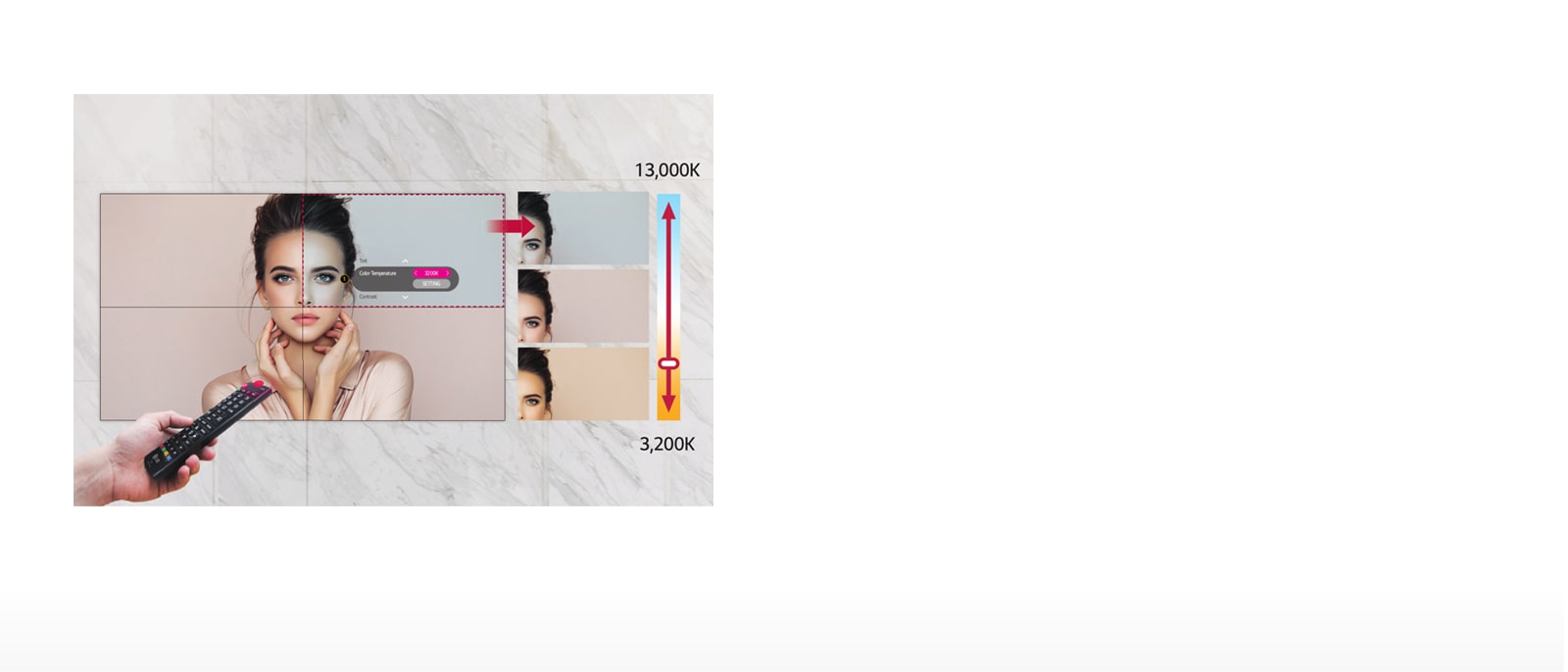

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

User Convenience

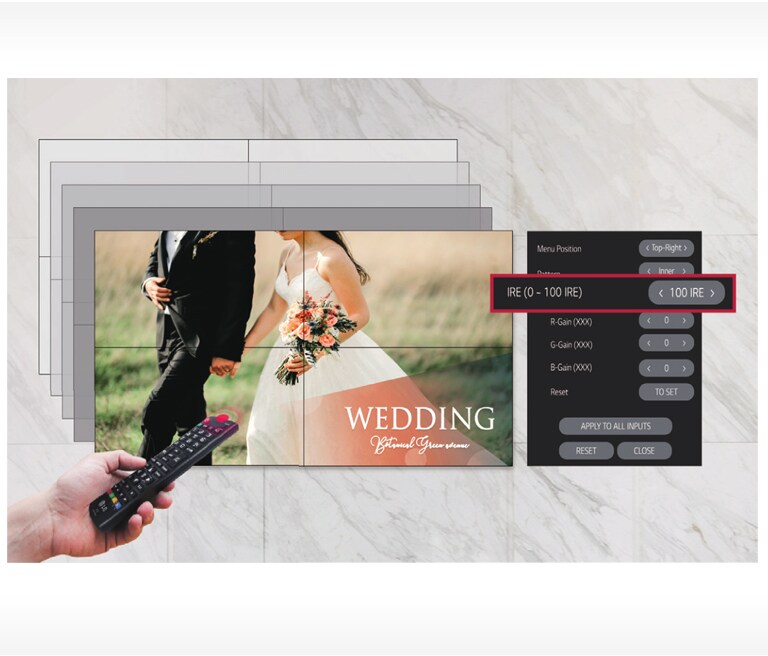

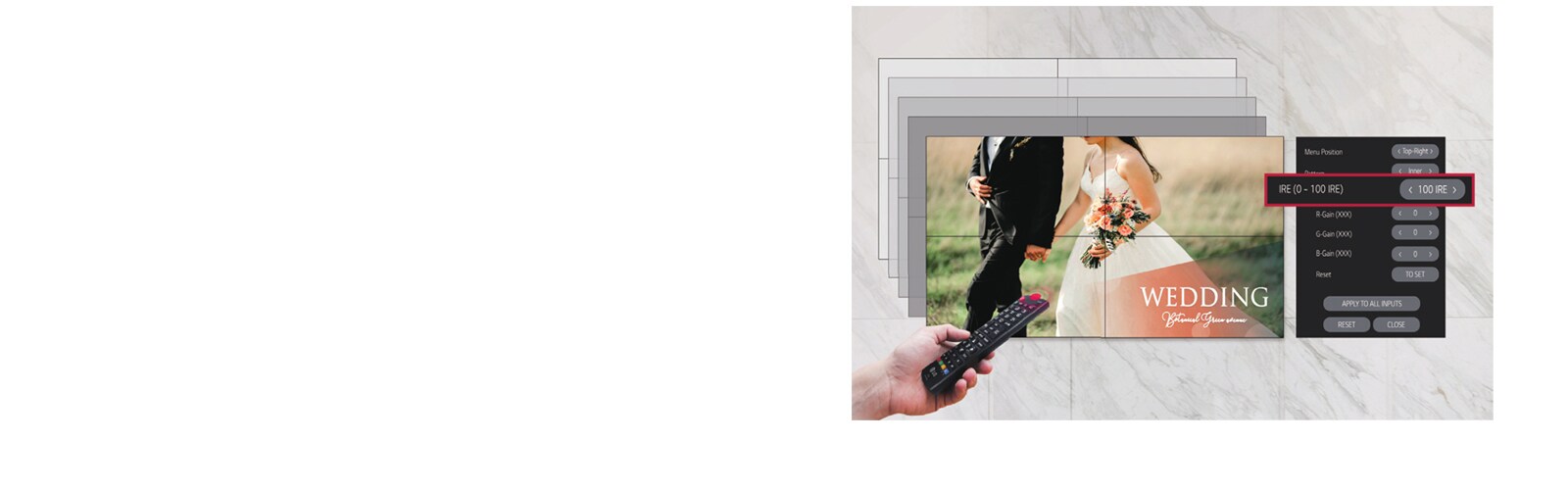

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the VM5E series allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

User Convenience

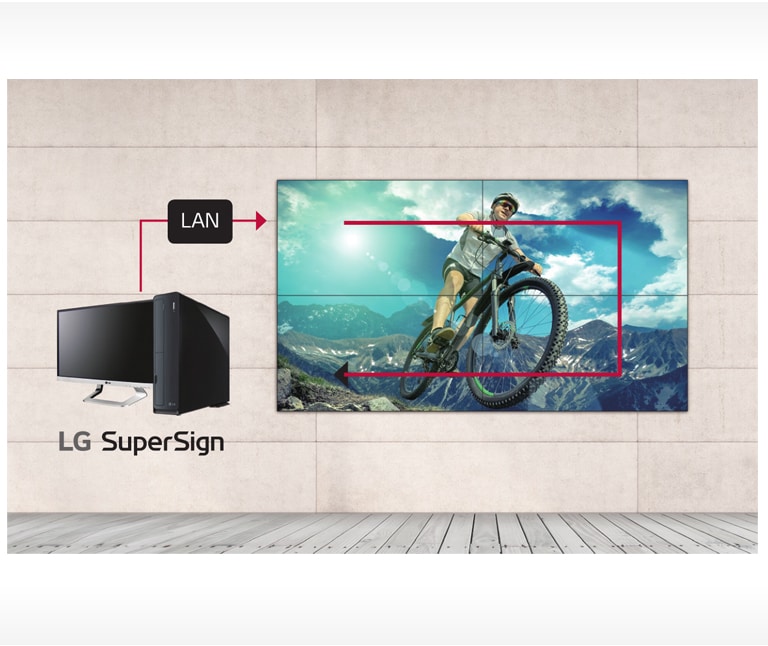

LAN Daisy Chain Management

A LAN daisy chain allows you to execute commands to control and monitor video walls and even update their firmwares at once.

User Convenience

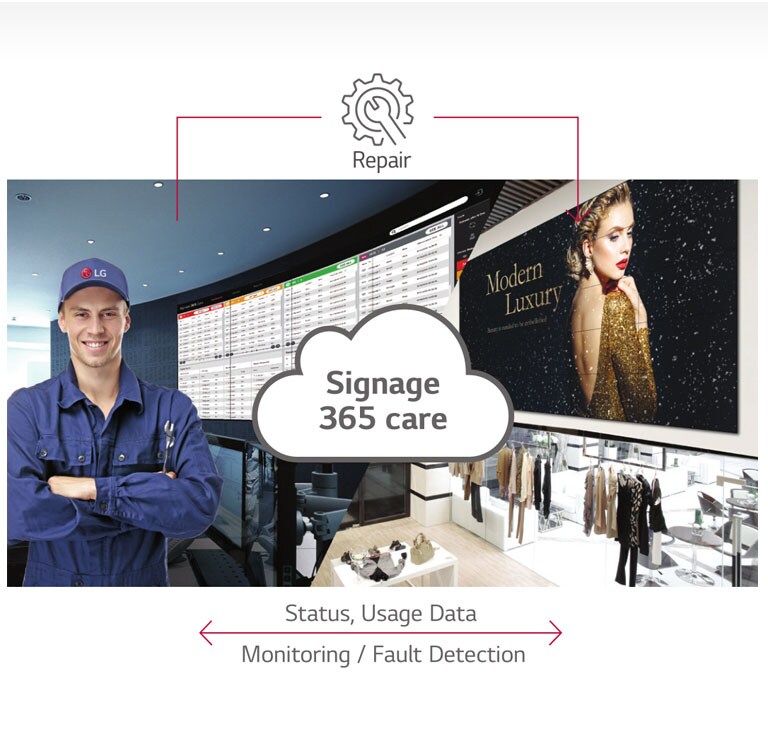

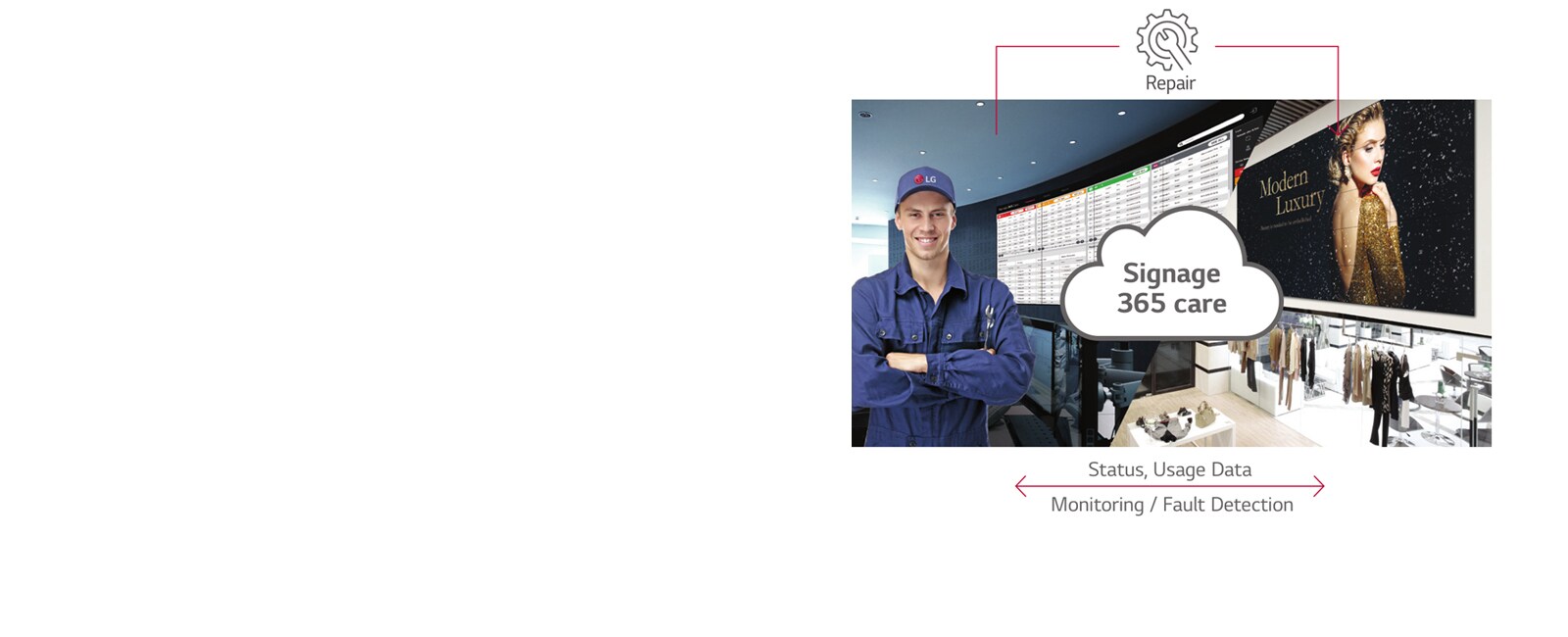

Real-Time Care Service

The maintenance gets easier and faster with an optional service Signage 365 Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.

* The availability of "Signage 365 Care" service can differ by region, so please contact the LG sales representative in your region for further details.

PANEL

Screen Size

49"

Resolution

1,920 x 1,080 (FHD)
Brightness(Typ.,cd/m²)

500

CONNECTIVITY

Input

HDMI (2), DP, DVI-D, Audio, USB 2.0

Output

DP, Audio
External Control

RS232C In/out, RJ45 (LAN) In/out, IR In

MECHANICAL SPECIFICATION

Bezel Width

0.9 mm (Even), B to B 1.8 mm

Monitor Dimension (W × H × D)

1,075.6 x 605.8 x 86.2 mm
Weight (Head)

17.5 kg

Carton Dimensions (W × H × D)

1,214 x 775 x 263 mm
Packed Weight

23.2 kg

VESA™ Standard Mount Interface

600 x 400 mm

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ.

120 W

Max

140 W
Smart Energy Saving

65 W

CERTIFICATION

Safety

CB / NRTL

EMC

FCC Class "A" / CE / KC
ErP/Energy Star

Yes(EU Only) / Energy Star 8.0

MEDIA PLAYER COMPATIBILITY

OPS type compatible

Yes (Piggyback)

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control / Control+

ACCESSORY

Basic

Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual

Optional

Wall Mount (Landscape : WM-L640V, Portrait : WM-P640V), OPS Kit(KT-OPSF)
