55LV75D-B component-copyModelName

Ultra Narrow Bezel Video Wall

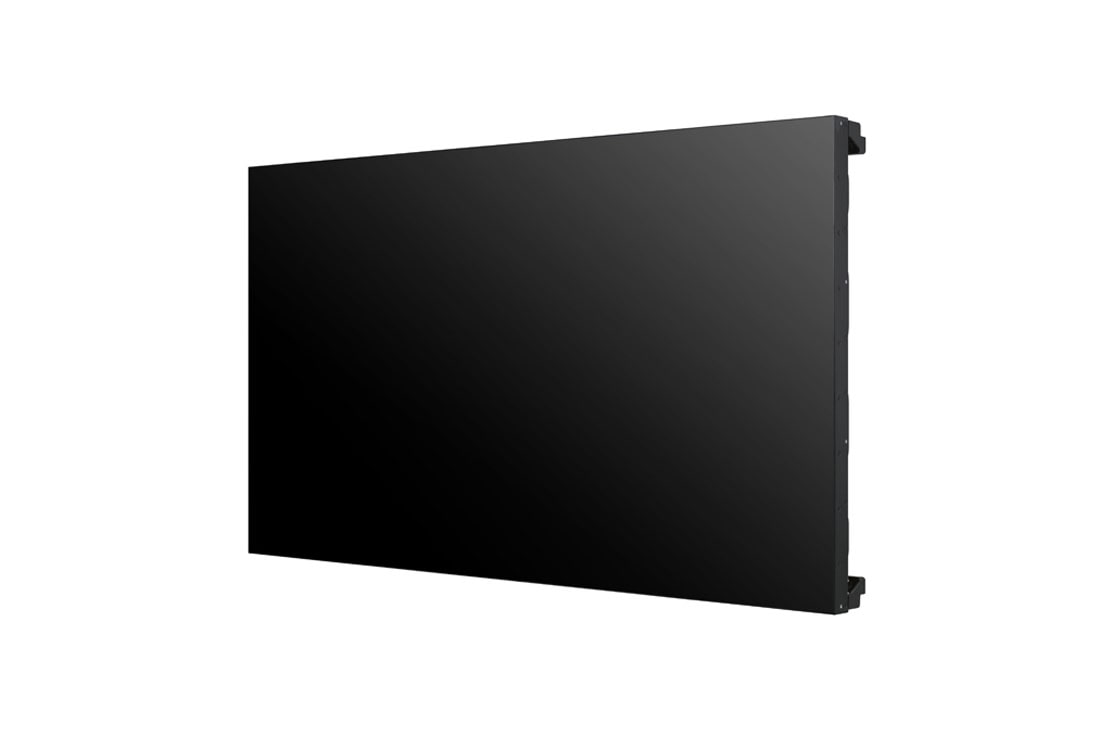

LG Ultra Narrow Bezel Video Wall, 55LV75D-B, thumbnail 1

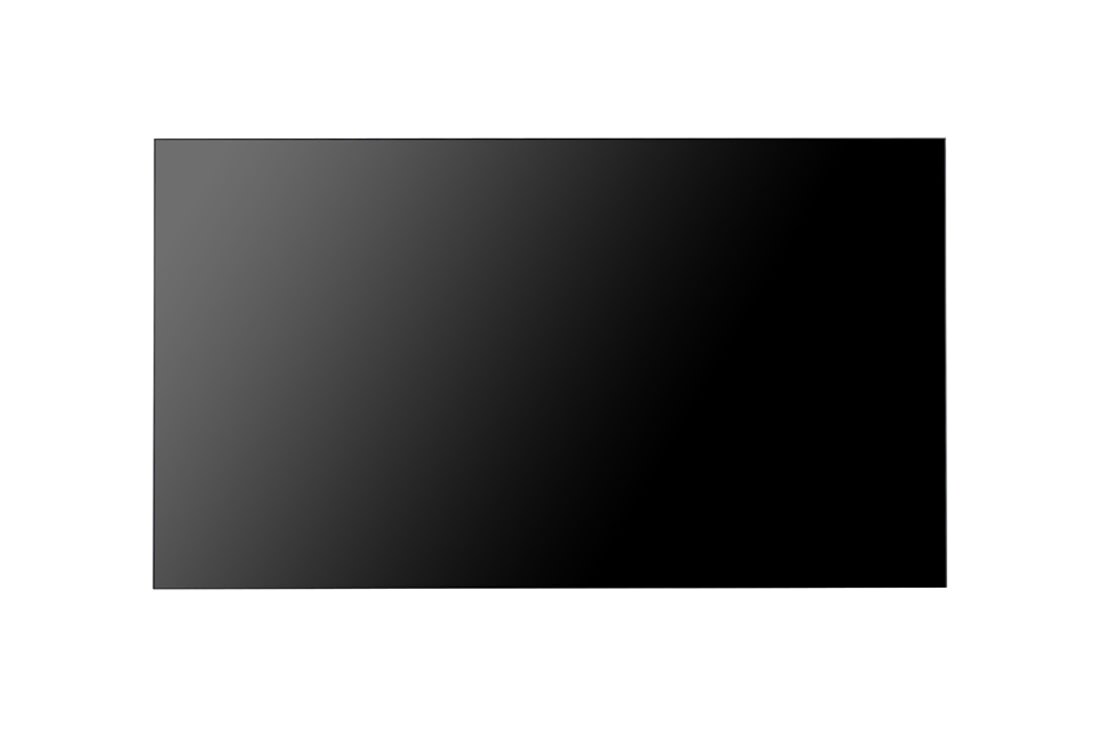

LG Ultra Narrow Bezel Video Wall, 55LV75D-B, thumbnail 2

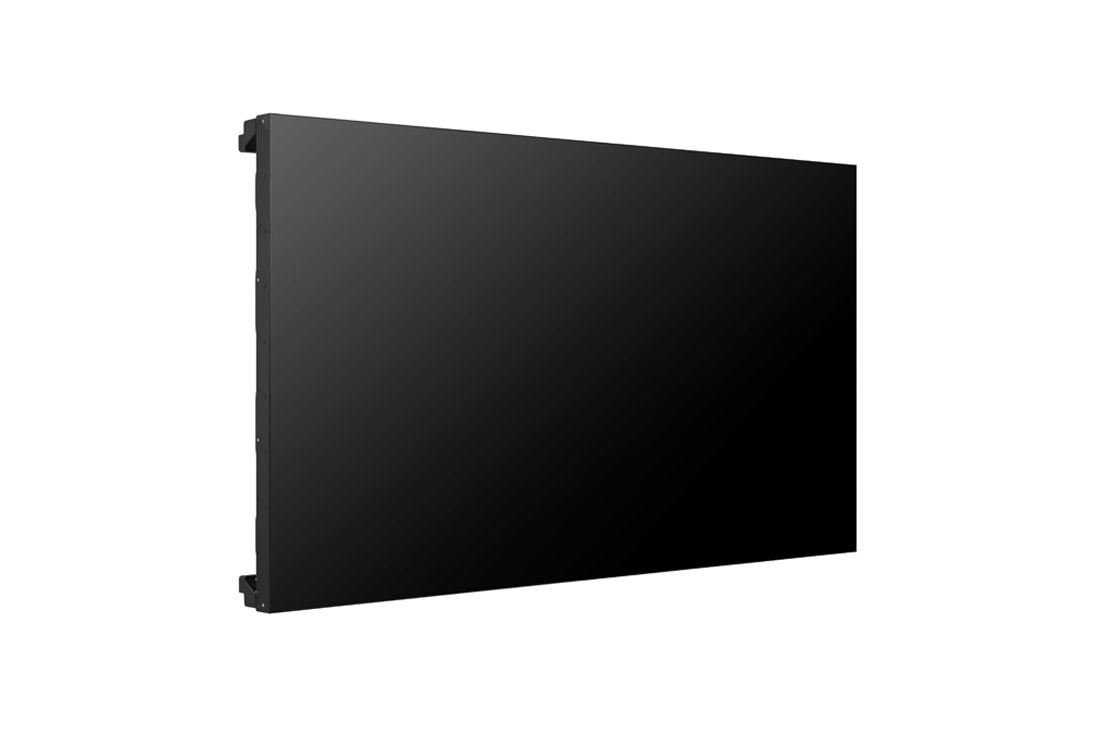

LG Ultra Narrow Bezel Video Wall, 55LV75D-B, thumbnail 3

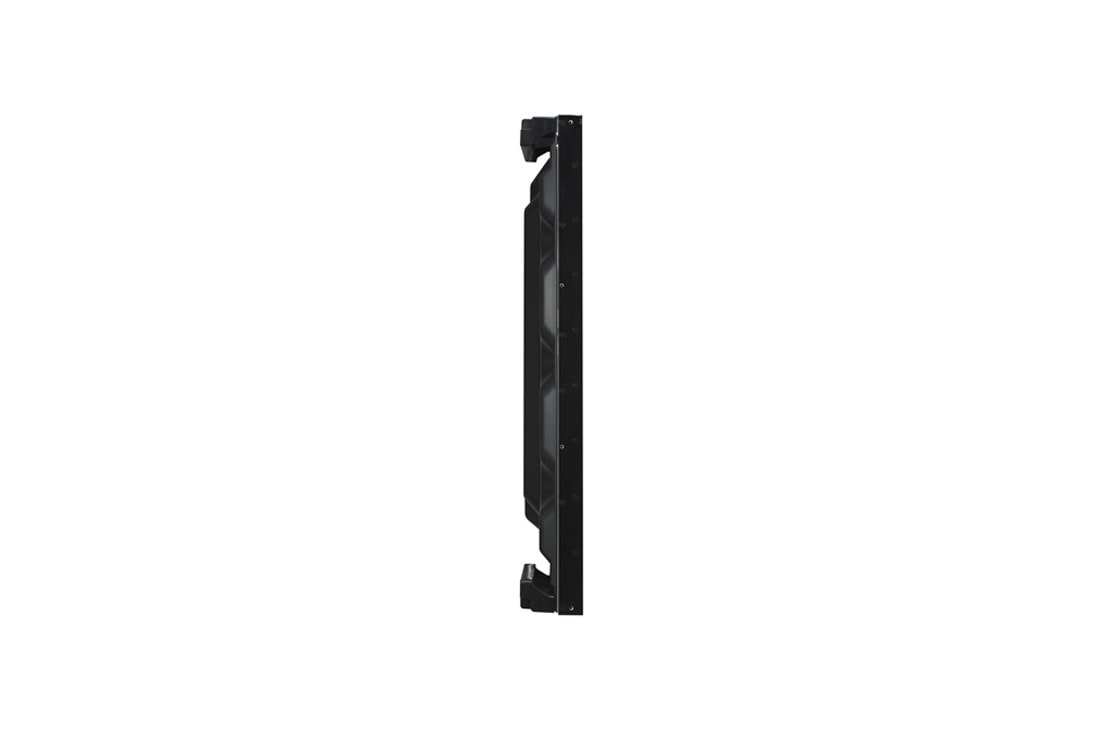

LG Ultra Narrow Bezel Video Wall, 55LV75D-B, thumbnail 4

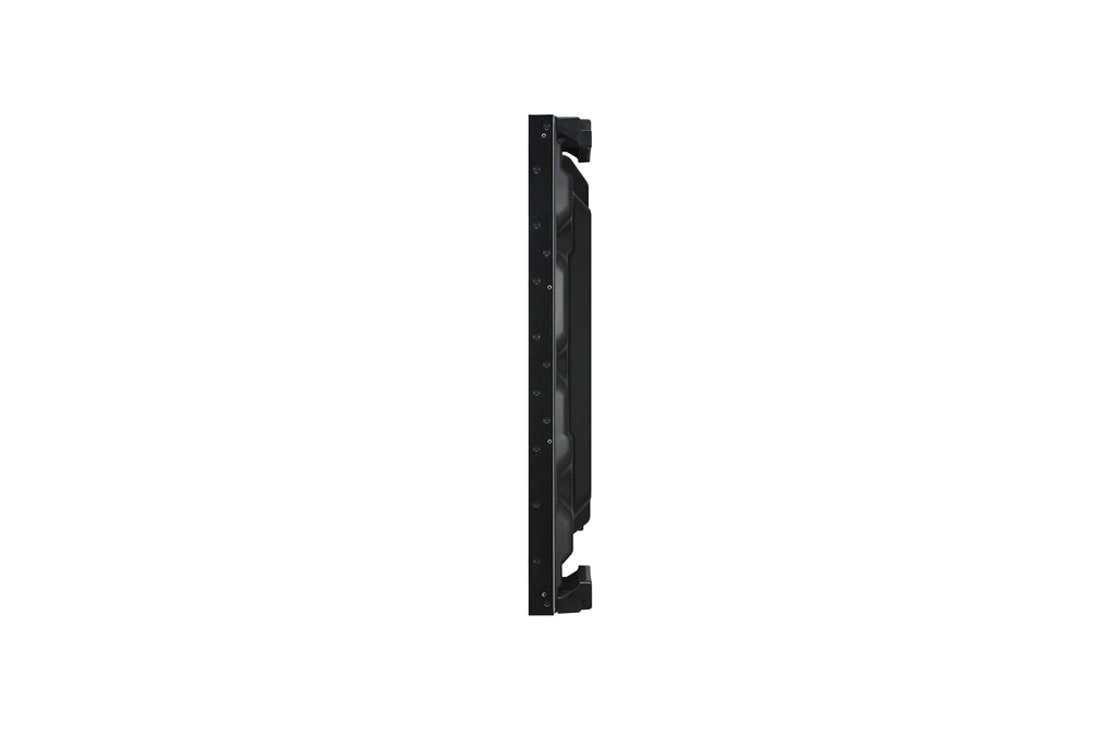

LG Ultra Narrow Bezel Video Wall, 55LV75D-B, thumbnail 5

LG Ultra Narrow Bezel Video Wall, 55LV75D-B, thumbnail 6

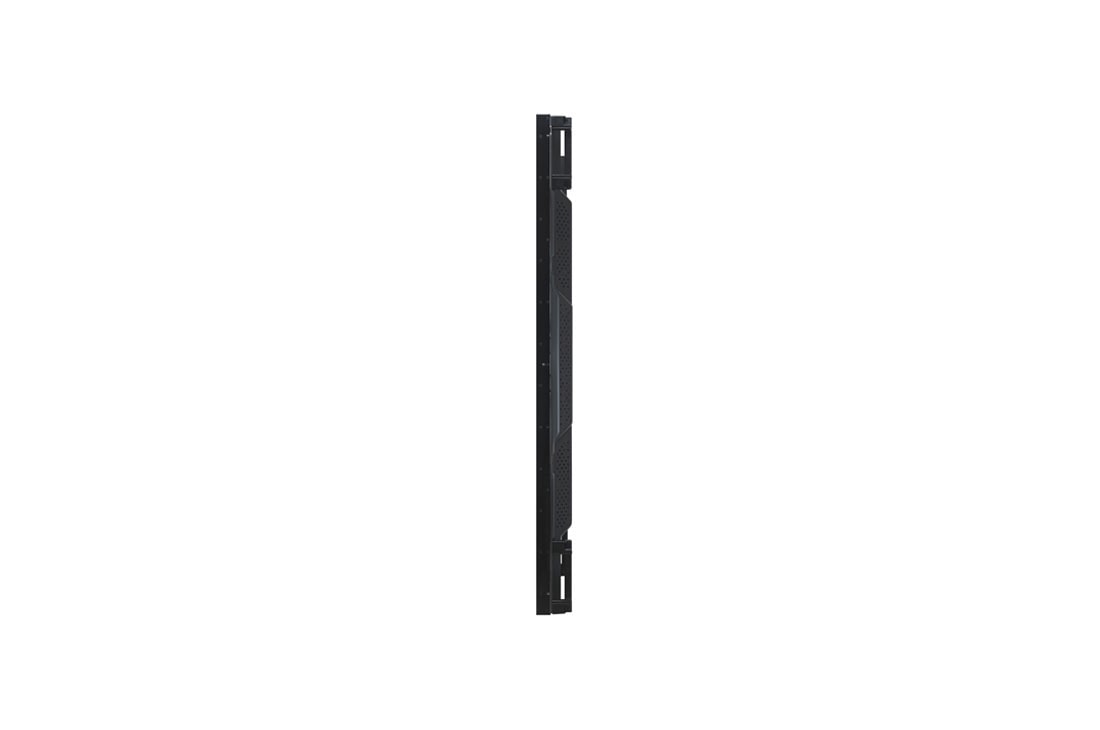

LG Ultra Narrow Bezel Video Wall, 55LV75D-B, thumbnail 7

ADD TO WISHLIST

Discontinued

55LV75D-B component-copyModelName

Ultra Narrow Bezel Video Wall

Key Features

Brightness(Typ.): 500 cd/m²
Bezel: 2.25mm (Top/Left), 1.25mm (Bottom/Right)
Depth: 88.5mm
Interface: HDMI/DP/DVI-D/RGB/RS232C/RJ45/USB/IR Receiver/Audio

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.): 500 cd/m²
Bezel: 2.25mm (Top/Left), 1.25mm (Bottom/Right)
Depth: 88.5mm
Interface: HDMI/DP/DVI-D/RGB/RS232C/RJ45/USB/IR Receiver/Audio

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Ultra Narrow Bezel Video Wall

Immersive Viewing Experience

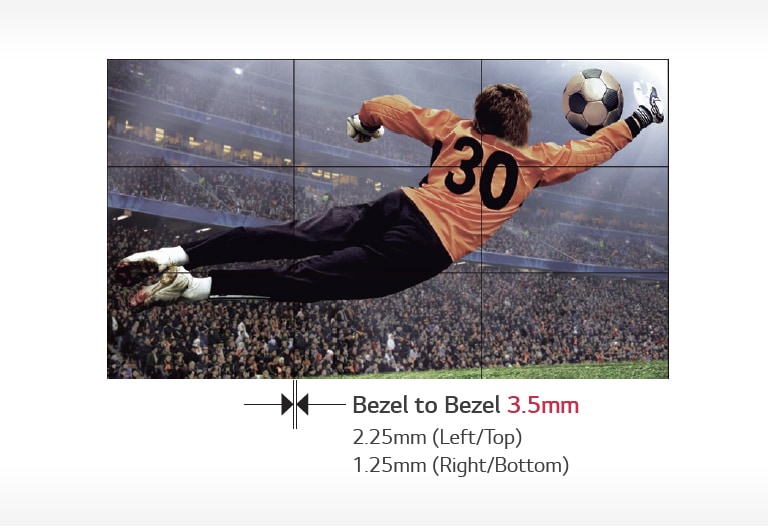

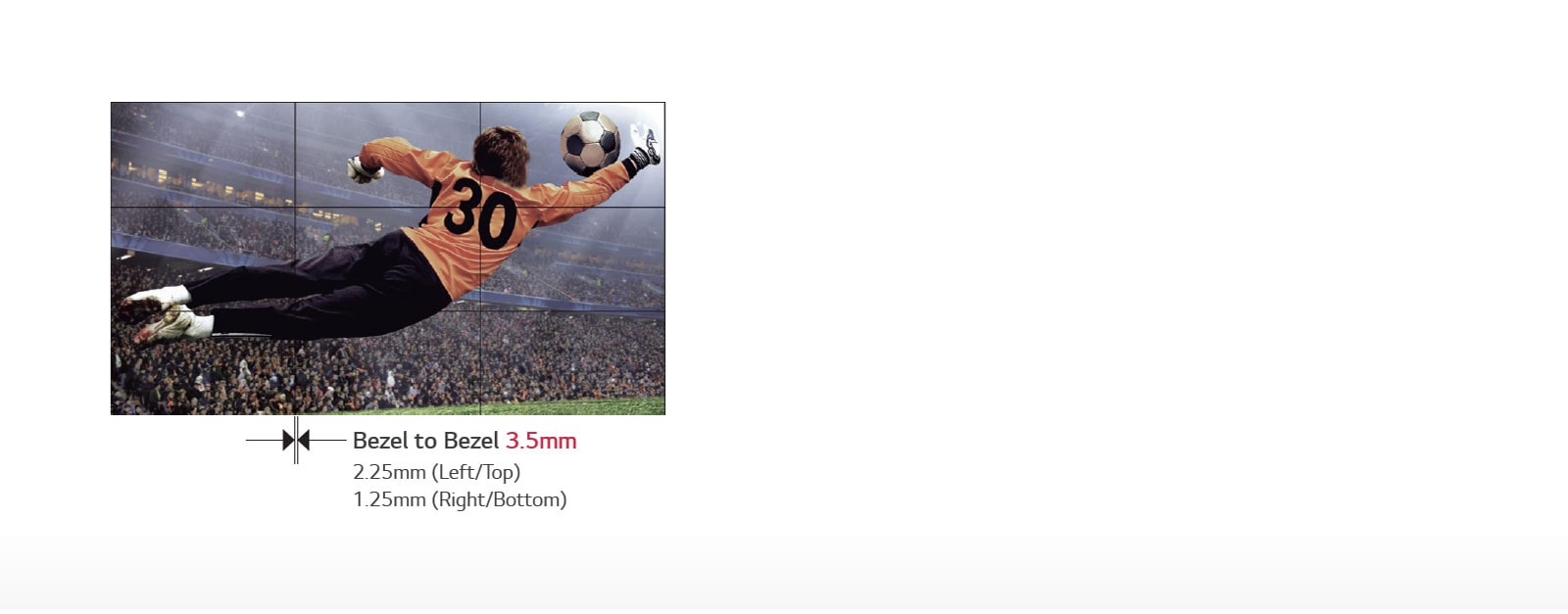

Ultra Narrow Bezel

The 3.5mm ultra narrow bezel size creates immersive and seamless viewing experiences on assembled video wall screens.

Immersive Viewing Experience

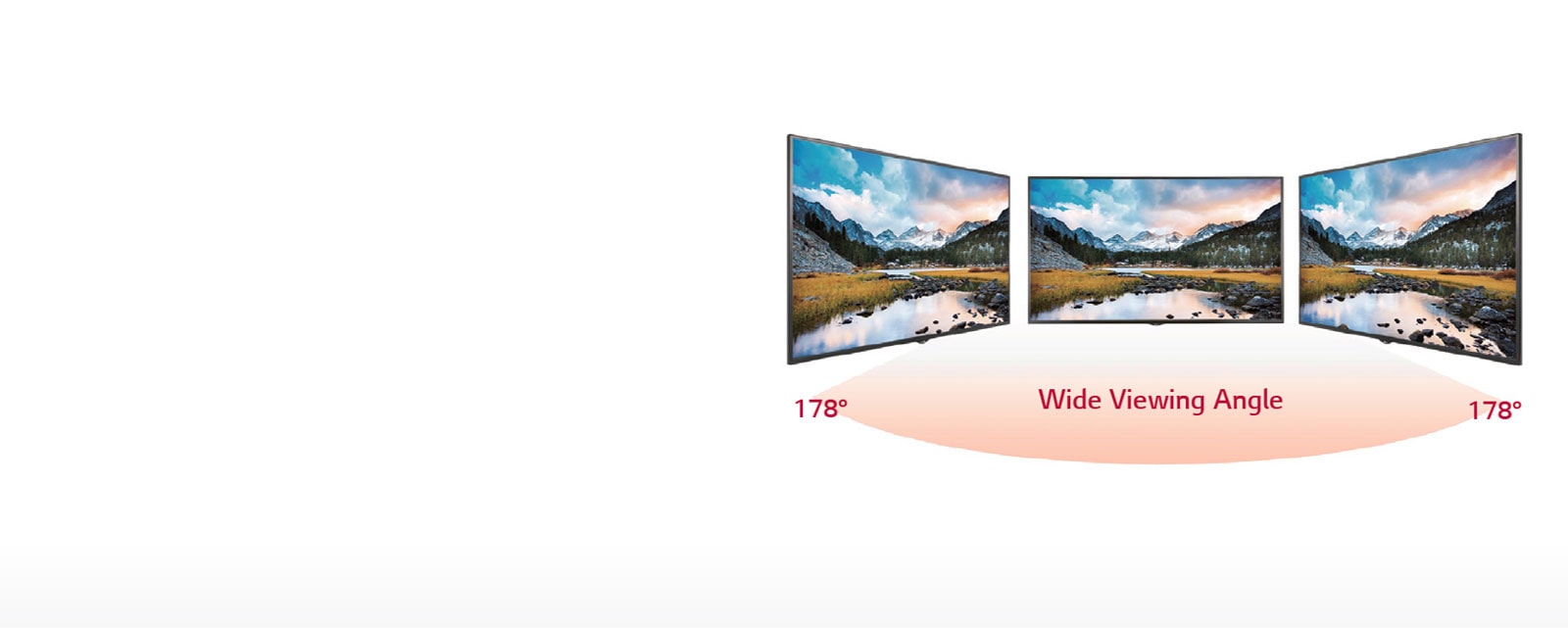

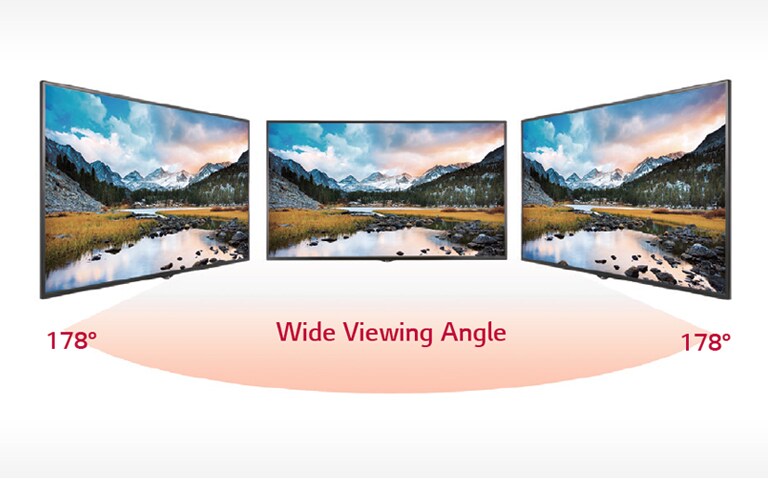

Wide Viewing Angle

IPS panel technology means a more advanced control of the loqiud crystal display. As a result, it has a wide viewing angle that delivers clear content, no matter where a passerby views. Every pixel in the IPS panel truly reproduces the image colors without distorting them.

Superior Picture Quality

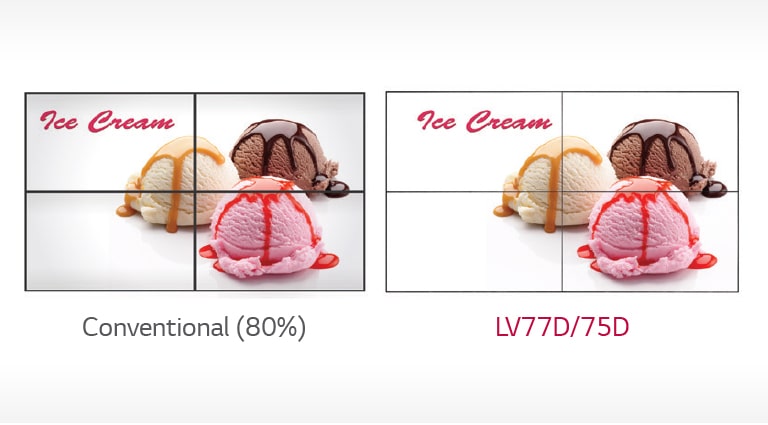

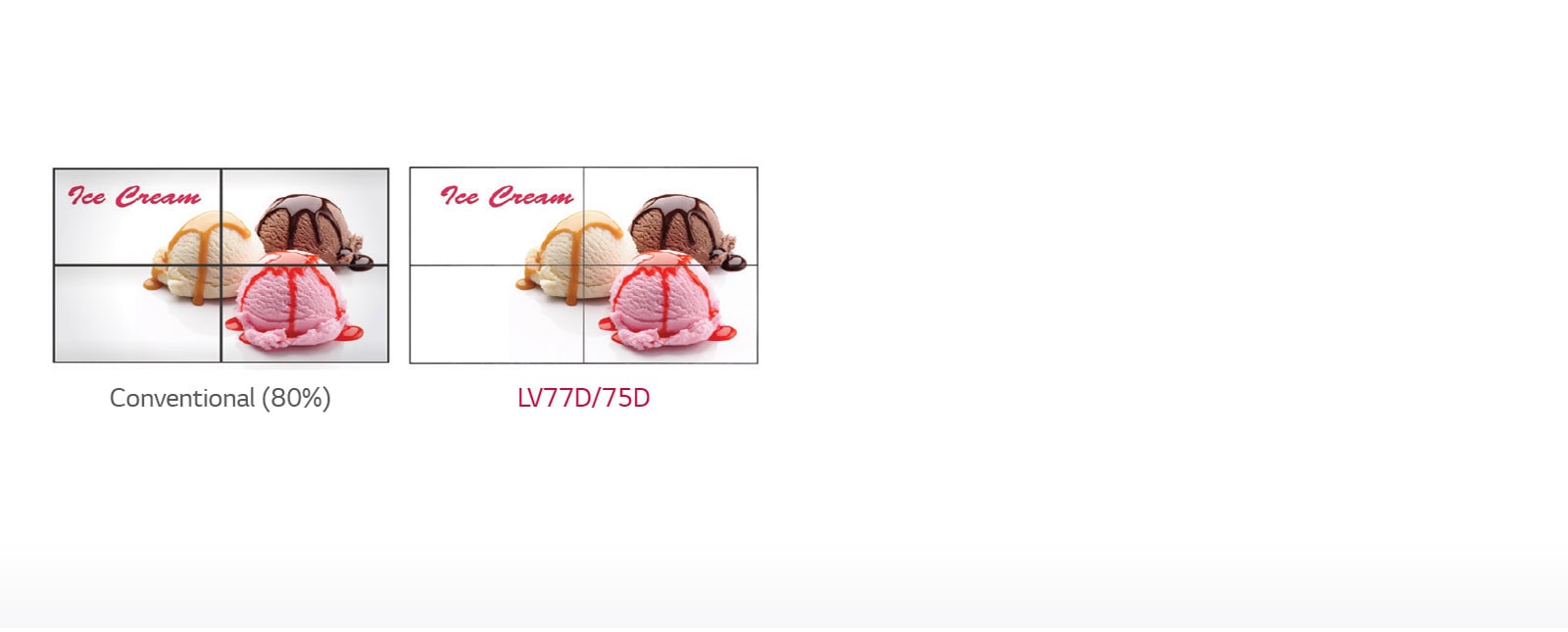

Uniform Brightness

LG's LED backlight technology guarantees high uniformity in brightness to ensure a clear picture. On other screens, certain spots may appear darker than others, but the new LV77D/75D generates high visibility and a consistent brightness across the whole screen.

Superior Picture Quality

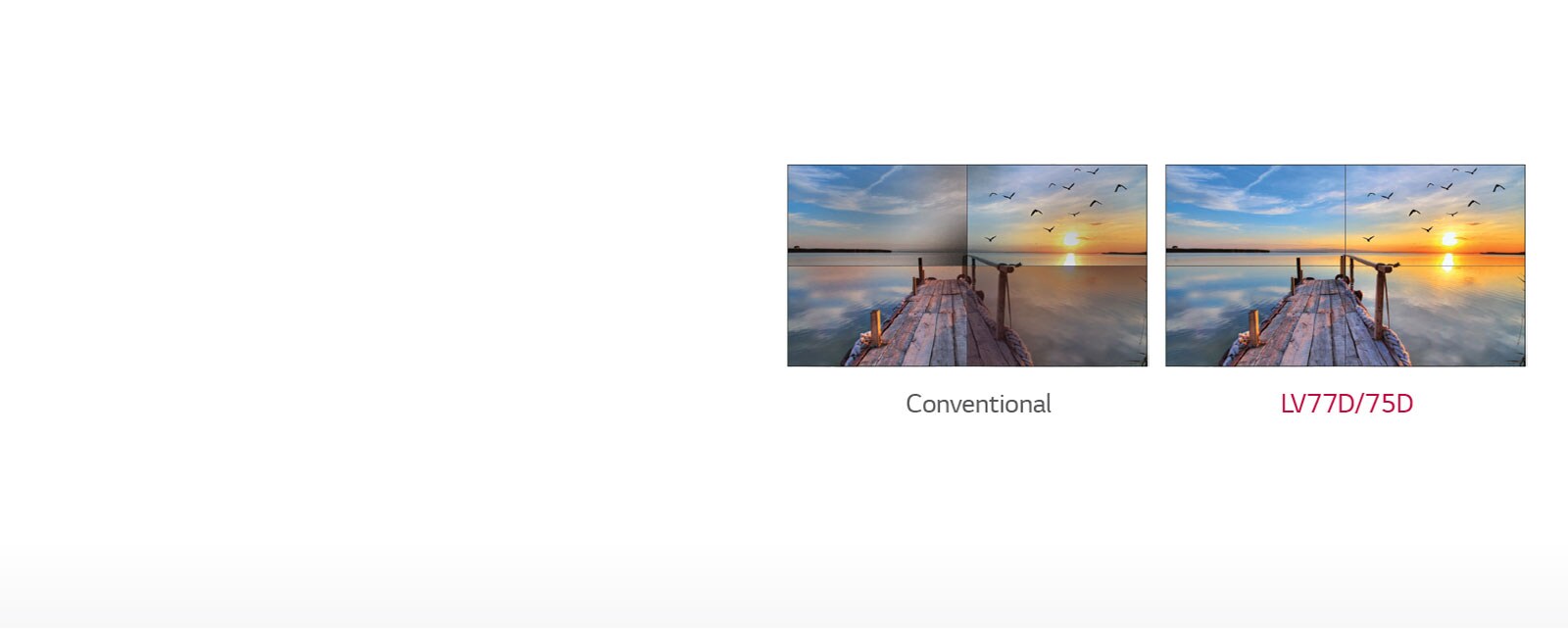

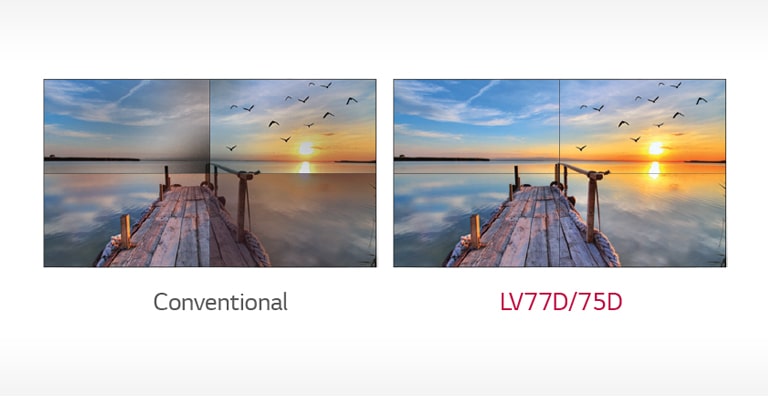

Consistent White Balance

Through Video Wall Image Creation (VIC) technology, color and brightness differences are compensated in circuit part with an algorithm to make the panels into a same characteristic so that each video wall maintains the consistent white balance.

Superior Picture Quality

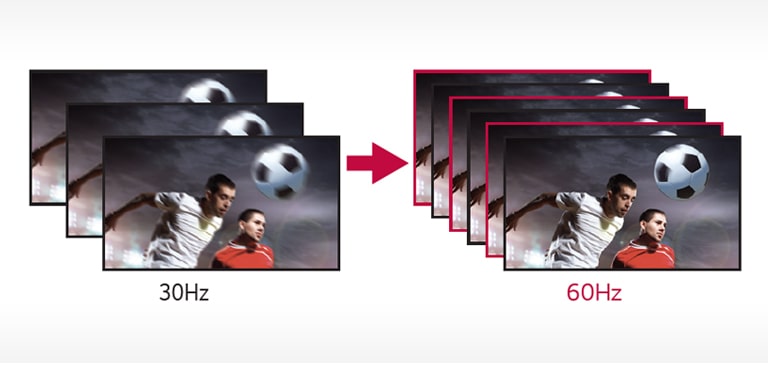

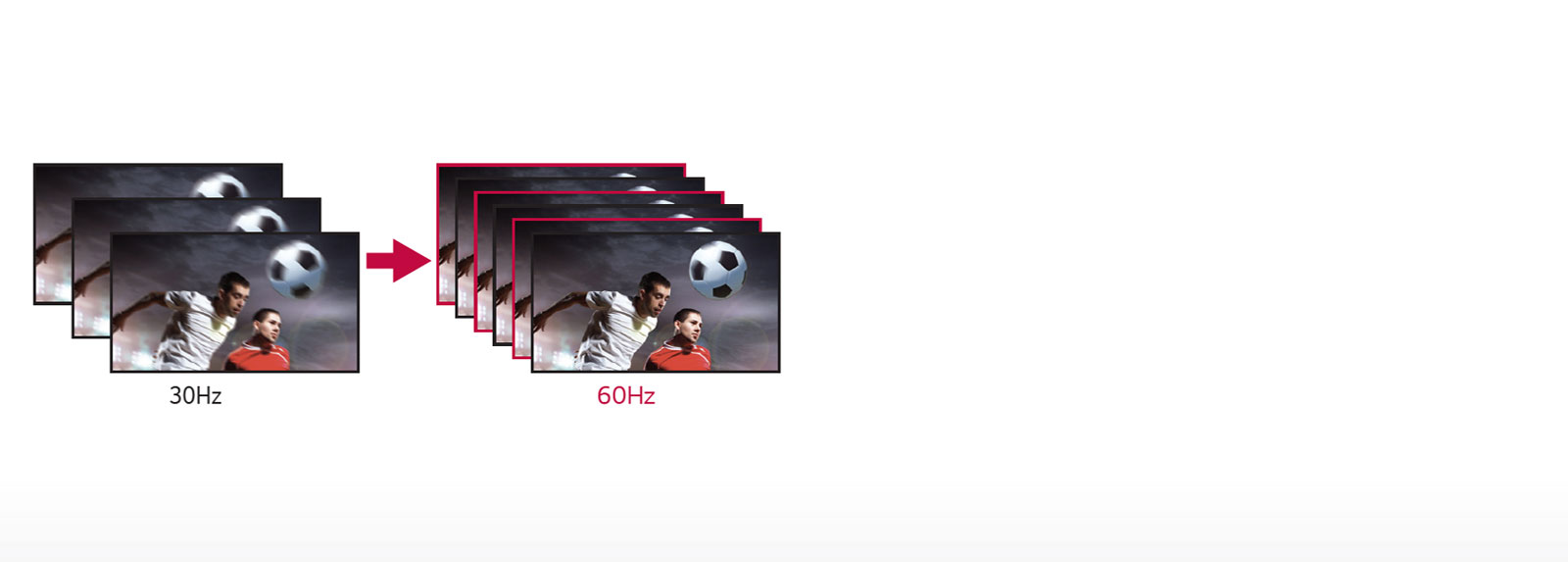

Vivid Imagery Viewing

TruMotion™ 60Hz Refresh Rate drastically reduces motion blur and judder ensuring vivid image playback with fine details.

Content Management

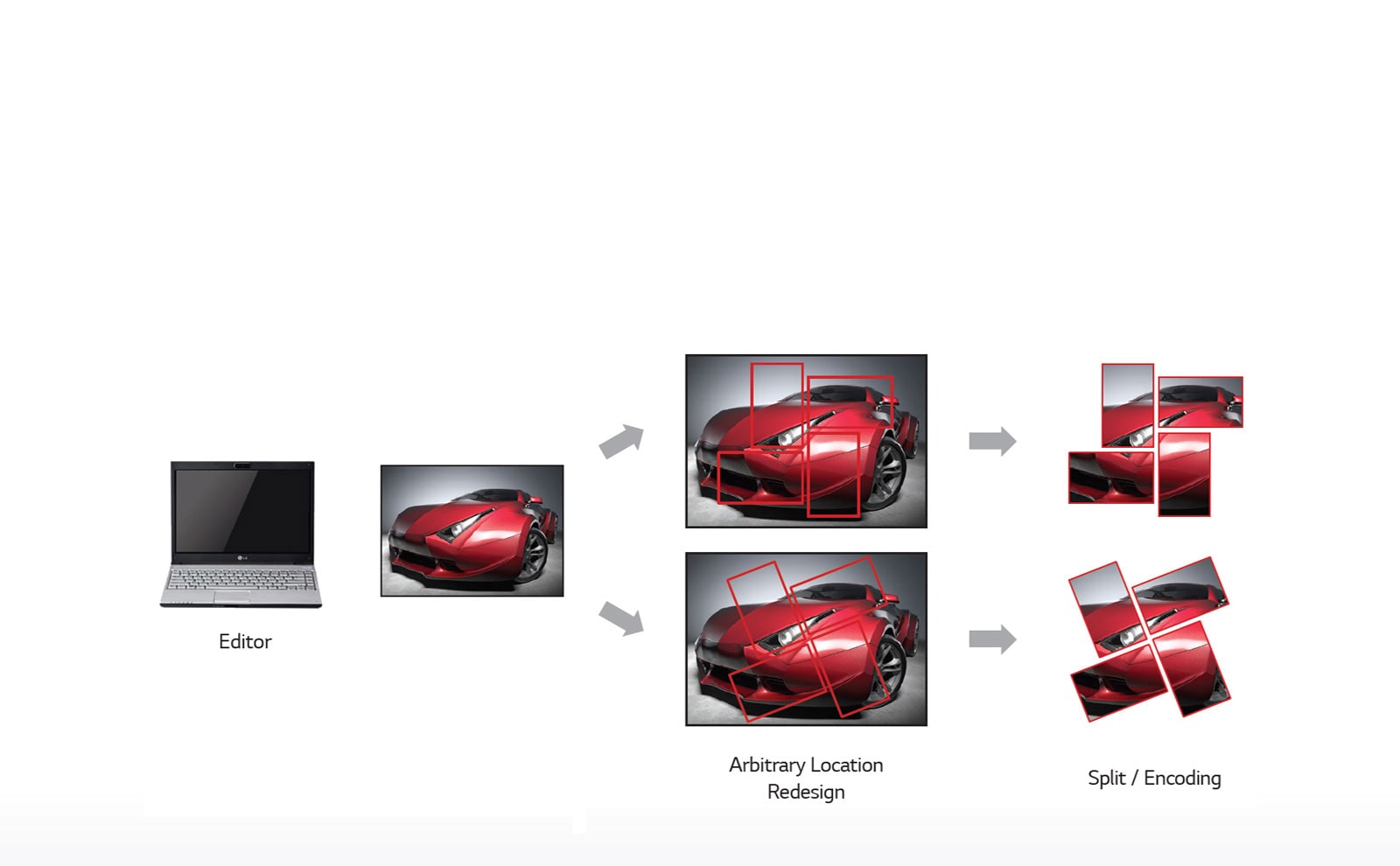

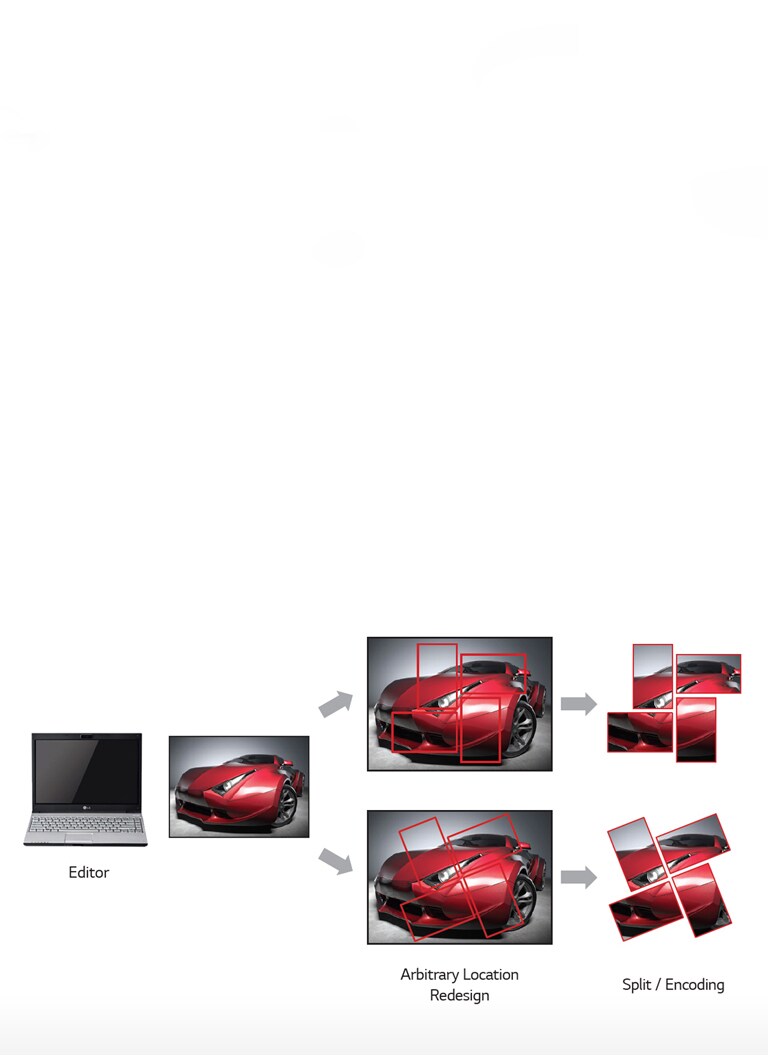

SuperSign W Content Management

Flexible content editing in various layouts including regular matrix and non-formal irregular video-wall is possible to your preference in a timely and cost effective manner without unnecessary expensive video wall console.

PANEL

Screen Size

55"

Native Resolution

1,920 x 1,080 (FHD)
Brightness(Module, Typ., cd/m²)

500

Orientation

Landscape & Portrait

CONNECTIVITY

Input

HDMI, DP, DVI, RGB, Audio, USB

Output

DP, Audio
External Control

RS232C In/Out, RJ45 In, IR Reciever

PHYSICAL SPECIFICATION

Bezel Width

2.25mm (L/T)/1.25mm (R/B)

Monitor Dimension (W x H x D)

1,213.4 x 684.2 x 88.5 mm
Weight (Head)

23kg

Carton Dimensions (W x H x D)

1,337 x 828 x 239 mm
Packed Weight

30.5kg

Handle

Yes
VESA™ Standard Mount Interface

600 x 400 mm

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10% to 80%

POWER CONSUMPTION

Typ.

160W

Max

230W
Smart Energy Saving

130W

STANDARD(CERTIFICATION)

Safety

UL/cUL/CB/TUV/KC

EMC

FCC Class "A"/CE/KCC
ErP / Energy Star

NA/Yes (Energy Star 7.0)

MEDIA PLAYER COMPATIBILITY

OPS type compatible

No

External Media player Attatchable

Yes

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign W

Control and Monitoring Software

SuperSign C

ACCESSORY

Basic

Remote controller, Power cable, DP cable, IR receiver, RS-232C cable, Tiling guide, Screw

Optional

WM-L640V (Landscape), WM-P640V (Portrait), Frame kit (Horizontal: FK-55V10/Vertical: FK-55V20)
