Key Features

Brightness(Typ.): 700cd/m²
Bezel: 11.9mm (T/L/R), 18mm (B)
Depth: 54mm
Interface : HDMI(3), DP, DVI-D, USB 3.0, RS232C, RJ45, IR
Built-in Speaker(10W+10W)

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.): 700cd/m²
Bezel: 11.9mm (T/L/R), 18mm (B)
Depth: 54mm
Interface : HDMI(3), DP, DVI-D, USB 3.0, RS232C, RJ45, IR
Built-in Speaker(10W+10W)

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

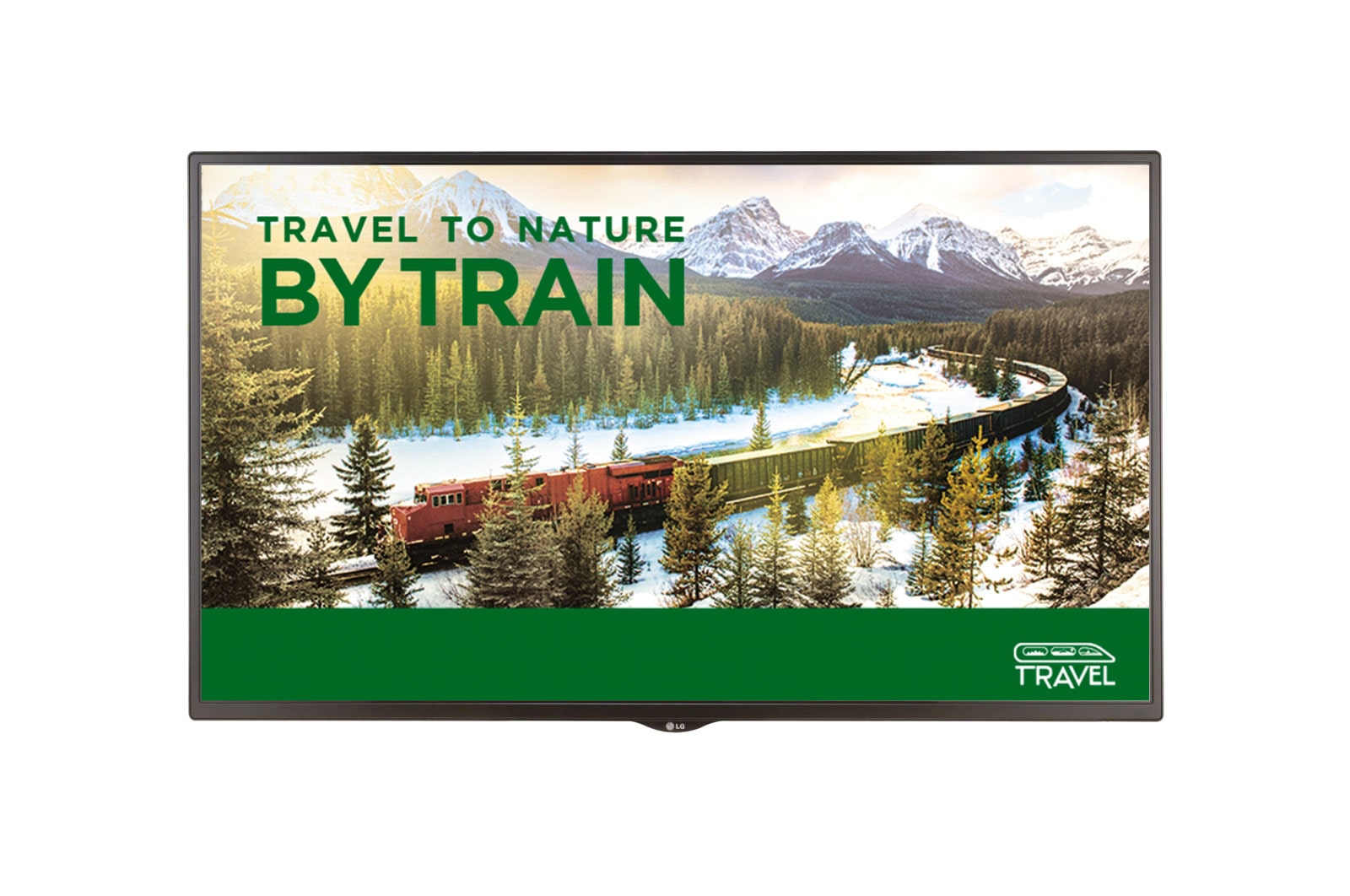

SH7E Series

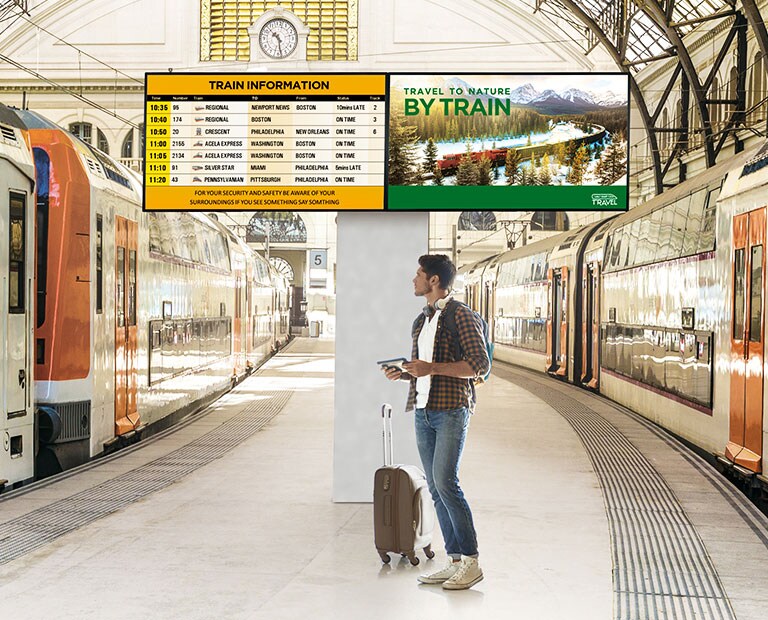

Smart Digital Signage with High Visibility

With a powerfully enhanced smart platform, the SH7E series is a versatile display able to respond to each customer's specific needs. Moreover, it delivers clear and vivid content with high brightness, which is ideal for brightly lit locations.

Superior Picture Quality

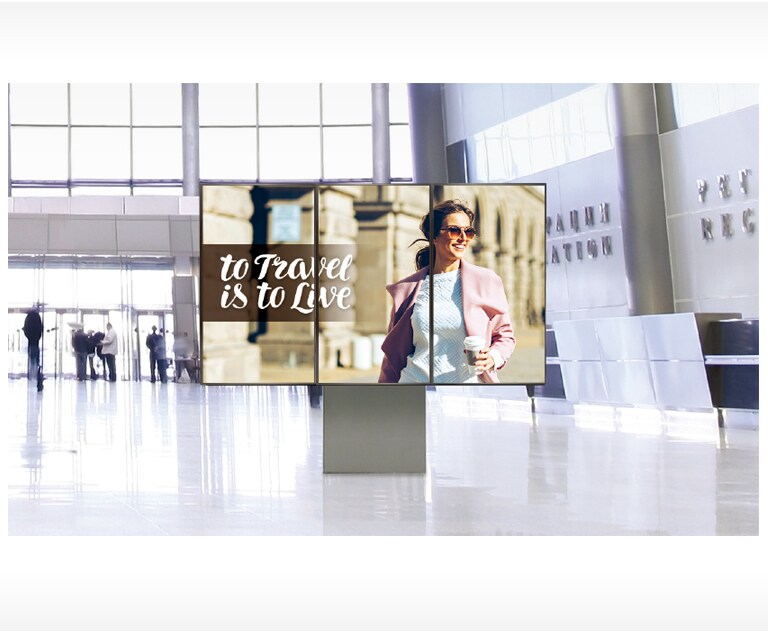

High Visibility

The 700 cd/m² brightness is enough to stand out against the surrounding background, so signage can attract passerby and delivers content vividly and effectively.

Superior Picture Quality

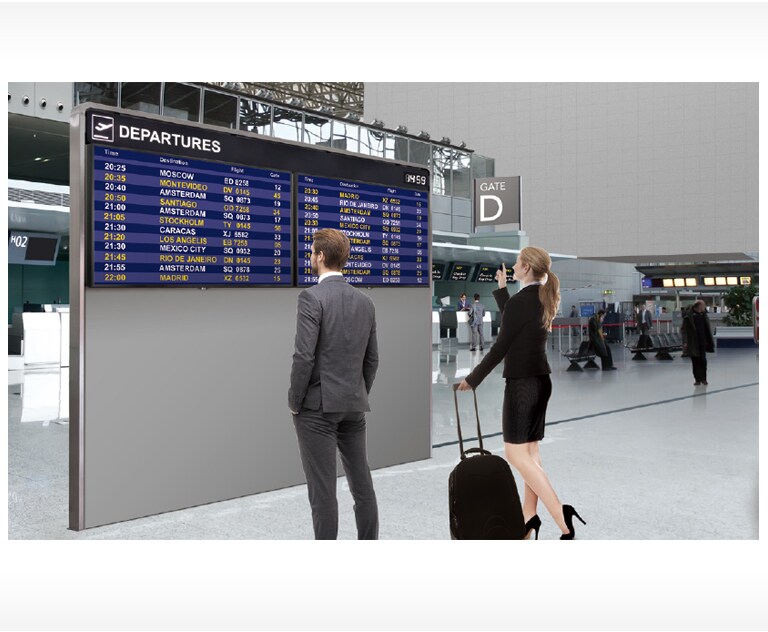

Wide Viewing Angle

Thanks to IPS technology, SH7E series provides a clear, vibrant picture with no washed out tones at any angle.

Outstanding Performance

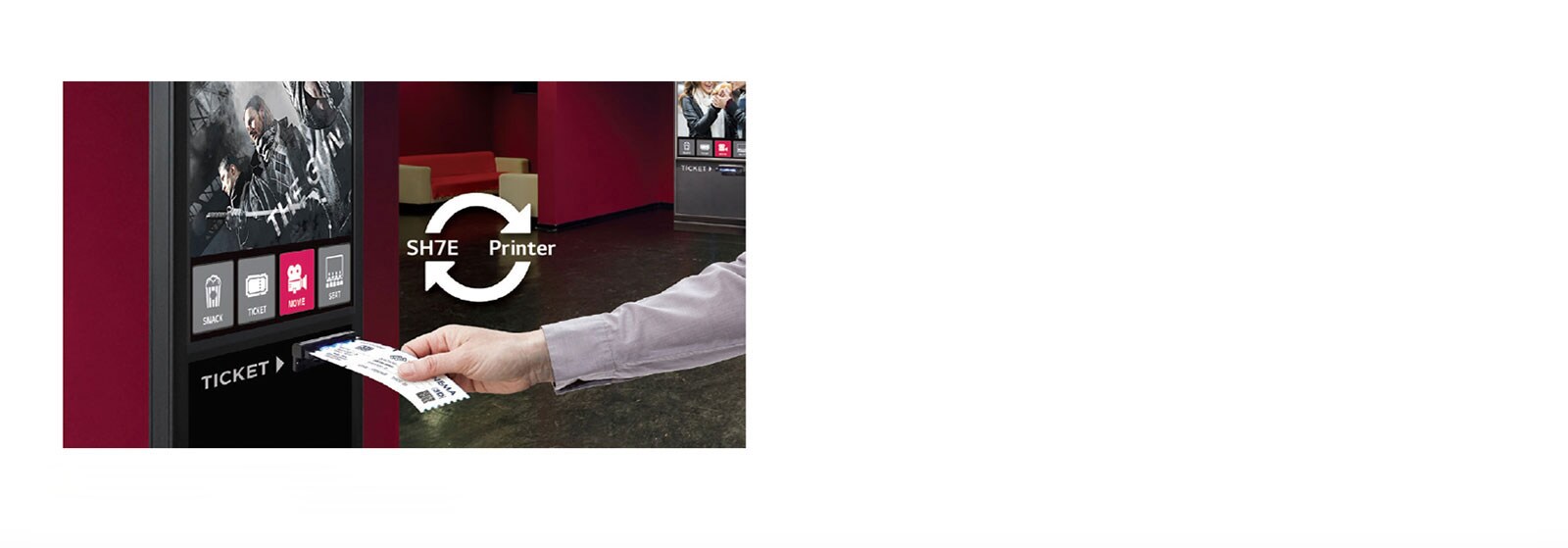

Thermal Printer Supported

Users can easily enable the thermal printer solution* by plugging a USB into the display. It functions versatilely as a ticketing machine for various locations such as restaurants, movie theaters, banks and airports.

*Supported model: NIPPON PRIMEX (NP-3511, NP-3611).

Outstanding Performance

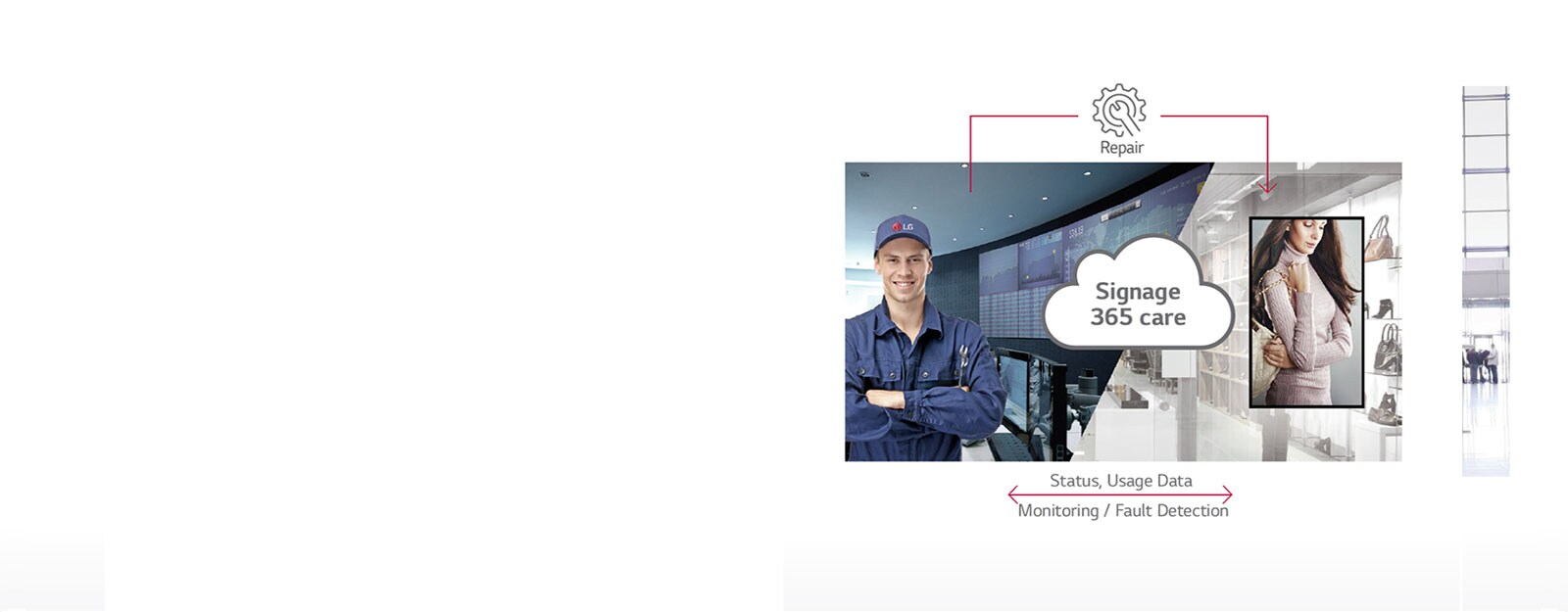

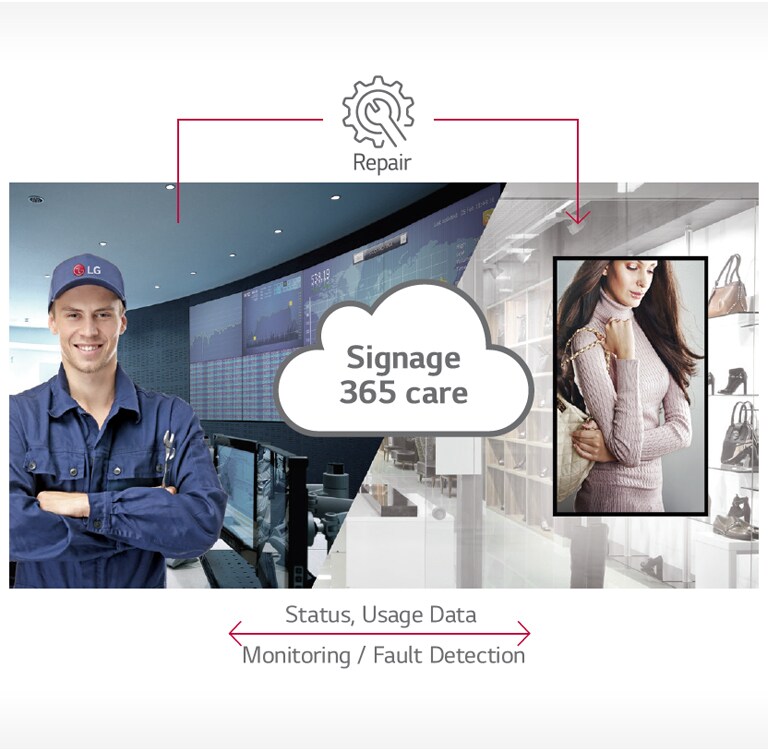

Real-time Control & Monitoring

The maintenance gets easier and faster with Signage 365 Care, a cloud service solution provided by LGE service. It remotely manages status of displays in clent workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.

High Performance

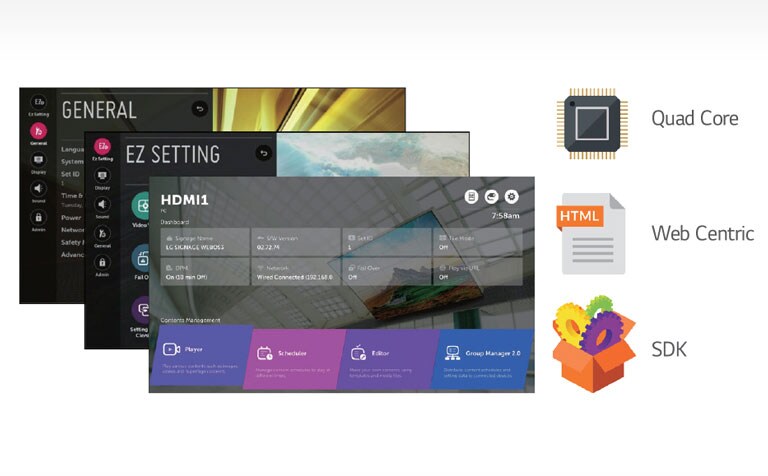

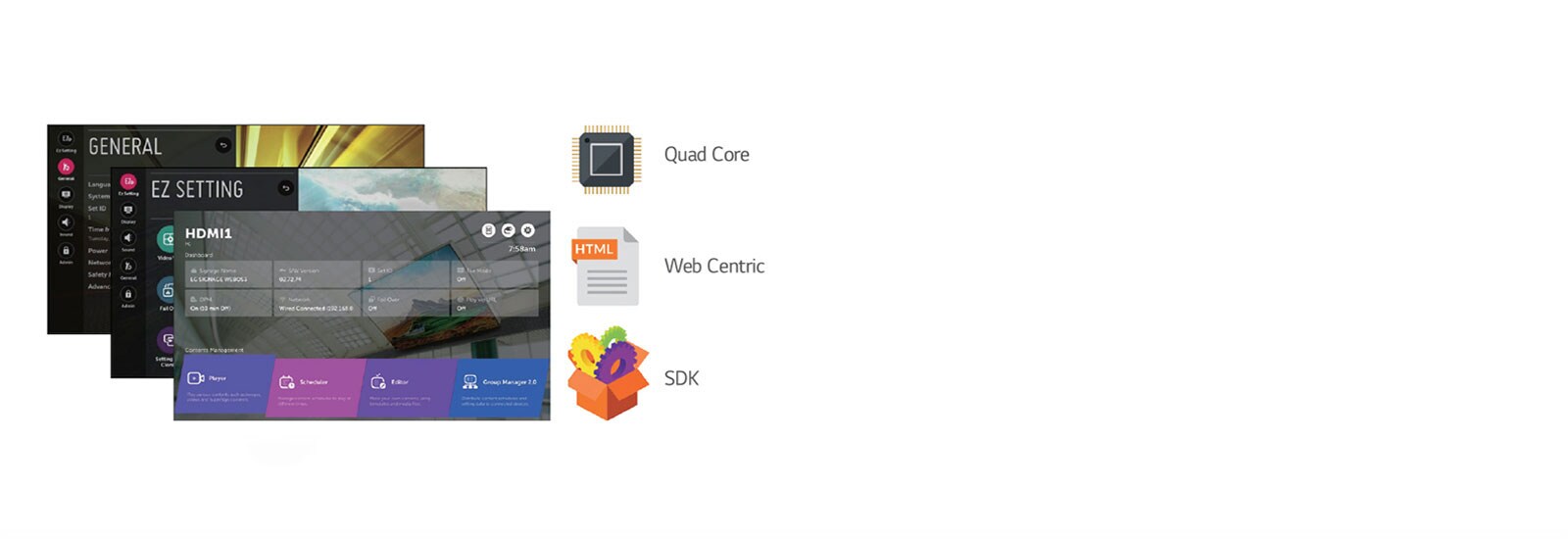

User-friendly Smart Platform

The LG webOS smart signage platform is tailored to diverse commercial requirements. It supports HTML5 as a web-based platform and offers SDK*, so SIs can easily build and execute their own apps. Moreover, LG webOS enhances user convenience by providing an intuitive UI that is optimized for business purposes.

*SDK: Software Development Kit.

High Performance

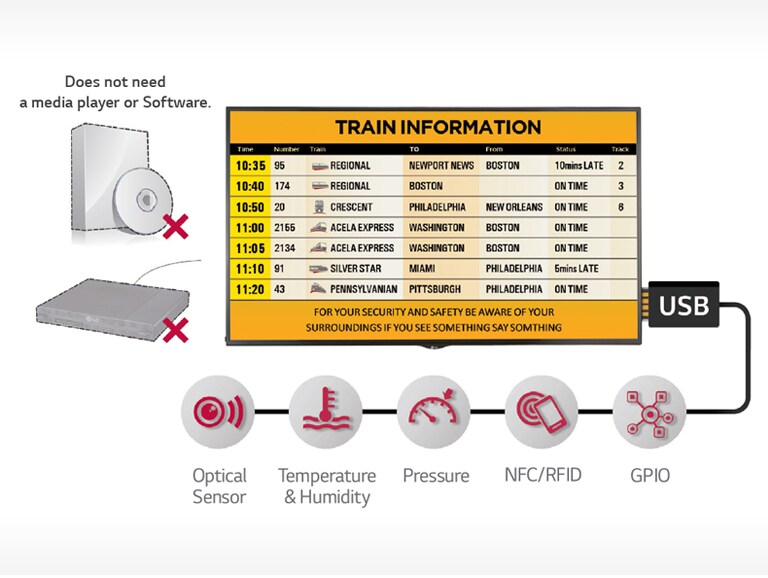

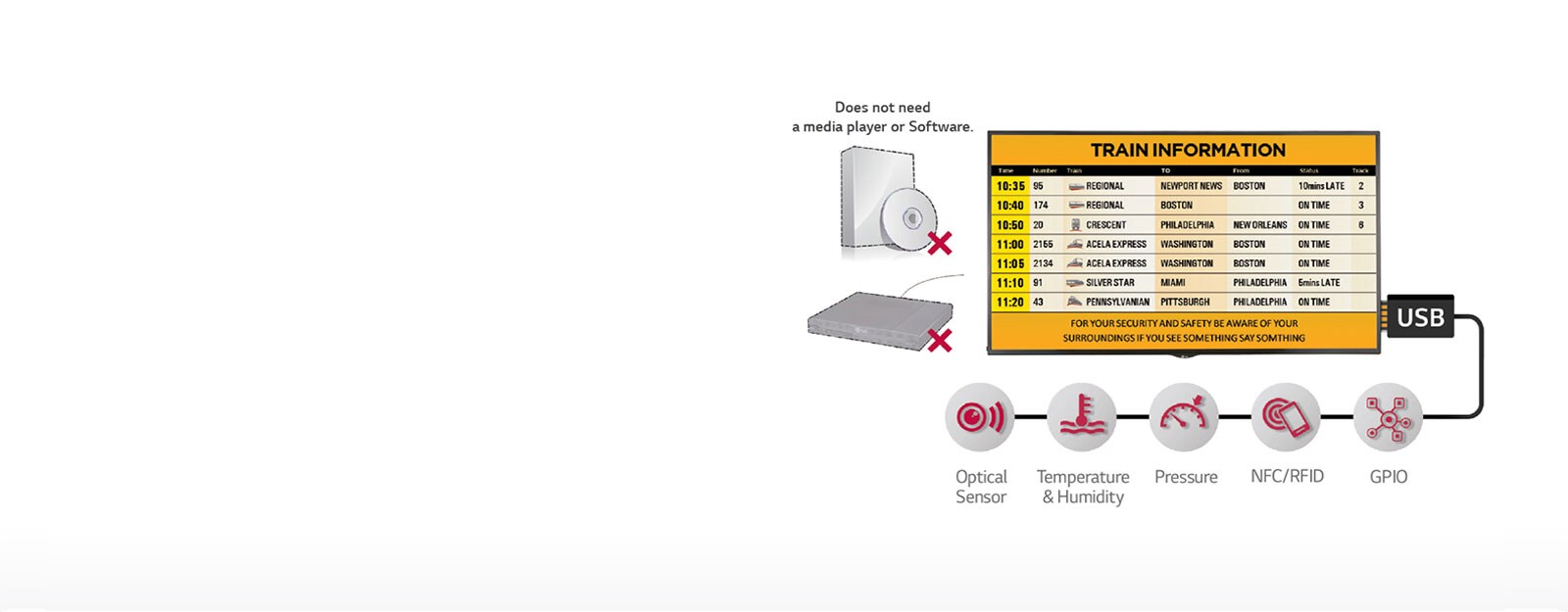

All-in-one Display

Powered by a smart platform, SH7E easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc. via USB plug-in. The overall cost of ownership is reduced as there's no need to purchase additional software or media players.

Easy Management

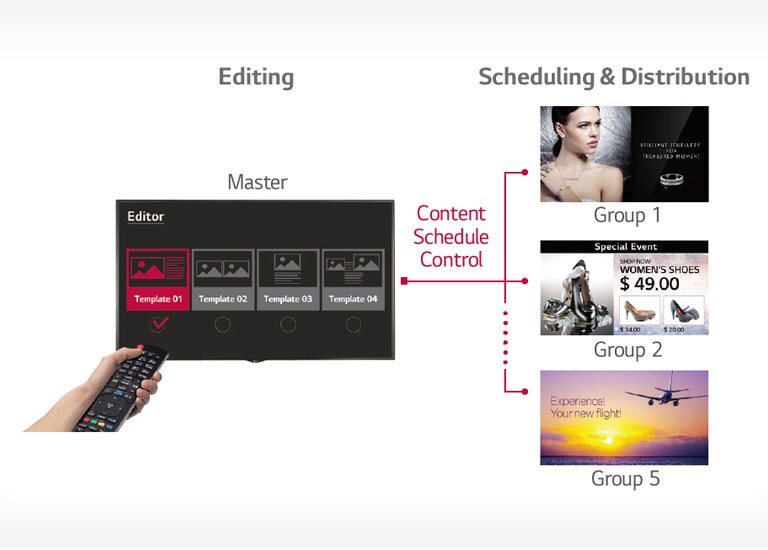

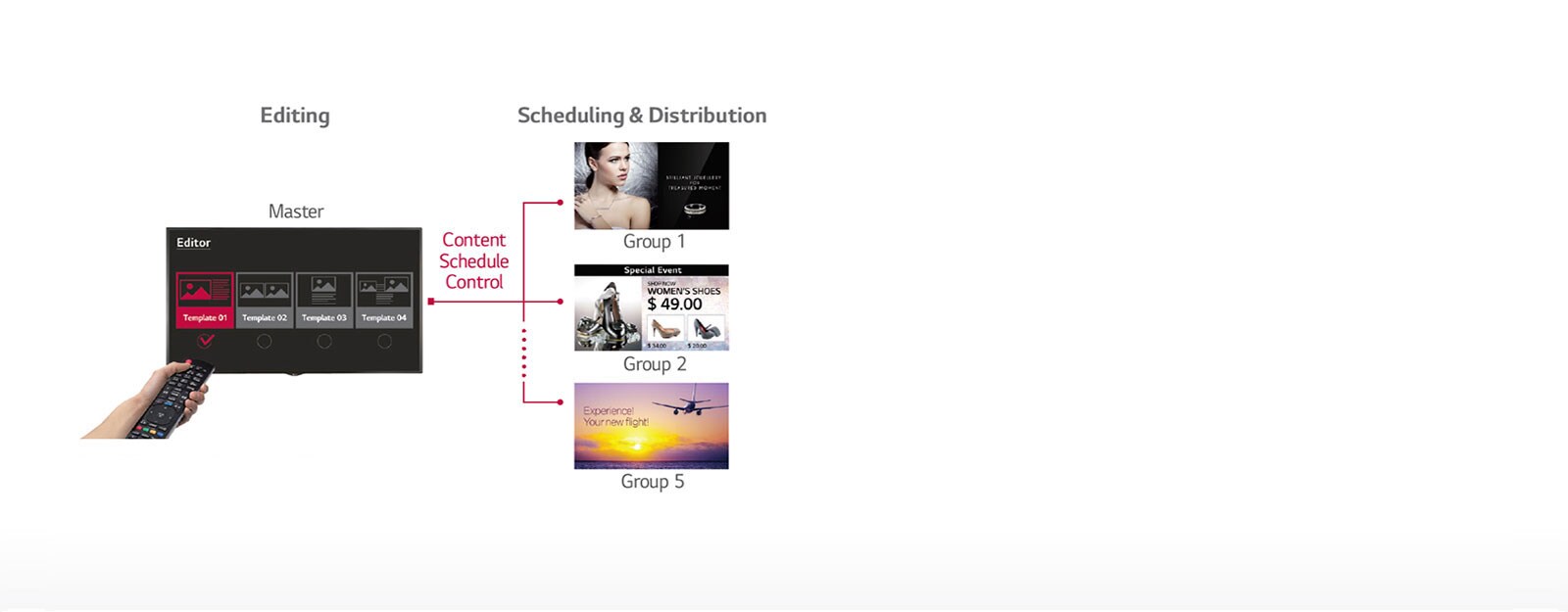

Embedded CMS

The embedded CMS* allows you to edit and play content, schedule a playlist and even group and control signages via remote control, without need for a separate PC. This makes content management much easier and user-friendly.

*CMS: Content Management System.

Easy Management

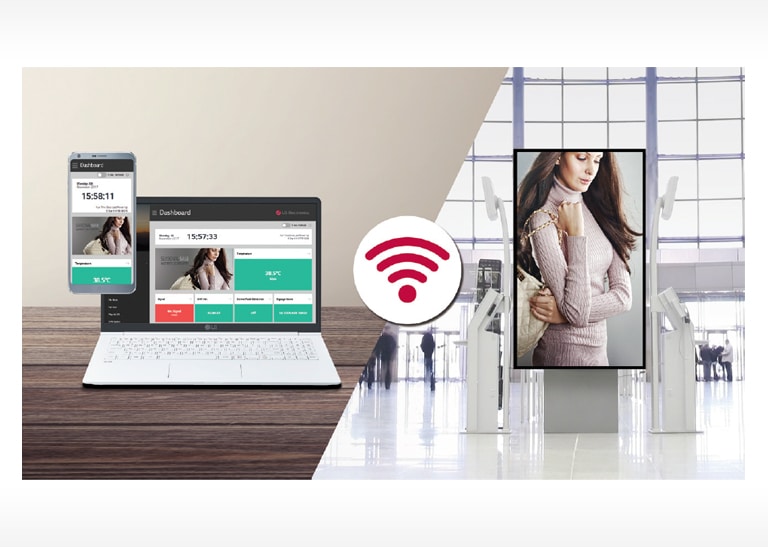

Moblie & Web Monitoring

Through the control manager, the embedded web monitoring program, you can check the status, control settings, and receive log information and other data in real-time.

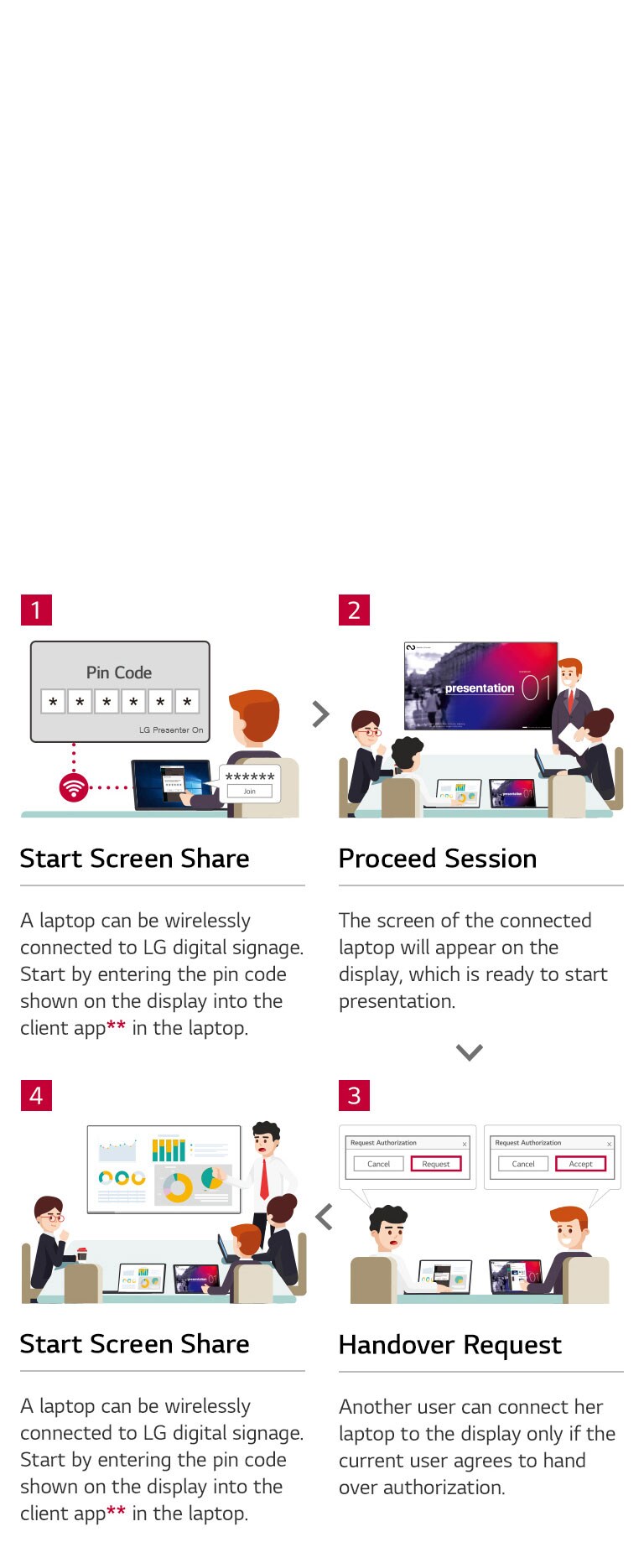

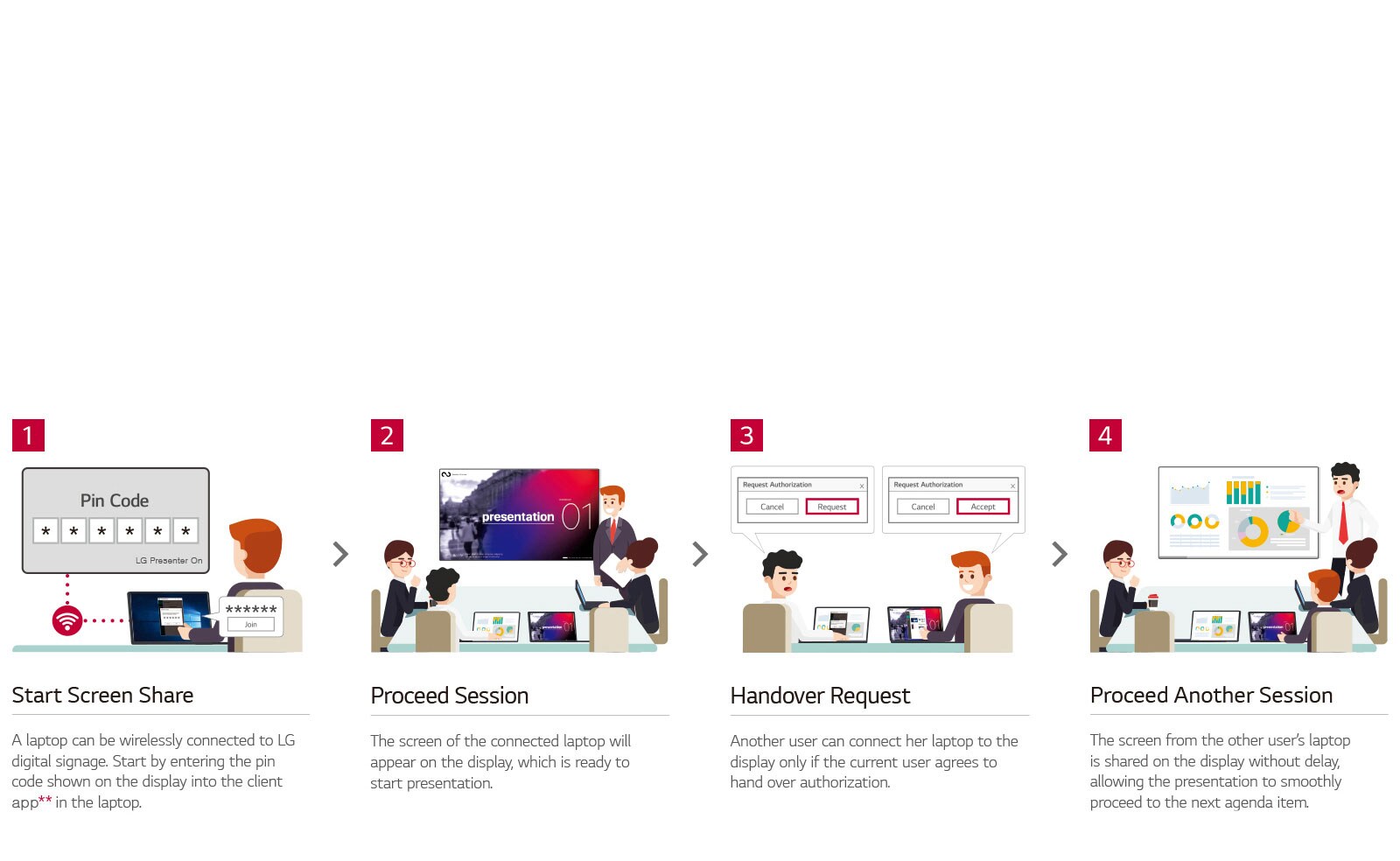

Optimized Work-Flow with LG Presenter

LG Presenter, an embedded application, enables wireless screen sharing* between computers and LG digital signages. It provides users with a smart and convenient meeting experience, reducing time spent unnecessarily managing devices and cables for connection.

*A laptop and a display must be connected to the same network.
**Installation of the PC client app is required. Go to the 'Tech Spec' section of this page for the minimum requirements and then download the app from the 'Business Resources' section.

PANEL

Screen Size

55"

Native Resolution

1,920 x 1,080 (FHD)
Brightness(Typ.,cd/m²)

700

CONNECTIVITY

Input

HDMI (3), DP, DVI-D, Audio, USB 3.0

Output

DP, Audio
External Control

RS232C in/out, RJ45 in, IR in

PHYSICAL SPECIFICATION

Bezel Width

11.9mm (T/R/L), 18mm (B)

Monitor Dimension (W x H x D)

1,238 x 714.9 x 54 mm
Weight (Head)

17.5kg

Carton Dimensions (W x H x D)

1,330 x 807 x 170 mm
Packed Weight

21.7kg

VESA™ Standard Mount Interface

300 x 300 mm

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10% to 80%

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ. / Max.

130W/150W

Smart Energy Saving

91W

STANDARD(CERTIFICATION)

Safety

IEC 60950-1/EN 60950-1/UL 60950-1

EMC

FCC Class "A"/CE/KC
ErP / Energy Star

N/A / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible

Yes

External Media player Attatchable

Yes

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Link

MINIMUM REQUIREMENTS FOR LG PRESENTER

OS (Windows)

Windows 7 (64bit), Windows 10 (64bit)

OS (macOS)

macOS 10.12 Sierra, MacOS 10.13 High Sierra
CPU (Windows)

2.7GHz+ Dual Core Broadwell or higher

CPU (macOS)

Any CPU which supports Sierra or High Sierra
Memory

4GB RAM

Hard Drive

1GB of free space
Graphics Hardware (Windows)

Intel Iris or higher, Nvidia, ATI

Graphics Hardware (macOS)

Any GPU which supports Sierra or High Sierra

ACCESSORY

Basic

Remote Controller (2 Batteries Included), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender

Optional

Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T55E)
