VH7E-H Series

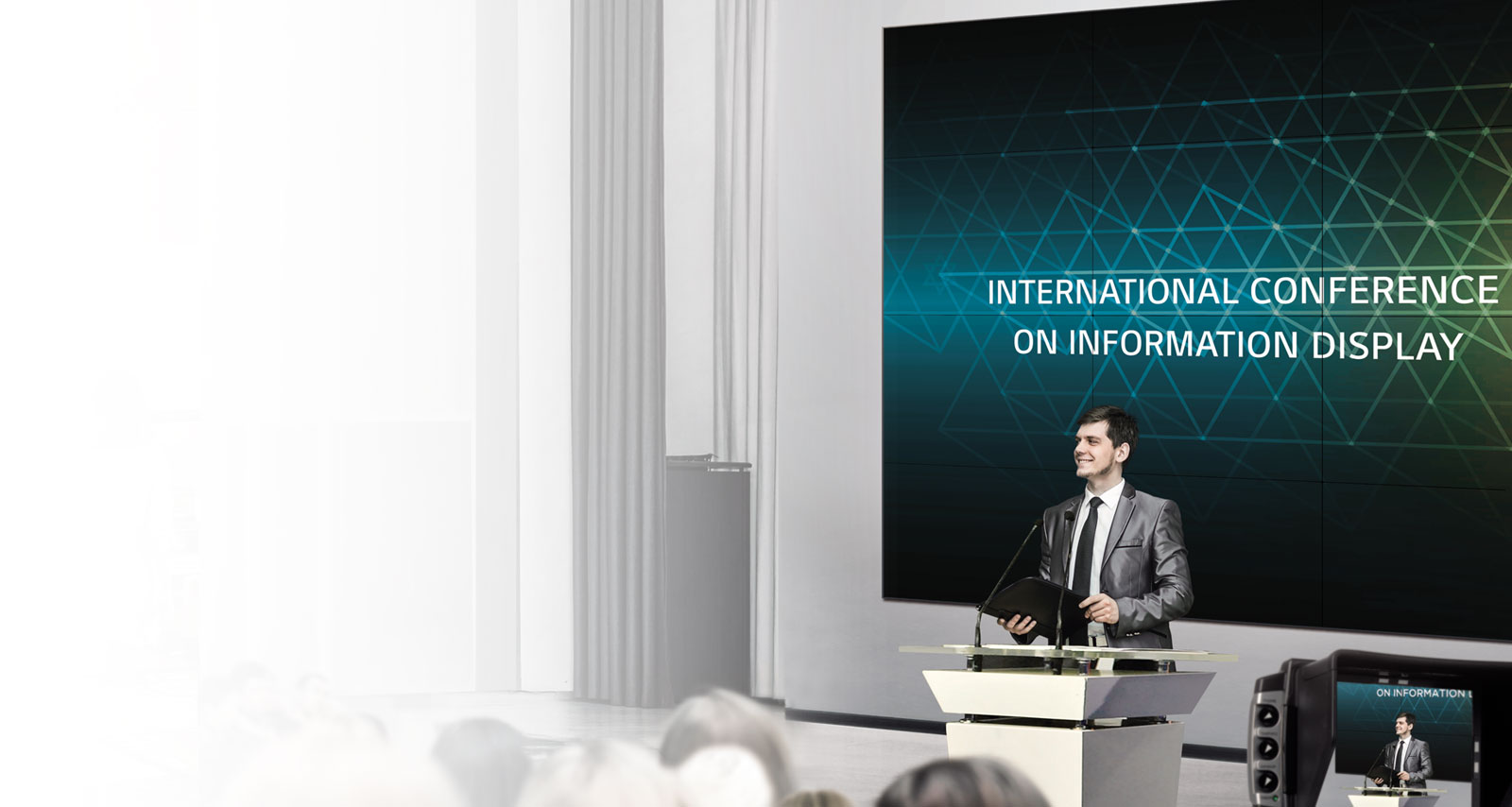

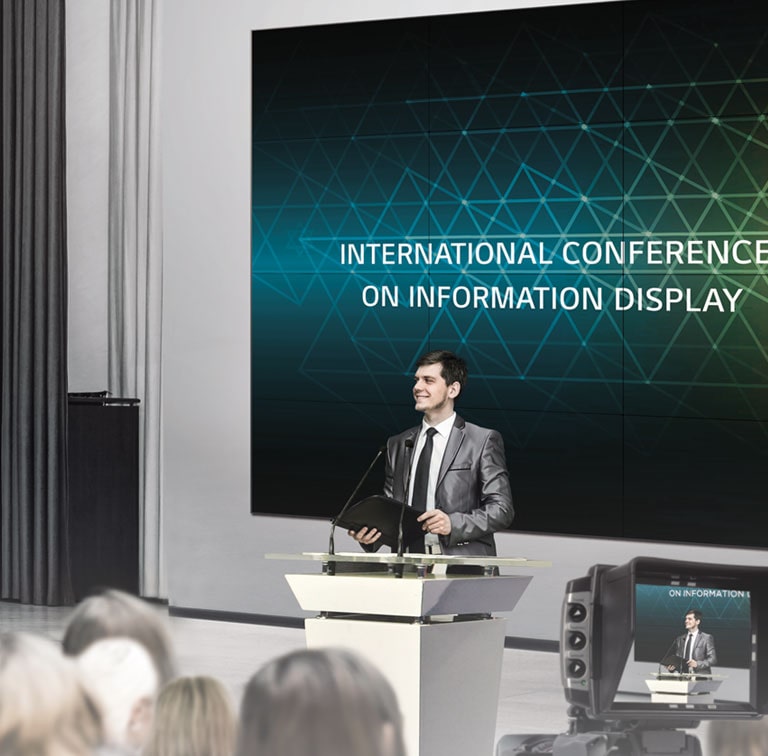

Artistic Immersion, Overwhelming Captivation<br>1 Artistic Immersion, Overwhelming Captivation<br>2

Artistic Immersion, Overwhelming Captivation

The impressive immersion generated by the extremely narrow 0.9 mm even-bezel becomes even more powerful with a high haze value. The 55VH7E-H delivers vivid content with no reflections, even under bright lights, allowing it to effectively captivate viewers and drive traffic to areas where it is installed.

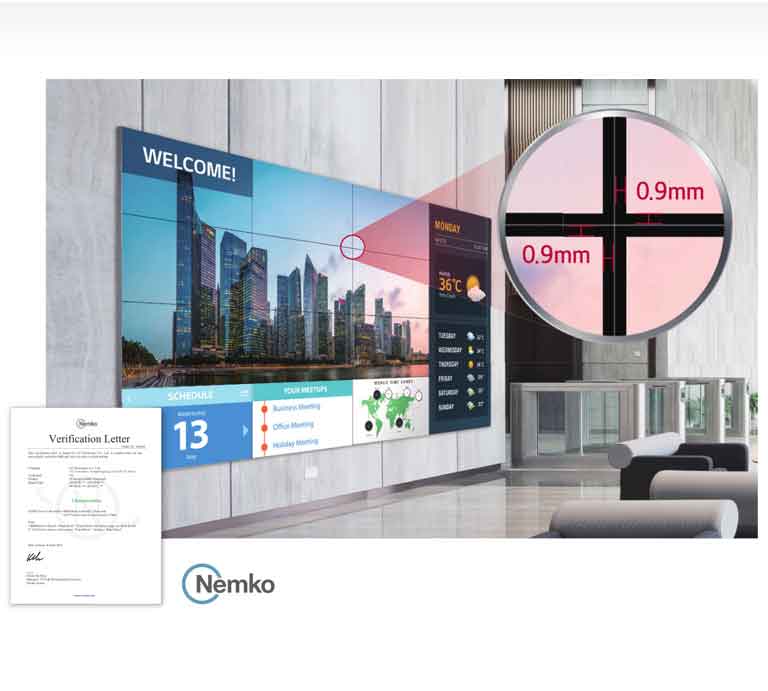

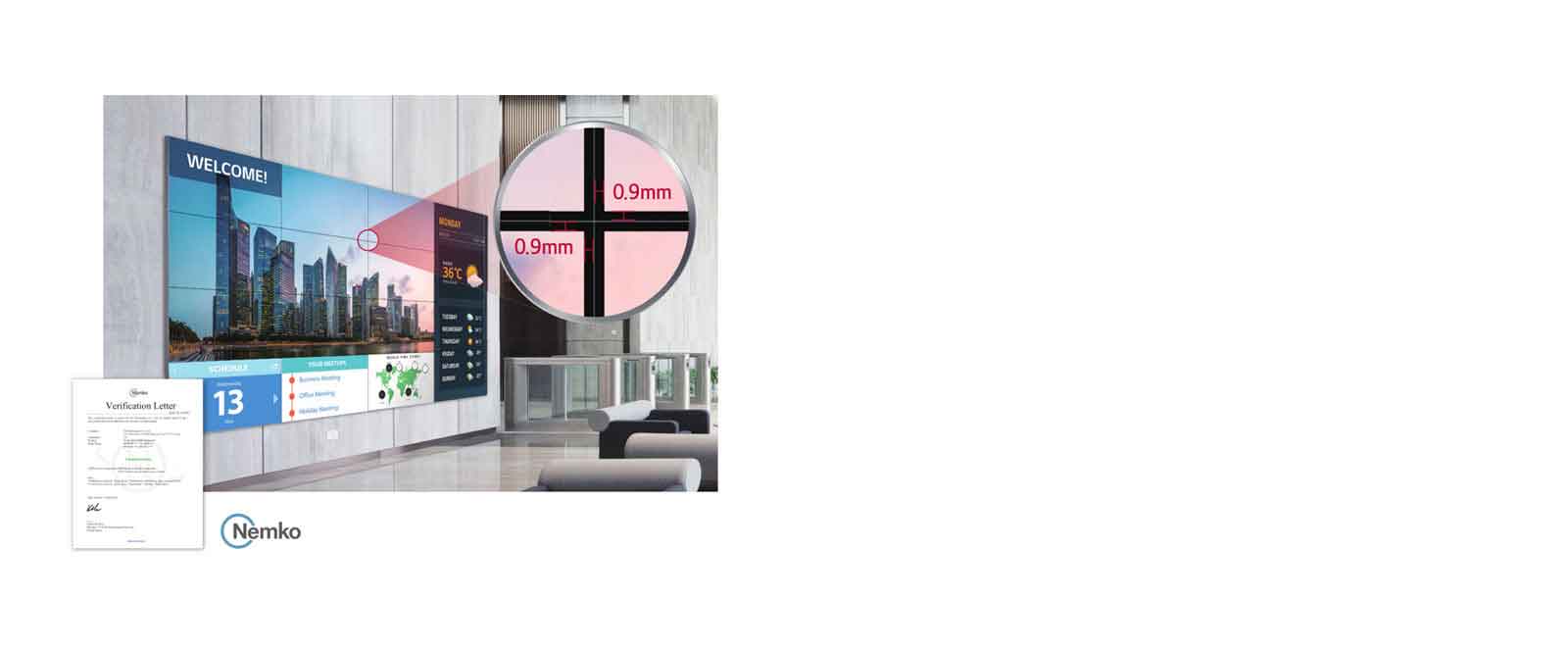

Seamless Large Screens with Extreme-Narrow Bezel1 Seamless Large Screens with Extreme-Narrow Bezel2
Achieving Incredible Immersion

Seamless Large Screens with Extreme-Narrow Bezel

The borderless design, with its 0.9 mm* even bezel and 1.8 mm* BtB (Bezel to Bezel), verified by Nemko, minimizes bezel interference and delivers immersive and seamless content on assembled video wall screens.
*The 0.9mm even panel bezel and 1.8mm BtB size (borderless type, no metal bezel) have been verified by Nemko, a global institution that and certifies electrical equipment.
Image Gap Reduction<br>1 Image Gap Reduction<br>2
Achieving Incredible Immersion

Image Gap Reduction

The 55VH7E-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
*The "Conventional" refers to displays which do not include an image impovement algorithm.

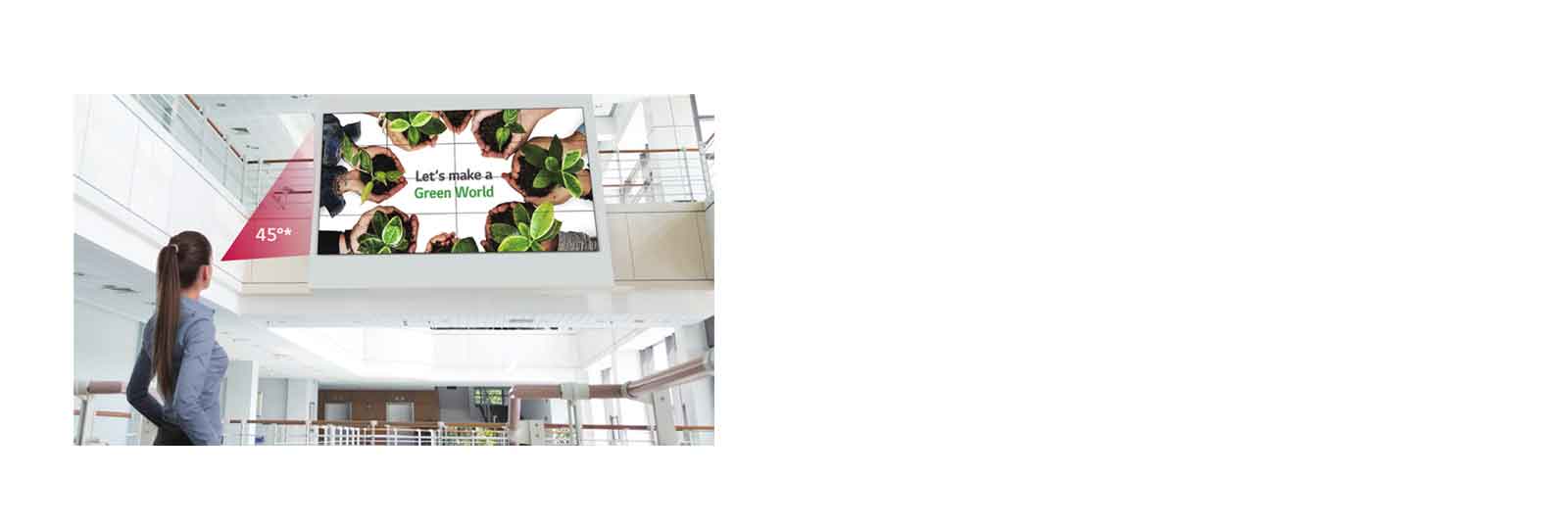

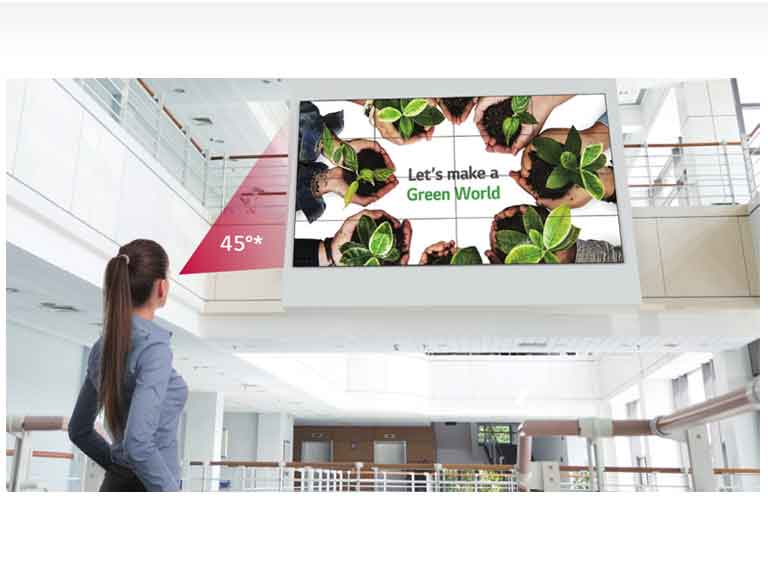

Higher Viewing Angle<br>1 Higher Viewing Angle<br>2
Vivid and Dynamic Picture Quality

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the 55VH7E-H is high enough to display vivid colors throughout the screen with no distortion.
*Result based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

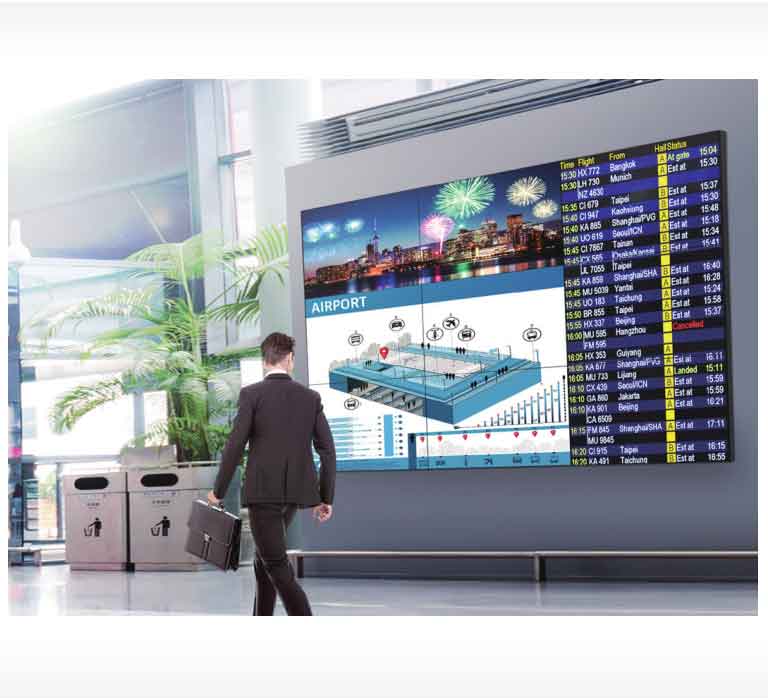

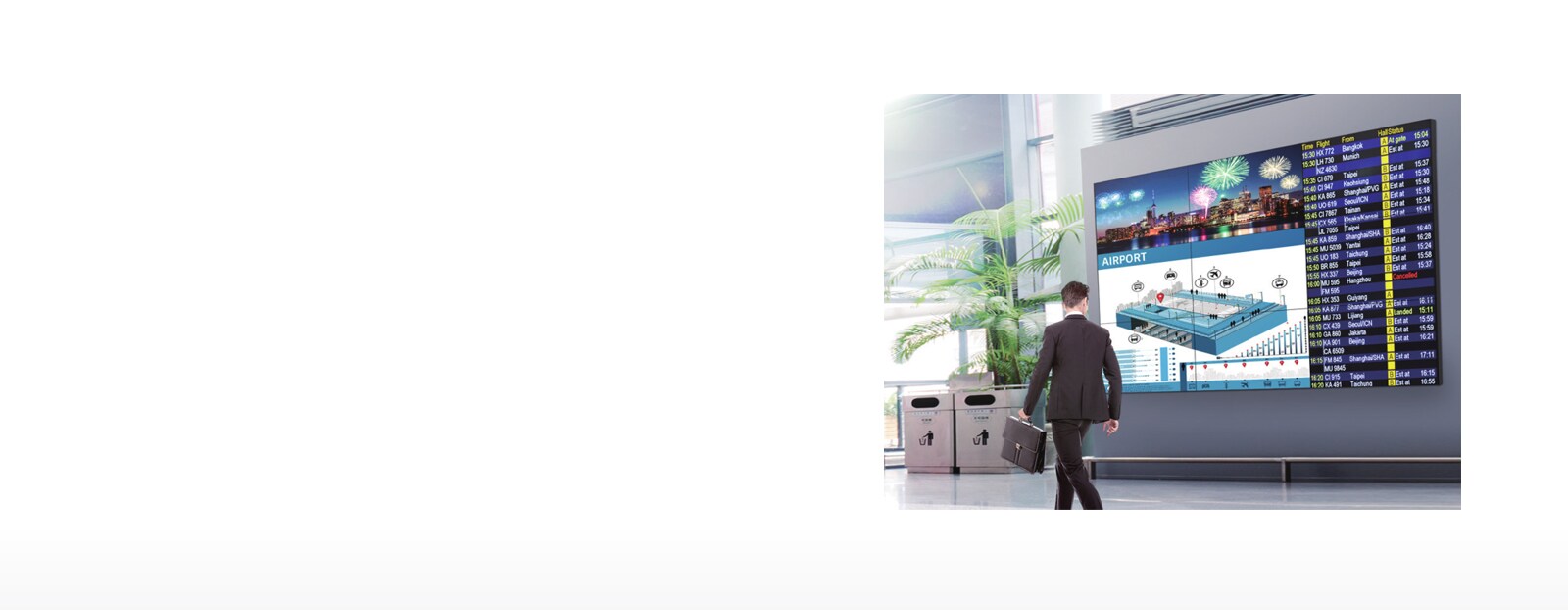

Clear View with Anti-Glare Coating<br>1 Clear View with Anti-Glare Coating<br>2
Vivid and Dynamic Picture Quality

Clear View with Anti-Glare Coating

Viewers can easily become frustrated by unnecessary reflections when watching a screen under brightly lit conditions. The 55VH7E-H has resolved this problem by increasing the haze value up to 44%, enhancing content visibility and text readability.

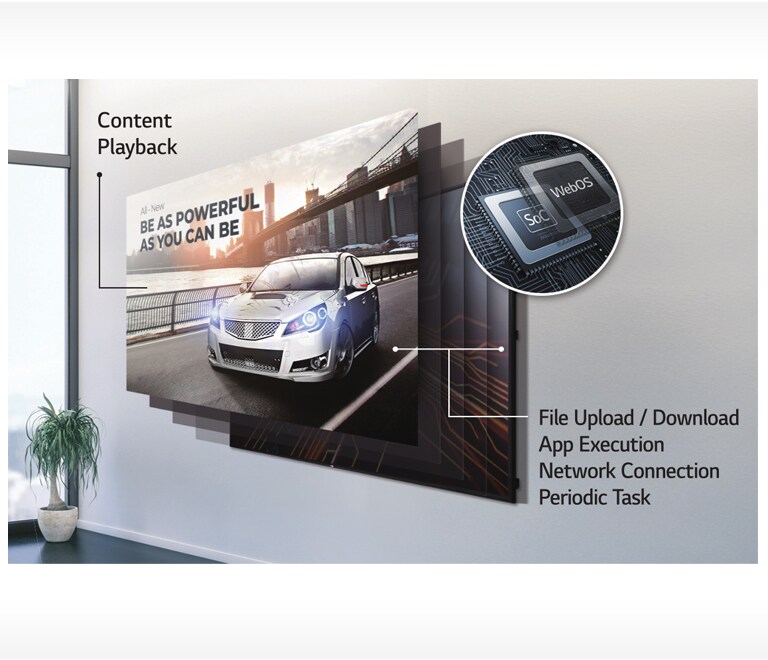

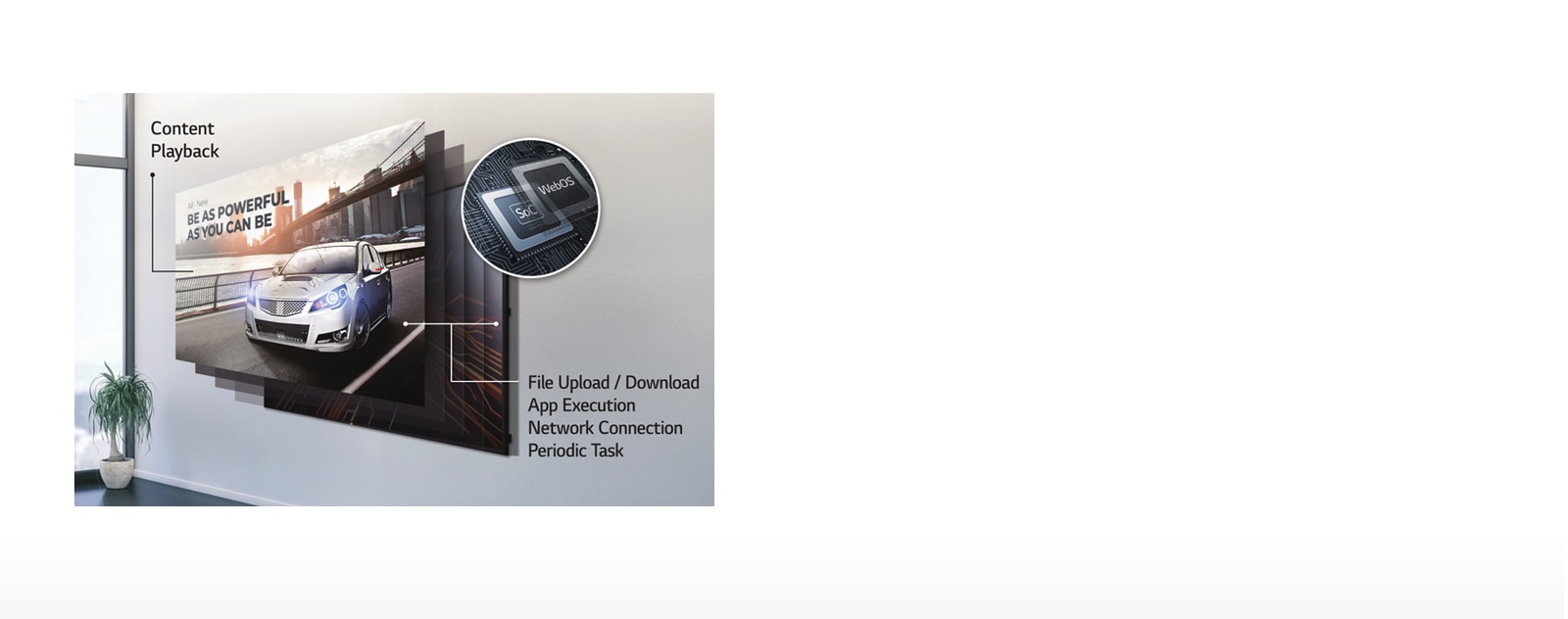

High Performance and Great Scalability<br>1 High Performance and Great Scalability<br>2
Powerful Smart Signage Platform

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the 55VH7E-H can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a webbased platform and offers SDK(Soft Development Kit), it is even easier for SIs to build and optimize.

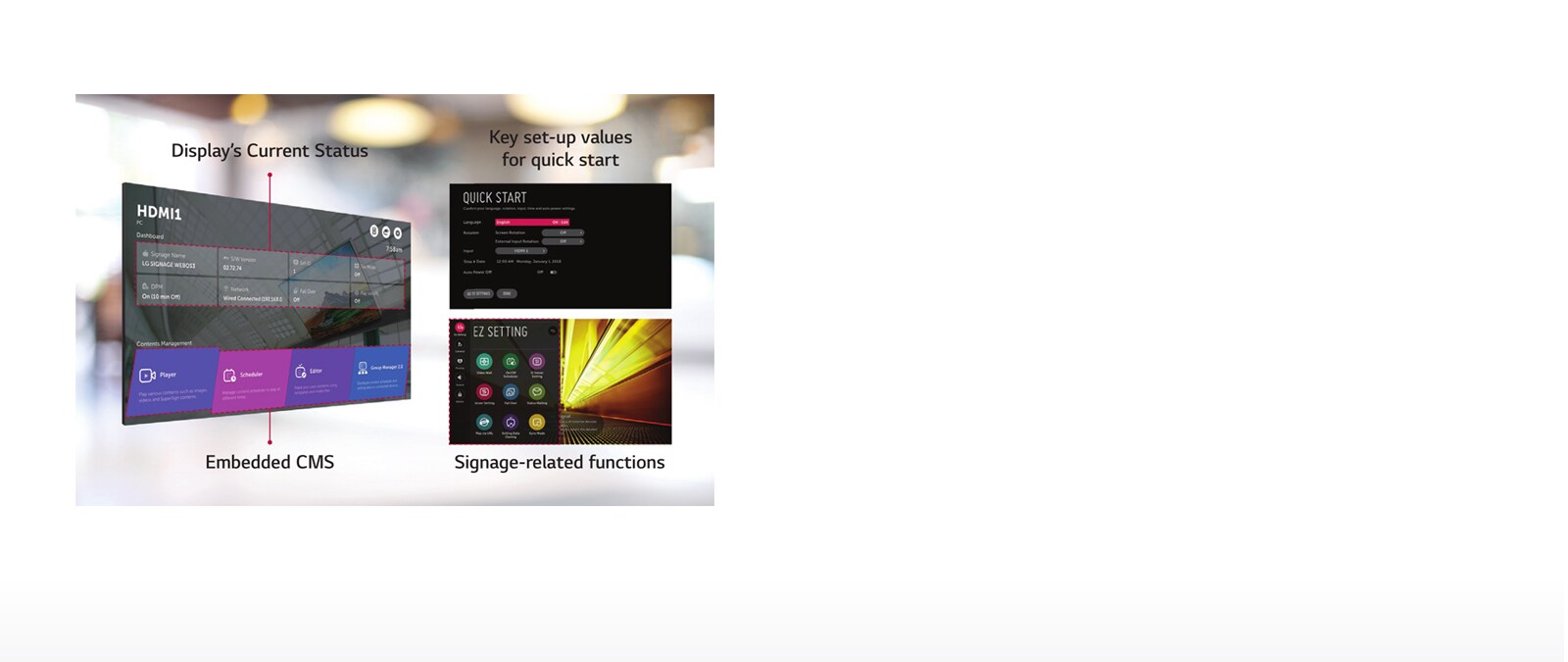

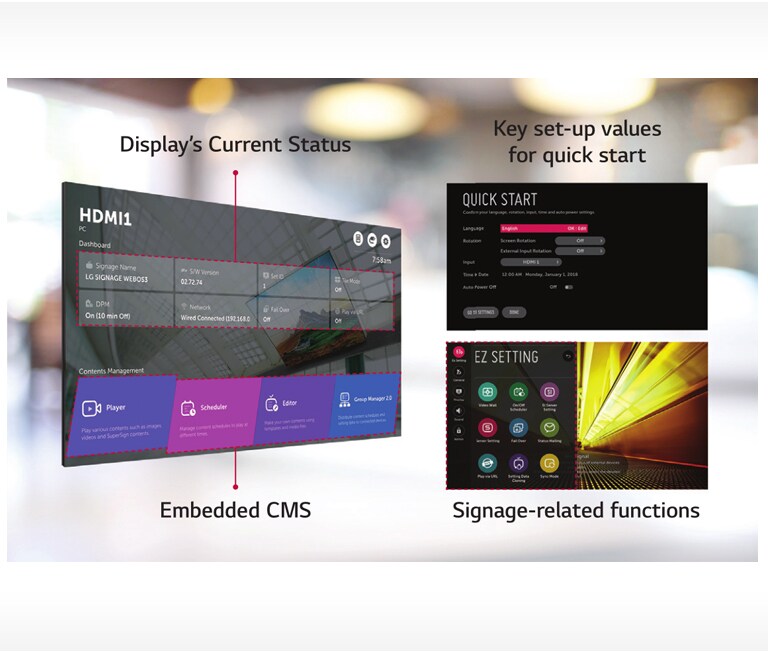

Intuitive Menu Structure<br>1 Intuitive Menu Structure<br>2
User-Friendly Smart Signage UX

Intuitive Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trialand-error when exploring desired functions and managing displays.

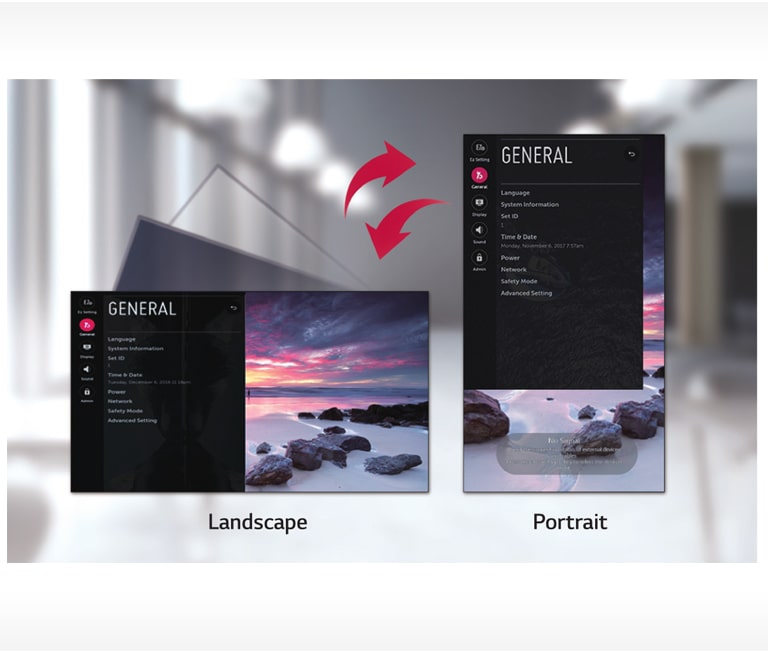

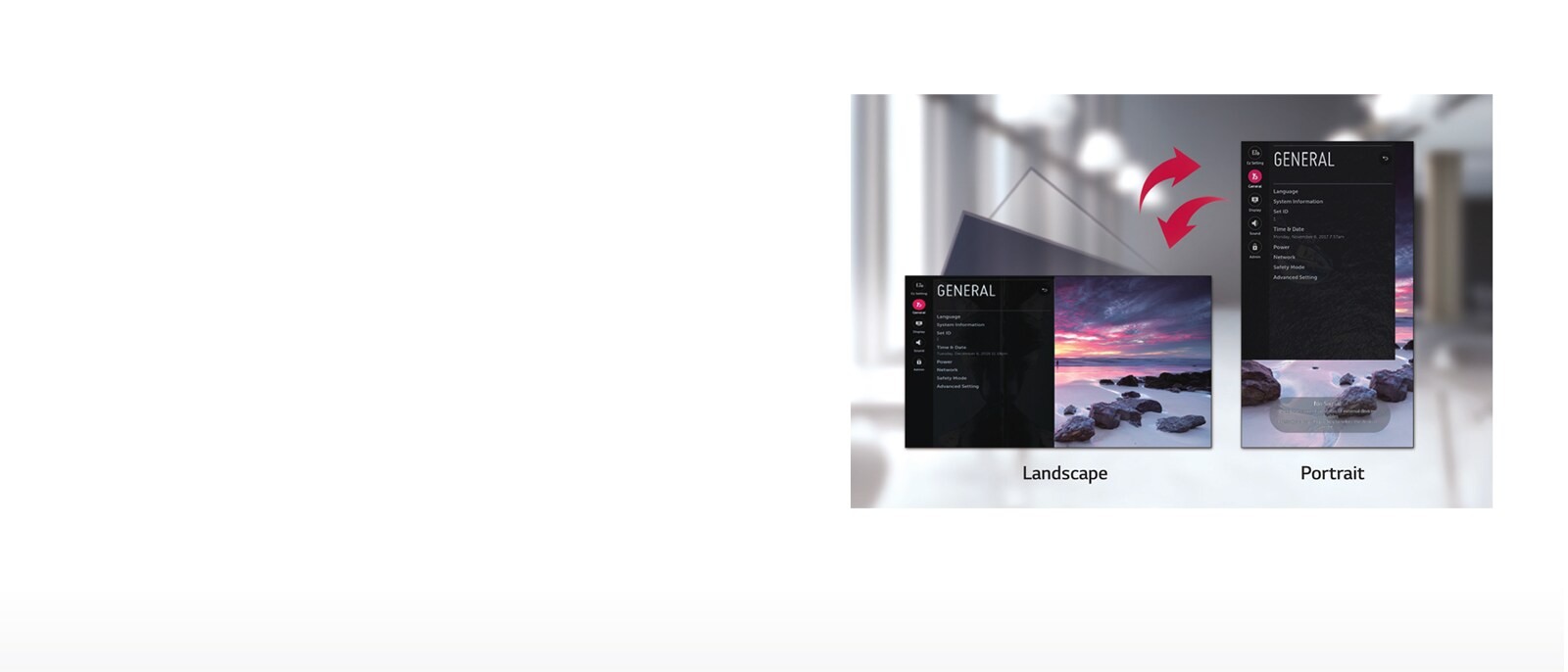

Dedicated GUI for Portrait Orientation<br>1 Dedicated GUI for Portrait Orientation<br>2
User-Friendly Smart Signage UX

Dedicated GUI for Portrait Orientation

The conventional GUI(Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD(On Screen Display) wasn't well-suited for screens in portrait mode. The OSD of the 55VH7E-H, however, consists of a long range menu, creating a comfortable and efficient business environment.

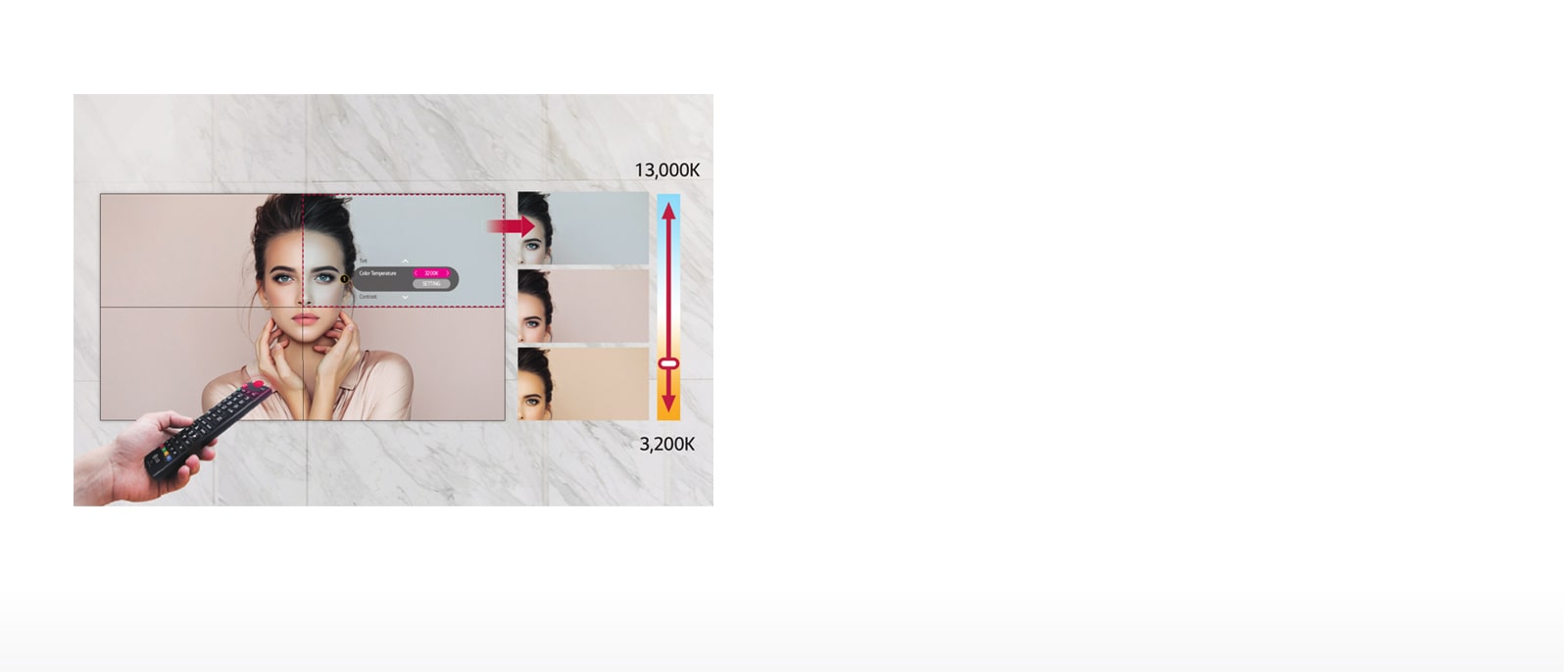

Easy Color Adjustment<br>1 Easy Color Adjustment<br>2
User Convenience

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

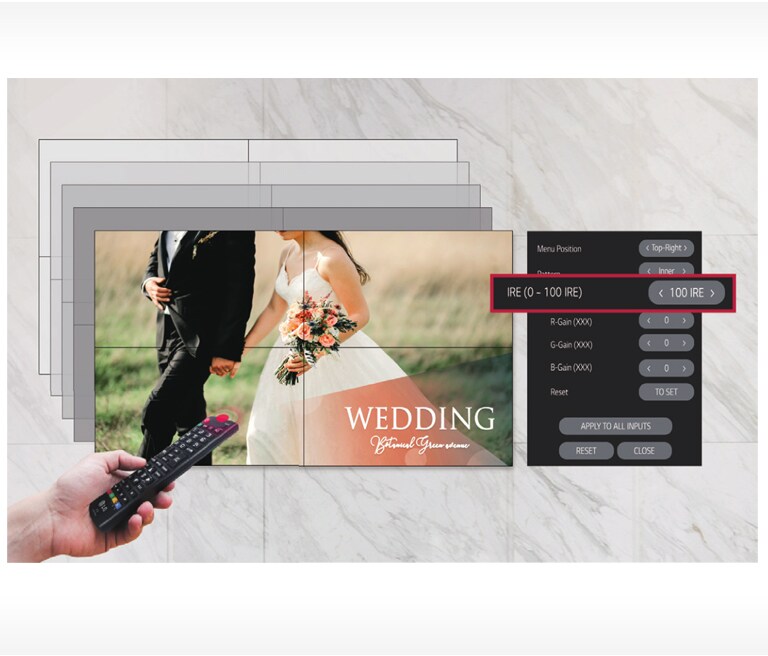

Simple White Balance Adjustment<br>1 Simple White Balance Adjustment<br>2
User Convenience

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the 55VH7E-H allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

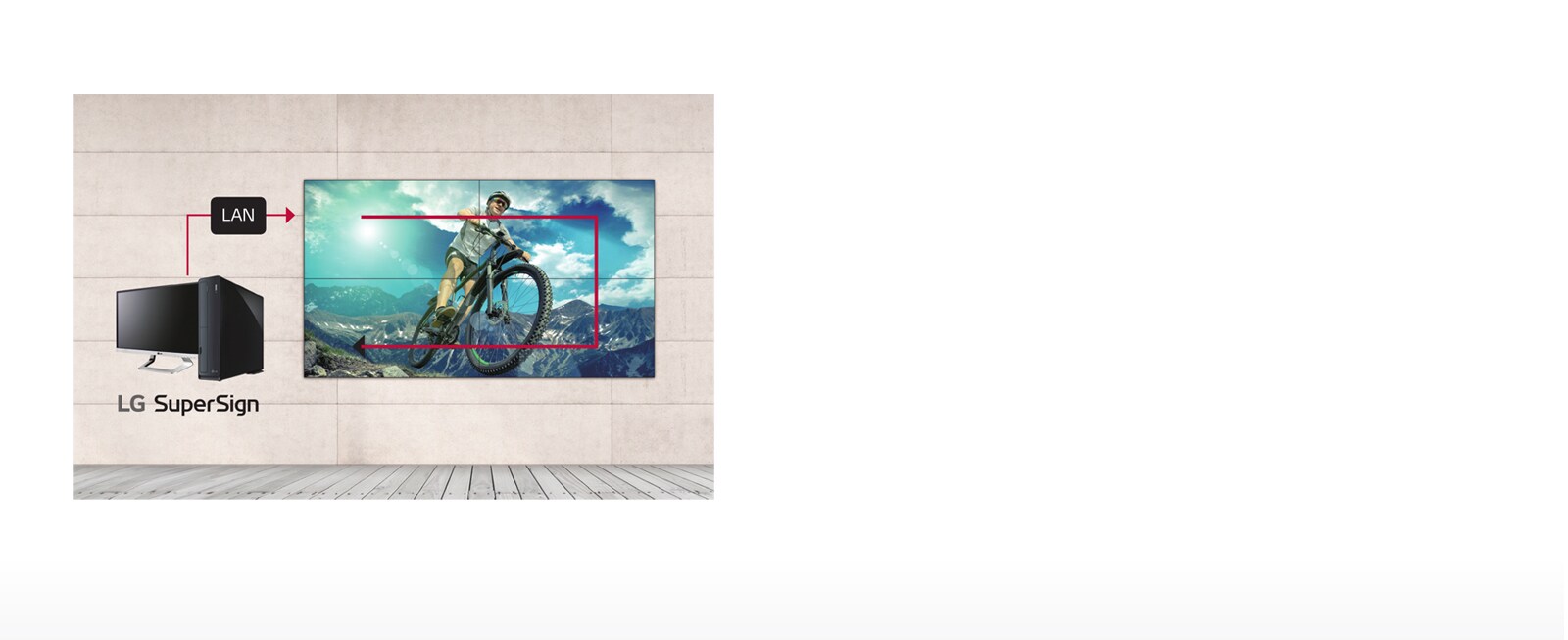

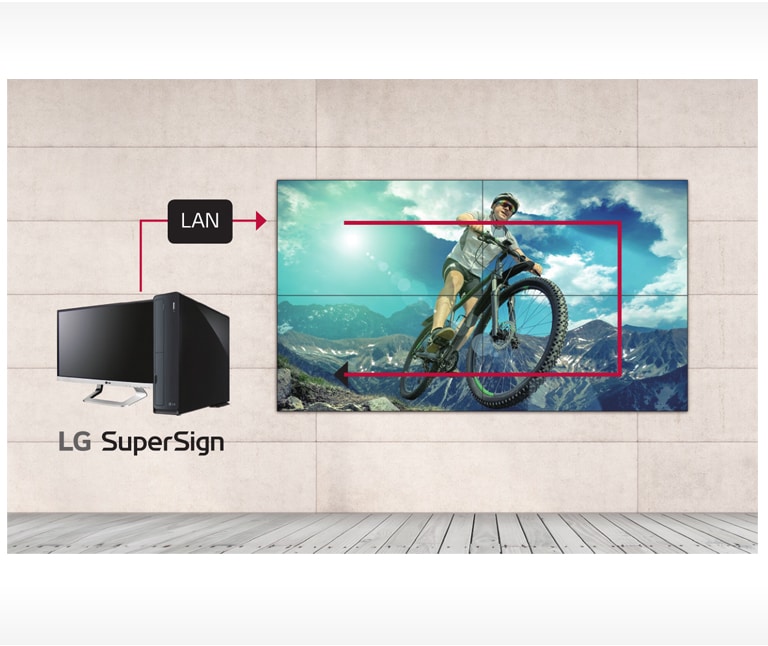

LAN Daisy Chain Management<br>1 LAN Daisy Chain Management<br>2
User Convenience

LAN Daisy Chain Management

A LAN daisy chain allows you to execute commands to control and monitor video walls and even update their firmwares at once.

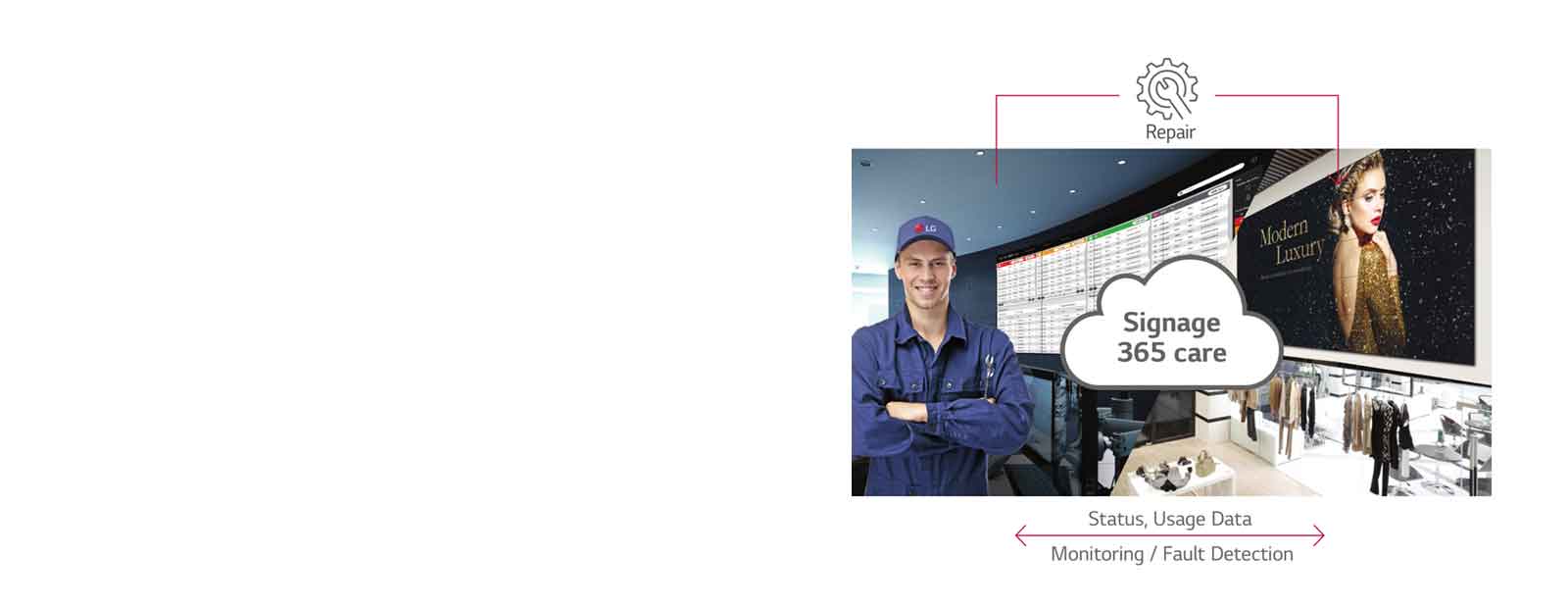

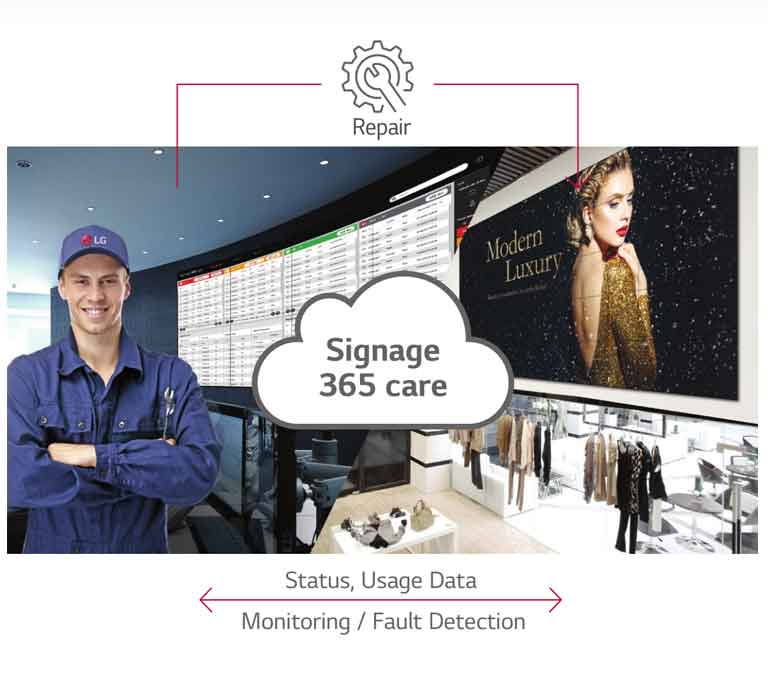

Real-Time Care Service<br>1 Real-Time Care Service<br>2
User Convenience

Real-Time Care Service

The maintenance gets easier and faster with an optional service Signage 365 Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.
*The availablity of "Signage 365 Care" service can differ by region, so please contact the LG sales representative in your region for future details.
Close
PANEL
  • Screen Size
    55"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness (Typ.,cd/m²)
    700

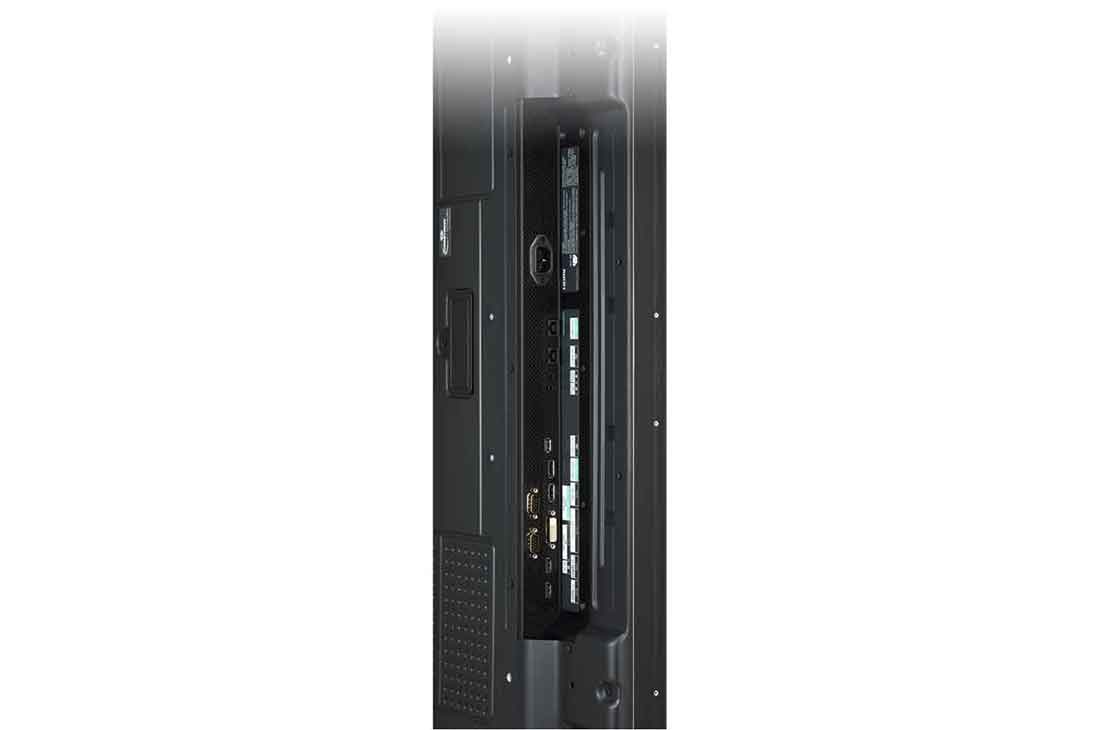

CONNECTIVITY
  • Input
    HDMI (2), DP, DVI-D, Audio, USB 2.0
    Output
    DP, Audio
  • External Control
    RS232C In/out, RJ45(LAN) In/out, IR In
MECHANICAL SPECIFICATION
  • Bezel Width
    0.9mm (Even), B to B 1.8mm
    Monitor Dimension (W × H × D)
    1,211.4 x 682.2 x 86.5 mm
  • Weight (Head)
    18.6kg
    Carton Dimensions (W × H × D)
    1,353 x 855 x 263 mm
  • Packed Weight
    25.3kg
    VESA™ Standard Mount Interface
    600 x 400 mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    220W
    Max
    260W
  • Smart Energy Saving
    110W
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A"/CE/KC
  • ErP/Energy Star
    Yes(EU Only) / No
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    Yes (Piggyback)
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/Control+
ACCESSORY
  • Basic
    Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual
    Optional
    Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V), OPS Kit(KT-OPSF)
