55VX1D-B component-copyModelName

High Brightness Video Wall

LG High Brightness Video Wall, 55VX1D-B, thumbnail 1

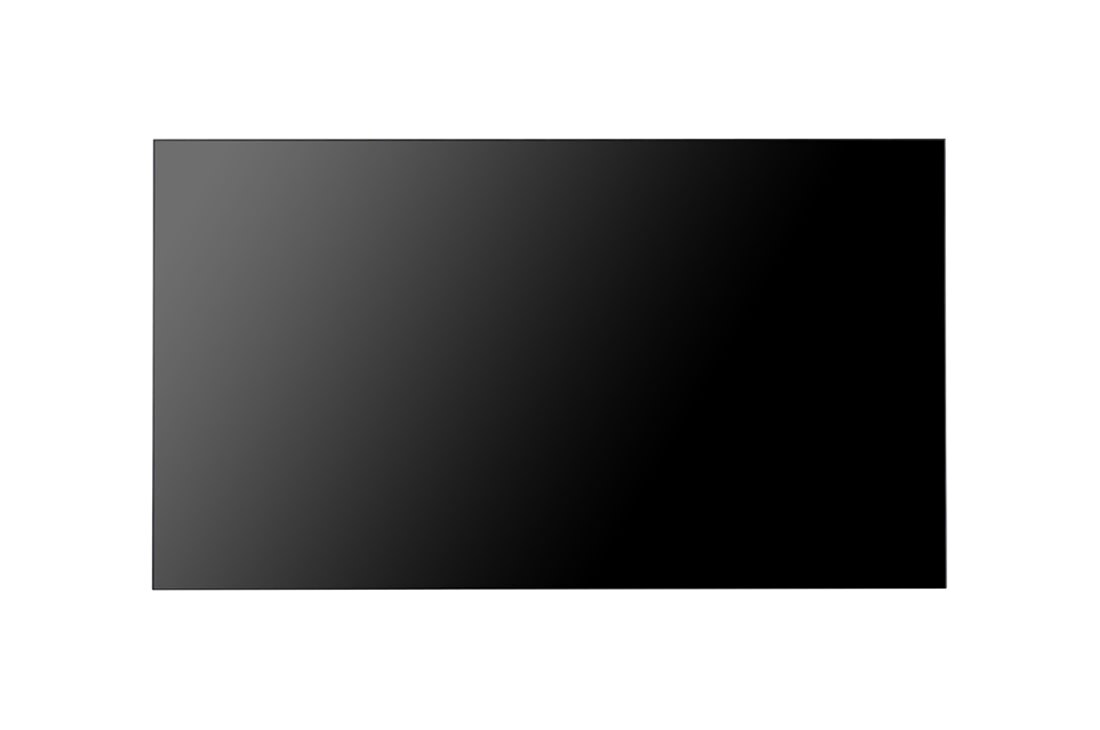

LG High Brightness Video Wall, 55VX1D-B, thumbnail 2

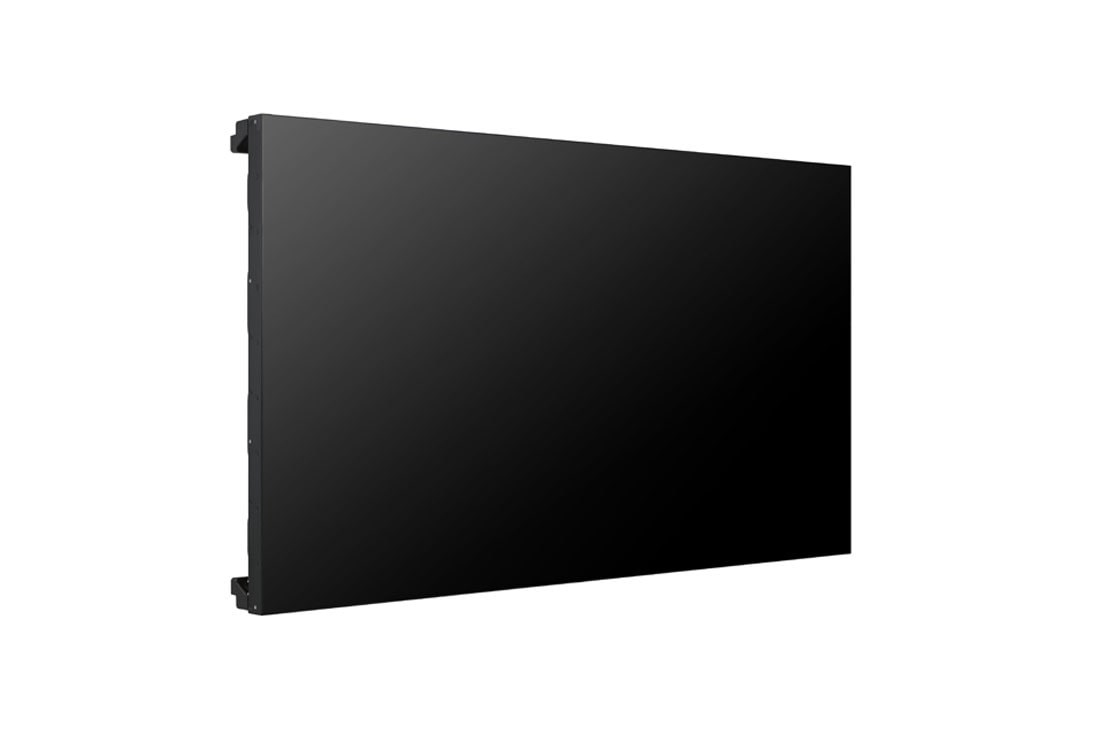

LG High Brightness Video Wall, 55VX1D-B, thumbnail 3

LG High Brightness Video Wall, 55VX1D-B, thumbnail 4

LG High Brightness Video Wall, 55VX1D-B, thumbnail 5

LG High Brightness Video Wall, 55VX1D-B, thumbnail 6

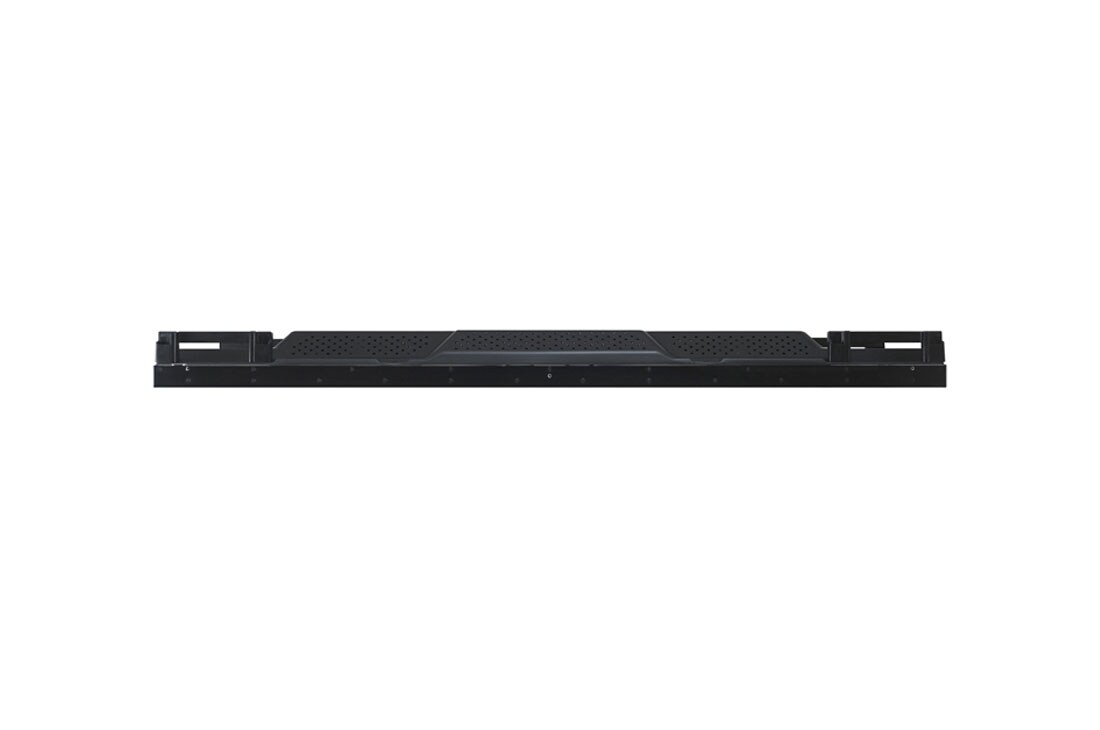

LG High Brightness Video Wall, 55VX1D-B, thumbnail 7

ADD TO WISHLIST

Discontinued

55VX1D-B component-copyModelName

High Brightness Video Wall

Key Features

Brightness(Typ.): 1,500 cd/m²
Bezel: 2.25 mm (Top/Left), 1.25 mm (Bottom/Right)
Depth: 92.8mm
Interface: HDMI/DP/DVI-D/RGB/RS232C/RJ45/USB 3.0/IR Receiver/Audio
webOS 3.0+

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.): 1,500 cd/m²
Bezel: 2.25 mm (Top/Left), 1.25 mm (Bottom/Right)
Depth: 92.8mm
Interface: HDMI/DP/DVI-D/RGB/RS232C/RJ45/USB 3.0/IR Receiver/Audio
webOS 3.0+

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

High Brightness Video Wall

Superior Picture Quality

Clear and Vivid Screen

Other video walls are unable to sufficiently display content due to low visibility under bright lighting. LG's new high brightness video wall stands out against such backgrounds, with a high luminance of 1,500 cd/㎡. It delivers advertisements clearly under the brightest lights.

*For exterior window-facing video walls, the conditions of the installation site should be checked in advance.

Superior Picture Quality

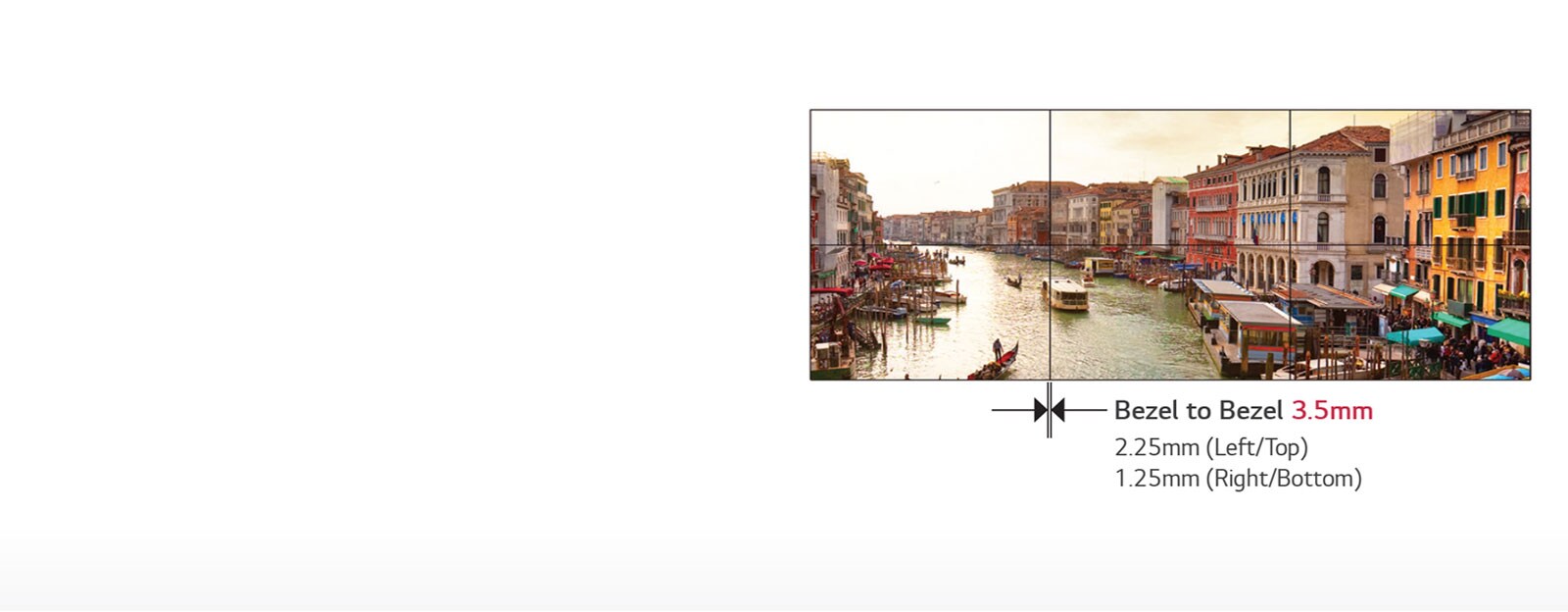

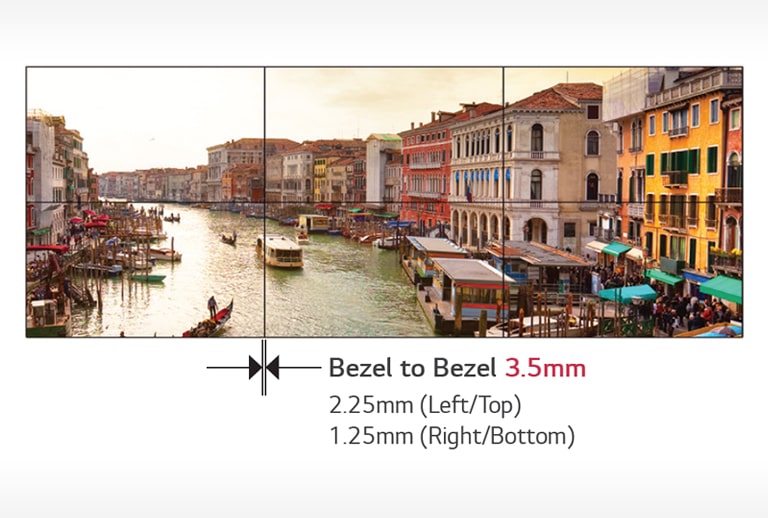

Ultra Narrow Bezel

The 3.5mm ultra narrow bezel size creates immersive and seamless viewing experiences on assembled video wall screens.

Superior Picture Quality

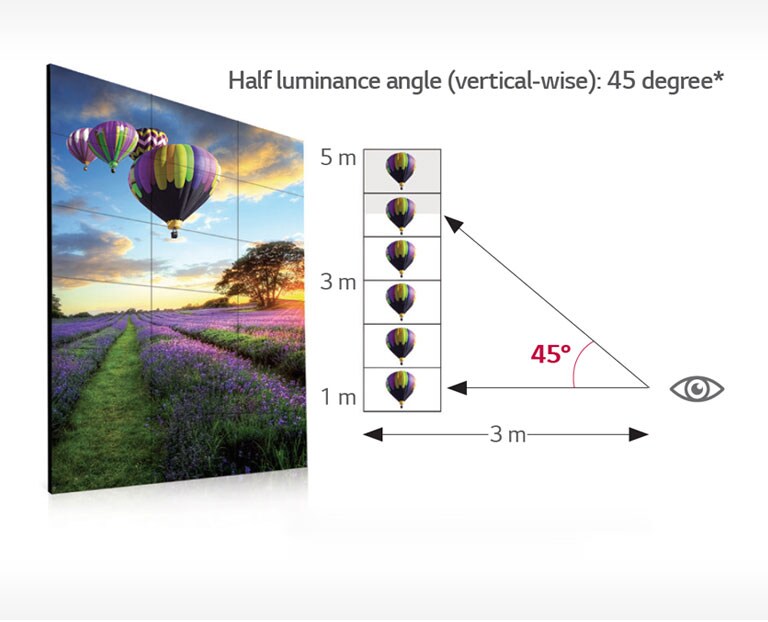

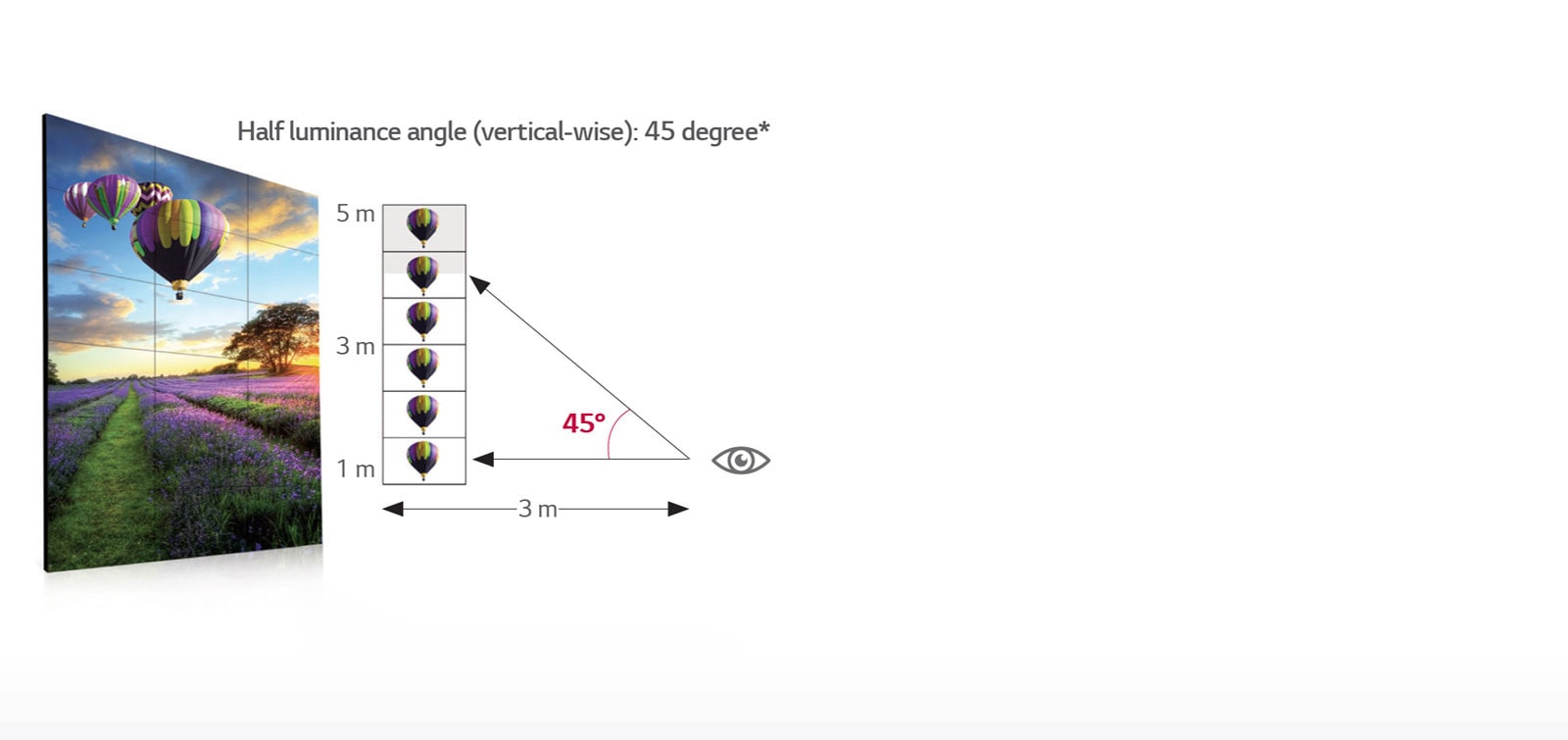

Wide Viewing Angle

Stable image reproduction is critical in video walls, as it is usually installed in places above eye level and is seen from various angles. Thanks to the IPS panel and the high half luminance angle, VX1D delivers the best picture quality from any viewer position.

*The angle from the center of the screen to have 50% of the initial luminance.

Superior Picture Quality

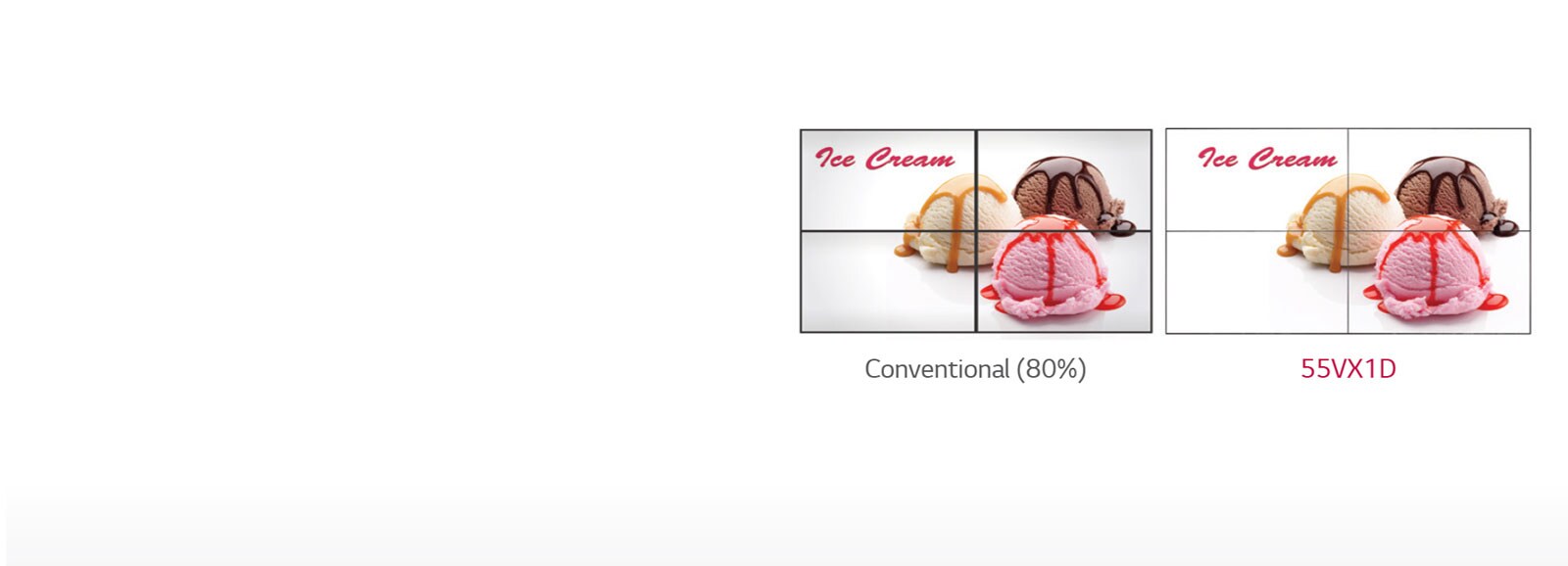

Uniform Brightness

LG's LED backlight technology guarantees high uniformity in brightness to ensure a clear picture. On other screens, certain spots may appear darker than others, but the new VX1D generates high visibility and a consistent brightness across the whole screen.

Superior Picture Quality

Consistent White Balance

Through Video Wall Image Creation (VIC) technology, color and brightness differences are compensated in circuit part with an algorithm to make the panels into a same characteristic so that each video wall maintains the consistent white balance.

Quiet Operation

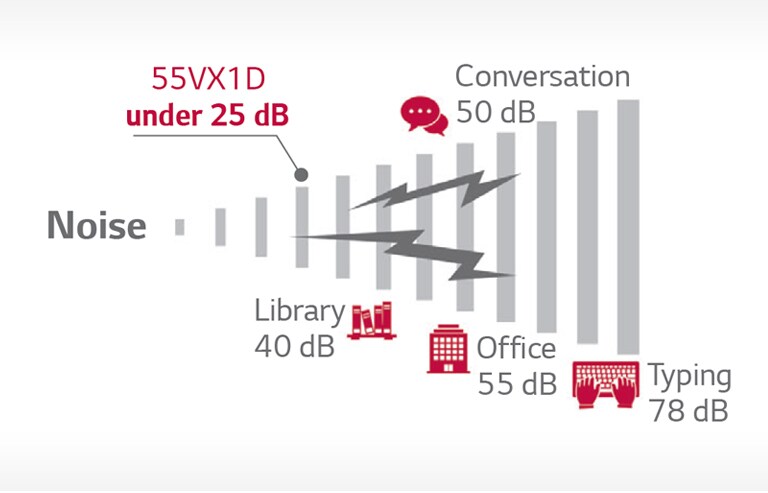

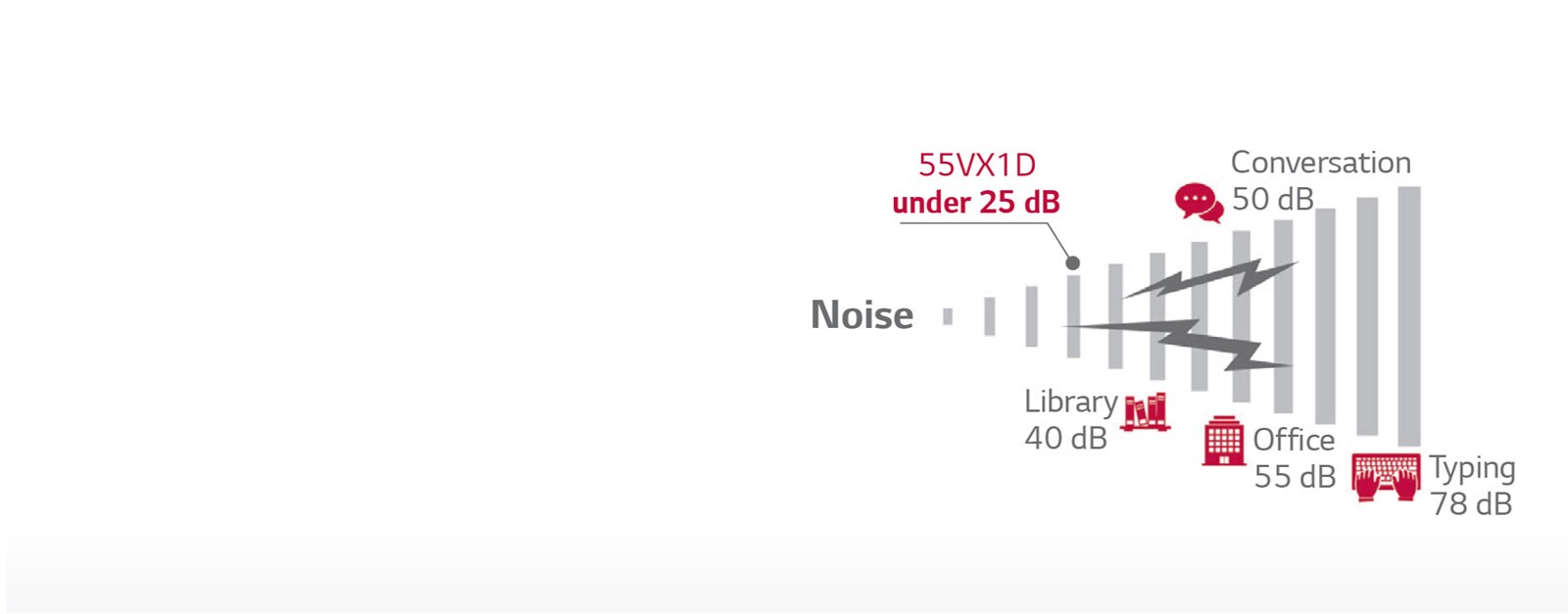

Fan-Less Noise Reduction

55VX1D is the perfect choice for an in-window environment due to the removal of the cooling fan. Its operating noise level is under 25 dB, which is quieter than a recording studio (30 dB).

Smart Platform

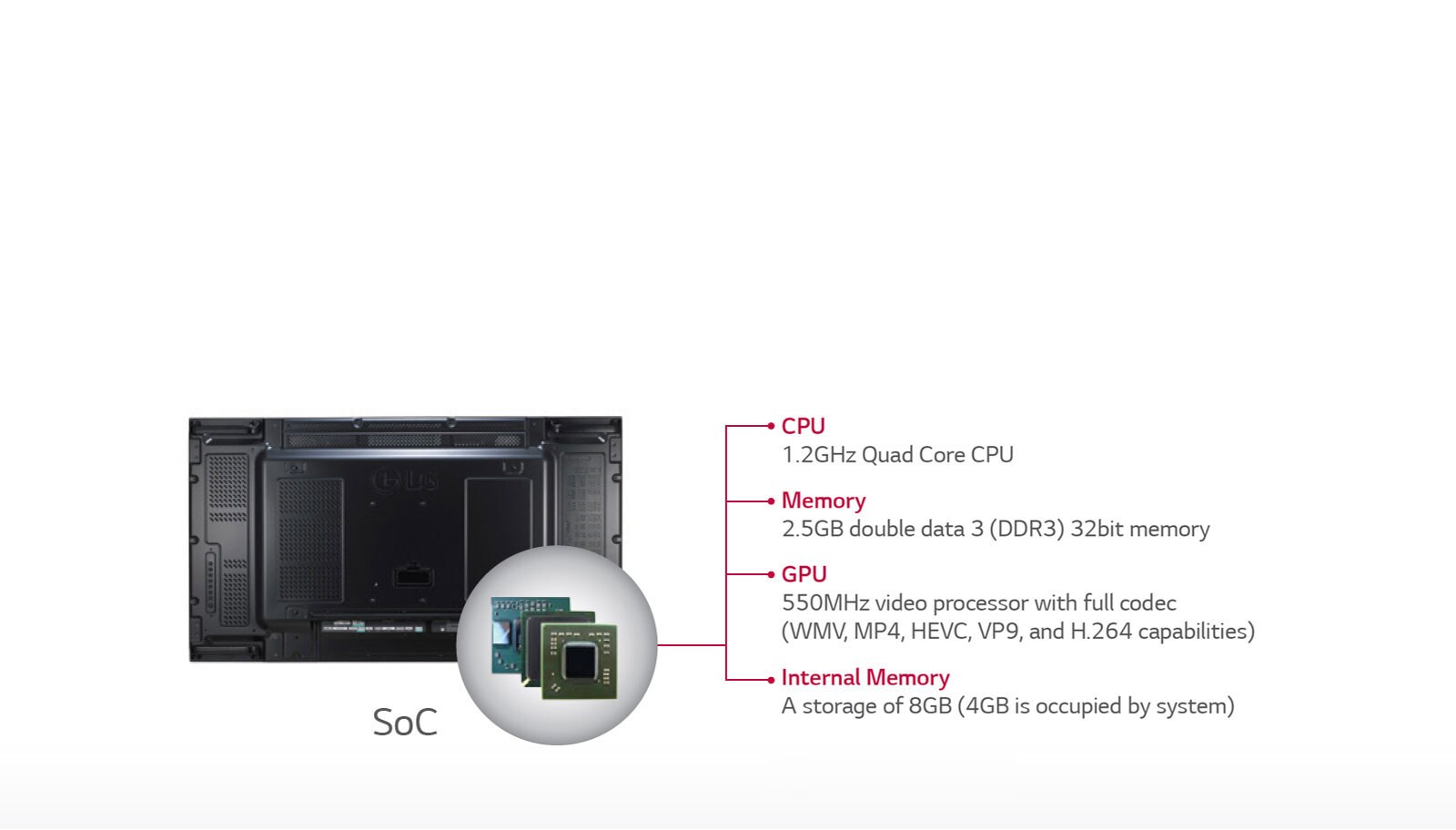

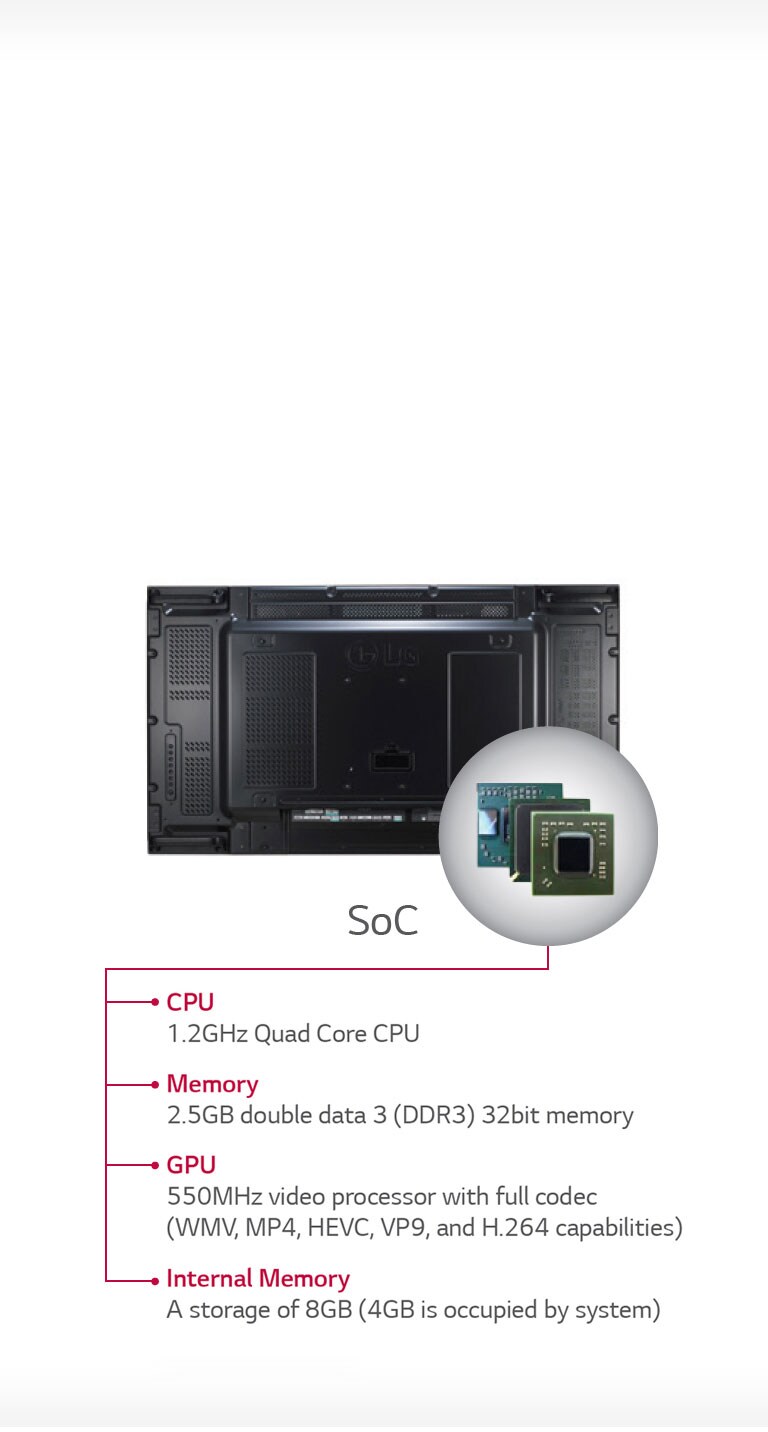

Built-in SoC and Synced Playback

The optimized built-in quad-core SoC* in the 55VX1D can play various content formats and eliminates the need for an external media player. Using its built-in SoC, each display plays its video tile without lag for synchronized content playback.

*System-on-Chip.

Enhanced Usability

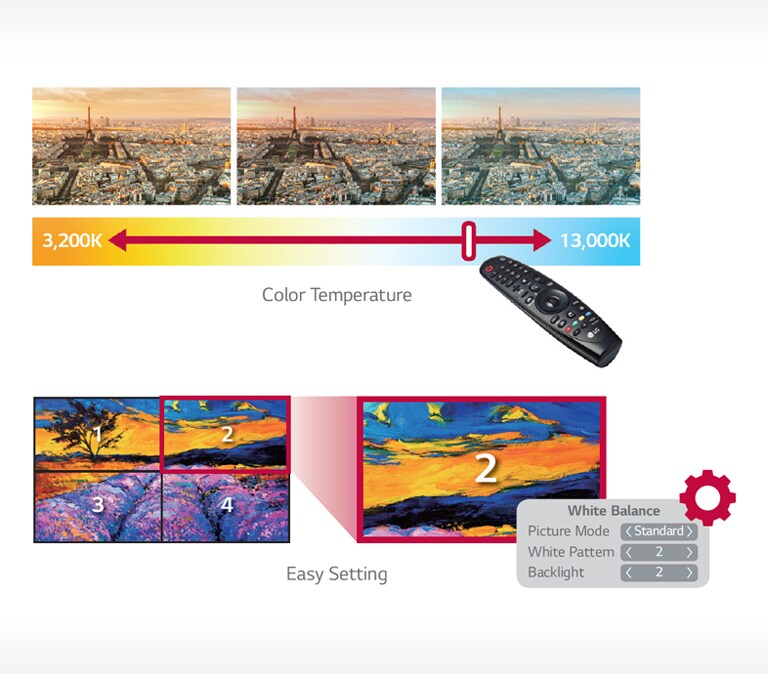

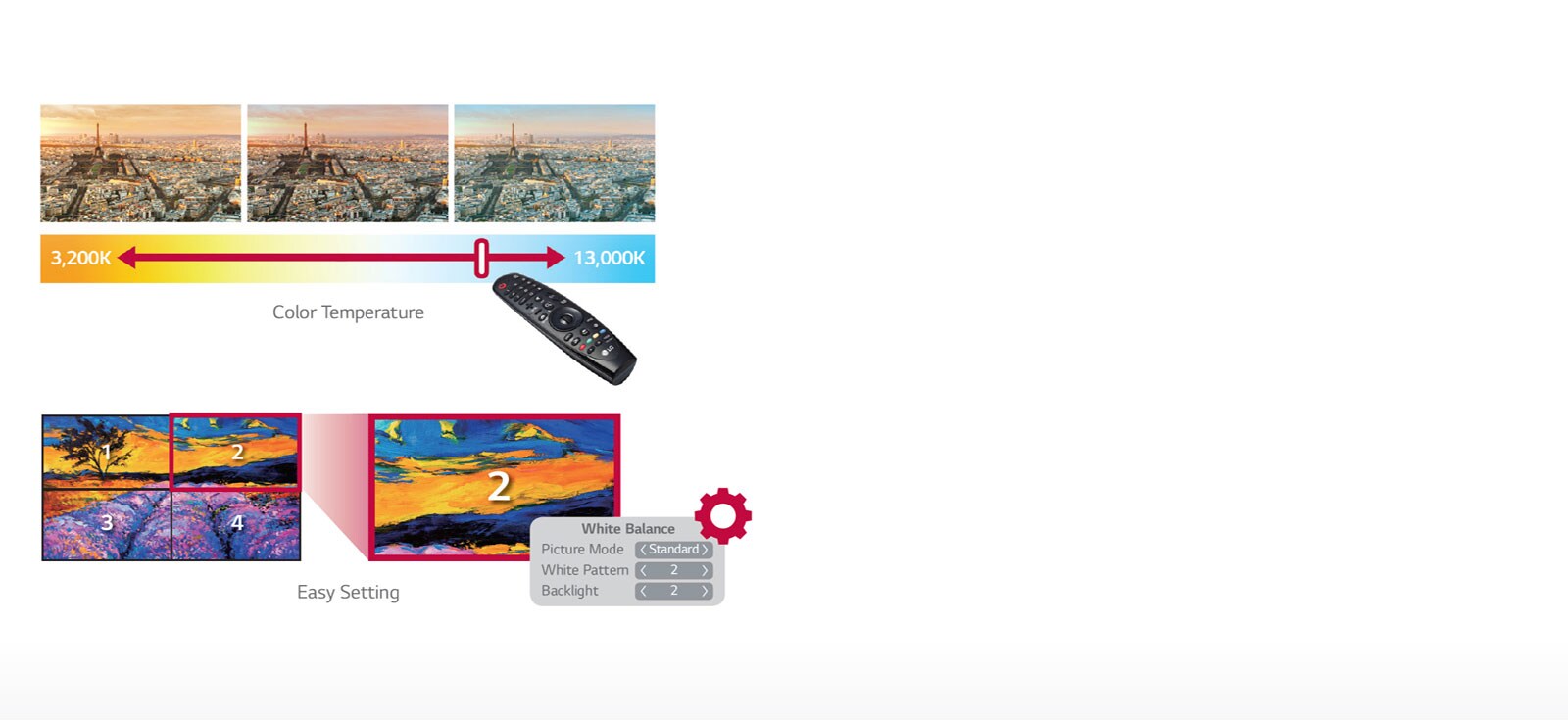

Convenient UX for Video Wall

Depending on the content, the color temperature of the screen can be easily adjusted by users with a remote control. Also, the settings for tile mode and content playback become more convenient because the dedicated menu is specialized based on the visual guide.

Easy Management with LAN Daisy Chain<br>1

Enhanced Usability

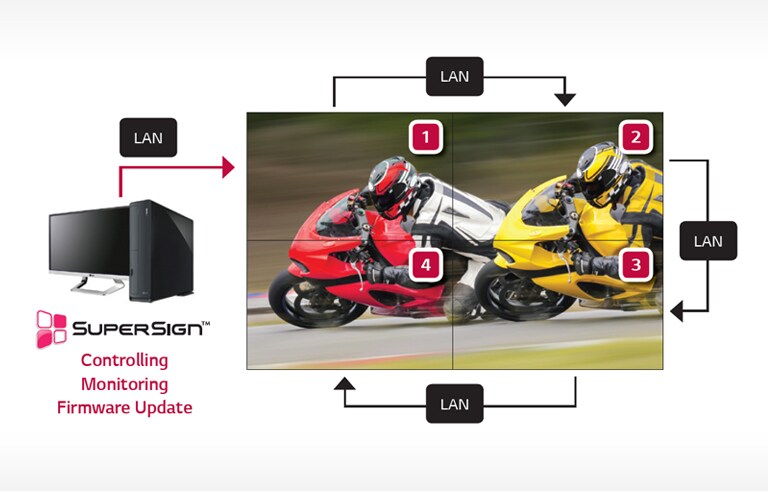

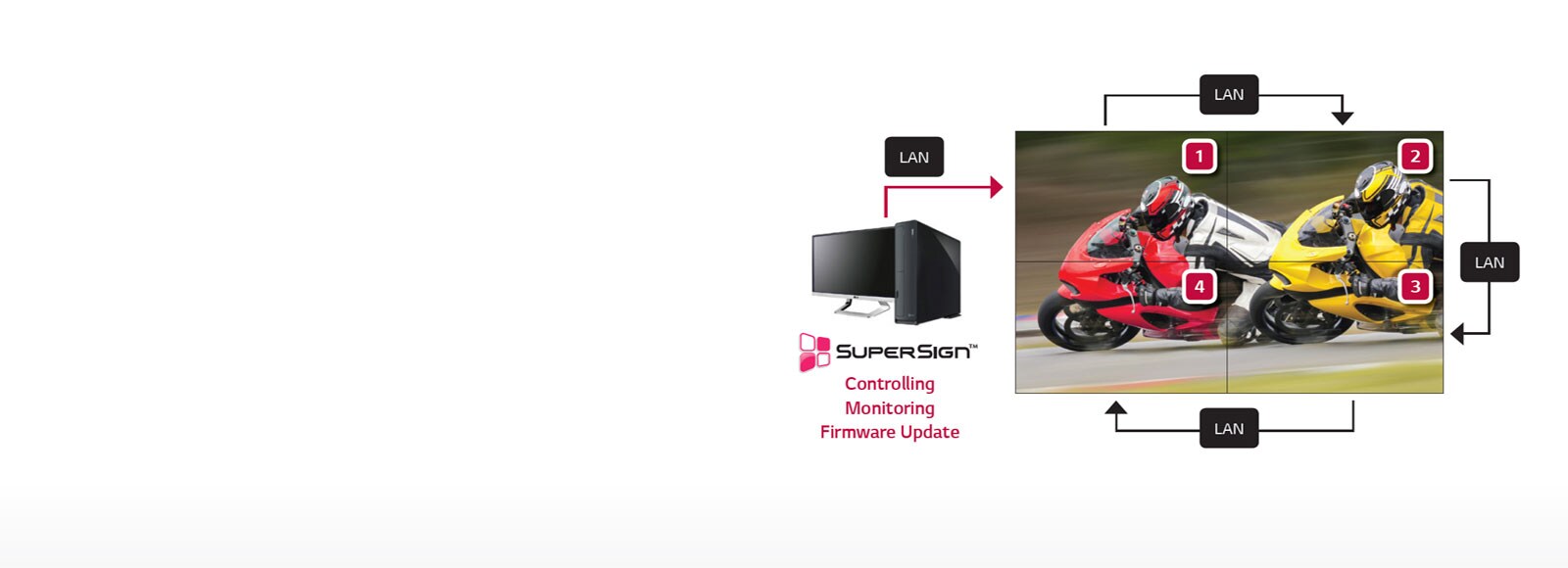

Easy Management with LAN Daisy Chain

The LAN daisy chain allows users to control and monitor signage, distribute content, and even update firmware all at once.

PANEL

Screen Size

55"

Native Resolution

1,920 x 1,080 (FHD)
Brightness(Module, Typ., cd/m²)

1500

Orientation

Landscape & Portrait

CONNECTIVITY

Input

HDMI, DP, DVI-D, RGB, Audio In, USB 3.0

Output

DP, Audio Out
External Control

RS232C In/Out, RJ45 In/Out, IR Receiver In

PHYSICAL SPECIFICATION

Bezel Width

2.25mm (L/T) / 1.25mm (R/B)

Monitor Dimension (W x H x D)

1,213.4 x 684.2 x 92.8 mm
Weight (Head)

23.5kg

Carton Dimensions (W x H x D)

1,353 x 855 x 263 mm
Packed Weight

36.6kg

VESA™ Standard Mount Interface

600 x 400 mm

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10% to 80%

POWER CONSUMPTION

Typ./Max.

250W/280W

Smart Energy Saving

213W

STANDARD(CERTIFICATION)

Safety

UL/cUL/CB/TUV/KC

EMC

FCC Class "A"/CE/KCC
ErP / Energy Star

NA/Yes (Energy Star 7.0)

MEDIA PLAYER COMPATIBILITY

External Media player Attatchable

Yes (MP500/MP700)

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign Premium

Control and Monitoring Software

SuperSign Link

ACCESSORY

Basic

Remote controller, Power cable, DP cable, Manual, IR receiver, RS-232C cable, LAN cable, Guide bracket, Screws

Optional

Wall mount (Landscape: WM-L640V, Portrait: WM-P640V)
