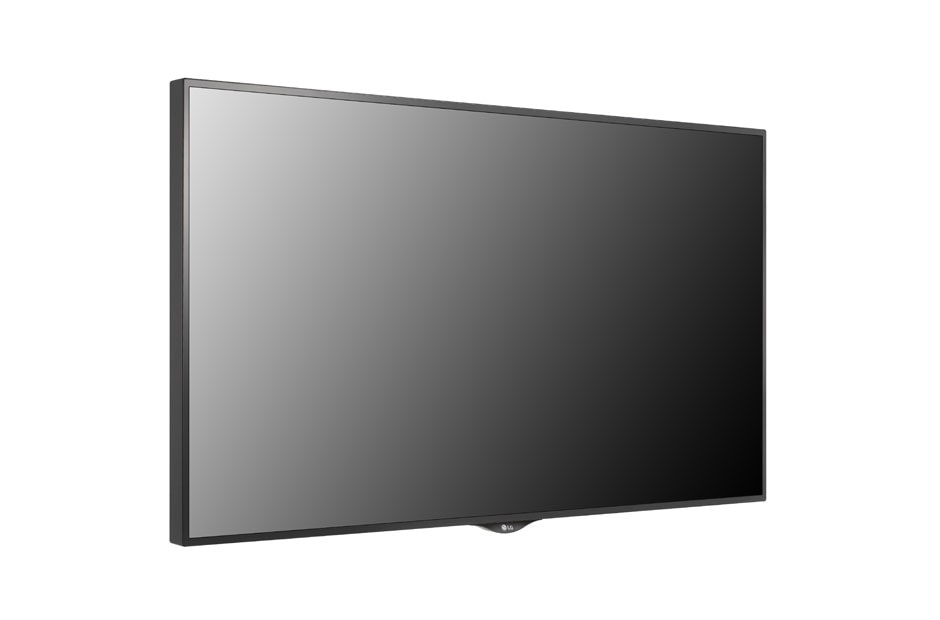

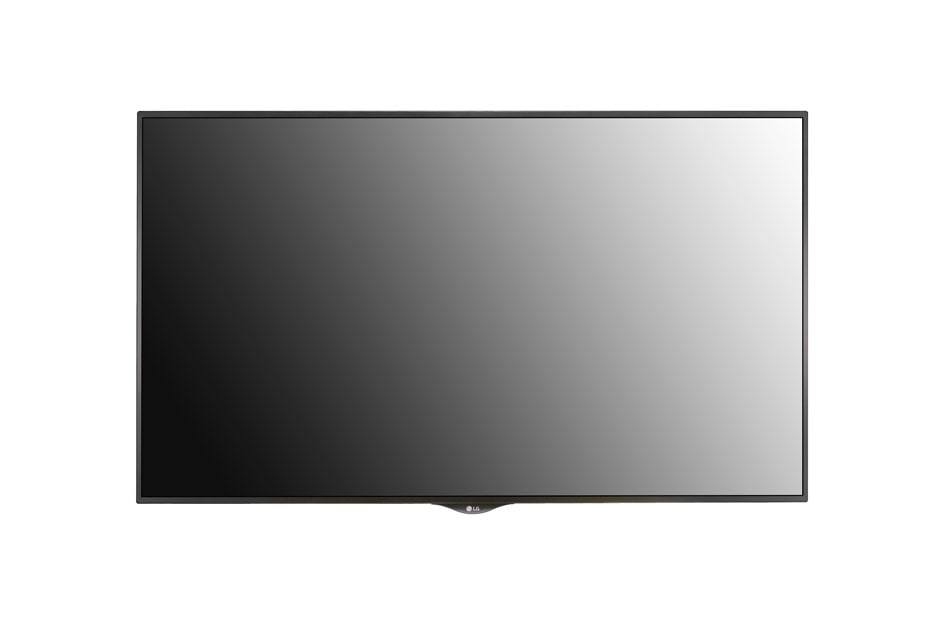

55XS2C component-copyModelName

XS2C Series

ADD TO WISHLIST

Discontinued

55XS2C component-copyModelName

XS2C Series

Key Features

Brightness : 2,500 cd/m2 (Typ.)
Life Time : 50,000 hours
Bezel : 11.4 mm (L/R), 13.5 mm (T/B)
Depth : 89 mm
Interface : HDMI (2) / DP / DVI / RJ45 / IR / RS232C / IR / USB / SD Card / External speaker out (L/R)

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness : 2,500 cd/m2 (Typ.)
Life Time : 50,000 hours
Bezel : 11.4 mm (L/R), 13.5 mm (T/B)
Depth : 89 mm
Interface : HDMI (2) / DP / DVI / RJ45 / IR / RS232C / IR / USB / SD Card / External speaker out (L/R)

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

XS2C Series

Outstanding Visibility

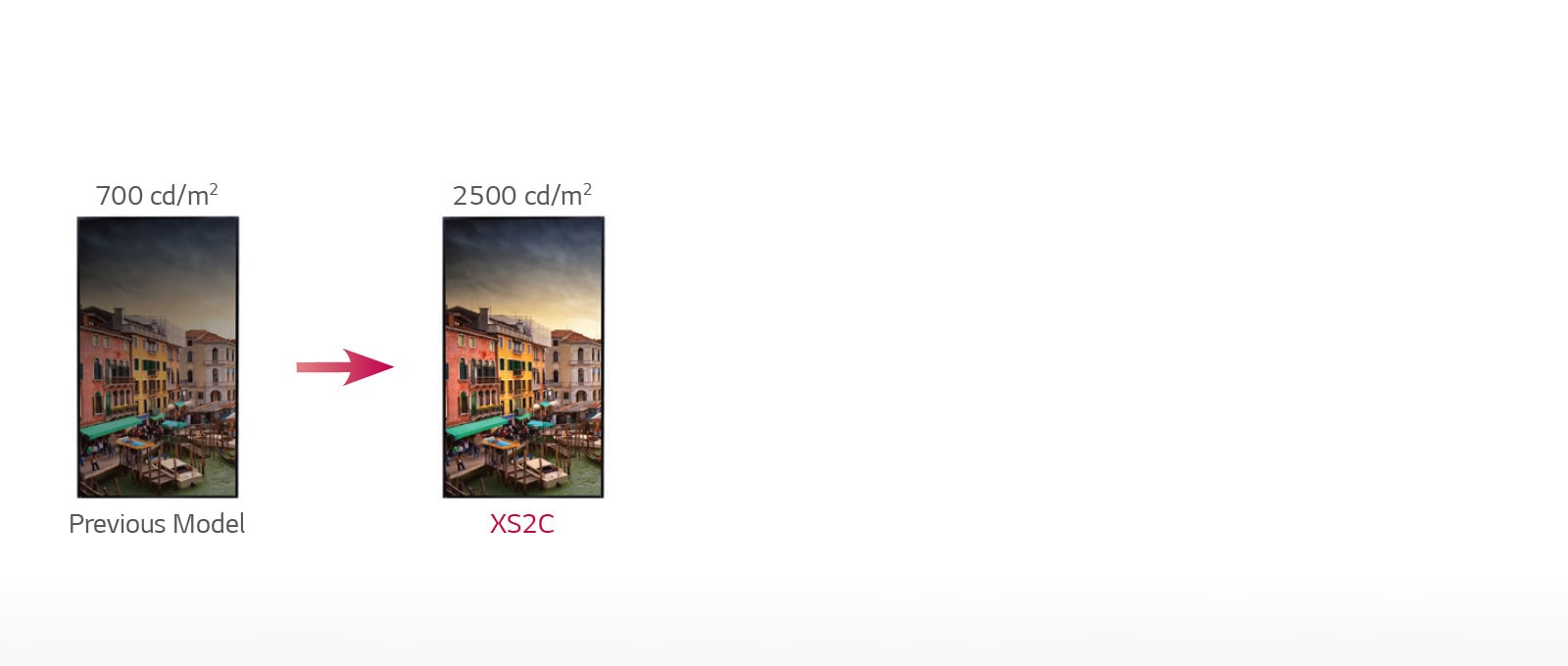

Increased Brightness

The brightness has been increased to 2,500 cd/m2 compared
to the previous WX30 model, making the XS2C
the ultimate screen for outdoor visibility.

Outstanding Visibility

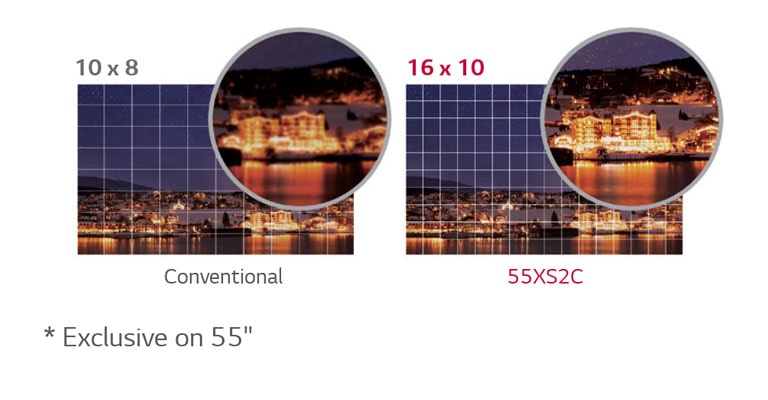

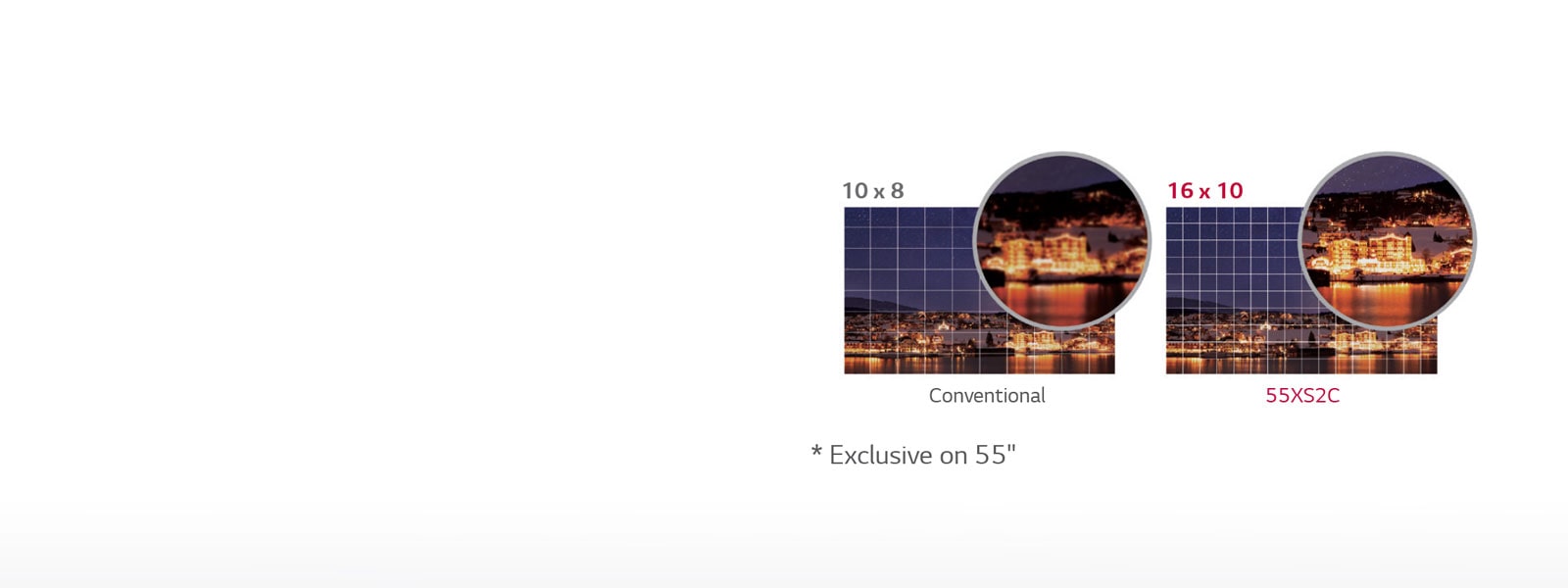

Advanced Local Dimming

The backlighting in specific areas of the screen can be controlled
to increase contrast and provide a clearer image.

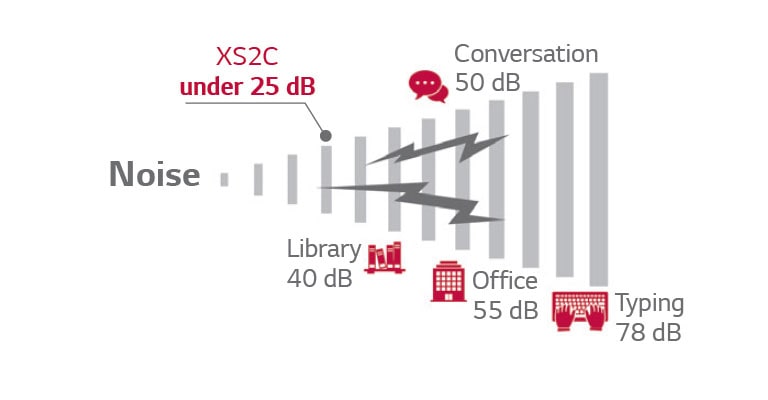

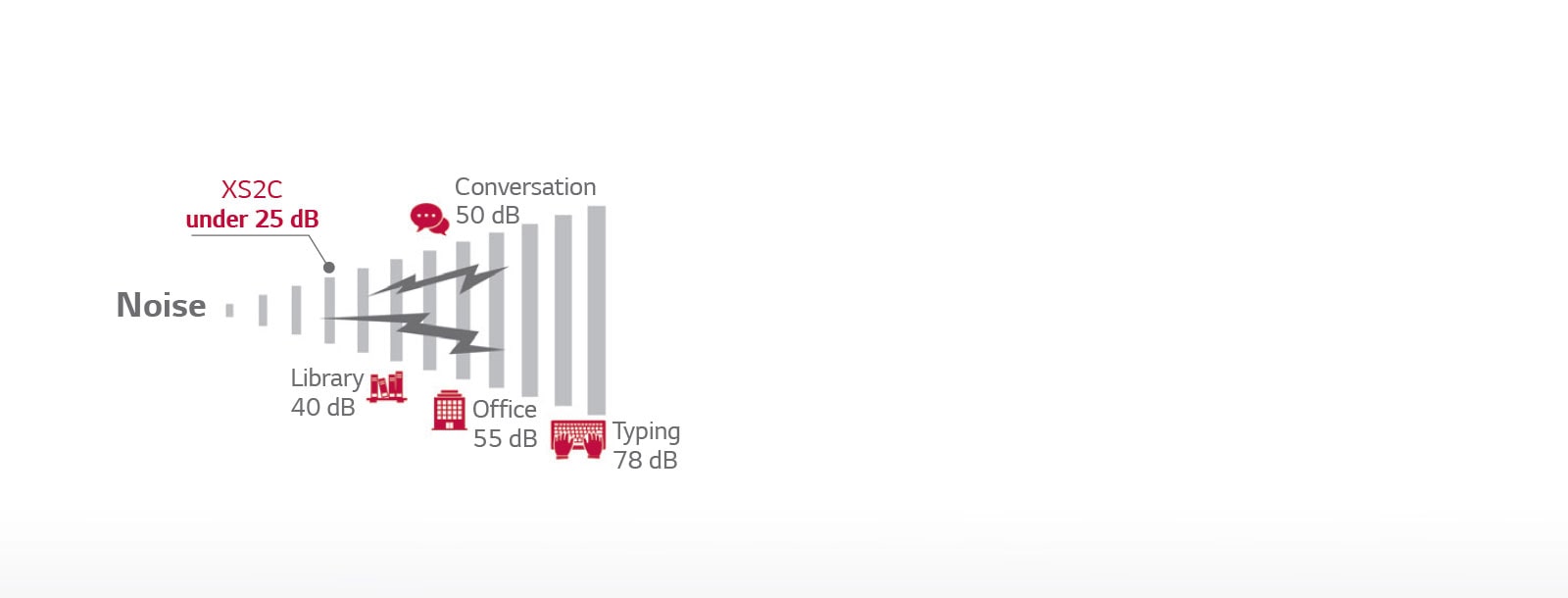

Quiet Operation

Fan-Less Noise Reduction

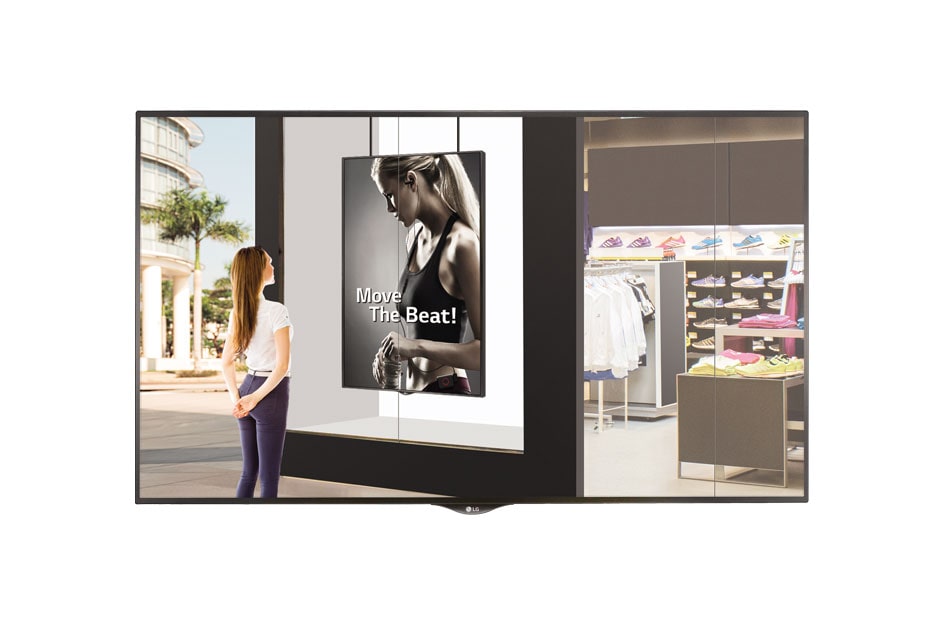

The XS2C is the perfect choice for an in-window
environment due to the removal of the cooling
fan. Its operating noise level is under 25 dB,
which is quieter than a recording studio (30 dB).

Enhanced Design Configuration

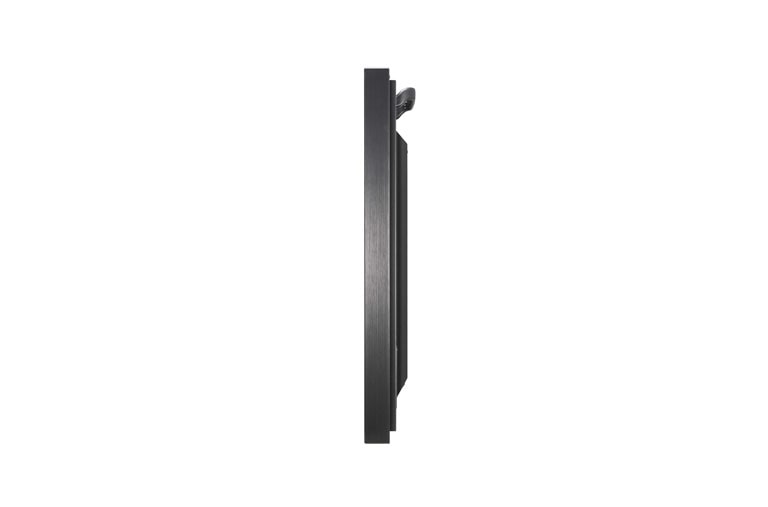

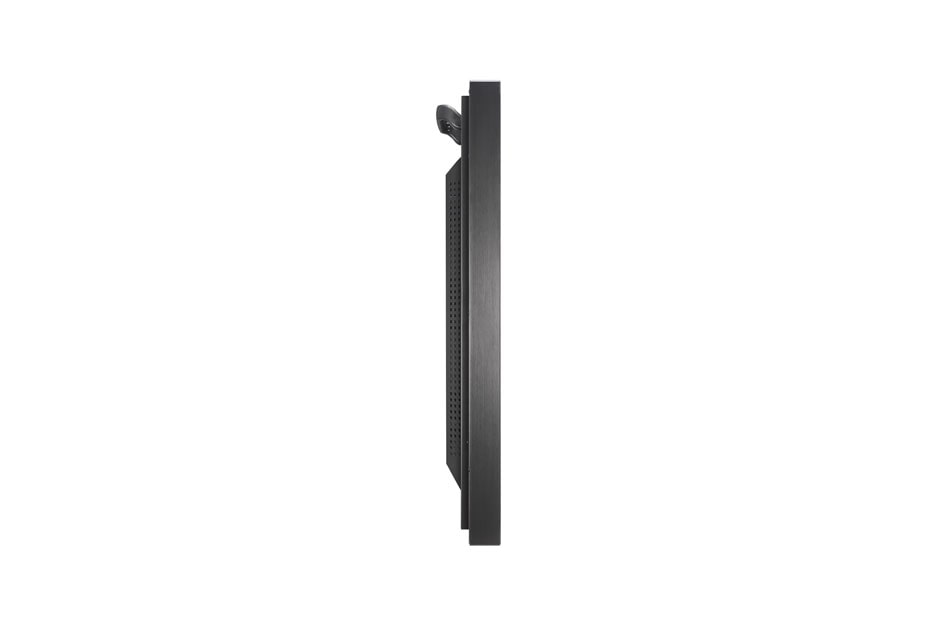

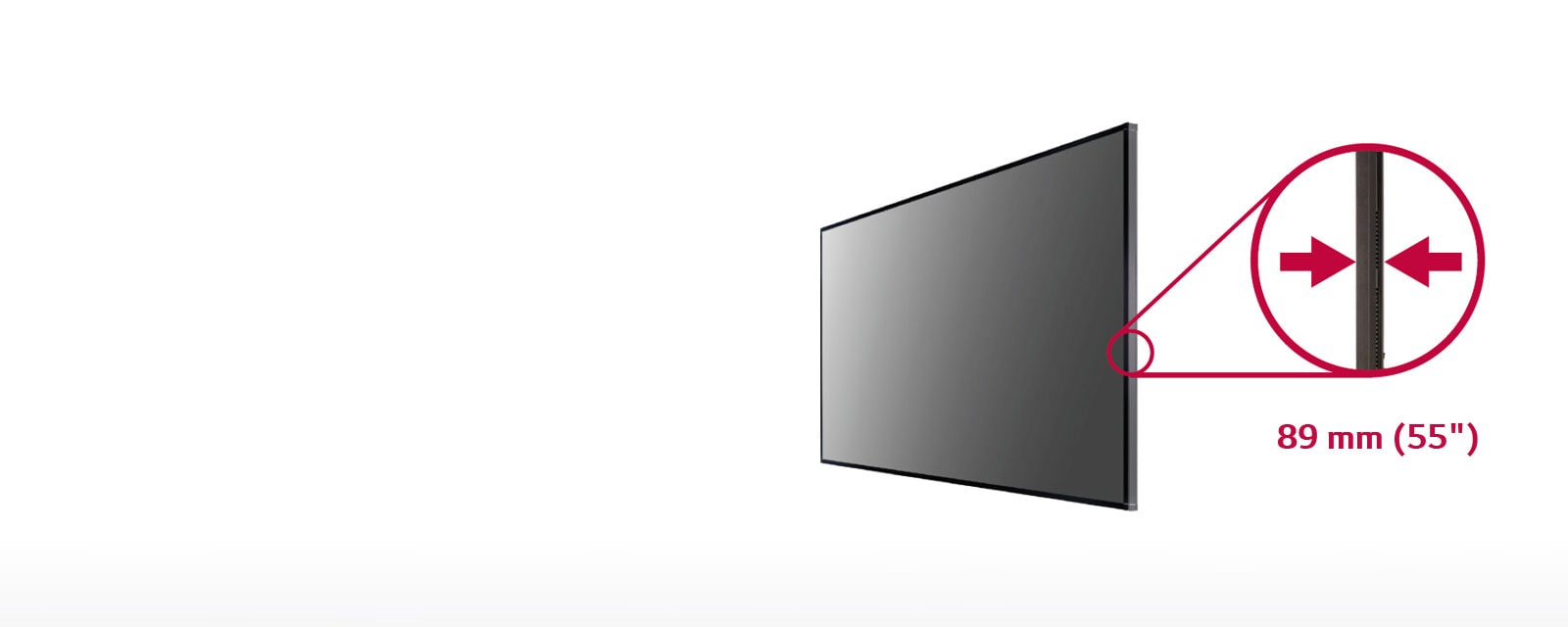

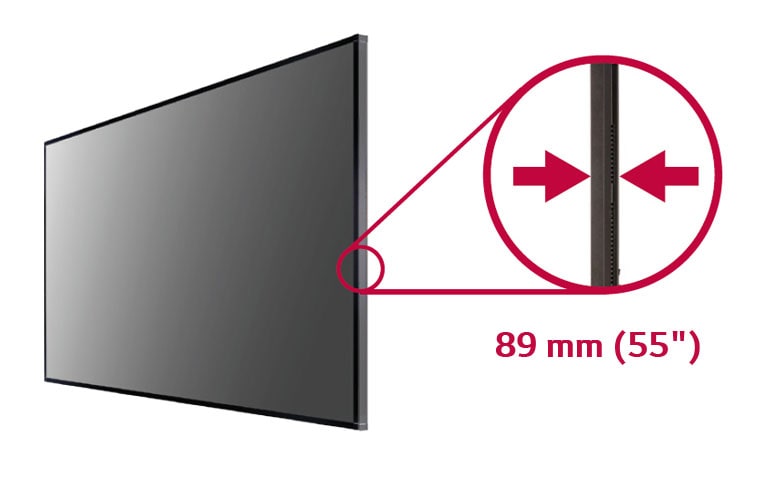

Slimmer Depth
The slimmer depth saves space for installation and
makes the enclosure design slimmer.

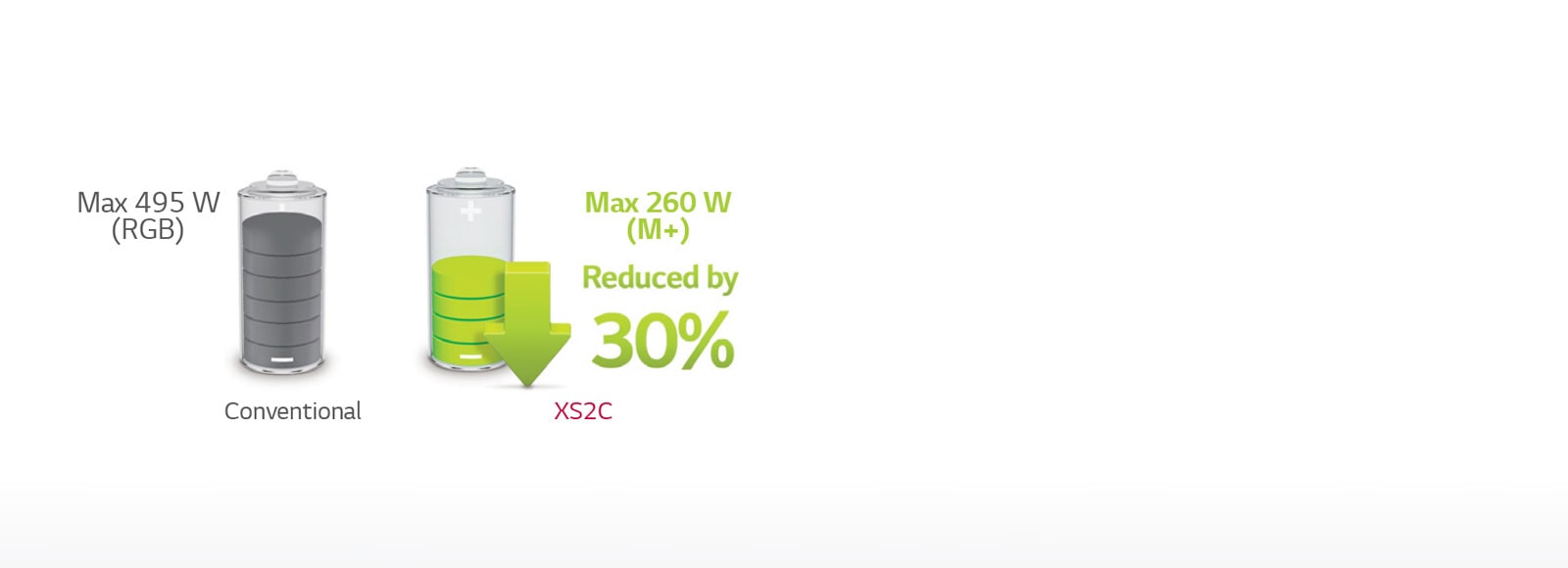

Low Power Consumption Using The M+ Panel1

Cost Effective

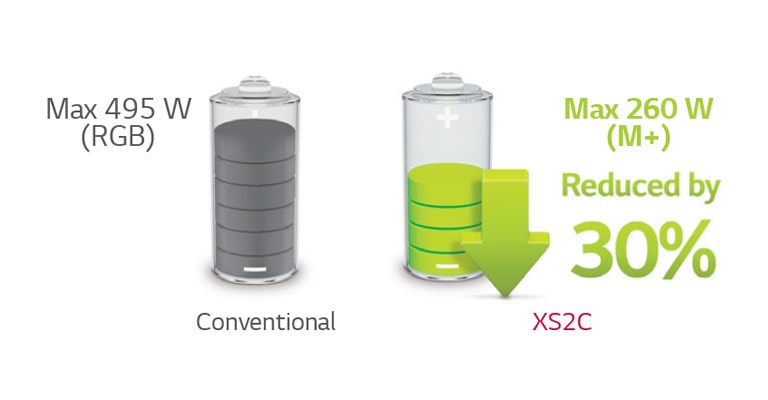

Low Power Consumption Using The M+ Panel

The M+ panel offers excellent energy efficiency and
cost savings and decreases power consumption by 30
compared to conventional RGB panels.

Cost Effective

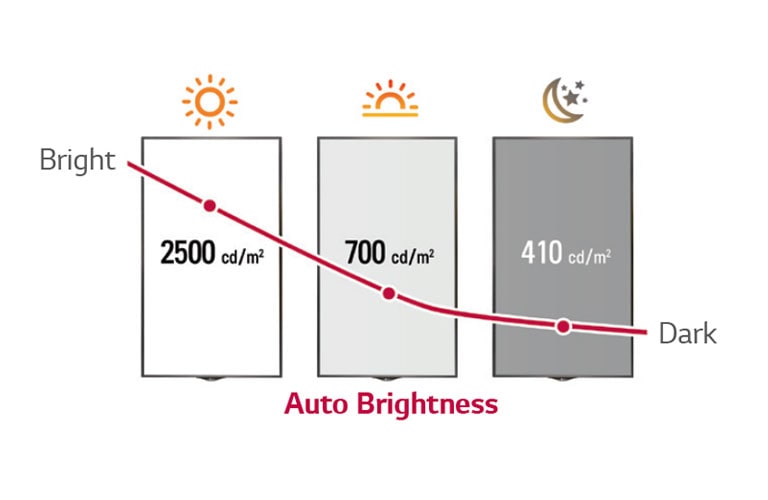

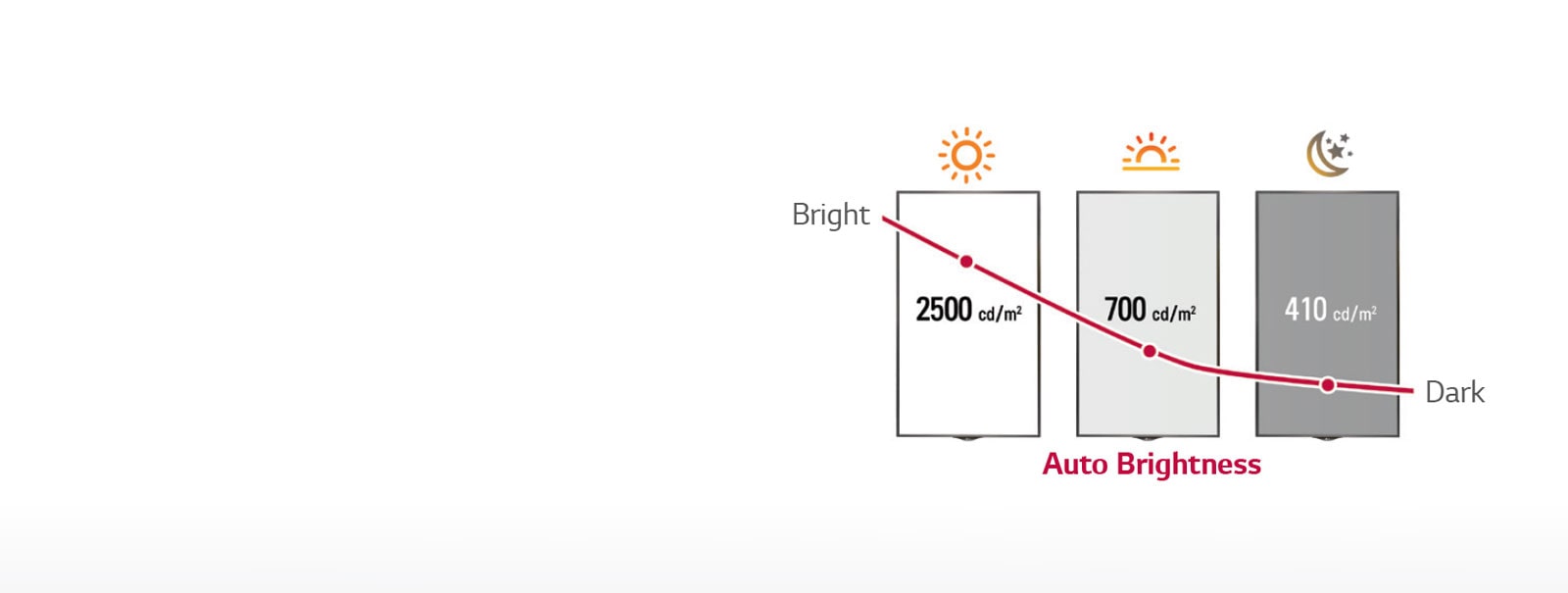

Smart Brightness Control

The auto-brightness sensor and preset time scheduler save
power whenever possible.

Product Reliability

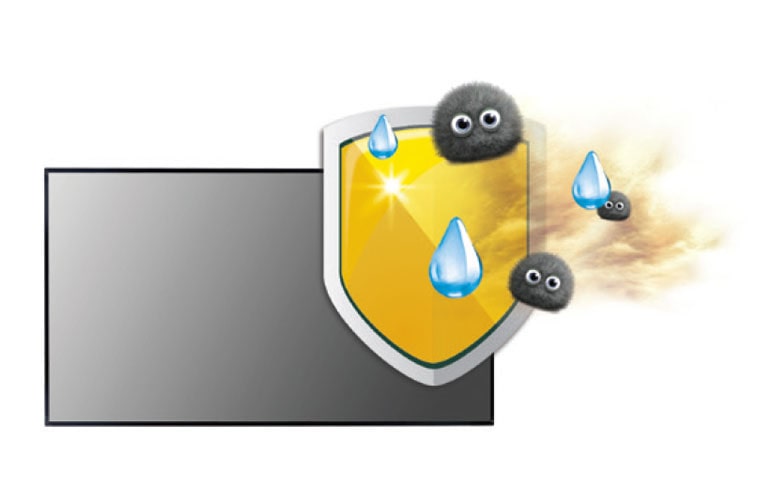

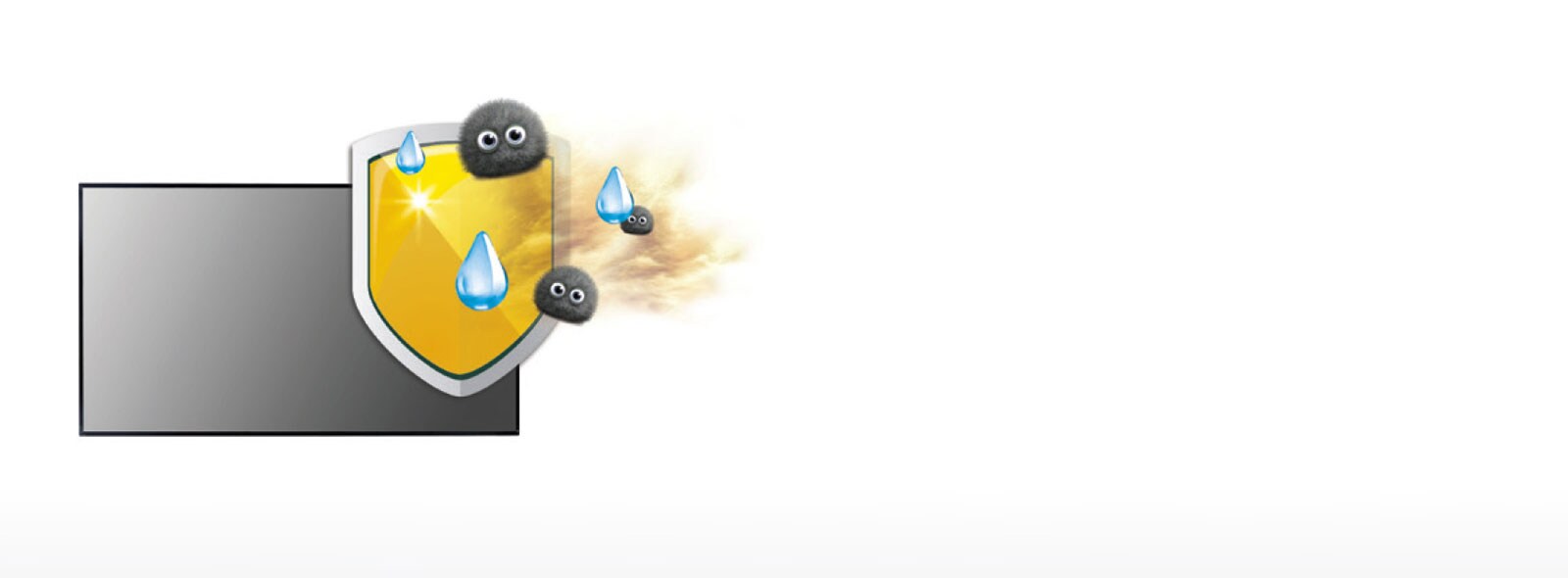

Dust & Humidity Protection

The conformal coating enhances circuit board reliability by
protecting it from dust, iron shavings, humidity and other
harsh conditions.

Product Reliability

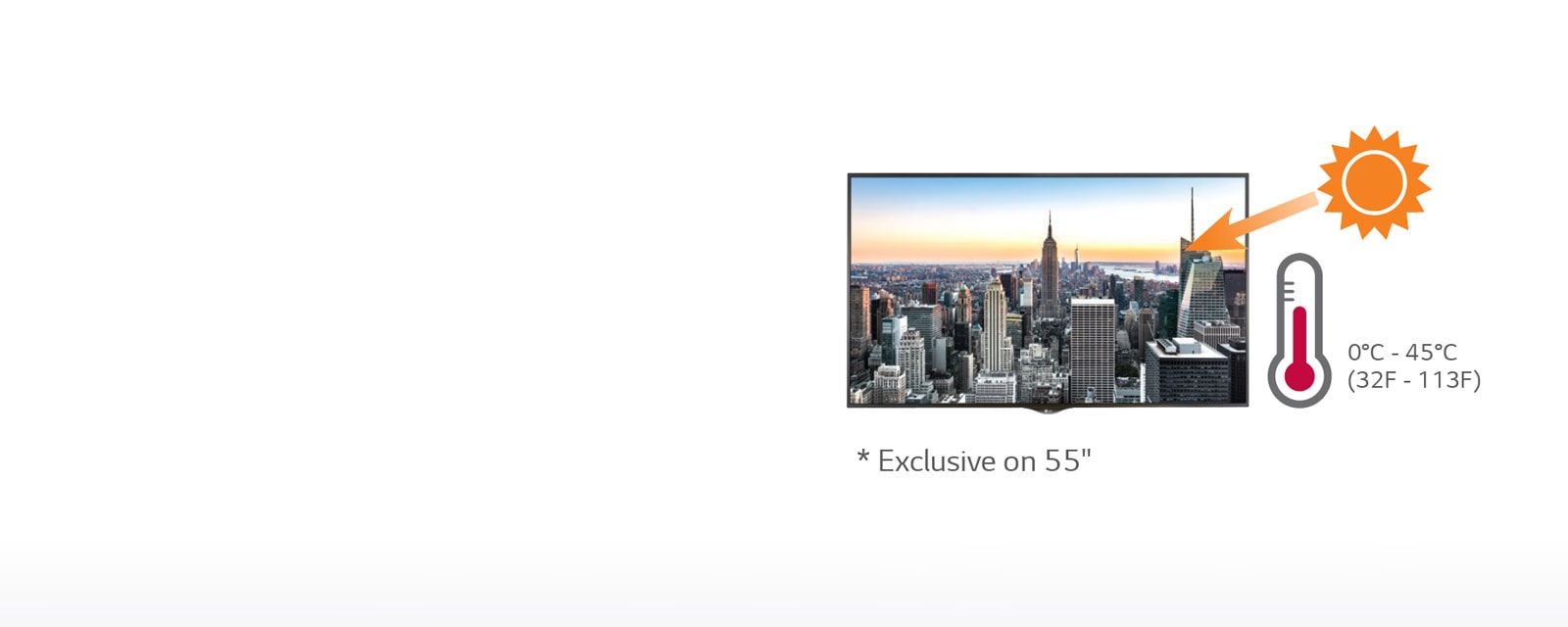

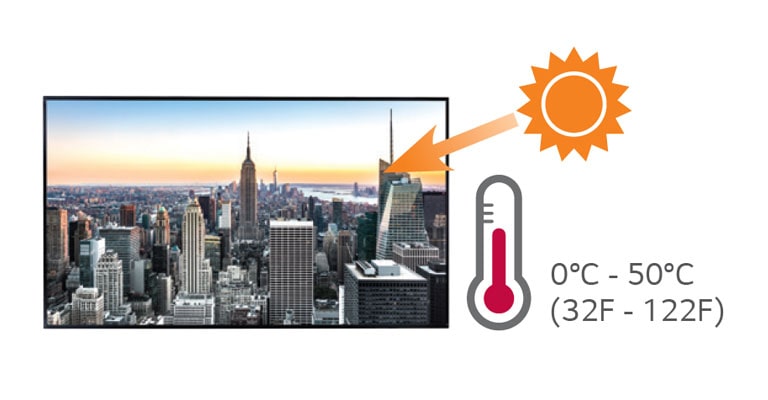

High Operating Temperature

The panel offers superb reliability under high operating
temperatures and reduces cooling fan usage.

Easy Maintenance

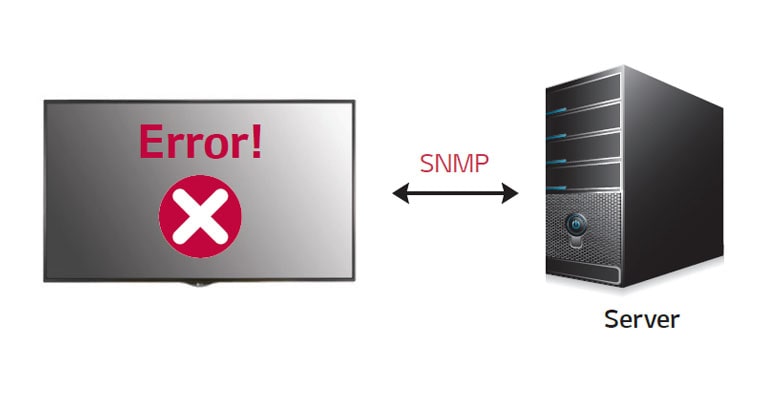

Real-Time Remote Monitoring

When an alarm occurs, an email notification is sent through
the SNMP using the SuperSign C or SI software. In case a
malfunction or error occurs, real-time remote care is available.

Easy Maintenance

Saving System Log Files

The XS2C supports log file back-up for fault clarification when
the display fails. This allows you to conveniently check when
an error has occurred.

PANEL

Screen Size

55"

Resolution

1,920 x 1,080 (FHD)
Brightness

2,750 cd/m2 (Max), 2,250 cd/m2 (Min), 2,500 cd/m2 (Typ.)

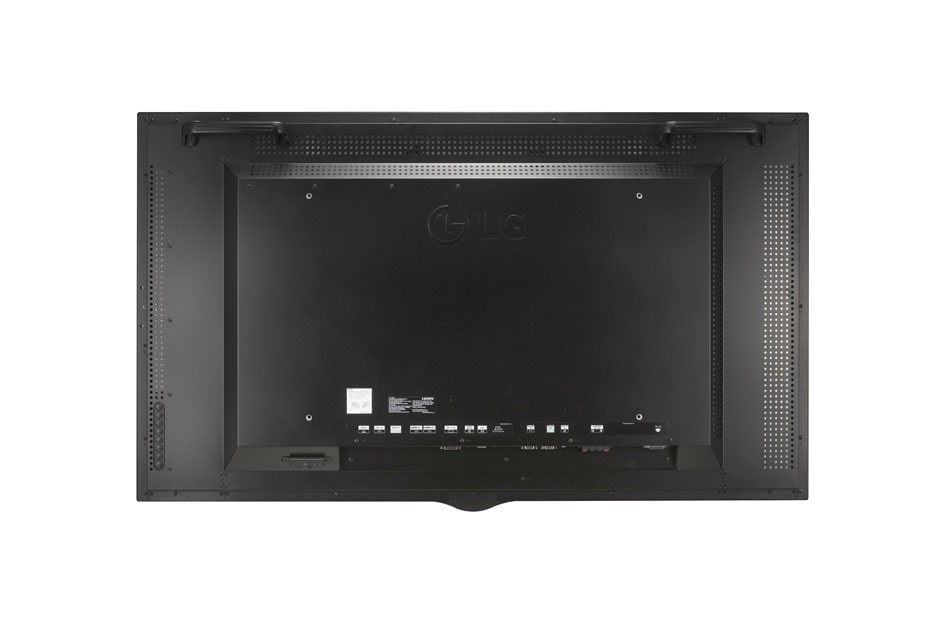

CONNECTIVITY

Input

HDMI(2), DP, DVI-D, Audio, USB, IR Receiver, Pixel Sensor

Output

DP, External Speaker Out (L/R)
External Control

RS232C (In/Out), RJ45

PHYSICAL SPECIFICATION

Bezel Width

11.4 mm (L/R), 13.5 mm (T/B)

Monitor Dimension (W x H x D)

1,238.4 x 712.4 x 89 mm
Weight (Head)

25.6kg

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 45°C (w/o Direct Sunlight) / 0°C to 35°C (Direct Sunlight)

Operation Humidity

10 % to 80 %

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ./Max

220 W / 260 W

Smart Energy Saving

100 W

STANDARD(CERTIFICATION)

Safety

RU / CB scheme

EMC

FCC Class "A" / CE / KC

SOFTWARE COMPATIBILITY

SuperSign-w lite

Yes

SuperSign-c

Yes

ACCESSORY

Basic

Remote Controller (2 batteries included), Power Cord, HDMI Cable, Manual (ESG&EIG)

Optional

LSW630 (Wall Mount), KT-SP0, AN-WF500 ** Stand is not available
