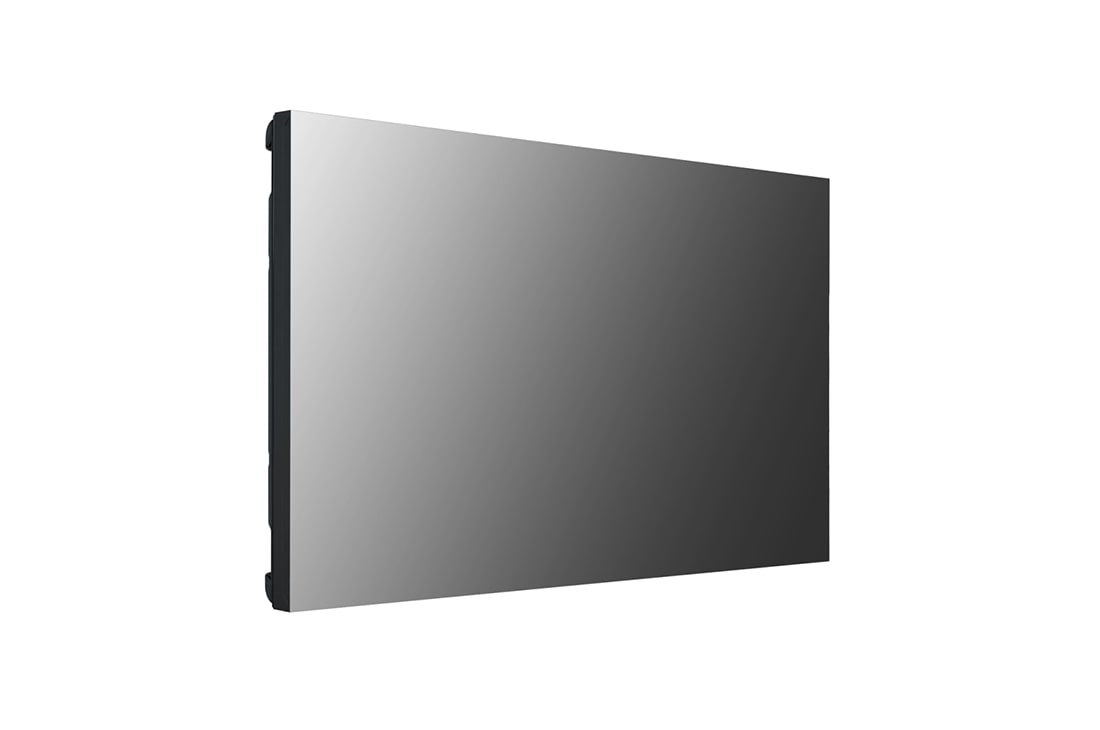

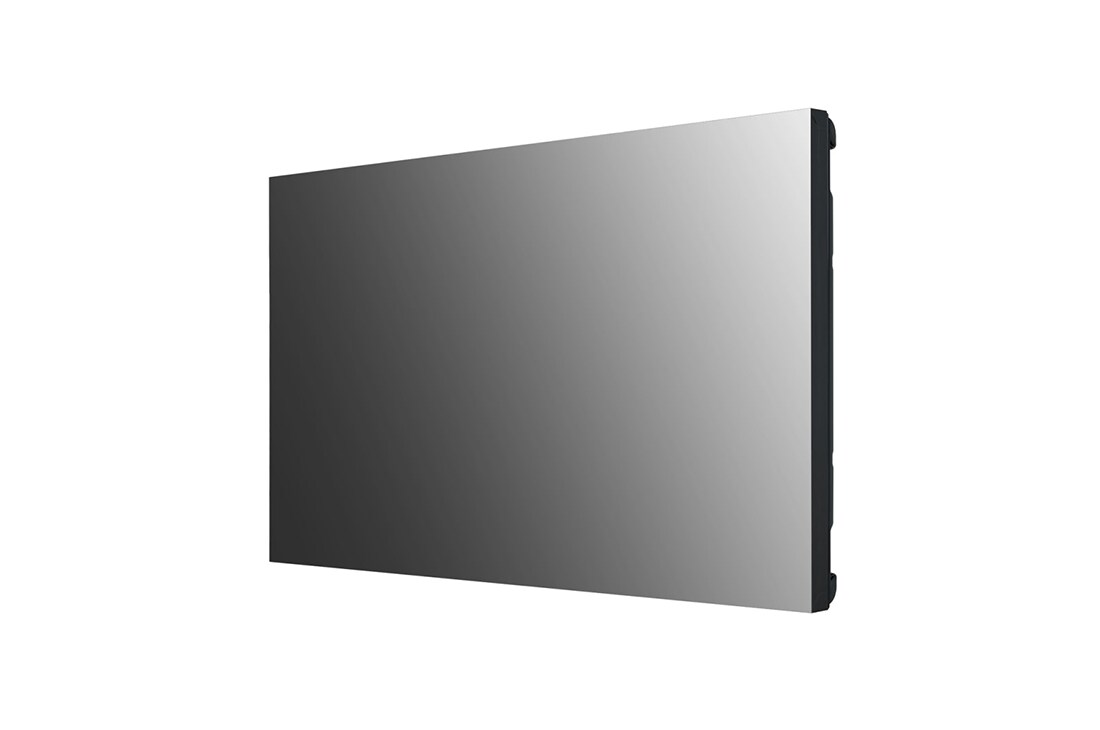

55" 700 nits FHD 0.44mm Even Bezel Video Wall

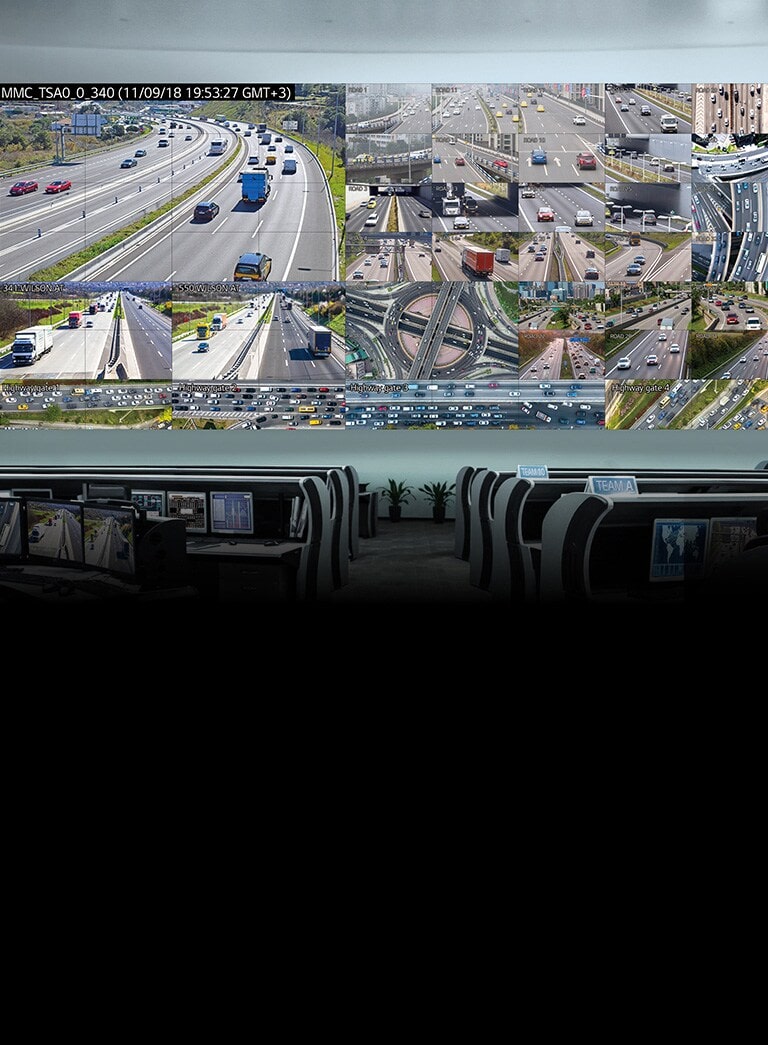

0.44mm EVEN BEZEL VIDEO WALL 0.44mm EVEN BEZEL VIDEO WALL

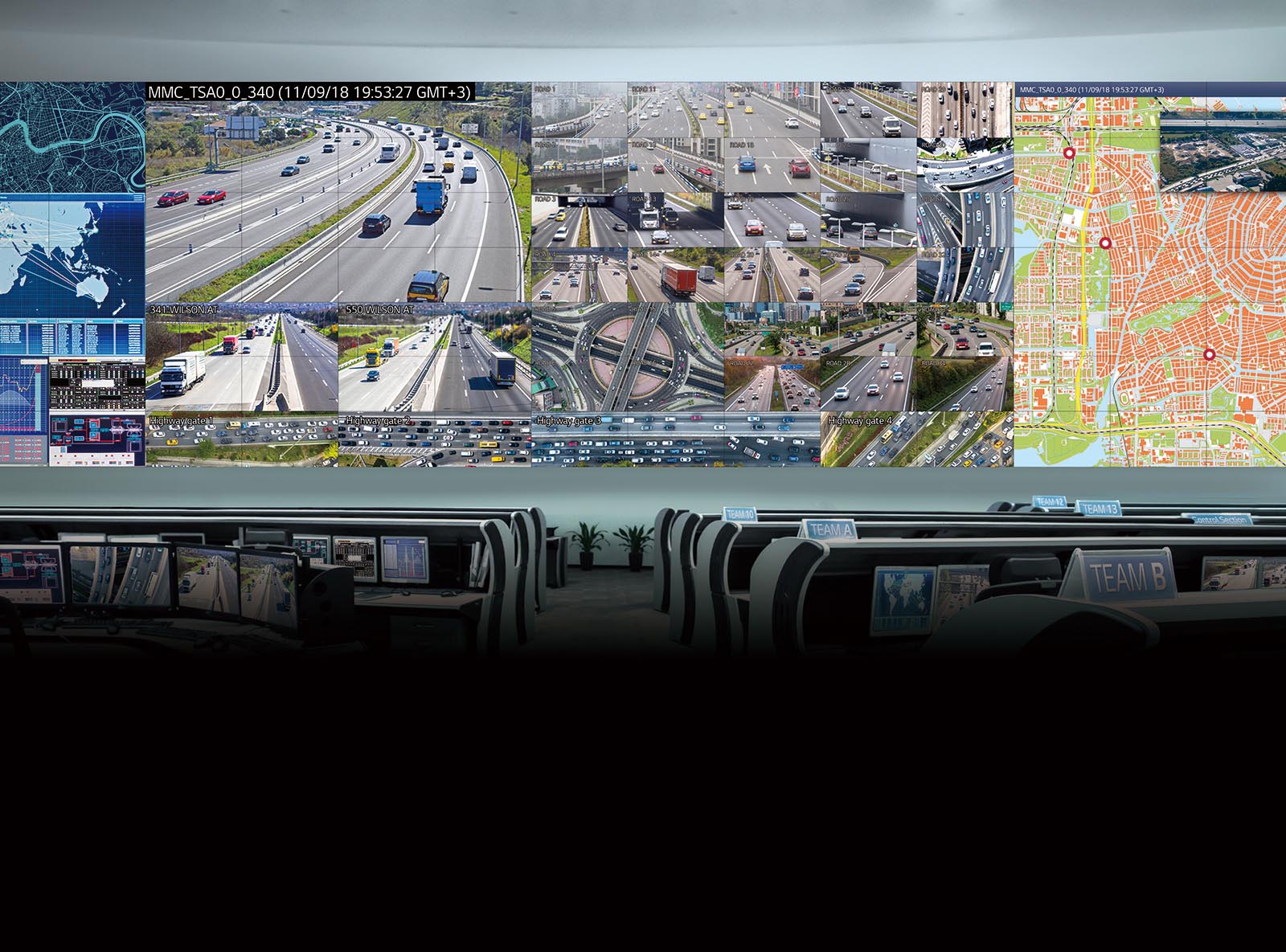

0.44mm EVEN BEZEL VIDEO WALL

Making use of LG's pioneering display technology, the 0.44mm Even Bezel Video Wall unlocks great opportunities in various markets, even in places that previously had avoided video walls due to the visible bezels.
Groundbreaking 0.44mm Even Bezel Groundbreaking 0.44mm Even Bezel

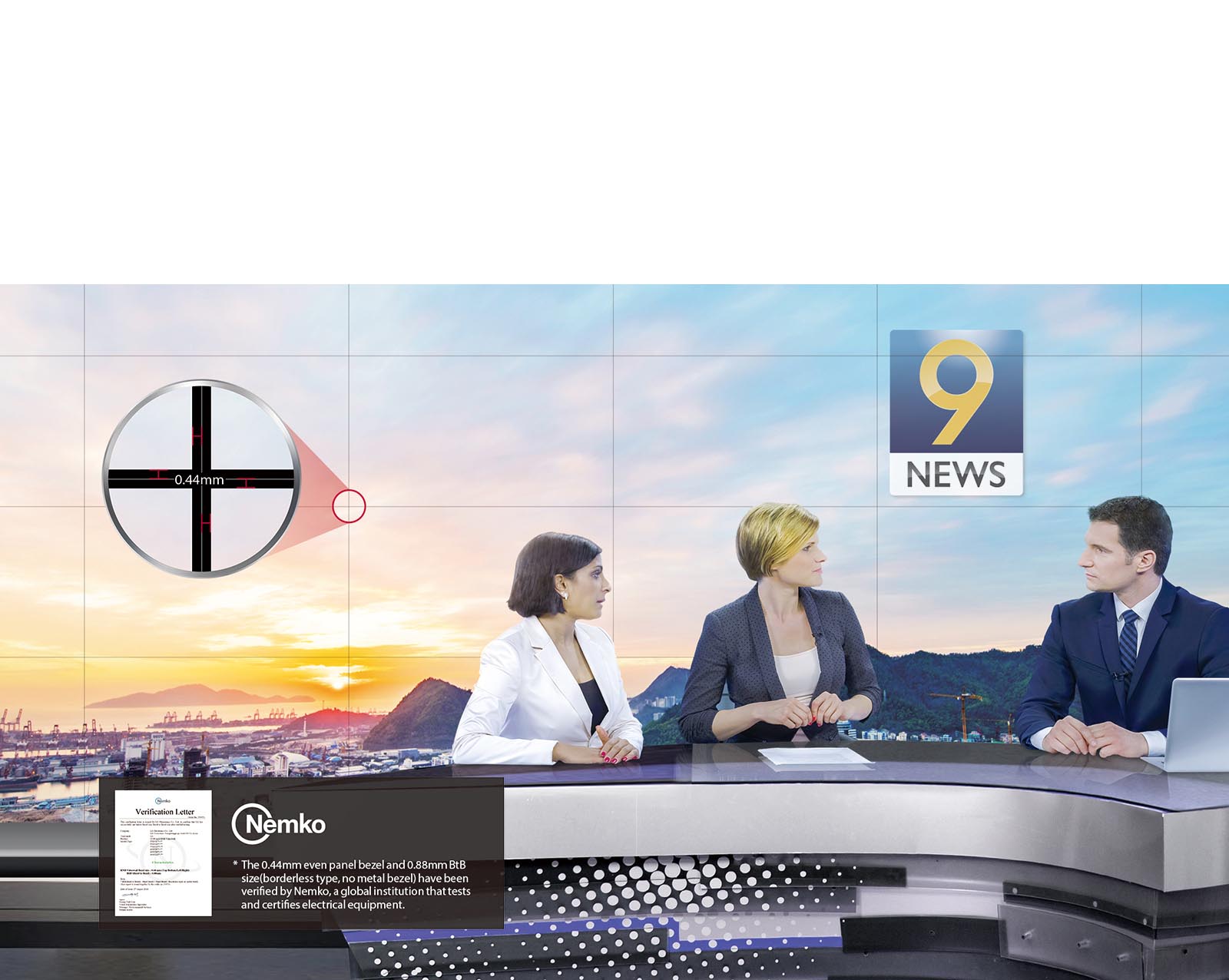

Groundbreaking 0.44mm Even Bezel

The unprecedented razor-thin bezel – 0.44 mm EVEN BEZEL and 0.88 mm BEZEL TO BEZEL – which has been verified by Nemko*, makes content look like the actual original image by depicting a subject perfectly true to form, without any distortions.

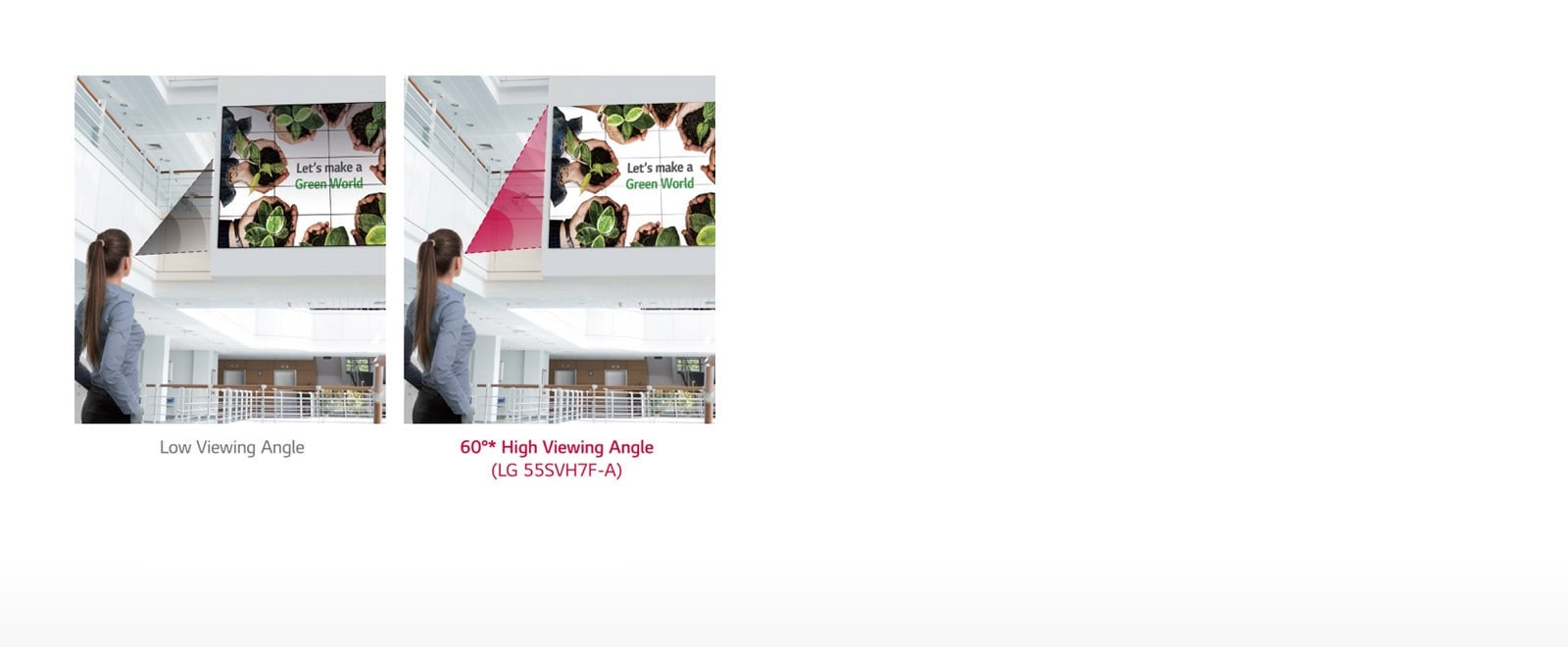

Higher Viewing Angle1 Higher Viewing Angle2
VIVID AND DYNAMIC PICTURE QUALITY

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the 55SVH7F-A is superior to that of conventional video walls, allowing it to display vivid colors throughout the screen with no distortion.
*Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

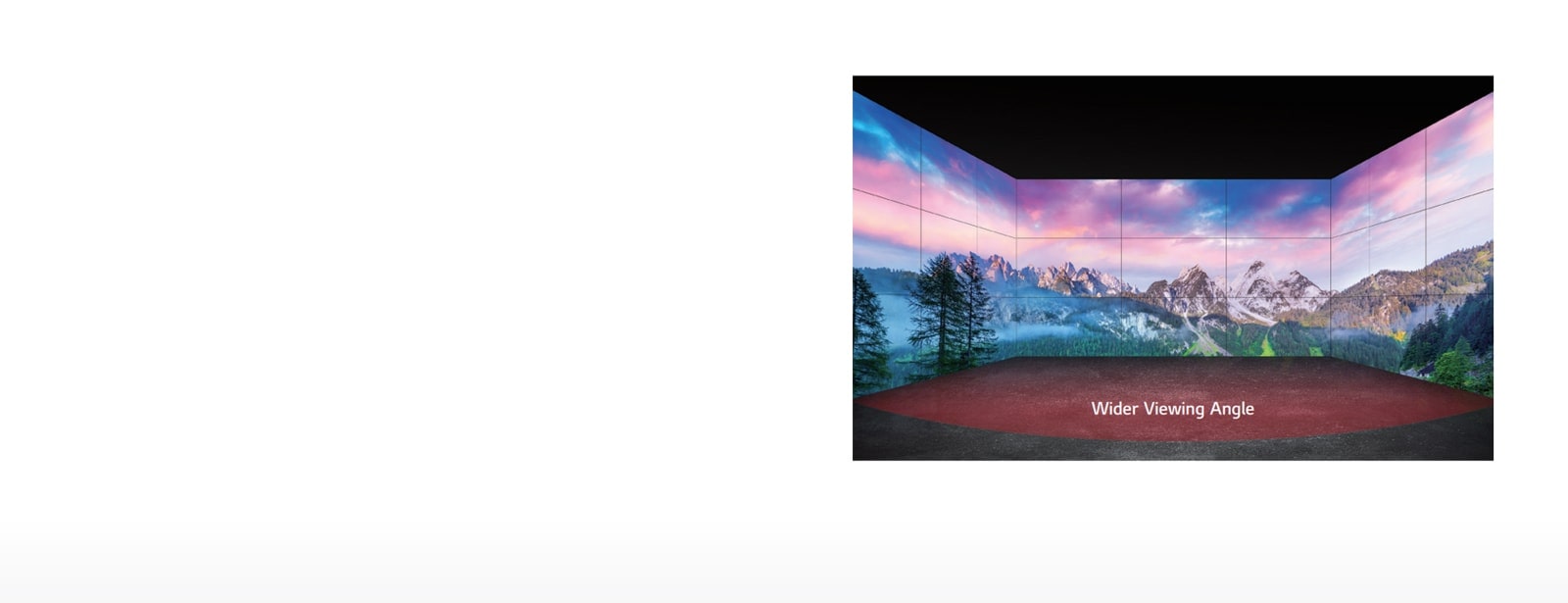

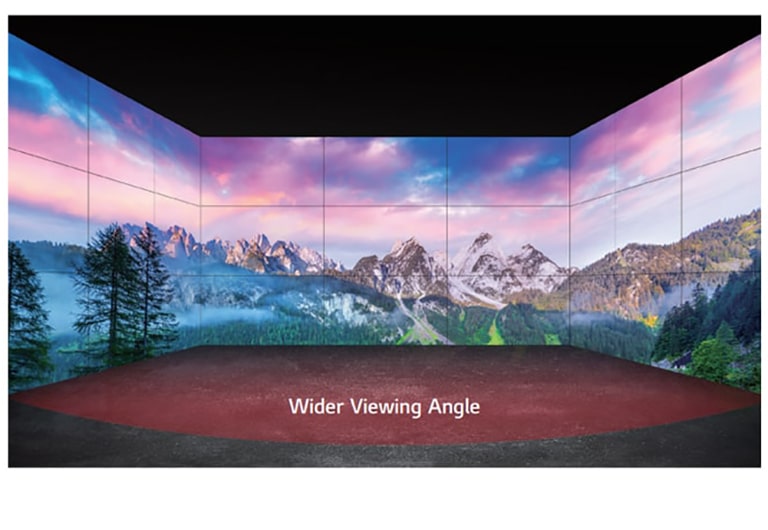

Wider Viewing Angle1 Wider Viewing Angle2
VIVID AND DYNAMIC PICTURE QUALITY

Wider Viewing Angle

It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the 55SVH7F-A captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

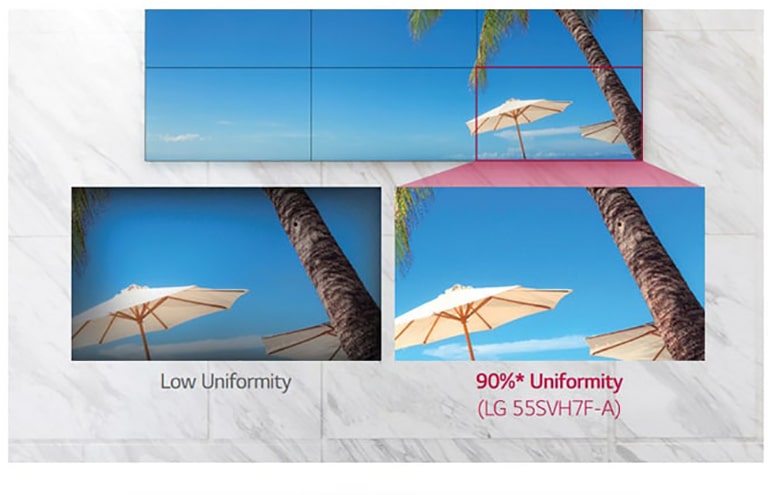

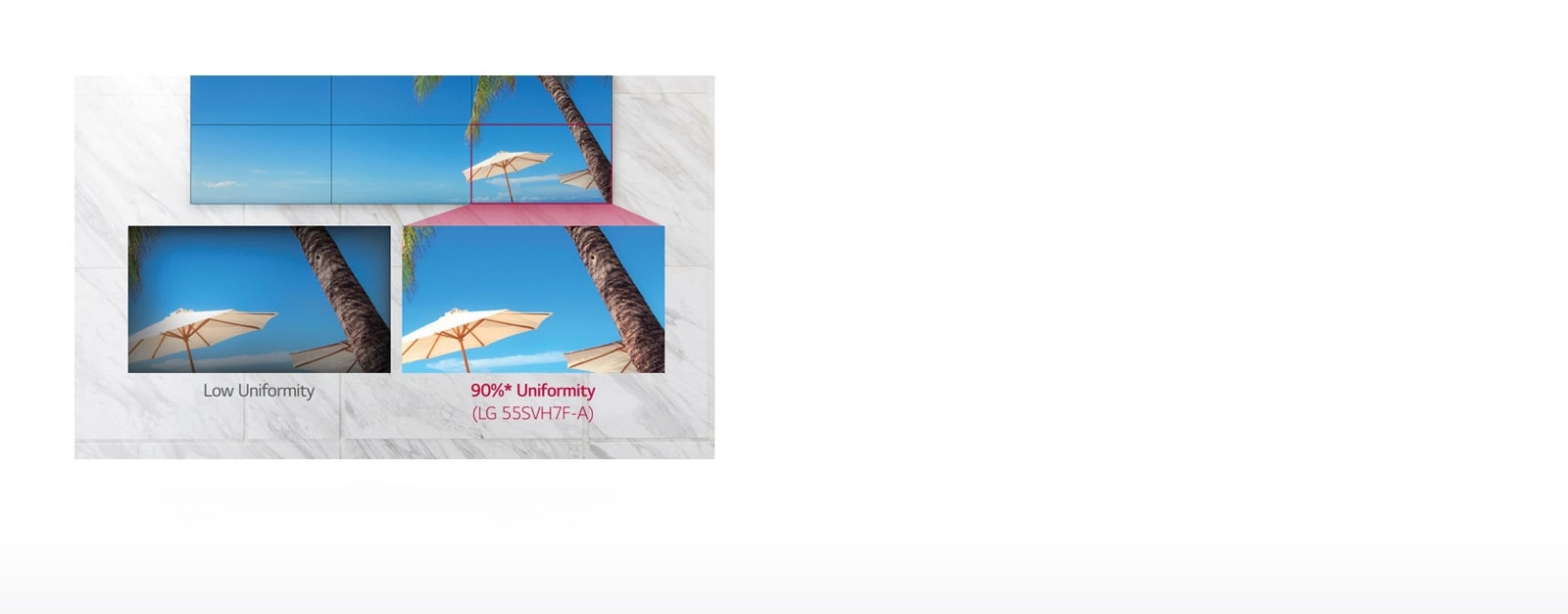

Uniform Color Expression Uniform Color Expression
VIVID AND DYNAMIC PICTURE QUALITY

Uniform Color Expression

Poor uniformity around bezel boundaries can give the corners a darker appearance, which doesn't look good on a large screen. However, the 55SVH7F-A has enhanced uniformity, even within the four corners of the display, to deliver vivid and consistent color throughout the screen.
* Uniformity among 13 points of the screen. Results based on in-house testing.Actual test results may differ depending on environment and measuring equipment
Image Gap Reduction1 Image Gap Reduction2
VIVID AND DYNAMIC PICTURE QUALITY

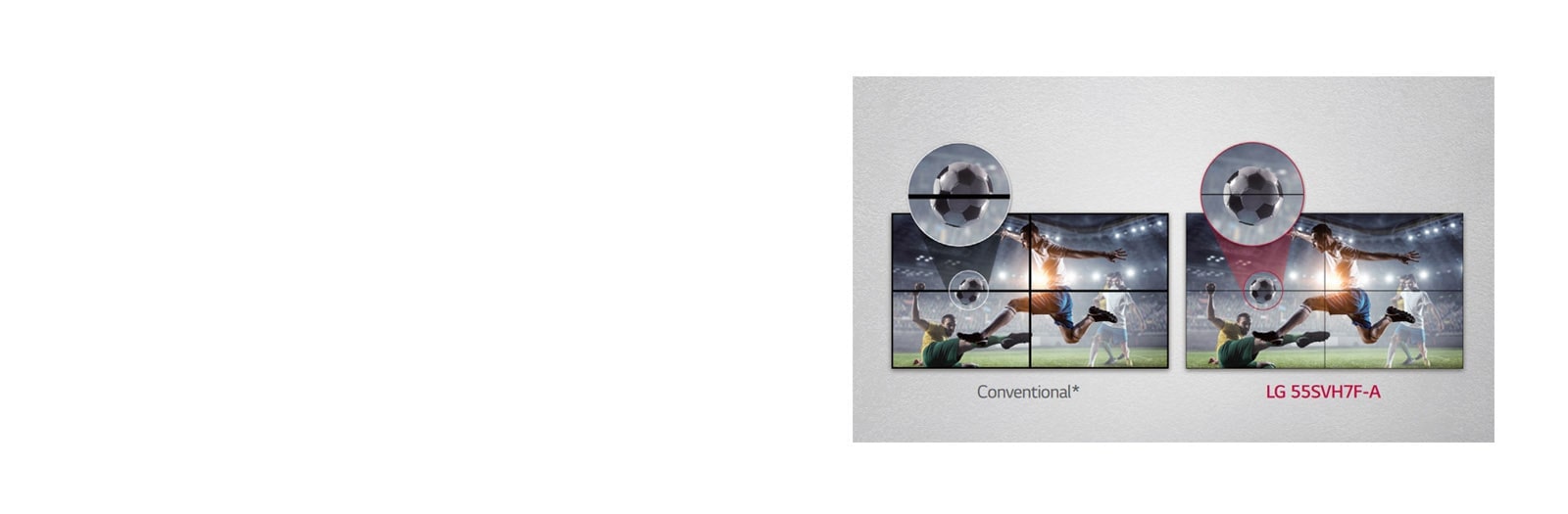

Image Gap Reduction

The 55SVH7F-A includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
* The "Conventional" refers to displays which do not include an image improvement algorithm.

Smart Calibration

Smart Calibration is a solution that enables the reduction of time and costs compared to existing sensor calibration methods. It analyzes not only the color property differences within each individual display but also the differences between connected displays. With just few simple clicks of a remote control, this calibration process can be done in a matter of minutes. In addition, calibration can be set to automatically occur at regular intervals to always deliver optimum image quality.
Smart Calibration Smart Calibration
* Depending on the user, the difference in color can be felt after smart calibration. In this case, adjusting the color manually is recommended.
High Performance and Great Scalability1 High Performance and Great Scalability2
POWERFUL SMART SIGNAGE PLATFORM

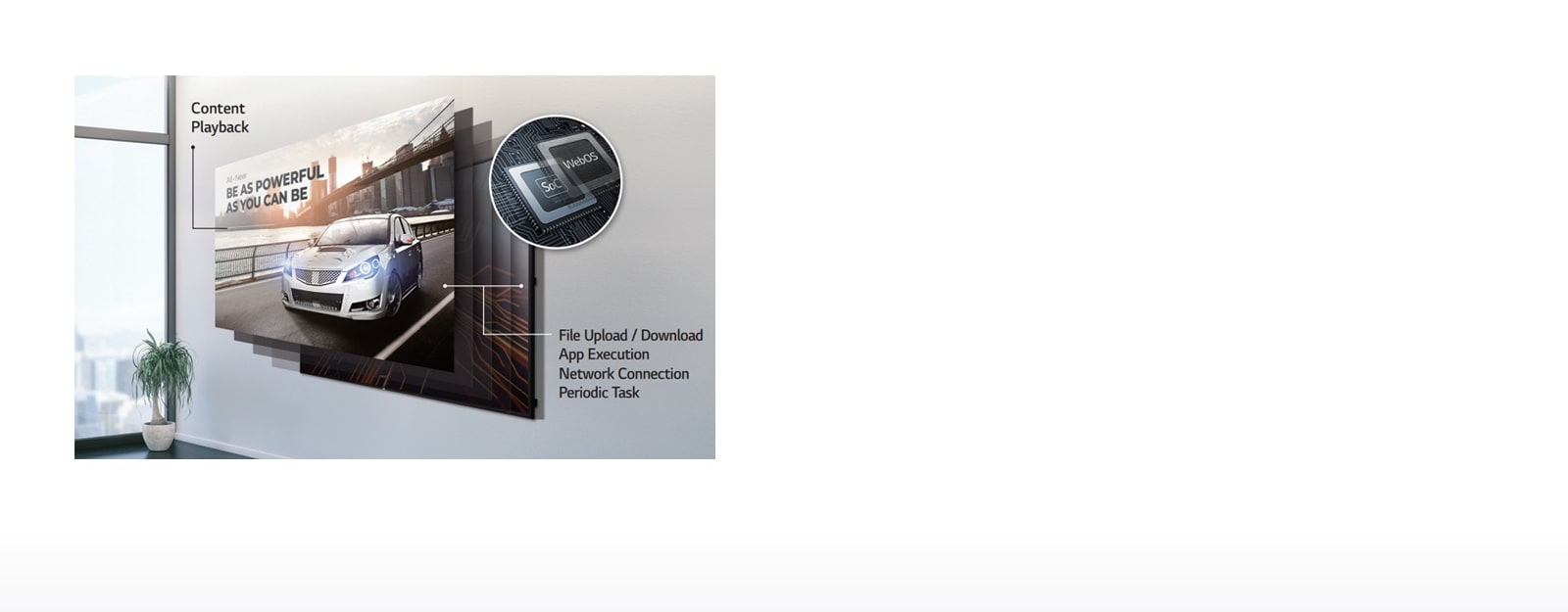

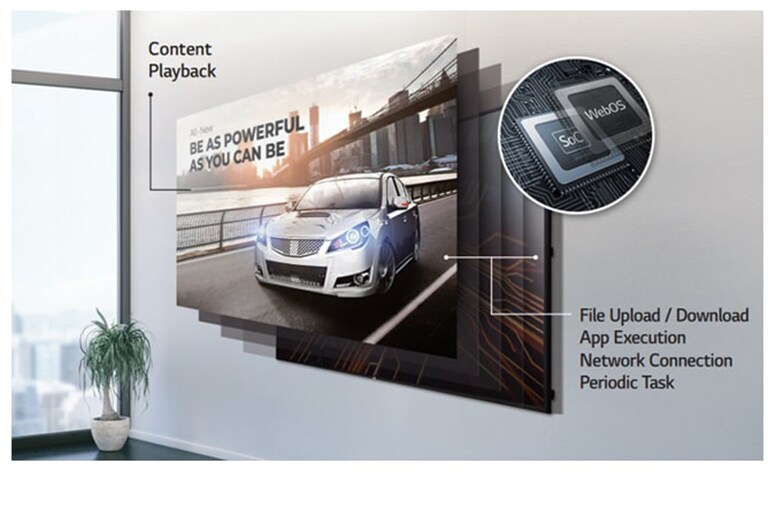

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the 55SVH7F-A can execute several tasks at once while providing smooth content playback without the need for a media player.

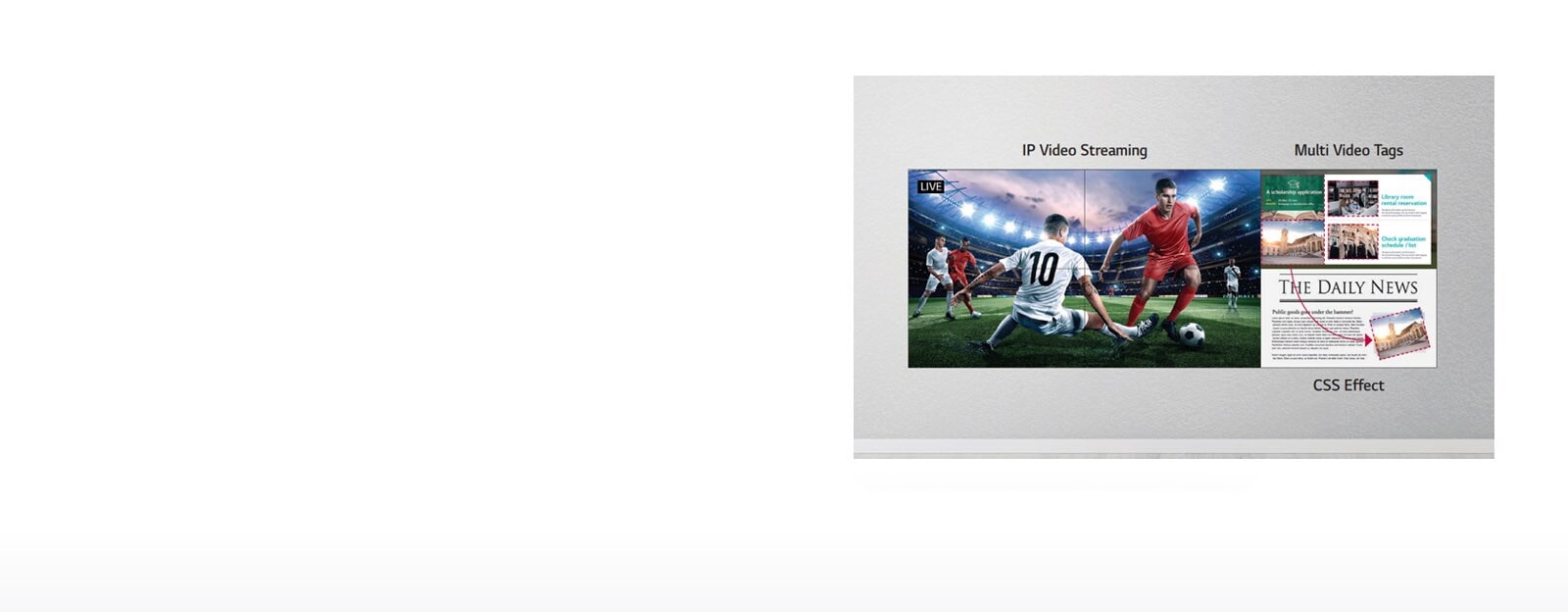

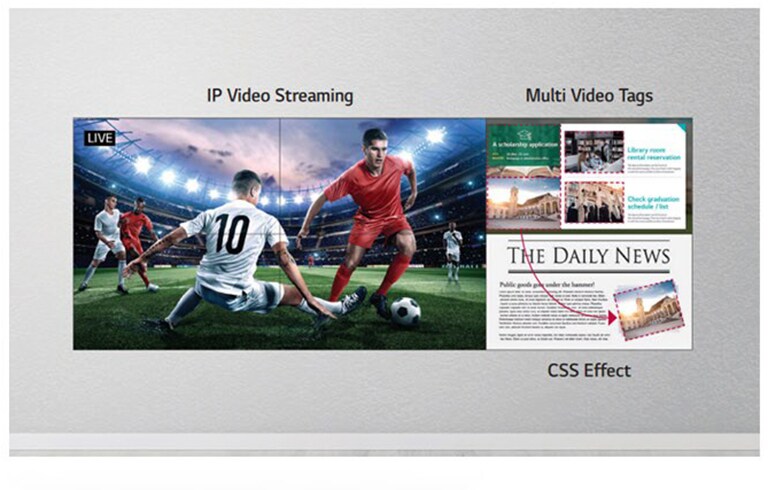

Flexible Content Creation1 Flexible Content Creation2
POWERFUL SMART SIGNAGE PLATFORM

Flexible Content Creation

Four different videos can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS(Cascading Style Sheets) transition effects. Real-time streaming* is also available, providing the flexibility to organize and diversify content free from capacity limits.
* Supported protocols: RTSP, RTP, HLS, UDP Multicast

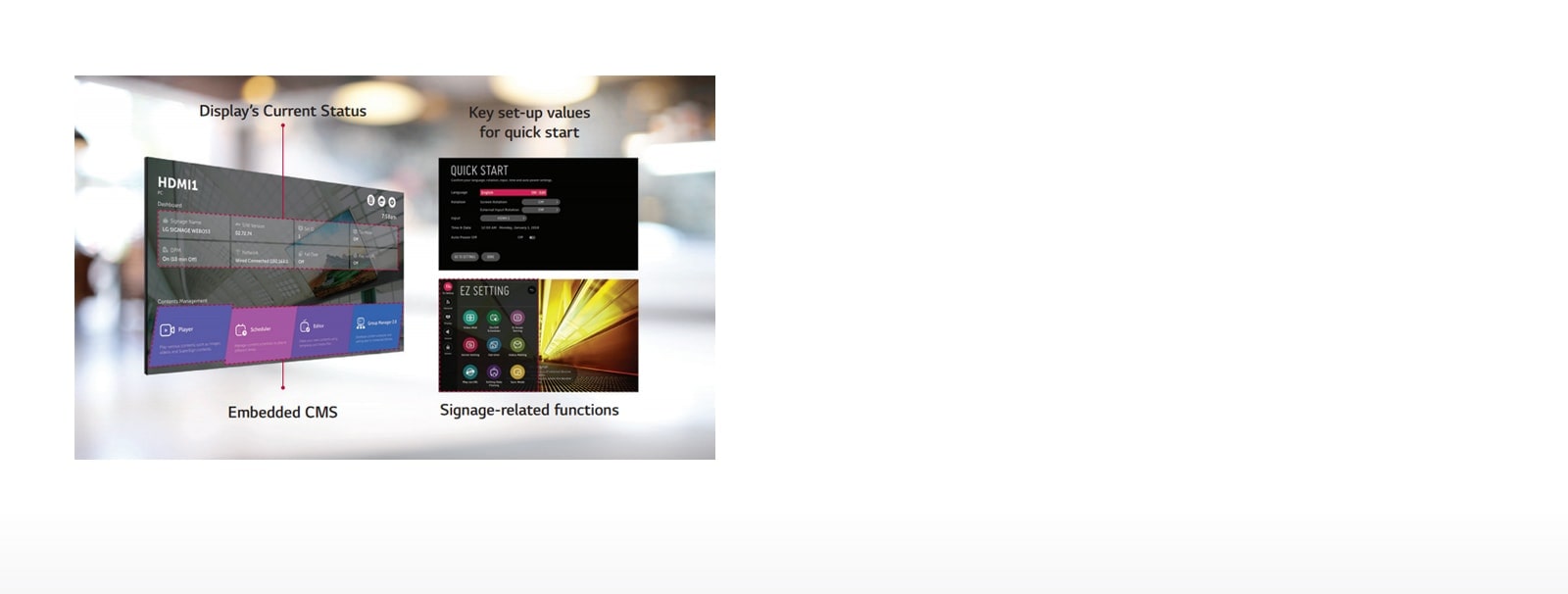

Intuitive Menu Structure 1 Intuitive Menu Structure 2
USER-FRIENDLY SMART SIGNAGE UX

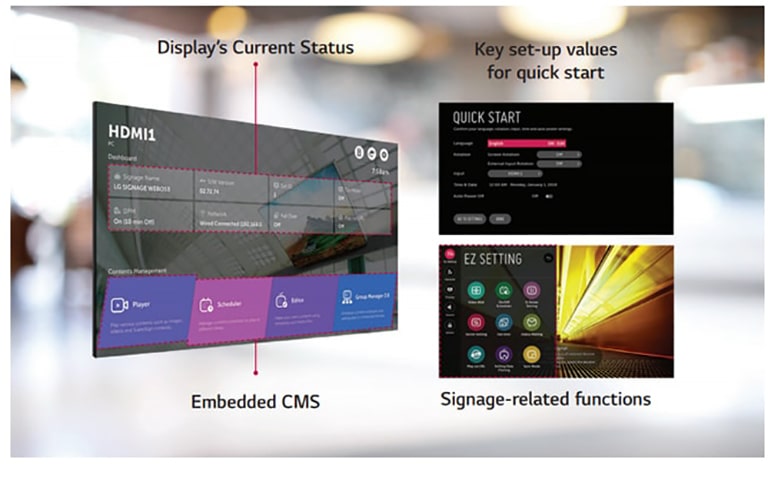

Intuitive Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.
Dedicated GUI for Portrait Orientation1 Dedicated GUI for Portrait Orientation2
USER-FRIENDLY SMART SIGNAGE UX

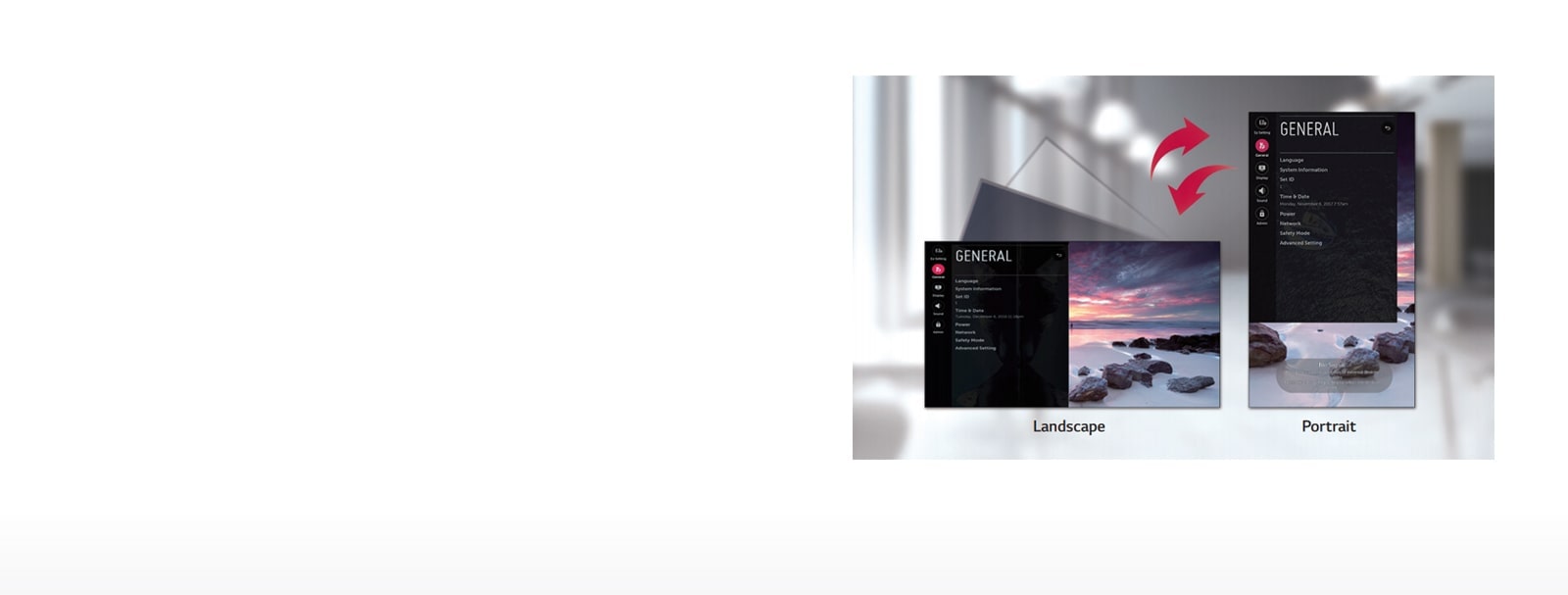

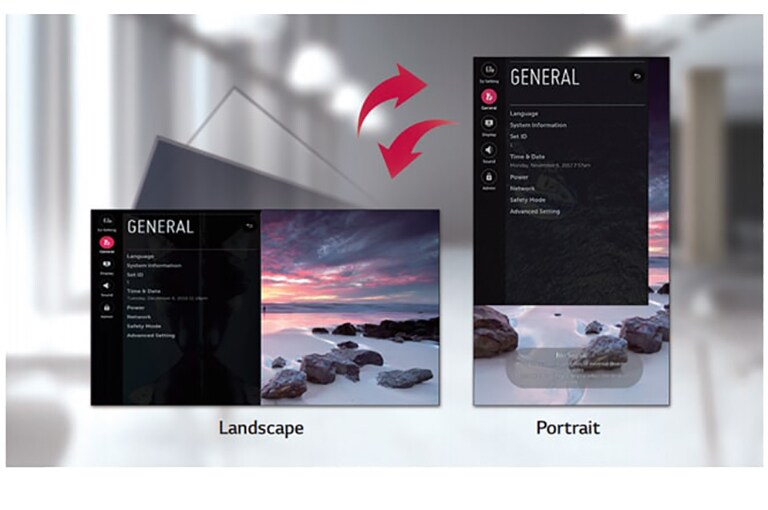

Dedicated GUI for Portrait Orientation

The conventional GUI(Graphic User Interfac ) was designed based on landscape-oriented consumer TV usage, so OSD(On Screen Display) wasn't well-suited for screens in portrait mode. The OSD of the 55SVH7F-A, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable business environment.

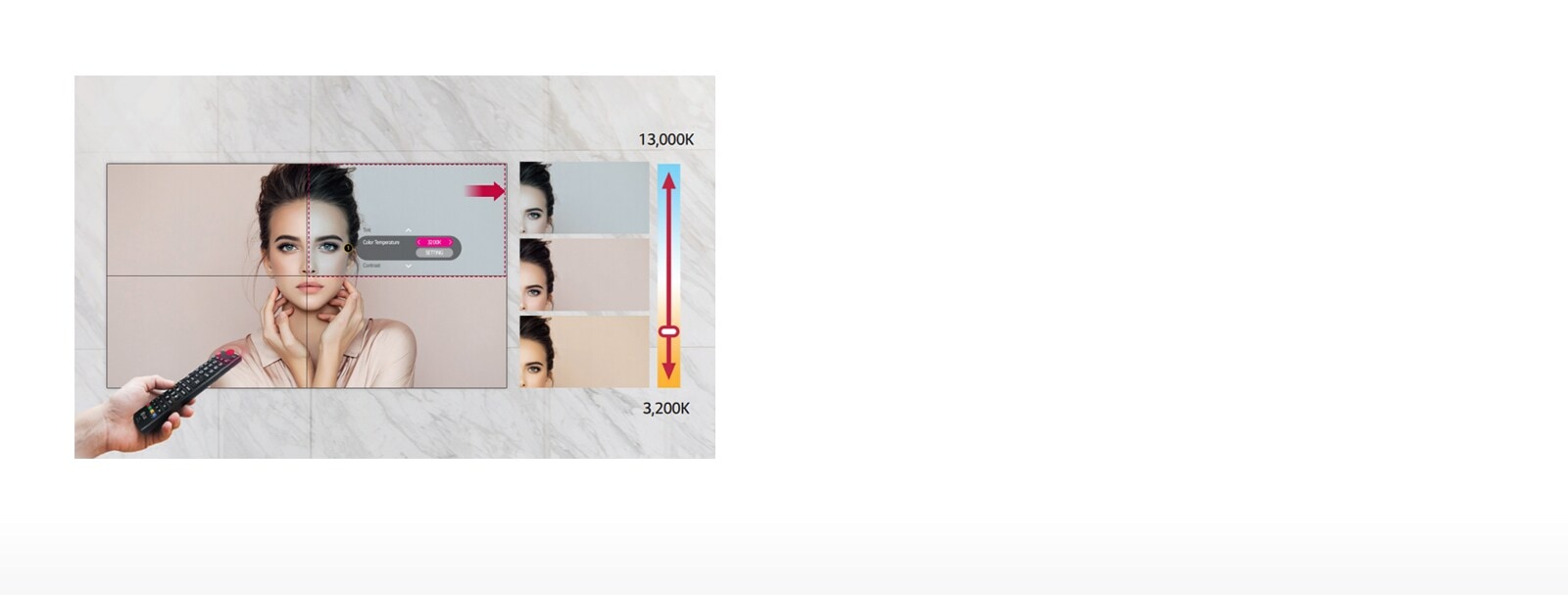

Easy Color Adjustment Easy Color Adjustment
USER CONVENIENCE

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

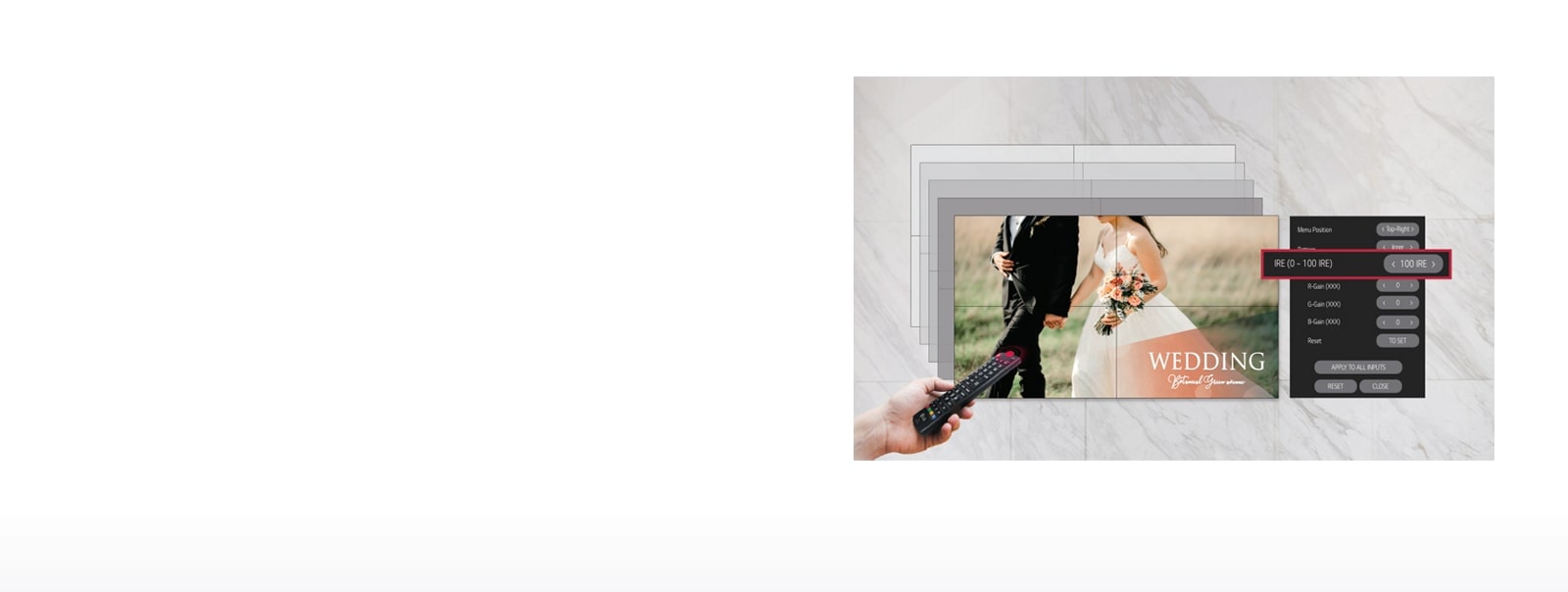

Simple White Balance Adjustment Simple White Balance Adjustment
USER CONVENIENCE

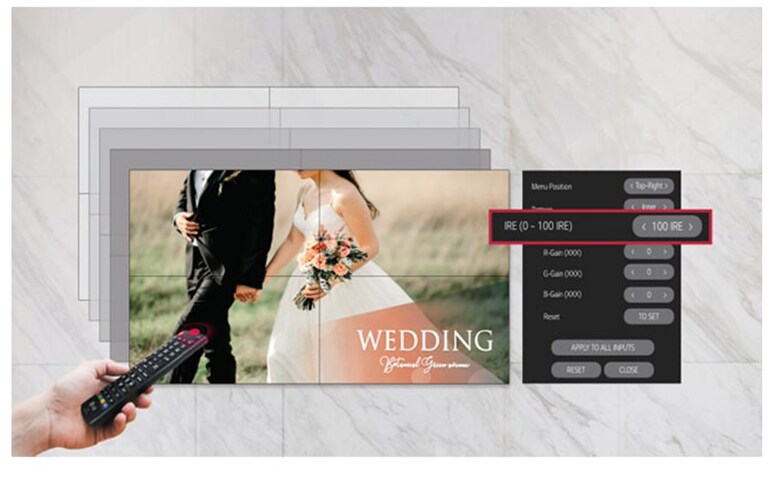

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the 55SVH7F-A allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

Daisy Chain Capability Daisy Chain Capability
USER CONVENIENCE

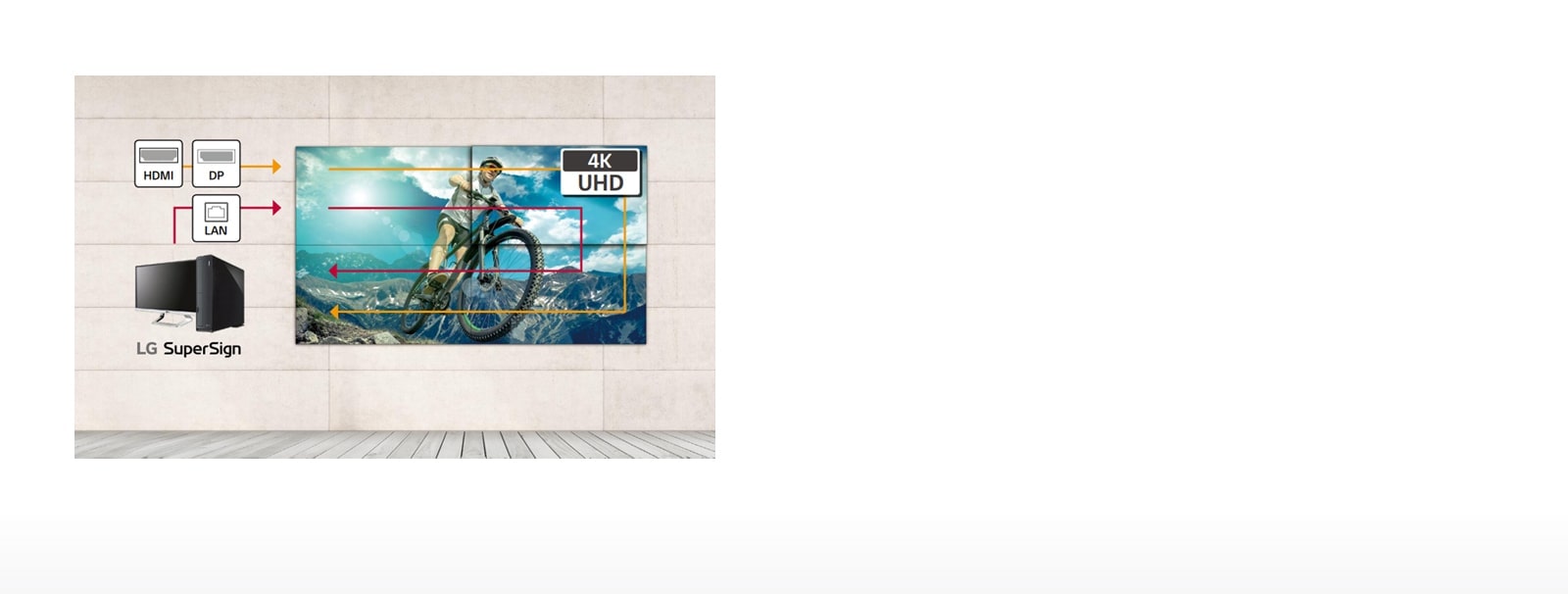

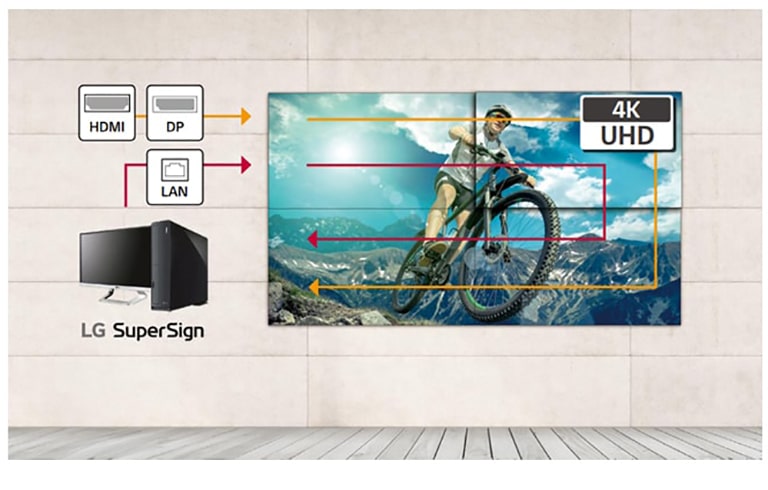

Daisy Chain Capability

A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST or Matrox graphics card.

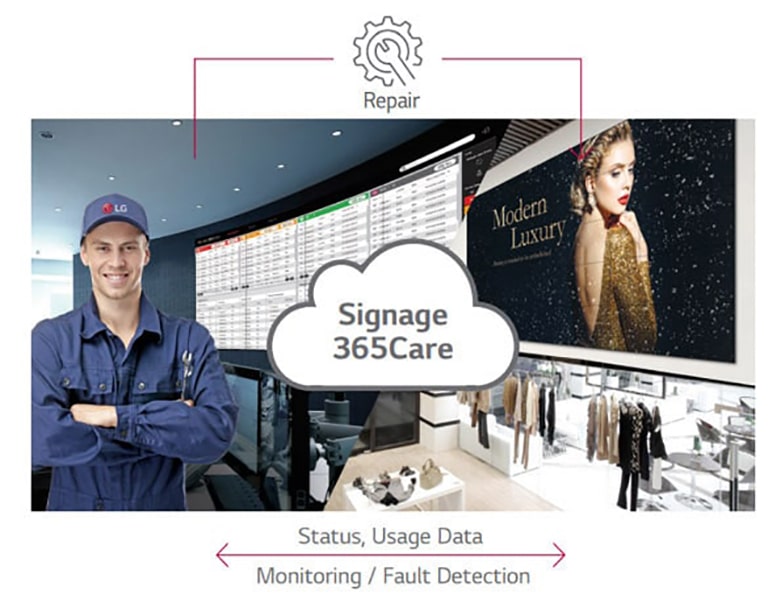

Real-Time Care Service Real-Time Care Service
USER CONVENIENCE

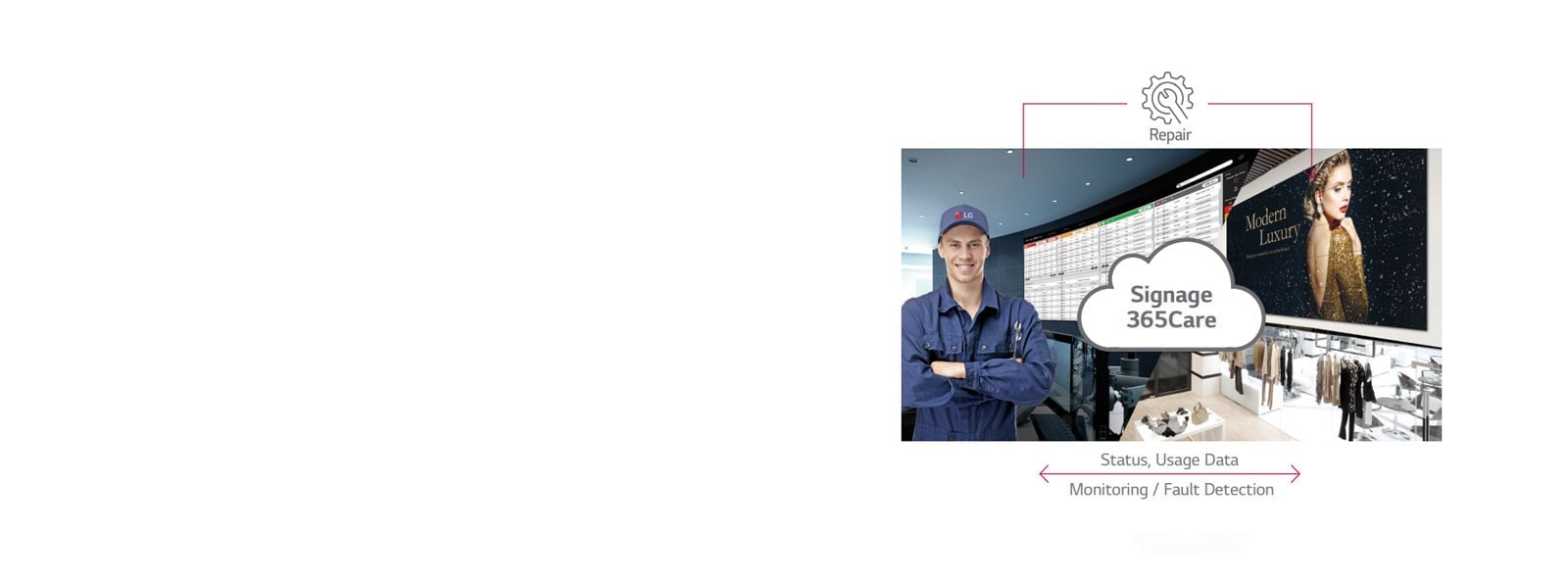

Real-Time Care Service

The maintenance gets easier and faster with an optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.
*The availability of "Signage365Care" service can differ by region, so please contact the LG sales representative in your region for further details.
Close
PANEL
  • Screen Size
    55"
    Panel Technology
    IPS RGB
  • Aspect Ratio
    16:9
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Typ.,cd/m²)
    700
    Contrast Ratio
    1,200:1
  • Viewing Angle (H x V)
    178 x 178
    Response Time
    8ms (G to G)
  • Surface Treatment
    Haze 3%
    Life Time (Typ.)
    60,000 Hrs
  • Operation Hours
    24 Hrs
    Orientation
    Landscape & Portrait
CONNECTIVITY
  • Input
    HDMI (2), DP, DVI-D, Audio, USB
    Output
    DP, Audio
  • External Control
    RS232C In/out, RJ45 (LAN) In/out, IR In
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    0.44 mm (Even)
  • Monitor Dimension (W × H × D)
    1,210.51 x 681.22 x 86.5 mm
    Weight (Head)
    16.8 kg
  • Carton Dimensions (W × H × D)
    1,353 x 855 x 263 mm
    Packed Weight
    23.6 kg
  • Handle
    Yes
    VESA™ Standard Mount Interface
    600 x 400 mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    210 W
    Max.
    250 W
STANDARD(CERTIFICATION)
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes(EU Only) / Yes(Energy Star 8.0)
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    Yes (Piggyback)
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control / Control+
ACCESSORY
  • Basic
    Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual
    Optional
    Wall Mount (Landscape : WM-L640V, Portrait : WM-P640V) , OPS Kit(KT-OPSF)
