SVM5F Series

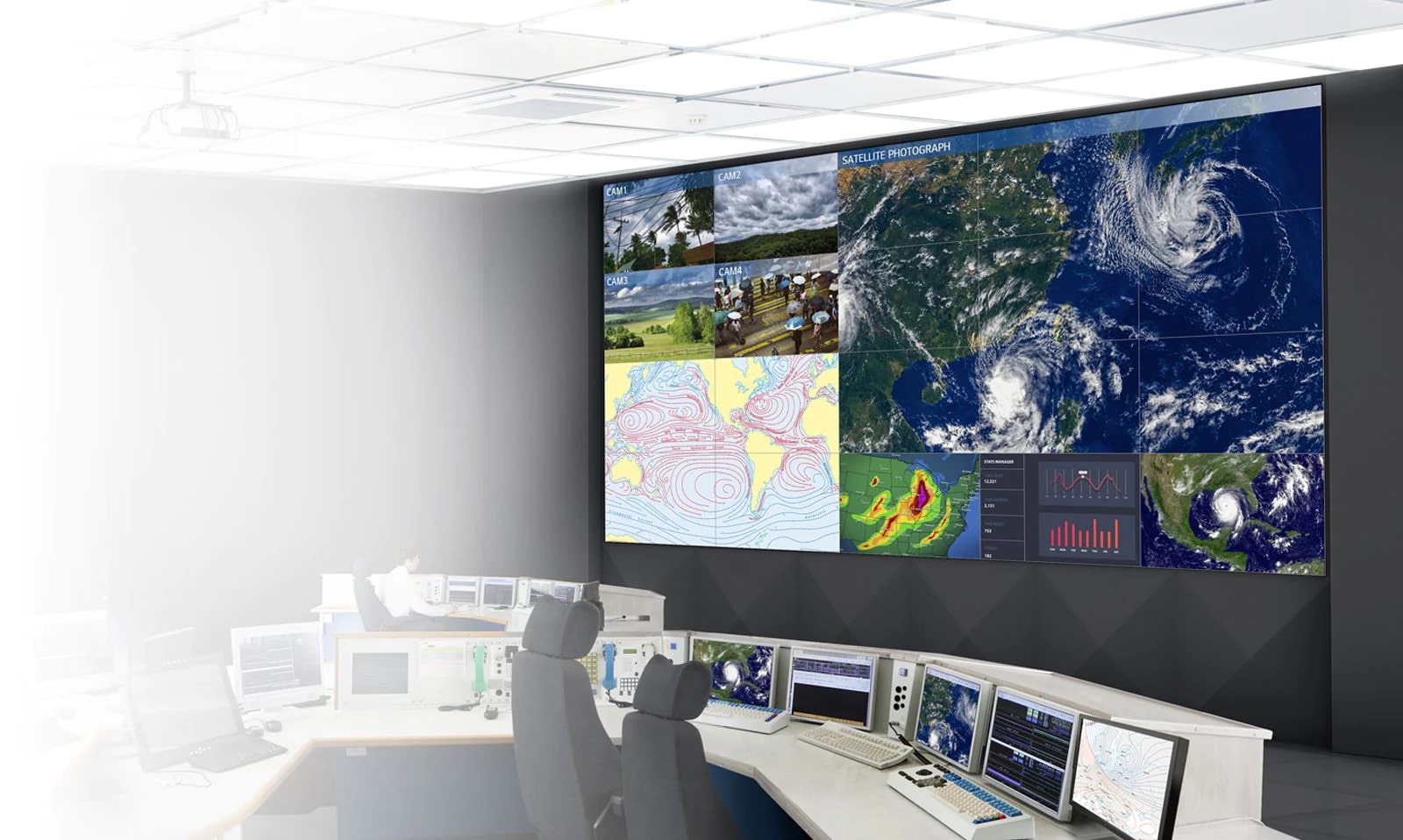

0.44mm<br>Video Wall with Clear & Flawless Vision 0.44mm<br>Video Wall with Clear & Flawless Vision

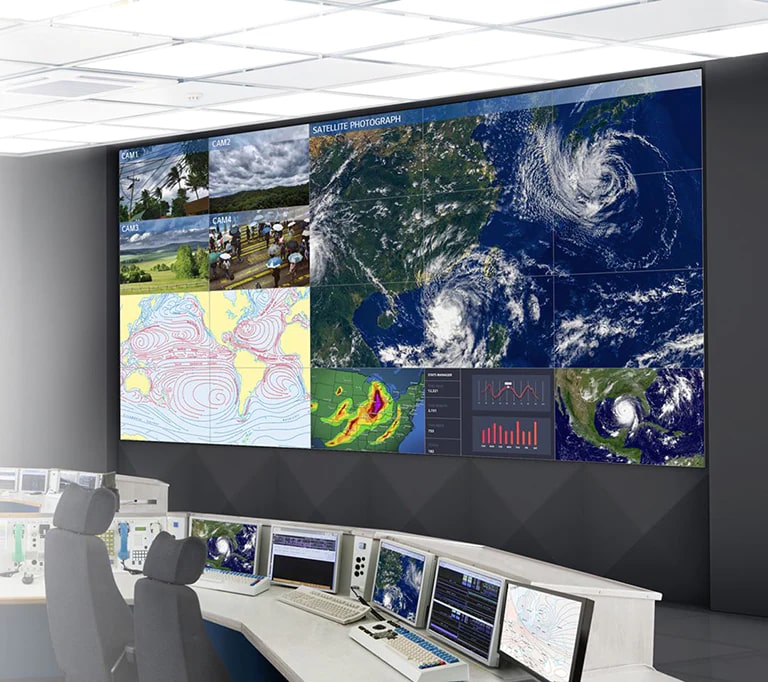

0.44mm
Video Wall with Clear & Flawless Vision

The 0.44 mm Even Bezel Video Wall offers seamless view throughout the assembled large screen. Also, it offers clear and vivid picture under any bright circumstances by its non-glare screen.
Groundbreaking 0.44mm Even Bezel Groundbreaking 0.44mm Even Bezel
SEAMLESS VIEWING EXPERIENCE

Groundbreaking 0.44mm Even Bezel

The unprecedented razor-thin bezel – 0.44mm EVEN BEZEL and 0.88mm BEZEL TO BEZEL – which has been verified by Nemko*, makes content look more actual by depicting a subject without any distortions. Seamlessly assembled on a large video wall screen, the 55SVM5F-H will provide an even more immersive experience for viewers.
VIVID AND DYNAMIC PICTURE QUALITY

Smart Calibration

Smart Calibration is a solution that enables the reduction of time and costs compared to existing sensor calibration methods. It analyzes not only the color property differences within each individual display but also the differences between connected displays. With just few simple clicks of a remote control, this calibration process can be done in a matter of minutes. In addition, calibration can be set to automatically occur at regular intervals to always deliver optimum image quality.
Smart Calibration Smart Calibration
* Depending on the user, the difference in color can be felt after smart calibration. In this case, adjusting the color manually is recommended.
Clear View with Non-glare Panel Clear View with Non-glare Panel
VIVID AND DYNAMIC PICTURE QUALITY

Clear View with Non-glare Panel

Viewers can be annoyed by unnecessary light reflection when watching a screen under bright conditions. The 55SVM5F-H series has resolved such inconveniences by increasing the level of haze to 28％, which enhanced visibility and text readability.
Uniform Color Expression Uniform Color Expression
VIVID AND DYNAMIC PICTURE QUALITY

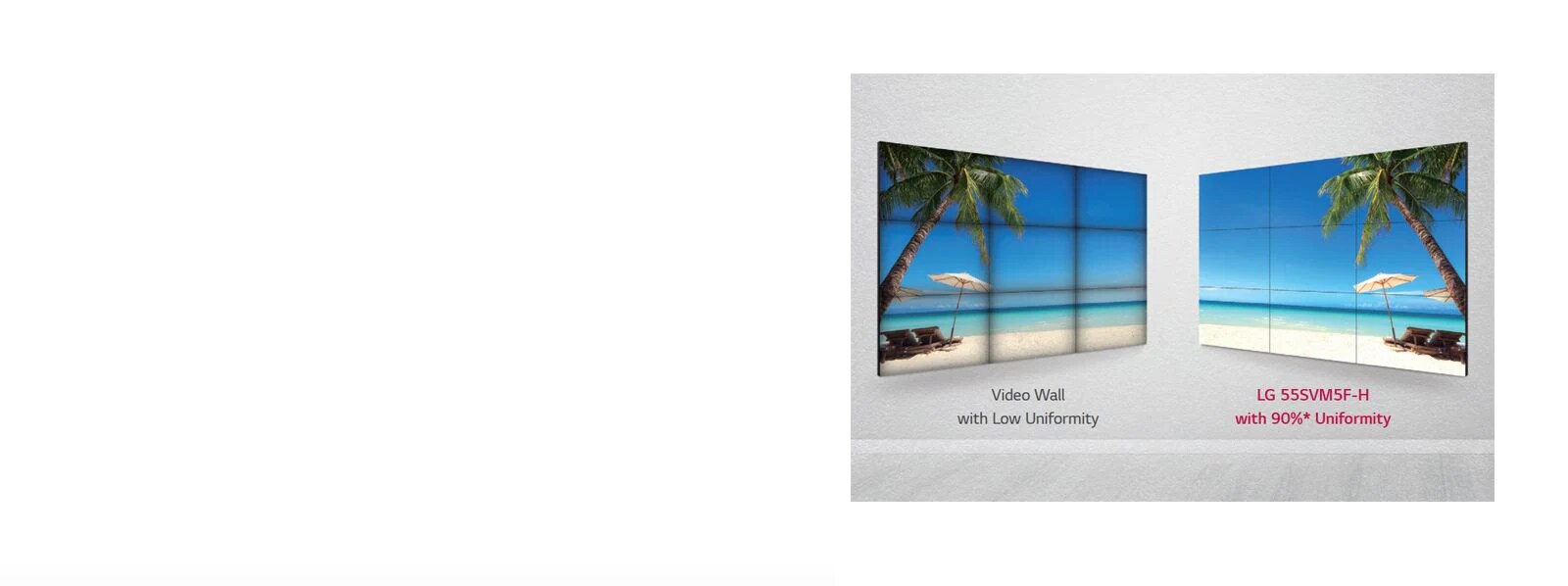

Uniform Color Expression

Poor uniformity around bezel boundaries can produce a dark appearance to corners, which doesn't look good on a large screen. However, the 55SVM5F-H has enhanced uniformity, including the four corners of the display, to deliver vivid and consistent color throughout the screen.
*Uniformity among 13 points of the screen. Results based on in-house testing Actual test results may differ depending on environment and measuring equipment.
Higher Viewing Angle Higher Viewing Angle
VIVID AND DYNAMIC PICTURE QUALITY

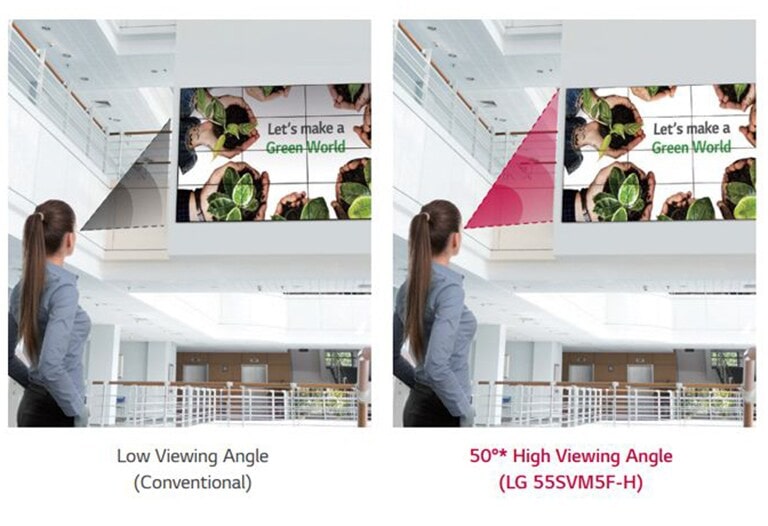

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the 55SVM5F-H is superior to that of conventional video walls, allowing it to display vivid colors with no distortion – even in areas that are not suitable for large screens.
*Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

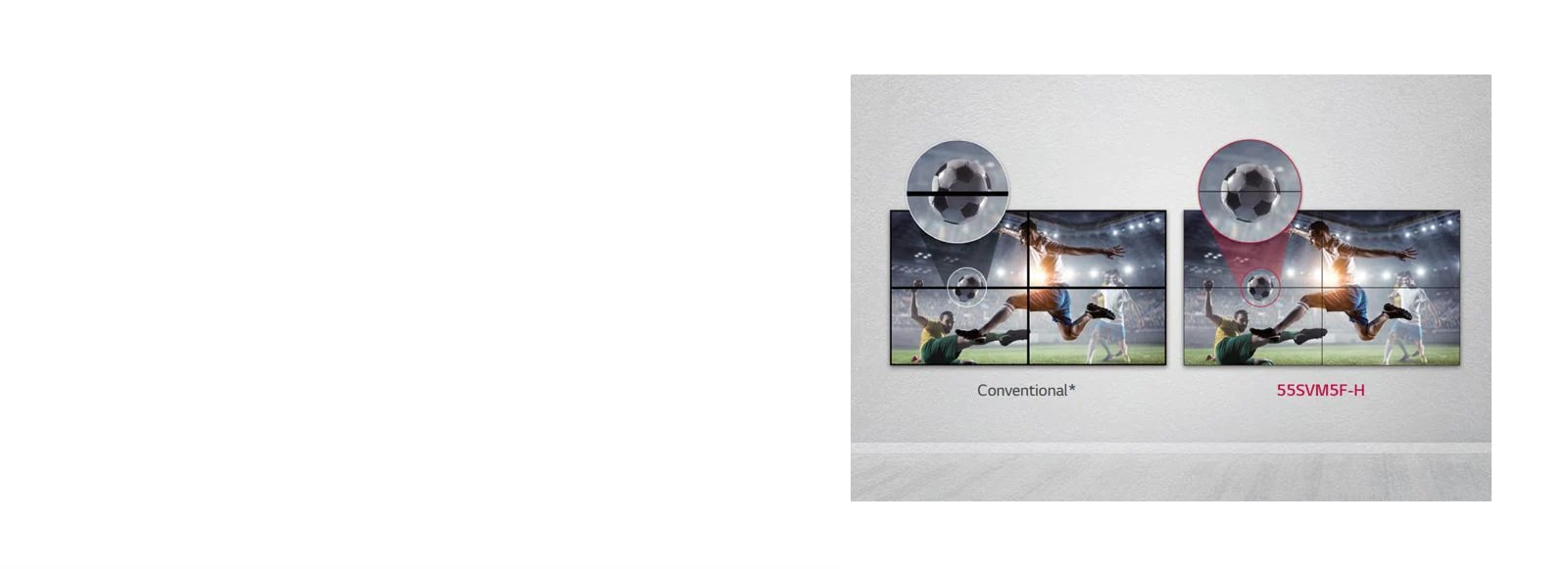

Image Gap Reduction Image Gap Reduction
VIVID AND DYNAMIC PICTURE QUALITY

Image Gap Reduction

The 55SVM5F-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
*The "Conventional" refers to displays which do not include an image improvement algorithm.

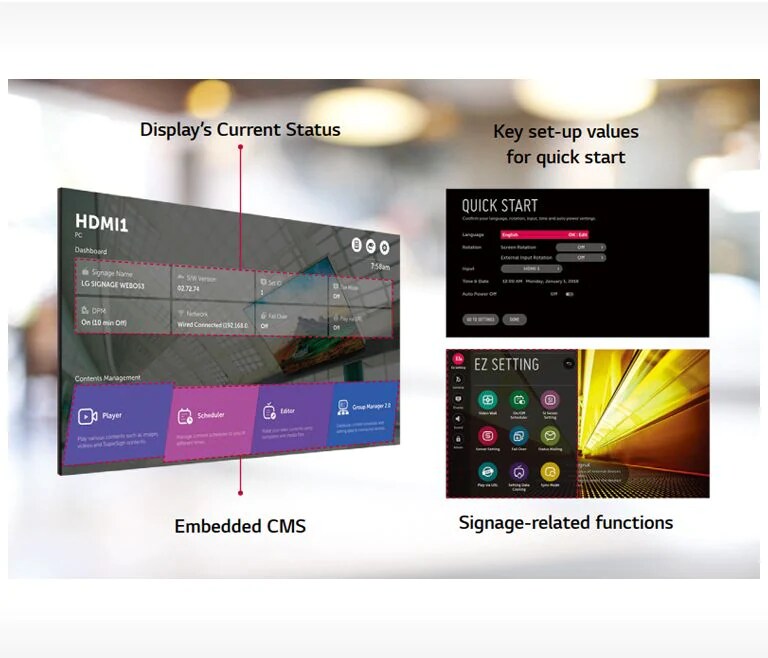

Intuitive Menu Structure Intuitive Menu Structure
webOS SMART SIGNAGE PLATFORM

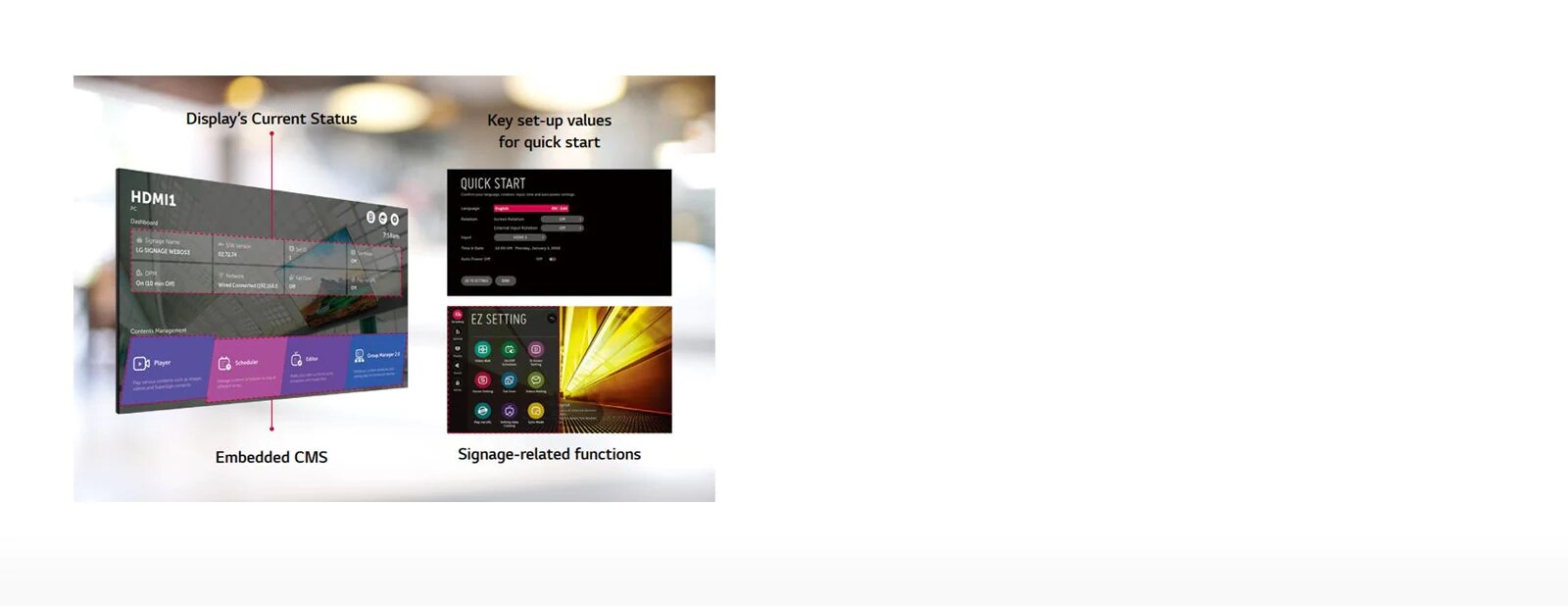

Intuitive Menu Structure

The menu structure has been optimized for commercial use. It simplifies accessibility and groups similar functions together, adopting a more intuitive GUI for ease of use. With this way users can avoid trial-and-error when exploring desired functions and managing displays.

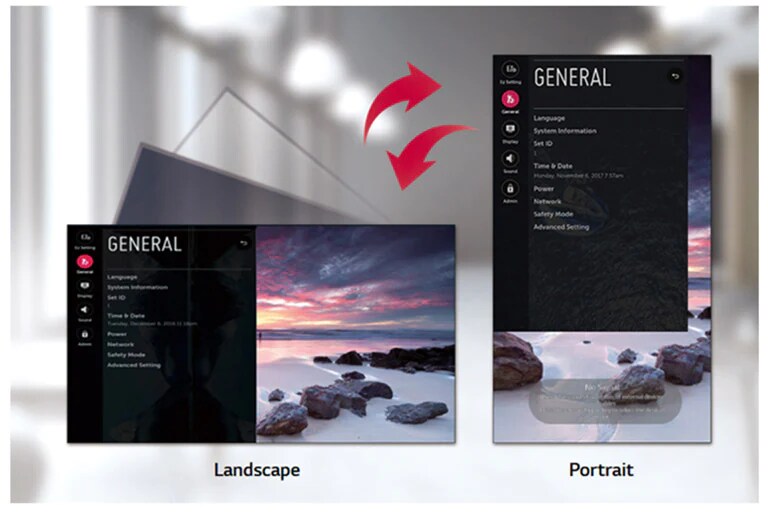

Dedicated GUI for Portrait Orientation Dedicated GUI for Portrait Orientation
webOS SMART SIGNAGE PLATFORM

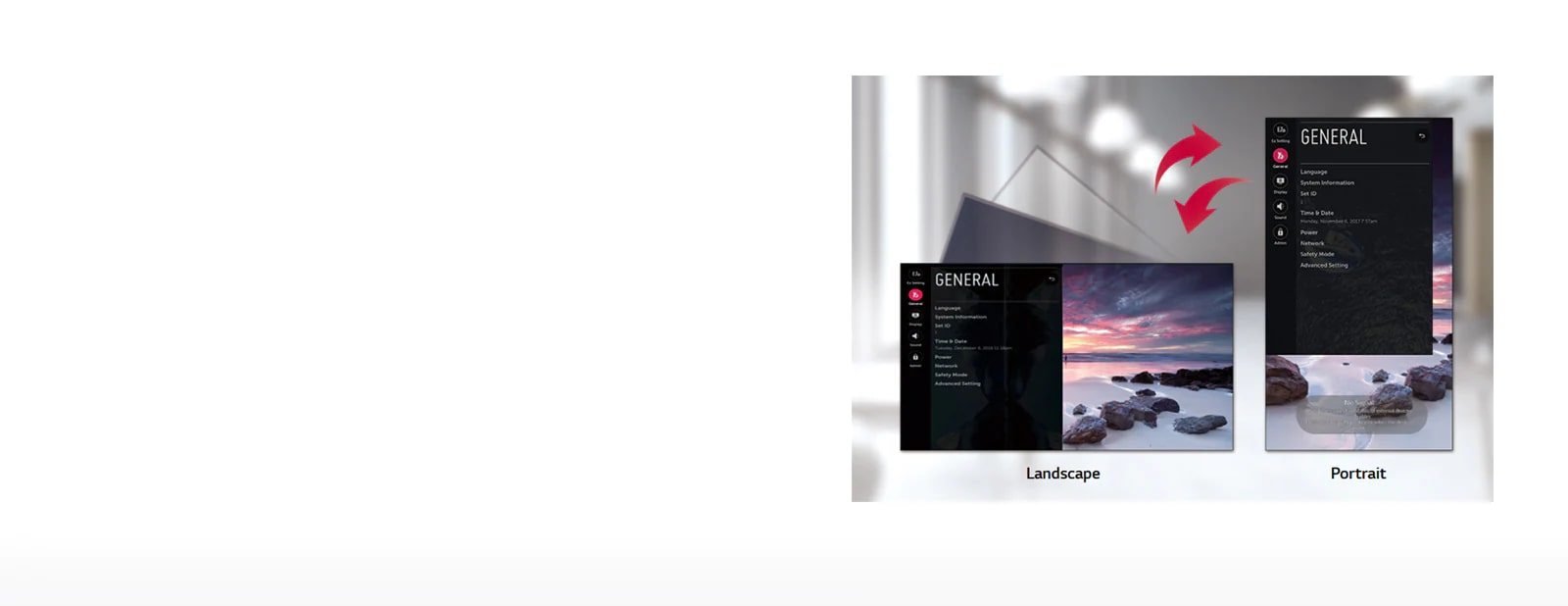

Dedicated GUI for Portrait Orientation

The conventional GUI(Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD(On Screen Display) wasn't well-suited for screens in portrait mode. The OSD of the 55SVM5F-H, however, consists of a long range menu with bigger font sizes of 9:16 ratio, creating a comfortable and efficient business environment

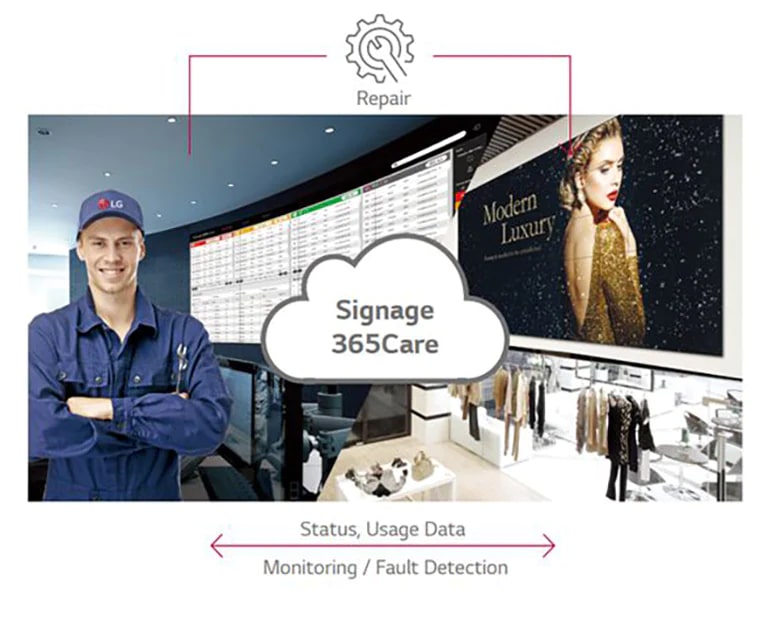

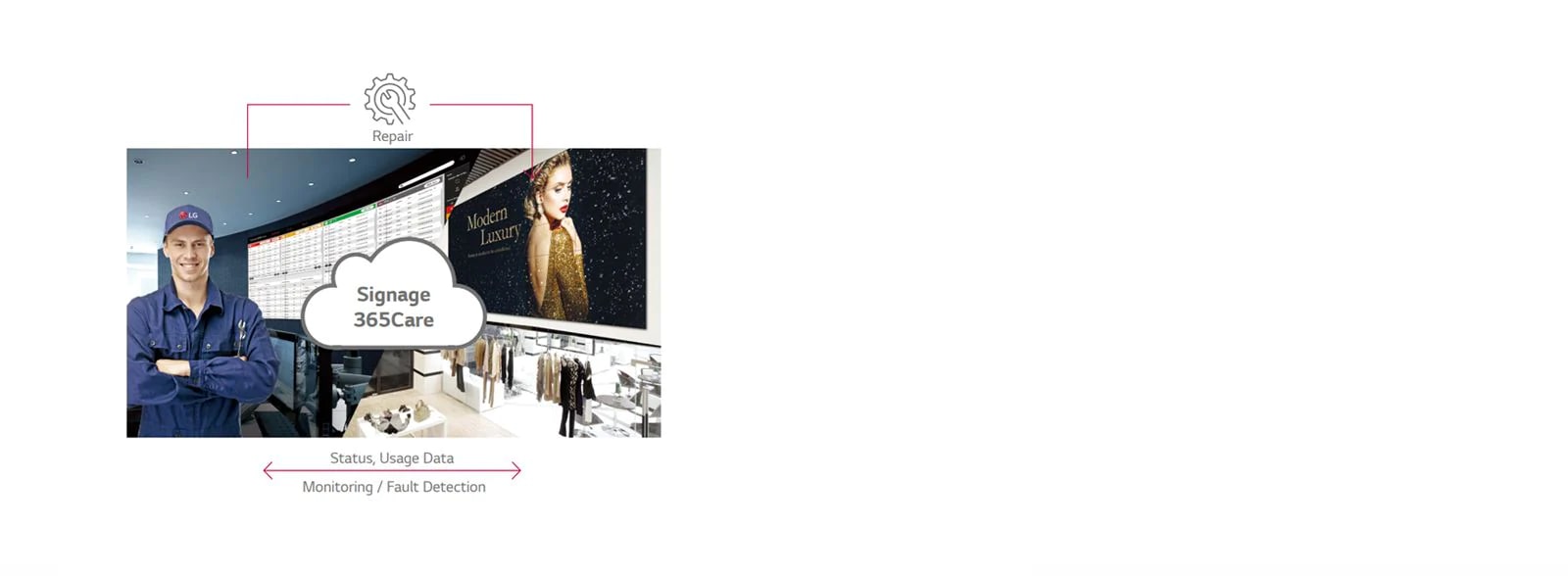

Real-Time Care Service Real-Time Care Service
USER CONVENIENCE

Real-Time Care Service

Easier and faster maintenance are available with our optional cloud service solution Signage365Care*. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.
*The availability of "Signage365Care" service can differ by region, so please contact the LG Sales representative in your region for further details.

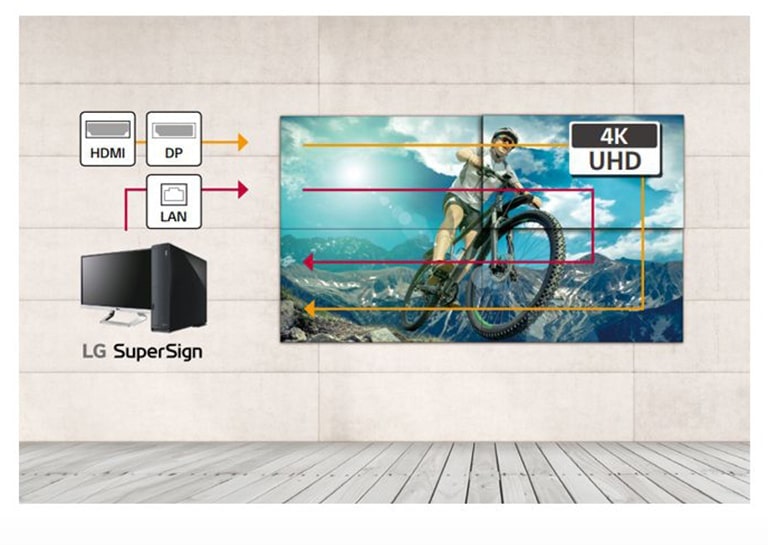

Daisy Chain Capability Daisy Chain Capability
USER CONVENIENCE

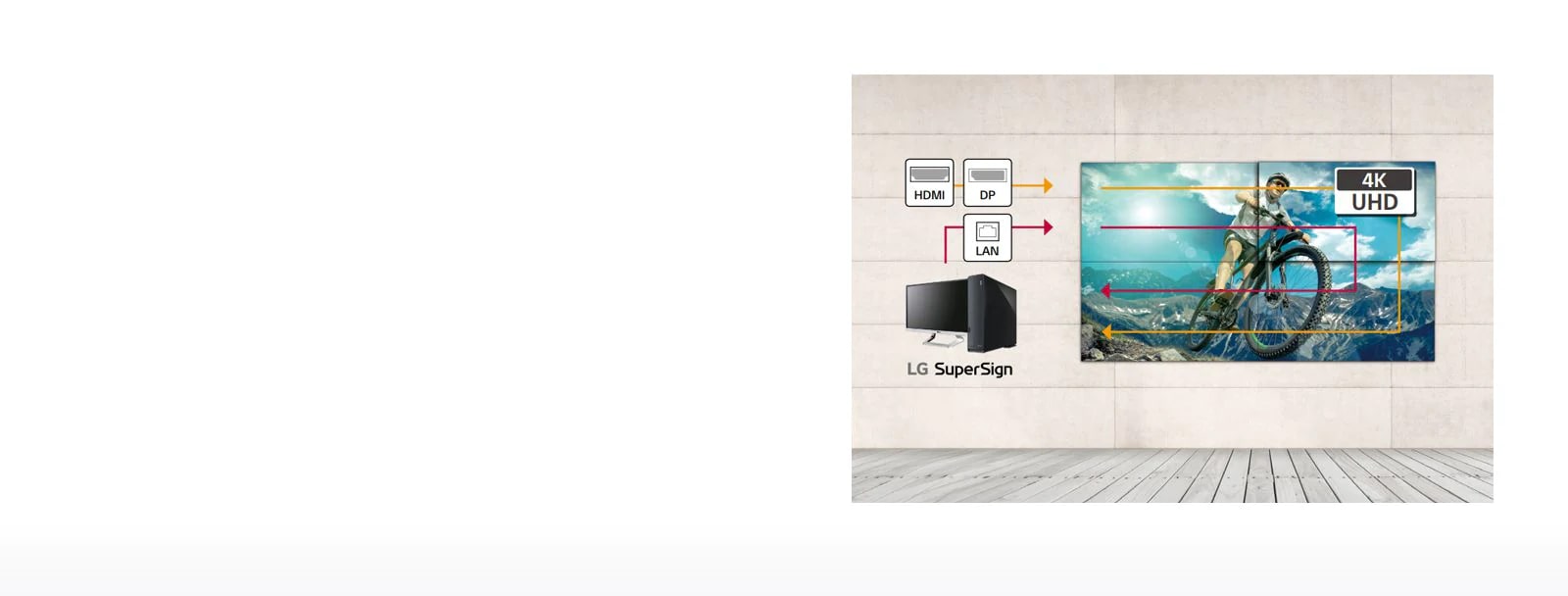

Daisy Chain Capability

A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST or Matrox graphics card.
Close
PANEL
  • Screen Size
    55"
    Panel Technology
    IPS
  • Aspect Ratio
    16 : 9
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Typ.,cd/m²)
    500
    Contrast Ratio
    1,100:1
  • Dynamic CR
    500,000 : 1 (The luminosity ratio of Full Black/Full White color on video input condition.)
    Viewing Angle (H x V)
    178 x 178
  • Response Time
    8ms (G to G)
    Surface Treatment
    Haze 28%
  • Life Time (Typ.)
    60,000 Hrs
    Operation Hours
    24 Hrs
  • Orientation
    Portrait & Landscape
CONNECTIVITY
  • Input
    HDMI (2), DP, DVI-D, Audio, USB 2.0
    Output
    DP, Audio
  • External Control
    RS232C In/out, RJ45 (LAN) In/out, IR In
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    0.44 mm (Even)
  • Monitor Dimension (W × H × D)
    1,210.51 x 681.22 x 86.5 mm
    Weight (Head)
    16.8 kg
  • Carton Dimensions (W × H × D)
    1,353 x 855 x 263 mm
    Packed Weight
    23.6 kg
  • Handle
    Yes
    VESA™ Standard Mount Interface
    600 x 400 mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ. / Max.
    200W / 250W
    Smart Energy Saving
    105W
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes (EU Only) / Yes (Energy Star 8.0)
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    Yes (Piggyback)
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control / Control+
ACCESSORY
  • Basic
    Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual
    Optional
    Wall Mount ( Landscape : WM-L640V, Portrait : WM-P640V), OPS Kit (KT-OPSF)
