65UH5C-B component-copyModelName

UH5C Series

ADD TO WISHLIST

Discontinued

65UH5C-B component-copyModelName

UH5C Series

Key Features

Brightness(Typ.): 500 cd/m²
Bezel: 12.1 mm (T), 12.6 mm (R/L), 15.7 mm (B)
Depth: 40.1 mm
Interface: HDMI / DVI / DP / RGB / RJ45 / IR / RS232C / SD Card / USB

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.): 500 cd/m²
Bezel: 12.1 mm (T), 12.6 mm (R/L), 15.7 mm (B)
Depth: 40.1 mm
Interface: HDMI / DVI / DP / RGB / RJ45 / IR / RS232C / SD Card / USB

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

UH5C Series

UHD Resolution & HEVC

Outstanding Picture Quality

UHD large screen delivers immersive viewing with four times higher definition than FHD. UH5C ensures stable UHD video playback with HEVC (High Efficiency Video Coding) and double the data compression ratio of H.264.

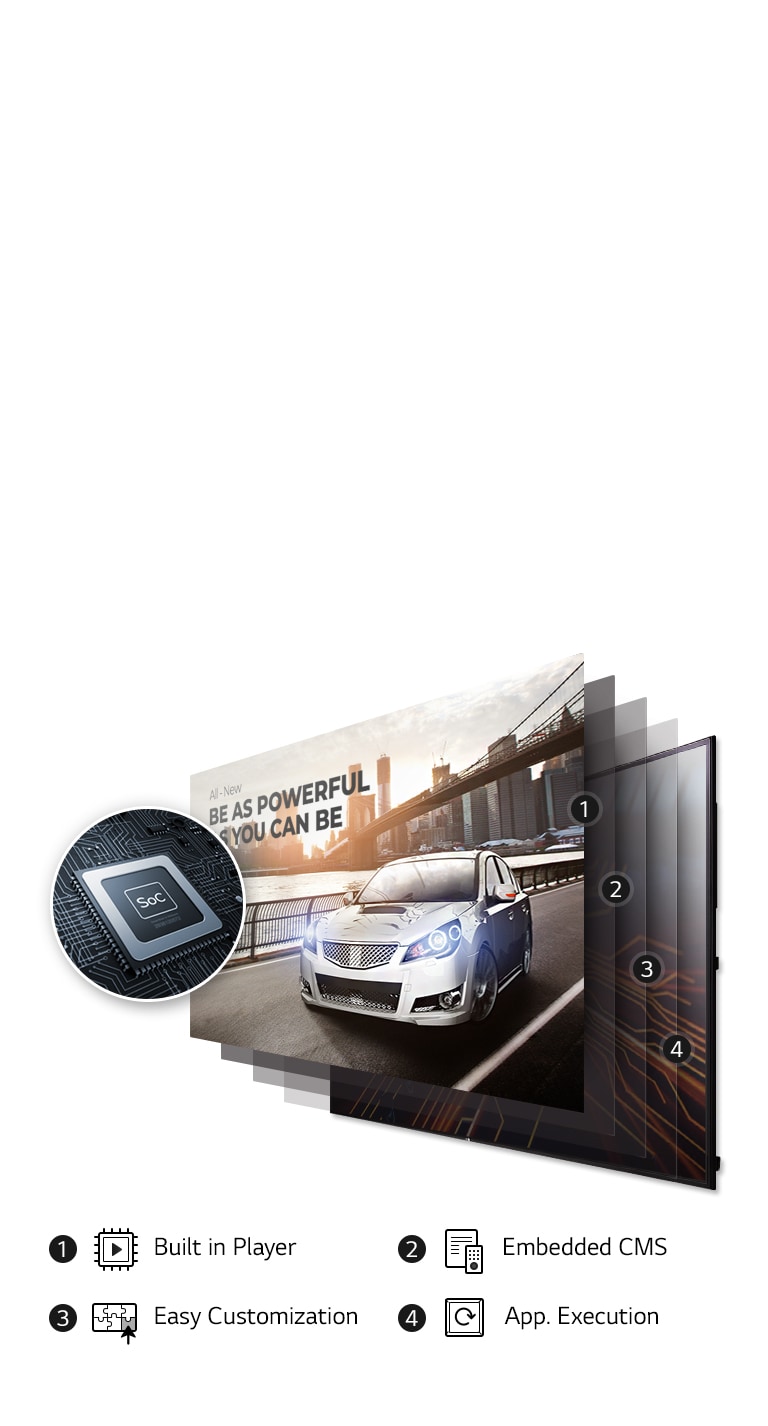

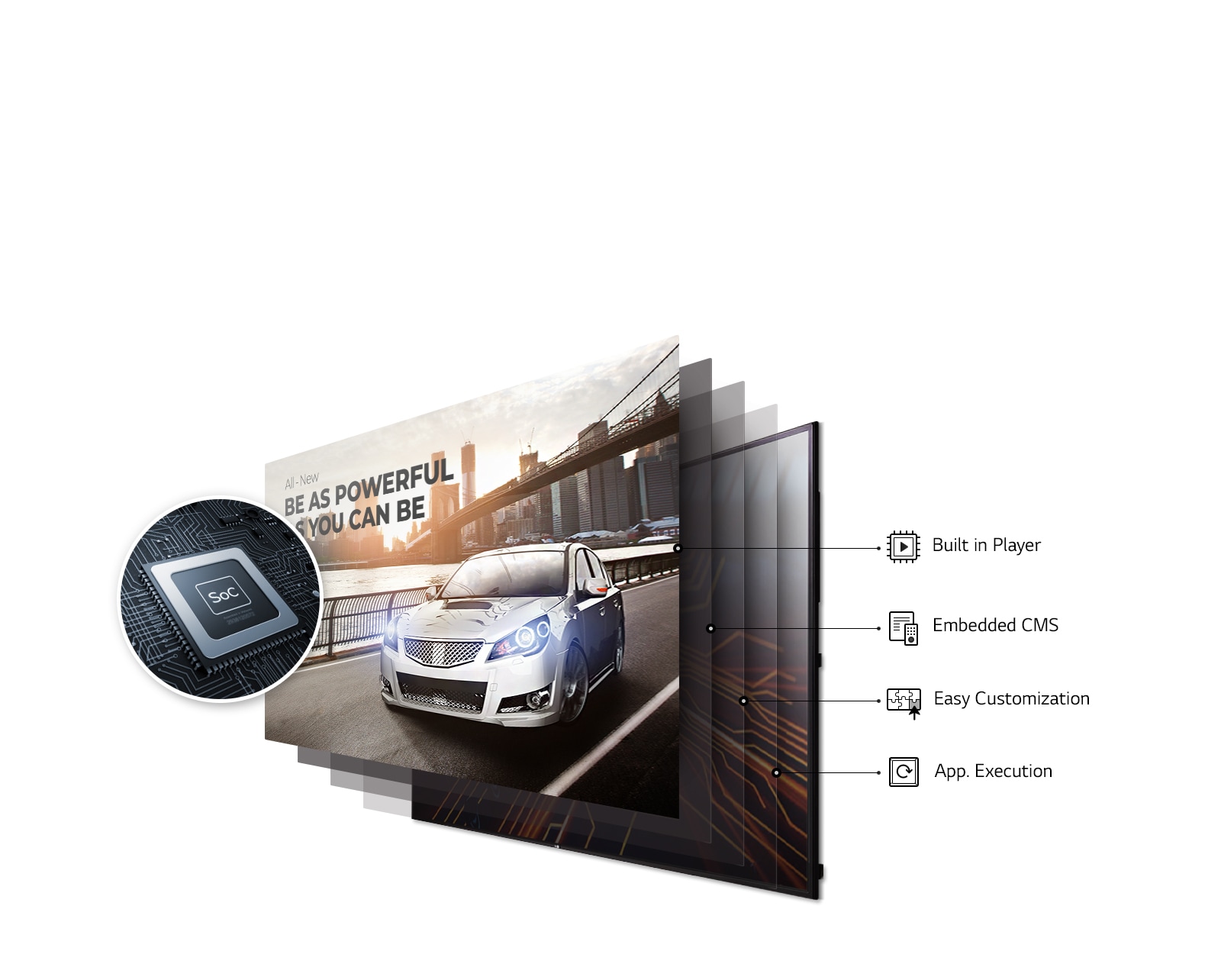

Quad Core SoC with webOS

High Performance Smart Platform

Quad Core SoC (System-on-Chip) executes several tasks at once with smooth content playback without a media player. webOS smart signage platform enhances user convenience with intuitive UI and simple development tools.

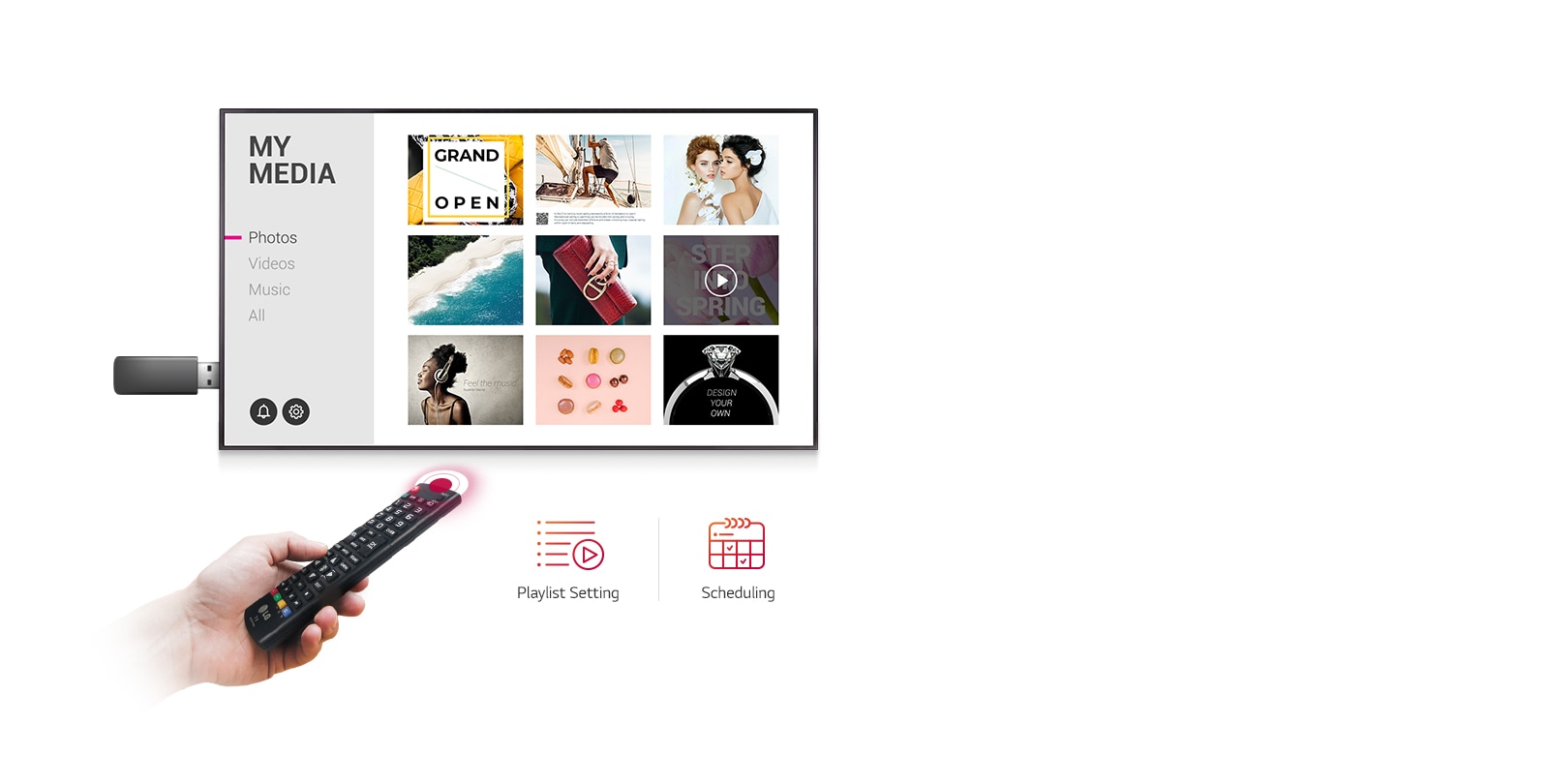

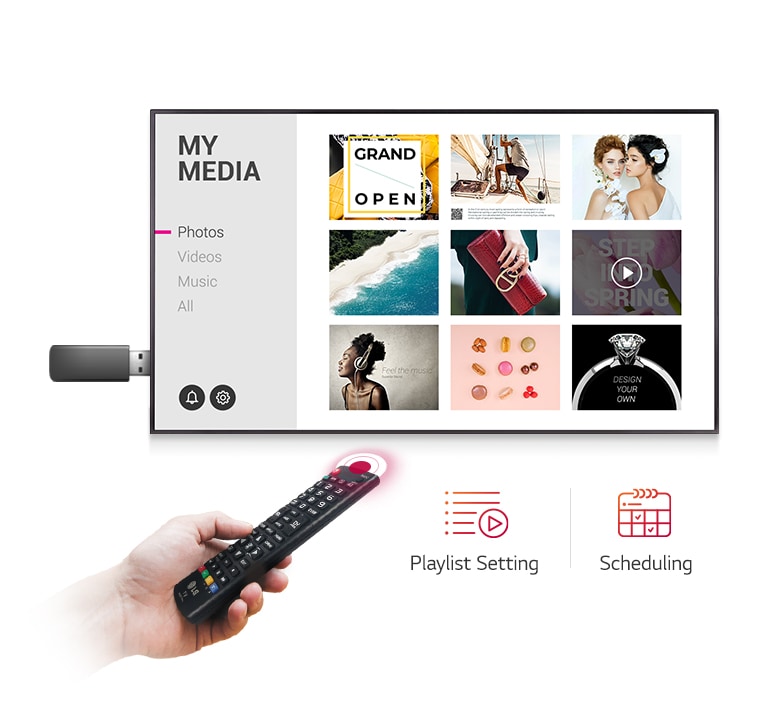

USB Content Scheduling

Simply Play and Schedule Content

There is no need for additional server or media player connections as UH5C supports USB playback and scheduling. Users can set a playlist and timing for playing content using a USB.

*Image is for illustration-purposes only.

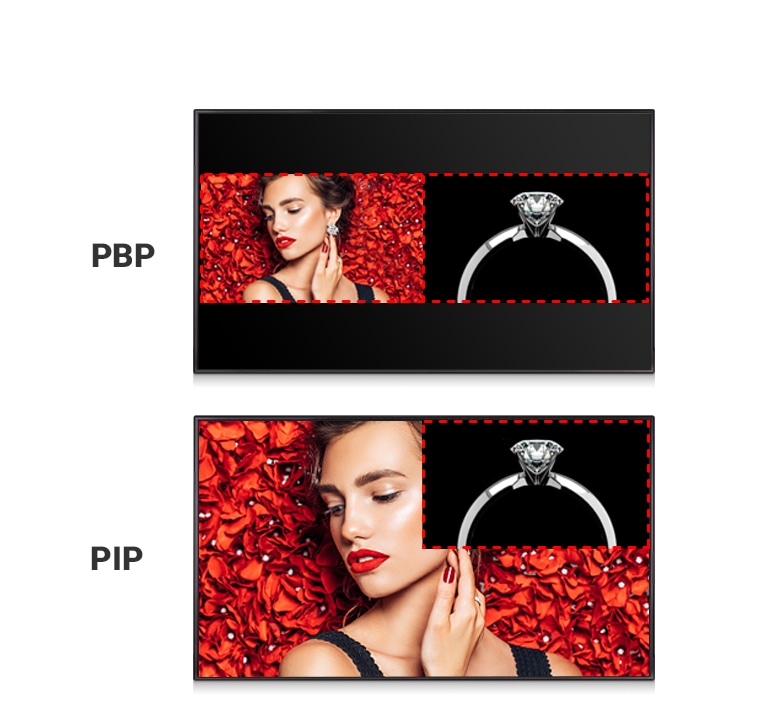

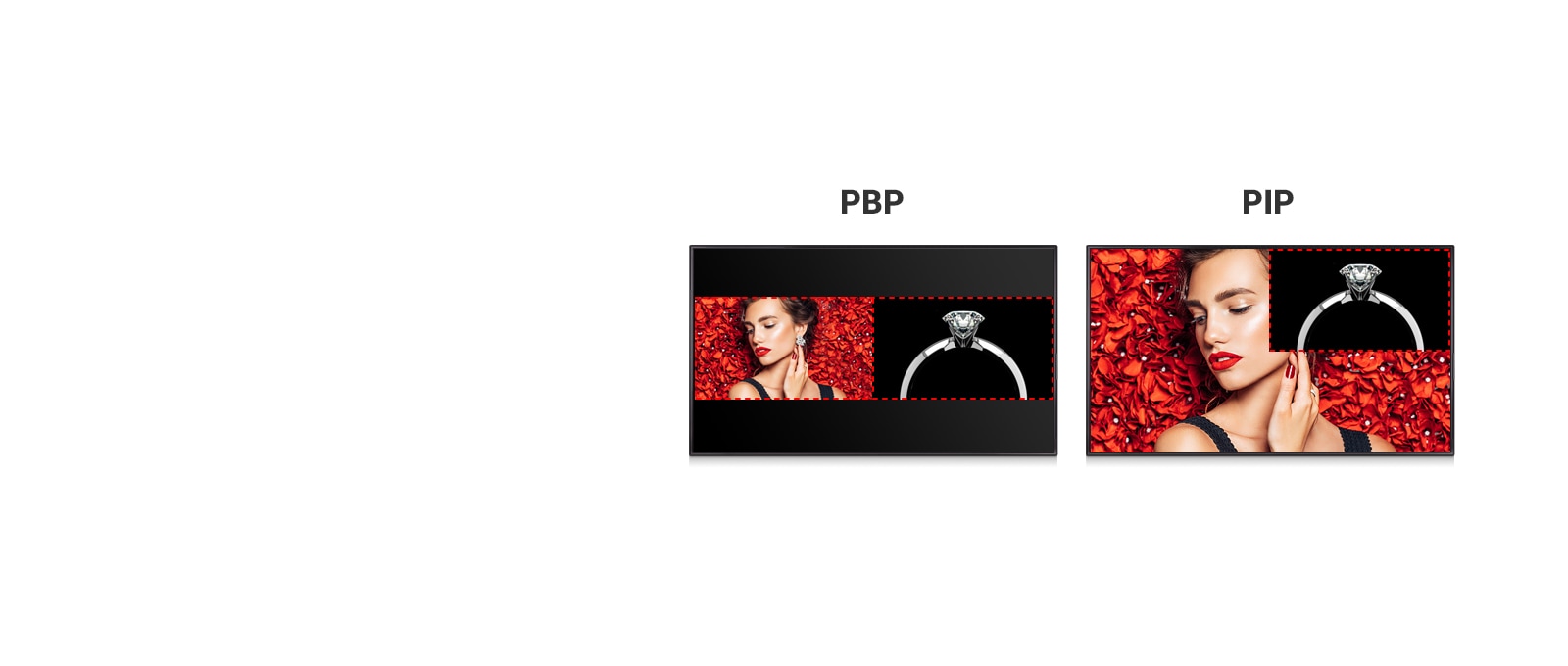

PBP/PIP

Multiple Screen Composition

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to two divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source.

Wireless Solutions

Content Sharing

Mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion

With Beacon and Bluetooth Low Energy (BLE), retail stores can provide coupons and information in real-time.

SNMP Support

Real-Time Remote Monitoring

In case of malfunctions or errors, real-time remote care is available. When an alarm occurs, an e-mail notification is sent using SuperSign SW or SI SW via the SNMP Protocol.

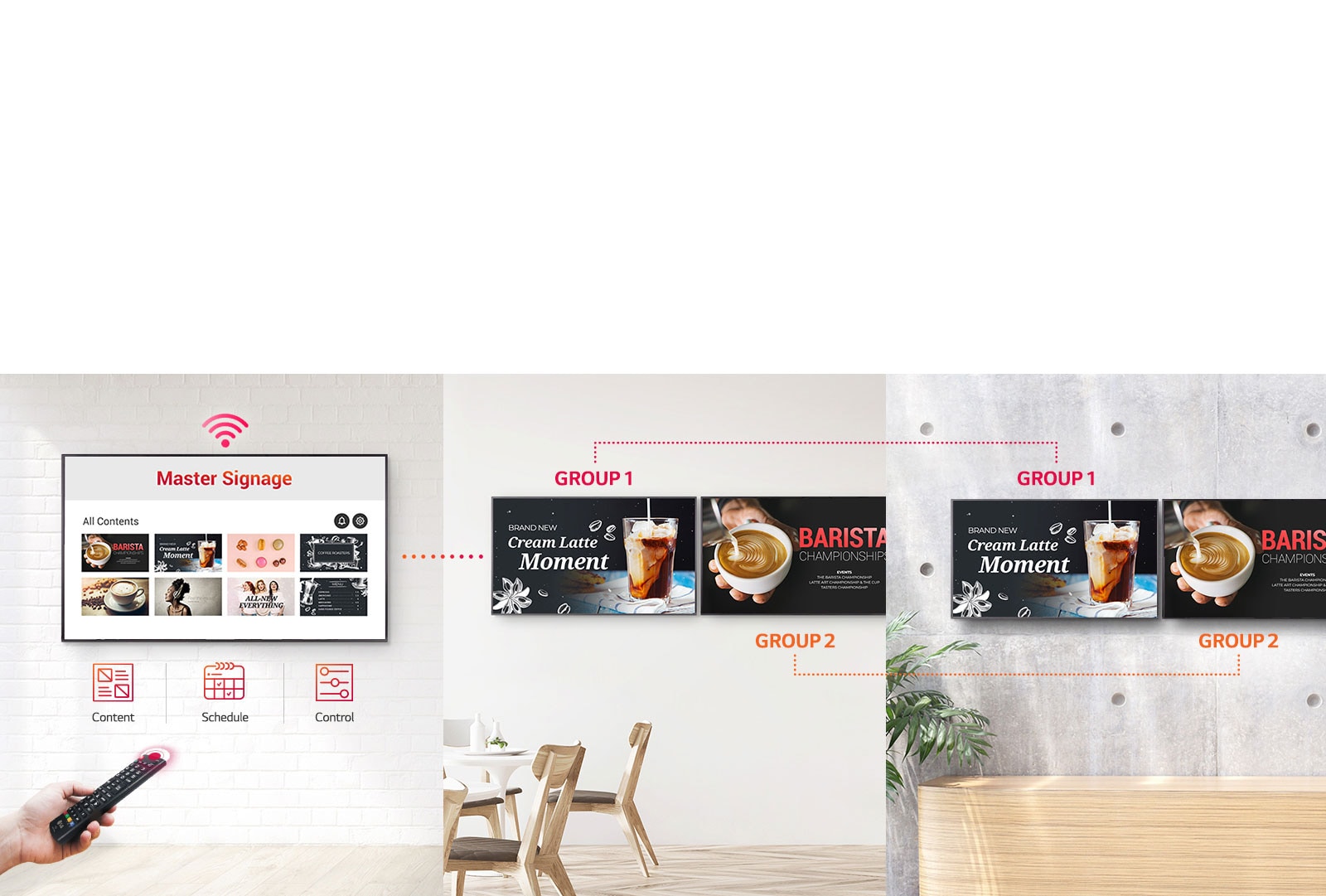

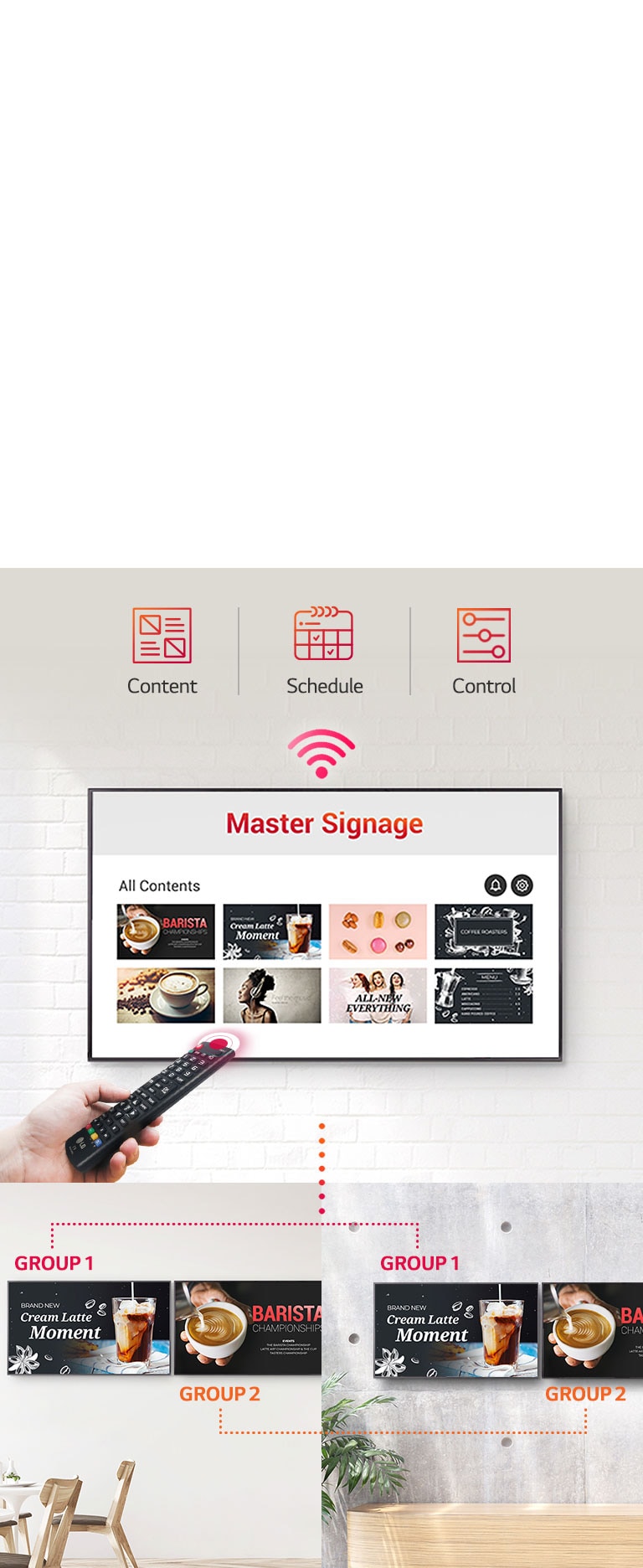

Embedded Group Manager

Easy Content Management

The LG group manager allows users to distribute content and set data on a selected group within the same network without the need for a separate PC or a server.

*Image is for illustration-purposes only.
*All devices must be connected to in the same network.

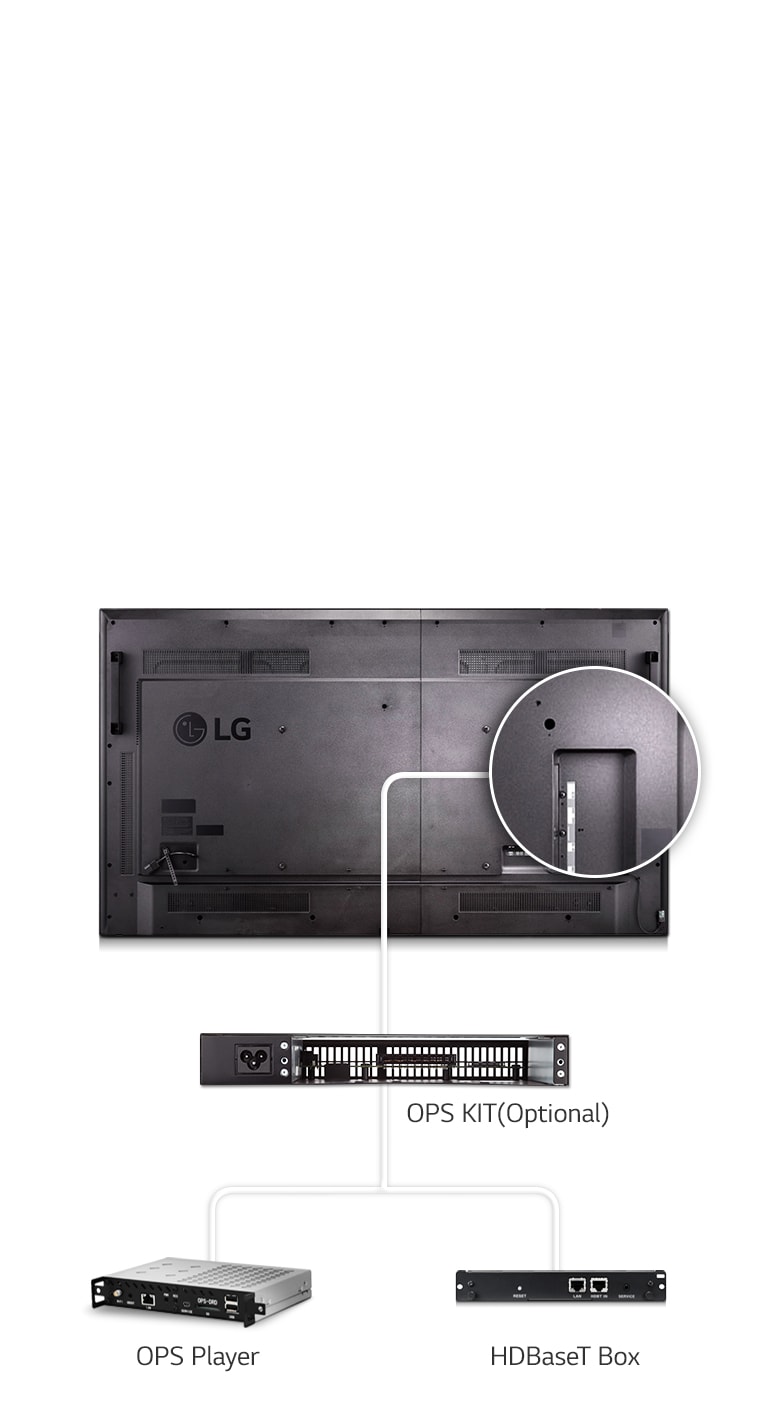

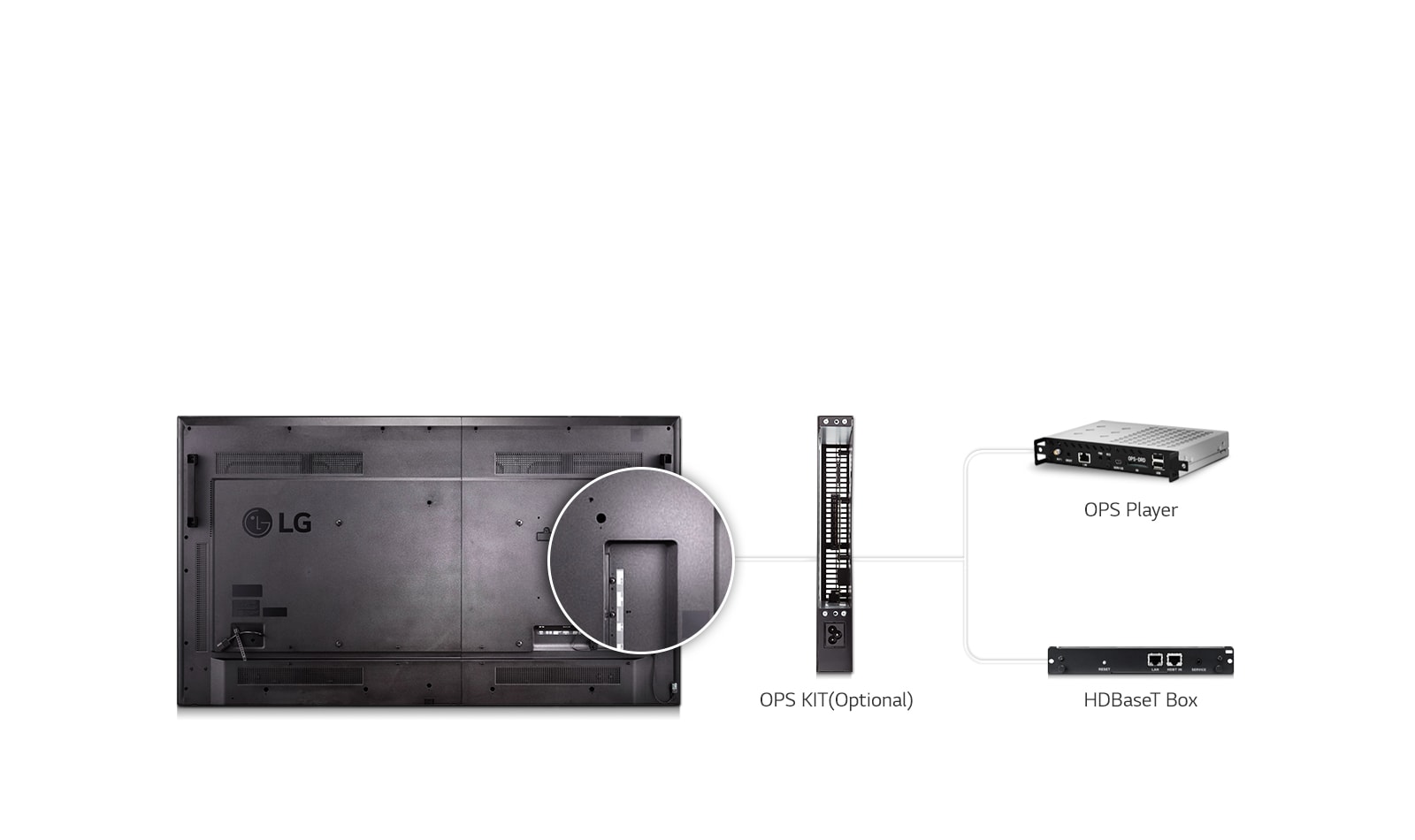

OPS/HDBaseT Connectivity

High Compatibility

UH5C provides an optional OPS (Open Pluggable Specification) Kit to connect a third-party OPS player or HDBaseT box. Users have the flexibility to choose any media player as long as it complies with the OPS.

PANEL

Screen Size

65"

Resolution

3,840 x 2,160 (UHD)
Brightness(Typ.,cd/m²)

500

CONNECTIVITY

Input

HDMI, DP, DVI-D, Audio, USB 3.0, SD Card

Output

DP, Audio, Externel Speaker Out
External Control

RS232C, RJ45, IR Receiver, Pixel Sensor

PHYSICAL SPECIFICATION

Bezel Width

12.1 mm (T), 12.6 mm (R/L), 15.7 mm (B)

Monitor Dimension (W x H x D)

1,458.6 x 848.9 x 40.1 mm
Weight (Head)

26.0kg

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10% to 80%

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ.

134W

Smart Energy Saving

90W

STANDARD(CERTIFICATION)

Safety

UL/cUL/CB/TUV/KC

EMC

FCC Class "A"/CE/KCC
ErP / Energy Star

Yes (EU Only) / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

OPS type compatible

Yes

External Media player Attatchable

Yes (MP500/MP700)

SOFTWARE COMPATIBILITY

SuperSign-w lite

Yes

SuperSign-c

Yes

ACCESSORY

Basic

Remote Controller (2ea batteries included), Power cord, QSG, HDMI cable, Regulation book, Phone to RS232C gender, Memory cover

Optional

Speaker (SP-5200), Stand (ST-651T), Pixel sensor (KT-SP0), Media player, Wall bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100)
