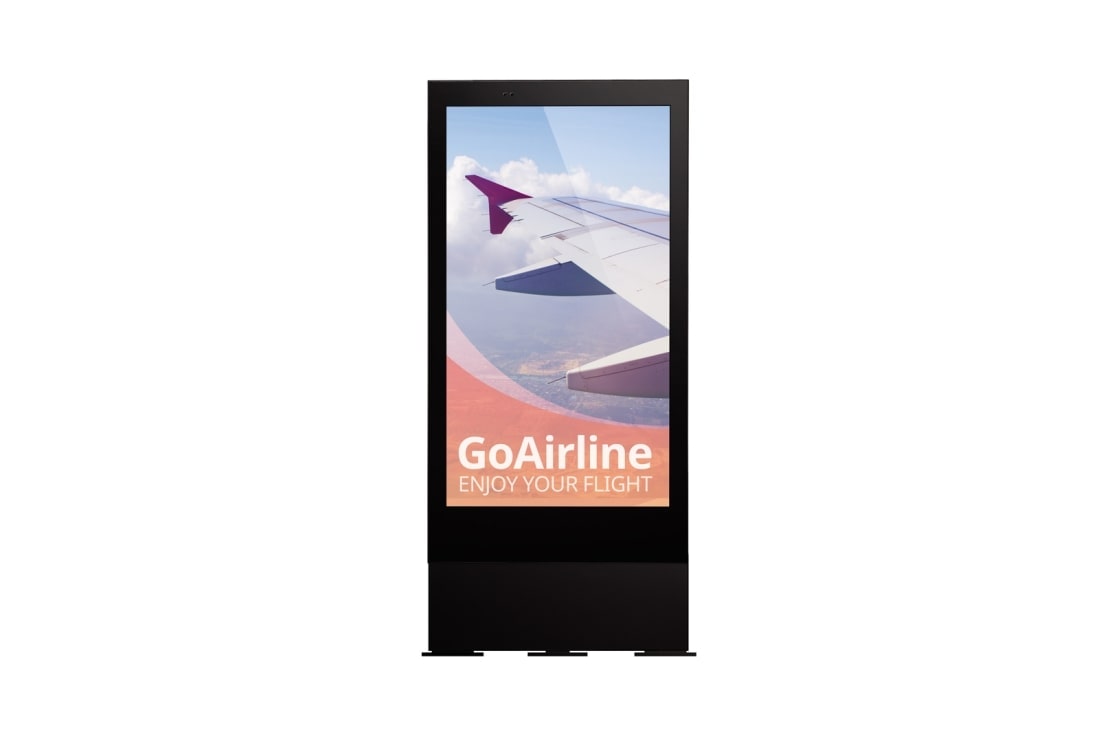

75XE3C-B component-copyModelName
Outdoor Dispaly

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (75XE3C-B)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (75XE3C-B)
    $
    $
    LG Members Price
Total
Outdoor Dispaly

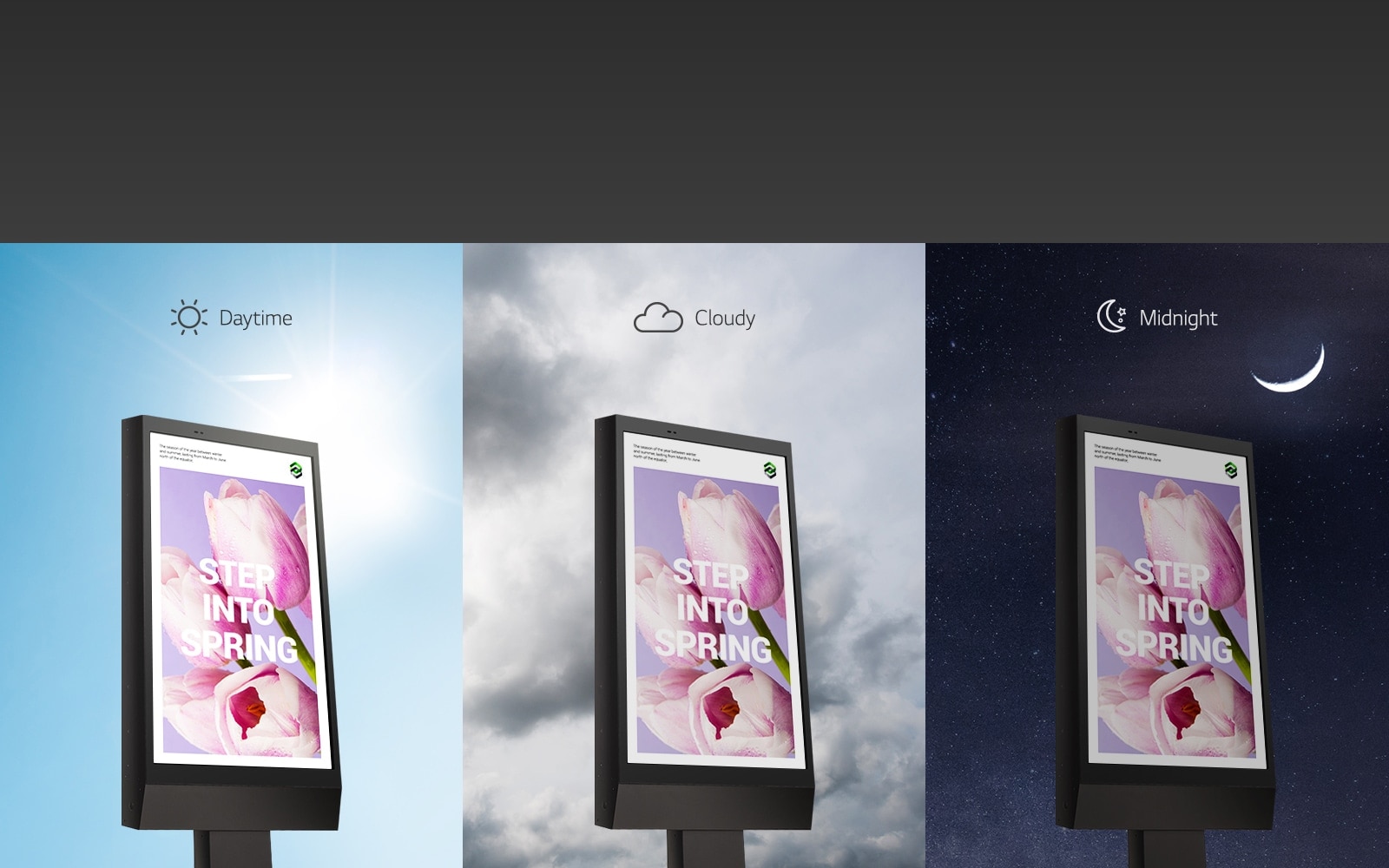

Smart Brightness Control Smart Brightness Control
Auto Brightness Sensor

Smart Brightness Control

Screen brightness is automatically adjusted according to the surrounding illumination level. The brightness is increased in light for better visibility, while it is lowered in darkness to reduce power consumption.
Clear View: Polarized Sunglasses Clear View: Polarized Sunglasses
QWP (Quarter Wave Plate)

Clear View: Polarized Sunglasses

FPR (Film-type Patterned Retarder) technology is embedded with a QWP which enables clear visibility even when the viewer is wearing polarized sunglasses.
True Colors, Wide View True Colors, Wide View
IPS Panel Technology

True Colors, Wide View

IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.
Conformal Coating Conformal Coating

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on every major circuit board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.
Protection from Dust & Humidity Protection from Dust & Humidity
IP56 Design

Protection from Dust & Humidity

The XE series is sealed with IP56 design ensuring reliable operation. In addition to being waterproof, it is weatherproof against the sun, rain, snow, dust and wind's damaging effects.

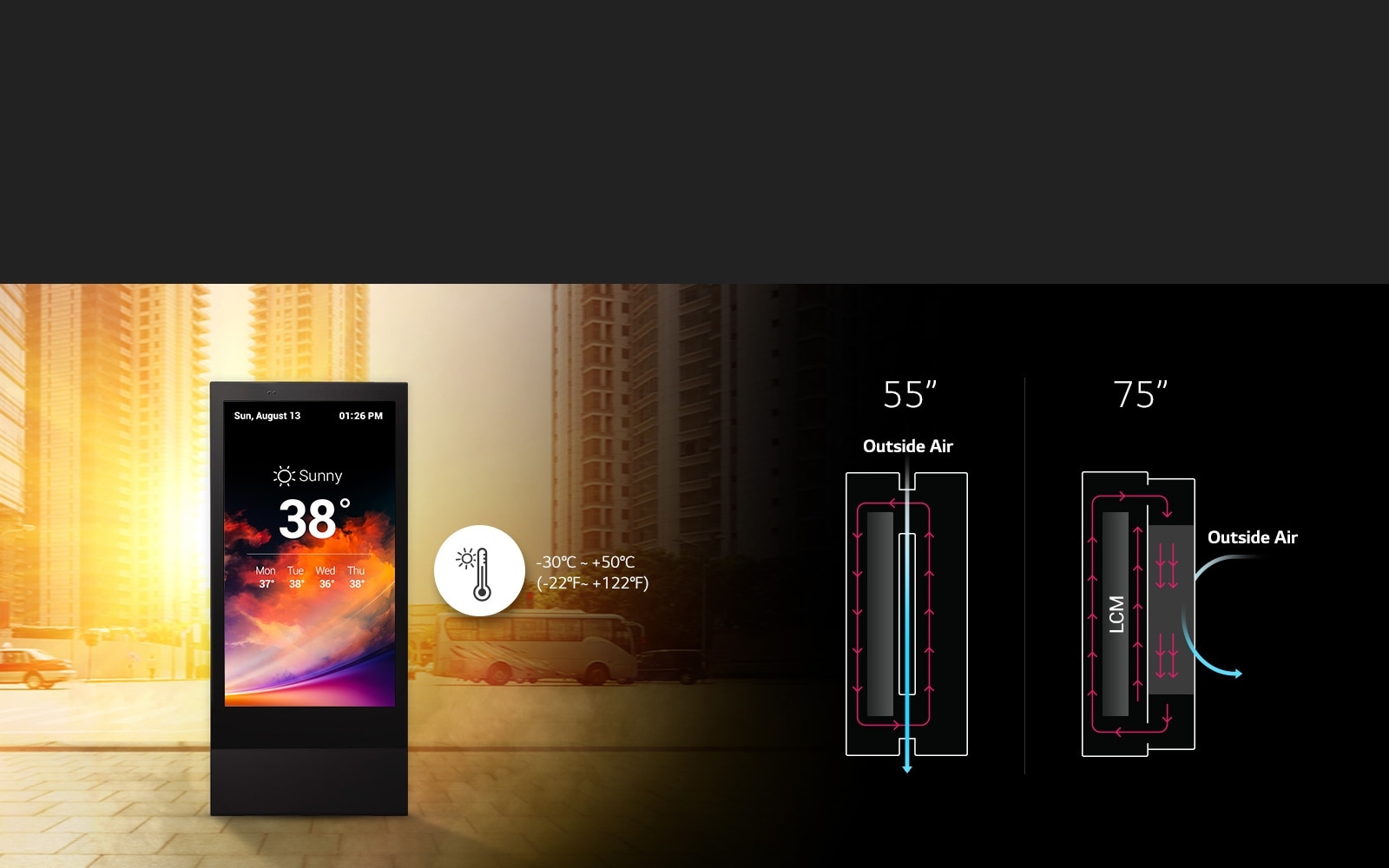

Efficient Air Circulation Efficient Air Circulation
Thermal Management Solution

Efficient Air Circulation

Offers superb reliability in high temperatures. The patented thermal management technology efficiently cools down heat generated from every part of the product, preventing outside air from entering.

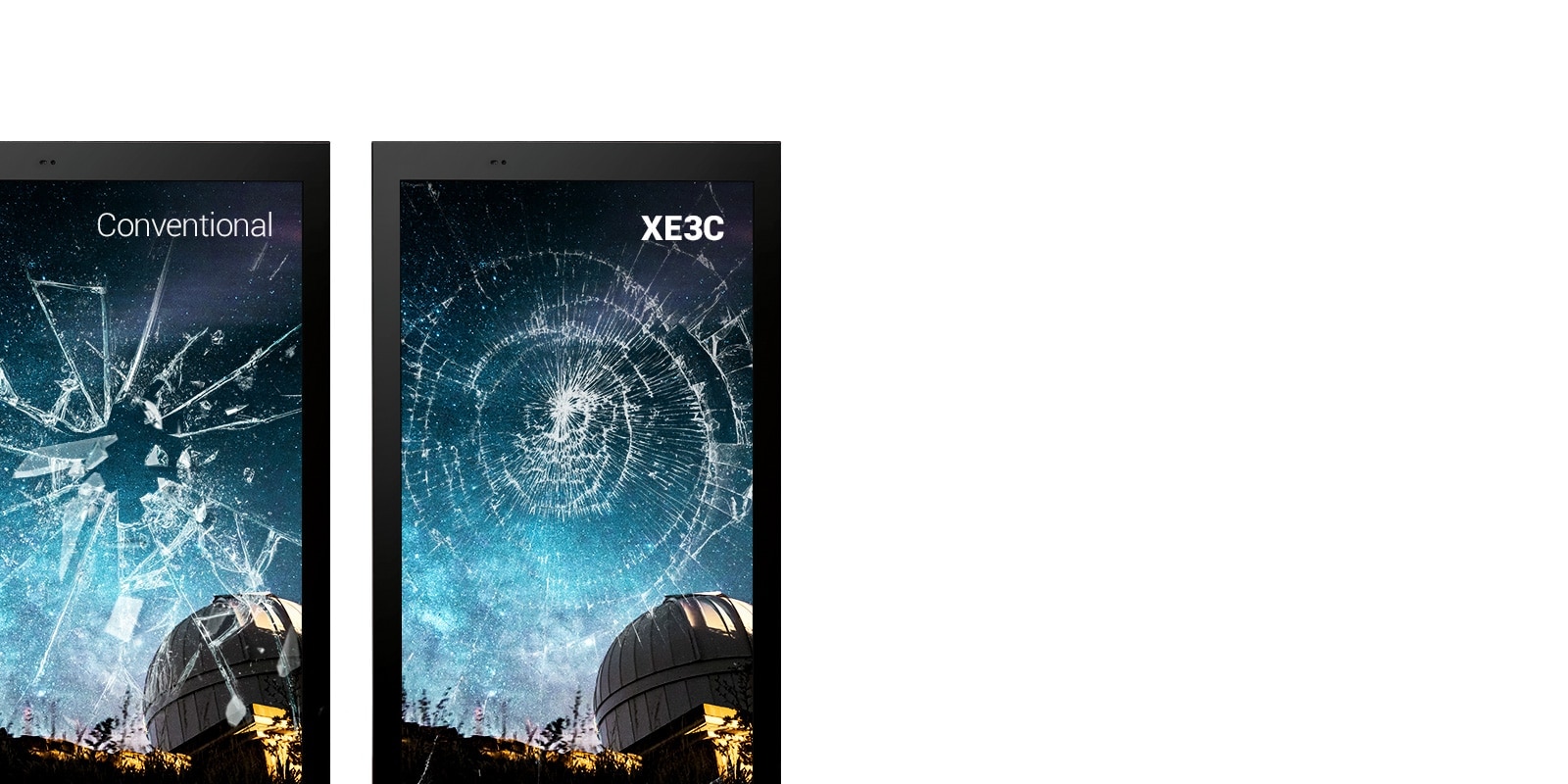

Protect against External Impact Protect against External Impact
OCA (Optically Clear Adhesive) film

Protect against External Impact

Tempered and laminated front glass ensures optimum protection, from outdoor extremities allowing minimal to no damage from external impacts.
*9.5mm (75"), 7.5mm (55")
* Image is for illustration-purposes only.
Web & Mobile Monitoring Web & Mobile Monitoring
Embedded Control Manager

Web & Mobile Monitoring

Easy to control at all times, embedded web monitoring in the panel allows a variety of parameters to be diagnosed in real time via temperature, pixel, door, ambient light and gyro sensors.

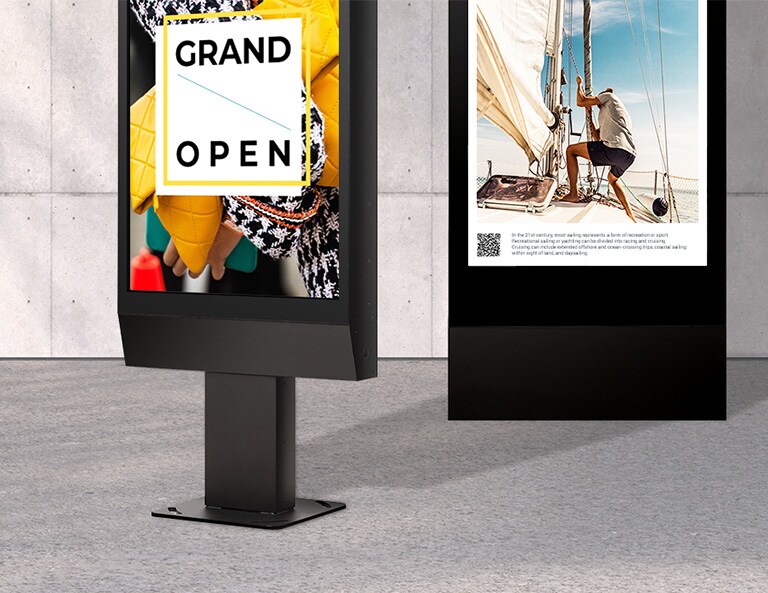

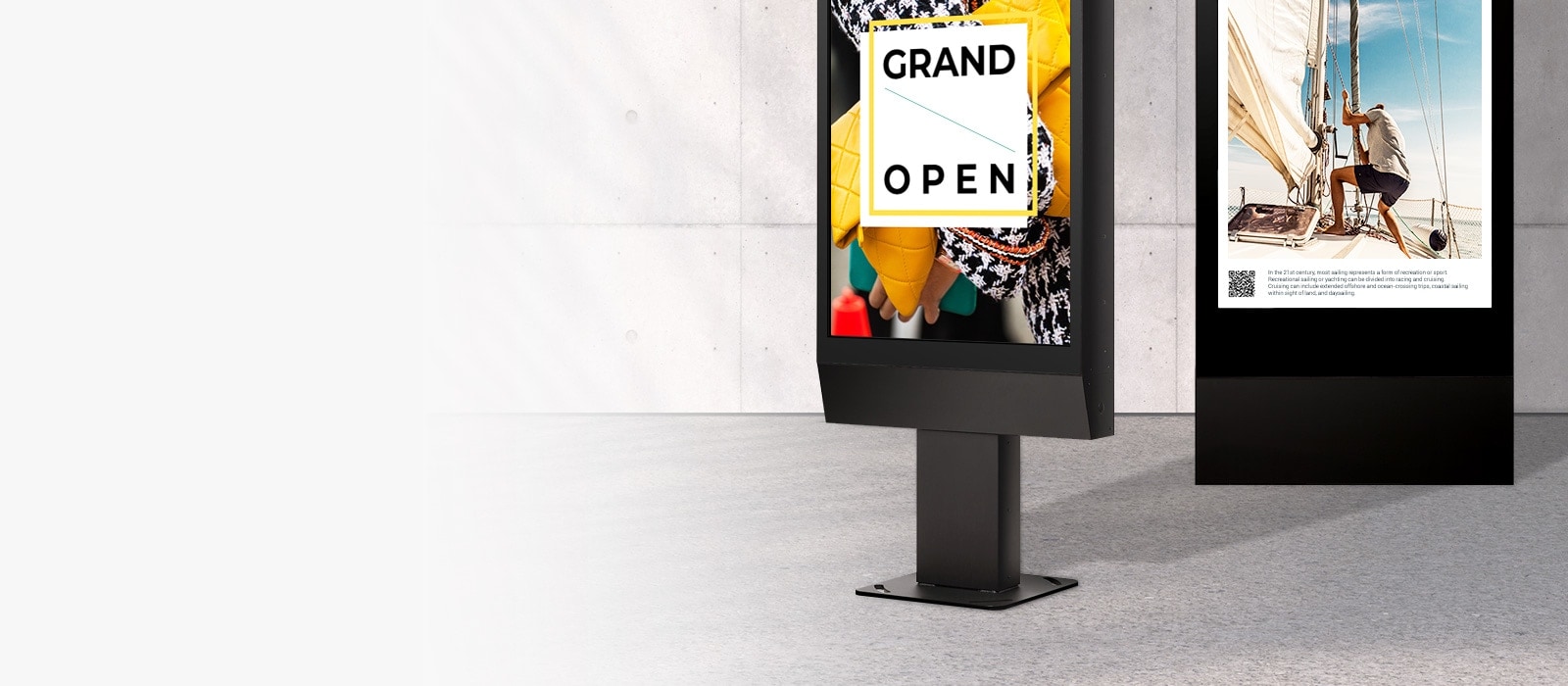

Applicable Stand Accessories Applicable Stand Accessories
Optional Configuration

Applicable Stand Accessories

Optional stand to allow panel to stand freely and facilitate easy cable management.
Close
PANEL
  • Screen Size
    75" Class
    Native Resolution
    3,840 x 2,160 (UHD), M+
  • Brightness(Typ., with Protective Glass, cd/m²)
    3000
CONNECTIVITY
  • Input
    HDMI, DP, DVI-D, Audio In, USB 3.0, SD Card
    Output
    DP, External Speaker (*waterproof speakers are mandatory for outdoor installation)
  • External Control
    RS232C in/out, RJ45 in
PHYSICAL SPECIFICATION
  • Bezel Width
    110mm(T), 230mm(B), 73.3mm(L/R)
    Monitor Dimension (W x H x D)
    1,075.6 x 1,991.6 x 218.9 mm
  • Weight (Head)
    180 kg
ENVIRONMENT CONDITIONS
  • Operation Temperature
    -30 °C to 50 °C
    Operation Humidity
    5 % to 100 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    750W (Full White)
    403W (IEC 62087)
    Max
    1000 W
STANDARD(CERTIFICATION)
  • Safety
    UL / cUL / CB
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes (EU Only) / No
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    No
    External Media player Attatchable
    Yes (Available space for media player installation inside the product)
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign C
ACCESSORY
  • Basic
    Remote Controller, Manual, QSG, Regulation Book, Phone to RS232C Gender, USB cable, HDMI cable
    Optional
    Enclosure Stand (ST-750X)
COMPLIANCE INFORMATION
