2023 LG 16:9 75-inch Window Facing Display

Catch Storefront Passerby Eye with a Large High Brightness Display

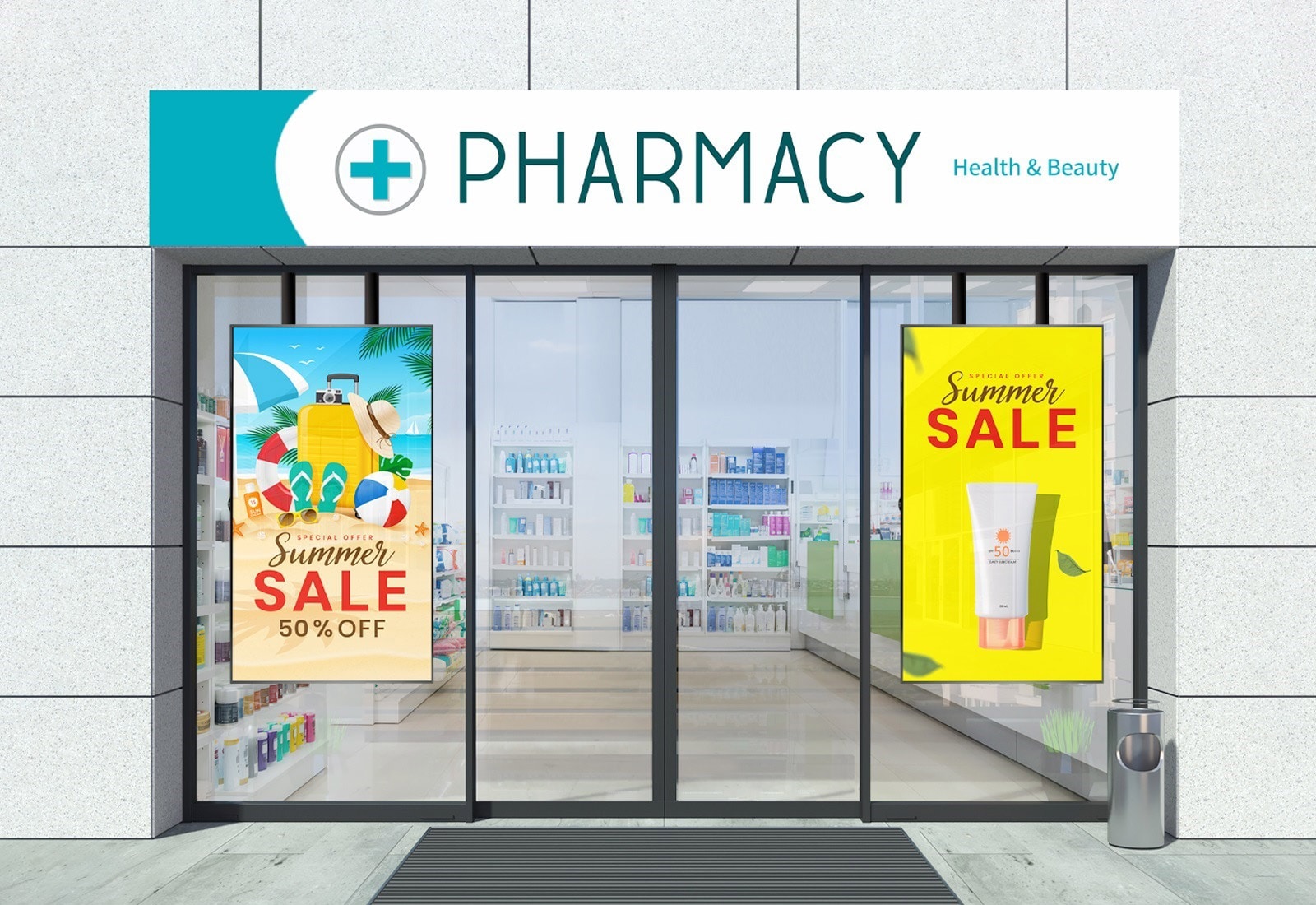

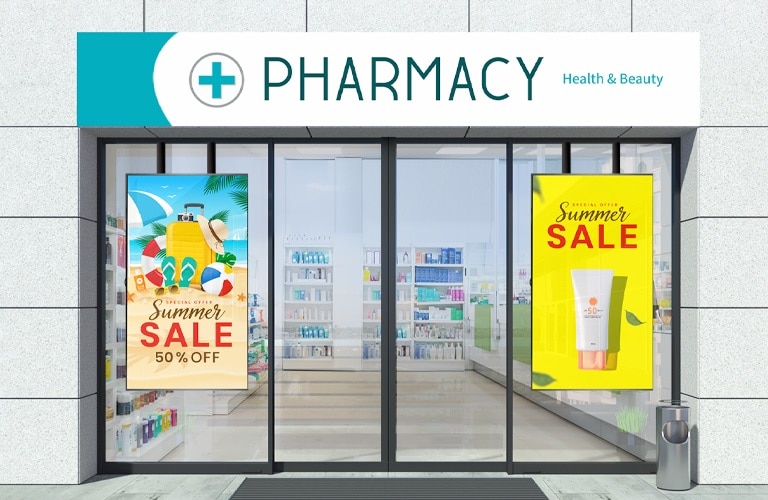

Inside the pharmacy, there are two large displays installed —one on the left side of the store window and the other on the right—showcasing clear advertising content. Inside the pharmacy, there are two large displays installed —one on the left side of the store window and the other on the right—showcasing clear advertising content.
*All images in this page are for illustrative purposes only.
**Please follow the installation guide to get warranty.
***UV-Film can be recommended depending on installation site.

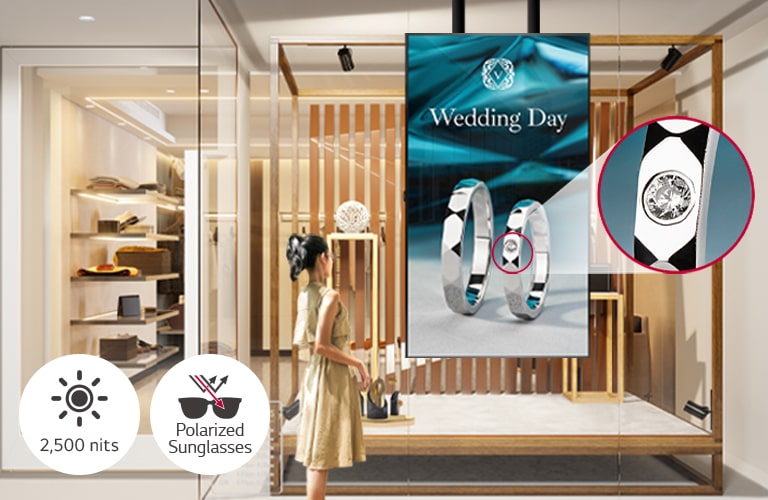

A woman wearing sunglasses is watching ads on the display installed in a shop window, and the ads on the display are very visible even under the strong sunlight. A woman wearing sunglasses is watching ads on the display installed in a shop window, and the ads on the display are very visible even under the strong sunlight.

High Visibility Under Strong Sunlight

With stunning high brightness of 2,500 nits (Typ.), XS2E outdoor display highlights the contents clearly beyond the window. In addition, its outstanding visibility can deliver a variety of information even to those wearing polarized sunglasses.
A blurry picture of FHD is being compared with UHD with vivid quality images. A blurry picture of FHD is being compared with UHD with vivid quality images.

Superb Picture Quality with Ultra HD Resolution

With the resolution of UHD, it makes the color and details of the contents vivid and realistic.

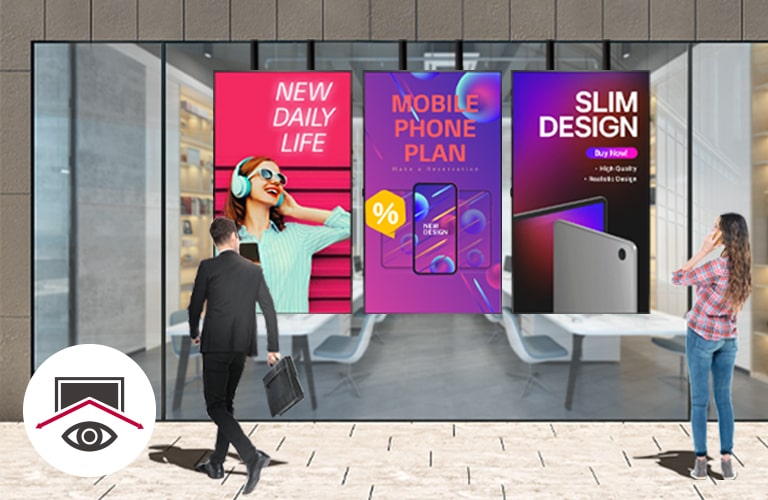

Three large displays are set up near the shop window, providing a vivid view of the content from any angle. Three large displays are set up near the shop window, providing a vivid view of the content from any angle.

Wide Viewing Angle

Customers can enjoy the content vividly from various angle of the window as they walk. The IPS panel enables XS2E to have a wide viewing angle.

* within 178 degree

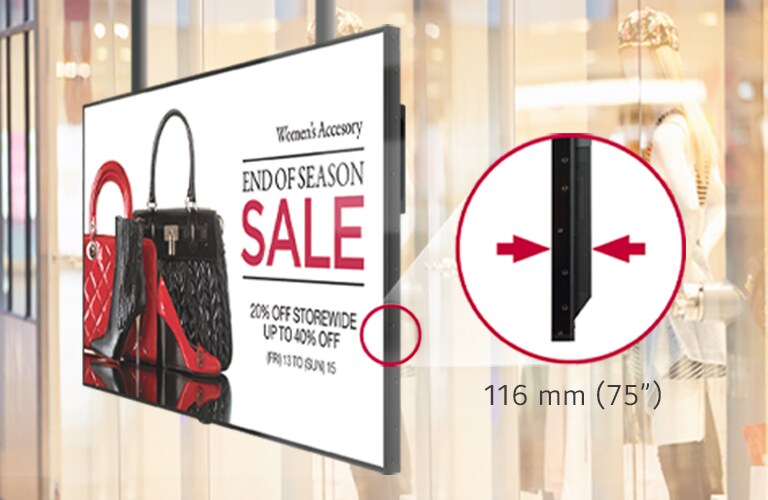

Sleek displays with slim bezels are positioned close to the window. Sleek displays with slim bezels are positioned close to the window.

Slim Design

XS2E attracts attention with elegant design, featuring a slim bezel. Thanks to its thin depth, XS2E takes up less space, which leads to space efficiency in an in-window environment.

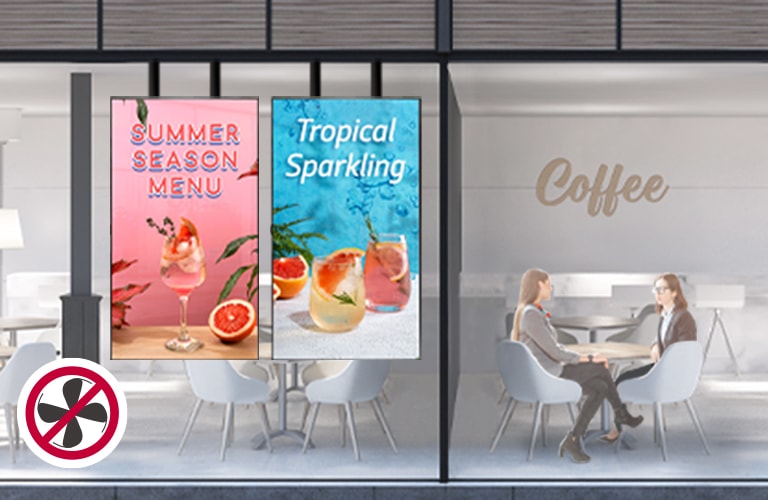

The café boasts two displays on the shop window. The XS2E model's low fan noise enables smooth communication and conversation even when sitting close to the display. The café boasts two displays on the shop window. The XS2E model's low fan noise enables smooth communication and conversation even when sitting close to the display.

Quiet Fanless Design

By eliminating the need for a cooling fan, XS2E is quieter than that of daily conversation (50db). Its low operating noise level is suitable for the in-window environment.
A display is working well in an environment of 0~40°C. A display is working well in an environment of 0~40°C.

Wide Operating Temperature

XS2E can be used under a wide range of operating temperatures from +0°C to +40°C.

* w/o Direct Sunlight, Direct Sunlight in Cooling System
The XS2E screen can adjust its brightness automatically according to the ambient light. The XS2E screen can adjust its brightness automatically according to the ambient light.

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.
A number of tasks that can be done simultaneously are easily arranged through the webOS platform. A number of tasks that can be done simultaneously are easily arranged through the webOS platform.

webOS Smart Platform

Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app development tools.

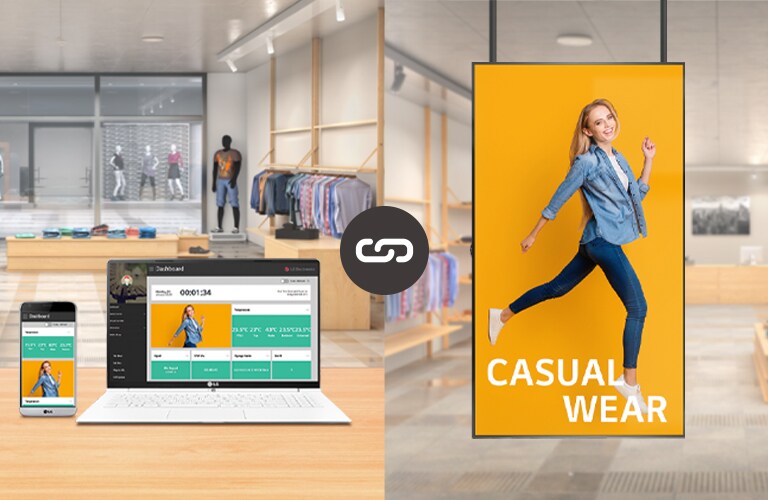

User can monitor and control their displays through mobile phone and laptop. User can monitor and control their displays through mobile phone and laptop.

Real-time Remote Web Monitoring

The LG Control Manager*, the embedded web monitoring program, allows a variety of parameters to be diagnosed in real time such as temperature, ambient light, and gyro sensors. It can be easily controlled at all times.

* Enabled by wired LAN connection
It operates displays simultaneously with one remote control. It operates displays simultaneously with one remote control.

Multi Display Control

Multiple device controls are available through the RJ45 & RS232C ports. It means that even double-sided displays can be easily controlled simultaneously with a remote control.
Close
PANEL
  • Screen Size
    75" Class (74.52 inch Measured Diagonal)
    Panel Technology
    M+ (WRGB)
  • Back Light Type
    Direct
    Aspect Ratio
    16:09
  • Native Resolution
    3,840 × 2,160 (UHD)
    Pixels (H × V × 3)
    3,840 × 2,160, RGBW Stripe Arrangement
  • Refresh Rate
    60Hz
    Brightness
    2,500 cd/m2 (Typ.), 2,250 cd/m2 (Min.)
  • Contrast Ratio
    1,200 : 1 (Typ.)
    Dynamic CR
    500,000 : 1
  • Color gamut
    72% (NTSC)
    Viewing Angle (H × V)
    178 × 178
  • Color Depth
    1.07 Billion Colors (10 bit (Dithering))
    Response Time
    8 ms (G to G BW) (Typ.)
  • Surface Treatment
    AGLR (Haze 3%), QWP
    Lifetime
    50,000 Hrs (Typ.)
  • Operation Hours
    24 Hrs
    Orientation
    Portrait (Clockwise) & Landscape
CONNECTIVITY
  • Input
    Digital (HDMI (2 (HDMI1/2 : HDCP 2.2)), DP (HDCP 1.3), DVI-D), Audio In,
    External Control (RS-232C In, RJ45 (LAN), IR In), USB 3.0, SD Card (SDHC/Full Size) (FAT32/NTFS)
    Output
    DP Out, External Speaker Out (L/R), External Control (RS-232C Out)
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    11.8 mm (Even)
  • Monitor Dimension (W × H × D)
    1,675.2 × 953.6 × 116 mm
    Weight (Head)
    43 kg
  • Carton Dimensions (W × H × D)
    1,816 × 1,106 × 285 mm
    Packed Weight
    52.2 kg
  • Handle
    2 ea
    VESA™ Standard Mount Interface
    600 x 400 mm
KEY FEATURE
  • HW
    Internal Memory (8 GB (System 4 GB + Available 4 GB)), Wi-Fi (Dongle Ready),
    Sensor (Temperature Sensor (×1), Auto Brightness Sensor), Local Key Operation
    SW
    webOS 3.0, Embedded CMS (USB Auto Playback, Local Contents Scheduling), Fail Over, Image Customization (Booting Logo),
    Content Sync (RS-232C, Local Network), Video Tag (2), OSD Rotation, Lock Mode (USB, IR, OSD),
    Content Rotation, Gapless Playback, Tile Mode Setting (Up to 15 × 15), Setting Data Cloning, Firmware Update by Network, SNMP,
    ISM Mode (Image Sticking Minimization), Auto Set ID, Status Mailing, Control Manager,
    Power Mgmt. (DPM, On/Off Schedule, Holiday Schedule, Power on Status, Energy Saving, Smart Energy Saving,
    PM Mode, Wake on LAN, Power on Delay), Daylight Saving Time, Beacon, HDMI-CEC , SI Server Setting
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C (w/o Direct Sunlight, Direct Sunlight in Cooling System), 0°C to 30°C (Direct Sunlight)
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    100-240 V ~, 50/60 Hz
    Power Type
    Built-In Power
  • Power Switch
    No
    Power Consumption (Typ. / Max.)
    585 W / 600 W
  • BTU (British Thermal Unit)
    2,047
    Smart Energy Saving
    280 W
  • DPM
    0.5 W (DP, DVI-D, HDM)
    Power off
    0.5 W
SOUND
  • Speaker
    20 W (10 W × 2) for External Speaker
STANDARD(CERTIFICATION)
  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class "A" / CE / KC / VCCI
  • ErP / Energy Star
    No / No
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    No
    External Media Player Attachable
    No
SOFTWARE COMPATIBILITY
  • Software Compatibility
    SuperSign (CMS (2.5), Control / Control+ (1.7))
LANGUAGE
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish,
    Norwegian, Danish, Japanese, Russian, Portugues (Europe), Dutch, Czech, Greek, Arabic
    Manual
    English, French, Italian, German, Spanish, Portugues, Hungarian, Greek, Russian, Dutch, Kazakh, Ukrainian,
    Polish, Arabic, Indonesian, Korean, Japanese, Turkish, Czech, Taiwanese, Slovak
ACCESSORY
  • Basic
    Remote Controller, Power Cord, HDMI Cable, Manual (ESG & EIG), IR Receiver (w/ Ambient Light Sensor)
    Optional
    LSW630 (Wall Mount), AN-WF5001)
