Key Features

Brightness : 500cd/m2
Bezel : 4.4mm (Left/Right), 5.9mm (Top/Bottom)

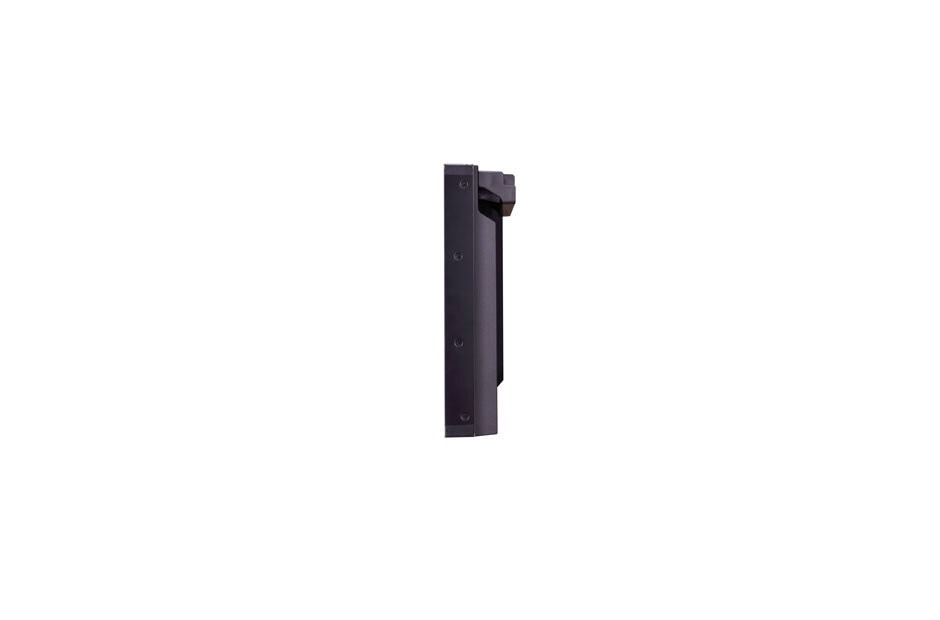

Depth : 81.7mm
Interface : HDMI, DP, RJ45, IR, USB2.0, USB3.0, Daisy-Chain (DP Out, RS232C In/Out, RJ45)

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness : 500cd/m2
Bezel : 4.4mm (Left/Right), 5.9mm (Top/Bottom)
Depth : 81.7mm
Interface : HDMI, DP, RJ45, IR, USB2.0, USB3.0, Daisy-Chain (DP Out, RS232C In/Out, RJ45)

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

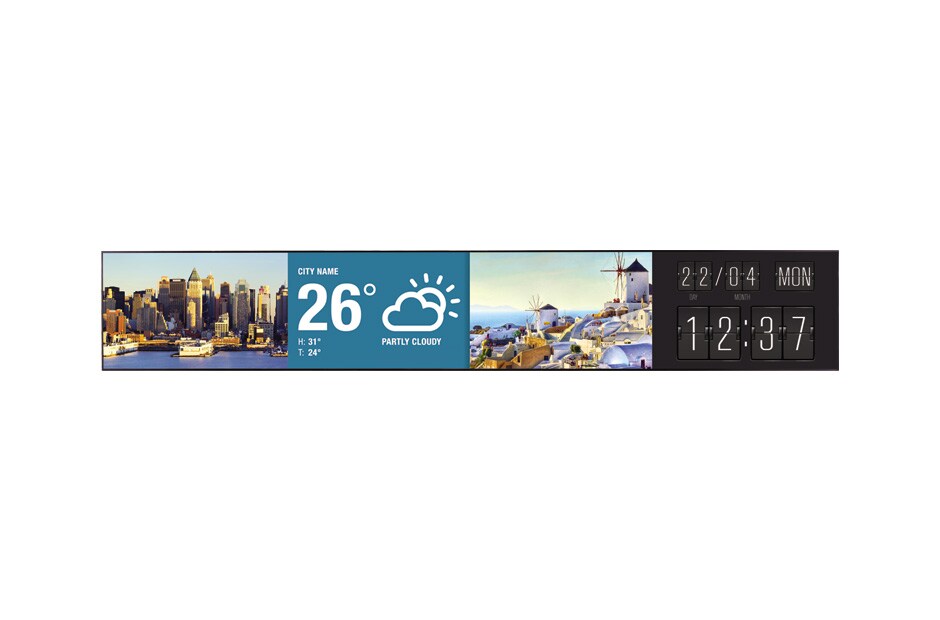

86BH5C Series

New Design Confi guration

Ultra HD Resolution (3840 x 600)

Ultra HD large screens deliver an immersive
viewing experience.

New Design Configuration

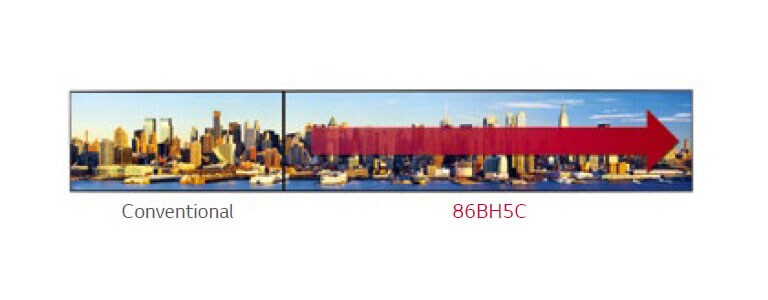

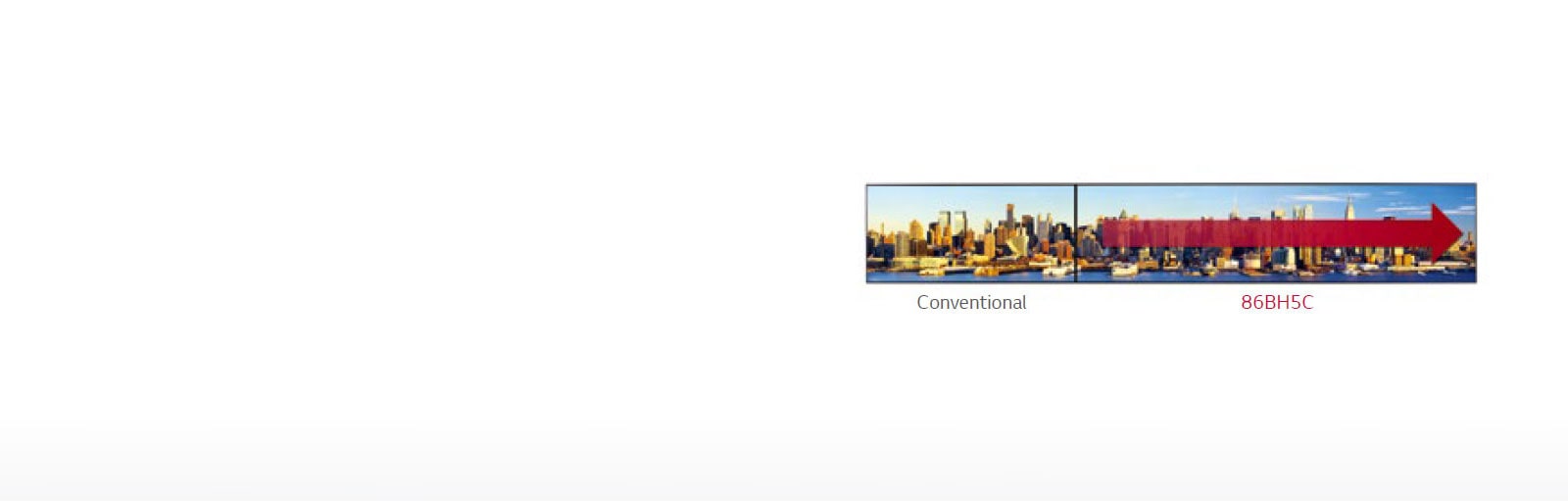

58:9 Extended Wide Format

Dynamic content is delivered on one screen since the new
widescreen format is a 58:9 bar- type display.

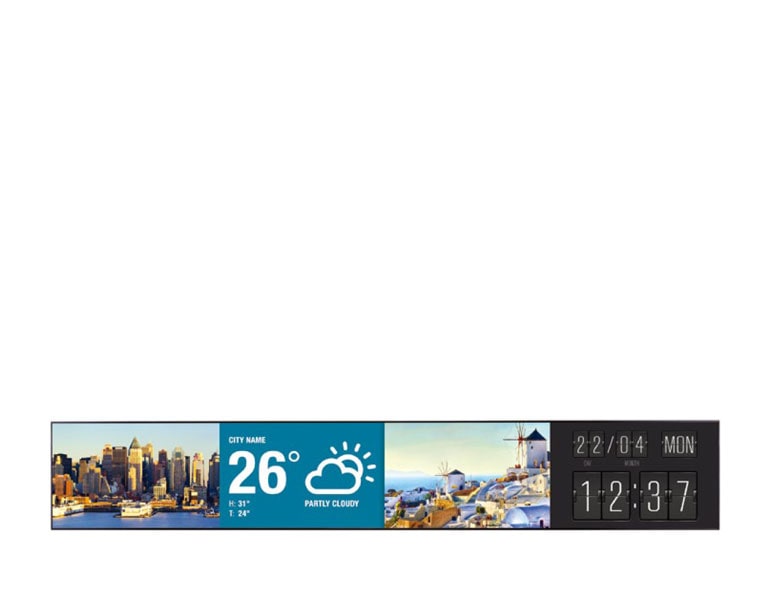

Multiple Screens

4 Divided PBP in Landscape or Portrait
The Picture-by-Picture (PBP) feature allows you to divide a screen into four parts in landscape or portrait installations.

Content Management

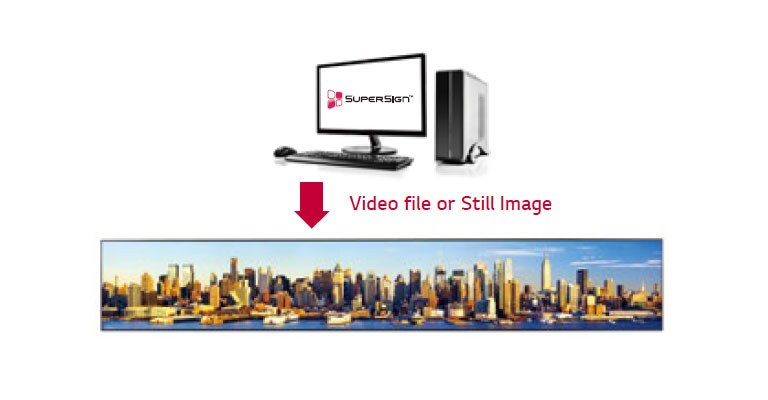

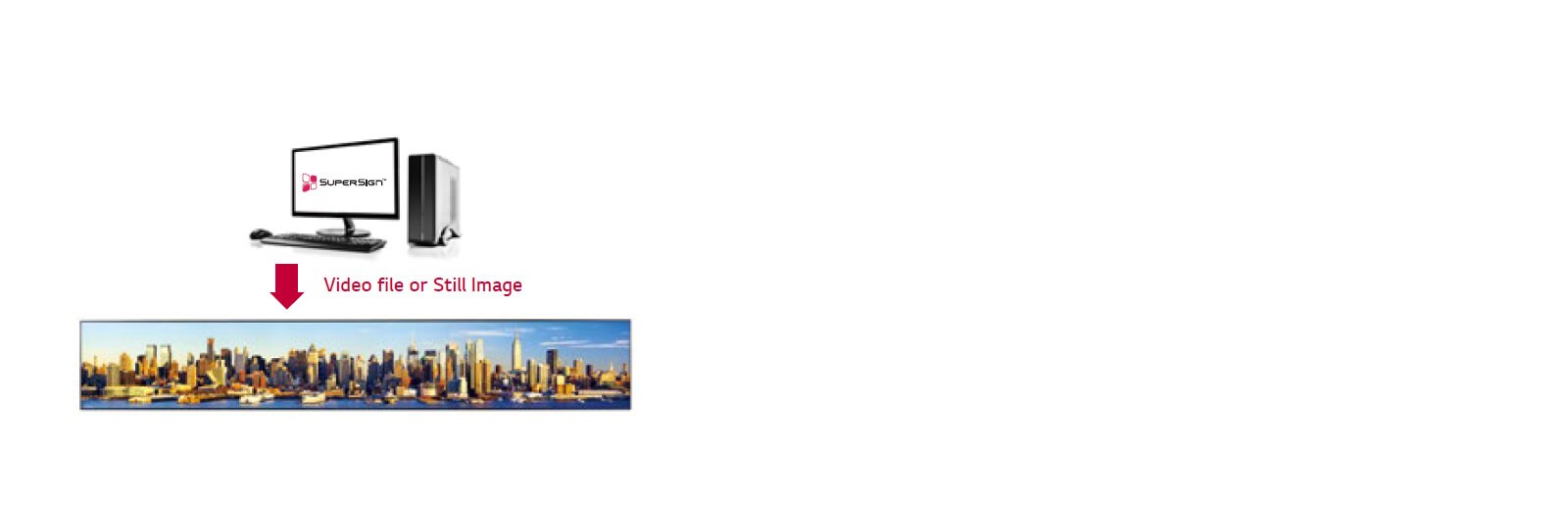

58:9 Content Editing

With the LG SuperSign media editor, you can easily edit
images or video clips of original content without any
additional editing programs.

Content Management

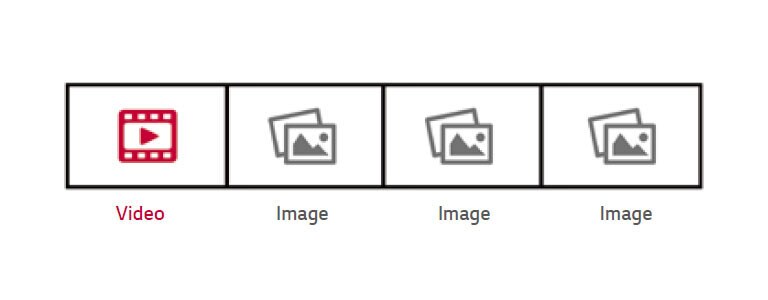

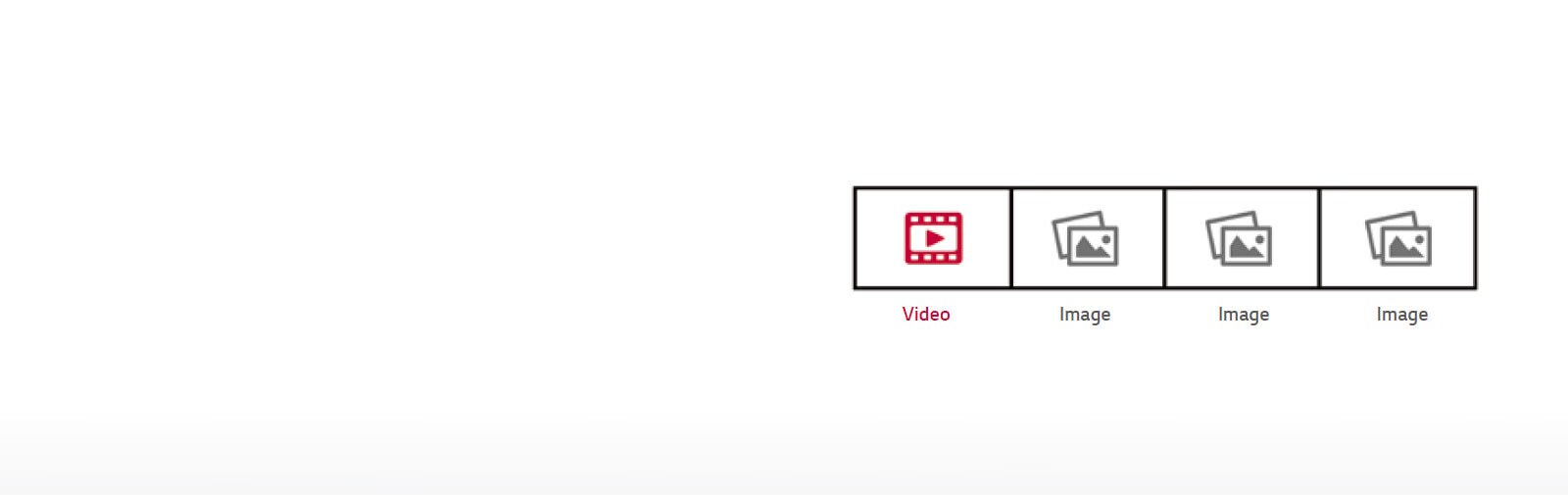

Multiple Content Creation

Users can edit content that consists of one video and several
still images (up to 20) with SuperSign Editor.

Convenient Connectivity Support

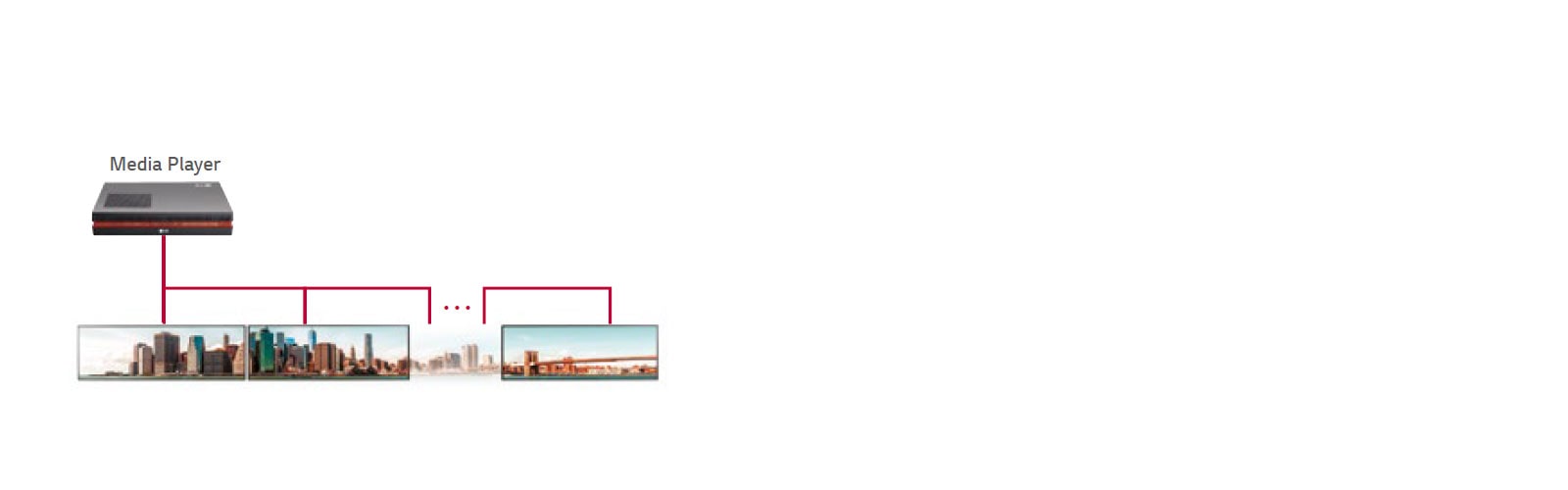

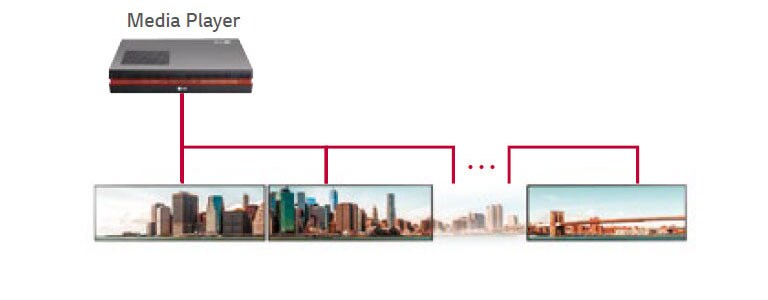

Tiling Scene with Daisy Chain

This product supports lateral tiling for 1x4 or 4x1
installations (landscape or portrait), and up to a 4x4
installation with a daisy chain confi guration.

Convenient Connectivity Support

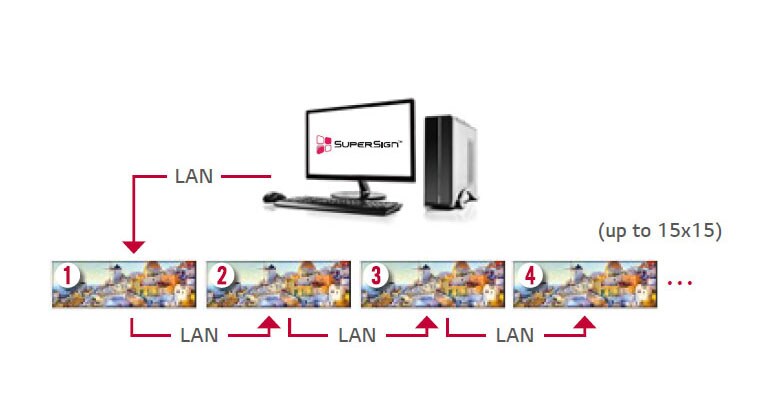

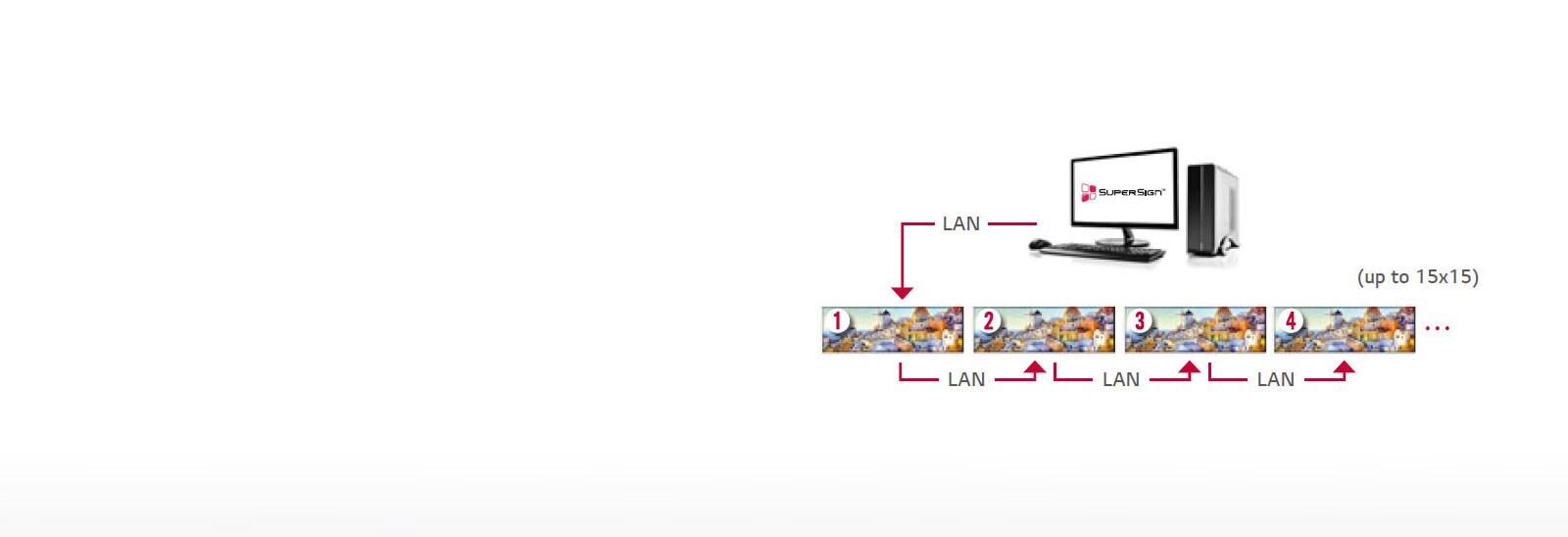

LAN Daisy Chain

The LAN daisy chain allows you to control and monitor devices,
distribute content, and even update fi rmware.

Easy Installation

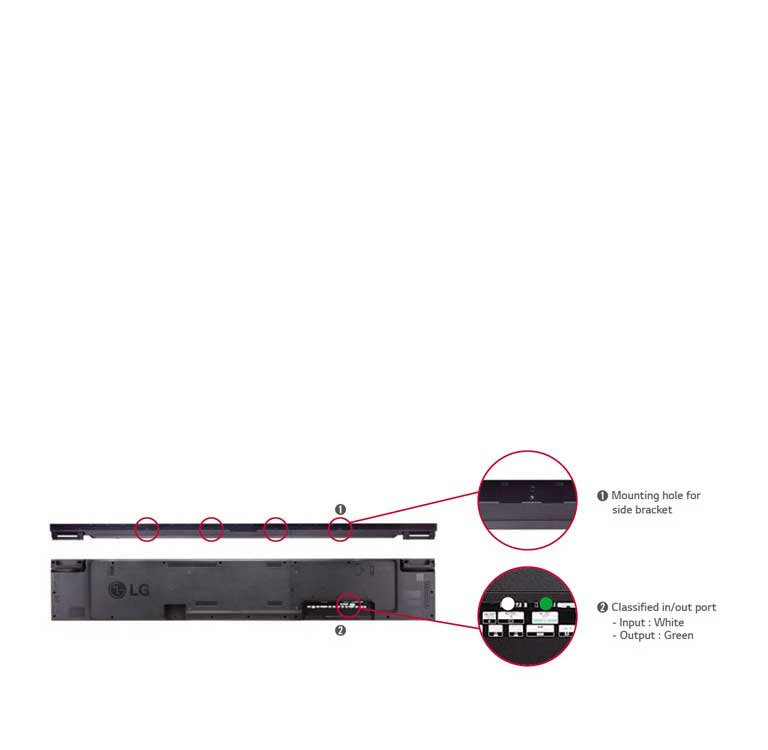

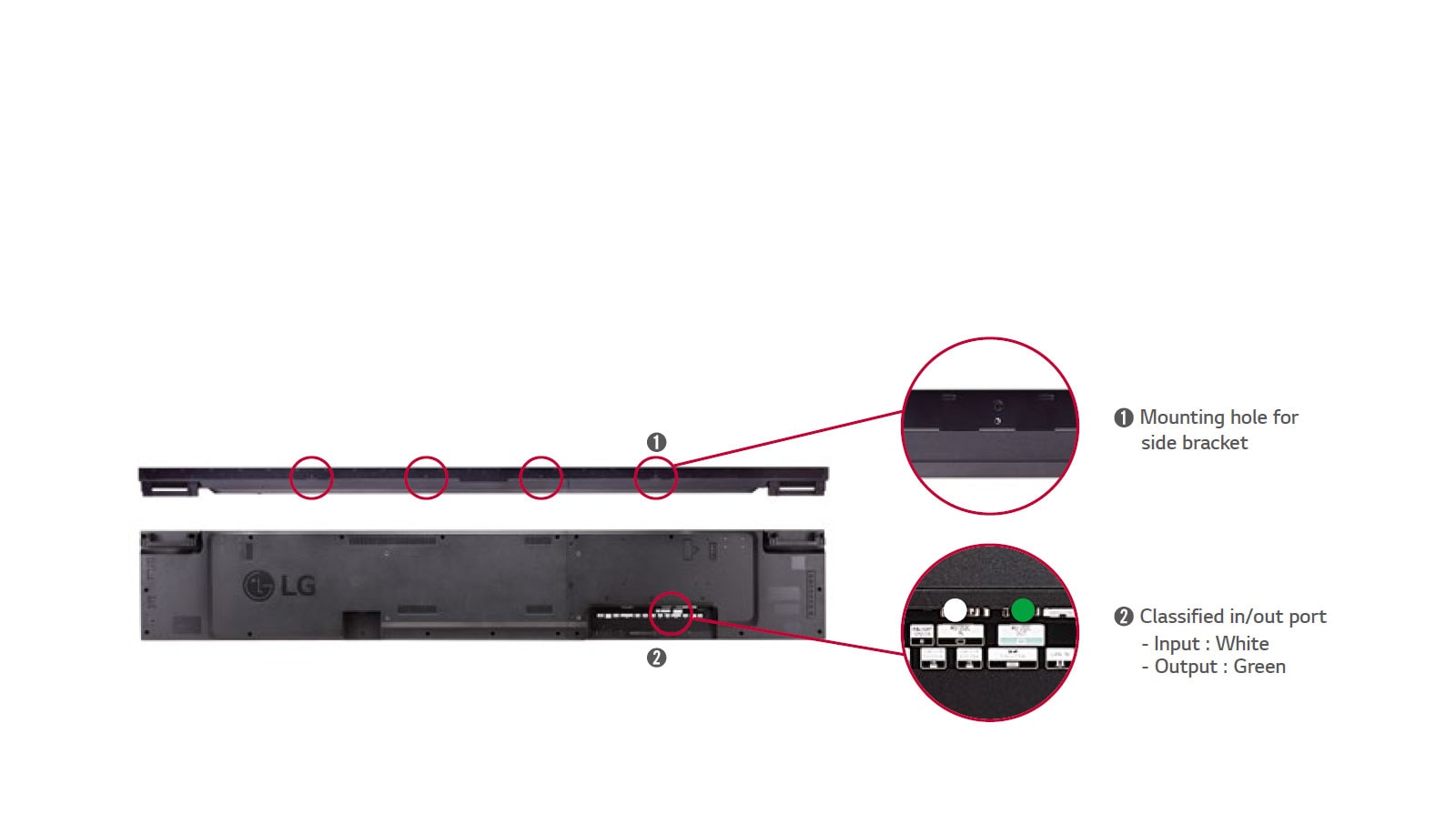

Side Bracket / Classifi ed Port
This product supports side brackets for buried installations. The
classified in/out port prevents errors when connecting a daisy chain.

PANEL

Screen Size

86"

Resolution

3,840 x 600 (UHD)
Brightness

Typ: 500cd/m2, Min : 400cd/m2

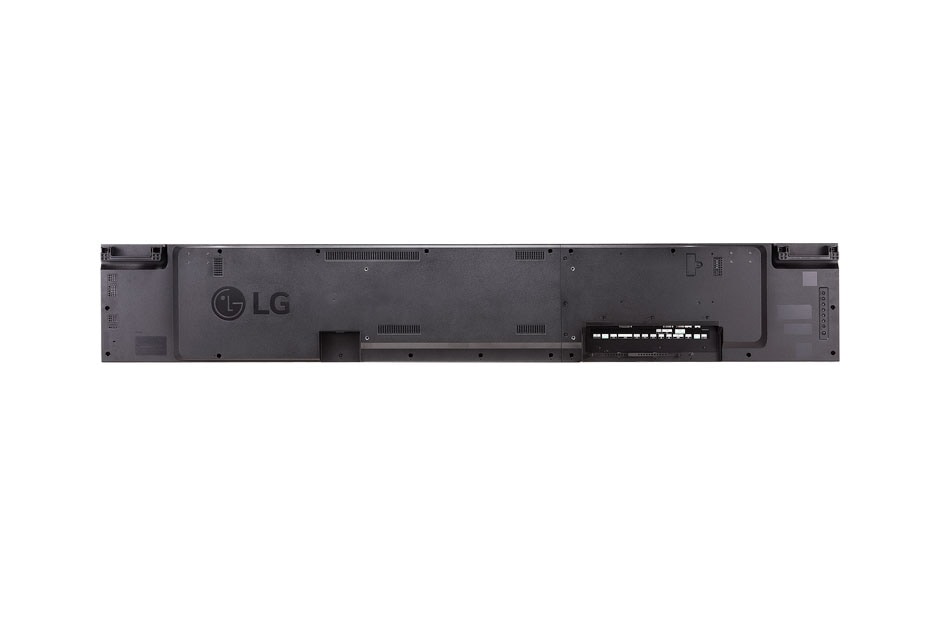

CONNECTIVITY

Input

HDMI, DP, OPS, DVI-D, USB2.0, USB3.0, SD Card

Output

Analog Audio
External Control

RS232C, RJ45, IR+B Receiver, Pixel Sensor, Analog Audio

PHYSICAL SPECIFICATION

Bezel Width

4.4mm (L/R), 5.9mm (T/B)

Monitor Dimension (W x H x D)

2,158.3 x 348.5 x 81.7mm
Weight (Head)

20.5kg

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

STANDARD(CERTIFICATION)

Safety

UL / cUL / CB / TUV / KC

EMC

FCC Class "A" / CE / KCC
ErP / Energy Star

NA / NA

MEDIA PLAYER COMPATIBILITY

OPS type compatible

Yes

External Media player Attatchable

No

SOFTWARE COMPATIBILITY

SuperSign-w lite

Yes

SuperSign-c

Yes

ACCESSORY

Basic

Remote Controller (2ea Batteries included), Power Cord, DP (3M), RS-232C Cable (3M), Owner's Manual (Website upload)

Optional

AN-WF500 (WiFi USB Dongle), MP700, KT-OPSA (OPS KIT), KT-SP0 (RGB Sensor) ** Stand is not available
