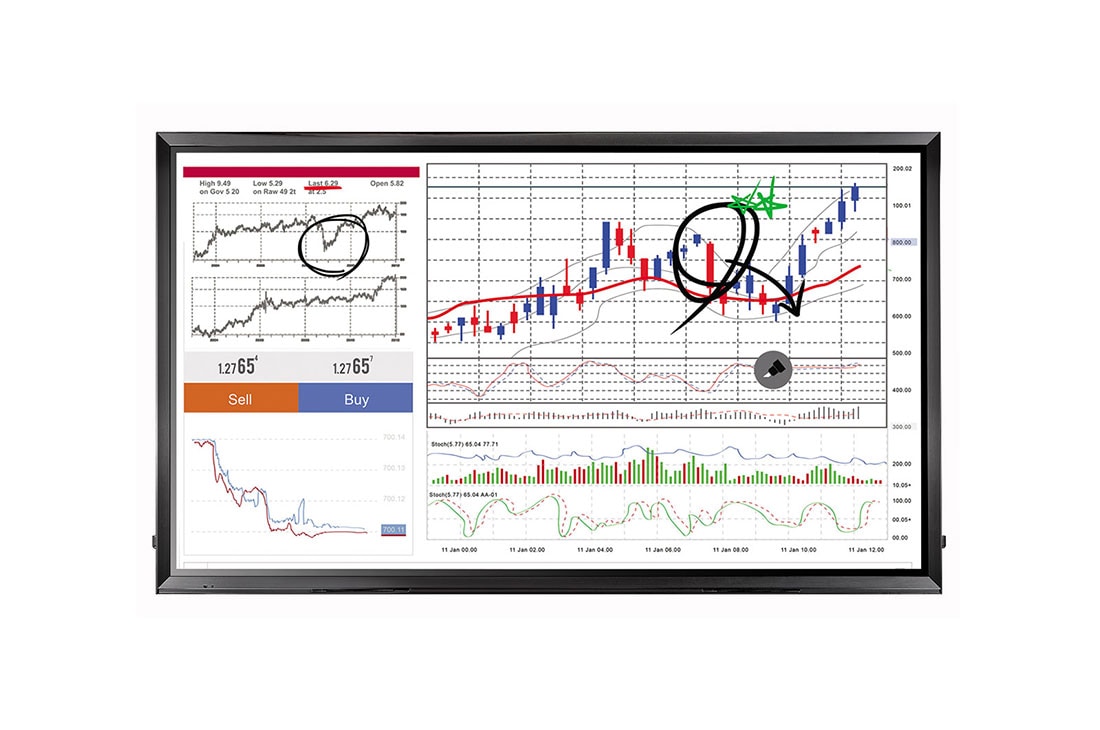

ADD TO WISHLIST

Discontinued

86TR3E-B component-copyModelName

Interactive Digital Board

LG Interactive Digital Board, 86TR3E-B, thumbnail 1

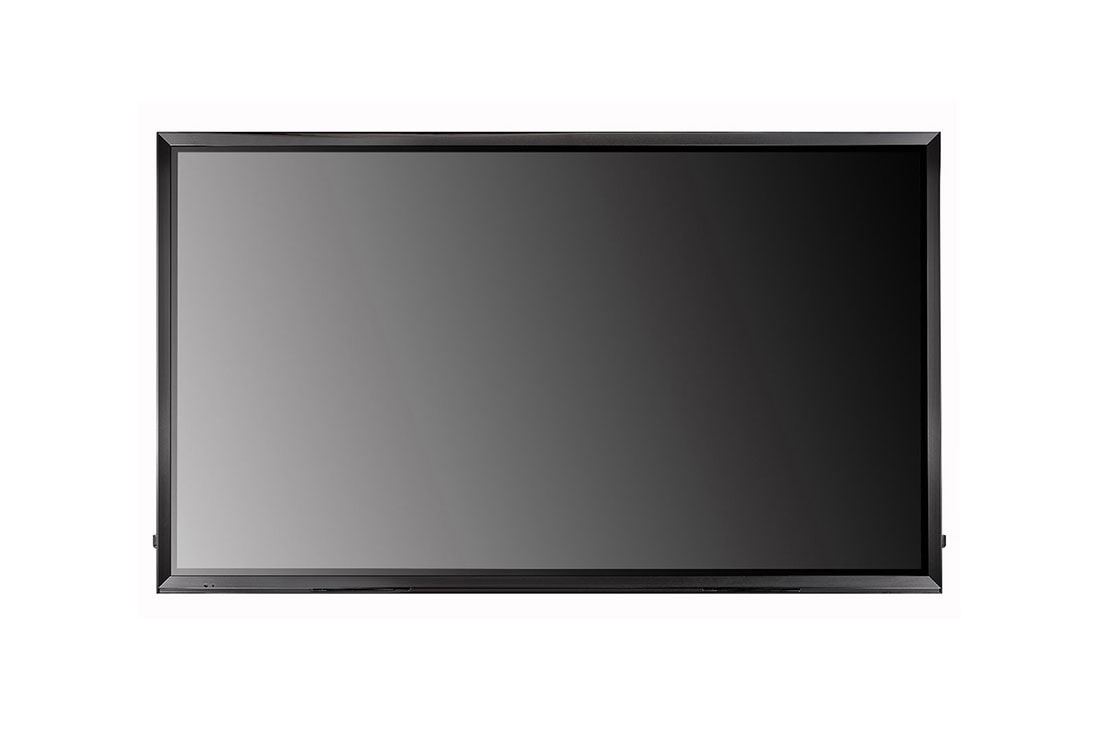

LG Interactive Digital Board, 86TR3E-B, thumbnail 2

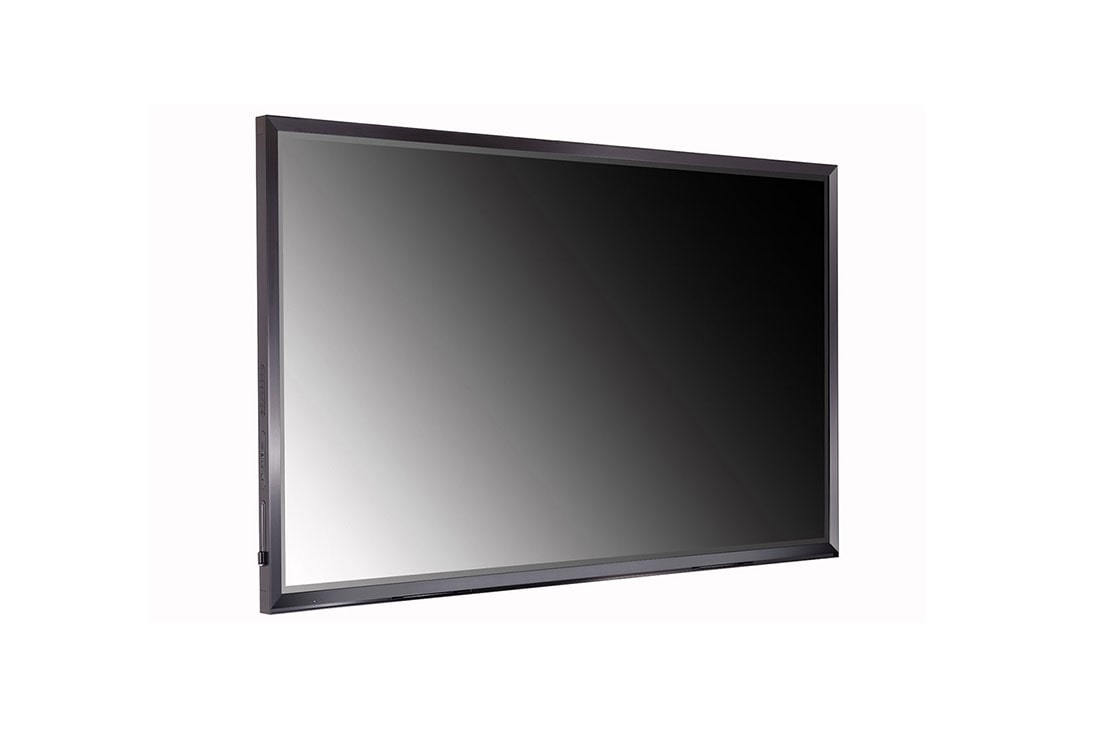

LG Interactive Digital Board, 86TR3E-B, thumbnail 3

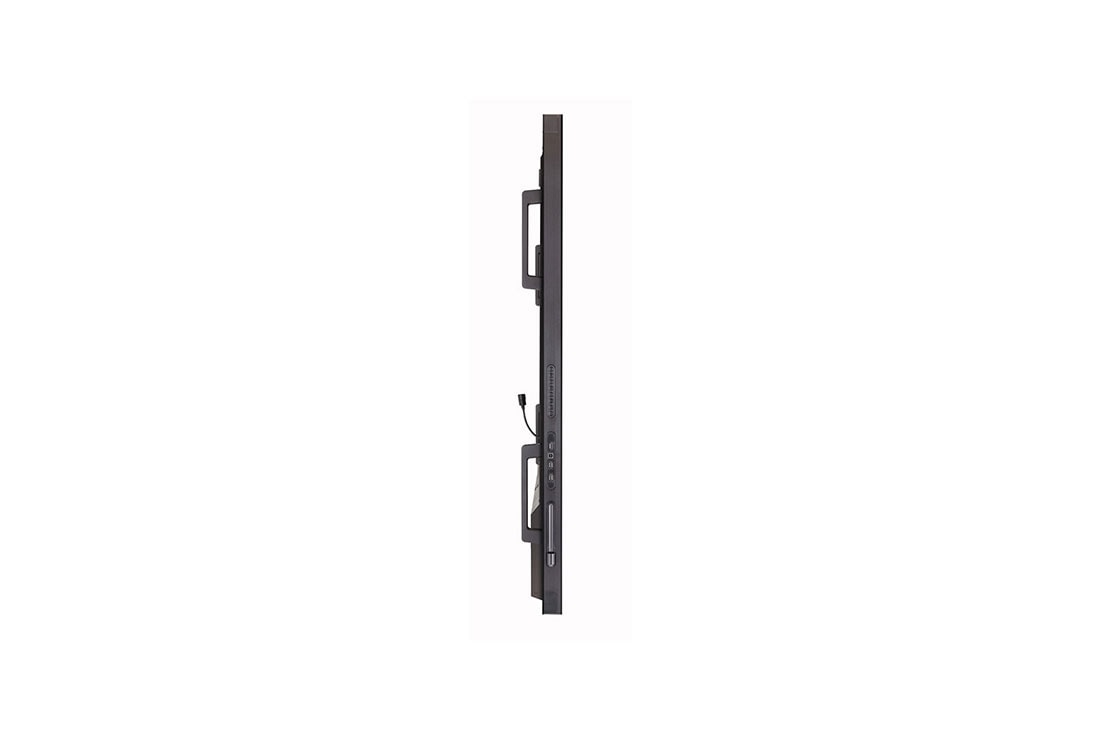

LG Interactive Digital Board, 86TR3E-B, thumbnail 4

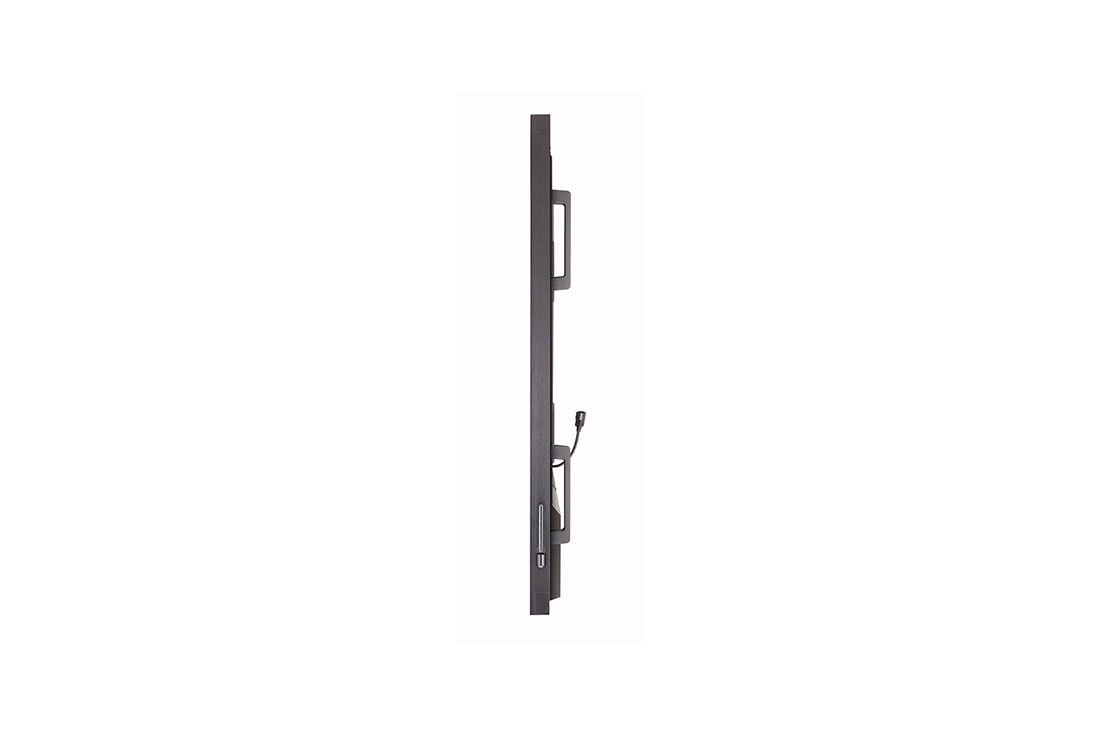

LG Interactive Digital Board, 86TR3E-B, thumbnail 5

LG Interactive Digital Board, 86TR3E-B, thumbnail 6

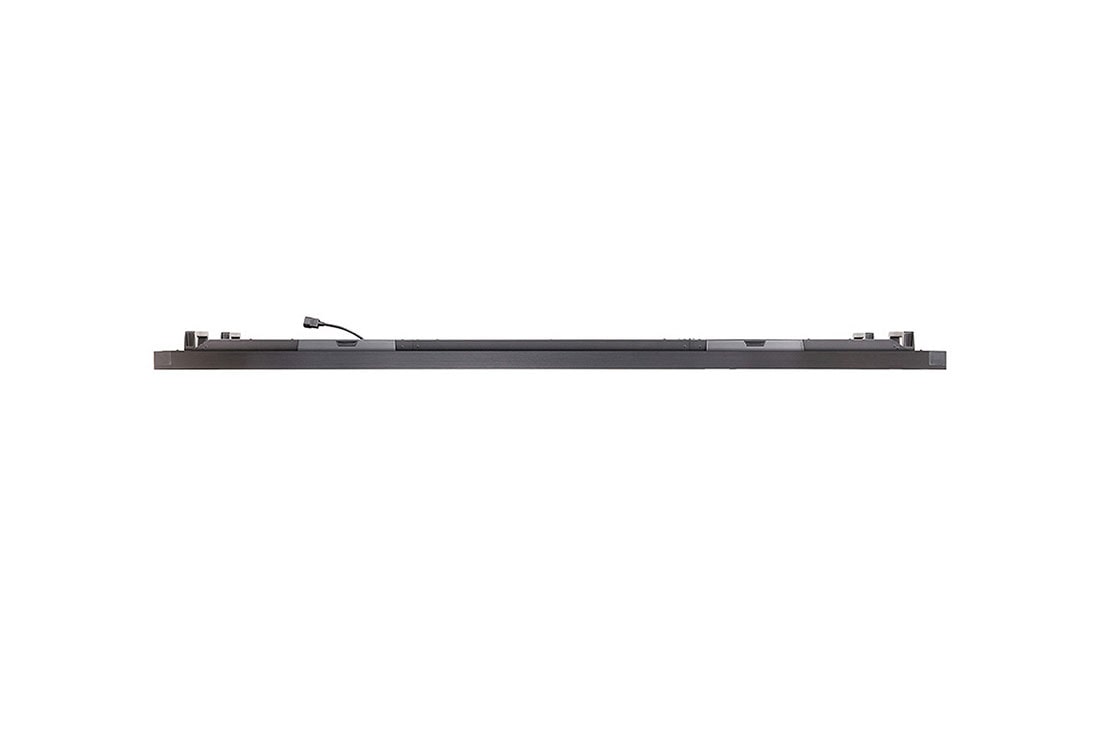

LG Interactive Digital Board, 86TR3E-B, thumbnail 7

ADD TO WISHLIST

Discontinued

86TR3E-B component-copyModelName

Interactive Digital Board

Key Features

Brightness(Typ.): 410cd/m²
Touch Type: InGlass™
Multi touch point: Max 20 Point
Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch USB (2), Wi-fi Built-in

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.): 410cd/m²
Touch Type: InGlass™
Multi touch point: Max 20 Point
Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch USB (2), Wi-fi Built-in

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Interactive Digital Board

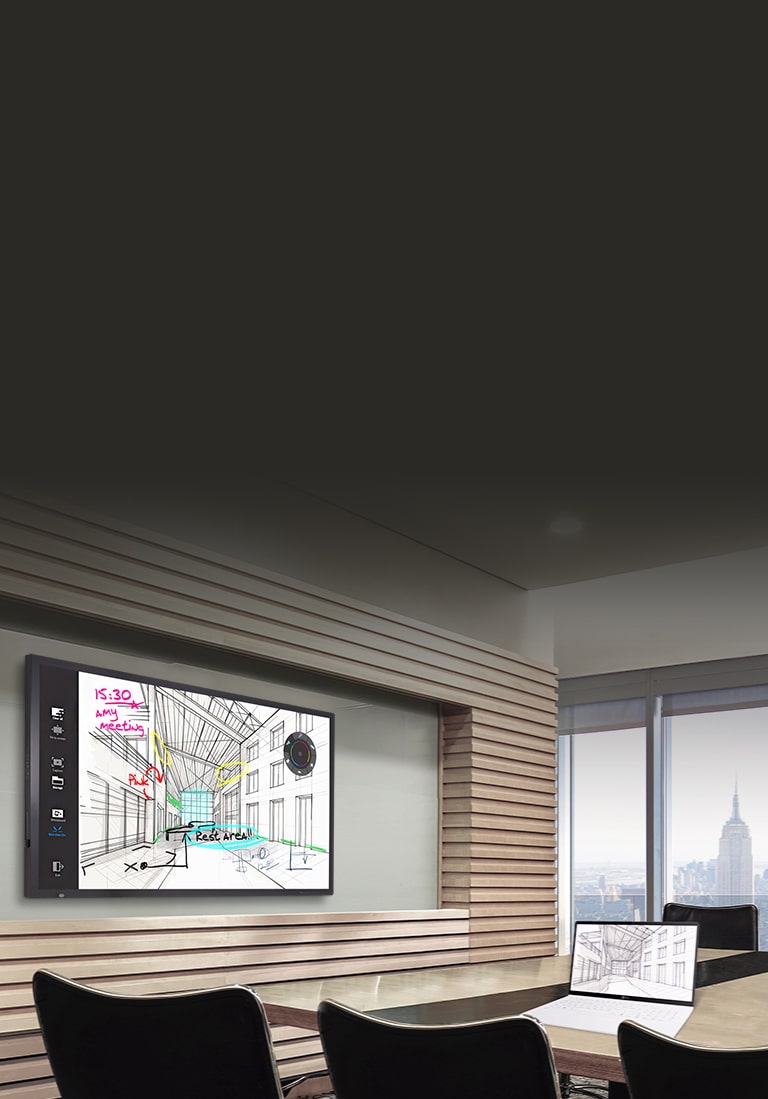

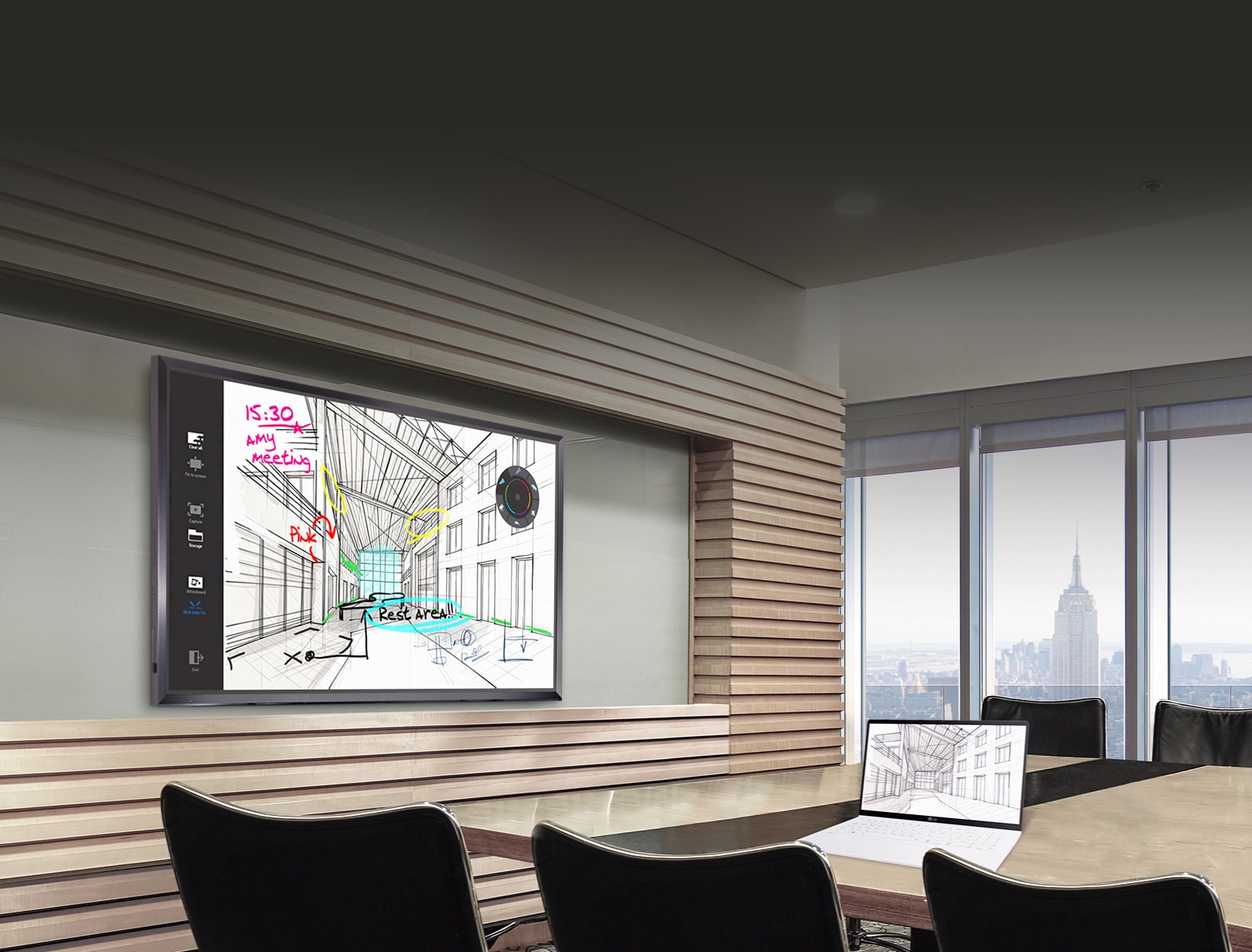

Embedded LG IDB App & webOS

Be Smarter and Simpler with LG IDB

IDB app makes it possible to write and collaborate on Interactive Digital Board(IDB) without the need for a PC or additional licenses for writing/collaboration solutions based on the webOS smart platform.

Outstanding Touch Performance

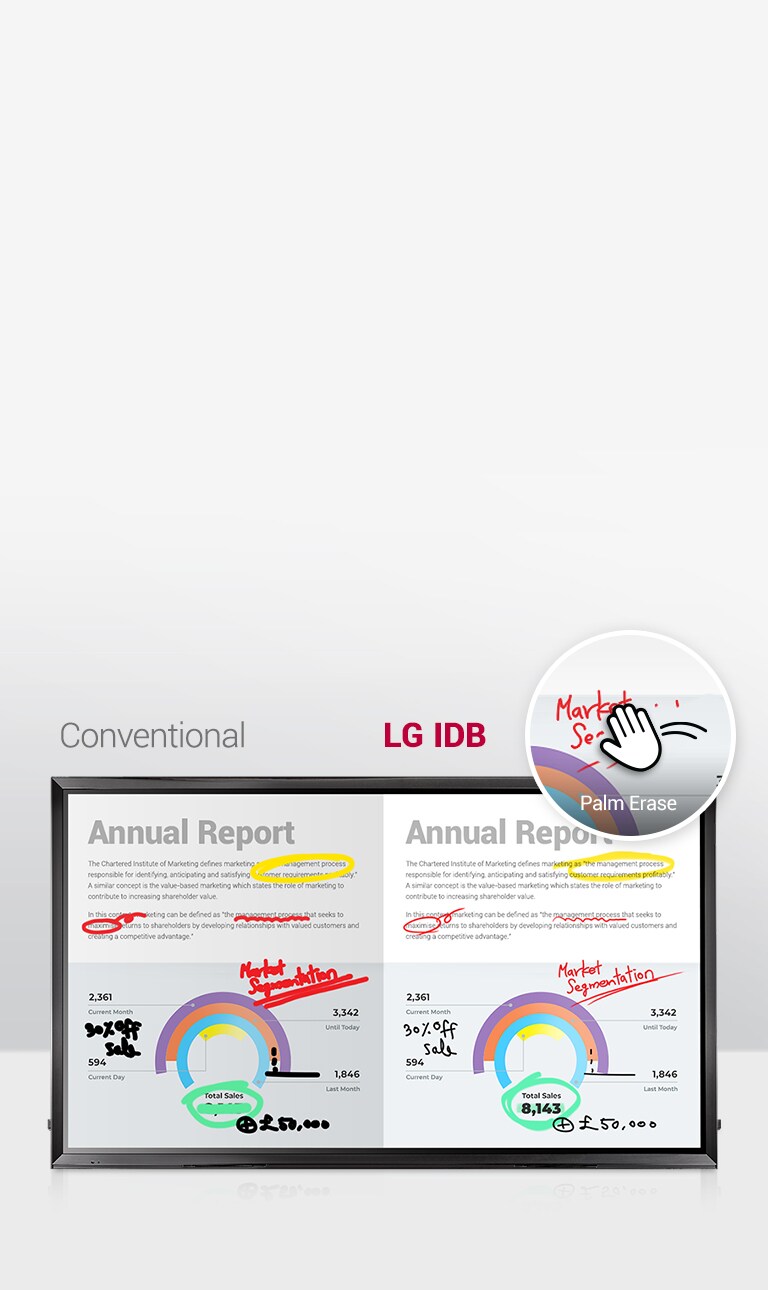

Intuitive Touch and Writing

The most advanced touch technology, InGlass™, enables precise touch responses and detailed writing like a realistic handwriting. The thickness of the pen is adapted to the writing speed, and max. 20 point multi-touch is supported. All notes on IDB are simply erased with user's palm.

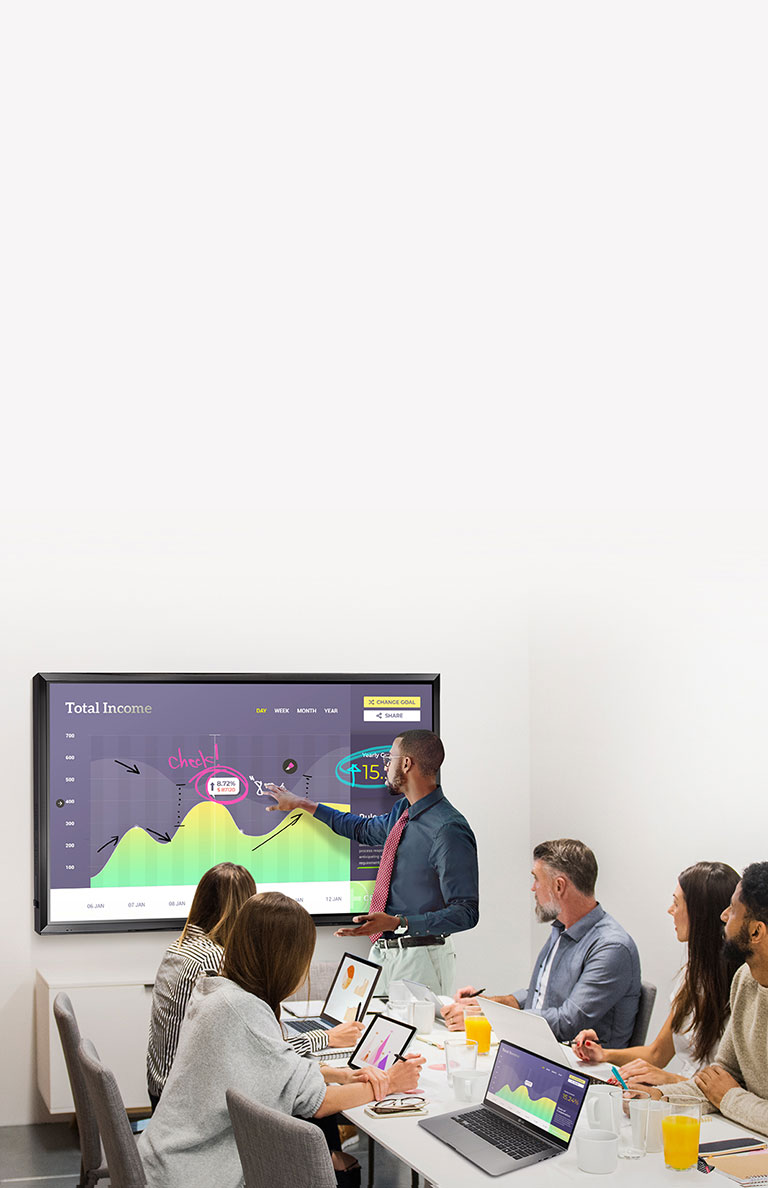

Efficient Collaboration

All-in-One Meeting Experience

For the effective collaboration, LG IDB combines whole processes which includes sharing screens of participants' laptops via wired/wireless* connection simultaneously, writing on the shared screen, and saving annotation.

*Installation of the PC client app(IDB Duo) is required. Go to the 'Tech Spec' section of this page for the minimum requirements and then download the app from the 'Buisness Resources' section.

UHD Resolution

The Superior Picture Quality

With the UHD resolution of LG IDB, users can view the content in fine detail even when zoomig in it on the display. It provides high-quality media experience with 4 times higher definition picture quality than FHD.

IPS Panel

True Colors and Wider View

The LG IPS panel has a wide viewing angle to deliver clear content regardless of the positions of meeting attendees. Moreover, each pixel of the IPS panel truly reproduces the image colors without distortion.

Auto Signal/Touch Switching

Quick and Easy to Share a Screen

The display can detect input/touch signals and automatically change the source if the new input has a higher priority than the previous source. It is a time-saving function for users to set-up the signals in conference.

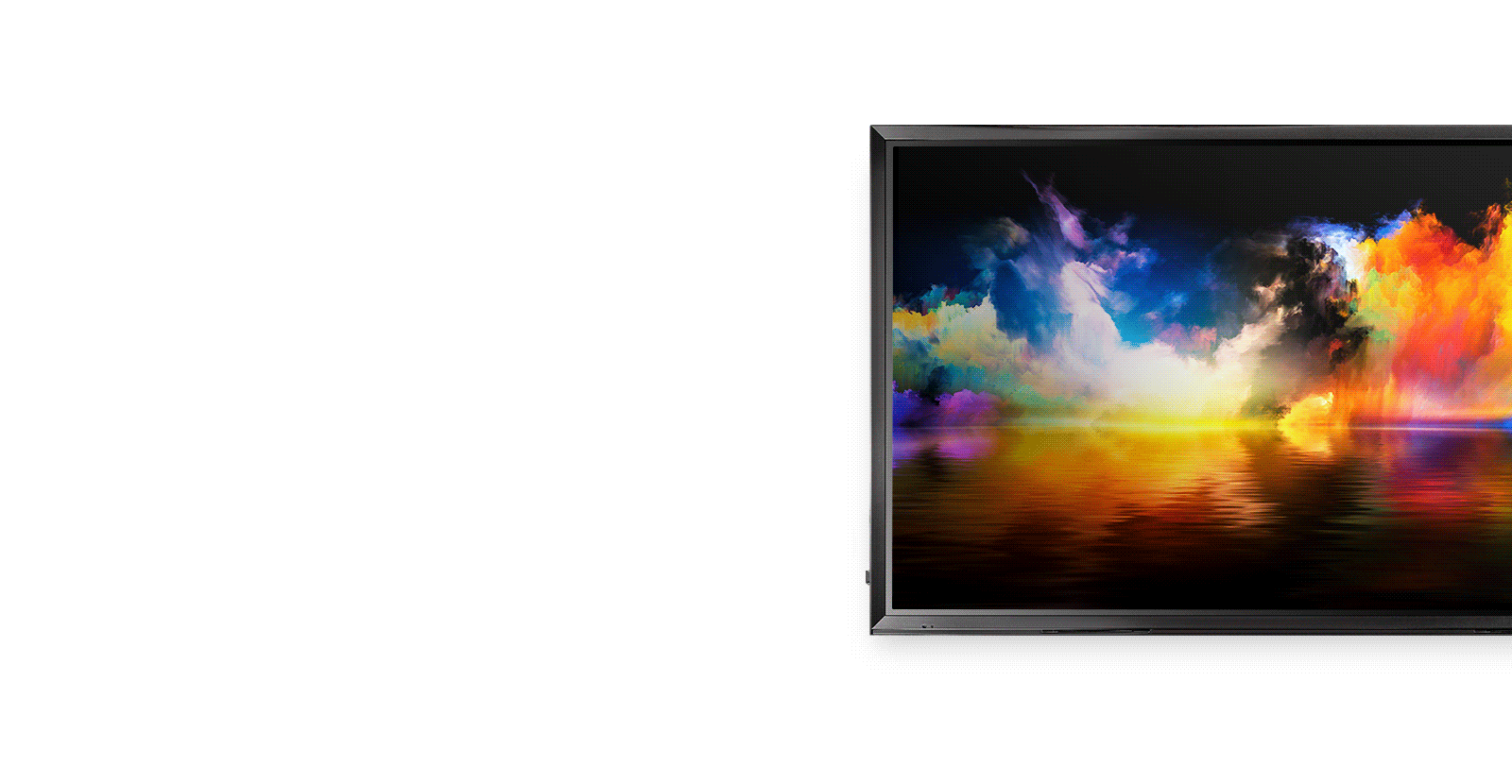

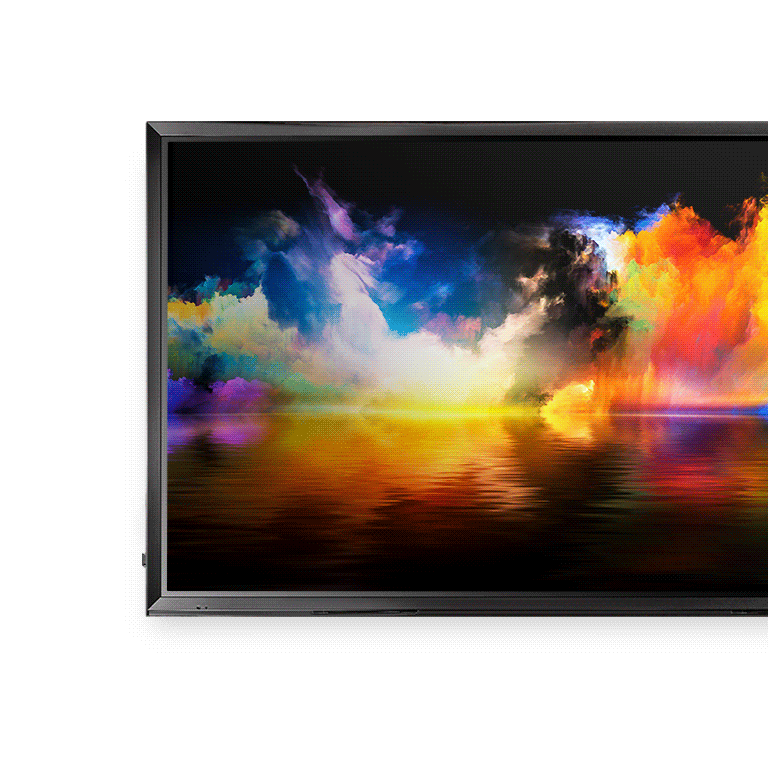

Assistive Touch Menu

Easy to Call and Control the Menu

For improving user-friendliness, LG IDB users can run the desired function or change the setting from anywhere by softly pressing the screen to call up the Touch Menu.

*The menu design(GUI) is subject to change without notice.

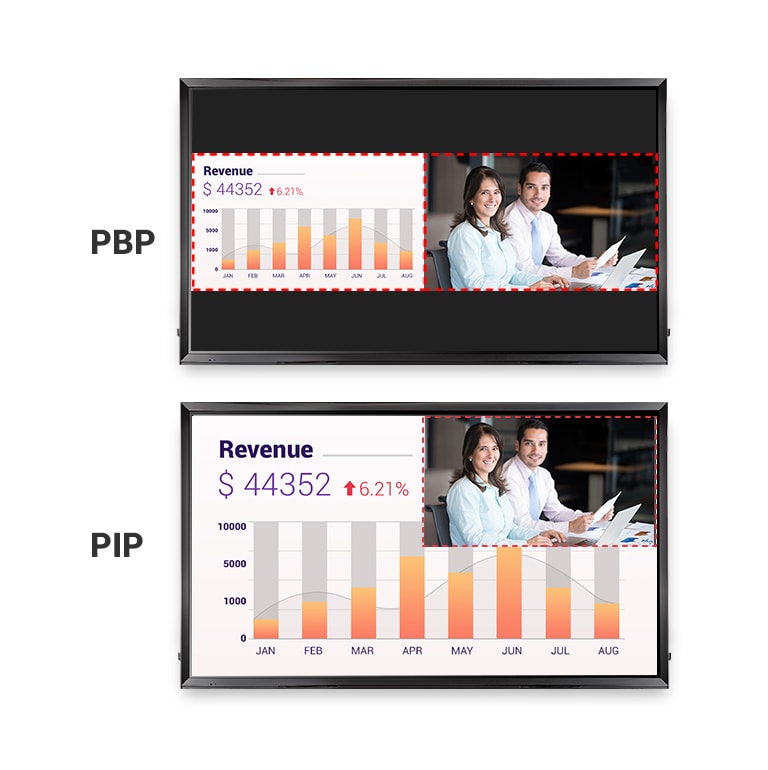

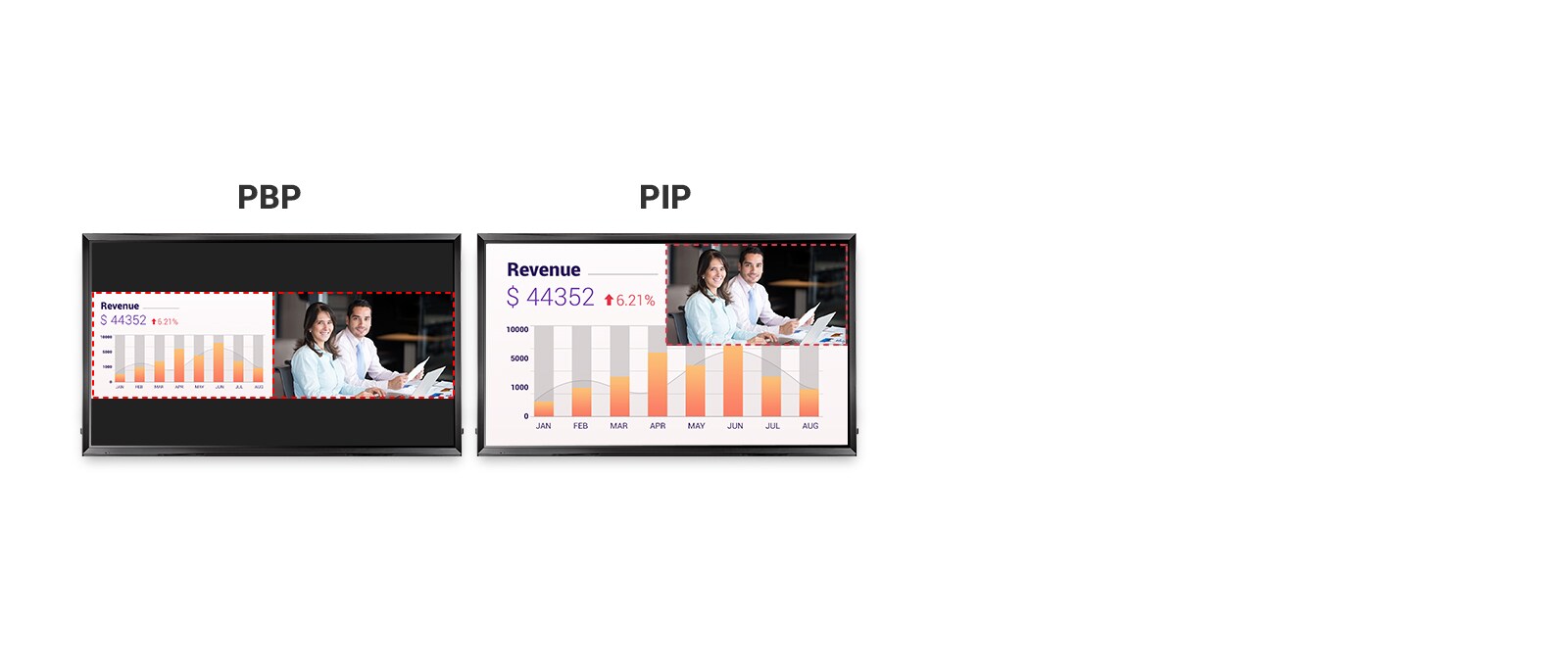

PBP/PIP

Enjoy
Multi Screens

PBP/PIP enables two different content sources to be displayed in various layout settings including full screen, original ratio, and sub screen modes. This gives great flexibility to users to allocate space for each content source.

PANEL

Screen Size

86"

Brightness(Module, Typ., cd/m²)

410

CONNECTIVITY

Input

HDMI (3), DP, DVI-D, RGB, Audio, USB 3.0, USB 2.0, OPS USB 2.0

Output

Touch USB 2.0 (2)

PHYSICAL SPECIFICATION

Bezel Width

50.7mm (T/L/R), 62.2mm (B)

Monitor Dimension (W x H x D)

2,026.9 x 1,180.3 x 79.5 mm (w/o Handle)
Weight (Head)

85.8kg

Carton Dimensions (W x H x D)

2,190 × 1,470 × 371 mm
Packed Weight

114.6kg

VESA™ Standard Mount Interface

600 x 400 mm

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10% to 80%

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign Premium

Control and Monitoring Software

SuperSign Link

MINIMUM REQUIREMENTS FOR LG IDB DUO

OS (Windows 32bit or 64bit)

Windows 7, Windows 10

OS (macOS)

macOS 10.12 Sierra, MacOS 10.13 High Sierra
CPU (Windows)

2.7GHz+ Dual Core Broadwell or higher

CPU (macOS)

Any CPU which supports Sierra or High Sierra
Memory

4GB RAM

Hard Drive

1GB of free space
Graphics Hardware (Windows)

Intel Iris or higher, Nvidia, ATI

Graphics Hardware (macOS)

Any GPU which supports Sierra or High Sierra

ACCESSORY

Basic

Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Eyebolt (2ea)

Optional

OPS Kit (KT-OPSA)

TOUCH

Touch type

InGlass™

Available object size for touch

more than Ø 3mm
Accuracy

2mm

Interface

USB 2.0
Protection Glass Thickness

4T (Anti-Glare)

Multi touch point

Max 20 Point
