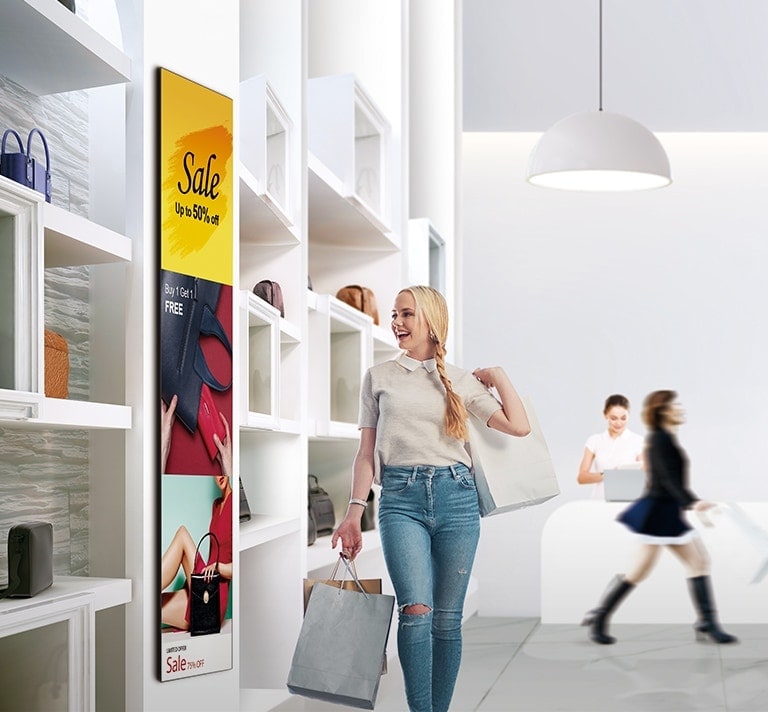

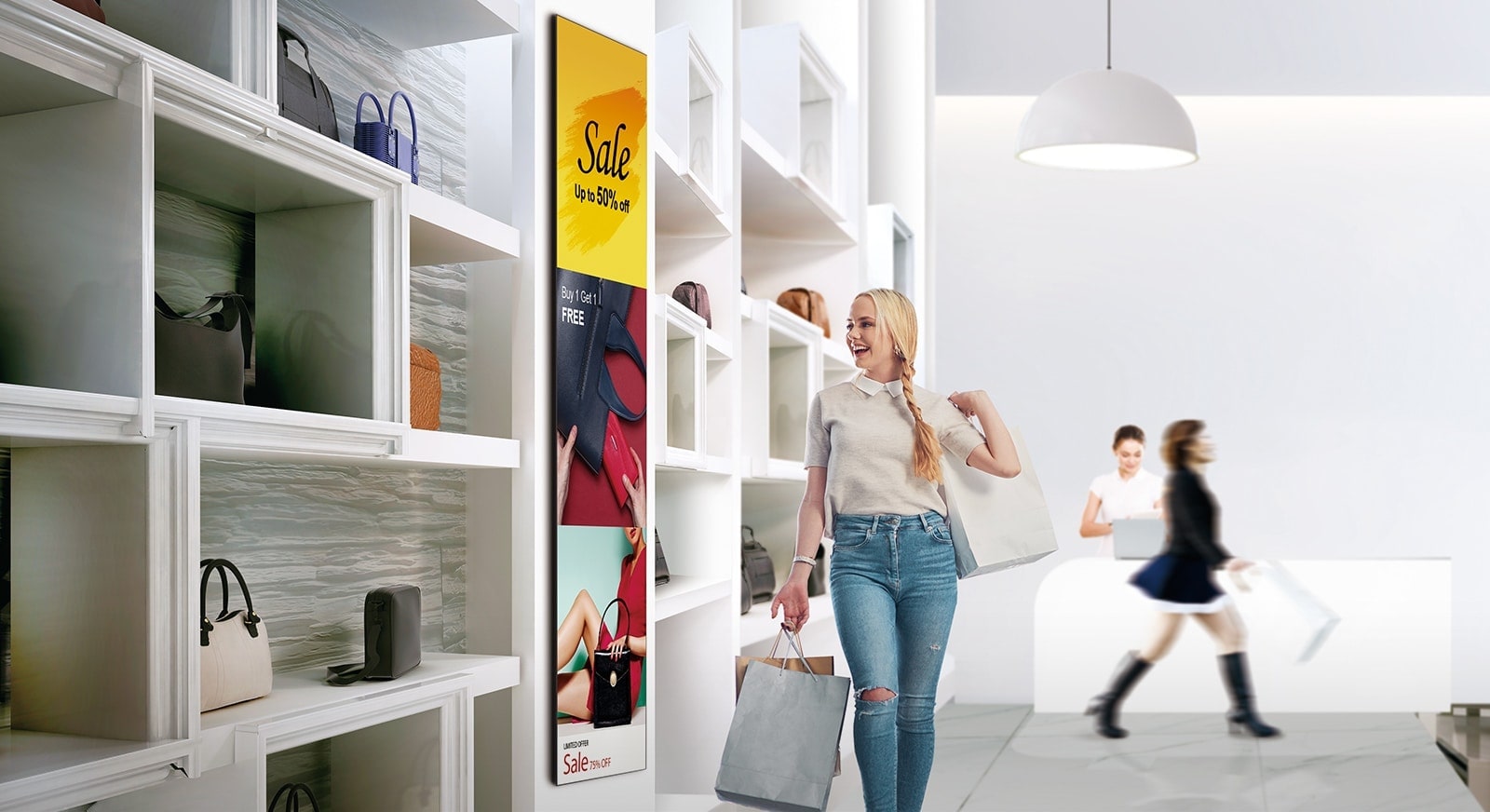

Ultra Stretch Signage

Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen

The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.
Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen1 Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen2
* All images in this page are for illustrative purposes only.
58:9 Extended Wide Format1 58:9 Extended Wide Format2

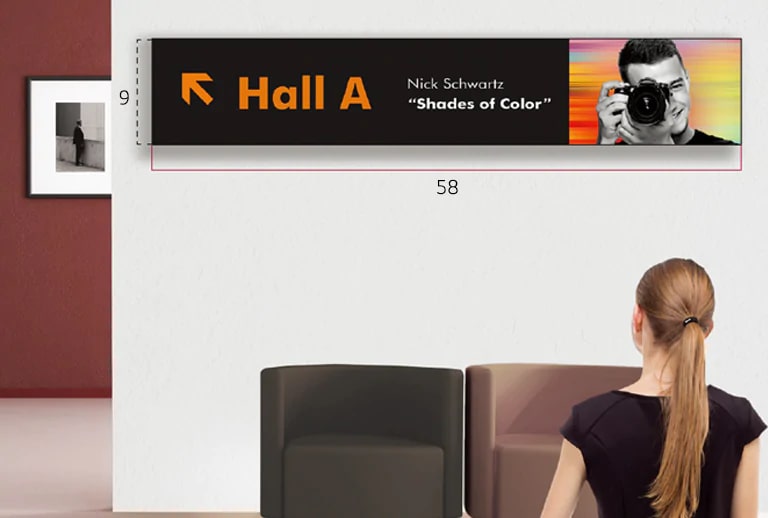

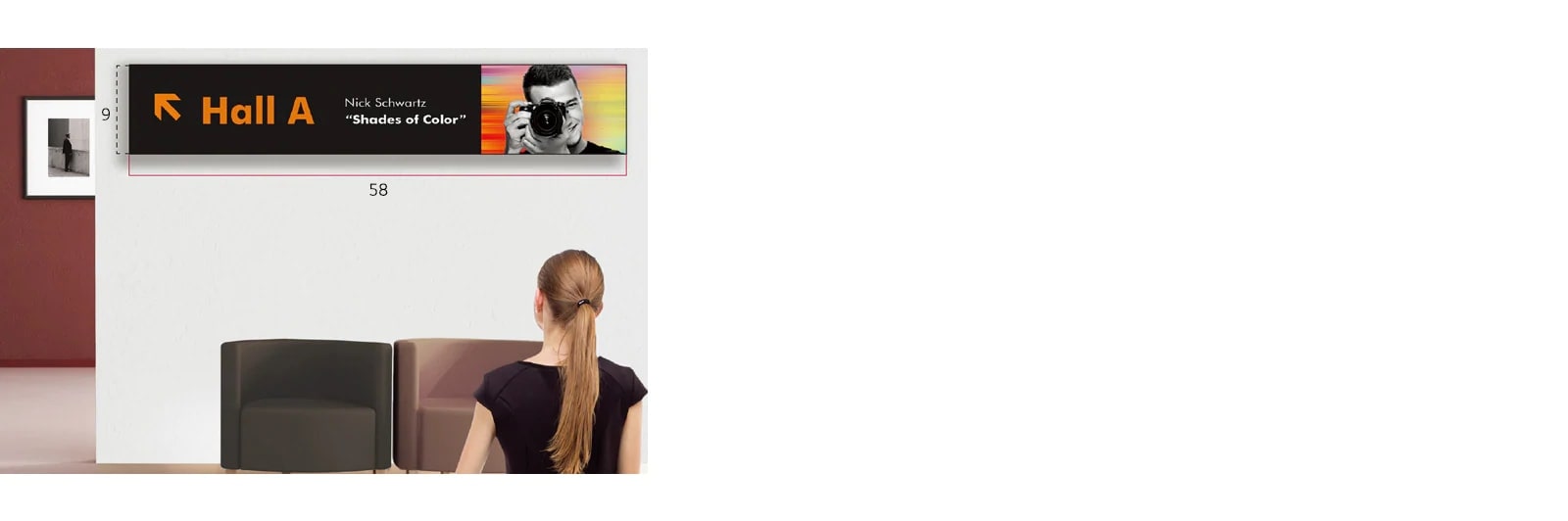

58:9 Extended Wide Format

It is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content* than the conventional display of 16:9 ratio.
* Video content only. (Images not supported)

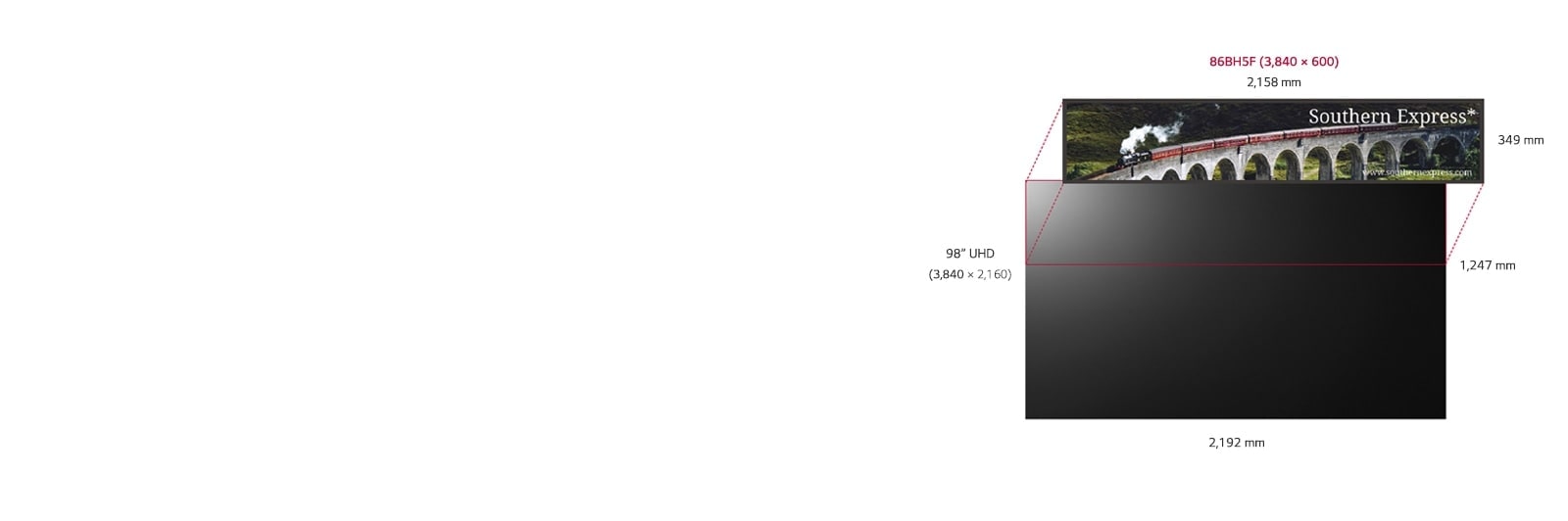

Ultra HD Resolution (3,840 x 600)1 Ultra HD Resolution (3,840 x 600)2

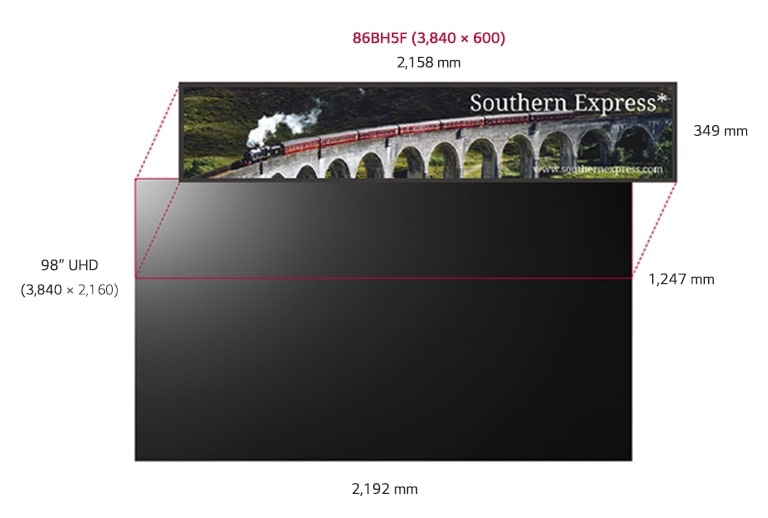

Ultra HD Resolution (3,840 x 600)

Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.
Multi Screen Mode with 4PBP1 Multi Screen Mode with 4PBP2

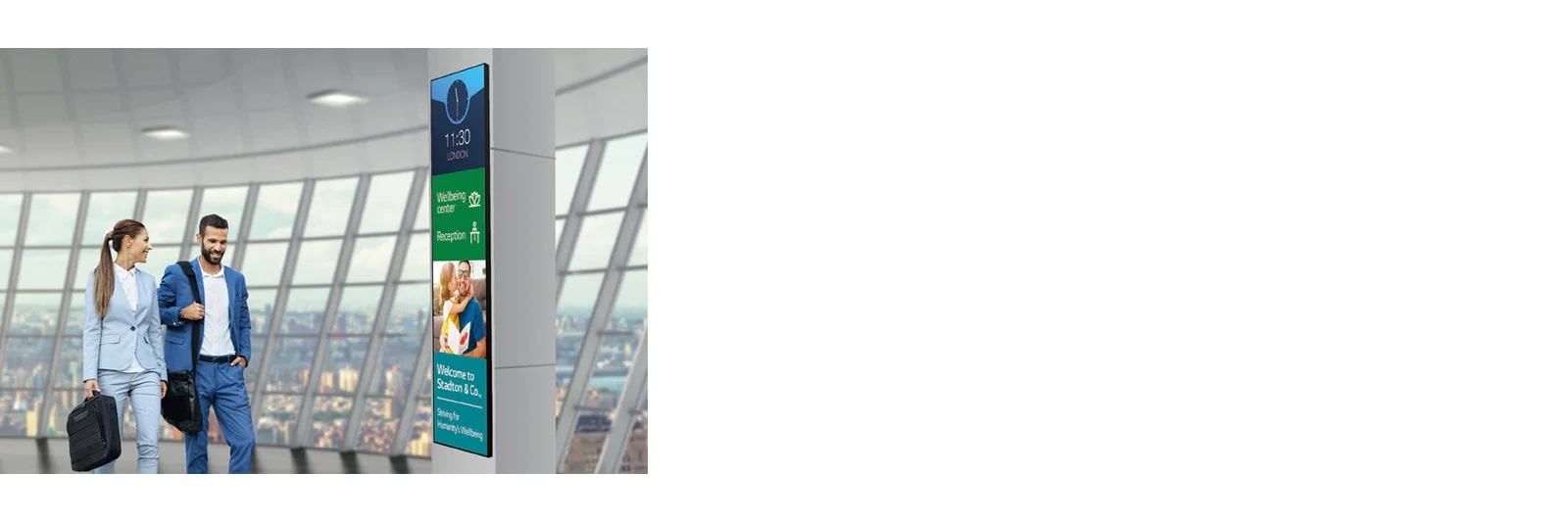

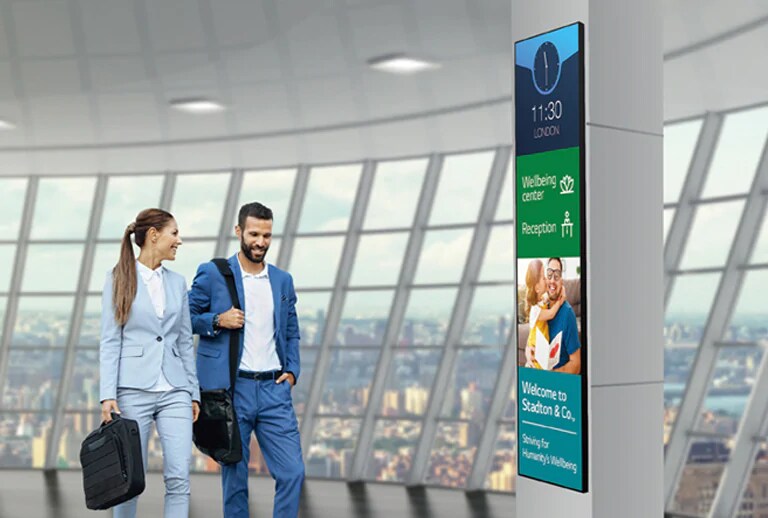

Multi Screen Mode with 4PBP

The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.
Tiled Scene with Immersive View1 Tiled Scene with Immersive View2

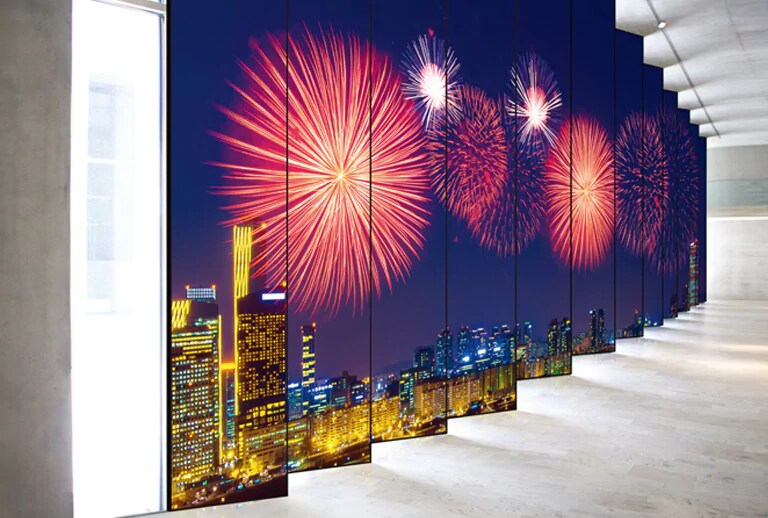

Tiled Scene with Immersive View

The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.

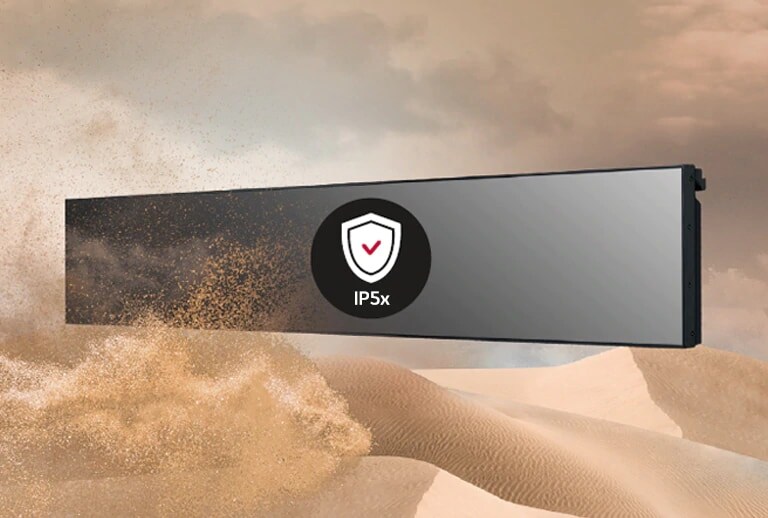

IP5x Certified Design1 IP5x Certified Design2

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
User-Friendly UX1 User-Friendly UX2

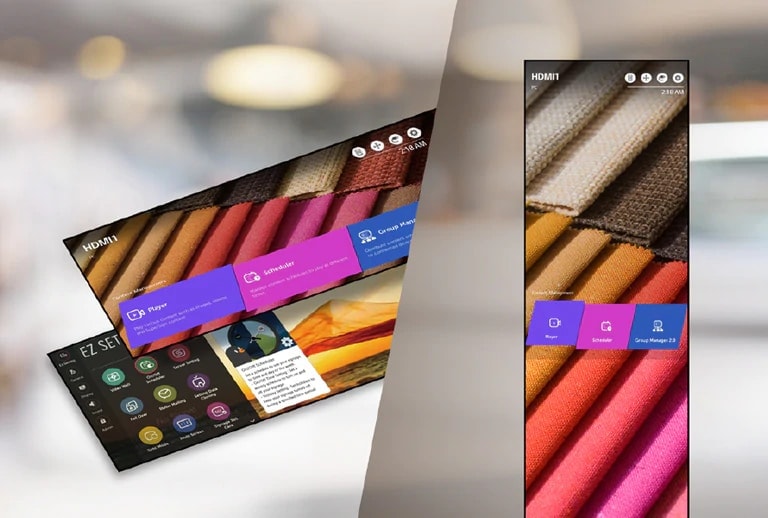

User-Friendly UX

The 86BH5F is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD* can also be adjusted accordingly.
*OSD : On Screen Display

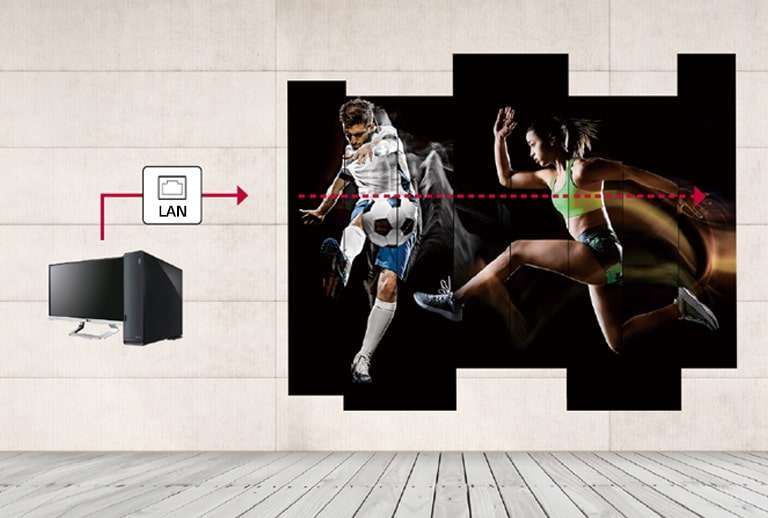

LAN Daisy Chain Management1 LAN Daisy Chain Management2

LAN Daisy Chain Management

By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.
Real-Time Monitoring with ConnectedCare1 Real-Time Monitoring with ConnectedCare2

Real-Time Monitoring with ConnectedCare

Easier and faster maintenance are available with our optional cloud service solution ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
* ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.
Close
PANEL
  • Screen Size
    86"
    Panel Technology
    IPS
  • Aspect Ratio
    58:9
    Native Resolution
    3840 x 600
  • Refresh Rate
    60Hz
    Brightness(Typ.,cd/m²)
    500nit (Typ.)
  • Contrast Ratio
    1,100:1
    Dynamic CR
    500,000:1
  • Color gamut
    NTSC 72%
    Viewing Angle (H x V)
    178 x 178
  • Color Depth
    10bit, 1.07Billion colors
    Response Time
    8ms(G to G)
  • Surface Treatment(Haze)
    10%
    Operation Hours (Hours/Day)
    24/7
  • Portrait / Landscape
    Yes / Yes
CONNECTIVITY
(JACK INTERFACE)-INPUT
  • Digital-HDMI
    Yes(3), HDCP2.2 / 1.4
    Digital-DP
    Yes(1), HDCP2.2 / 1.3
  • Digital-DVI-D
    Yes (1), HDCP1.4
    Audio In
    Yes(1)
  • RS232C IN
    Yes(1)
    RJ45(LAN)
    Yes(1)
  • IR IN
    Yes(1)
    USB
    USB2.0 Type A(2)
CONNECTIVITY
(JACK INTERFACE)-OUTPUT
  • DP Out
    Yes (1), Input : HDMI / DVI / DP
    Audio Out
    Yes(1)
  • RS232C OUT
    Yes(1)
    RJ45(LAN)
    Yes(1)
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    T/R/L/B : 5.9/4.4/4.4/5.9mm
  • Weight (Head)
    20.5 kg
    Monitor Dimensions (W x H x D)
    2158.3 x 348.5 x 81.7mm
  • Handle
    Yes
    VESA™ Standard Mount Interface
    600 x 200
KEY FEATURE
  • HW - Internal Memory
    8GB
    HW - Wi-Fi - Built-in
    Yes
  • HW - Sensor - Temperature Sensor
    Yes
    HW - Sensor - Auto Brightness sensor
    Yes
  • HW - Sensor - Current Sensor
    Yes
    HW - Local Key Operation
    Yes
  • SW - webOS ver.
    webOS 4.0 (SCAP : not support)
    SW - Embedded CMS - Local Contents Scheduling
    Yes
  • SW - Embedded CMS - Group Manager
    Yes
    SW - USB Plug & Play
    Yes
  • SW - Fail over
    Yes
    SW - Background Image - Booting Logo Image
    Yes
  • SW - Background Image - No Signal Image
    Yes
    SW - Sync Mode - RS-232C Sync
    Yes
  • SW - Sync Mode - Local Network Sync
    Yes
    SW - Multi-screen - PBP
    Yes(4)
  • SW - Rotation - Screen Rotation
    Yes
    SW - Rotation - External Input Rotation
    Yes
  • SW - Tile Mode Setting
    Yes(Max. 15x15)
    SW - Setting Data Cloning
    Yes
  • SW - SNMP
    Yes
    SW - ISM Method
    Yes
  • SW - Auto Set ID
    Yes
    SW - Status Mailing
    Yes
  • SW - Control Manager
    Yes
    SW - 3rd Party Compatibility - Crestron Inside
    Yes
  • SW - Smart Energy Saving
    Yes
    SW - PM mode
    Yes
  • SW - Wake on LAN
    Yes
    SW - Beacon
    Yes
  • SW - HDMI-CEC
    Yes
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    220W
    Max.
    240W
  • BTU (British Thermal Unit)
    751 BTU/Hr(Typ.), 819 BTU/Hr(Max)
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
OPS COMPATIBILITY
  • OPS type compatible
    O(Piggyback)
SOFTWARE COMPATIBILITY
  • SuperSign Control / Control+
    Yes/Yes
    SuperSign WB
    Yes
  • SuperSign Media Editor
    Yes
    LG ConnectedCare
    Yes
LANGUAGE
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic
ACCESSORY
  • Basic
    Remote Controller(including battery 2ea), Power Cord, DP cable, RS-232C Cable,IR/Light sensor receiver, Manual
    Optional
    OPS Kit(KT-OPSF)
