86TR3DK-B component-copyModelName
LG 2023 86 inch CreateBoard Interactive Screen

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (86TR3DK-B)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (86TR3DK-B)
    $
    $
    LG Members Price
Total
LG 2023 86 inch CreateBoard Interactive Screen
A New Level of Classroom with LG CreateBoard A New Level of Classroom with LG CreateBoard

A New Level of Classroom with LG CreateBoard

*All images in this page are for illustrative purposes only.
Various Teaching Templates Various Teaching Templates

Various Teaching Templates

LG CreateBoard offers a variety of educational templates and teaching tools such as a ruler, table, and sticky notes, allowing for active engagement by students and enabling intuitive classes.
Editing images and videos becomes easy with LG CreateBoard, and created resources can be easily shared with others through QR codes.
Multi-touch Multi-touch

Multi-touch

LG CreateBoard can simultaneously detect up to 40 points for multi-touch functionality. This creates a lifelike board touch experience, helping students easily become accustomed and truly engage in classes. This leads to the maximum concentration and organic engagement of students.

*A max of 32 points are recognized in the Android environment, and a max of 40 points are detected in the Windows environment.
*Up to 10 points can be recognized in the writing app.
Easy to Save / Import / Export Easy to Save / Import / Export

Easy to Save / Import / Export

LG CreateBoard includes simple import and export functionality.
Resources can be saved and imported directly to and from Google Drive or OneDrive, and files can be imported from a USB drive (Users can browse resources saved on USB storage).
Wireless ScreenShare Wireless ScreenShare

Wireless Screen Share

LG CreateBoard Share enables users to show up to 9 shared screens or a file on a screen in real-time when the LG CreateBoard Share app is installed on the device.
Also, files from the host can be easily sent to any devices connected to the LG CreateBoard Share app, and several quick controls by the host are available.

* LG CreateBoard also supports app-less sharing for PC (via website) and mobile devices within the same network.
* For a more stable connection, we recommend the installation of a dedicated app (LG CreateBoard Share).
LG ConnectedCare DMS LG ConnectedCare DMS

LG ConnectedCare DMS

LG ConnectedCare DMS is a cloud solution for remotely monitoring, controlling, and managing the status of LG CreateBoard installed in educational environments. This feature enables IT managers to operate and manage important resources on operating devices without physically visiting sites.

* 'LG ConnectedCare DMS' needs to be purchased separately.
* The availability of the 'LG ConnectedCare DMS' service differs by region,
so please contact the LG sales representative in your region for more details.
* LG ConnectedCare DMS supports the TR3DJ/TR3PJ/TR3DK Series as of now(plus more to come) under a cloud environment.
Remote-control Services Remote-control Services

Remote-control / Scheduling

Frequently used controls such as the power on/off, scheduling, brightness, and screen lock functions can be applied using a remote control.
Broadcasting Broadcasting

Broadcasting / Alert Messaging

Messages and a range of other content can be sent from the main system to individual classroom devices connected to LG ConnectedCare DMS.
In case of urgent occasions such as a fire or a natural disaster, alert messages can be distributed manually across the system, which help teachers and students promptly take safety action.
Threshold Settings Threshold Settings

Threshold Settings

Users can set thresholds in eight categories including display temperature, memory usage, or signal, and can receive warning or error notifications based on their threshold settings.
Monitoring & Fault Diagnosis Monitoring & Fault Diagnosis

Monitoring & Fault Diagnosis

An engineer can check the status in real-time and diagnose problems remotely. Also, the current status of issues can be categorized, allowing for easy viewing and quick responses.
Issue Management Issue Management

Issue Management

Remote issue management can be carried out by the LG ConnectedCare DMS solution. This makes management safer and more efficient, facilitating the stable operation of the classroom.
Bluetooth Connectivity Bluetooth Connectivity

Bluetooth Connectivity

LG CreateBoard supports wireless Bluetooth connections to various devices such as a speaker, mouse, keyboard, etc. This is optimal for building a hybrid environment so that online and offline classes can proceed smoothly.
C-type Connection C-type Connection

C-type Connection

USB-C connectivity simplifies connections
which enables charging and sending data simultaneously over just one single cable.

*USB Type-C cables are sold separately.
QR Login for Easy Cloud Access QR Login for Easy Cloud Access

QR Login for Easy Cloud Access

The QR code on the home screen reduces preparation time for class by enabling personal device verification. Users can sign up for a variety of apps on the LG CreateBoard including Google Drive and OneDrive with just one QR verification without any additional login process. Once a lesson is finished, users can simply click the Logout button to disconnect, thus the risk of a personal information leak is reduced.
Advanced Eye-Care Advanced Eye-Care

Advanced Eye-Care

LG CreateBoard has introduced a flicker-free function. With the reduced flickering of the monitor's backlight, users can use the device with more comfort even when using it for a long time.
Front Connectivity Design Front Connectivity Design

Front Connectivity Design

LG CreateBoard features front display ports and speakers which are ideal for both teachers and students, enabling content to be delivered easier with more immersive sound.
Built-in OPS Slot Built-in OPS Slot

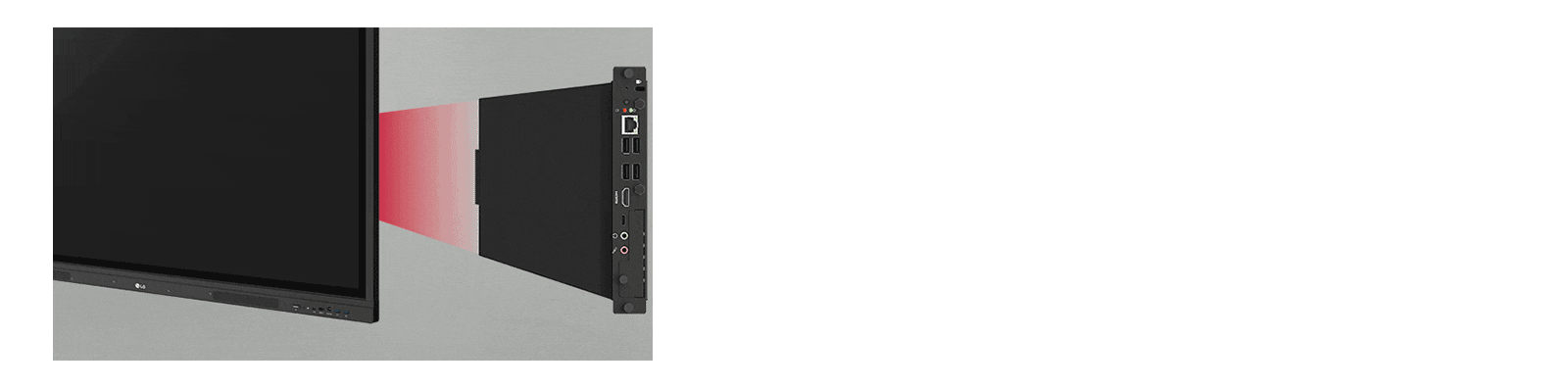

Built-in OPS Slot

LG CreateBoard supports OPS slots, allowing you to easily and conveniently mount OPS desktop at the back of the LG CreateBoard without the hassle of connecting to an external desktop, offering you more expanded functions.

*OPS : Open Pluggable Specification
Smart Viewing Smart Viewing

Smart Viewing

The Smart Viewing feature of LG CreateBoard enables efficient teaching. Two or more materials can be displayed on the same screen simultaneously without having to repeat Alt-tab, making teaching more convenient and efficient. Two materials can be displayed side by side (multi window mode), or one material can be overlaid on the other one (picture-in-picture mode).

*Multi window mode may not work for some apps.
*PIP mode is available for the external source screen.
Power Saving Power Saving

Power Saving

When a device doesn’t receive an external input signal for a specific amount of time set by the user, the device goes into standby mode. Devices can also be automatically turned on or off at specific time or day set by the user, which contributes to save energy.
Screen Lock Screen Lock

Screen Lock

Teachers can lock the screen using the Screen Lock function, and unlock it by entering a password. Users can set the Screen Lock in the Settings menu to protect the device from unidentified users.
Secure Mode Secure Mode

Secure Mode

LG CreateBoard supports Secure Mode that disables the LG CreateBoard Share function to prevent unauthorized content from being shown on various devices.
USB Lock Mode USB Lock Mode

USB Lock Mode

USB Lock Mode is a security measure that helps prevent data from being copied to unauthorized devices, which is essential when being used in spaces where security is critical.
Auto-remove Files Auto-remove Files

Auto-remove Files

Users can set LG CreateBoard to delete files regularly for enhanced security.
Close
PANEL
  • Screen Size
    86"
    Panel Technology
    IPS
  • Back Light Type
    Direct
    Aspect Ratio
    16:9
  • Native Resolution
    3,840 x 2,160 (UHD)
    Refresh Rate
    60Hz
  • Brightness
    440 nit (w/o Glass Max.), 390 nit (w/o Glass Typ.)
    Contrast Ratio
    1,200:1
  • Color gamut
    NTSC 68%
    Viewing Angle (H x V)
    178 x 178
  • Color Depth
    1.07 B (10 bit)
    Response Time
    8ms
  • Surface Treatment (Haze)
    28%
    Lifetime
    50,000hrs (L30)
  • Operation Hours (Hours / Days)
    16 / 7
    Portrait / Landscape
    No / Yes
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width (T / R / L / B)
    15 / 15 / 15 / 44 mm
  • Weight (Head)
    58.6 kg
    Packed Weight
    75.9 kg
  • Monitor Dimensions (W × H × D)
    1,957 × 1,160 × 100 mm
    Carton Dimensions (W × H × D) (Box Outer Size)
    2,110 × 1,283 × 225 mm
  • Handle
    Yes
    VESA™ Standard Mount Interface
    800 × 600 mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 to 40°C
    Operation Humidity
    10% to 90% RH
POWER
  • Power Supply
    100-240 V ~, 50/60 Hz, 5.5 A
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ./Max.
    385 / 580 W
    DPM
    0.5 W↓
  • Power off
    0.5W↓
    BTU (British Thermal Unit)
    1,314 BTU/Hr (Typ.), 1,979 BTU/Hr (Max.)
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes / Yes
OPS COMPATIBILITY
  • OPS type compatible
    Yes (Slot)
    OPS Power built in
    Yes
SOFTWARE COMPATIBILITY
  • LG ConnectedCare
    Yes
    LG ConnectedCare DMS
    Yes
CONNECTIVITY
  • Input
    HDMI (3, HDCP 2.2), RGB (VGA), Audio In, RS-232C In, RJ45 (LAN), USB 3.0 Type A (4), USB 2.0 Type A, USB Type C (USB-PD, DP-Alt)
    Output
    HDMI Out, Audio Out (1, Optical 1 (SPDIF)), Touch USB (2), RJ45 (LAN)
SOUND
  • Speaker
    Yes (15W × 2)
LANGUAGE
  • OSD
    English, Denmark, Finnish, German, Korean, Norwegian, Polski, Portugues (Europe), Portugues (Brazil), Romanian, Spanish, Swedish, Hungarian, Thai
ACCESSORY
  • Basic
    Power Cord (3 M × 1), USB Cable (Type A-Type B) 5 M × 1, HDMI Cable (3 M × 1), Writing Pen × 2 Pcs, User Manual, QSG, Carton Box, Remote Controller, Wi-Fi Module
TOUCH
  • Available object size for touch
    Ø2 mm↑
    Response Time
    ≤5 ms
  • Accuracy
    ±1 mm
    Interface
    USB 2.0
  • Protection Glass Thickness
    3 T (Anti-Glare)
    Protection Glass Transmission
    88%
  • Operating System Support
    Windows 7 / 8 / 10 / Linux / Mac / Android (Supports one point touch on Windows XP / Linux / Mac)
    Multi touch point
    Max. 40 Points
ANDROID SYSTEM
  • SoC
    Quad Core A55
    GPU
    Mali G52MP2
  • Internal Memory - Storage
    32GB
    Internal Memory - RAM
    4GB
  • Wi-Fi
    802.11a/b/g/n/ac/ax (Wi-Fi 6)
    LAN
    Gigabit LAN
  • Bluetooth
    Bluetooth 5.0
KEY FEATURE
  • Key features
    Internal Memory (32 GB), Built-In Wi-Fi (Slot Type), Auto Brightness Sensor, Power Indicator, webOS ver. (Android 11.0), Background Image (Booting Logo Image), Multi-screen (PIP / PBP, External Source), Screen Share, Power (Smart Energy Saving, Wake on LAN)
COMPLIANCE INFORMATION
  • component-safetyInformationNotice-en
  • component-safetyInformationNotice-locale
