Indoor LED Series

LSBE Indoor LED Series

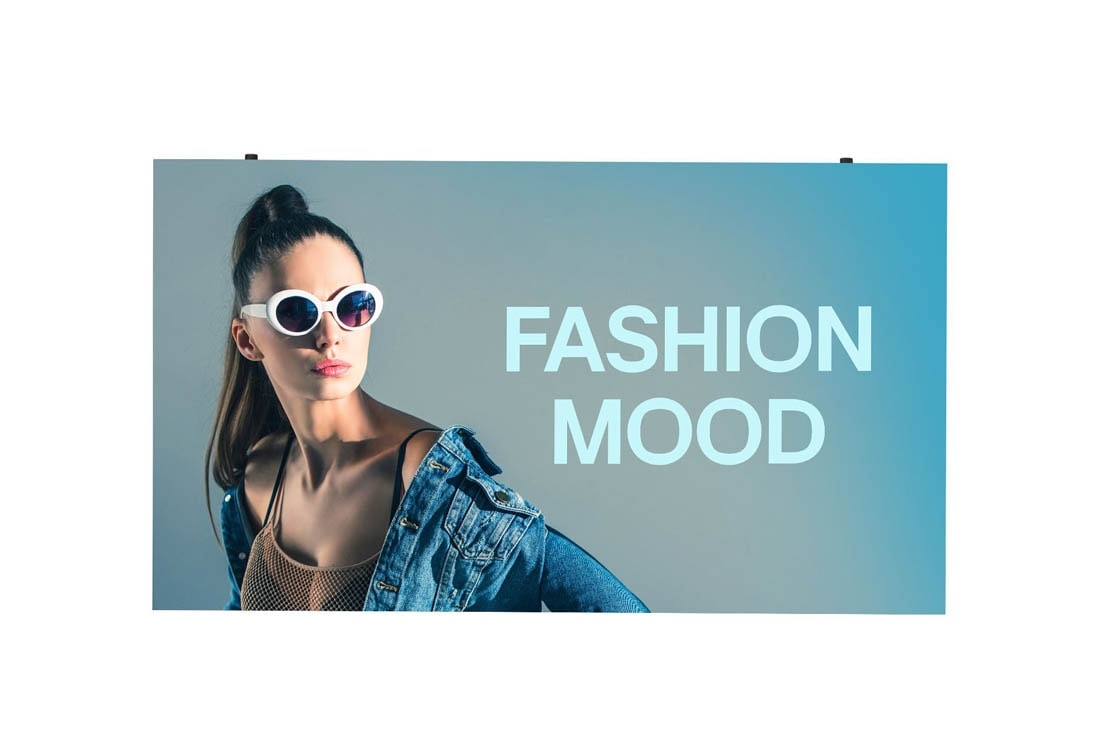

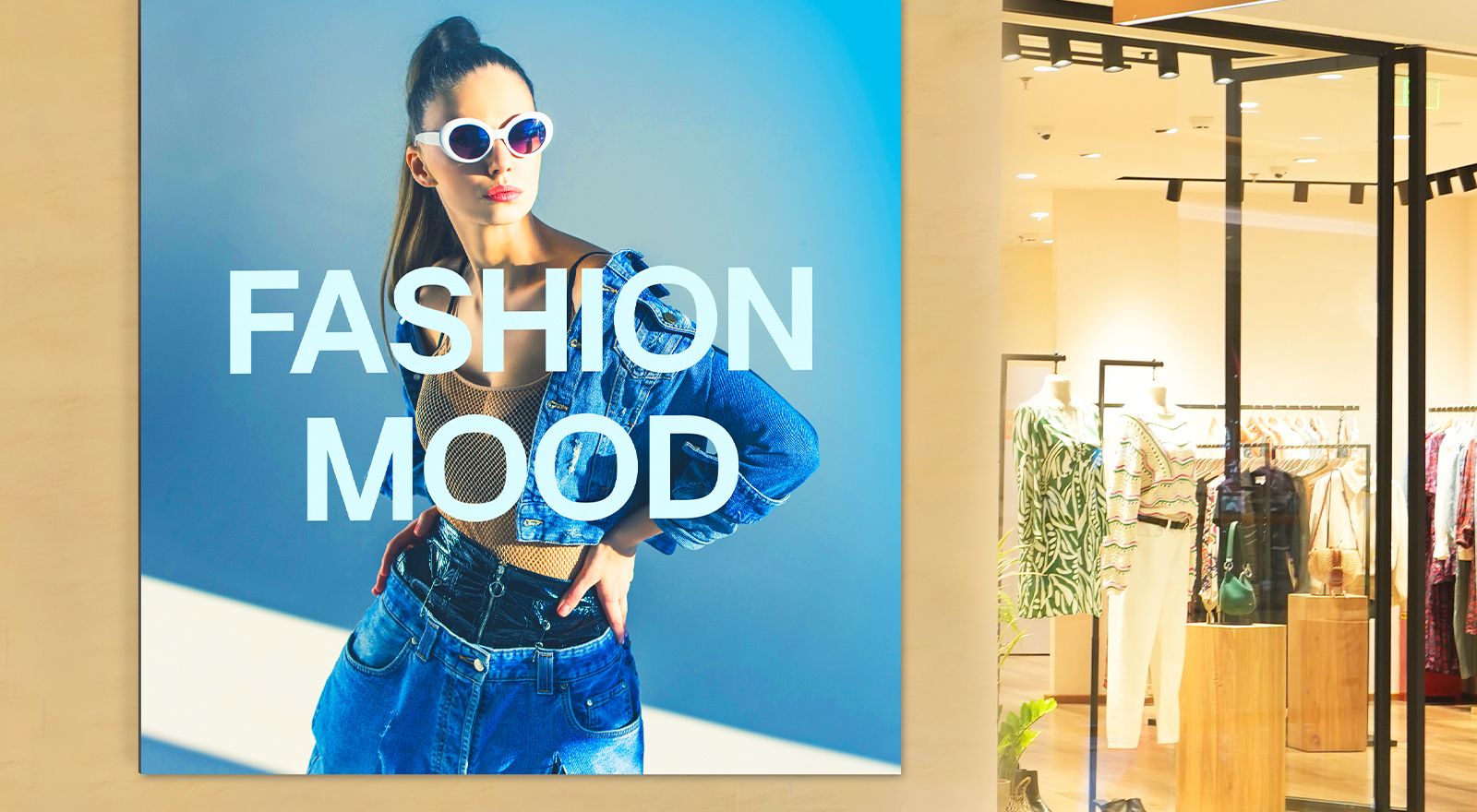

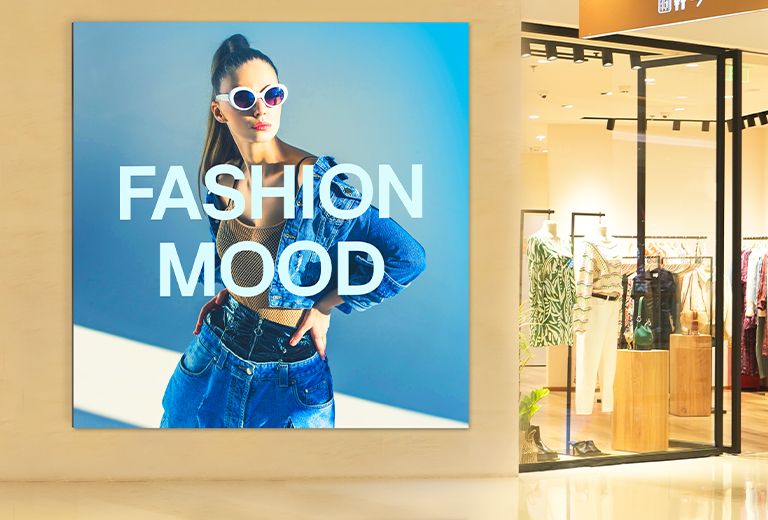

A large LED is installed on the wall of the shopping mall, displaying fashion advertisements vividly on the LED screen. A large LED is installed on the wall of the shopping mall, displaying fashion advertisements vividly on the LED screen.
* All images in this page are for illustrative purposes only.

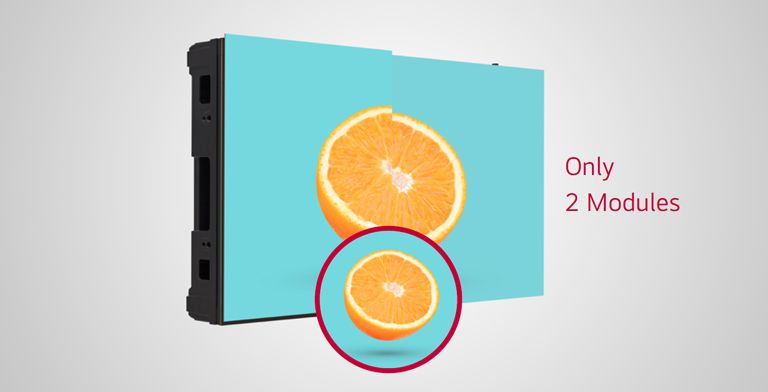

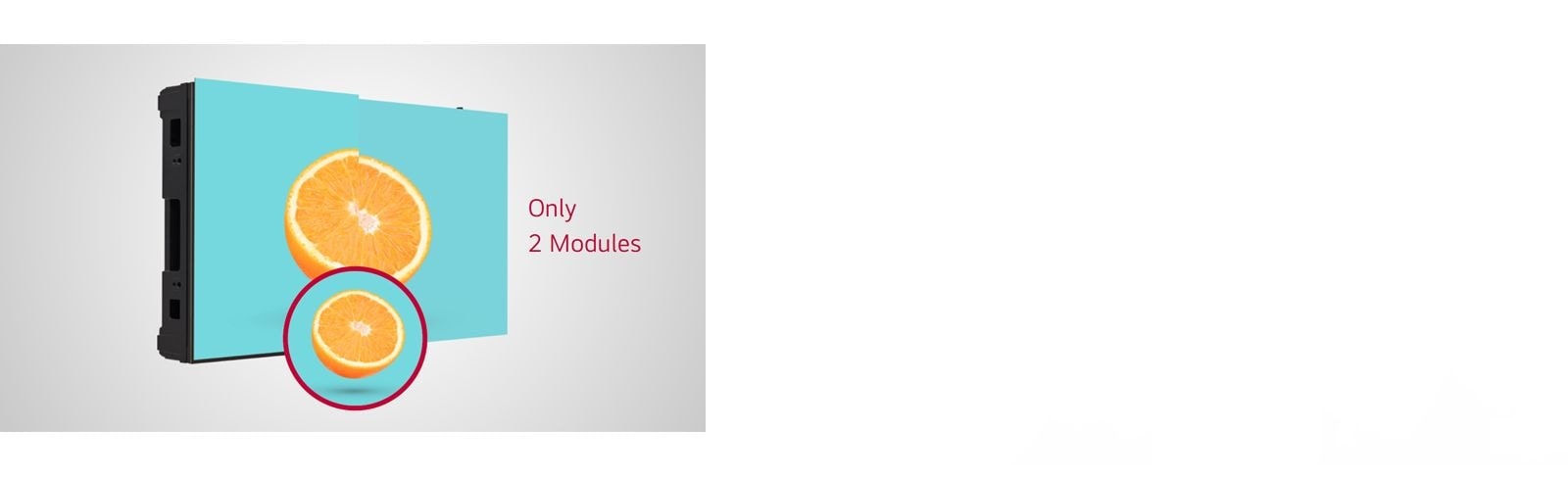

LSBE uses only two modules to create one cabinet. LSBE uses only two modules to create one cabinet.

Improved Flatness and Easy Maintenance

LSBE utilizes two modules to form a single cabinet, which helps minimize the gaps between modules compared to cabinets composed of multiple modules resulting in a smoother screen with fewer visible gaps. Moreover thanks to its structural advantage, LSBE allows for easy maintenance.

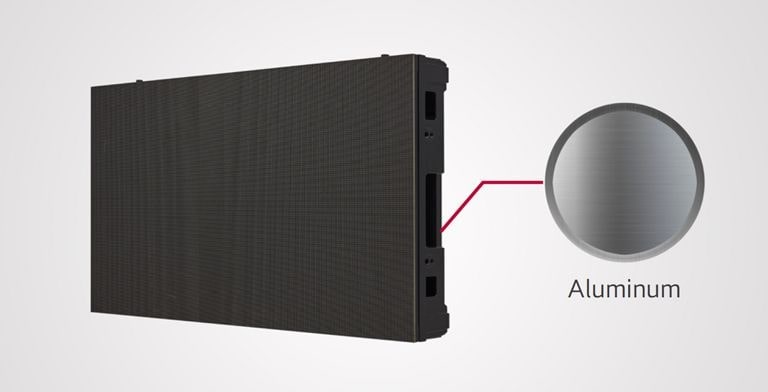

The frame of LSBE is composed of aluminum. The frame of LSBE is composed of aluminum.

Durable Frame Design

LSBE incorporates an aluminum cabinet that enhances durability, and its high-strength frame, surpassing that of plastic, allows for stable operation.

Brightness

With a great brightness of 600 nits, it clearly delivers content and attracts public attention, making it ideal for achieving bright indoor visibility.
LSBE has a brightness of 600 nits, so it is clearly visible, even under strong light. LSBE has a brightness of 600 nits, so it is clearly visible, even under strong light.

Compatibility with LG Software Solutions

When connected with LG's CVBA system controller, the LSBE series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.

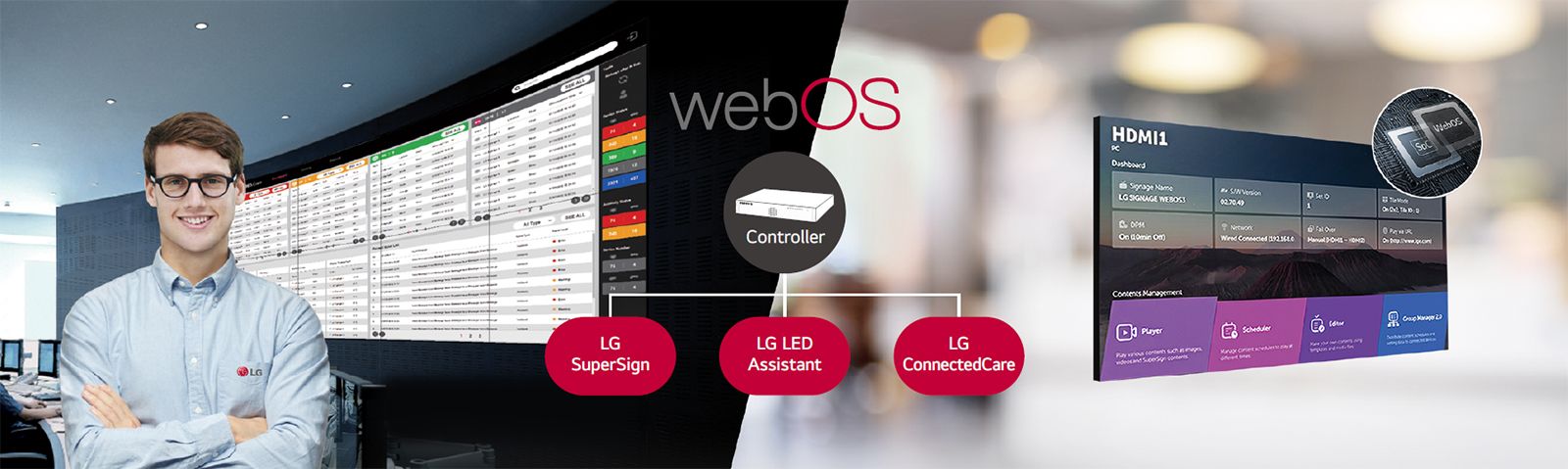

The LG employee is remotely monitoring the LSBE series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LSBE series to be compatible with LG software solutions. The LG employee is remotely monitoring the LSBE series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LSBE series to be compatible with LG software solutions.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* LG Software solutions needs to be purchased separately.
Close
PHYSICAL PARAMETERS
  • Pixel Configuration
    Single SMD
    Pixel Pitch(mm)
    1.56
  • Module Resolution (WxH)
    192x216
    Module Dimensions(WxH,mm)
    300x337.5x13
  • Weight per Module (kg)
    0.95
    No. of Modules per Cabinet (WxH)
    2x1
  • Cabinet Resolution (WxH)
    384x216
    Cabinet Dimensions (W x H x D, mm)
    600x337.5x72
  • Cabinet Surface Area (㎡)
    0.203
    Weight per Cabinet (kg/unit)
    6.5
  • Weight per Square Meter (kg/m²)
    32.0
    Physical Pixel Density (pixels/m²)
    409,600
  • Flatness of Cabinet (mm)
    ±0.3
    Cabinet Material
    Die-casting Aluminum
  • Service Access
    Front
OPTICAL SPECIFICATIONS
  • Max Brightness (After Calibration, nit)
    600
    Color Temperature (K)
    3,200~9,300
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    150
  • Brightness Uniformity
    97%
    Color Uniformity
    ±0.003Cx,Cy
  • Contrast Ratio
    5,000:1
    Processing Depth (bit)
    14
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Cabinet, Max.)
    107
    Power Consumption (W/Cabinet, Avg.)
    45
  • Power Consumption (W/㎡, Max.)
    530
    Heat Dissipation (BTU/h/Cabinet, Max.)
    365
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    153
    Heat Dissipation (BTU/h/m², Max.)
    1,808
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840
OPERATION SPECIFICATIONS
  • LED Lifetime (Half brightness)
    100,000
    Operating Temperature(℃)
    -20℃ to +40℃
  • Operating Humidity
    10~80%RH
    IP rating Front
    IP50
  • IP rating Rear
    IP50
STANDARD
  • Certification
    CE, FCC, cTUVus, CB, KC, CCC
ENVIRONMENT
  • Environment
    RoHS, REACH
CONTROLLER
  • Controller
    CVBA
90 DEGREE CORNER CUT
  • 90 Degree Corner Cut
    Yes
COMPLIANCE INFORMATION
