Transparent OLED Signage

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55EW5TF-A)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55EW5TF-A)
    $
    $
    LG Members Price
Total

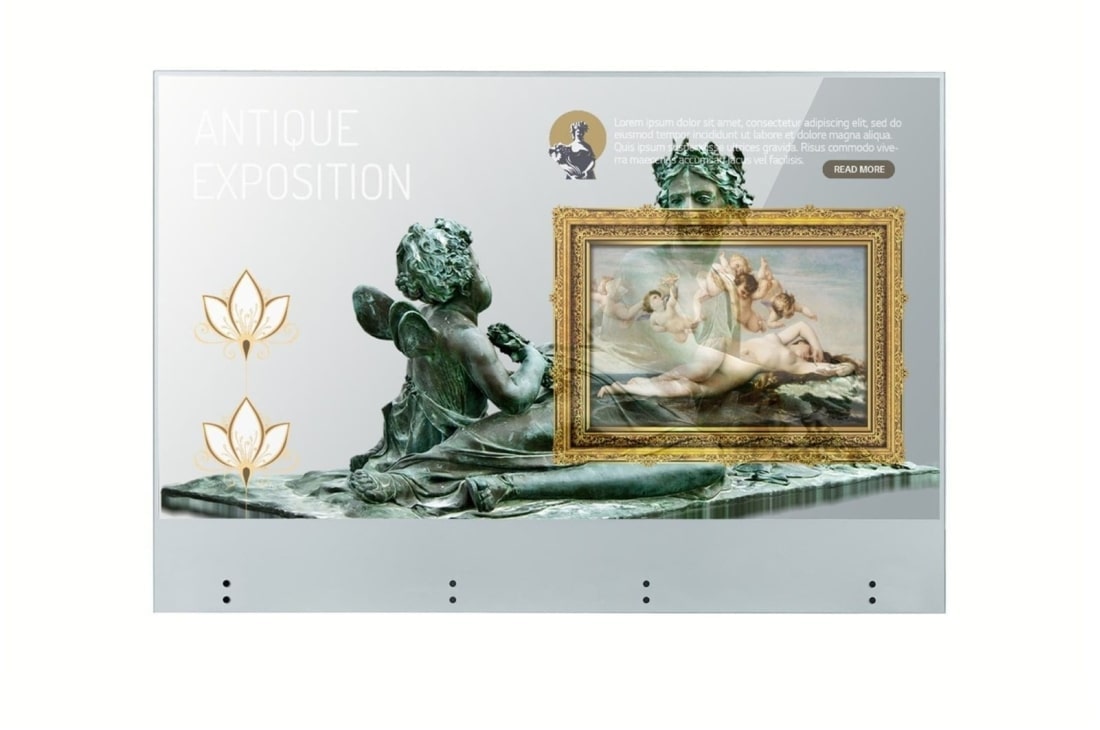

Transparent OLED Signage
A New Level of See-through View A New Level of See-through View

A New Level of See-through View

LG Transparent OLED Touch Signage illuminates spaces that once were hidden away behind the display, completely harmonizing with its surroundings. It can respond according to viewers’ touch, which has great potential for various applications where customer interactions are required.
High Transparency High Transparency
UNRIVALED PICTURE QUALITY

High Transparency

LG’s OLED technology makes the Transparent Touch OLED Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency of 33% even with P-Cap touch film much higher than conventional LCD transparent displays (10%*).

* Based on LG’s WFB series
Accurate and Vivid Colors Accurate and Vivid Colors
UNRIVALED PICTURE QUALITY

Accurate and Vivid Colors

Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.
Intuitive P-Cap Touch Intuitive P-Cap Touch
VERSATILE SOLUTION

Intuitive P-Cap Touch

By adding P-Cap touch sensor film to the display, the utilization possibilities expand to various industries where customer interaction services are demanding. P-Cap touch type is much better in accurate and fast touch responses than IR type, so users can fully enjoy its fascinating content using their fingertips with no lag.
Protective Tempered Glass Protective Tempered Glass
VERSATILE SOLUTION

Protective Tempered Glass

Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.

* Optically Clear Adhesive
SPATIAL HARMONY

Expandable Design

LG Transparent OLED Touch Signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. With a variety of forms of installation*, it can complement any venue in which it is installed.
Expandable Design Expandable Design
* Installation accessories are not supplied by LG.
Close
PANEL
  • Screen Size
    55"
    Panel Technology
    OLED
  • Native Resolution
    1,920 x 1,080 (FHD)
    Brightness (Typ., nit, APL 100%, Without Glass)
    150
  • Brightness (Typ., nit, APL 25%, without Glass)
    400
    Contrast Ratio
    150,000 : 1
  • Dynamic CR
    No
    Color gamut
    BT709 120 %
  • Viewing Angle (H x V)
    178 x 178
    Color Depth
    1.07 Billion Colors (10 bit)
  • Response Time
    1 ms (G to G)
    Portrait / Landscape
    Yes / Yes
  • Surface Treatment (Haze)
    No
    Operation Hours (Hours / Day)
    18 / 7 (Moving Content Only)
  • Transparency (Typ.)
    33% (Set)
CONNECTIVITY
  • Input
    HDMI (HDCP 2.2), DP (HDCP 1.3), USB 2.0 Type A, USB 2.0 Type A (Touch Control Board Only)
    Output
    DP, Audio, USB 2.0 Type B (Touch USB)
  • External Control
    RS232C In/Out, RJ45 (LAN) In/Out, IR In (External IR Receiver)
MECHANICAL SPECIFICATION
  • Bezel Color
    Matt Silver
    Bezel Width
    7.9 / 7.9 / 7.9 / 144.5 mm (T / R / L / B)
  • Weight (Head)
    (Head) 14.6 kg
    (Signage Box) 3.4 kg
    Monitor Dimension (W × H × D)
    (Head) 1,225.5 x 832.9 x 7.0 mm
    (Signage Box) 782.8 x 238.4 x 34.7 mm
  • Monitor Dimensions with Stand (W × H × D)
    No
    VESA™ Standard Mount Interface
    No
  • Protection Glass
    Depth 3.0 mm , Tempered / Chemical Strengthening, Anti-Reflective, Shatter-Proof
FEATURE
  • Key Feature
    Internal Memory (16GB), Temperature Sensor, FAN, webOS 4.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Video Tag (4), Rotation (Screen Rotation), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Crestron Connected®(Network based control), PM Mode, Wake on LAN, HDMI-CEC(Compatibility may differ by equipment.), SI Server Setting, Pro:Idiom
ENVIRONMENT CONDITIONS
  • Operation Temperature Range
    0°C to 40°C
    Operation Humidity Range
    10 % to 80 %
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ. / Max.
    250 W / 280 W
    BTU (British Thermal Unit)
    853 BTU/Hr (Typ.), 955 BTU/Hr (Max.)
SOUND
  • Speaker
    No
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP
    Yes (EU Only)
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    No
    OPS Power Built In
    No
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes
  • SuperSign Media Editor
    Yes
    Signage365Care
    Yes (The availability can differ by region.)
ACCESSORY
  • Basic
    Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, FFC Cables (1,600 mm × 4 ea for Connection Between Panel and Signage Box), HDMI Cable (3 M), Micro to A Type USB Cable (1.8 M for Connection Between Touch and Signage Box), A to B Type USB Cable (Touch Out), Tape (10 ea for Cabling / 10 ea EMI Gasket Tape), Screw (M4 × L22, 12 ea / M4 Nut 12 ea / M3 × L5.5, 8 ea / M3 × L3.5, 20 ea), Shield Cover Ass'y, Rubber Damper 4 ea, Touch Cable Holder 2 ea
