ATNW36GMLS1 ENWTMEA + ATUW36GMLS1 ENWTMEA component-copyModelName

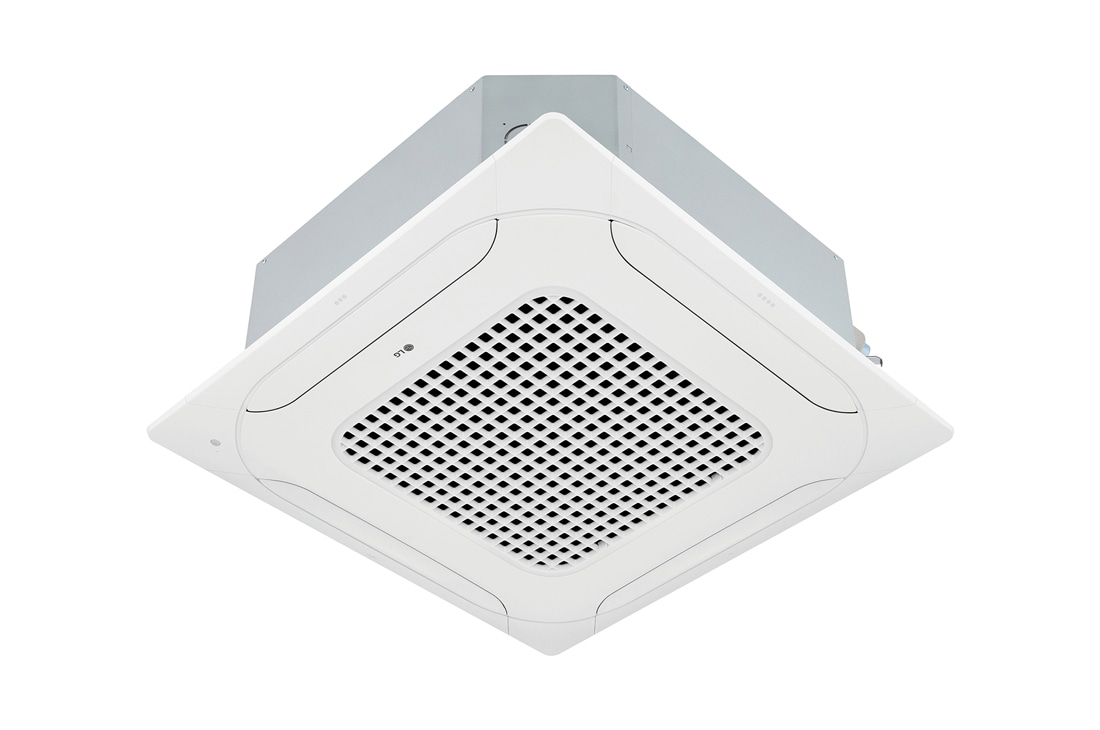

Ceiling Cassette, 4-Way Cassette_Inverter_H/P (1Φ), 24kBtu

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (ATNW36GMLS1 ENWTMEA + ATUW36GMLS1 ENWTMEA)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (ATNW36GMLS1 ENWTMEA + ATUW36GMLS1 ENWTMEA)
    $
    $
    LG Members Price
Total
Ceiling Cassette, 4-Way Cassette_Inverter_H/P (1Φ), 24kBtu
  • Clean Air with Advanced Purification icon showing an air filter removing particles to represent purified air.

    Clean Air with Advanced Purification

    The 5-step air purification system reduces odors, germs, and fine dust particles as small as PM 1.0.1) The water-cleanable filter can be used semi-permanently while Safe Plus Insulation2) treats internal components to prevent mold and enable clean and fresh airflow.

  • Wide Coverage Area icon featuring a square ventilation grid with arrows pointing outward in all directions.

    Wide Coverage Area

    Air purification extends beyond the cooled area up to 147m²,3) helping to achieve a clean and healthy environment even in closely packed spaces like kindergartens, schools, and shopping malls.

  • Integration of Smart Technology showing a person interacting with an air conditioning unit through signal waves.

    Integration of Smart Technology icon

    The air conditioner can be controlled from anywhere using the LG ThinQ™ app. It maximizes energy efficiency and comfort by detecting human presence through the Human Detection Sensor4) and the adjusted airflow based on humidity levels tailors to various climate conditions.

  • Convenient Installation & Maintenance icon featuring a hand holding a wrench in front of an air conditioning unit.

    Convenient Installation & Maintenance

    The LG Ceiling Mounted Cassette powerfully cools and heats the space, featuring a compact design that is flexible and cost-efficient to install. All four vanes are controlled independently while the corner panels are easy to detach and reattach, and its auto-leveling function ensures easy filter cleaning.

1. Purchase of the Air Purification Kit is optional.
2. Safe Plus Insulation is applied to devices rolled out in May 2021. Please contact your local LG office for further information about product details.
3. The product being tested is the RNW1450T2S model.
- The content of this test result of the certification examination of indoor air cleaner standard.
- Ozone Concentration - TR (Trace) : refers to the case of less than 0.01.
4. Purchase of the Human Detection Sensor is optional.
Close
Capacity
  • Cooling¹ (Min. ~ Rated ~ Max.) (kW)
    4.0 ~ 10.5 ~ 11.0
    Cooling¹ (Min. ~ Rated ~ Max.) (Btu/h)
    13,600 ~ 35,800 ~ 37,500
  • Cooling² (Rated) (kW)
    8.70
    Cooling² (Rated) (Btu/h)
    29,700
  • Heating (Min. ~ Rated ~ Max.) (kW)
    4.3 ~ 11.2 ~ 11.7
    Heating (Min. ~ Rated ~ Max.) (Btu/h)
    14,700 ~ 38,200 ~ 39,900
Power Input
  • Cooling¹ (Rated) (kW)
    3.49
    Cooling² (Rated) (kW)
    3.50
  • Heating (Rated) (kW)
    3.19
EER/COP
  • Cooling¹ / Heating (W / W)
    3.00 / 3.51

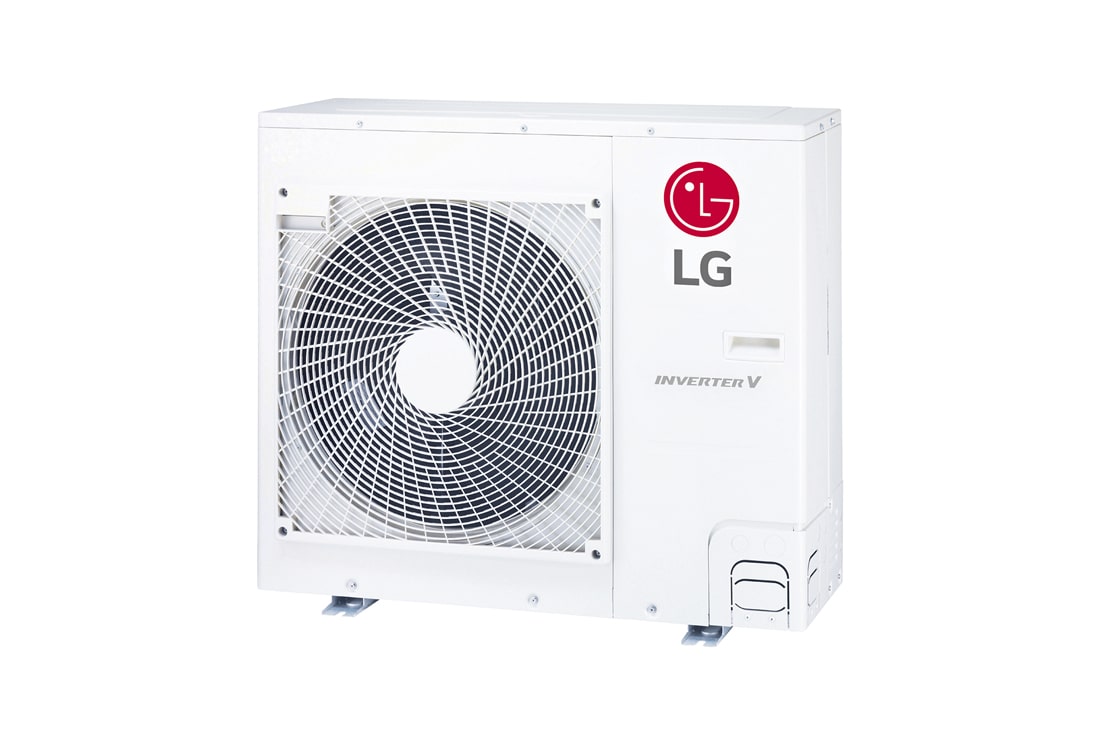

Outdoor Unit
  • Power Supply (V , Ø , Hz)
    220-240, 1, 50
    Power Supply Cable (included Earth) (No. x mm2 (AWG))
    3C × 2.5 (12)
  • Casing Color
    Warm Gray
    Net Dimensions (W x H x D) (mm)
    950 × 834 × 330
  • Net Weight (Body) (kg (lbs))
    58.0 (127.9)
    Compressor Type
    Twin Rotary
  • Refrigerant Type
    R410A
    Fan Motor Type
    BLDC
  • Sound Pressure Level Cooling (Rated) (dB(A))
    56
    Sound Pressure Level Heating (Rated) (dB(A))
    58
  • Piping Connections Liquid (Outer Dia.) (mm (inch))
    Φ9.52 (3/8)
    Piping Connections Gas (Outer Dia.) (mm (inch))
    Ø 15.88 (5/8)
  • Piping Length (Max) (m (ft))
    40 (131.2)
    Maximum Height Difference IDU - ODU(Max) (m (ft))
    30 (98.4)
Indoor Unit
  • Power Supply (V, Ø, Hz)
    220-240, 1, 50
    Net Dimensions Body (W x H x D) (mm)
    840 × 288 × 840
  • Net Weight (kg (lbs))
    28 (61.7)
    Air Flow Rate (H / M / L) (m3/min)
    28.5 / 24.5 / 21.0
  • Fan Motor Type
    BLDC
    Sound Pressure Level Cooling (H / M / L) (dB(A))
    48 / 46 /44
  • Sound Pressure Level Heating (H / M / L) (dB(A))
    48 / 46 /44
    Safety Devices
    Fuse
