ATNW48GYLT1 ANWBDXB + ATUW48GYLT1 ANWBDXB component-copyModelName
Round Cassette, Cassette_Inverter_H/P (1Φ), 48kBtu

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (ATNW48GYLT1 ANWBDXB + ATUW48GYLT1 ANWBDXB)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (ATNW48GYLT1 ANWBDXB + ATUW48GYLT1 ANWBDXB)
    $
    $
    LG Members Price
Total

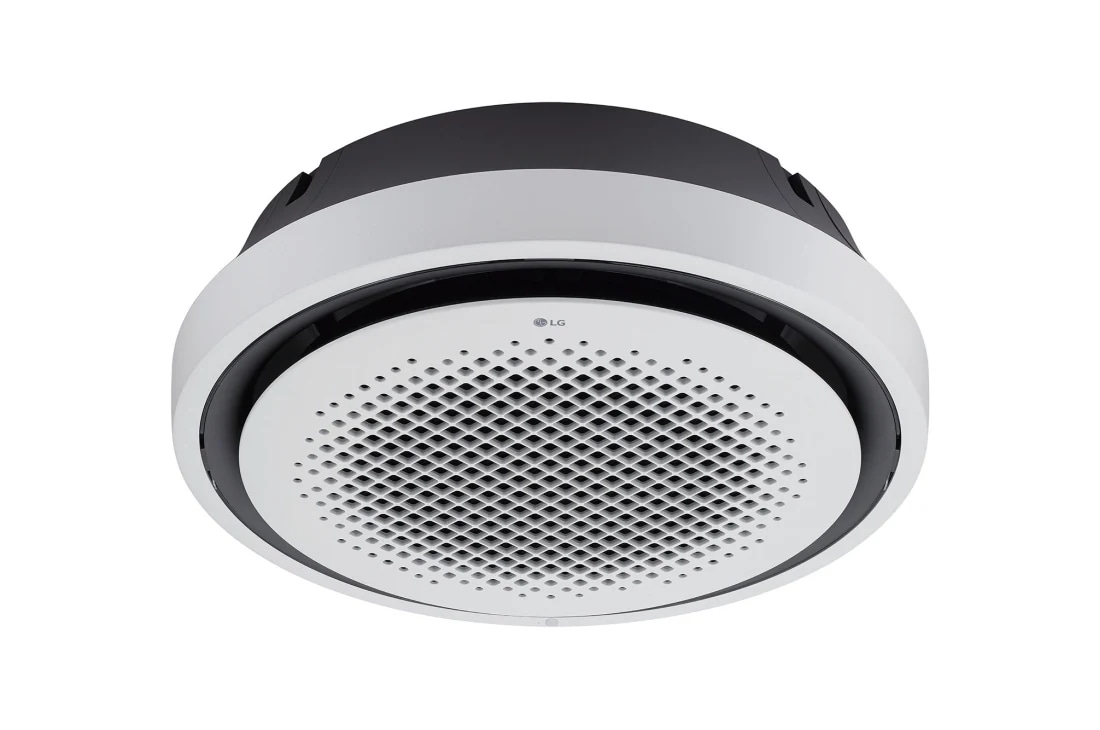

Round Cassette, Cassette_Inverter_H/P (1Φ), 48kBtu
  • A simple line icon represents the LG Round Cassette, highlighted by its Elegant Round Design with a circular unit adorned with sparkles graphics.

    Elegant Round Design

    The aesthetic LG Round Cassette presents a more luxurious and inviting space. With a body height reduced by about 10%1), it makes the room feel taller and more spacious.

  • A simple line icon illustrates the 360° Circular Airflow of the LG Round Cassette, indicated by arrows circling outward.

    360° Circular Airflow

    LG Round Cassette covers a large area with its perfect circular shape. Moreover, powerful airflow and detailed air direction spread the wind evenly and extensively. It is much easier to reach the desired temperature due to 30%2) faster cooling up. 3), 4)

  • A simple line icon represents the LG Round Cassette’s Quiet Operation, depicted by a speaker with volume control symbols, emphasizing its ability to operate silently and efficiently.

    Quiet Operation

    With its Full 3D Fan, the airflow rate rises by 5% compared to the conventional LG 4-way cassette. Along with this, the operation noise level is reduced to 39dB(A)5), creating a comfortable and quieter atmosphere.

  • A simple line icon displays the Easy Installation feature of the LG Round Cassette, using a gear icon with a checkmark to convey the unit's straightforward setup process.

    Easy Installation

    The drain and refrigerant pipes are attached in the same direction and position, enabling quick and easy installation. By placing the control box on the product's exterior, installers are able to provide services more easily.

1. The body height of LG Round Cassette(330mm) is lower than that of the competitor's comparable model(365mm).
2. Experimental environment: Height 3.2m, 14.5kW, cooling mode, high flow rate, horizontal airflow direction.
3. Based on test results from LG chamber.
4. The actual performance of the product may vary depending on the usage environment.
5. Noise level is measured at 14.5kW low flow rate.
Close
Capacity
  • Cooling¹ (Min. ~ Rated ~ Max.) (kW)
    4.20 ~ 14.06 ~ 17.40
    Cooling¹ (Min. ~ Rated ~ Max.) (Btu/h)
    14,330 ~ 48,000 ~ 59,370
  • Cooling² (Rated) (kW)
    11.42
    Cooling² (Rated) (Btu/h)
    39,000
  • Heating (Min. ~ Rated ~ Max.) (kW)
    6.10 ~ 16.70 ~ 19.20
    Heating (Min. ~ Rated ~ Max.) (Btu/h)
    20,810 ~ 57,000 ~ 65,510
Power Input
  • Cooling¹ (Rated) (kW)
    4.36
    Cooling² (Rated) (kW)
    4.81
  • Heating (Rated) (kW)
    1.15 ~ 5.30 ~ 8.00
EER/COP
  • Cooling¹ / Heating (W / W)
    3.22 / 3.15

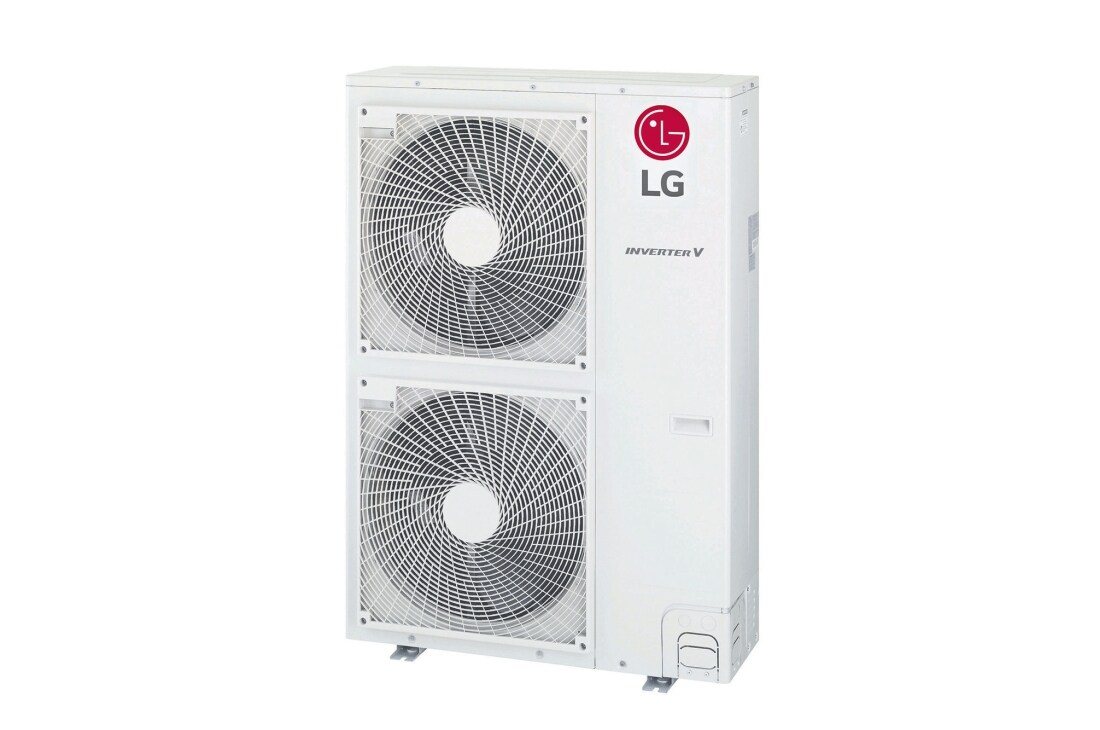

Outdoor Unit
  • Power Supply (V , Ø , Hz)
    220-240, 1, 50
    Dimensions (W x H x D) (mm)
    950x1380x330
  • Net Weight (kg (lbs))
    88.0
    Compressor Type
    Inverter Scroll
  • Refrigerant Type
    R410A
    Fan Motor Type
    BLDC
  • Sound Pressure Level Cooling (Rated) (dB(A))
    55
    Sound Pressure Level Heating (Rated) (dB(A))
    57
  • Piping Connections Liquid (Outer Dia.) (mm (inch))
    Ø 9.52 (3/8)
    Piping Connections Gas (Outer Dia.) (mm (inch))
    Ø 19.05 (3/4)
  • Piping Length (Max.) (m (ft))
    75
    Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) (m (ft))
    30
Indoor Unit
  • Power Supply (V, Ø, Hz)
    220-240, 1, 50
    Dimensions Body (W x H x D) (mm)
    1,050 x 330 x 1,050
  • Net Weight (kg (lbs))
    30
    Air Flow Rate (H / M / L) (m3/min)
    32.0 / 28.0 / 23.0
  • Fan Motor Type
    BLDC
    Sound Pressure Level Cooling (H / M / L) (dB(A))
    47 / 44 / 39
  • Sound Pressure Level Heating (H / M / L) (dB(A))
    47 / 44 / 39
    Safety Devices
    Fuse
