49'' 500 nits FHD Slim Bezel Video Wall

49VL5G-M

49'' 500 nits FHD Slim Bezel Video Wall

(1)

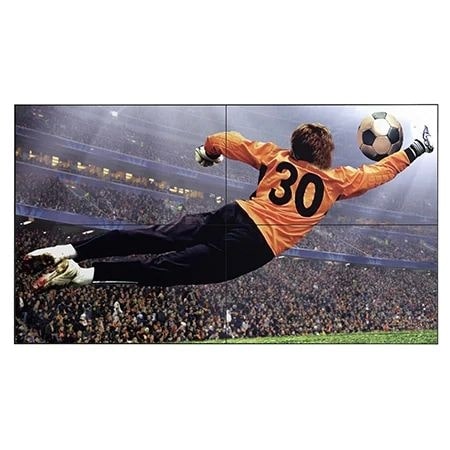

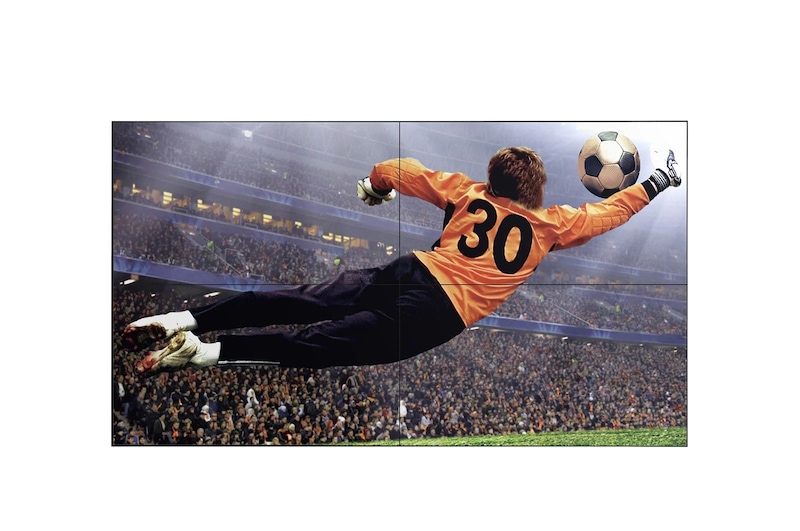

Front view with infill image

Incredible Immersion with
Ultra-Narrow Bezel

A man is looking at a big screen attached to the window of a sports store.

* All images in this web page are for illustrative purposes only.

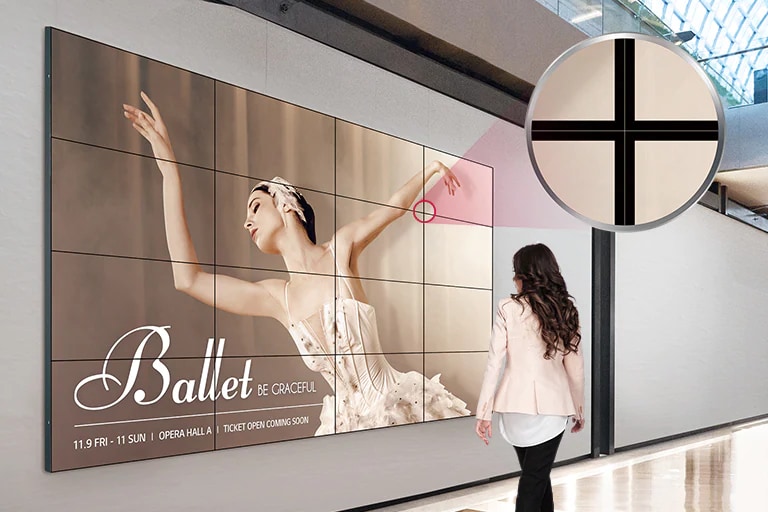

The ultra-narrow bezel screens are attached to the wall in the form of tiles, displaying large and dynamic content.

Seamless Large Screens with Ultra-Narrow Bezel

The ultra-narrow bezel creates a visually stunning digital wall to effectively deliver dynamic content and immerse the viewers. The large screen it generates is enough to captivate the attention of passersby.

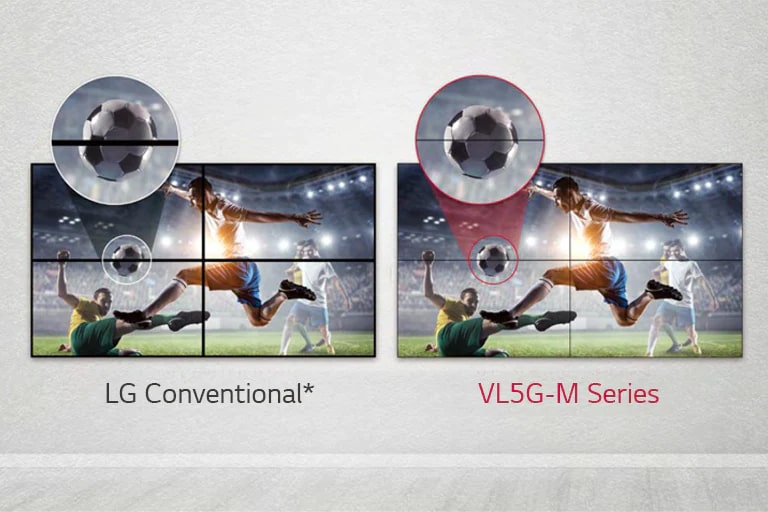

VL5G series has a less image gap between tiled screens compared to LG Conventional, so its content is seen well without being disturbed by the gap.

Image Gap Reduction

The VL5G-M series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

* The "LG Conventional" refers to displays which do not include an image improvement algorithm.

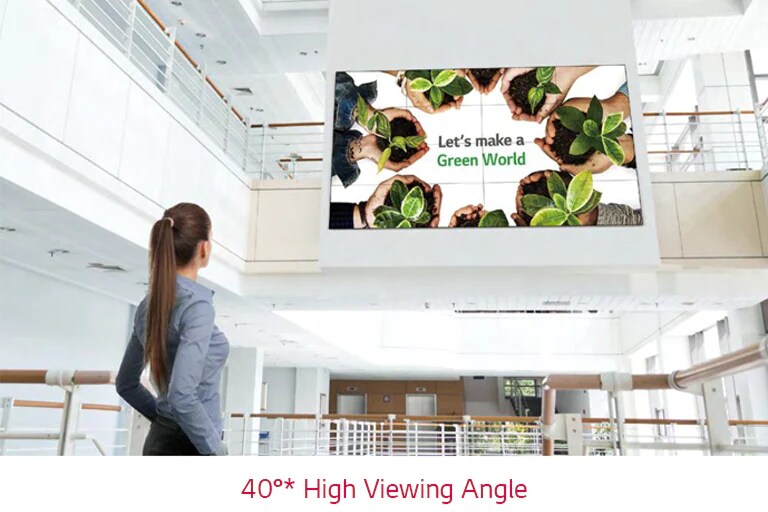

A woman is looking up at the screen installed upstairs.

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VL5G-M series is high enough to display vivid colors throughout the screen with no distortion.

* Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

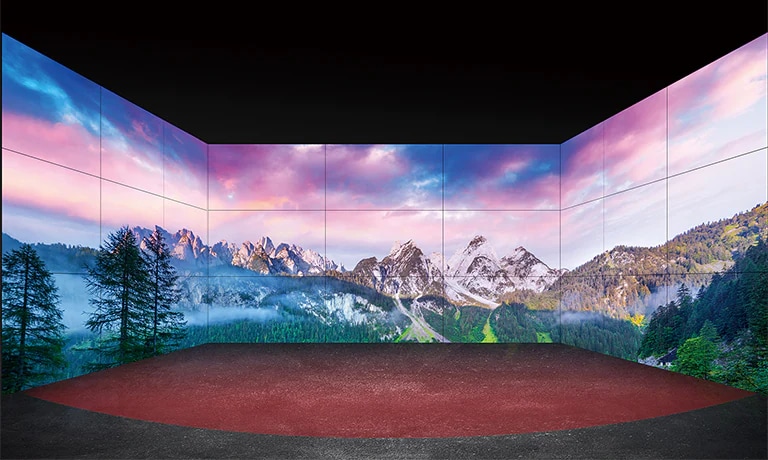

A number of screens installed on both sides and front wall provide a more vivid and wider view.

Wide Viewing Angle

It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VL5G-M series captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

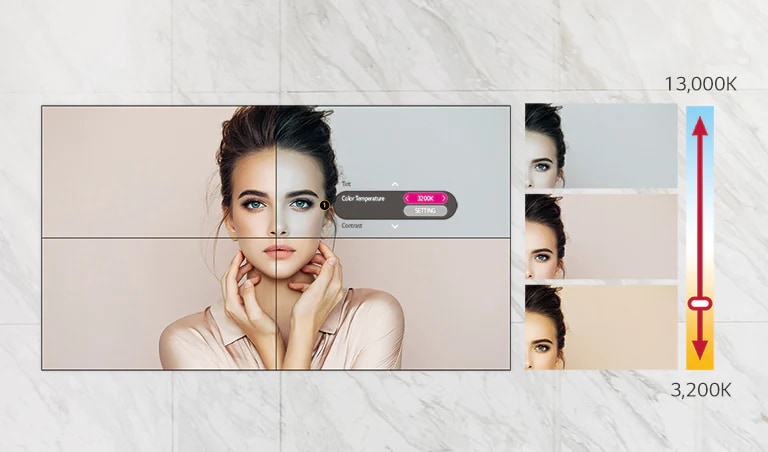

49VL5G can adjust the color temperature from 3,200K to 13,000K in units of 100K.

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

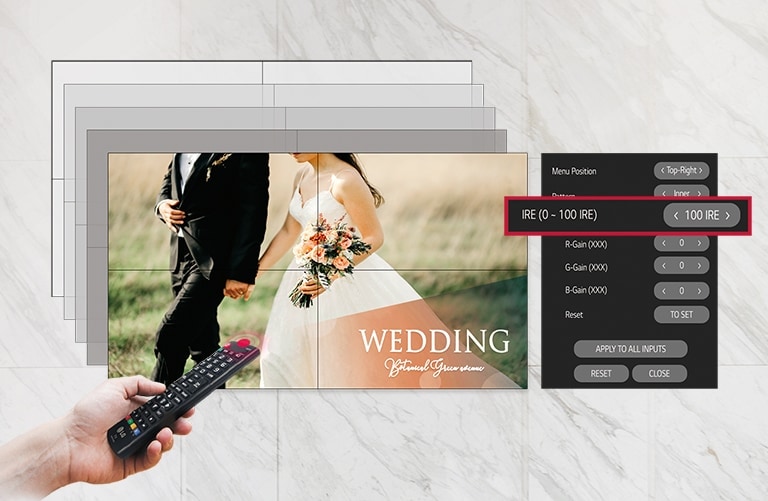

VL5G series can be more accurately adjust white balance.

White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the VL5G-M series allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

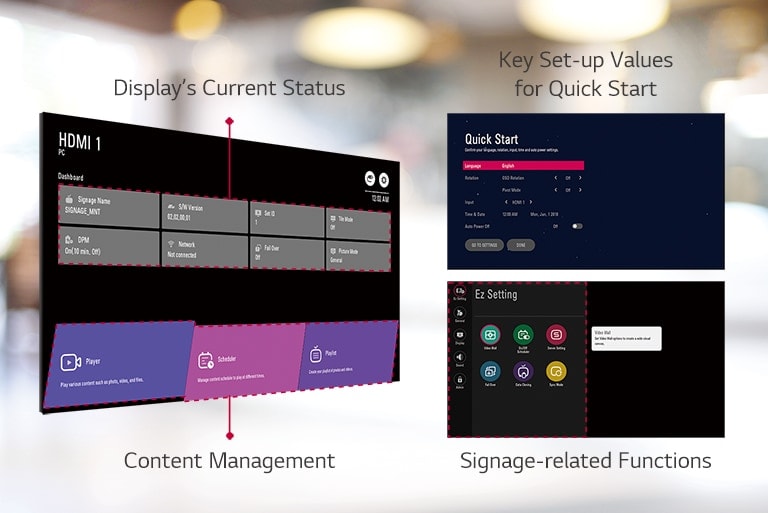

A number of tasks can be done at the same time with the intuitive GUI.

User-Friendly Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.

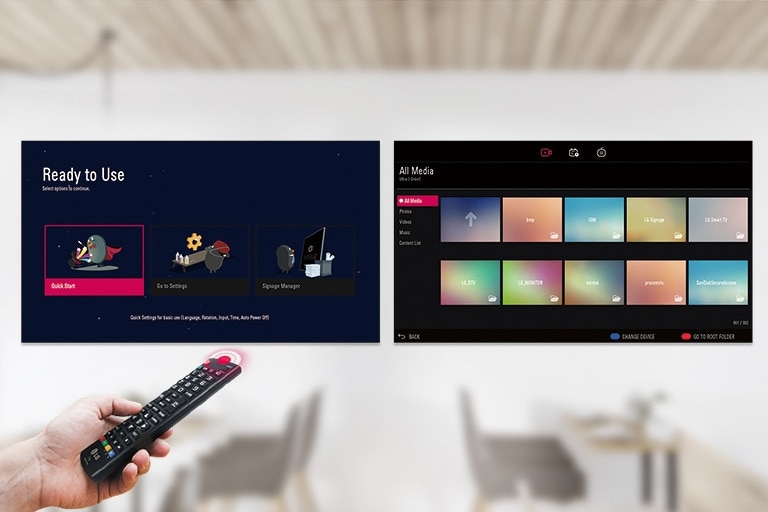

A display is easily controlled using a user-friendly GUI and a remote control.

Intuitive GUI

The GUI (Graphic User Interface) is carefully designed with a four-way navigation remote control that lets users easily switch to other settings. Also, it adopts a large font for better visibility, which is necessary when users want to control displays from relatively far distances.
Print

All Spec

PANEL

  • Screen Size (Inch)

    49

  • Panel Technology

    IPS

  • Back Light Type

    Direct

  • Aspect Ratio

    16:9

  • Native Resolution

    1920 x 1080 (FHD)

  • Refresh Rate

    60Hz

  • Brightness

    500nit (Typ.)

  • Contrast Ratio

    1,000:1

  • Dynamic CR

    500,000:1

  • Color Gamut

    NTSC 72%

  • Viewing Angle (H x V)

    178º x 178º

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Response Time

    8ms (G to G)

  • Surface Treatment (Haze)

    Haze 3%

  • Life time

    60,000Hrs (Typ.)

  • Operation Hours (Hours/Day)

    24/7

  • Portait / Landscape

    YES / YES

  • Transparency

    N/A

  • QWP (Quarter Wave Plate)

    N/A

CONNECTIVITY

  • HDMI In

    YES (2ea)

  • HDMI In (HDCP Ver.)

    1.4

  • DP In

    YES (HDCP 1.3)

  • DVI-D In

    YES (HDCP 1.4)

  • RGB In

    NO

  • Audio In

    YES

  • RS232C In

    YES

  • RJ45(LAN) In

    YES (1ea)

  • IR In

    YES

  • USB In

    USB2.0 Type A (1ea)

  • HDMI Out

    NO

  • DP Out

    YES

  • Audio Out

    YES

  • Touch USB

    NO

  • External Speaker Out

    NO

  • RS232C Out

    YES

  • RJ45(LAN) Out

    NO

  • IR Out

    NO

  • Daisy Chain

    Input : HDMI, DP, DVI-D / Output : DP

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    T/R/L/B : 2.25/1.25/2.25/1.25mm

  • Weight (Head)

    16.9Kg

  • Weight (Head+Stand)

    N/A

  • Packed Weight

    21.9Kg

  • Monitor Dimensions (W x H x D)

    1077.6 x 607.8 x 89.7mm

  • Monitor Dimension with Stand (W x H x D)

    N/A

  • Carton Dimensions (W x H x D)

    1214 x 778 x 263mm

  • Handle

    YES

  • VESA Standard Mount Interface

    600 x 400 mm

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    NO

  • Wi-Fi/BT (Built-in)

    NO

  • Temperature Sensor

    YES

  • Auto Brightness Sensor

    NO

  • Pixel Sensor

    NO

  • Proximity Sensor

    NO

  • Current Sensor

    NO

  • BLU Sensor

    NO

  • Humidity Sensor

    NO

  • Acceleration(Gyro) Sensor

    NO

  • Power Indicator

    NO

  • Local Key Operation

    NO

  • FAN (Built-in)

    NO

FEATURE - SOFTWARE

  • OS Ver. (webOS)

    Non-webOS

  • Local Contents Scheduling

    YES

  • Group Manager

    NO

  • USB Plug & Play

    YES

  • Fail over

    YES

  • Booting Logo Image

    YES

  • No Signal Image

    YES

  • RS232C Sync

    YES

  • Local Network Sync

    NO

  • Backlight Sync

    NO

  • PIP

    NO

  • PBP

    NO

  • Screen Share

    NO

  • Video Tag

    NO

  • Play via URL

    NO

  • Screen Rotation

    YES

  • External Input Rotation

    NO

  • Gapless Playback

    NO

  • Tile Mode Setting

    YES

  • Setting Data Cloning

    YES

  • SNMP

    YES

  • ISM Method

    YES

  • Auto Set ID

    YES

  • Status Mailing

    NO

  • Control Manager

    NO

  • Cisco Certification

    NO

  • Crestron Connected

    YES

  • Smart Energy Saving

    YES

  • PM mode

    YES

  • Wake on LAN

    YES

  • Network Ready

    NO

  • Beacon

    NO

  • HDMI-CEC

    YES

  • SI Server Setting

    NO

  • webRTC

    NO

  • Pro:Idiom

    NO

  • Brightness Compensation

    NO

  • W/B Setting by Grey scale

    YES

  • Scan Inversion

    YES

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • Typ.

    100W

  • Max.

    120W

  • BTU (British Thermal Unit)

    341 BTU/Hr(Typ.), 409 BTU/Hr(Max.)

  • Smart Energy Saving (70%)

    60W

  • DPM

    0.5W

  • Power off

    0.5W

SOUND

  • Speaker (Built-in)

    NO

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ERP / Energy Star

    YES / Energy Star 8.0(US Only)

  • ePEAT(US only)

    NO

OPS COMPATIBILITY

  • OPS Type compatible

    NO

  • OPS Power Built-in

    NO

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    YES

  • SuperSign Cloud

    NO

  • Promota

    NO

  • Mobile CMS

    NO

  • Connected Care

    NO

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, RS232C cable, DP cable, IR Receiver, Guide Bracket, Screws, Manual

  • Optional

    NO

SPECIAL FEATURE

  • Overlay Touch Compatibility

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face up)

    N/A

  • Tilt (Face down)

    N/A

  • IP Rating

    IP5X tested

  • Conformal Coating (Power Board)

    YES

  • Power Protection

    N/A

  • Direct Sunlight

    N/A
