Interactive Digital Board

(2)

Embedded LG IDB App & webOS

LG IDB: Do More Smartly, Simply

With the IDB app, based on the webOS smart platform, get rid of the need for a PC or additional software licenses when writing/collaborating on Interactive Digital Board.

Innovative Touch Performance

Intuitive Touch and Writing

Advanced P-Cap touch-technology enables precise touch responses and realistic handwriting. Pen thickness adapts to the writing speed, with support for max. 40 point muli-touch.

Efficient Collaboration

All-in-One Meeting Experience

For effective collaboration, LG IDB combines once separate processes including participant laptop screen sharing via wired/wireless* connection, writing on a shared screen, and saving annotations.

* Installation of the PC client app is required. Go to the "Tech Spec' section of this page for the minimun requirements and then visit the Software Download Page.

UHD Resolution

Peerless Picture Quality

With LG IDB's UHD resolution, users can view content in the finest detail, even with full zoom-in. UHD provides the highest-quality media experience at four times higher definition than FHD.

IPS Panel

True Color, Wide View

LG IPS panel features a wide viewing angle to deliver clear content regardless of where meeting participants are seated. Each pixel in the IPS panel reproduces image colors true-to-life, without distortion.

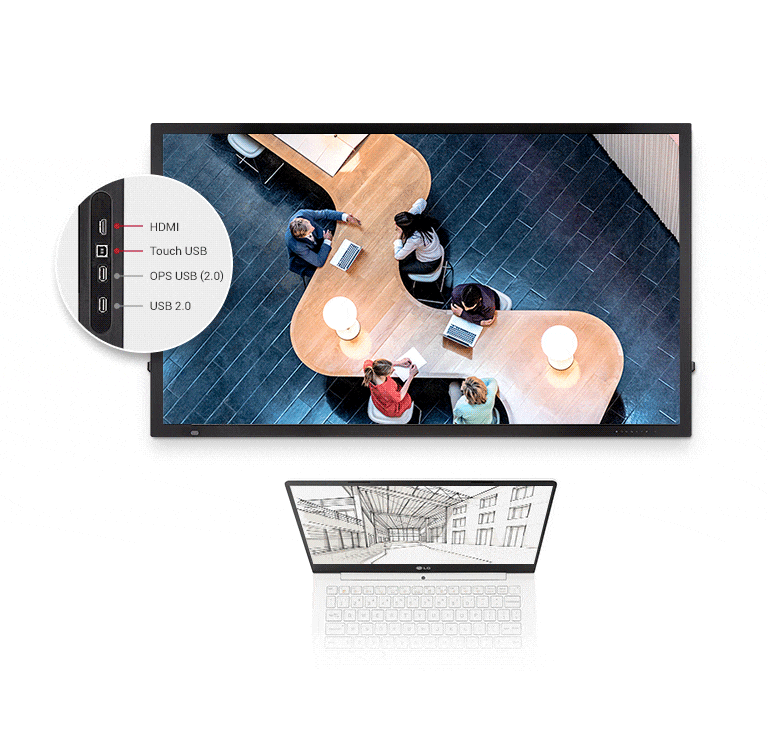

Auto Signal/Touch Switching

Quick and Easy Screen Sharing

Delivering time-saving functionality, the display can detect input/touch signals and automatically change the source if the new input has higher priority than the previous source.

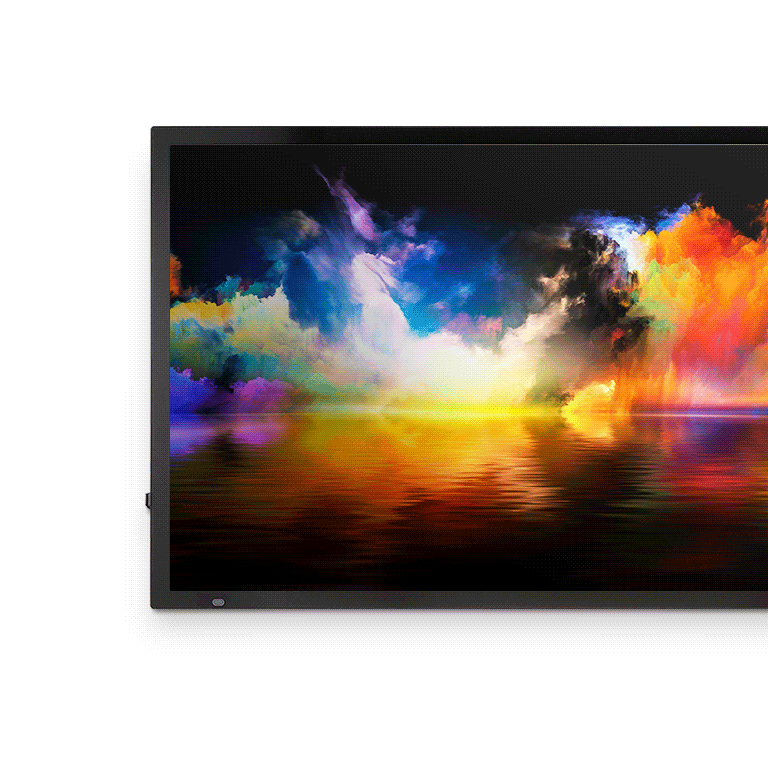

Assistive Touch Menu

Easy Menu Calling, and Control

Providing optimal ease of use, LG IDB users can run desired functions or change settings by softly pressing the screen to call up the Touch Menu.
* The menu design(GUI) is subject to change without notice

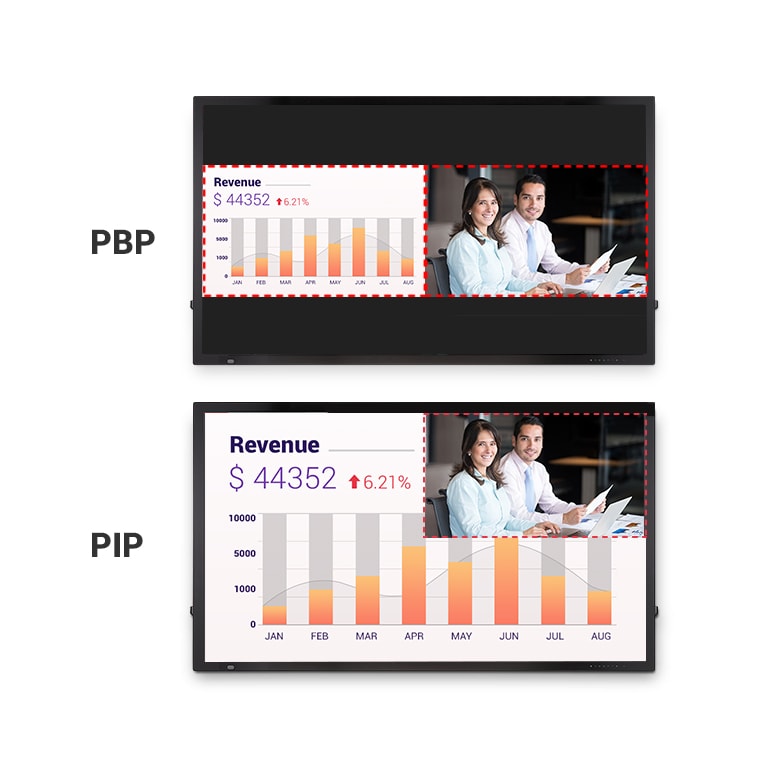

PBP/PIP

Enjoy a Multi Screen Experience

Providing enhanced flexibility for users, PBP/PIP enables two different content sources to be displayed in various layout settings including full screen, original ratio, and sub-screen modes.

All Spec

PANEL

Screen Size

75”
Native Resolution

3,840 x 2,160 (UHD)
Brightness(Module, Typ., cd/m²)

500

CONNECTIVITY

Input

HDMI (3), DP, DVI-D, RGB, Audio in, USB 3.0, USB 2.0, OPS USB 2.0
Output

Touch USB 2.0 (2)
External Control

RS232C in/out, RJ45 in

PHYSICAL SPECIFICATION

Bezel Width

41.6 mm(T/L/R/B)
Monitor Dimension (W x H x D)

1,732.8 x 1011.1 x 69.7 mm (w/o Handle)
Weight (Head)

74.5 kg
Carton Dimensions (W x H x D)

1,870 x 1,264 x 285 mm(with pallet)
Packed Weight

94 kg
VESA™ Standard Mount Interface

600 x 400 mm

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C
Operation Humidity

10 % to 80 %

POWER CONSUMPTION

Typ.

≤ 240 W
Smart Energy Saving

≤ 170 W

STANDARD(CERTIFICATION)

Safety

UL / cUL / CB / TUV / KC
EMC

FCC Class “A” / CE / KCC

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign Premium
Control and Monitoring Software

SuperSign Link

MINIMUM REQUIREMENTS FOR LG IDB DUO

OS (Windows 32bit or 64bit)

Windows 7, Windows 10
OS (macOS)

macOS 10.12 Sierra, MacOS 10.13 High Sierra
CPU (Windows)

2.7GHz+ Dual Core Broadwell or higher
CPU (macOS)

Any CPU which supports Sierra or High Sierra
Memory

4GB RAM
Hard Drive

1GB of free space
Graphics Hardware (Windows)

Intel Iris or higher, Nvidia, ATI
Graphics Hardware (macOS)

Any GPU which supports Sierra or High Sierra

ACCESSORY

Basic

Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Touch Pen Tip (1ea)
Optional

OPS Kit (KT-OPSA), Wall Mount(LSW640A/B)
