Ultra Stretch Signage

86BH5F-M

Ultra Stretch Signage

()

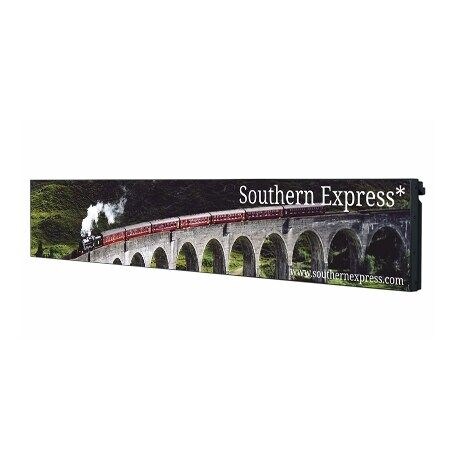

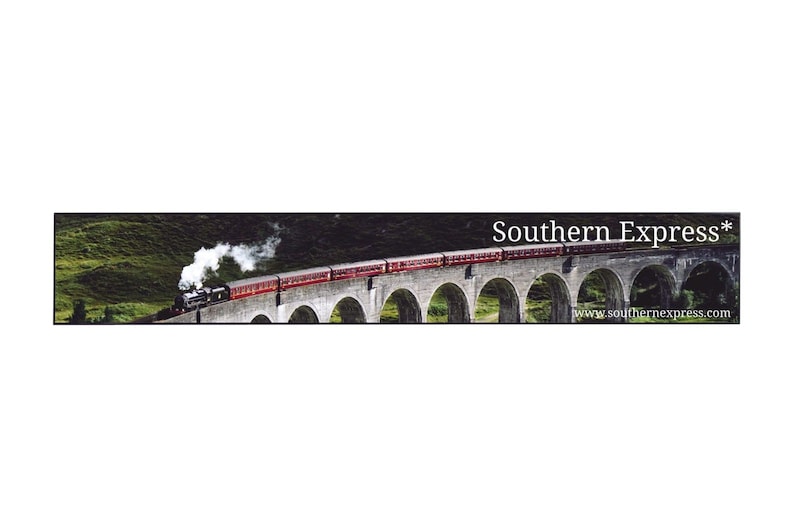

Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen

The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.

Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen1

* All images in this page are for illustrative purposes only.
58:9 Extended Wide Format

58:9 Extended Wide Format

It is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content* than the conventional display of 16:9 ratio.

* Video content only. (Images not supported)

Ultra HD Resolution (3,840 x 600)

Ultra HD Resolution (3,840 x 600)

Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.
88BH5F-04-Multi Screen Mode with 4PBP-Special-Digital Signage-ID_1577412499026

Multi Screen Mode with 4PBP

The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.
Tiled Scene with Immersive View

Tiled Scene with Immersive View

The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.
IP5x Certified Design

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
User-Friendly UX

User-Friendly UX

The 86BH5F is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD* can also be adjusted accordingly.

*OSD : On Screen Display

LAN Daisy Chain Management

LAN Daisy Chain Management

By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.
Real-Time Monitoring with ConnectedCare

Real-Time Monitoring with ConnectedCare

Easier and faster maintenance are available with our optional cloud service solution ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.

* ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

Supermarket

Explore more showroom at
LG Digital Connect

Explore more showroom at<br>LG Digital Connect Explore
Print

All Spec

PANEL

  • Screen Size (Inch)

    86

  • Panel Technology

    IPS

  • Back Light Type

    Direct

  • Aspect Ratio

    58:9

  • Native Resolution

    3840 x 600 (FHD)

  • Refresh Rate

    60Hz

  • Brightness

    500nit (Typ.)

  • Contrast Ratio

    1,100:1

  • Dynamic CR

    500,000:1

  • Color Gamut

    NTSC 72%

  • Viewing Angle (H x V)

    178º x 178º

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Response Time

    8ms (G to G)

  • Surface Treatment (Haze)

    Haze 3%

  • Life time

    50,000Hrs (Typ.)

  • Operation Hours (Hours/Day)

    24/7

  • Portait / Landscape

    YES / YES

  • Transparency

    N/A

  • QWP (Quarter Wave Plate)

    N/A

CONNECTIVITY

  • HDMI In

    YES (3ea)

  • HDMI In (HDCP Ver.)

    2.2/1.4

  • DP In

    YES (HDCP 2.2/1.3)

  • DVI-D In

    YES (HDCP 1.4)

  • RGB In

    NO

  • Audio In

    YES

  • RS232C In

    YES

  • RJ45(LAN) In

    YES (1ea)

  • IR In

    YES

  • USB In

    USB2.0 Type A (2ea)

  • HDMI Out

    NO

  • DP Out

    YES

  • Audio Out

    YES

  • Touch USB

    NO

  • External Speaker Out

    NO

  • RS232C Out

    YES

  • RJ45(LAN) Out

    YES

  • IR Out

    NO

  • Daisy Chain

    Input : HDMI, DP, DVI-D / Output : DP

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    T/R/L/B : 5.9/4.4/4.4/5.9mm

  • Weight (Head)

    20.5Kg

  • Weight (Head+Stand)

    N/A

  • Packed Weight

    38.2Kg

  • Monitor Dimensions (W x H x D)

    2158.3 x 348.5 x 81.7mm

  • Monitor Dimension with Stand (W x H x D)

    N/A

  • Carton Dimensions (W x H x D)

    2290 x 599 x 228mm

  • Handle

    YES

  • VESA Standard Mount Interface

    600 x 200 mm

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    8GB

  • Wi-Fi/BT (Built-in)

    YES

  • Temperature Sensor

    YES

  • Auto Brightness Sensor

    YES

  • Pixel Sensor

    NO

  • Proximity Sensor

    NO

  • Current Sensor

    YES

  • BLU Sensor

    NO

  • Humidity Sensor

    NO

  • Acceleration(Gyro) Sensor

    NO

  • Power Indicator

    NO

  • Local Key Operation

    YES

  • FAN (Built-in)

    NO

FEATURE - SOFTWARE

  • OS Ver. (webOS)

    webOS 4.0

  • Local Contents Scheduling

    YES

  • Group Manager

    YES

  • USB Plug & Play

    YES

  • Fail over

    YES

  • Booting Logo Image

    YES

  • No Signal Image

    YES

  • RS232C Sync

    YES

  • Local Network Sync

    YES

  • Backlight Sync

    NO

  • PIP

    NO

  • PBP

    YES (4PBP)

  • Screen Share

    NO

  • Video Tag

    NO

  • Play via URL

    NO

  • Screen Rotation

    YES

  • External Input Rotation

    YES

  • Gapless Playback

    NO

  • Tile Mode Setting

    YES

  • Setting Data Cloning

    YES

  • SNMP

    YES

  • ISM Method

    YES

  • Auto Set ID

    YES

  • Status Mailing

    YES

  • Control Manager

    YES

  • Cisco Certification

    NO

  • Crestron Connected

    YES

  • Smart Energy Saving

    YES

  • PM mode

    YES

  • Wake on LAN

    YES

  • Network Ready

    NO

  • Beacon

    YES

  • HDMI-CEC

    YES

  • SI Server Setting

    NO

  • webRTC

    NO

  • Pro:Idiom

    NO

  • Brightness Compensation

    NO

  • W/B Setting by Grey scale

    NO

  • Scan Inversion

    NO

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • Typ.

    220W

  • Max.

    240W

  • BTU (British Thermal Unit)

    751 BTU/Hr(Typ.), 819 BTU/Hr(Max.)

  • Smart Energy Saving (70%)

    100W

  • DPM

    0.5W

  • Power off

    0.5W

SOUND

  • Speaker (Built-in)

    NO

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ERP / Energy Star

    YES(EU Only) / NO

  • ePEAT(US only)

    NO

OPS COMPATIBILITY

  • OPS Type compatible

    YES (Piggyback)

  • OPS Power Built-in

    NO

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    NO

  • SuperSign Control+

    YES

  • SuperSign WB

    YES

  • SuperSign Cloud

    NO

  • Promota

    NO

  • Mobile CMS

    YES

  • Connected Care

    YES

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic

ACCESSORY

  • Basic

    Remote Controller(including battery 2ea), Power Cord, DP cable, RS-232C Cable, IR/Light sensor receiver, Manual

  • Optional

    OPS Kit(KT-OPSF)

SPECIAL FEATURE

  • Overlay Touch Compatibility

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face up)

    N/A

  • Tilt (Face down)

    N/A

  • IP Rating

    IP5X

  • Conformal Coating (Power Board)

    YES

  • Power Protection

    N/A

  • Direct Sunlight

    N/A

To access more technical documentation and resources, please visit the LG B2B partner portal.
