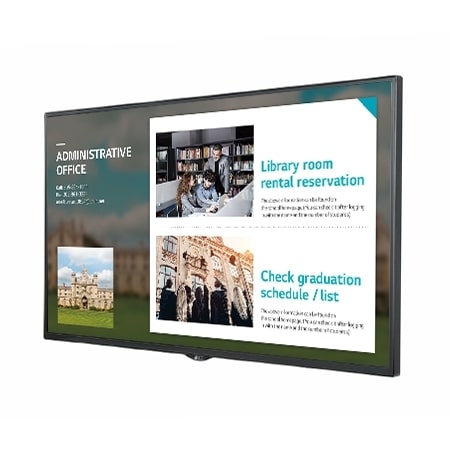

SE3KE Series

(4)

An Essential Way of Delivering Dynamic Content

The SE3KE series satisfies a wide range of display purposes in your business while reducing operational costs with low power consumption. Easy-to-use menus designed for business purposes make for a more convenient and powerful display.

Simple Content Management

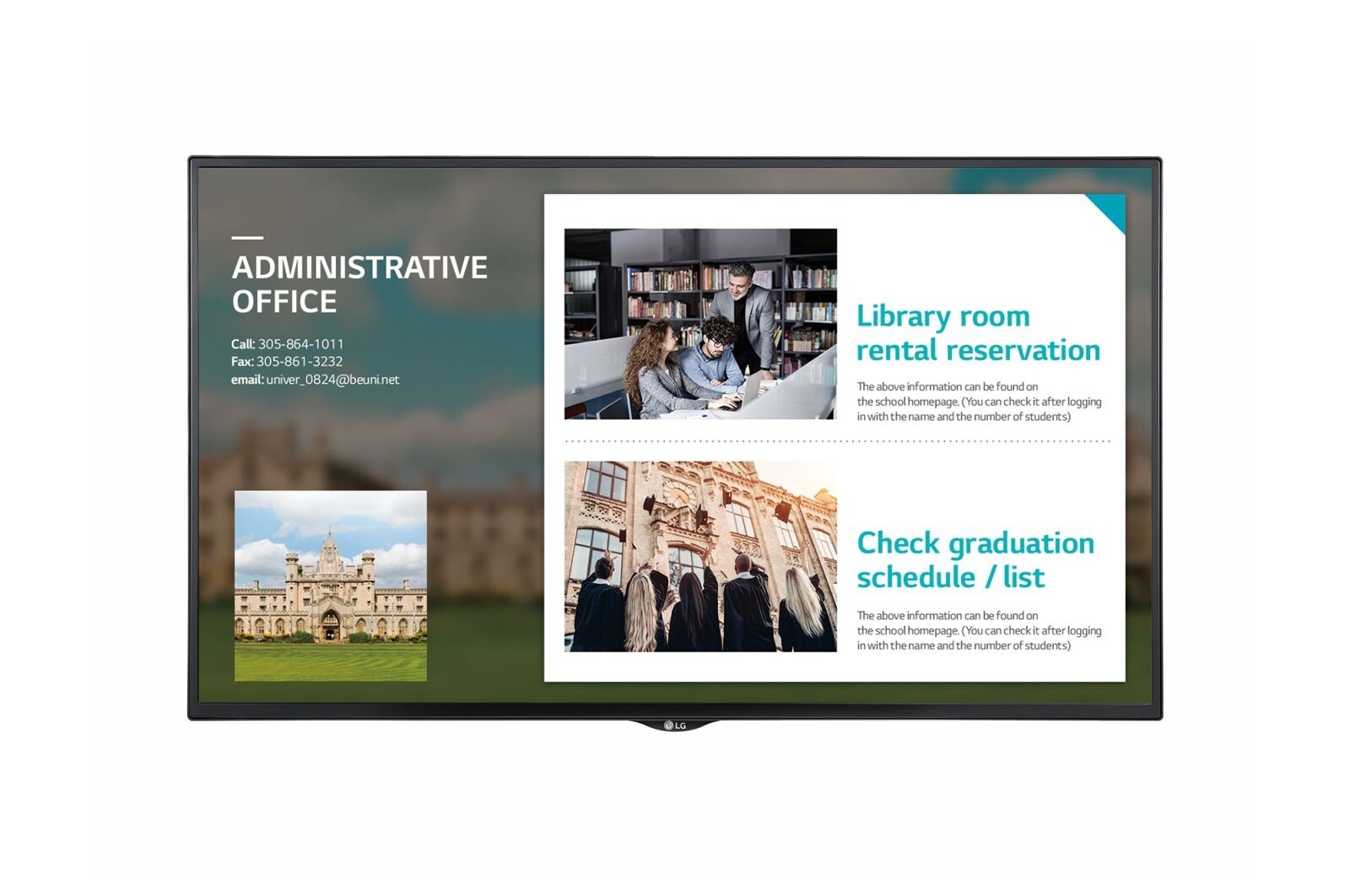

User-Friendly Menu for Digital Signage

With the signage dedicated home menu, users can check key information related to displays at a glance. On the bottom, the content management menu is provided, letting you explore and play available content and set playlists with desired schedules using a remote controller.

Simple Content Management

USB Content Scheduling & Data Cloning

USB content scheduling and cloning makes managing multiple displays more efficient for optimal content playback and operation, since users don't have to set up each display one by one. Once users copy data to a USB in one display, it will be easily distributed to others through a USB plug-in.

Efficient Operation

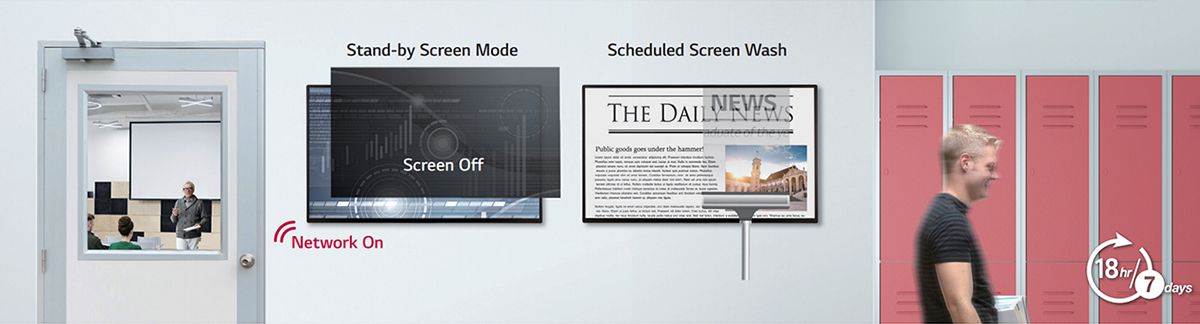

Stand-by Screen Mode

The SE3KE series partially keeps power-on status controllable by network while the screen is turned off, enabling efficient power management.

Scheduled Screen Wash.

ISM ^{(Image Sticking Minimization)} mode supports users in setting up periods and times to refresh the screen to prevent the occurrence of image sticking.

18/7 Operation

The SE3KE series can be operated for 18 hours a day, which provides users with the flexibility to allocate and operate it in places that are open for long periods of time.

Excellent Connectivity

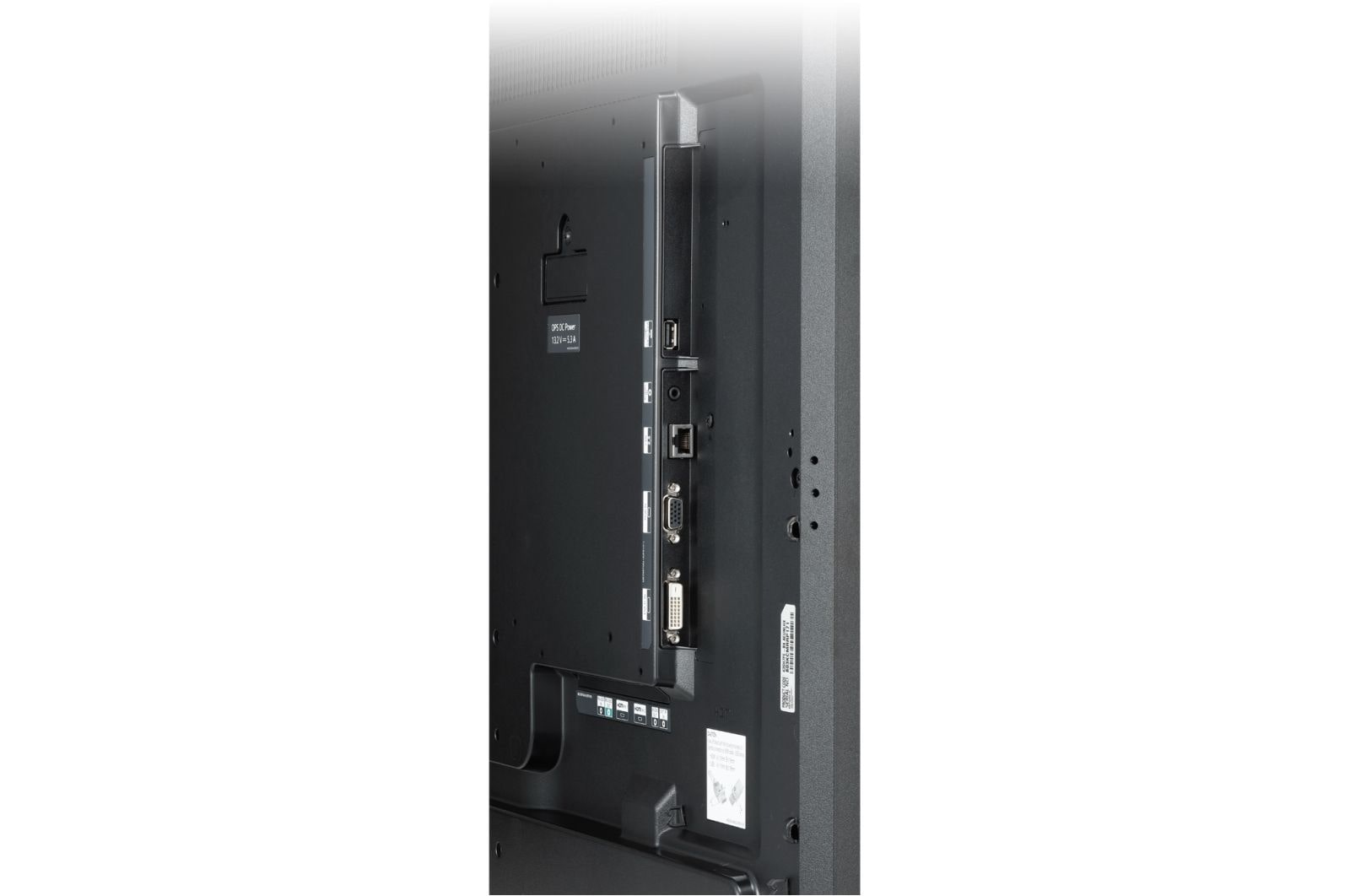

A Wide Range of Interfaces

Thanks to its high compatibility with diverse interfaces, users can select among various input/output sources for optimal content playback and control.

Excellent Connectivity

Compatibility with AV Control Systems

The SE3KE series has been certified Crestron Connected^Ⓡfor a higher level of compatibility with professional AV controls to achieve seamless integration and automated control1, boosting business management efficiency.

Industrial Design

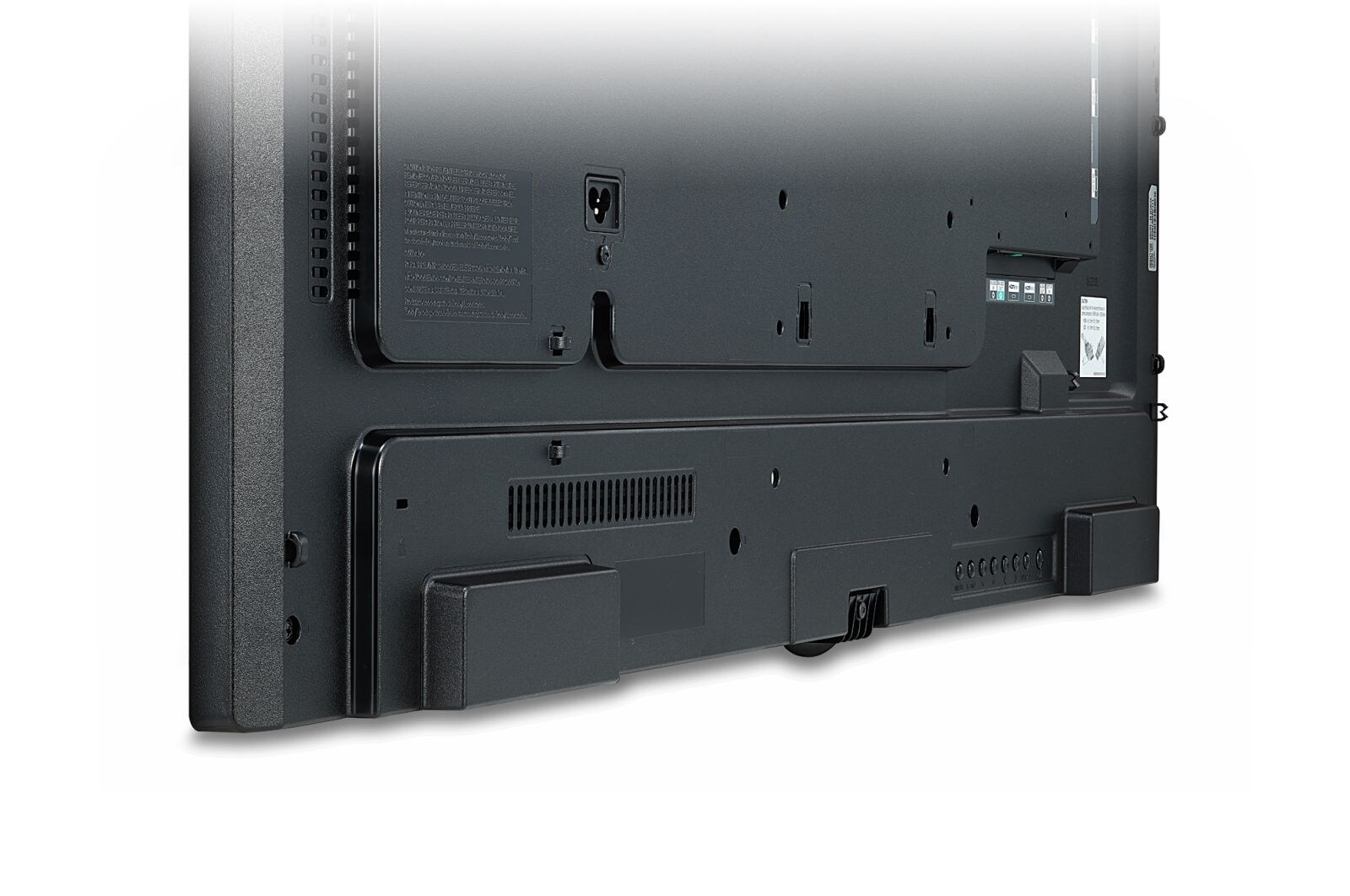

Detachable Logo & Built-in Speaker

The detachable logo makes it easy for the user to arrange the signage. Also, sounds can be played from built-in speakers, offering viewers various multi-media experiences.

Industrial Design

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on major circuit board eliminates such circumstances by protecting it against dust, iron powder, humidity, etc.

All Spec

PANEL

Screen Size

43"
Panel Technology

IPS
Aspect Ratio

16 : 9
Native Resolution

1,920 x 1,080 (FHD)
Brightness (Typ.)

350 cd/m²
Contrast Ratio

1,100:1
Viewing Angle (H x V)

178 x 178
Response Time

12 ms (G to G BW), 9.4 ms (WOT)
Surface Treatment (Haze)

AGP Haze 1%
Life time (Typ.)

50,000 Hrs
Guaranteed Operating Hours

18 Hrs
Orientation

Landscape & Portrait

CONNECTIVITY

Input

HDMI (2), DVI-D, RGB, Audio, USB
Output

Audio (Off/Fixed/Variable)
External Control

RS232C In/out, RJ45 In, IR In

MECHANICAL SPECIFICATION

Bezel Color

Black
Bezel Width

11.9 mm (T/R/L), 18 mm (B)
Monitor Dimension (W x H x D)

969.6 x 563.9 x 54 mm
Weight (Head)

10.0 kg
Monitor with Optional Stand Dimensions (W x H x D)

969.6 x 622.2 x 193 mm
Weight (Head+Stand)

12.5 kg
Carton Dimensions (W x H x D)

1,052 x 650 x 123 mm
Packed Weight

12.6 kg
VESA™ Standard Mount Interface

200 x 200 mm

ENVIRONMENTAL CONDITIONS

Operation Temperature

0°C to 40°C
Operation Humidity

10% to 80%

POWER

Power Supply

100-240V~, 50/60Hz
Power Type

Built-In Power
Power Consumption (Typ./Max)

55 W / 90 W
Power Consumption (Smart Energy Saving)

38.5 W

SOUND

Speaker

20 W (10 W x 2)

CERTIFICATION

Safety

IEC 60950-1 / EN 60950-1 / UL 60950-1
EMC

FCC Class "A" / CE / KC
ErP / Energy Star

Yes / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible

Yes
External Media Player Attachable

Yes (MP500 / MP700)

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign CMS
Control and Monitoring Software

SuperSign Control / Control+

ACCESSORIES

Basic

Remote Controller, Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver
Optional

Stand (ST-432T), Media Player, Wall Bracket (LSW230B), VESA Adapter (AM-B220S), Wi-Fi Dongle (AN-WF500), Touch Overlay (KT-T43E)
