Non-Glare Ultra HD Series

(6)

SUPERB PICTURE QUALITY

Clear View with Non-glare Coating

Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.

SUPERB PICTURE QUALITY

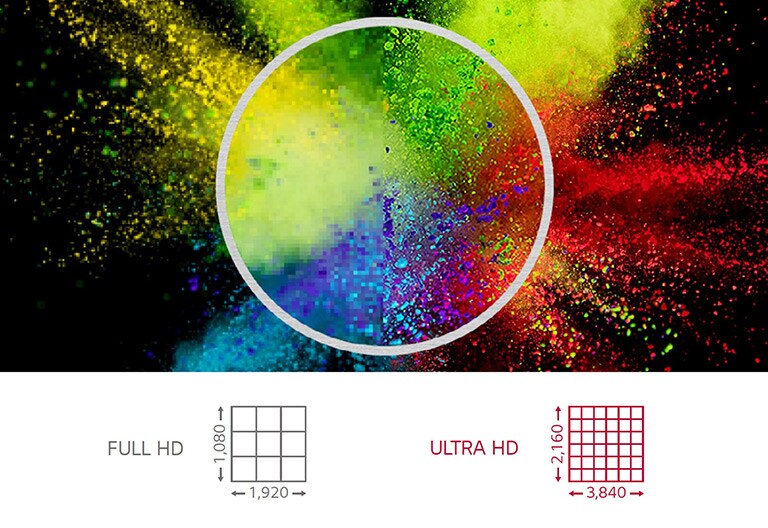

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents with no distortion.

SLEEK AND PRACTICAL DESIGN

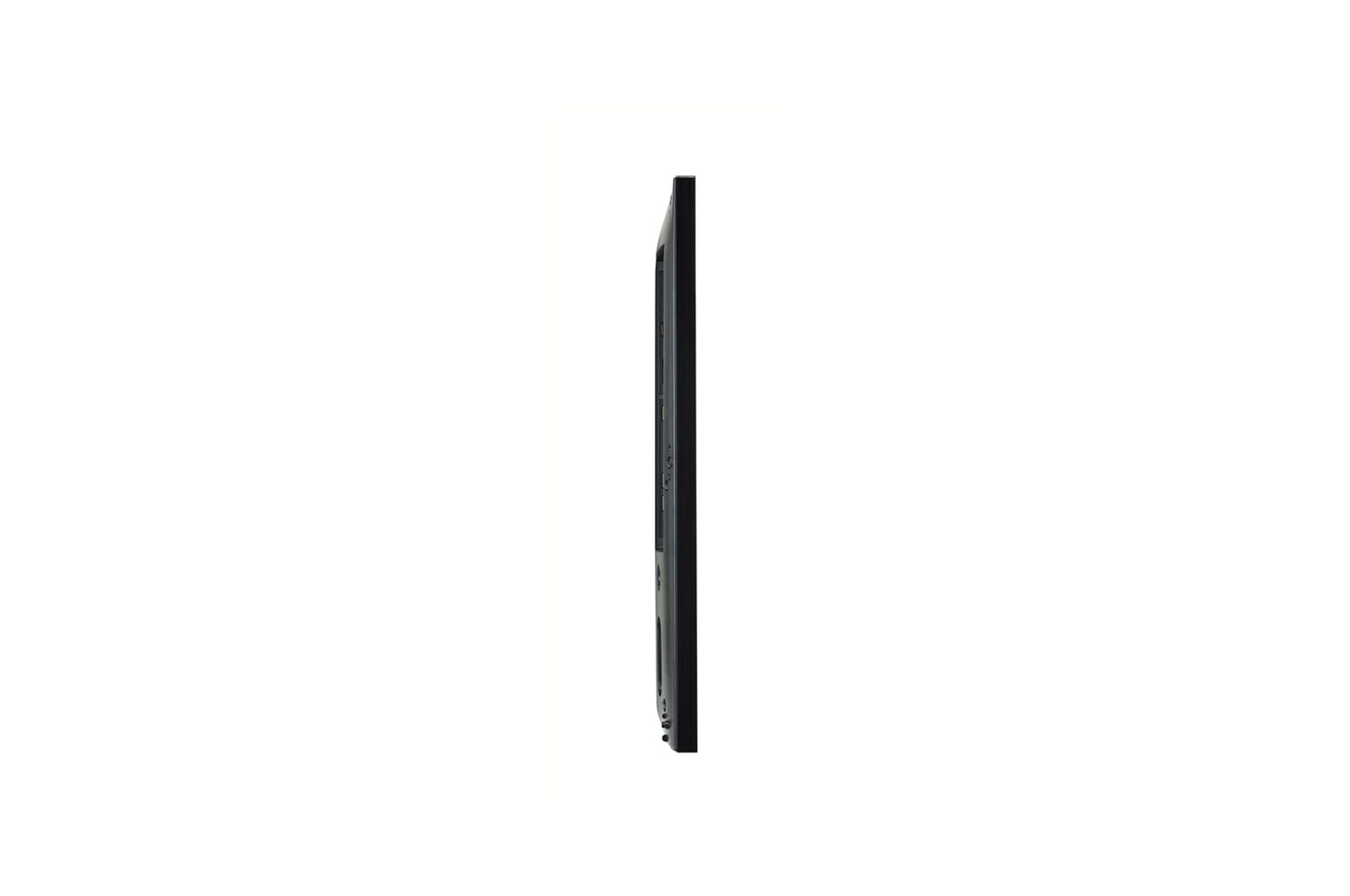

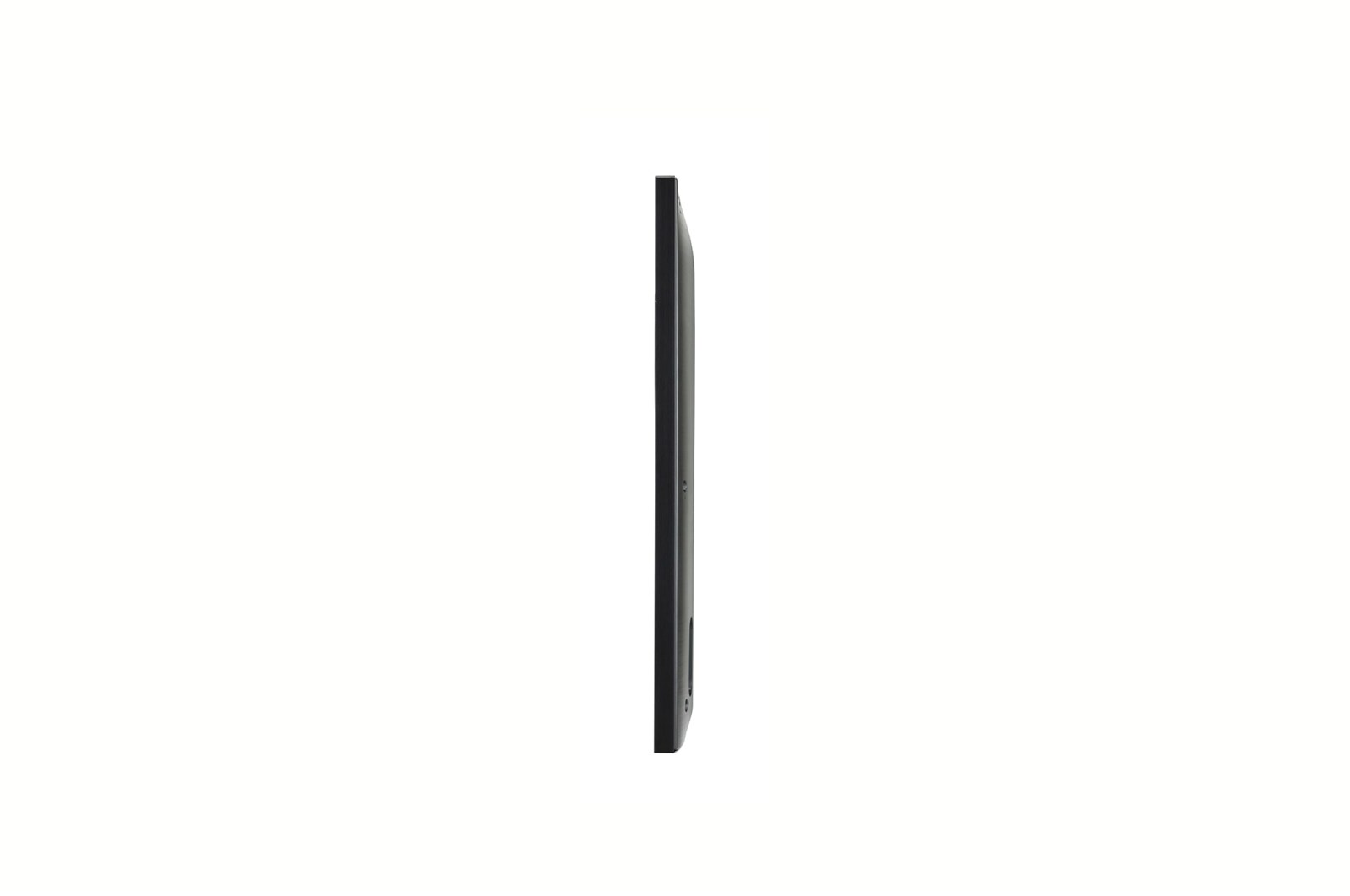

Narrow Bezel & Slim Depth

This series has a smaller bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.

SLEEK AND PRACTICAL DESIGN

Detachable Logo and Built-in Speaker

This series is equipped with a new transparent logo which is well organized with surroundings. Also, its removable feature gives users flexibility for installation. Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

PRODUCT RELIABILITY

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.

PRODUCT RELIABILITY

30° Tilting Installation

When a display is installed at high places, it is usually tilted for the user's comfort viewing. In consideration of this, the installation with 30 degrees of tilt* is supported.

* Tilt installation of up to 30 degrees facedown is supported. (In conditions within 30ºC temperature, 50% humidity)

EASY INSTALLATION

Auto Screen Rotation

This series automatically detects its orientation (landscape or portrait mode) in the initial installation step, so manual rotation set-up process isn't required. The direction of OSD and background contents will be already set when you turn on a display at first.

EASY INSTALLATION

Fine Adjustment

This series is equipped with a "horizontal sensor" which shows users how the device is tilt, so that it can be precisely installed.

webOS SMART SIGNAGE PLATFORM

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

webOS SMART SIGNAGE PLATFORM

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

MEETING ROOM SOLUTION COMPATIBILITY

Compatible with AV Control System

The UH5F-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network based control

MEETING ROOM SOLUTION COMPATIBILITY

Compatible with Video Conference System

For the optimum visual meeting, the UH5F-H series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.

* Using an HDMI cable connection

ENERGY STAR^® Certified

All Spec

PANEL

Screen Size (Inch)

65
Panel Technology

IPS
Back Light Type

Edge
Aspect Ratio

16:9
Native Resolution

3840 x 2160 (UHD)
Refresh Rate

60Hz
Brightness

500nit (Typ.)
Contrast Ratio

1,100:1
Dynamic CR

1,000,000:1
Color Gamut

BT709 95%
Viewing Angle (H x V)

178º x 178º
Color Depth (Number of Colors)

1.07 Billion colors
Response Time

8ms (G to G)
Surface Treatment (Haze)

Haze 28%
Life time

50,000Hrs (Min.)
Operation Hours (Hours/Day)

24/7
Portait / Landscape

YES / YES
Transparency

N/A
QWP (Quarter Wave Plate)

N/A

CONNECTIVITY

HDMI In

YES (3ea)
HDMI In (HDCP Ver.)

2.2/1.4
DP In

YES (HDCP 2.2/1.3)
DVI-D In

YES (HDCP 1.4)
RGB In

NO
Audio In

YES
RS232C In

YES
RJ45(LAN) In

YES (1ea)
IR In

YES
USB In

USB2.0 Type A (1ea)
HDMI Out

NO
DP Out

YES
Audio Out

YES
Touch USB

NO
External Speaker Out

NO
RS232C Out

YES
RJ45(LAN) Out

NO
IR Out

NO
Daisy Chain

NO

MECHANICAL SPECIFICATION

Bezel Color

Black
Bezel Width

T/R/L: 9.9mm, B: 14.4mm
Weight (Head)

28.2Kg
Weight (Head+Stand)

28.8Kg
Packed Weight

35.0Kg
Monitor Dimensions (W x H x D)

1453.3 x 844.0 x 39.9mm (with LG Logo)
Monitor Dimension with Stand (W x H x D)

1453.3 x 893.1 x 290.0mm
Carton Dimensions (W x H x D)

1600.0 x 1095.0 x 175.0mm
Handle

NO
VESA Standard Mount Interface

300 x 300 mm

FEATURE - HARDWARE

Internal Memory (eMMC)

8GB
Wi-Fi/BT (Built-in)

YES
Temperature Sensor

YES
Auto Brightness Sensor

YES
Pixel Sensor

NO
Proximity Sensor

NO
Current Sensor

NO
BLU Sensor

NO
Humidity Sensor

NO
Acceleration(Gyro) Sensor

YES
Power Indicator

NO
Local Key Operation

YES
FAN (Built-in)

NO

FEATURE - SOFTWARE

OS Ver. (webOS)

webOS 4.1
Local Contents Scheduling

YES
Group Manager

YES
USB Plug & Play

YES
Fail over

YES
Booting Logo Image

YES
No Signal Image

YES
RS232C Sync

YES
Local Network Sync

YES
Backlight Sync

NO
PIP

YES
PBP

YES (4PBP)
Screen Share

YES
Video Tag

YES (4 Video Tag)
Play via URL

YES
Screen Rotation

YES
External Input Rotation

YES
Gapless Playback

YES
Tile Mode Setting

YES
Setting Data Cloning

YES
SNMP

YES
ISM Method

YES
Auto Set ID

YES
Status Mailing

YES
Control Manager

YES
Cisco Certification

YES
Crestron Connected

YES
Smart Energy Saving

YES
PM mode

YES
Wake on LAN

YES
Network Ready

YES
Beacon

YES
HDMI-CEC

YES
SI Server Setting

YES
webRTC

YES
Pro:Idiom

YES
Brightness Compensation

NO
W/B Setting by Grey scale

NO
Scan Inversion

NO

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40 °C
Operation Humidity

10 % to 80 %

POWER

Power Supply

AC 100-240V~, 50/60Hz
Power Type

Built-in Power

POWER CONSUMPTION

Typ.

120W
Max.

165W
BTU (British Thermal Unit)

409 BTU/Hr(Typ.), 563 BTU/Hr(Max.)
Smart Energy Saving (70%)

96W
DPM

0.5W
Power off

0.5W

SOUND

Speaker (Built-in)

YES (10W x 2)

CERTIFICATION

Safety

CB / NRTL
EMC

FCC Class "A" / CE / KC
ERP / Energy Star

YES(NewErP) / YES
ePEAT(US only)

NO

OPS COMPATIBILITY

OPS Type compatible

YES (Piggyback)
OPS Power Built-in

NO

SOFTWARE COMPATIBILITY

SuperSign CMS

YES
SuperSign Control+

YES
SuperSign WB

YES
SuperSign Cloud

NO
Promota

YES
Mobile CMS

YES
Connected Care

YES

LANGUAGE

OSD

English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

ACCESSORY

Basic

Remote Controller(include battery 2ea), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
Optional

Stand(ST-653T), OPS Kit(KT-OPSF)
