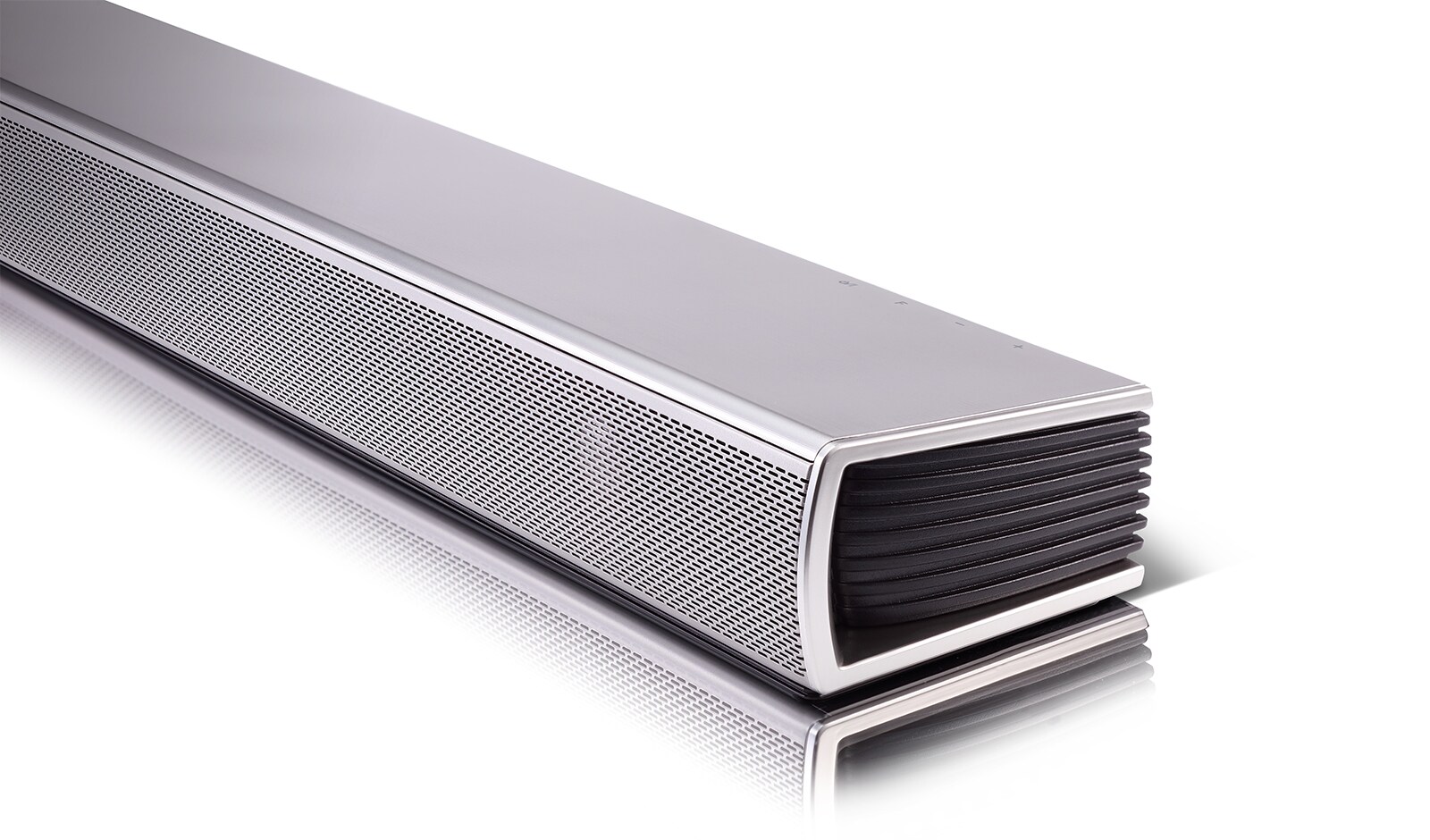

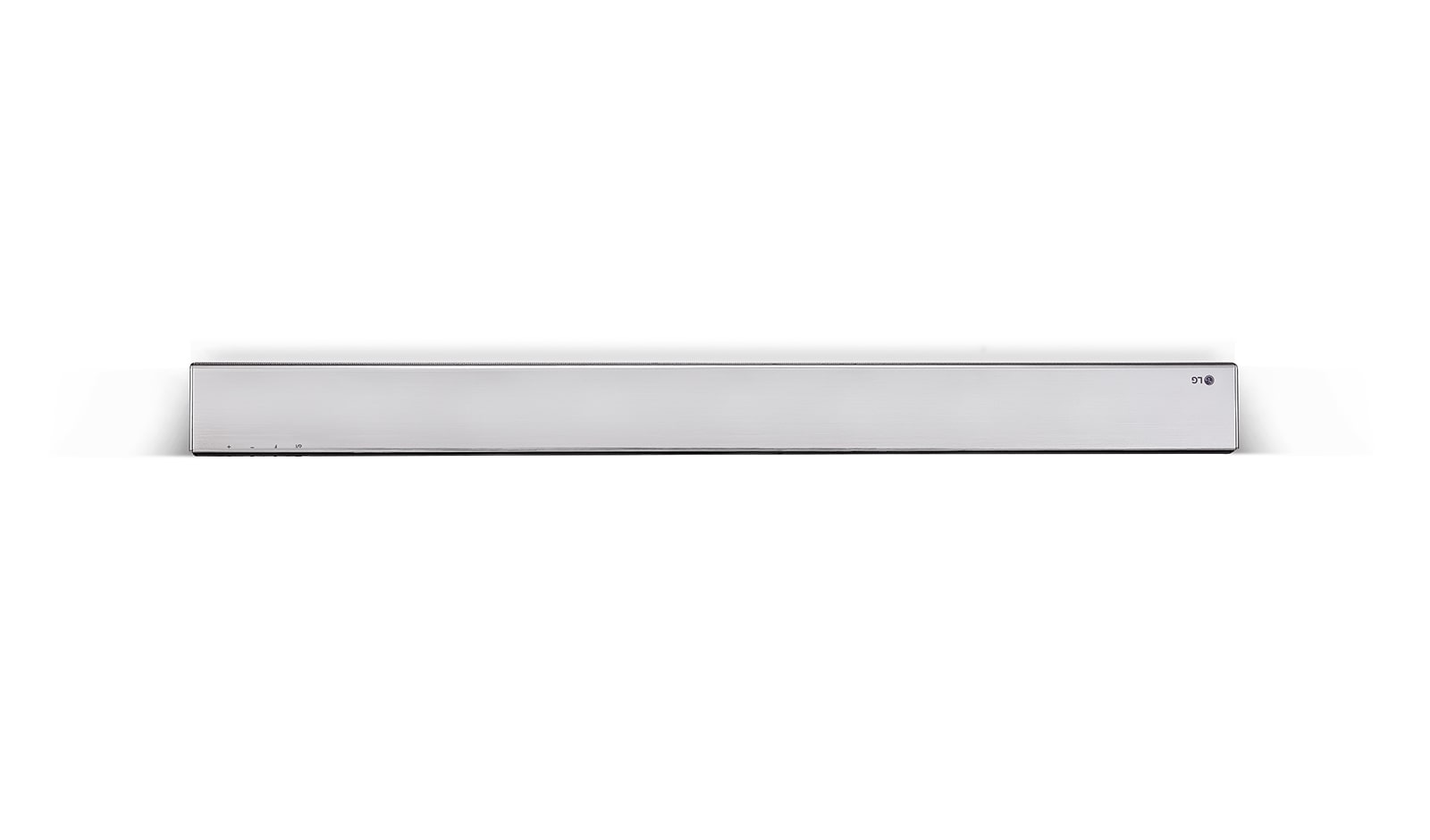

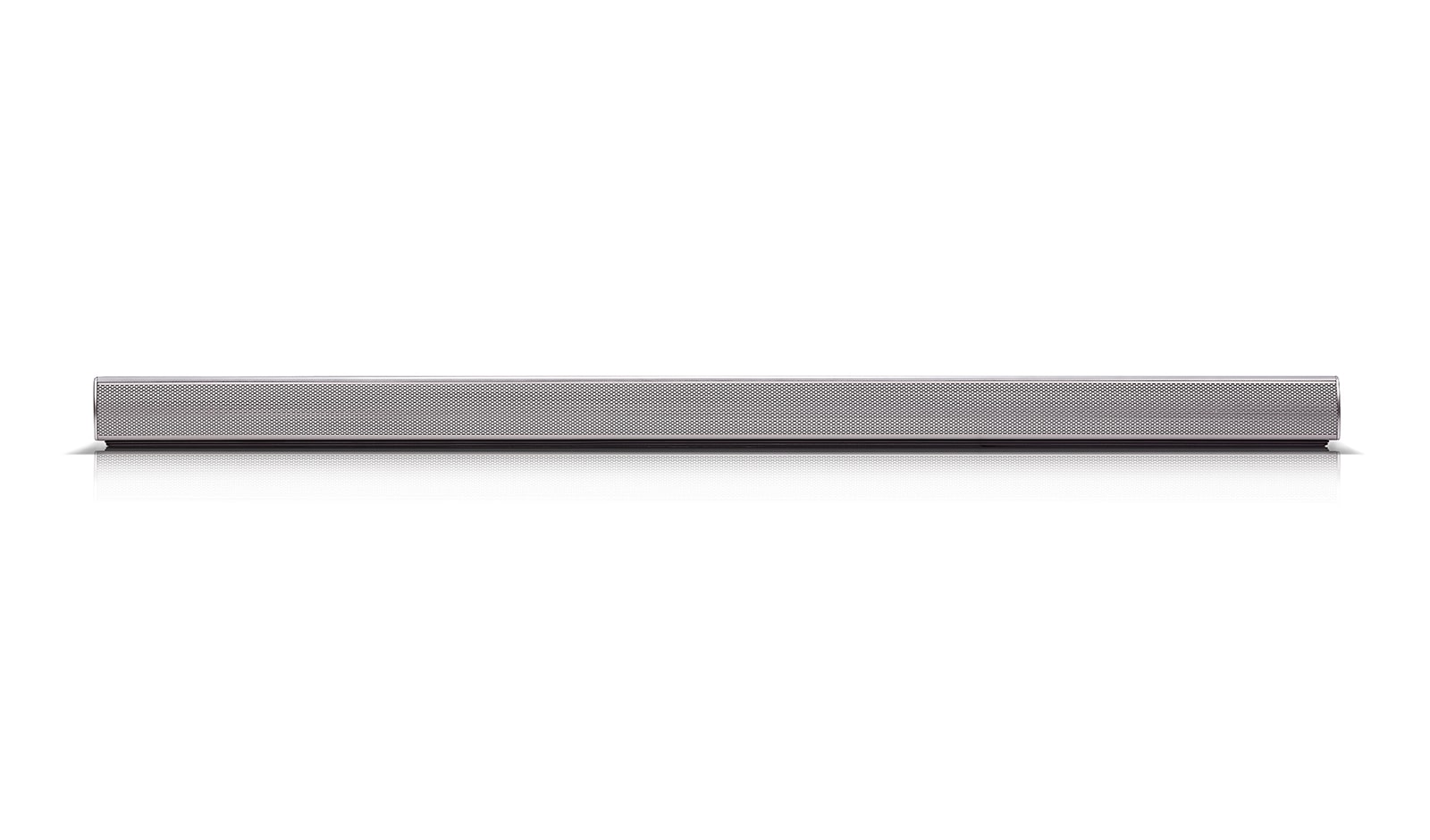

320W 2.1Ch. Sound Bar SH5

320W 2.1Ch. Sound Bar SH5

All Spec

PHYSICAL

  • Size (W x H x D) mm - Main (w/o foot ) mm

    945 X 53 X 85 ('16 New Design)

  • Size (W x H x D mm) -Main (w/o foot ) mm ("Matching TV size ('16 New Designed LG TV))

    43 inch ↑

  • Size (W x H x D mm) -Main (w/o foot ) mm (Built-in Foot (H) mm)

    2

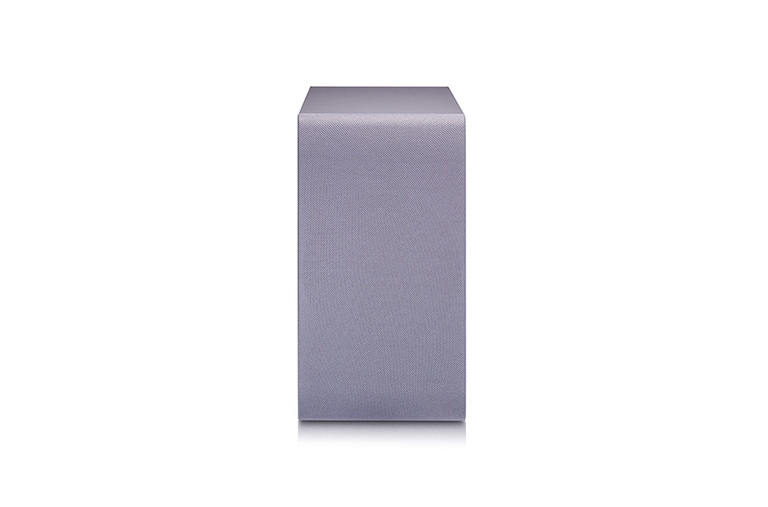

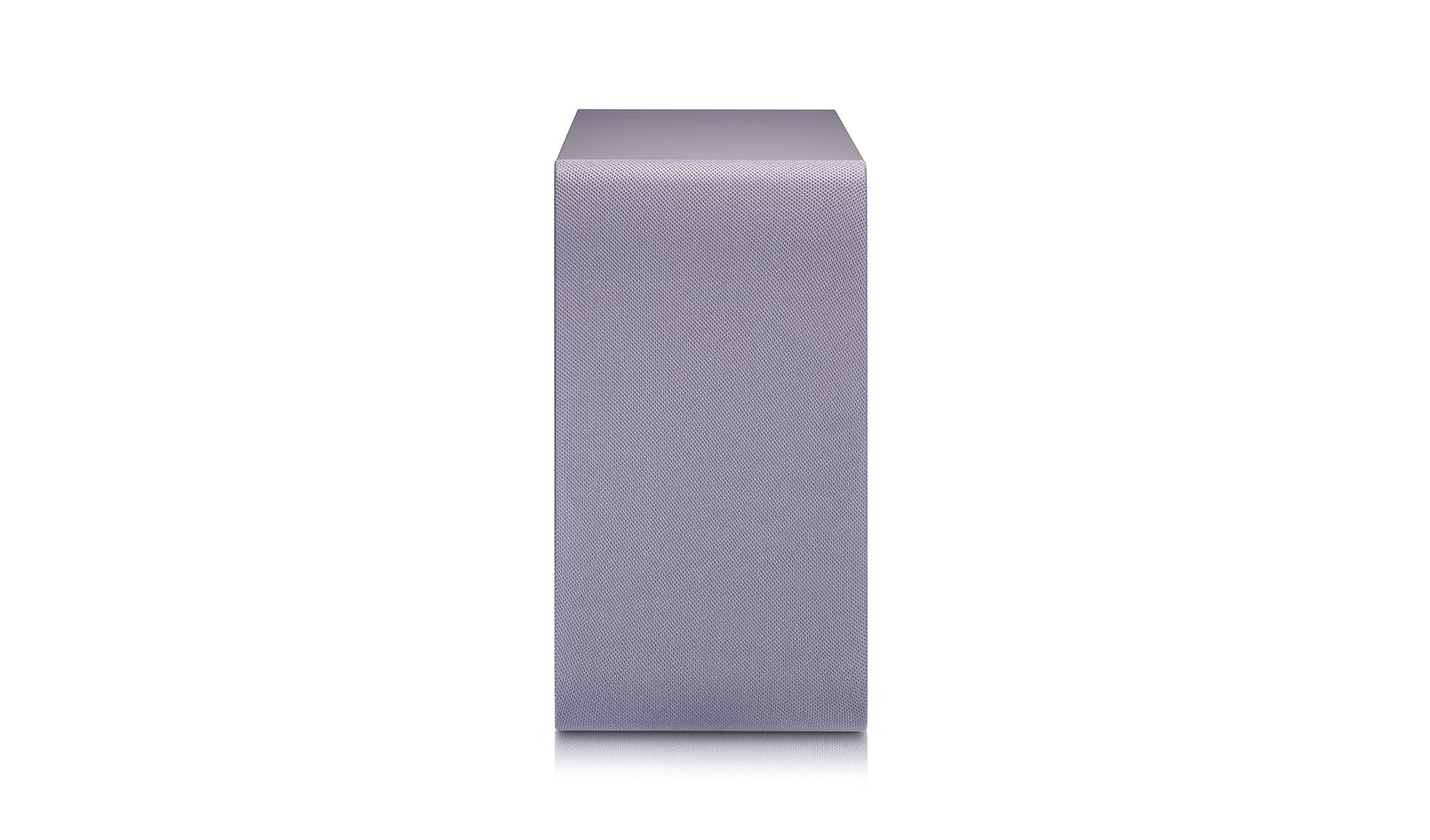

  • Size (W x H x D) mm - Subwoofer

    171x320x252

  • Material - Mainset (Front)

    Mold

  • Material - Mainset (Top / Bottom)

    SECC

  • Material - Subwoofer (Front)

    Jersey

  • Material - Subwoofer (Body)

    Wood

  • Net Weight (Kg) - Main

    2.6Kg

  • Net Weight (Kg) - Subwoofer

    4.2Kg

  • Carton Size (W x H x D) mm

    1005 x 373 x 223

  • Carton Type

    Box Type

  • Gross Weight (Kg)

    9.35Kg

  • Container Q'ty - 20ft

    335

  • Container Q'ty - 40ft

    695

  • Container Q'ty - 40ft (HC)

    805

CHANNEL/OUTPUT POWER

  • Channel

    2.1ch

  • Output Power (THD 10%) - Total

    320W

  • Output Power (THD 10%) - Front

    60Wx2 (Tweeterx2)

  • Output Power (THD 10%) - Subwoofer

    200W(Wireless)

SPEAKER

  • Main - SPL

    82dB

  • Main - System

    2Way/Bi-Amping

  • Main - Tweeter Unit - Front Only

    20mm PPS Dome

  • Main - Woofer Unit

    40x100mm/4ohm

  • Main - Impedance

    4ohm

  • Subwoofer - SPL

    85dB

  • Subwoofer - System

    Bass Reflex

  • Subwoofer - Woofer Unit

    6 inch

  • Subwoofer - Impedance

    3ohm

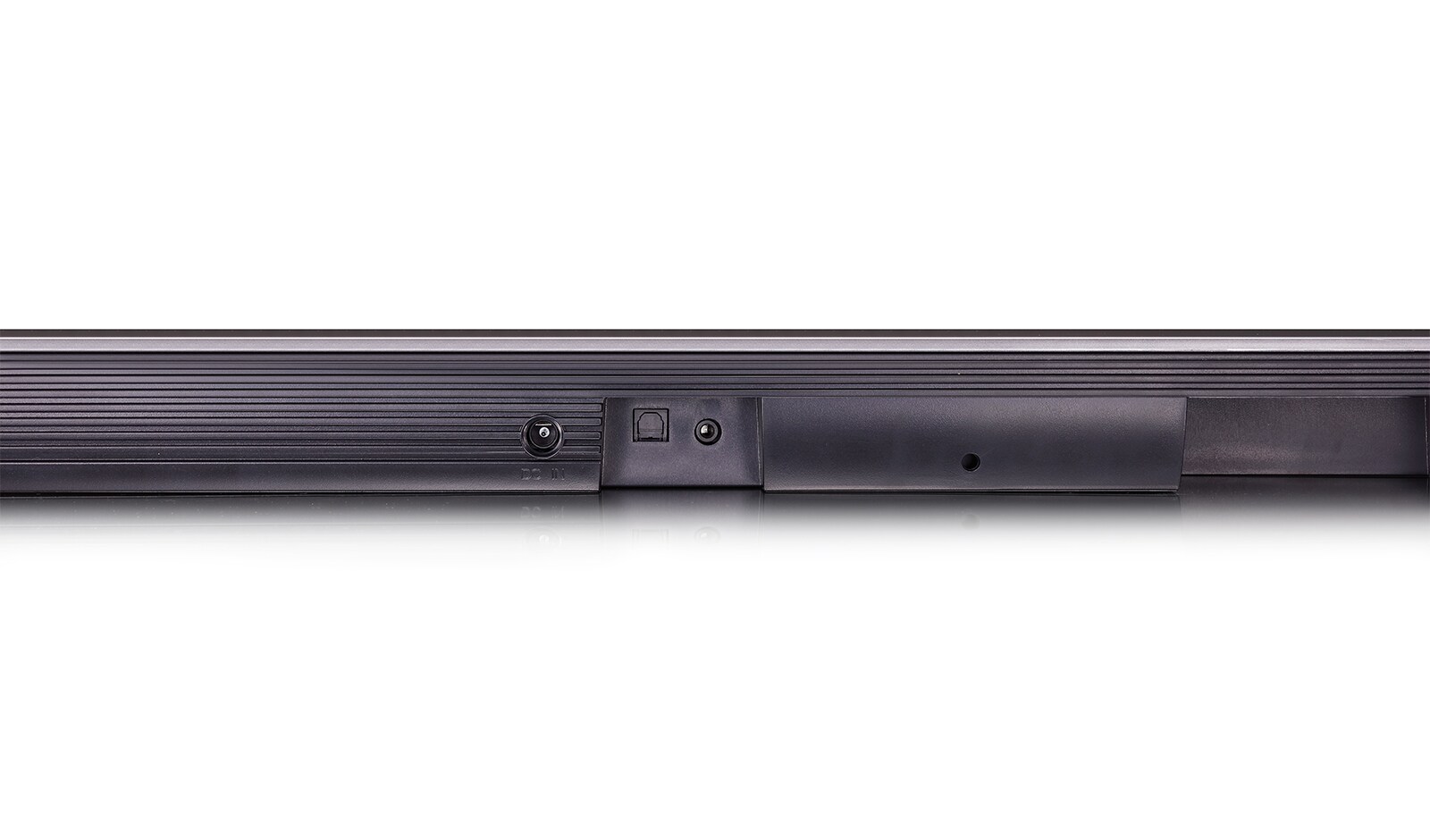

CONNECTIVITY

  • General - Audio Input (Portable In (3.5Ø))

    Yes

  • General - Optical

    Yes(1)

  • General - HDMI 1.4 (HDCP 1.4) (In / Out)

    Yes(1) / Yes(1)

  • General - USB

    Yes

  • Wireless - Bluetooth (ver. 4.0)

    Yes

INFORMATION DISPLAY

  • Display Type

    LCD (5 Char.)

  • Display Auto Dimmer (Auto Off)

    Yes

SOUND MODE

  • Sound Effect - ASC (Adaptvie Sound Control : Default)

    Yes

  • Sound Effect - Standard

    Yes

  • Sound Effect - Cinema (Sound Field eXtension default)

    Yes

  • Tone control - User EQ

    Yes

  • Night Mode - On/Off

    Yes

  • Auto Sound Engine - Default

    Yes

  • Auto Volume Leveler - On/Off

    Yes

CONVENIENCE

  • Smart Phone App - Bluetooth

    Yes

  • Smart Phone App - Update manager

    Yes

  • Bluetooth Stand-By

    Yes

  • Multi-point (Bluetooth Multi pairing) - Up to 2 device

    Yes

  • Control with your TV Remote - Vol + , - , Mute

    Yes

  • Sound Sync - Bluetooth (LG TV)

    Yes

  • Sound Sync - Optical

    Yes

  • Automatic Power on/off - Bluetooth (LG TV)

    Yes / Yes

  • Automatic Power on/off - Optical

    Yes / Yes

  • A/V Sync - 0~300ms

    Yes

  • SIMPLINK

    Yes

  • 3D Video Signal Pass Through

    Yes

  • Audio Return Channel (ARC)

    Yes

  • Woofer Level -15 ~ +6dB

    Yes

  • Mute

    Yes

  • Dimmer

    Yes

  • USB Host

    Yes

AUDIO FORMAT

  • LPCM

    Yes

  • Dolby Digital

    Yes

  • DTS Digital Surround

    Yes

  • FLAC - Up to 192kHz

    Yes

  • OGG - Up to 48kHz

    Yes

  • WAV

    Yes

  • MP3

    Yes

  • WMA

    Yes

POWER CONSUMPTION

  • Main - Type

    100~240V, 50/60Hz

  • Main - Power Off Consumption

    0.5W Under

  • Main - Power Consumption

    22W

  • Subwoofer - Type (SMPS)

    100~240V, 50/60Hz

  • Subwoofer - Power Off Consumption

    0.5W Under

  • Subwoofer - Power Consumption

    33W

ACCESSORY KIT

  • Owners Manual - Web

    Yes (Full)

  • Owners Manual - Book

    Simple

  • Owners Manual - Wall Mount Guide

    Yes

  • Owners Manual - Wireless Speaker Reset Guide

    Yes

  • Remote Control Unit - Type

    MA5(Black)

  • Remote Control Unit - Battery(Size)

    AAA x 2

  • Batteries

    Yes

  • Warranty Card

    Yes

  • Optical Cable

    Yes

  • Wall Mount Bracket

    Yes

  • Box Type

    Offset (AP/IL/IN/ML/ SL/TH/TT),Tip-on (HK)
