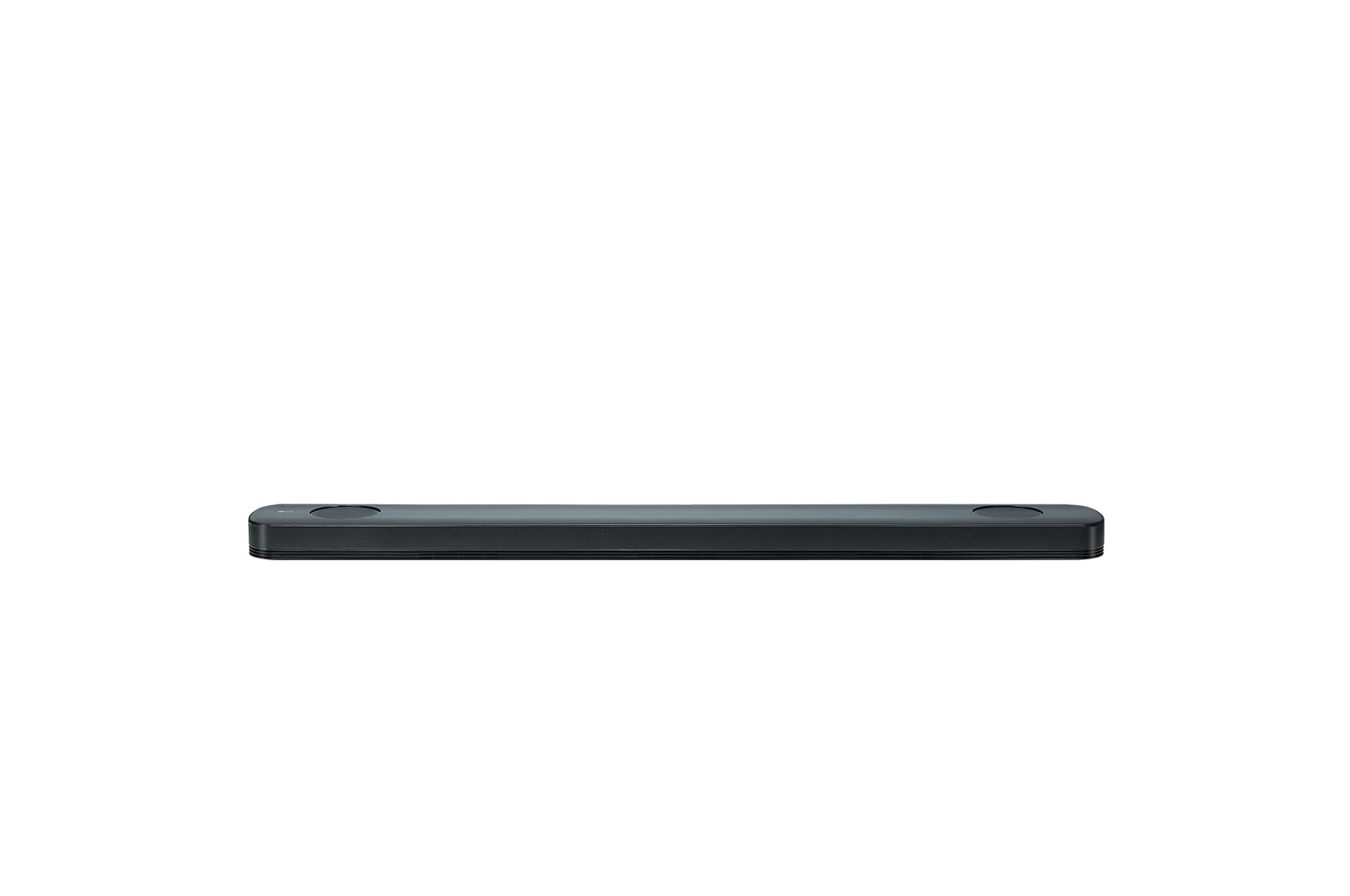

Size (W x H x D) mm - Main (w/ foot ) mm
1200 X 58 X 145
Size (W x H x D) mm - Main (w/ foot ) mm Matching TV size ('18 New Designed LG TV)
55 inch ↑
Size (W x H x D mm) -Main (w/o foot ) mm (Built-in Foot (H) mm)
2

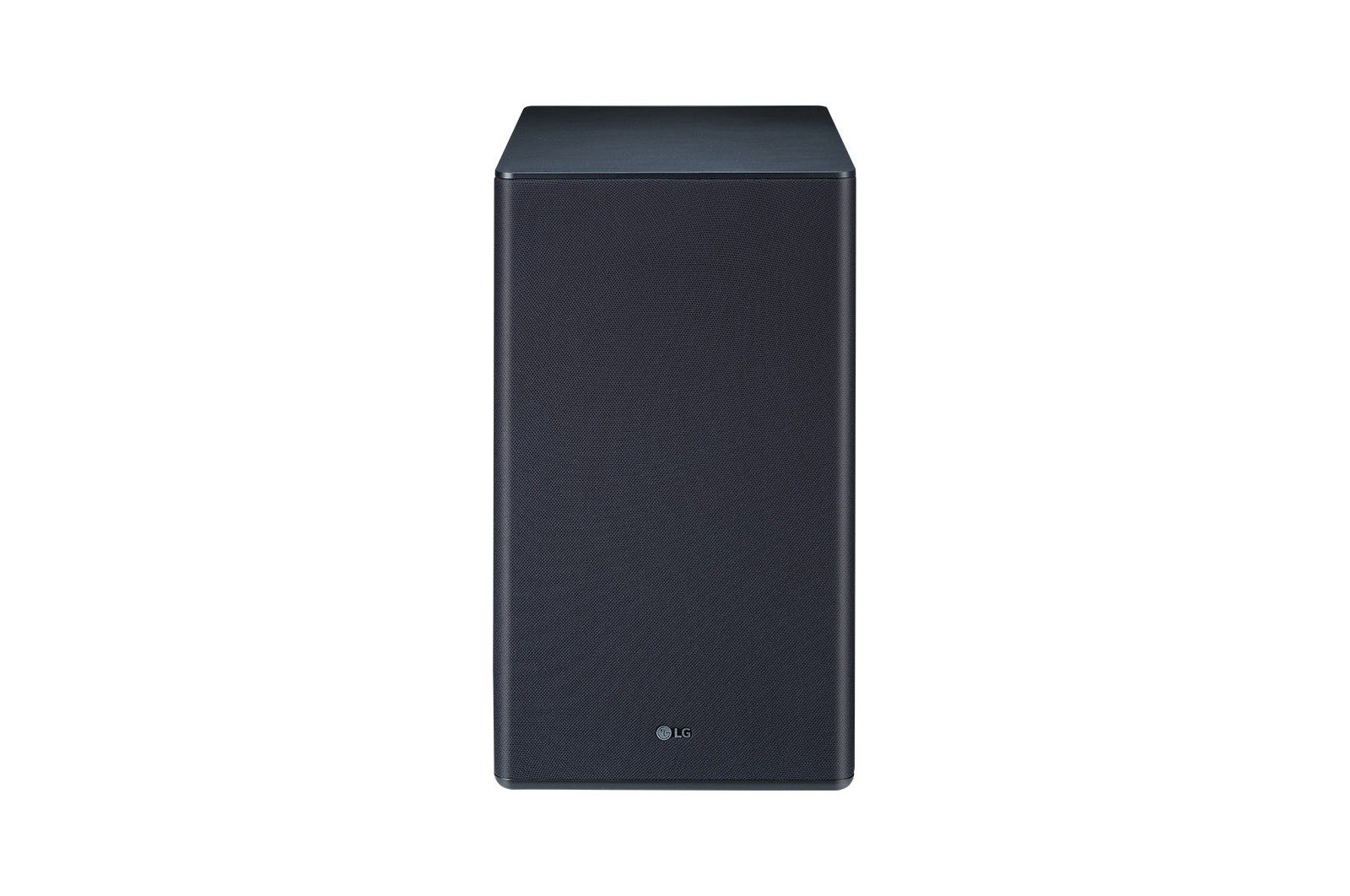

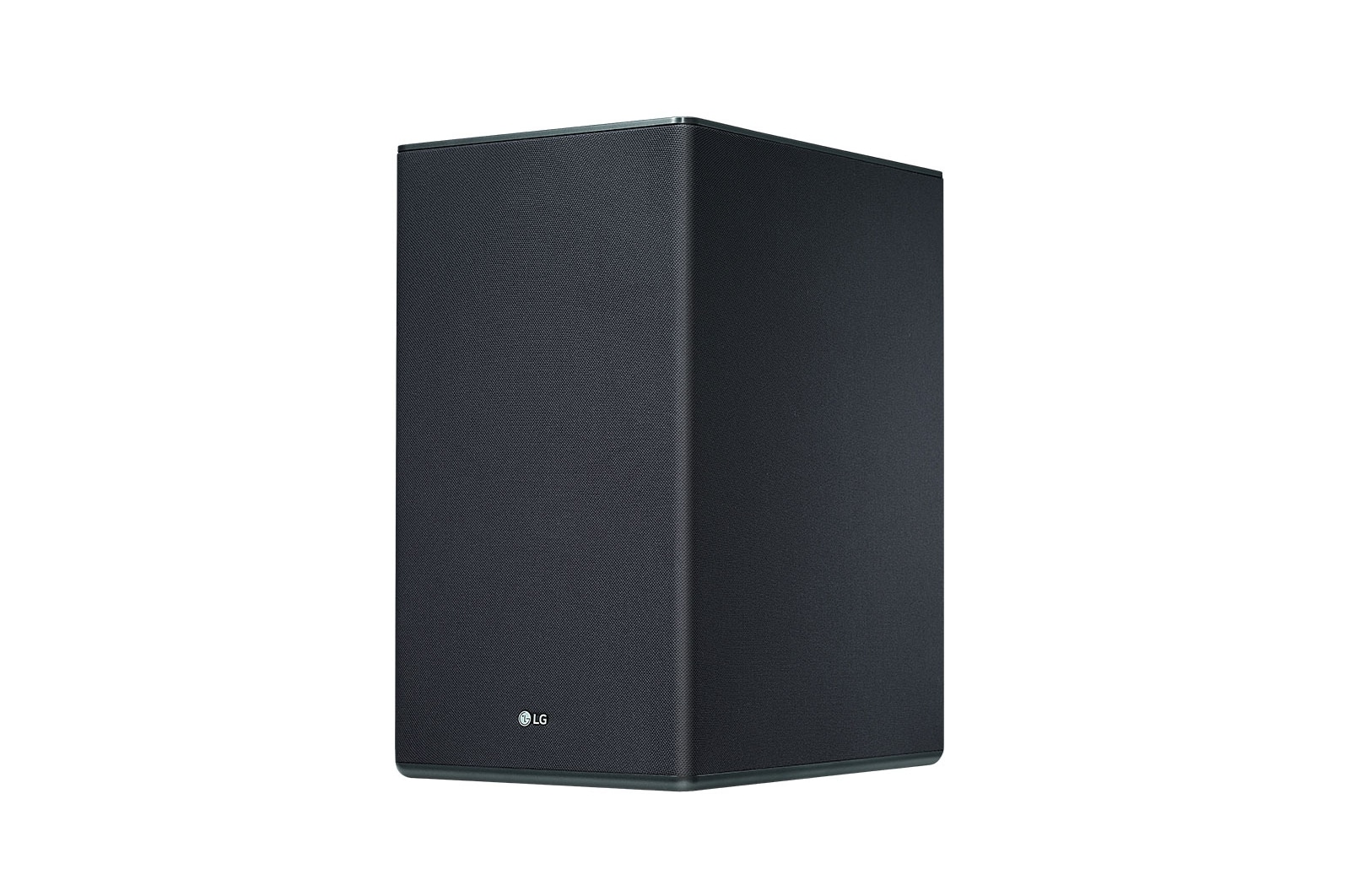

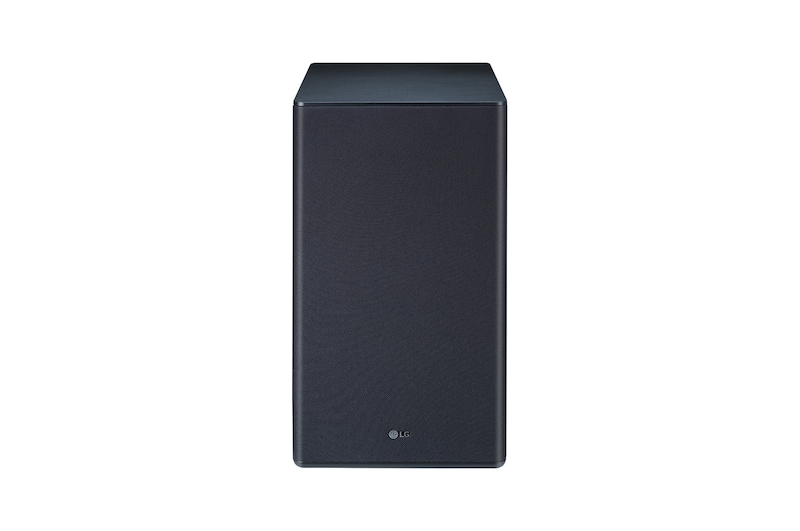

Size (W x H x D) mm - Subwoofer
221.0 x 390.0 x 312.8
Material - Mainset (Front)
Metal Grille
Material - Mainset (Top / Bottom)
Mold / Mold
Material - Subwoofer (Front)
Jersey
Material - Subwoofer (Body)
Wood
Net Weight (Kg) - Main
5.64Kg
Net Weight (Kg) - Subwoofer
7.6Kg
Carton Size (W x H x D) mm
1266 x 467 x 284
Carton Type
Offset
Gross Weight (Kg)
16.8Kg
Container Q'ty - 20ft
136
Container Q'ty - 40ft
292
Container Q'ty - 40ft (HC)
365
Channel
5.1.2ch
Output Power (THD 10%) - Total
500W
Output Power (THD 10%) - Front
43W x 2
Output Power (THD 10%) - Center
43W
Output Power (THD 10%) - Surround
43W x 2
Output Power (THD 10%) - Top
43W x 2
Output Power (THD 10%) - Subwoofer
200W (Wireless)
Audio DAC - 24bit/192kHz
Yes
Main - SPL
82dB
Main - System
Closed
Main - Tweeter Unit - Front Only
20mm PPS Dome
Main - Woofer Unit
40x100mm
Main - Impedance
4ohm
Main - Magnetic Shielding
non-shield
Top - SPL
80dB
Top - System
Closed
Top - Woofer Unit
2.5"
Top - Impedance
4ohm
Top - Magnetic Shielding
non-Shield
Subwoofer - SPL
85dB
Subwoofer - System
Bass Reflex
Subwoofer - Woofer Unit
7inch
Subwoofer - Impedance
3ohm
Subwoofer - Magnetic Shielding
Non-shield
WiFi Band Width - 2.4G / 5G
Yes

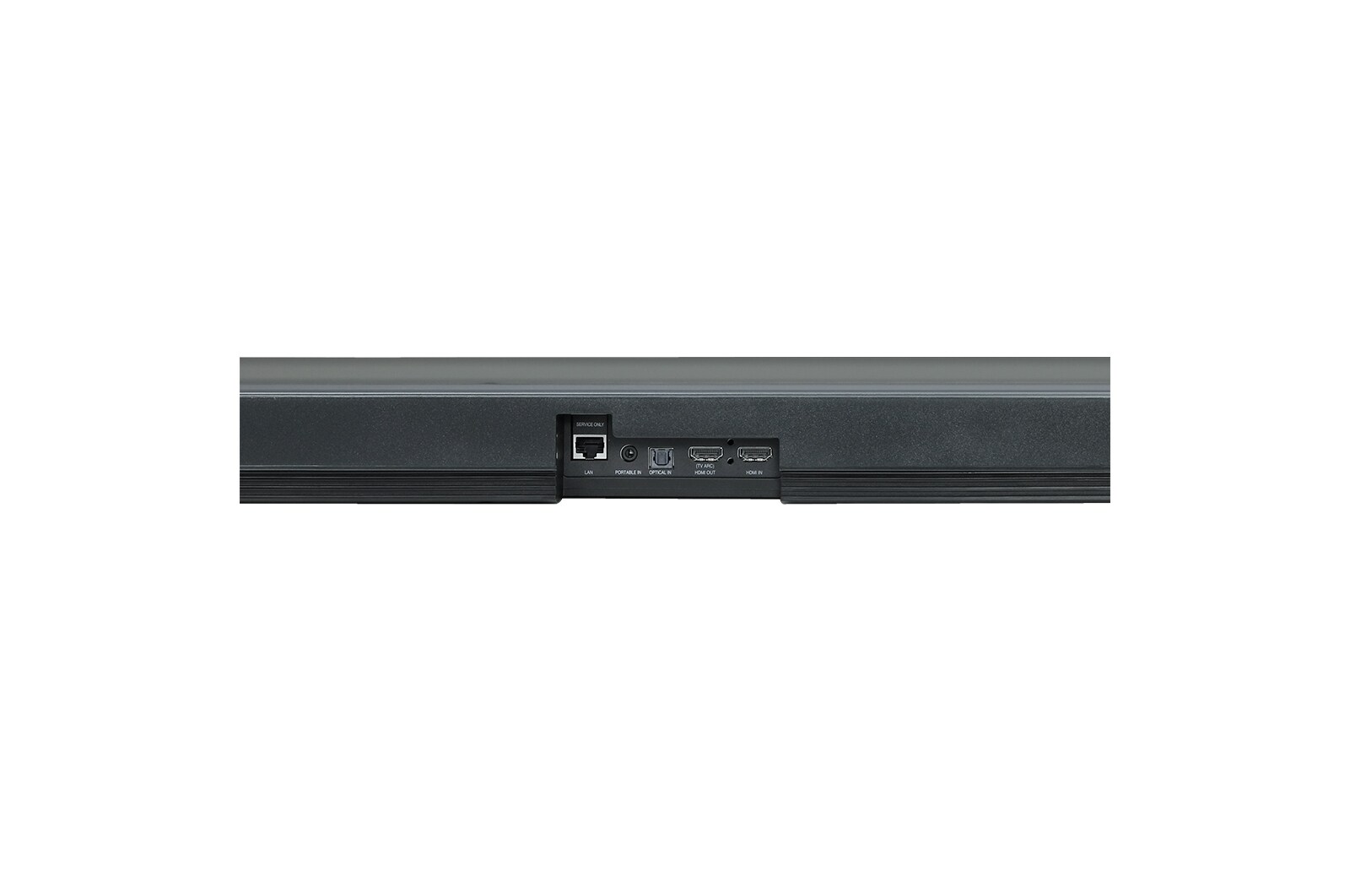

General - Audio Input (Portable In (3.5Ø))
Yes
General - Optical
Yes(1)
General - HDMI 2.0 (HDCP 2.2) : 4K Pass through(In / Out)
Yes(1) / Yes (1)
General - USB
Yes(Service Only)
Wireless - Bluetooth (ver. 4.0)
Yes
Wireless - Etherner port
Yes
Wireless - WiFi
Yes
Display Type
LCD (8 Char.)
LED indicator Color
2 color LED (Red/White)
Hi-Res Audio - Sampling (24bit/96kHz)
Yes
Hi-Res Audio (24bit/96kHz)
Yes
Hi-Res Audio - Upbit/upsampling to (24bit/96kHz)
Yes
Google Multi Zone - Group Play Mode (one source --> multi speaker)
Yes
Sound Effect - ASC (Adaptvie Sound Control : Default)
Yes
Sound Effect - Standard
Yes
Sound Effect - Music
Yes
Sound Effect-Bass Blast
Yes
Sound Effect - Movie / DTS Virtual X
Yes
User EQ
Yes
Night Mode - On/Off
Yes
Dynamic Range Control - On/Off
Yes
Auto Volume Leveler - On/Off
Yes
Smart Phone & Tablet Remote App - iOS / Android OS
Yes/Yes
Smart Phone File Playback
Yes
EZ setup (BLE)
Yes
NSU(Network Software Update)
Yes
Control with your TV Remote - Vol + , - , Mute
Yes
Sound Sync - Bluetooth (LG TV)
Yes
Sound Sync - Optical
Yes
Automatic Power on/off - Bluetooth (LG TV)
Yes
Automatic Power on/off - Optical
Yes
A/V Sync - 0~300ms
Yes
SIMPLINK
Yes
Audio Return Channel (ARC)
Yes
Woofer Level - -15~+6 (Step)
Yes
Mute
Yes
Auto Dimmer
Yes
Timer / Sleep
Yes
Bluetooth Stand-By
Yes
Wireless Rear Speaker Ready - 1:1 Rx module Type (Wireless Kit for rear)
Yes
LPCM
Yes
Dolby Atmos
Yes
Dolby TrueHD
Yes
Dolby Digital Plus
Yes
Dolby Digital
Yes
DTS Digital Surround
Yes
FLAC - Up to 192kHz
Yes
OGG - Up to 48kHz
Yes
WAV
Yes
M4A
Yes
MP3
Yes
WMA
Yes
AAC / AAC+ - Streaming (Wi-Fi)
Yes
AAC / AAC+ - Bluetooth
Yes
AIFF
Yes
Chromecast
Yes
Main - Type (SMPS)
100~240V, 50/60Hz
Main - Power Off Consumption
0.5W ↓
Main - Power Consumption
55W
Subwoofer - Type (SMPS)
100~240V, 50/60Hz
Subwoofer - Power Off Consumption
0.5W ↓
Subwoofer - Power Consumption
33W
Subwoofer - Wireless Frequency
5.8GHz
Owners Manual - Web (w/ Simple Manual)
Yes (Full)
Owners Manual - Book
Simple / Yes
Owners Manual - Wall Mount Guide
Yes
Owners Manual - Open Source : X / Yes (Full / Simple)
Yes (Full)
Remote Control Unit - Model Name
MA7
Remote Control Unit - Battery(Size)
AAA x 2
Batteries
Yes
Warranty Card
Yes
Optical Cable
Yes
Wall Mount Bracket
Yes
Cable Management (Tie)
Yes
Box Type
Offset
