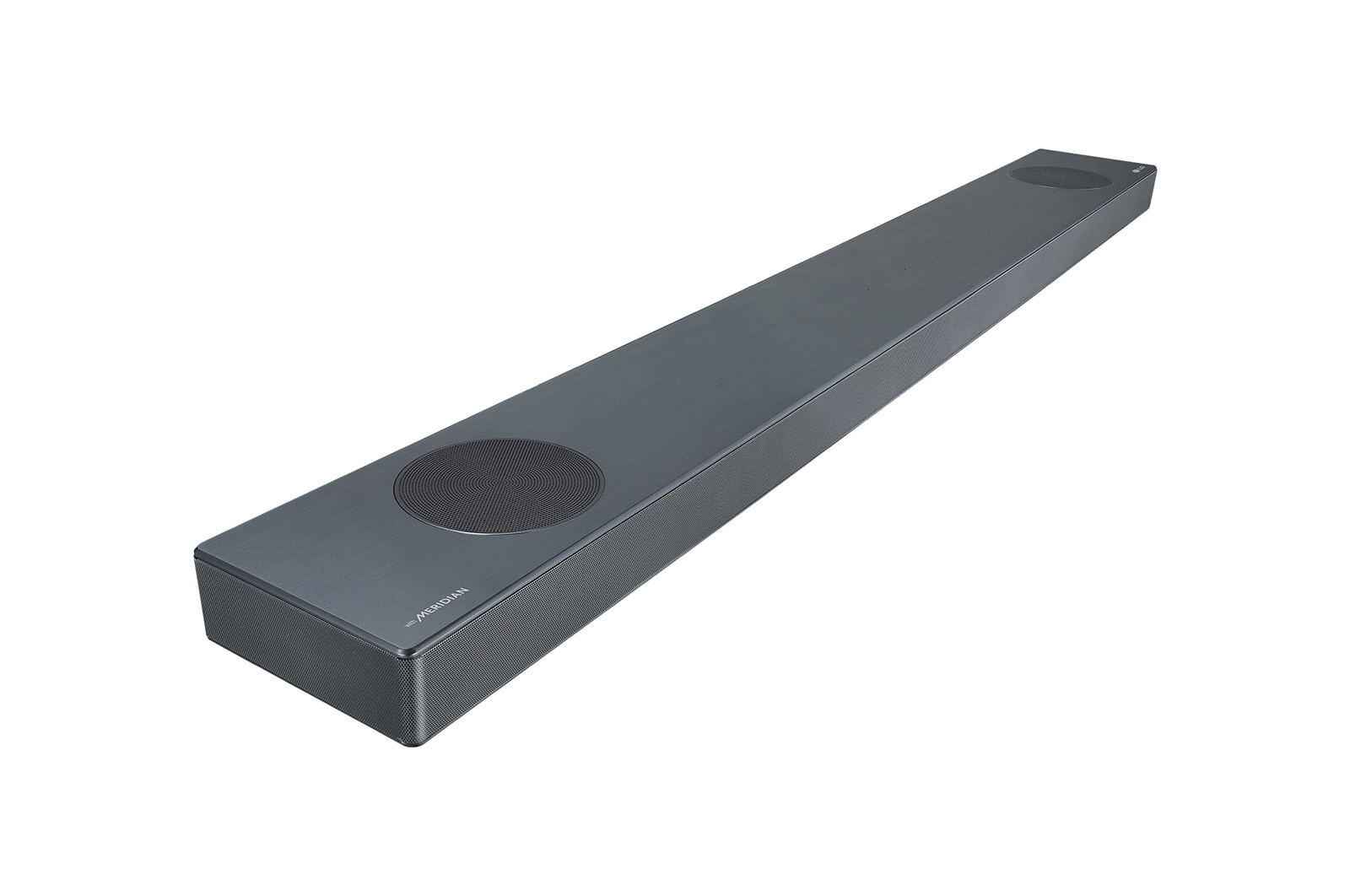

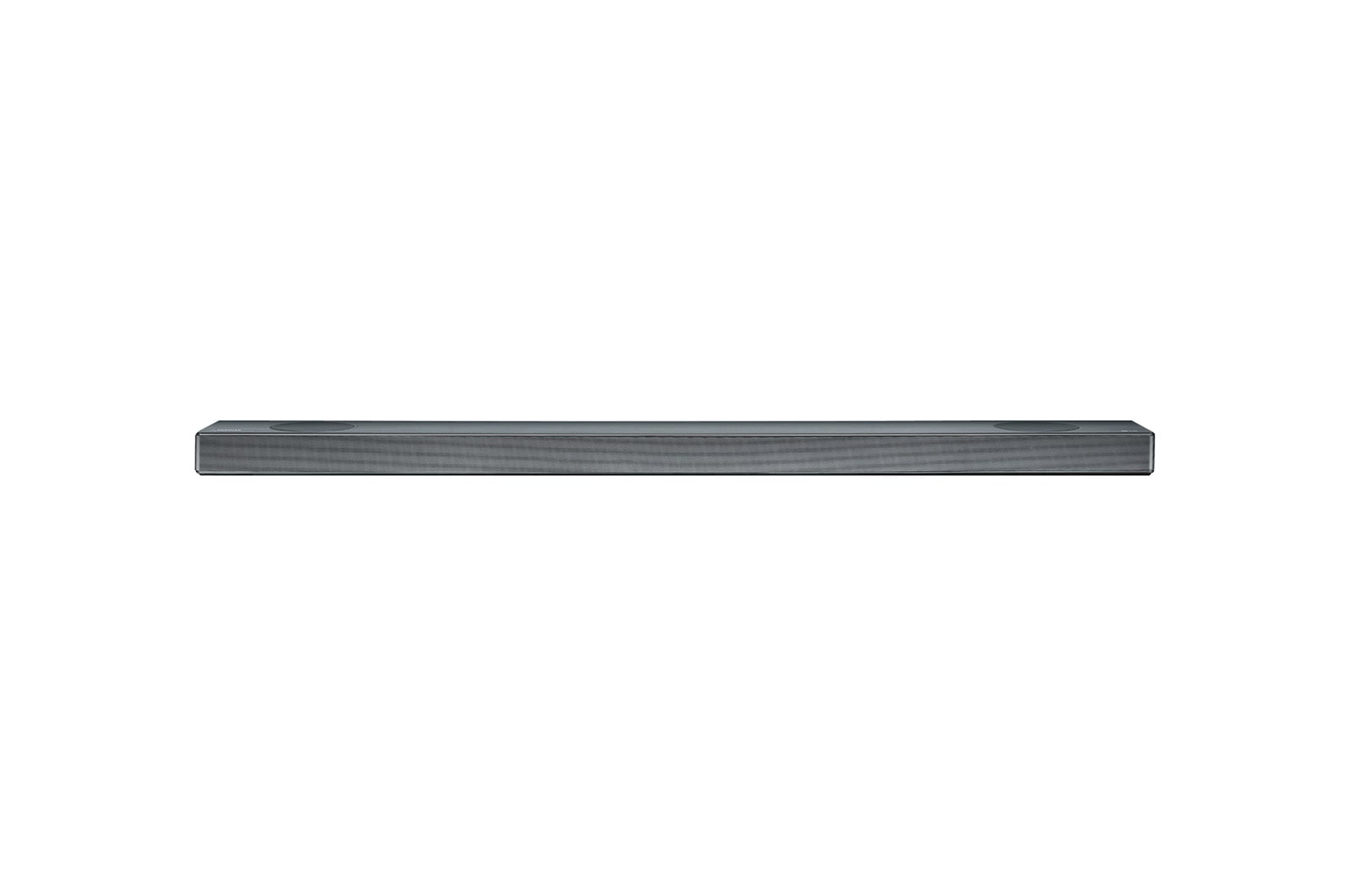

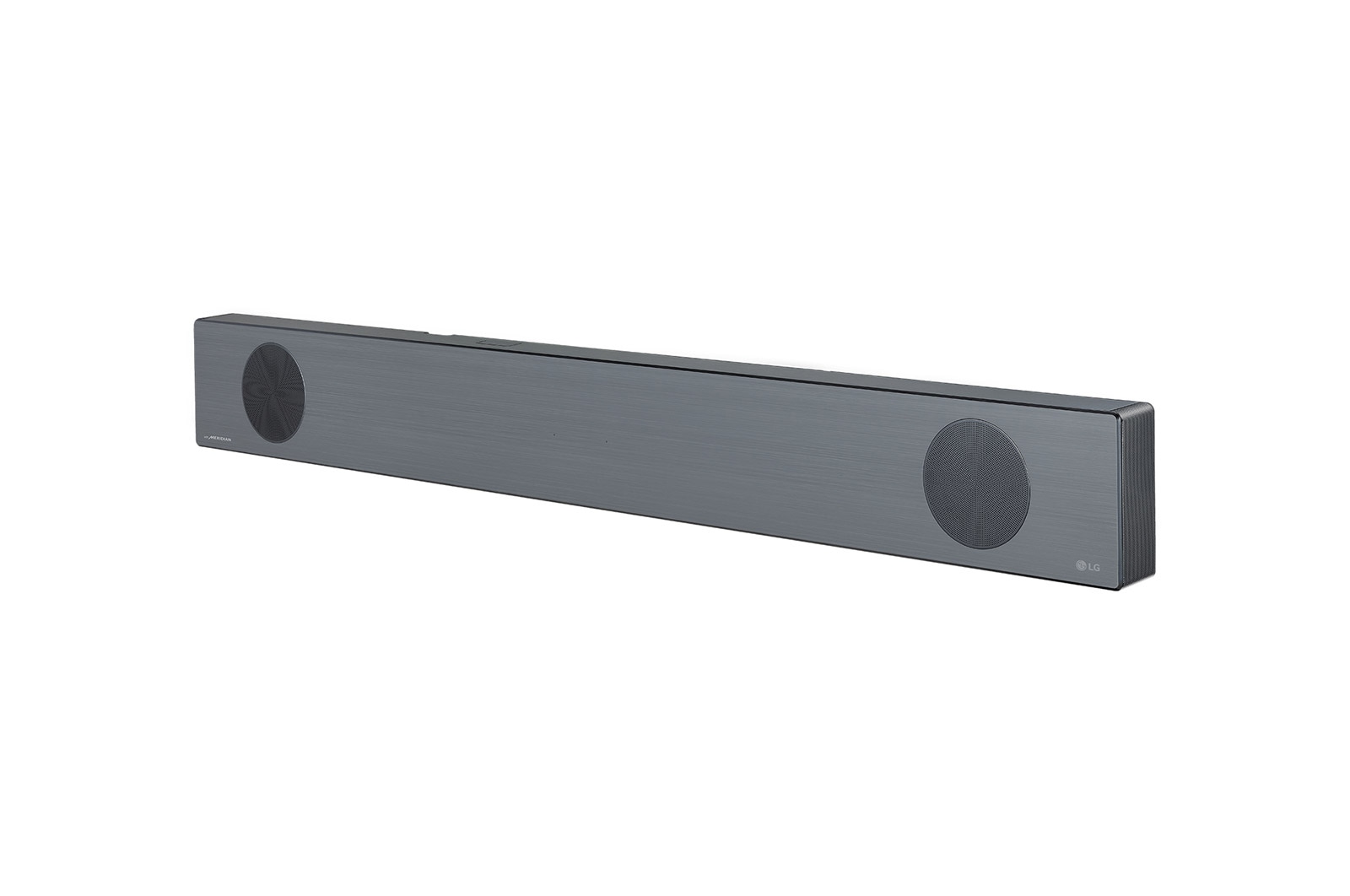

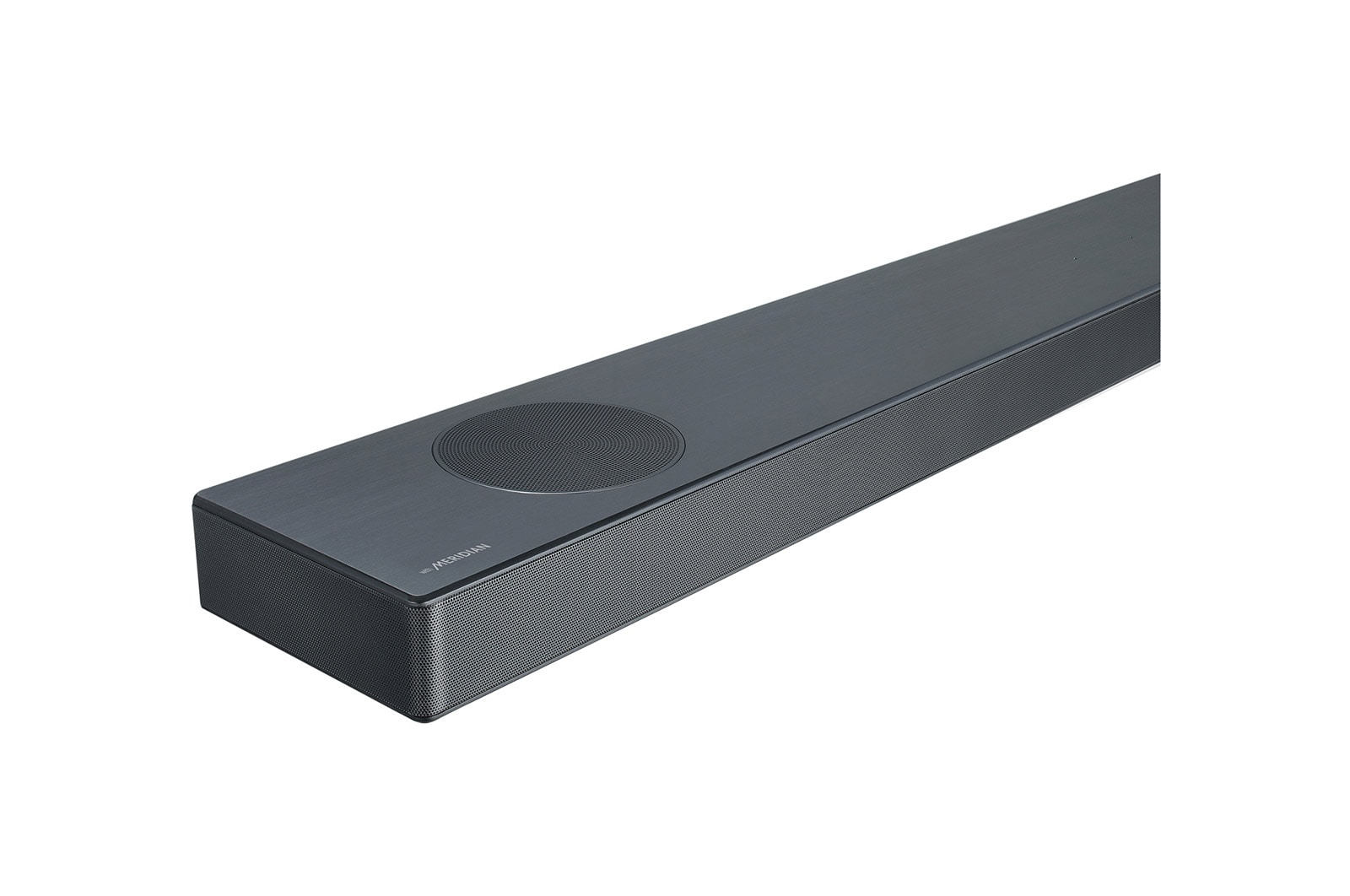

500W 4.1.2 Channel High Res Audio Dolby Atmos Sound Bar with Meridian Technology and 4K Pass Through

SL9Y

500W 4.1.2 Channel High Res Audio Dolby Atmos Sound Bar with Meridian Technology and 4K Pass Through

Print

All Spec

PHYSICAL

  • Size (W x H x D) mm - Main (w/o foot ) mm

    1220 x 57 x 145

  • Size (W x H x D) mm - Main (w/ foot ) mm (Matching TV size ('19 New Designed LG TV))

    55 inch ↑

  • Size (W x H x D) mm - Main (w/o foot ) mm - Addtional Foot (H) mm

    14mm

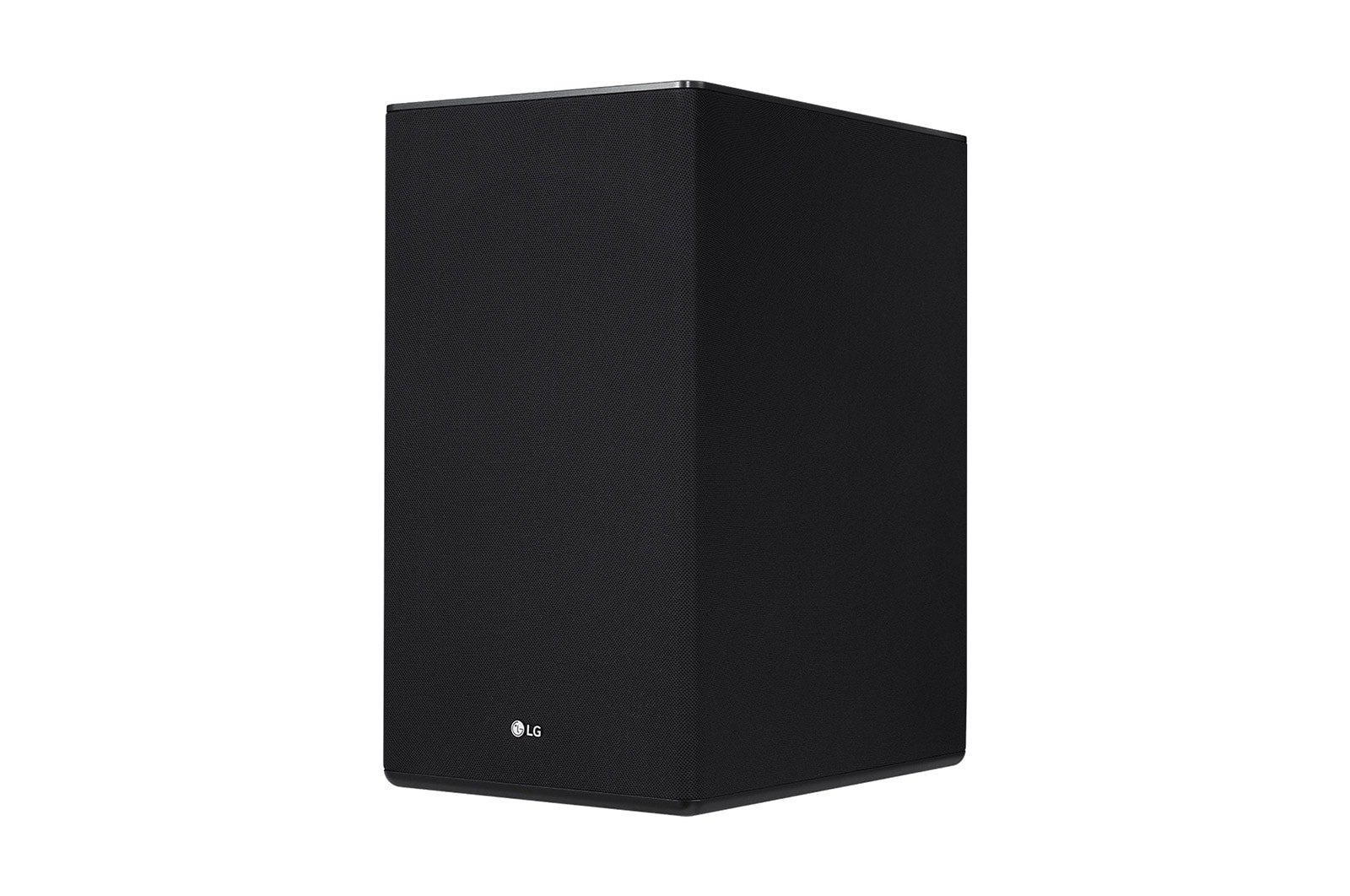

  • Size (W x H x D) mm - Subwoofer

    221.0 x 390.0 x 312.8

  • Material - Mainset (Front)

    Metal Grille

  • Material - Mainset (Top / Bottom)

    Mold / Mold

  • Material - Subwoofer (Front)

    Jersey

  • Material - Subwoofer (Body)

    Wood

  • Net Weight (Kg) - Main

    6.3Kg

  • Net Weight (Kg) - Subwoofer

    7.8Kg

  • Carton Size (W x H x D) mm

    1286 x 284 x 467

  • Carton Type

    Offset

  • Gross Weight (Kg)

    18.2Kg

  • Container Q'ty - 20ft

    136

  • Container Q'ty - 40ft

    292

  • Container Q'ty - 40ft (HC)

    365

CHANNEL/OUTPUT POWER

  • Channel

    4.1.2ch

  • Output Power (THD 10%) - Total

    500W

  • Output Power (THD 10%) - Front

    50Wx2

  • Output Power (THD 10%) - Surround

    40Wx2

  • Output Power (THD 10%) - Top

    50Wx2

  • Output Power (THD 10%) - Subwoofer

    220W(Wireless)

  • Audio DAC - 24bit/192kHz

    Yes

SPEAKER

  • Main - SPL

    82dB

  • Main - System

    Closed

  • Main - Tweeter Unit - Front Only

    20mm Silk Dome

  • Main - Woofer Unit

    40x100mm

  • Main - Impedance

    4ohm

  • Main - Magnetic Shielding

    non-shield

  • Top - SPL

    83dB

  • Top - System

    Closed

  • Top - Woofer Unit

    2.5"

  • Top - Impedance

    4ohm

  • Subwoofer - SPL

    85dB

  • Subwoofer - System

    Bass Reflex

  • Subwoofer - Woofer Unit

    7inch

  • Subwoofer - Impedance

    3 ohm

  • Subwoofer - Magnetic Shielding

    Non-shield

NETWORK

  • WiFi Band Width

    Yes

CONNECTIVITY

  • General - Optical

    Yes(1)

  • General - HDMI 2.0 (HDCP 2.2) : 4K Pass through(In / Out)

    Yes(1) / Yes (1)

  • General - USB

    Yes

  • Wireless - Bluetooth (ver.)

    5.0

  • Wireless - Bluetooth (ver.) (Bluetooth Codec(SBC / AAC))

    Yes/No

  • Wireless - WiFi

    Yes

INFORMATION DISPLAY

  • Display Type

    LCD (5 Char.)

SOUND MODE

  • Hi-Res Audio - Sampling (24bit/192kHz)

    Yes

  • Hi-Res Audio - Upbit/upsampling to (24bit/192kHz)

    Yes

  • Google Multi Zone - Group Play Mode (one source --> multi speaker)

    Yes

  • Sound Effect - ASC (Adaptive Sound Control)

    Yes

  • Sound Effect - Standard (Meridian : TBD)

    Yes

  • Sound Effect - Music

    Yes

  • Sound Effect - Bass Blast / Bass Blast +

    Yes

  • Sound Effect - Movie

    Yes

  • Sound Effect - Dolby ATMOS

    Yes

  • Sound Effect - DTS:X

    Yes

  • Tone control - User EQ (RCU / App)

    Yes/Yes

  • Night Time - On/Off (RCU / App)

    No/Yes

  • Dynamic Range Control - On/Off (RCU / App)

    No/Yes

  • Auto Volume Leveler - On/Off (RCU / App)

    No/Yes

CONVENIENCE

  • Smart Phone & Tablet Remote App - iOS / Android OS

    Yes/Yes

  • Smart Phone File Playback

    Yes

  • EZ setup (BLE)

    Yes

  • Works with the Google Assistant - Controllee

    Yes

  • NSU(Network Software Update)

    Yes

  • Control with your TV Remote - Vol + , - , Mute

    Yes

  • Sound Sync - Optical

    Yes

  • Automatic Power on/off - Optical

    Yes

  • A/V Sync - 0~300ms (RCU / App)

    No/Yes

  • SIMPLINK

    Yes

  • Audio Return Channel (ARC)

    Yes

  • Woofer Level - -15 ~ +6 (Step)

    Yes

  • Channel Level - -6~+6 (Step) (Top / Center / Side / Surround)

    Yes/No/Yes/Yes

  • Mute

    Yes

  • Auto Dimmer

    Yes

  • Sleep Timer - (RCU / App)

    No/Yes

  • USB Host

    Yes

  • Wireless Rear Speaker Ready - 1:1 Rx module Type (Wireless Kit for rear)

    Yes

AUDIO FORMAT

  • LPCM

    Yes

  • Dolby Atmos / Virtual Height

    Yes/No

  • Dolby TrueHD

    Yes

  • Dolby Digital Plus

    Yes

  • Dolby Digital

    Yes

  • DTS Digital Surround

    Yes

  • DTS-HD Master Audio

    Yes

  • DTS-HD High Resolution

    Yes

  • DTS X

    Yes

  • AAC / AAC+

    Yes

FILE FORMAT

  • FLAC - Up to 192kHz (C4A / USB)

    Yes/No

  • OGG - Up to 48kHz (C4A / USB)

    Yes/Yes

  • WAV (C4A / USB)

    Yes/No

  • MP3 (C4A / USB)

    Yes/Yes

  • AAC (C4A / USB)

    Yes/Yes

AUDIO STREAMING SERVICE

  • Chromecast

    Yes

POWER CONSUMPTION

  • Main - Type (SMPS)

    100~240V, 50/60Hz

  • Main - Power Off Consumption

    0.5W ↓

  • Main - Power Consumption

    60W

  • Subwoofer - Type (SMPS)

    100~240V, 50/60Hz

  • Subwoofer - Power Off Consumption

    0.5W ↓

  • Subwoofer - Power Consumption

    38W

  • Subwoofer - Wireless Frequency

    5.8GHz

ACCESSORY KIT

  • Owners Manual - Web (w/ Simple Manual)

    Yes (Full)

  • Owners Manual - Book

    Simple / Yes

  • Owners Manual - Wall Mount Guide

    Yes

  • Owners Manual - Open Source : X / Yes (Full / Simple)

    Yes (Full)

  • Remote Control Unit - Model Name

    MA7

  • Remote Control Unit - Battery(Size)

    AAA x 2

  • Batteries

    Yes

  • Warranty Card

    Yes

  • Optical Cable

    Yes

  • Wall Mount Bracket

    Yes

  • Additioanl Foot

    Yes

  • Box Type

    Offset
