Sales Region
ASIA
Sub Region
AP,SL,TH,PH,VH,ML, IN,IL,HK,KR
Brand Information
LG Sound Bar
Model Name
S80QY
Subwoofer Model Name
SPQ8-W
System (Main Chip)
MT8532
Mainset/Subwoofer Color
Dark Steel Silver

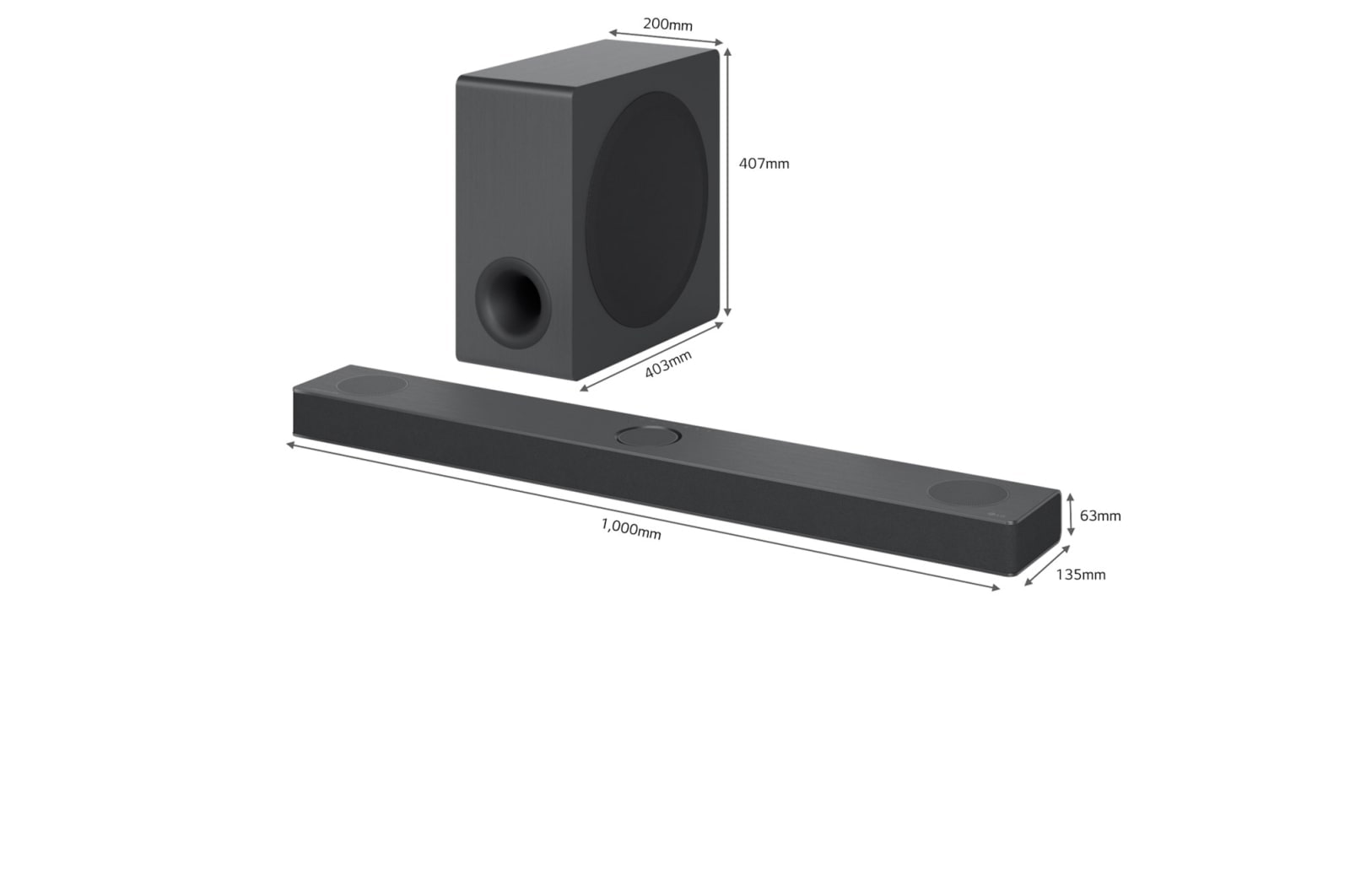

Main (w/ Foot )
1000 x 63 x 135
Matching TV size (`20 New)
55 ~ 65 inch

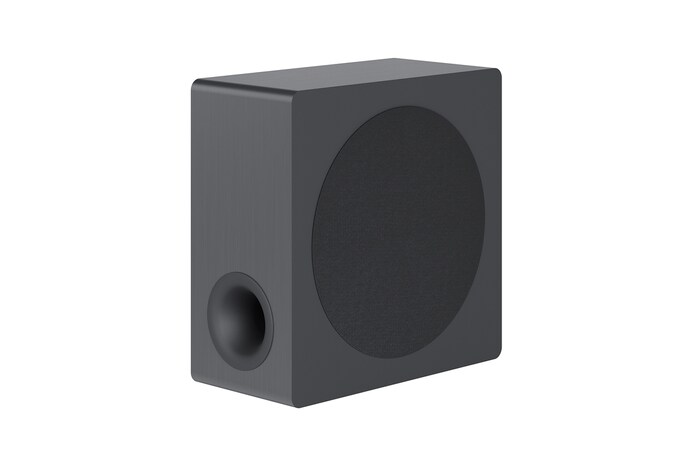

Subwoofer
201.7 x 407 x 403
Main - Front / Top / Bottom
Jersey/Mold/Mold
Subwoofer - Front / Body
Jersey / Wood
Main
4.5Kg
Subwoofer
10Kg
Gross Weight
12.4Kg
Size (W x H x D) mm
1108 x 551 x 257
Type
Flexo (L)
Color
Yellow
20ft
240
40ft
528
40ft (HC)
572
Number of channels
3.1ch
Total
480W
Front
45W x 2
Center
40W
Top
45W x 2
Top Center
40W
Subwoofer
200W(Wireless)
SPL
83dB
System
Closed
Tweeter Unit
20mm Silk Dome
Woofer Unit
52 x 99 mm
Impedance
4ohm
SPL
83dB
System
Closed
Woofer Unit
2.5 inch
Impedance
4ohm
SPL
83dB
System
Closed
Woofer Unit
2.5 inch
Impedance
4ohm
SPL
85dB
System
Open
Tweeter Unit
20mm Silk Dome
Impedance
4ohm
SPL
86dB
System
Bass Reflex
Woofer Unit
8 inch
Impedance
3ohm
Number of Speakers
9EA
Optical
Yes(1)
HDMI In / Out
Yes(1) / Yes(1)
USB
Yes
Bluetooth Version
5.0
Bluetooth Codec - SBC / AAC
Yes / Yes
Wi-Fi (2.4G / 5G)
Yes
Wireless Rear ready
Yes (1:2)
Display Type
LCD (5 char.)
Sampling - "24bit/192kHz" / "24bit/96kHz"
No / Yes
Upbit/upsampling - "24bit/192kHz" / "24bit/96kHz"
No / Yes
AI Sound Pro
Yes
Standard
Yes
Music
Yes (w/ Meridian)
Cinema
Yes
Clear Voice
Yes
Sports
Yes
Game
Yes
Bass Blast / Bass Blast +
Yes
Dolby ATMOS
Yes
DTS:X
Yes
IMAX Enhanced
Yes
User EQ - RCU / App
Yes / Yes
Night Time On/Off - RCU / App
Yes / Yes
Dynamic Rage On/Off - RCU / App
No / Yes
Auto Volume Leveler On/Off - RCU / App
No / Yes
Surround On/Off - RCU / App
Yes / Yes
AI Room Calibration (2 MIC In) - App
Yes
Soundbar Mode Control (by TV GUI)
Yes
TV Sound Mode Share
Yes
Pass-through
Yes
Pass-through (4K)
Yes
VRR / ALLM
Yes
HDR10 / HDR 10+
No / Yes
Dolby Vision
Yes
Audio Return Channel (e-ARC)
Yes
Audio Return Channel (ARC)
Yes
CEC (Simplink)
Yes
Works with Alexa (Controllee)
Yes
Spotify Connect
Yes
AirPlay 2
Yes
Google Assistant Built In (Controller, 2 MIC In)
Yes
Google Fast Pairing
Yes
Tidal Supported
Yes
Remote App - iOS / Android OS
Yes / Yes
Smart Phone File Playback (Bluetooth)
Yes
NSU / FOTA
Yes / No
Control with your TV Remote (Vol+/-, Mute)
Yes / Yes
Sound Sync - Bluetooth(LG TV) / Optical
No / Yes
Auto Power On/Off - Bluetooth (LGTV) / Optical
No / Yes
Auto Power On/Off - RCU / APP
Yes / Yes
A/V Sunc (0~300ms) - RCU / APP
No / Yes
Woofer Level (-15 ~ 6dB, 1dB/Step)
Yes
Channel Level (-6 ~ 6dB, 1dB/Step)_Soundbar Main - Top / Center (Top) / Surround
Yes / Yes / No
Channel Level (-6 ~ 6dB, 1dB/Step)_Soundbar Rear - Rear_Front / Rear Surround / Rear Top
Yes / No / No
Mute
Yes
Auto Dimmer
Yes
USB Host / Charge
Yes / No
Built-in Music
Yes (2)
LPCM
Yes
Dolby Atmos
Yes
Dolby TrueHD
Yes
Dolby Digital Plus
Yes
DTS:X
Yes
DTS-HD Master Audio
Yes
Dolby Digital
Yes
DTS Digital Surround
Yes
DTS-HD High Resolution
Yes
AAC / AAC+
Yes / Yes
FLAC - C4A / USB
Yes / Yes
OGG - C4A / USB
Yes / Yes
WAV - C4A / USB
Yes / Yes
MP3 - C4A / USB
Yes / Yes
AAC - C4A / USB
Yes / Yes
SMPS
Yes
Power Off Consumption
0.5W ↓
Power Consumption
59W
Type (SMPS, "(SMPS)" Sheet)
Yes
Power Off Consumption
0.5W ↓
Power Consumption
40W
Wireless Frequency
5GHz
Web Manual (File)
Yes (Full)
Built-in Manual (Book) (Simple or Full)
Yes (Simple)
Wall Mount Guide
Yes
Wireless Speaker Reset Guide
Yes
Open Source - Yes (Full or Simple) / X
Yes (Full)
Warranty Card
Yes
Model Name
RAV21 (21)
Battery(Size)
AA x 2
Battery Built-in
Yes
Wall Mount Bracket
Yes
HDMI Cable
Yes
