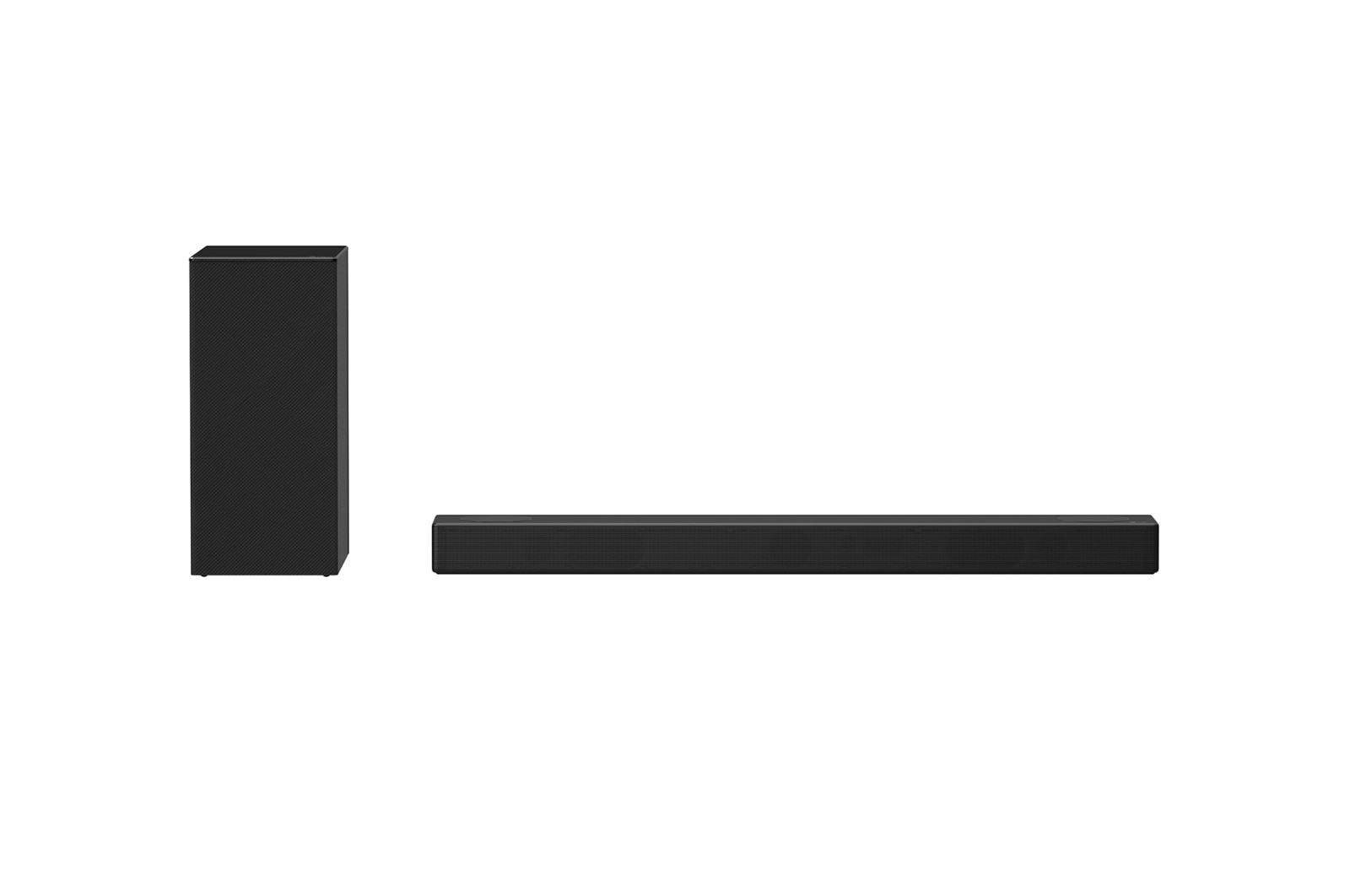

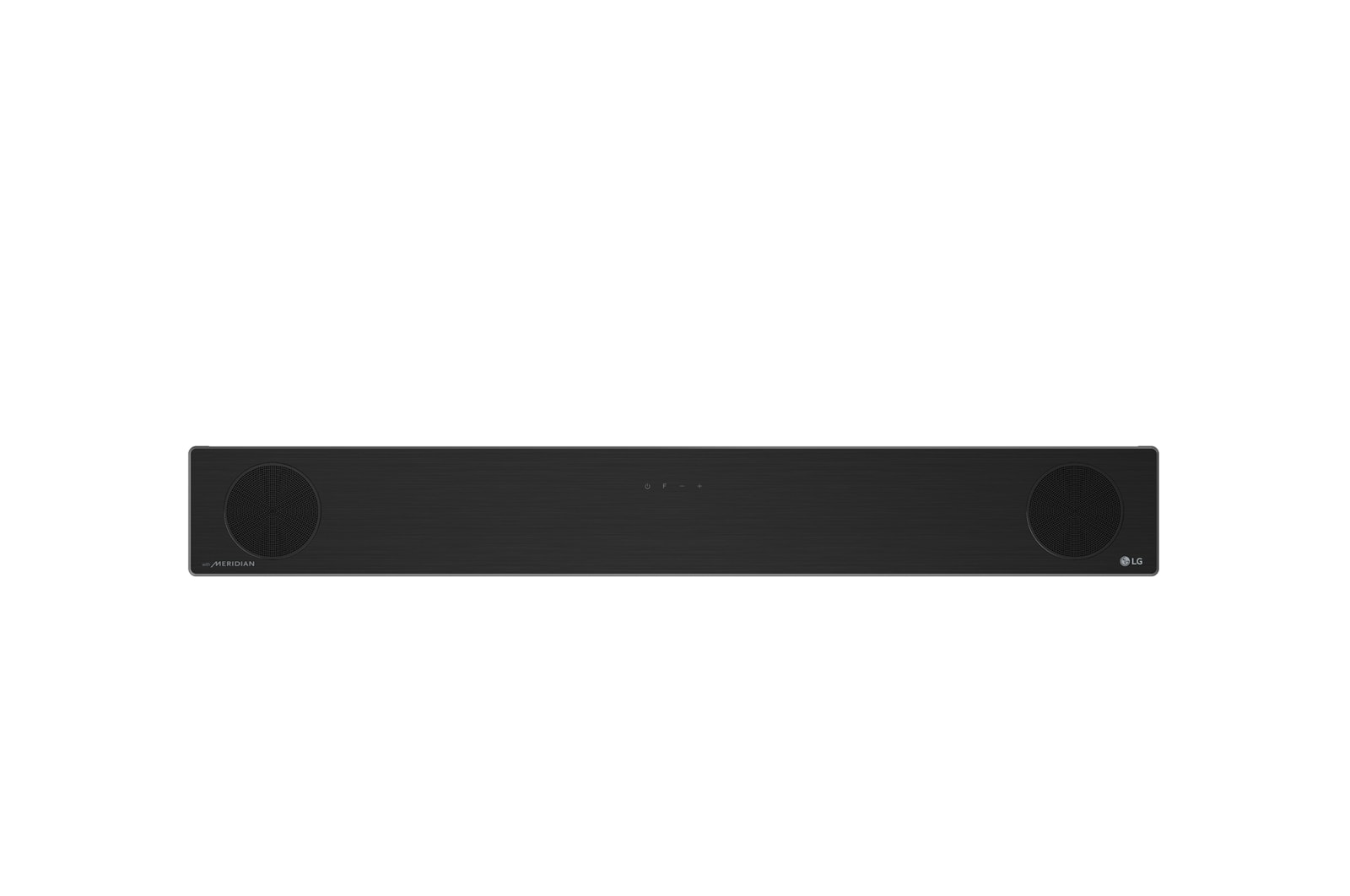

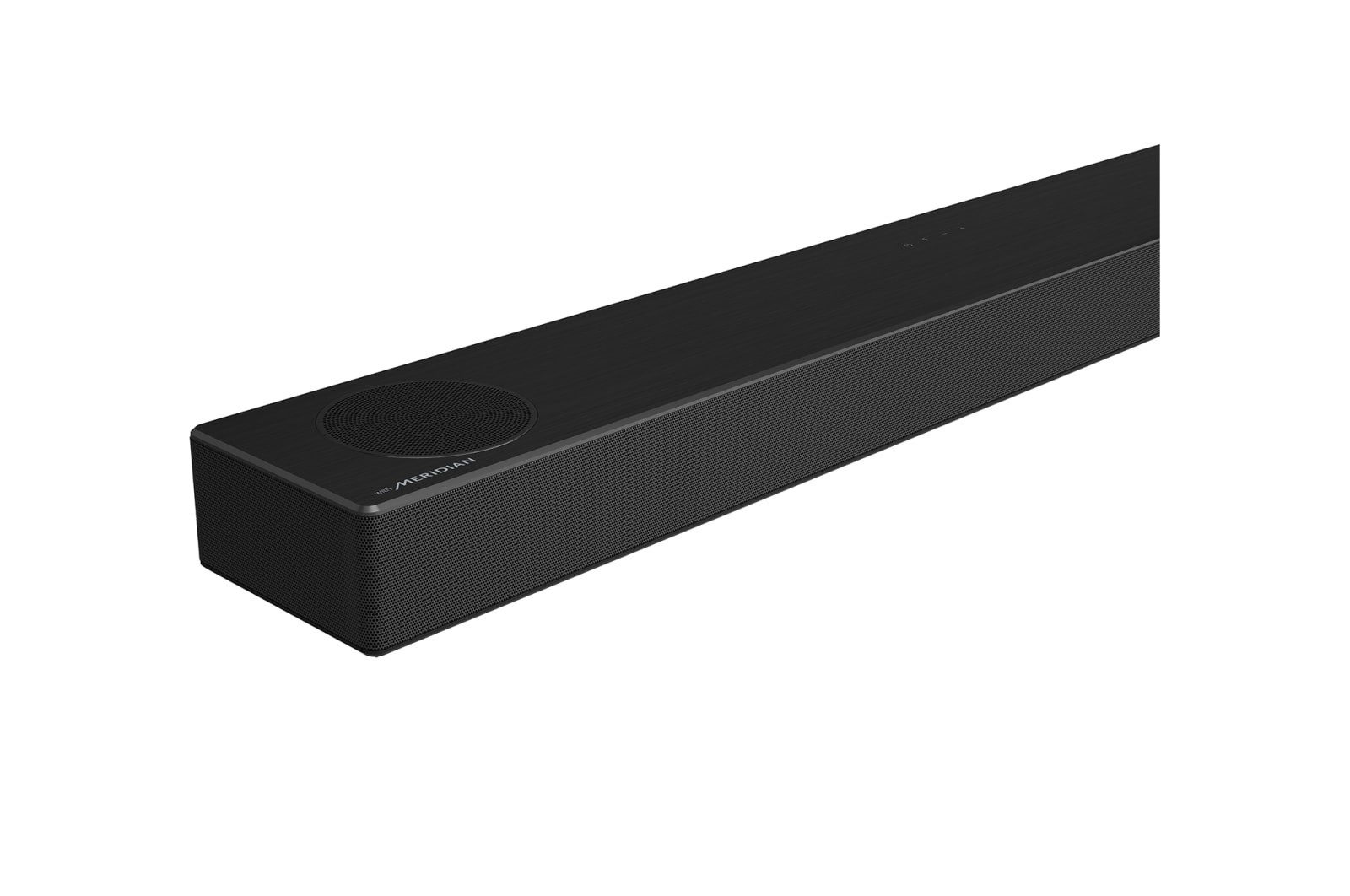

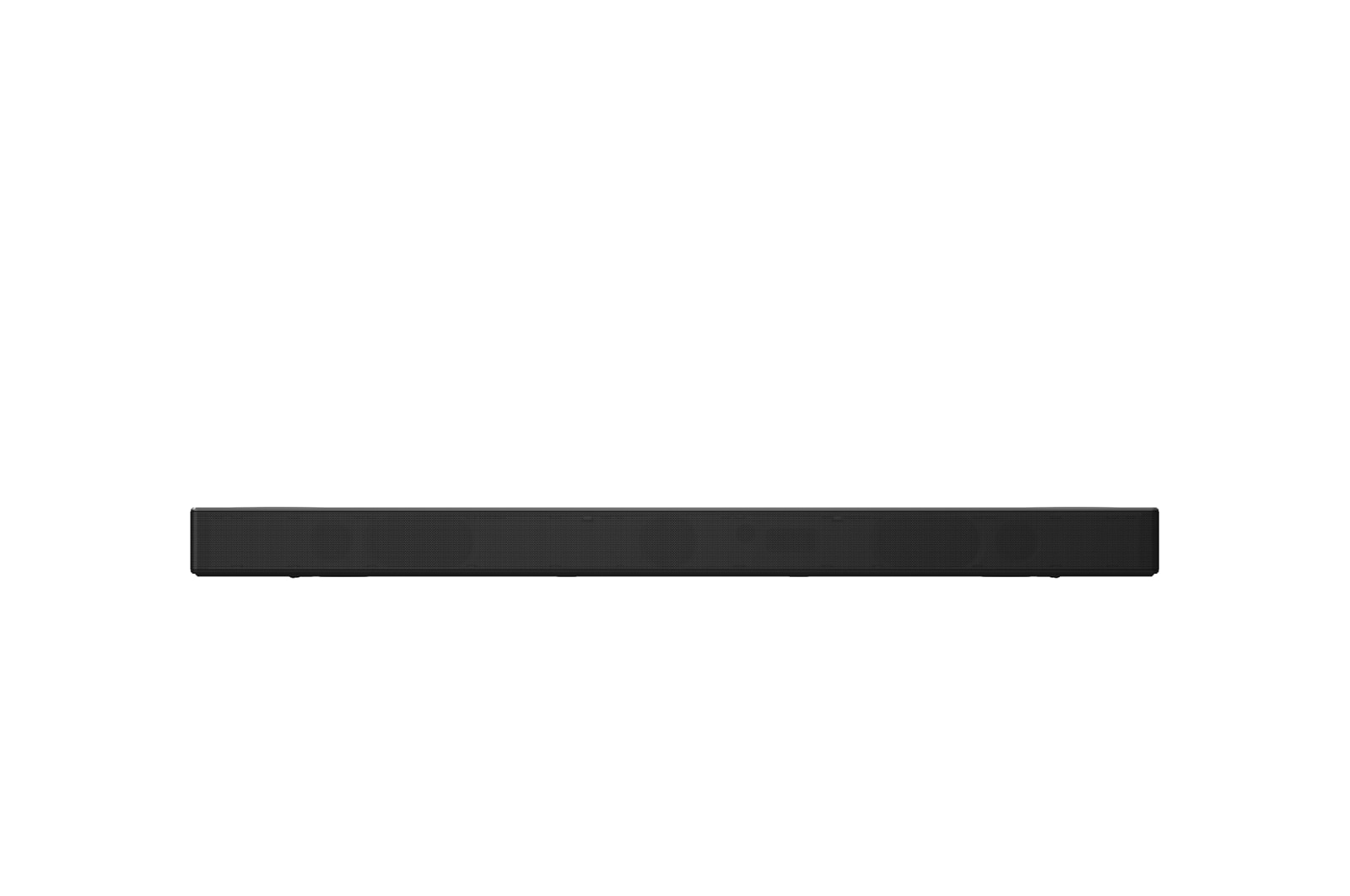

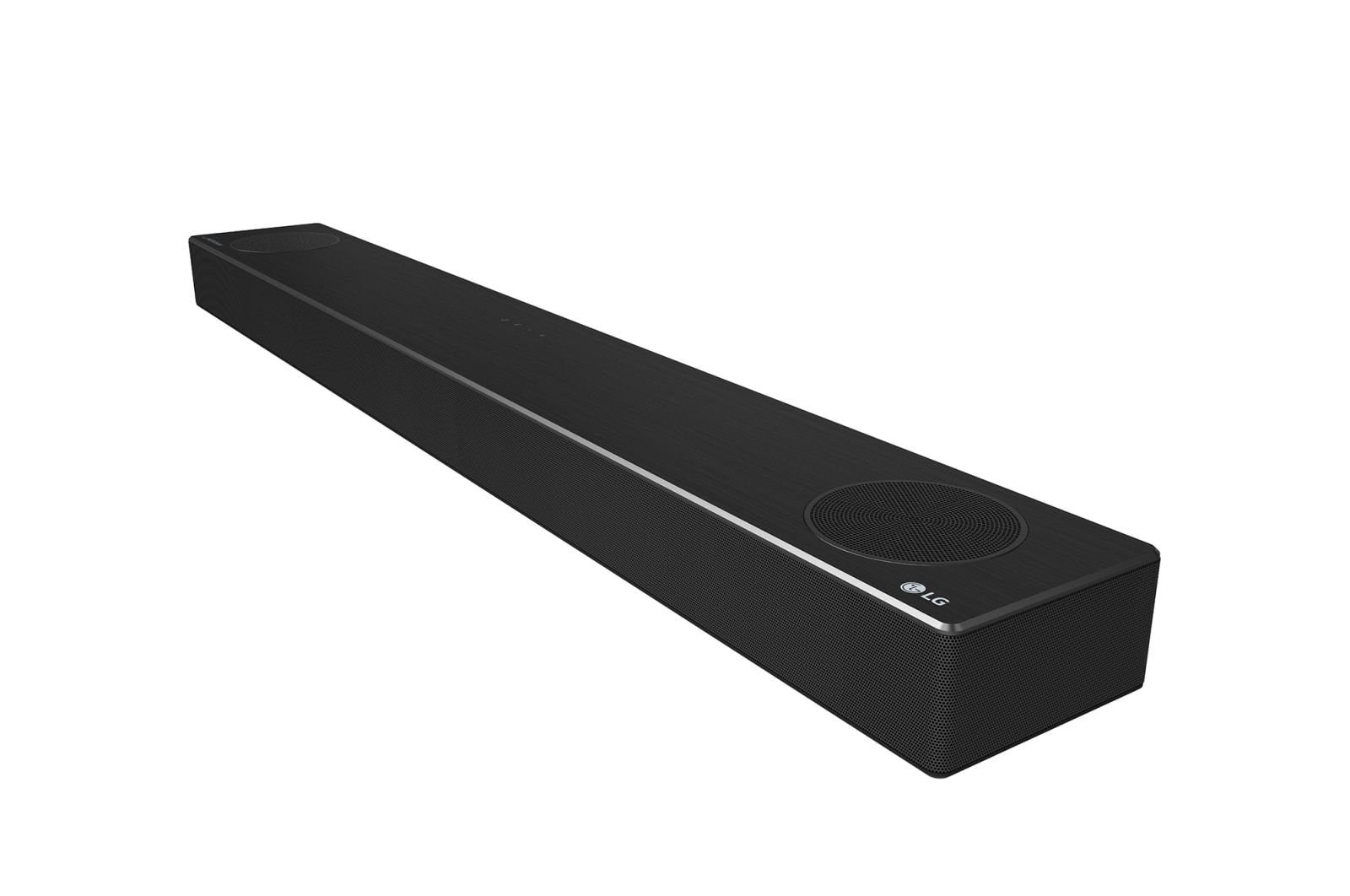

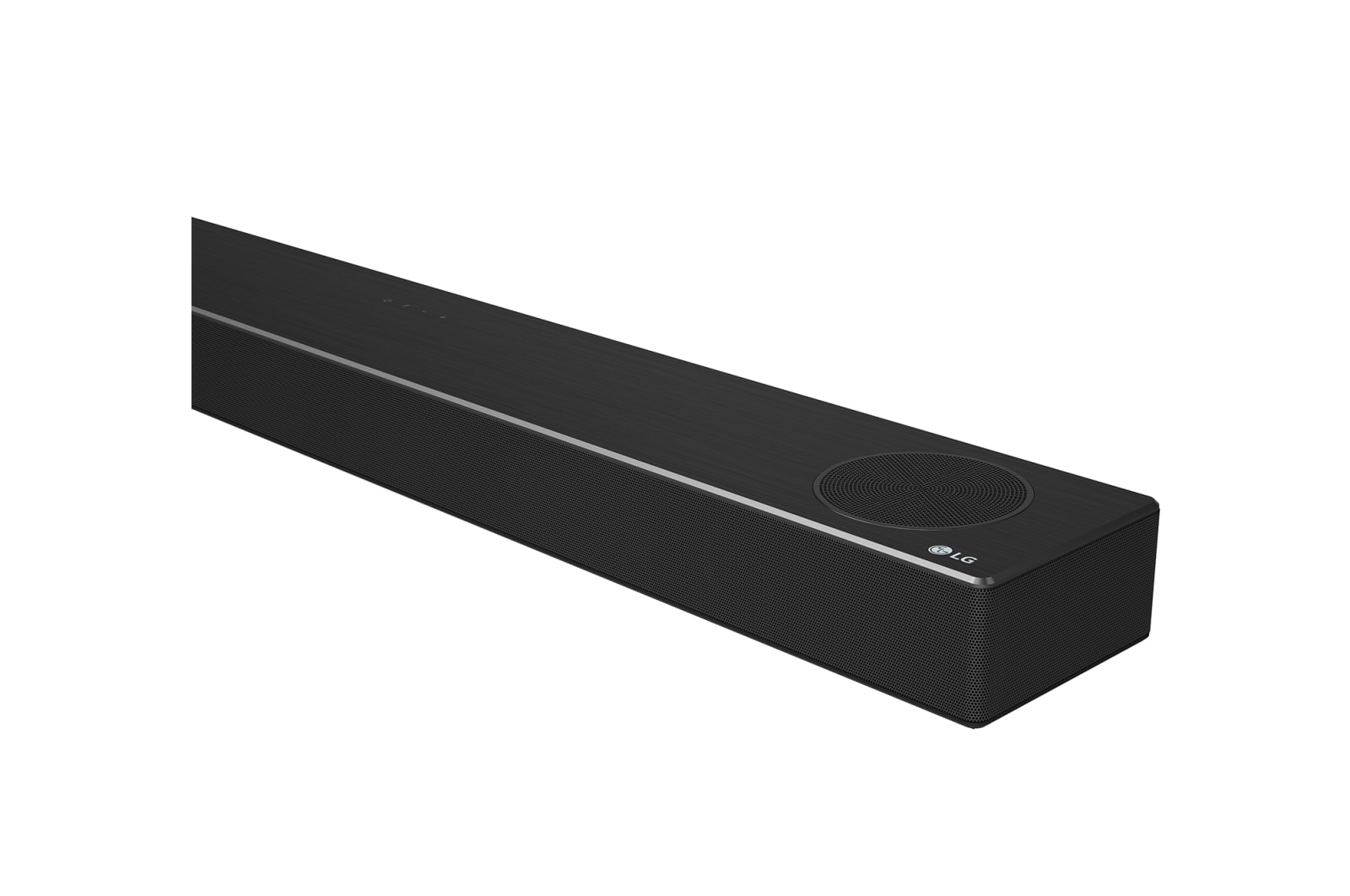

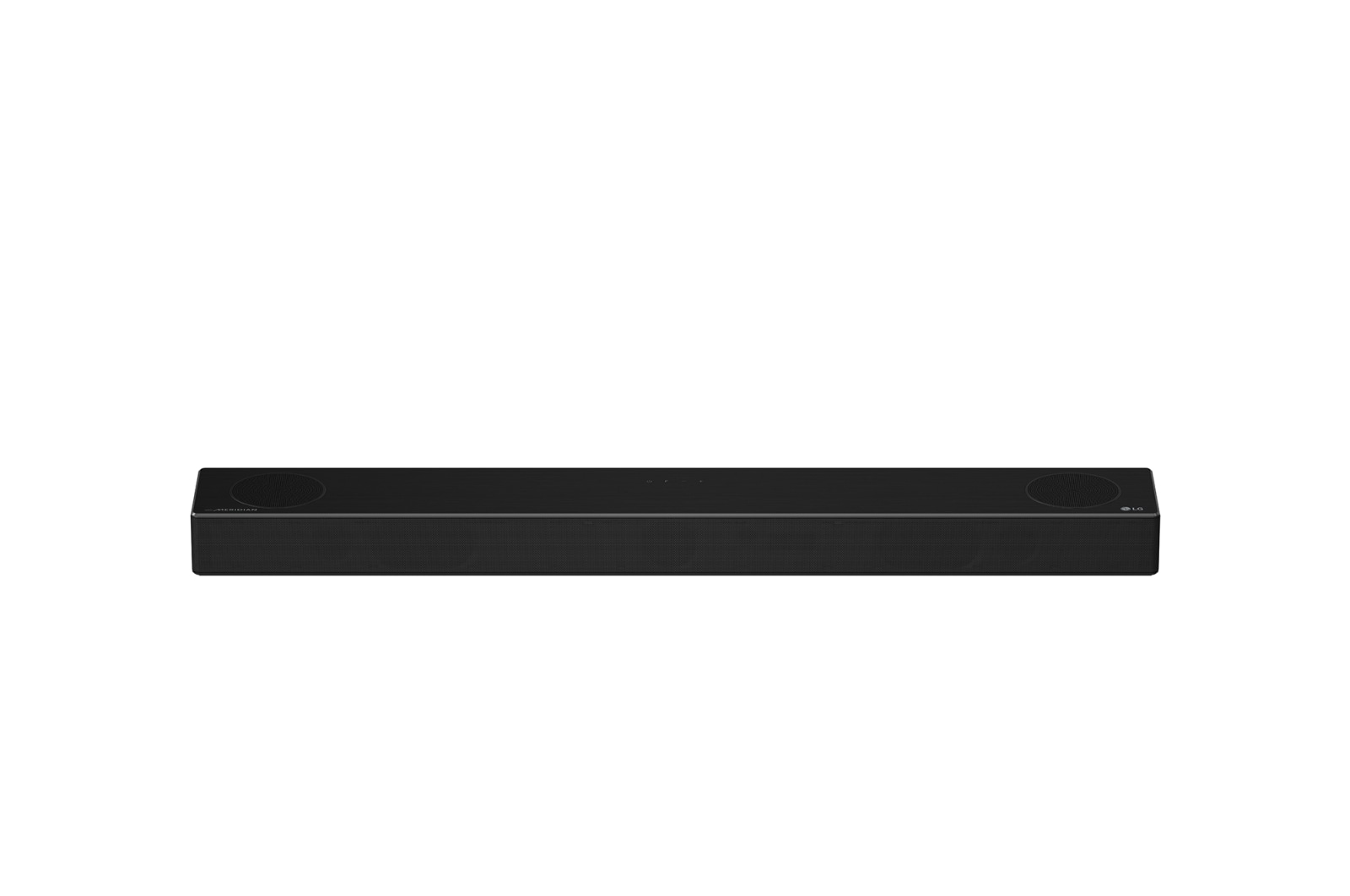

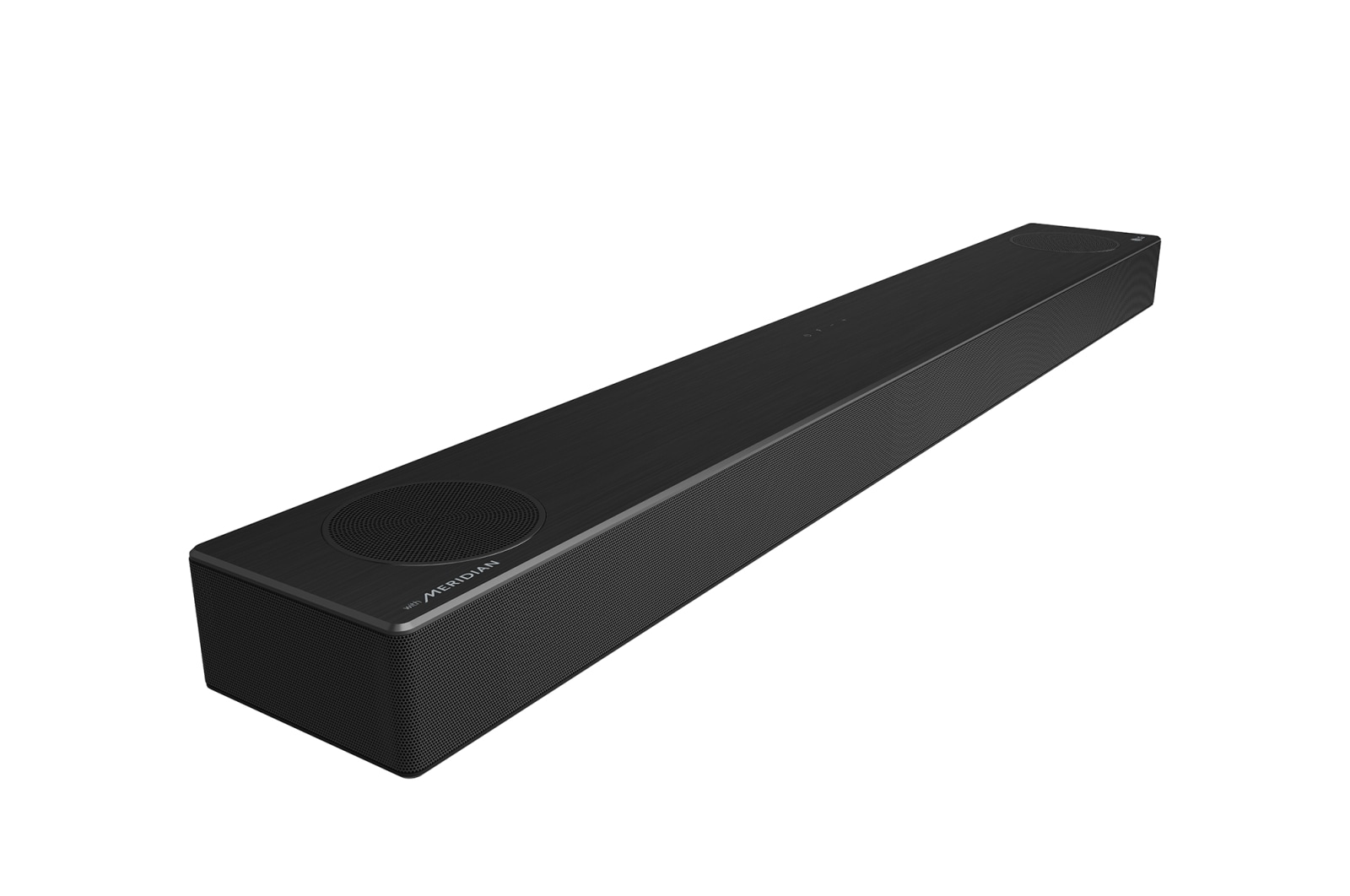

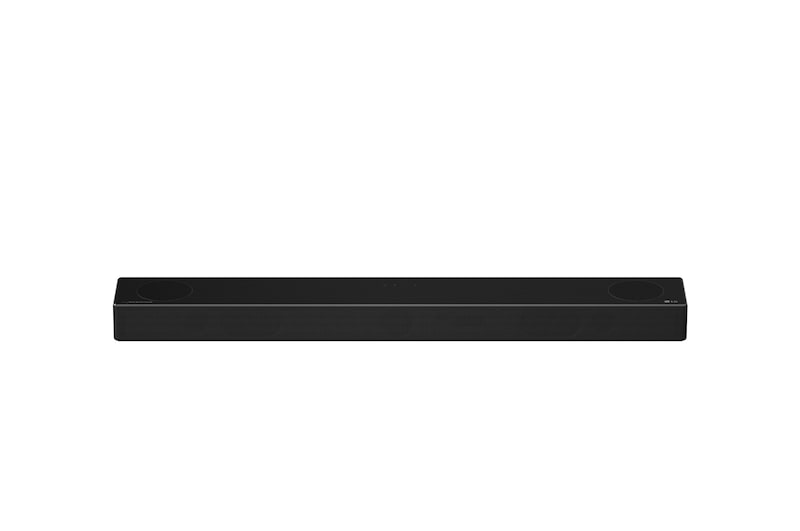

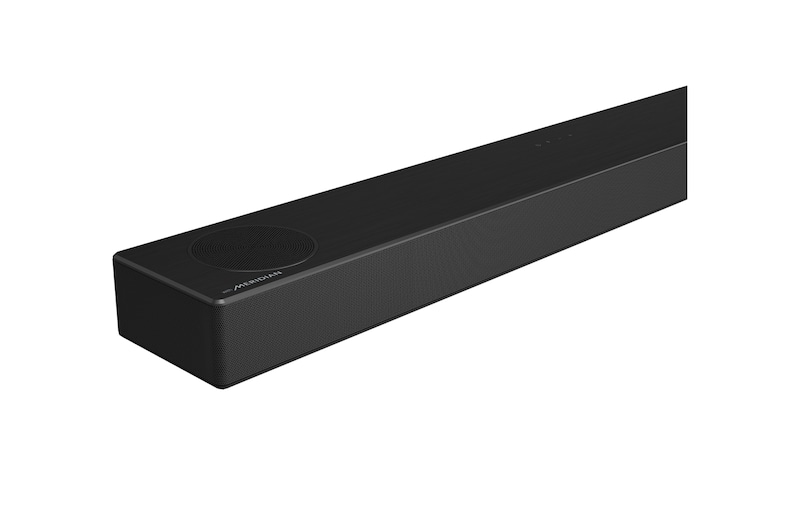

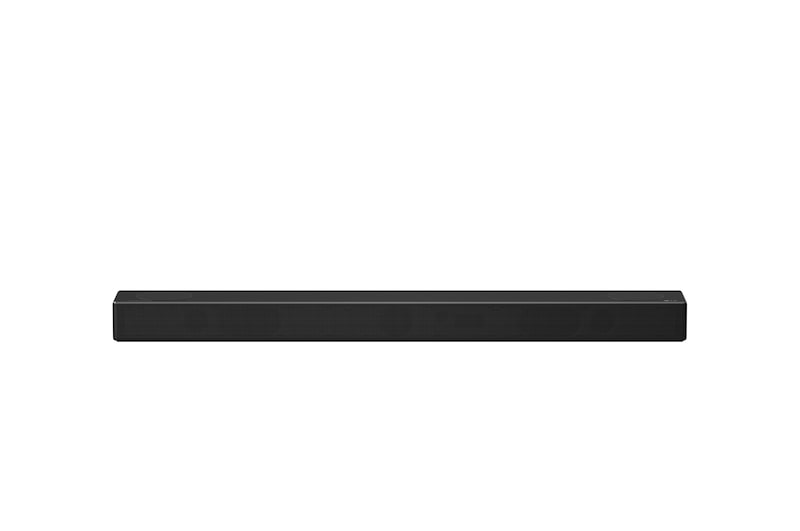

LG SN7Y 380W 3.1.2ch Hi-Res Dolby Atmos Sound Bar with Meridian Technology & Bluetooth® Connectivity

Specs

Reviews

Support

LG SN7Y 380W 3.1.2ch Hi-Res Dolby Atmos Sound Bar with Meridian Technology & Bluetooth® Connectivity

SN7Y

LG SN7Y 380W 3.1.2ch Hi-Res Dolby Atmos Sound Bar with Meridian Technology & Bluetooth® Connectivity

Print

All Spec

SIZE(W X H X D, MM)

  • Main (w/ Foot )

    890 x 65 x 119

  • Matching TV size (`20 New)

    40 inch ↑

  • Addtional Foot (H) mm

    No

  • Wireless Box

    No

  • Rear Speaker

    No

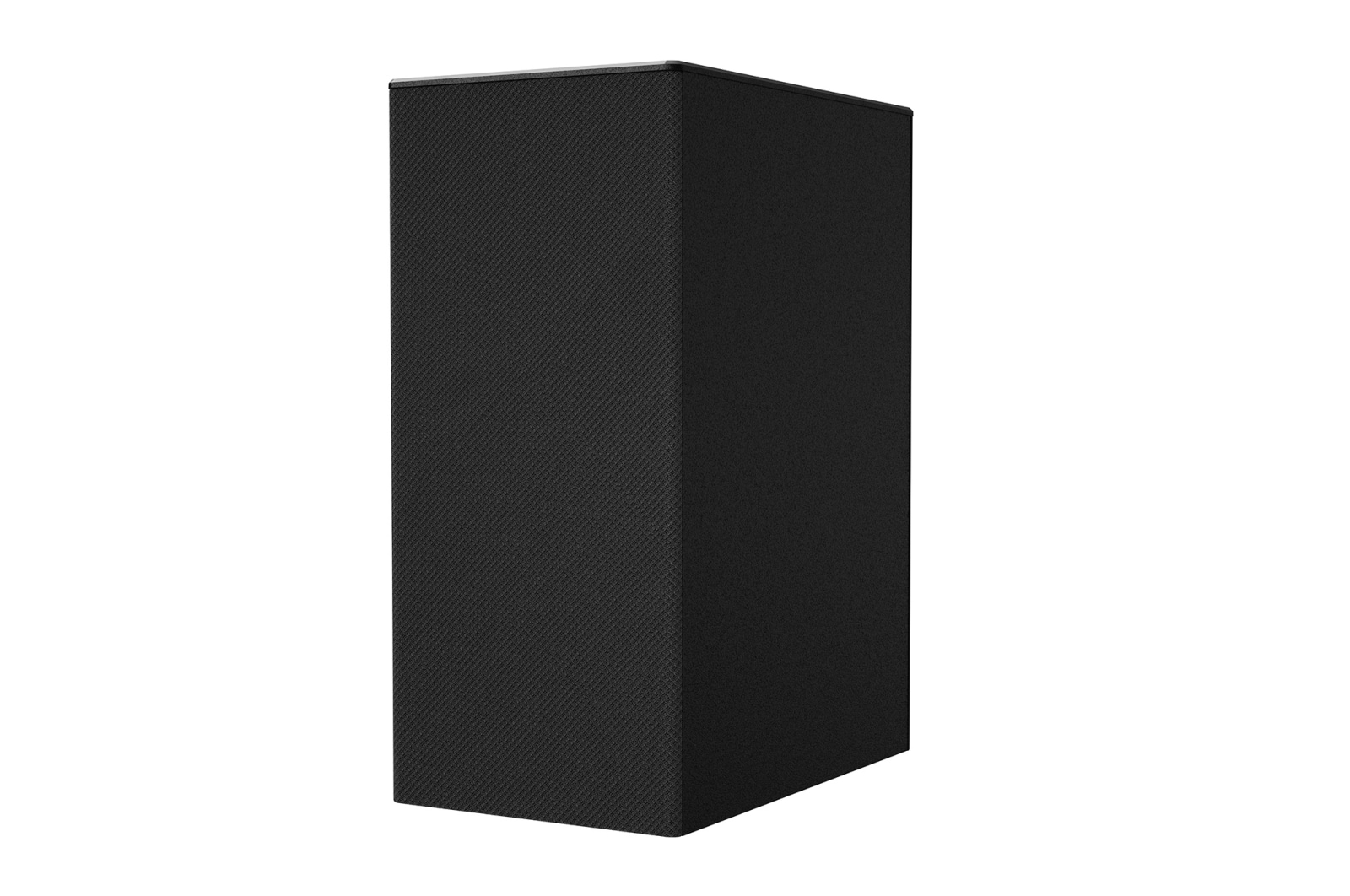

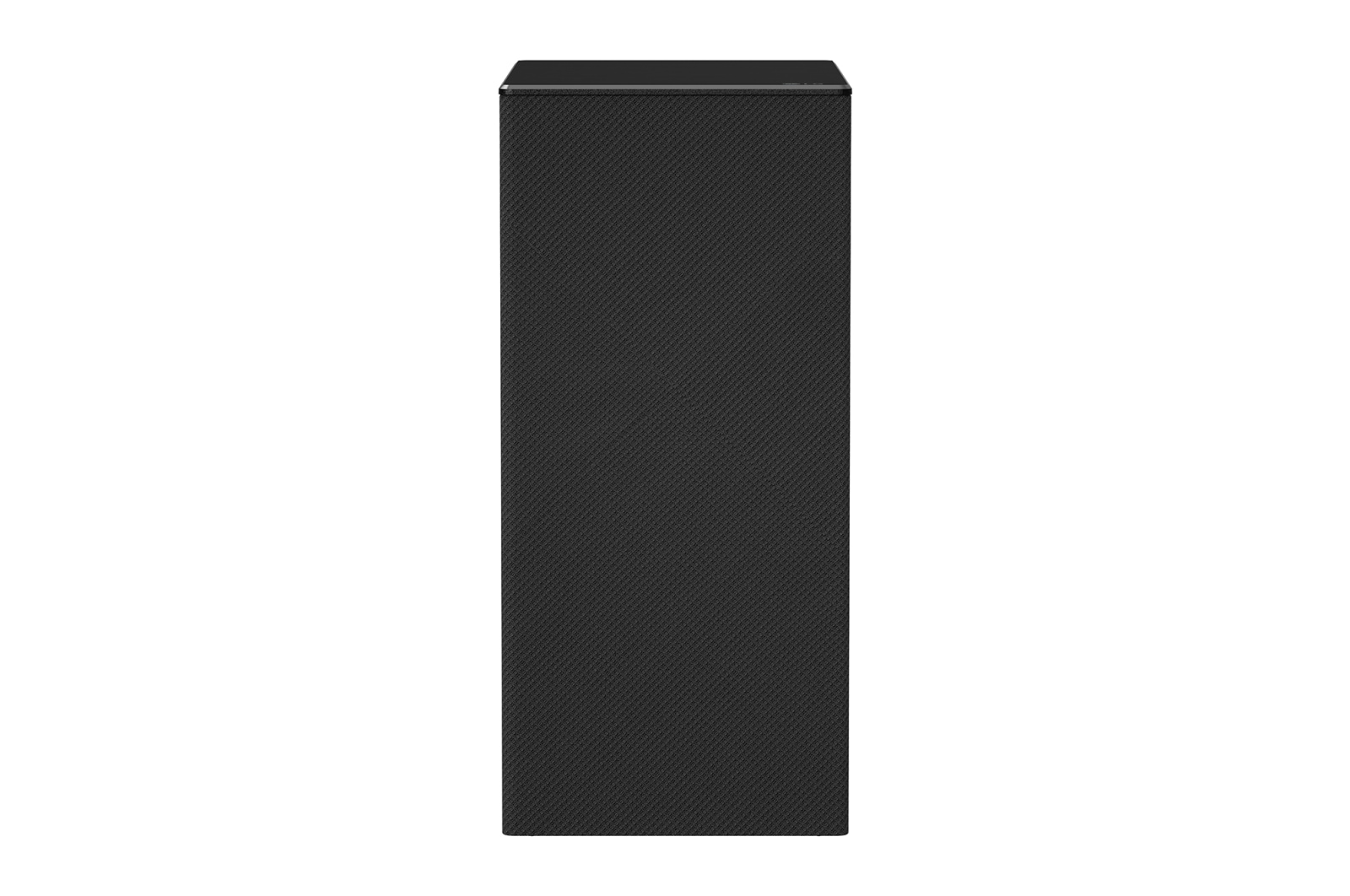

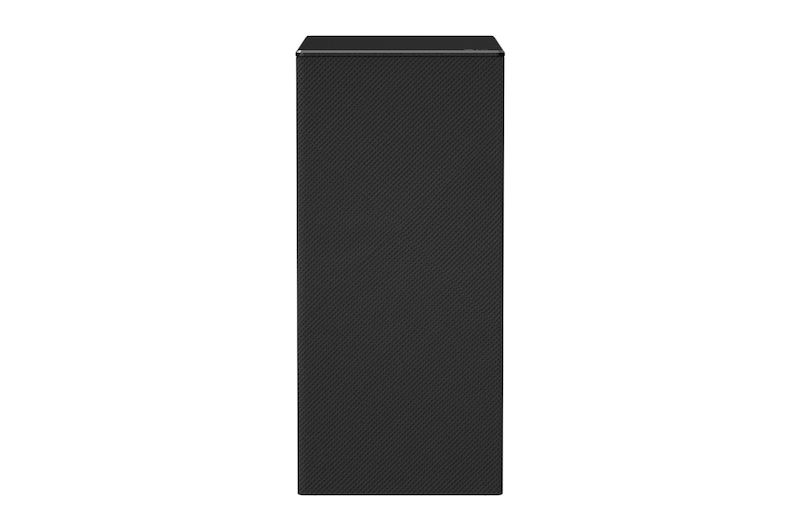

  • Subwoofer

    180 x 394 x 290

MATERIAL

  • Main - Front / Top / Bottom

    Metal Grille/Mold/Mold

  • Wireless Box - Front / Body

    No / No

  • Wireless Speaker - Front / Body

    No / No

  • Subwoofer - Front / Body

    Jersey / Wood

WEIGHT(KG)

  • Main

    3.7Kg

  • Wireless Box

    No

  • Rear Speaker (2EA)

    No

  • Subwoofer

    5.8Kg

  • Gross Weight

    11.77Kg

CARTON BOX

  • Size (W x H x D) mm

    984 x 227 x 461

  • Type

    TipOn

  • Color

    White(1)+Yellow

NUMBER OF CHANNELS

  • Number of channels

    3.1.2ch

NO. OF SPEAKER UNIT

  • Number of speakers

    8EA

CONNECTIVITY_GENERAL

  • Audio Input (3.5Ø)

    No

  • Optical

    Yes(1)

  • HDMI 1.4 (HDCP 1.4) - In / Out

    No / No

  • HDMI 2.1 (HDCP 2.3) - In / Out

    YES(1) / YES(1)

  • HDR10 / HDR10+

    Yes / No

  • Dolby Vision

    YES (TBD)

  • USB

    Yes

  • FM Radio

    No

CONNECTIVITY_WIRELESS

  • Bluetooth Version

    4.0

  • Bluetooth Codec - SBC / AAC

    Yes / Yes

  • Wi-Fi (2.4G / 5G)

    No

  • Wireless Rear ready

    Yes (1:1)

DISPLAY INFORMATION

  • Display Type

    LCD (5 char.)

  • LED Indicator Color

    No

  • AI Indicatior

    No

HI-RESOLUTION AUDIO

  • Sampling - "24bit/192kHz" / "24bit/96kHz"

    No / Yes

  • Upbit/upsampling - "24bit/192kHz" / "24bit/96kHz"

    No / Yes

SOUND EFFECT

  • AI Sound Pro

    Yes

  • Standard

    Yes (w/ Meridian)

  • Music

    Yes

  • Bass Blast / Bass Blast +

    Yes

  • Movie (Dolby Surround)

    Yes

  • Dolby ATMOS

    Yes

  • DTS:X

    Yes

  • DTS Virtual:X

    No

SOUND CONTROL

  • User EQ - RCU / App

    Yes / Yes

  • Night Time On/Off - RCU / App

    No / Yes

  • Dynamic Rage On/Off - RCU / App

    No / Yes

  • Auto Volume Leveler On/Off - RCU / App

    No / Yes

  • Auto Sound Engine (Default)

    No

  • SFX (Default)

    No

  • AI Room Calibration (2 MIC In) - App

    No

FM RADIO SUPPORTED

  • Type

    No

  • FM / RDS

    No

  • Frequency Range

    No

  • Station Preset

    No

  • Preset Memory / Erase

    No

  • Information Display (RDS - PTY, PS, CT, RT)

    No

GOOGLE SUPPORTED

  • Google Assistant Built In (Controller, 2 MIC In)

    No

  • Works with the Google Assistant (Controllee)

    No

  • Chromecast

    No

  • Google Multi Zone (One Source → Multi Speaker)

    No

  • Google Fast Pairing

    No

CONVENIENCE

  • Remote App - iOS / Adroid OS

    No / Yes

  • Smart Phone File Playback

    Yes

  • EZ setup (BLE)

    No

  • NSU / FOTA

    No / Yes

  • Control with your TV Remote (Vol+/-, Mute)

    Yes

  • Sound Sync - Bluetooth(LG TV) / Optical

    Yes / Yes

  • Auto Power On/Off - Bluetooth (LGTV) / Optical

    Yes / Yes

  • A/V Sunc (0~300ms) - RCU / APP

    No / Yes

  • HDMI SIMPLINK

    Yes

  • HDMI Audio Return Channel (ARC)

    Yes

  • HDMI Audio Return Channel (e-ARC)

    No

  • Woofer Level (-15 ~ 6dB, 1dB/Step)

    Yes

  • Channel Level (-6 ~ 6dB, 1dB/Step) - Top / Center / Surround / Rear / Rear Top

    Yes / Yes / No / Yes / No

  • Mute

    Yes

  • Auto Dimmer

    Yes

  • Sleep Timer - RCU / App

    No / No

  • USB Host / Charge

    Yes / No

  • Built-in Music

    Yes (1)

  • Bluetooth Stand-By

    Yes

  • Auto Detect (Bluetooth)

    No

AUDIO FORMAT(BITSTREAM)

  • LPCM

    Yes

  • Dolby Atmos

    Yes

  • Dolby TrueHD

    Yes

  • Dolby Digital Plus

    Yes

  • Dolby Digital

    Yes

  • DTS:X

    Yes

  • DTS-HD Master Audio

    Yes

  • DTS-HD High Resolution

    Yes

  • DTS Digital Surround

    Yes

  • AAC / AAC+

    Yes

FILE FORMAT

  • FLAC - C4A / USB

    No / Yes

  • OGG - C4A / USB

    No / Yes

  • WAV - C4A / USB

    No / Yes

  • MP3 - C4A / USB

    No / Yes

  • WMA - C4A / USB

    No / Yes

  • AAC - C4A / USB

    No / Yes

POWER_MAIN

  • Adapter

    25V, 2A

  • Power Off Consumption

    0.5W ↓

  • Power Consumption

    38W

POWER_REAR SPEAKER/WIRELESS BOX

  • Type

    No

  • Power Off Consumption

    No

  • Power Consumption

    No

  • Wireless Frequency

    No

POWER_SUBWOOFER

  • Type

    100~240V, 50/60Hz

  • Power Off Consumption

    0.5W ↓

  • Power Consumption

    33W

  • Wireless Frequency

    5GHz

ACCESSORY_MANUAL

  • Web Manual (File)

    Yes (Full)

  • Built-in Manual (Book) (Simple or Full)

    Yes (Simple)

  • Wall Mount Guide

    Yes

  • Wireless Speaker Reset Guide

    No

  • Open Source - Yes (Full or Simple) / No

    Yes (Full)

  • Warranty Card

    Yes

ACCESSORY_REMOTE CONTROL

  • Model Name

    MA7 (`19)

  • Battery(Size)

    AAA x 2

  • Battery Built-in

    Yes

ACCESSORY_OTHERS

  • Rear Speaker Cable

    No

  • Optical Cable

    Yes

  • Wall Mount Bracket

    Yes

  • Cable Management (Tie)

    No

  • Additioanl Foot

    No

  • FM Antenna

    No
