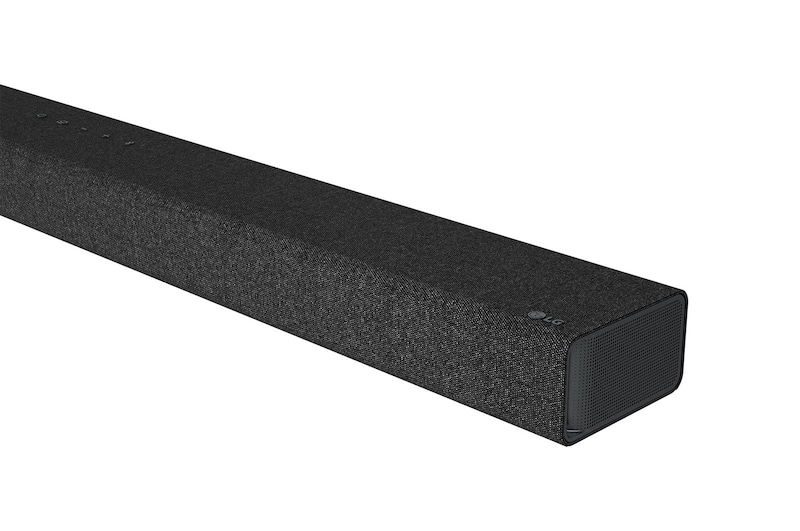

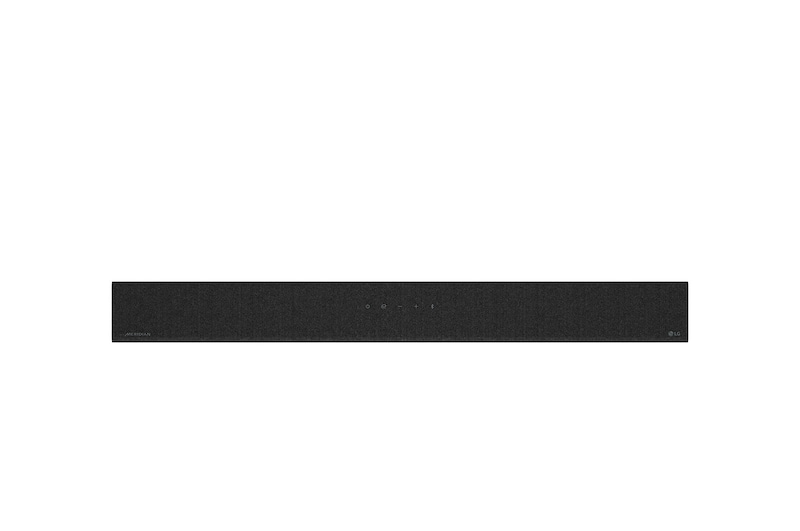

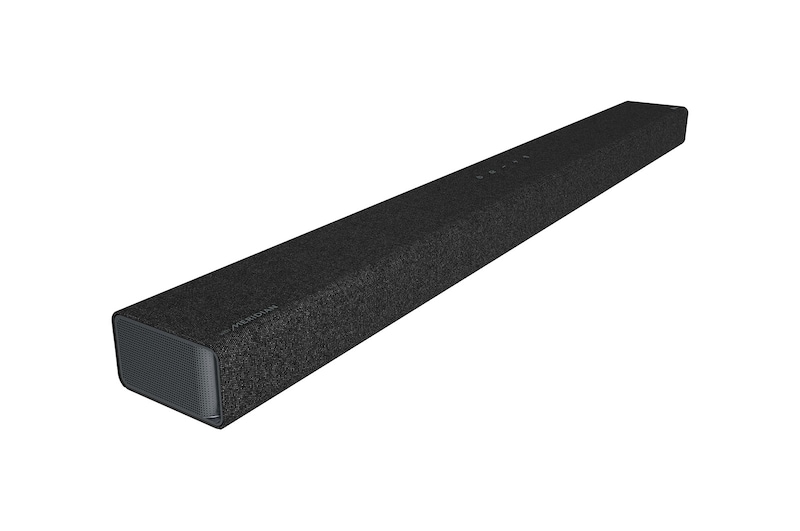

LG Soundbar SP7Y

Specs

Reviews

Support

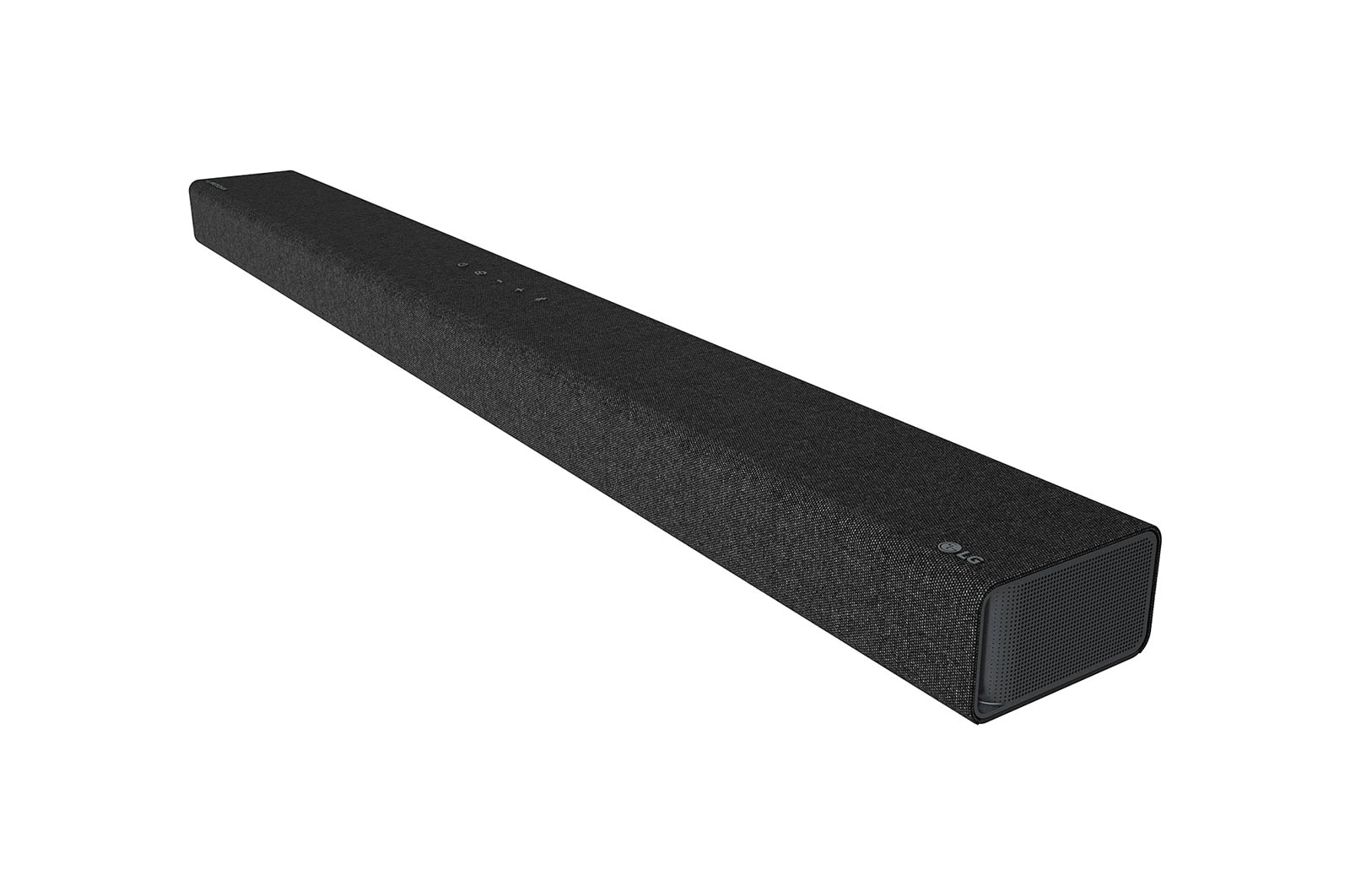

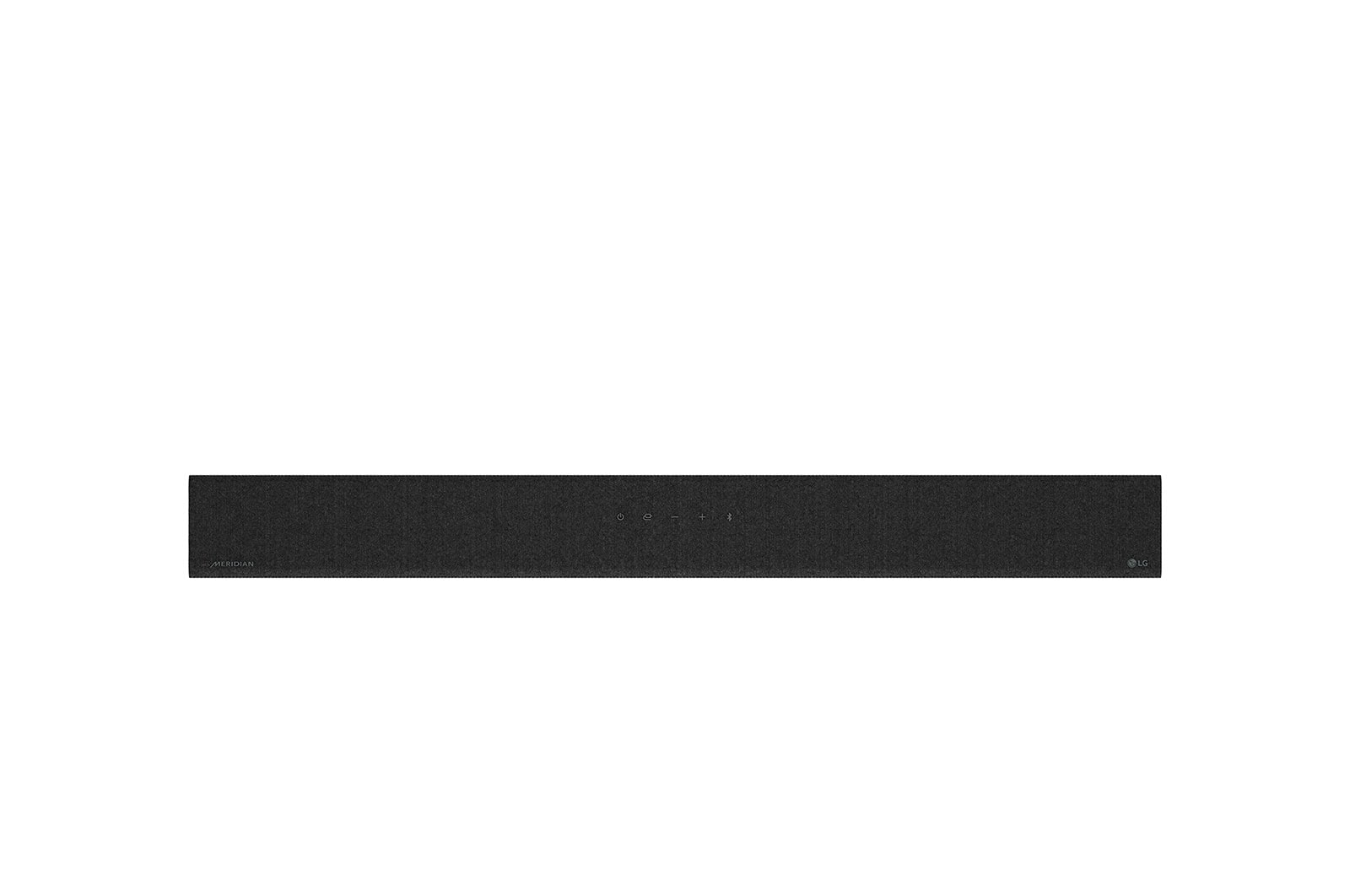

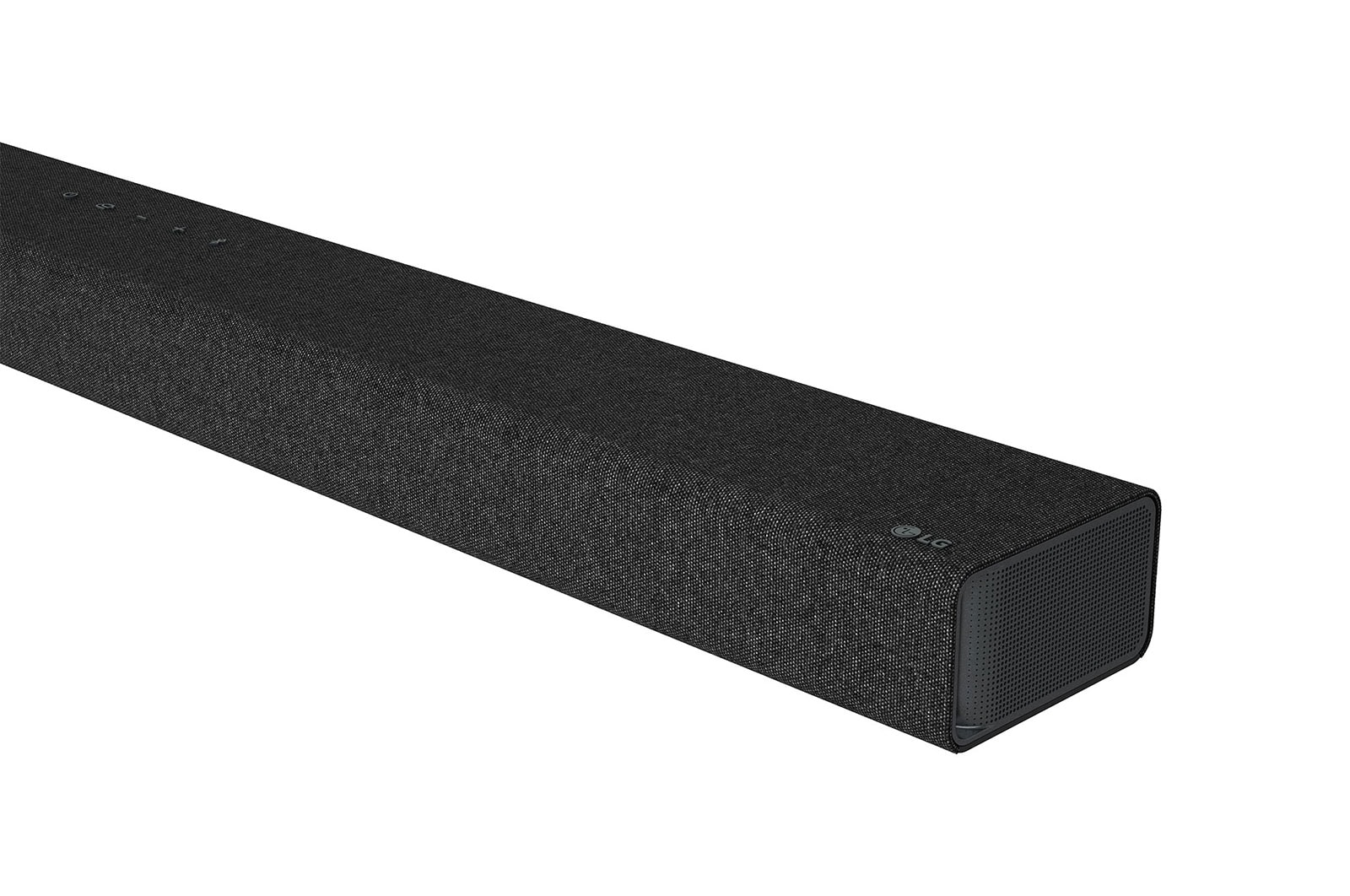

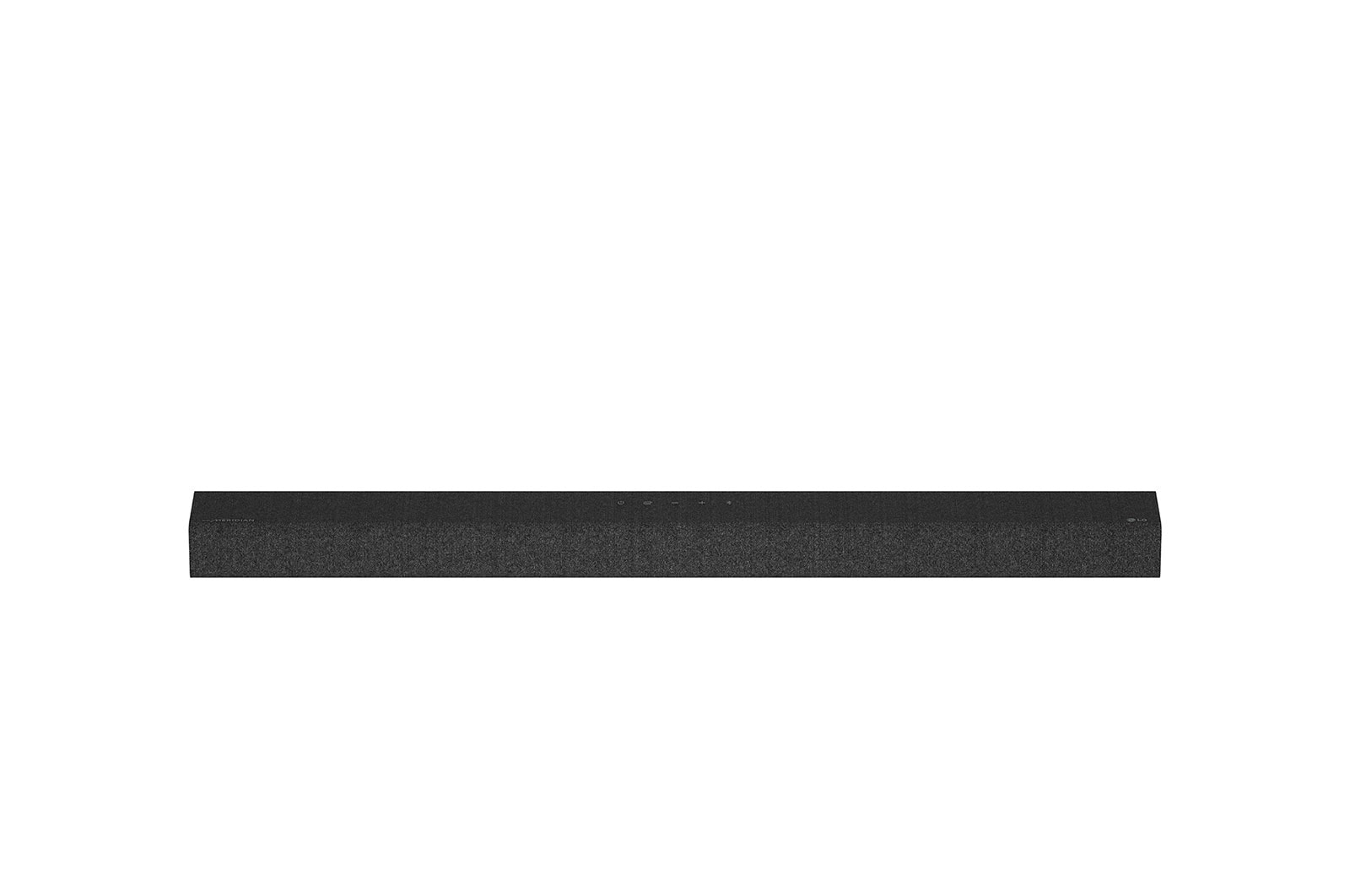

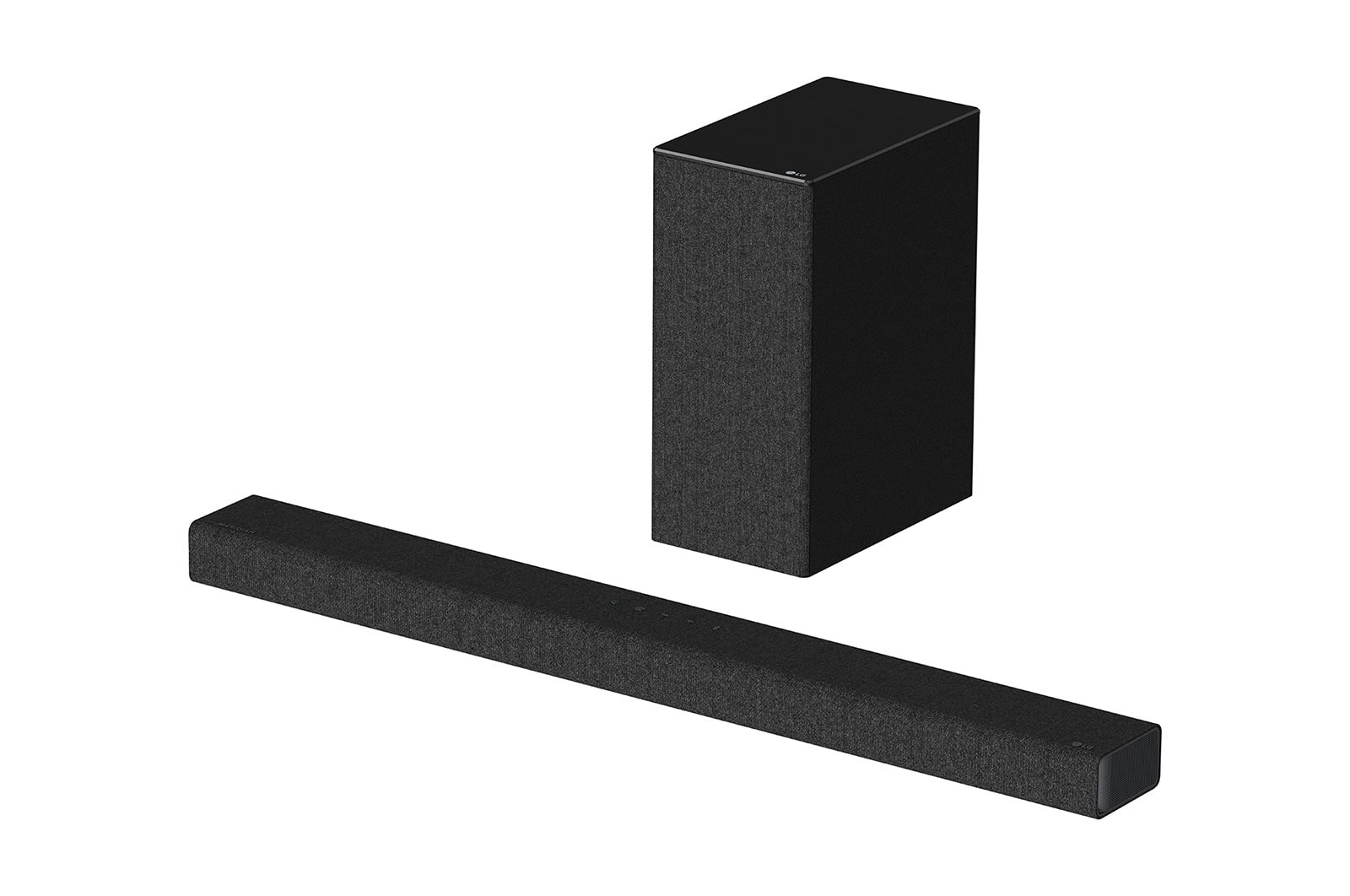

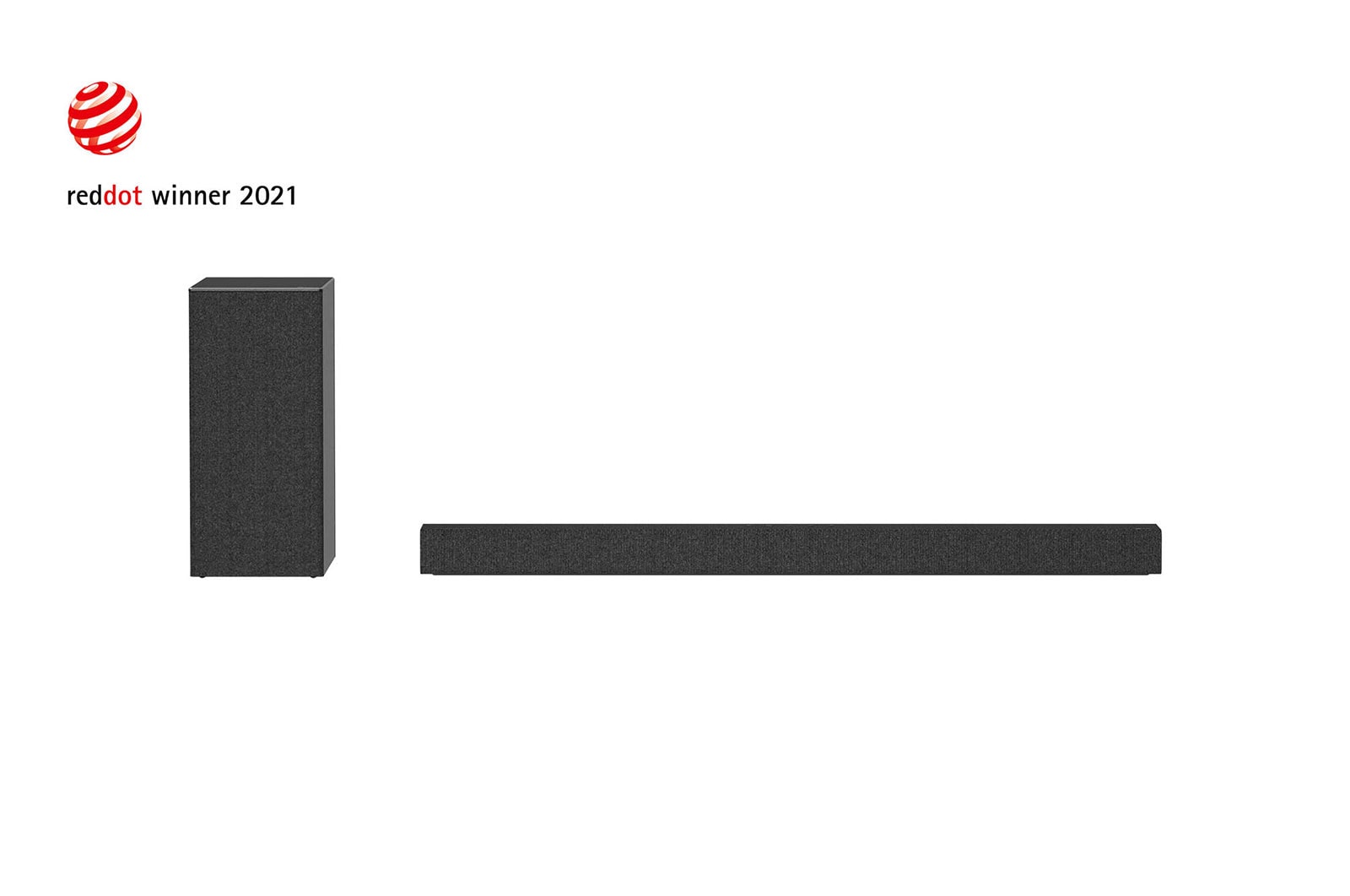

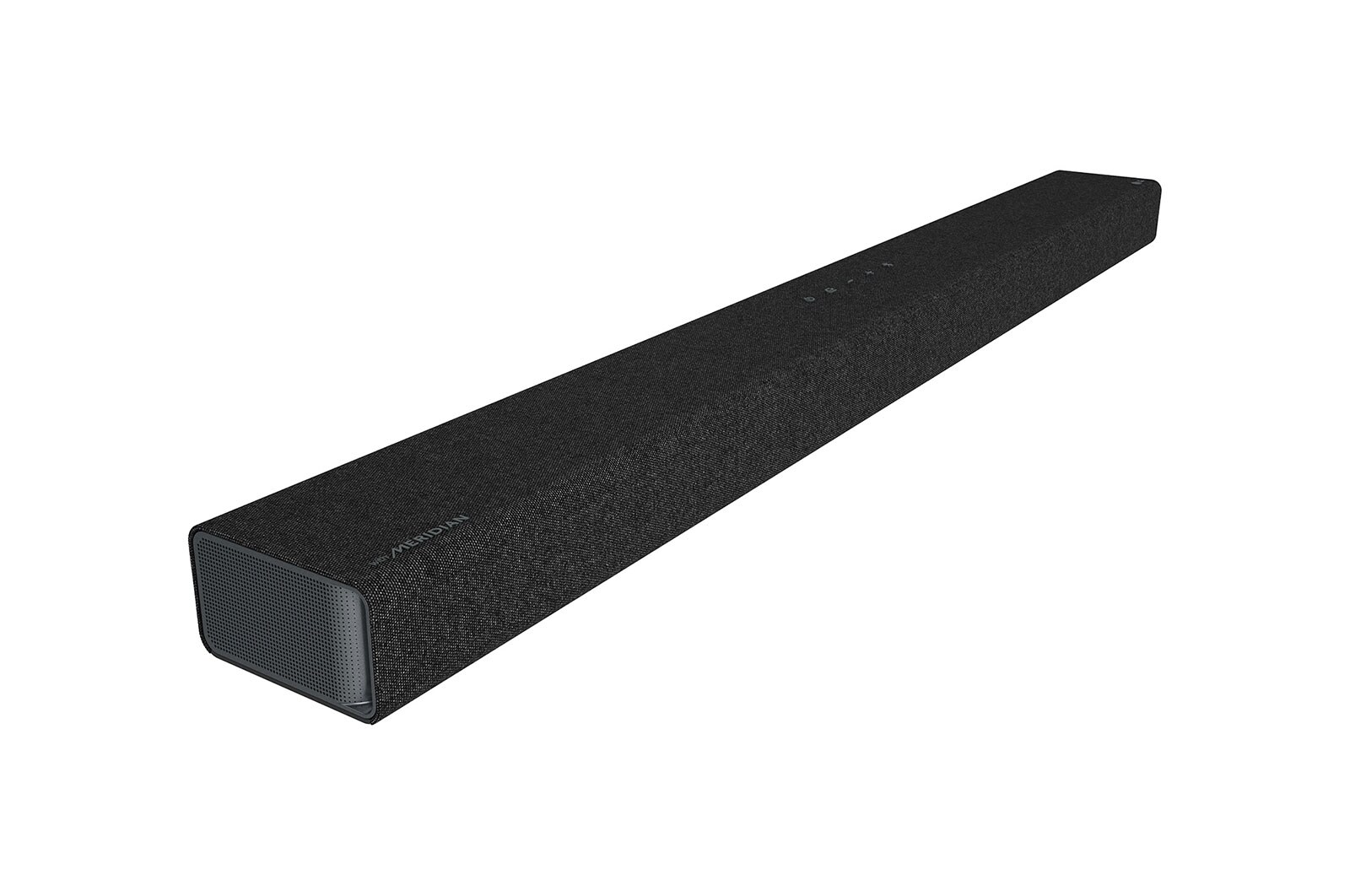

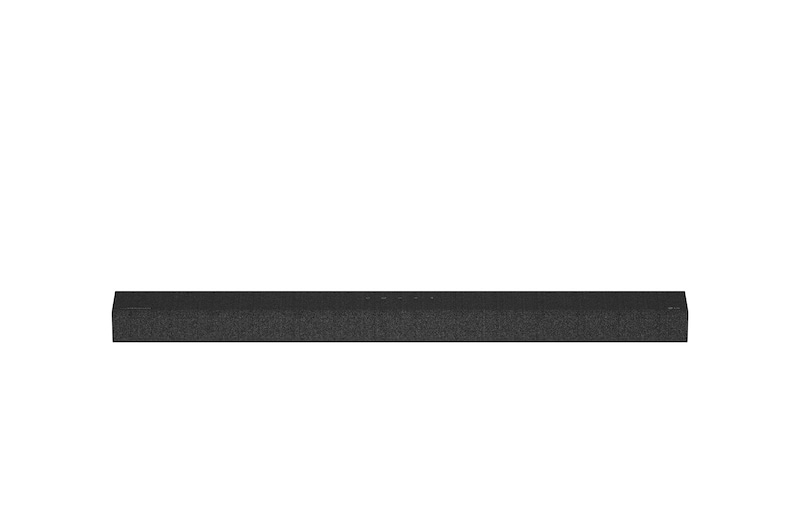

LG Soundbar SP7Y

SP7Y

LG Soundbar SP7Y

()
  • LG Soundbar SP7Y, SP7Y
  • LG Soundbar SP7Y, SP7Y
  • LG Soundbar SP7Y, SP7Y
  • LG Soundbar SP7Y, SP7Y
  • LG Soundbar SP7Y, SP7Y
  • LG Soundbar SP7Y, SP7Y
  • LG Soundbar SP7Y, SP7Y
  • LG Soundbar SP7Y, SP7Y
  • LG Soundbar SP7Y, SP7Y
  • LG Soundbar SP7Y, SP7Y
  • LG Soundbar SP7Y, SP7Y
  • LG Soundbar SP7Y, SP7Y
  • LG Soundbar SP7Y, SP7Y
  • LG Soundbar SP7Y, SP7Y
LG Soundbar SP7Y, SP7Y
LG Soundbar SP7Y, SP7Y
LG Soundbar SP7Y, SP7Y
LG Soundbar SP7Y, SP7Y
LG Soundbar SP7Y, SP7Y
LG Soundbar SP7Y, SP7Y
LG Soundbar SP7Y, SP7Y
LG Soundbar SP7Y, SP7Y
LG Soundbar SP7Y, SP7Y
LG Soundbar SP7Y, SP7Y
LG Soundbar SP7Y, SP7Y
LG Soundbar SP7Y, SP7Y
LG Soundbar SP7Y, SP7Y
LG Soundbar SP7Y, SP7Y

Key Features

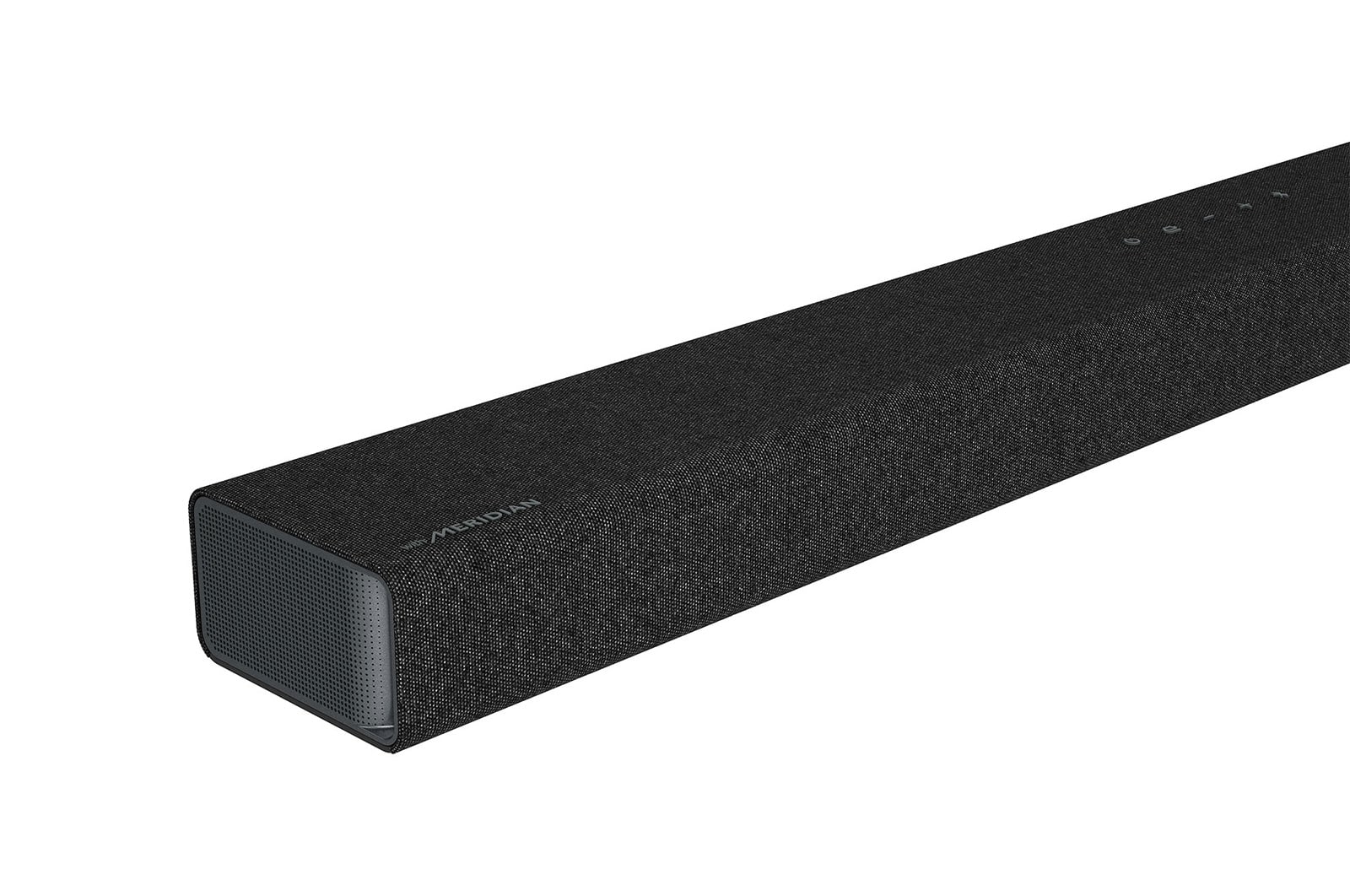

  • Meridian
  • TV Sound Mode Share & Soundbar Mode Control
  • High-Resolution Audio
  • DTS Virtual:X
  • New Sound Modes
  • AI Sound Pro
More
Print

All Spec

SALES/SUB REGION

  • Sales Region

    ASIA

  • Sub Region

    SL,PH,ML

MODEL INFORMATION

  • Brand Information

    LG Sound Bar

  • Model Name

    SN7Y

  • Subwoofer Model Name

    SPP5-W

  • System (Main Chip)

    MT8502

  • Mainset / Subwoofer Color

    Dark Grey/ Dark Grey

SIZE(W X H X D, MM)

  • Main (w/ Foot )

    1000 x 63 x 105

  • Matching TV size (`20 New)

    49"~

  • Subwoofer

    180 x 394 x 290

MATERIAL

  • Main - Front / Top / Bottom

    Jersey / Jersey / Mold

  • Subwoofer - Front / Body

    Jersey / Wood

WEIGHT(KG)

  • Main

    3.2Kg

  • Subwoofer

    5.8Kg

  • Gross Weight

    13.19Kg

CARTON BOX

  • Size (W x H x D) mm

    1071 x 465 x 247

  • Type

    Flexo (L)

  • Color

    Yellow

CONTAINER Q

  • 20ft

    240

  • 40ft

    540

  • 40ft (HC)

    720

NUMBER OF CHANNELS

  • Number of channels

    5.1ch

OUTPUT POWER(THD 10%)

  • Total

    440W

  • Front

    45W x 2

  • Center

    40W

  • Surround (Side)

    45W x 2

  • Subwoofer

    220W (Wireless)

SPEAKER UNIT_FRONT(L/R)

  • SPL

    83dB

  • System

    Closed

  • Tweeter Unit

    20mm Silk Dome

  • Woofer Unit

    52 x 99 mm

  • Impedance

    4ohm

SPEAKER UNIT_CENTER

  • SPL

    82dB

  • System

    Closed

  • Woofer Unit

    2 inch (Full Range)

  • Impedance

    4ohm

SPEAKER UNIT_SURROUND(SIDE)(L/R)

  • SPL

    82dB

  • System

    Closed

  • Woofer Unit

    2 inch (Full Range)

  • Impedance

    4ohm

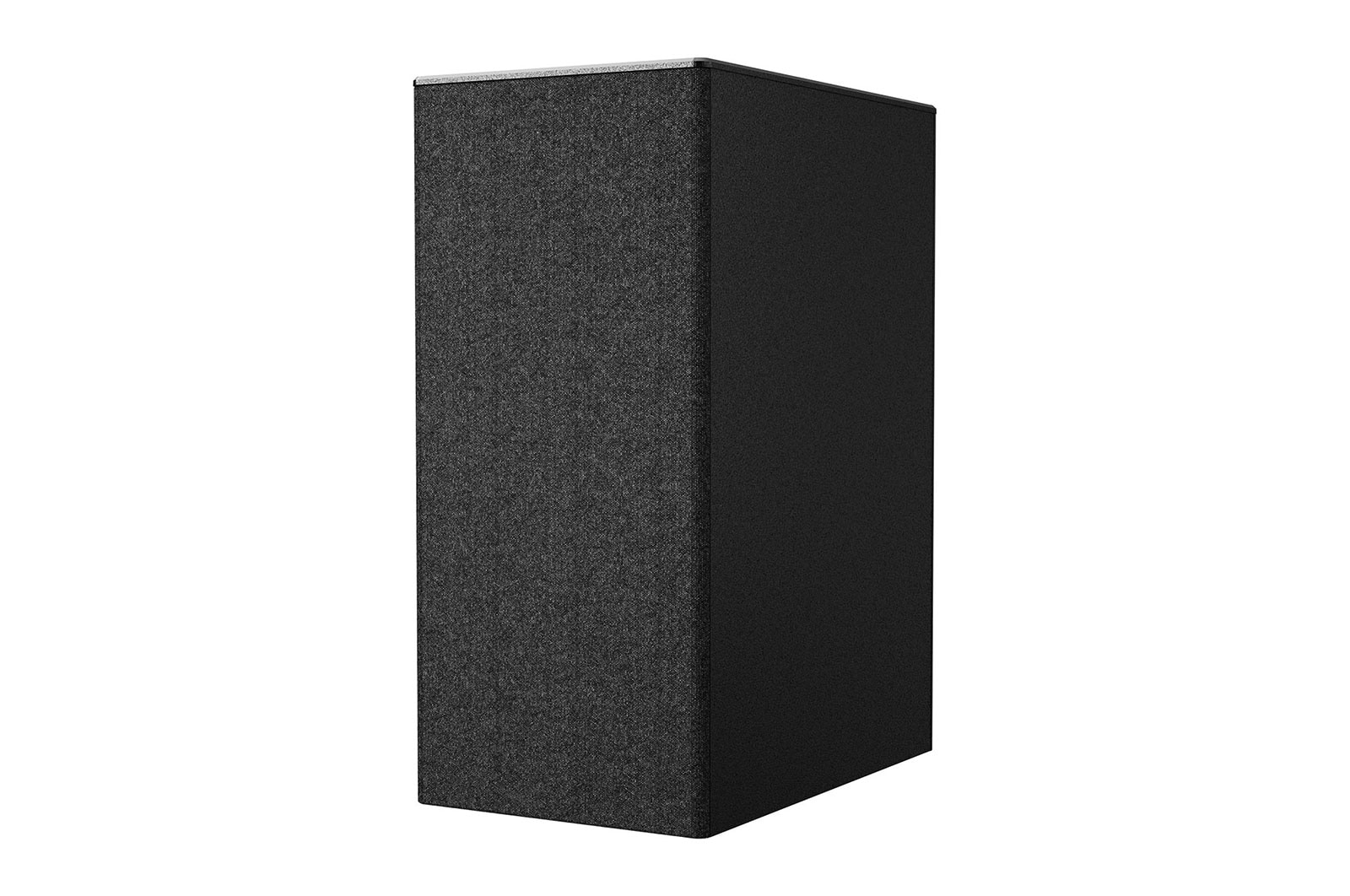

SPEAKER UNIT_SUBWOOFER

  • SPL

    85dB

  • System

    Bass Reflex

  • Woofer Unit

    6 inch

  • Impedance

    3ohm

NO. OF SPEAKER UNIT

  • Number of speakers

    8EA

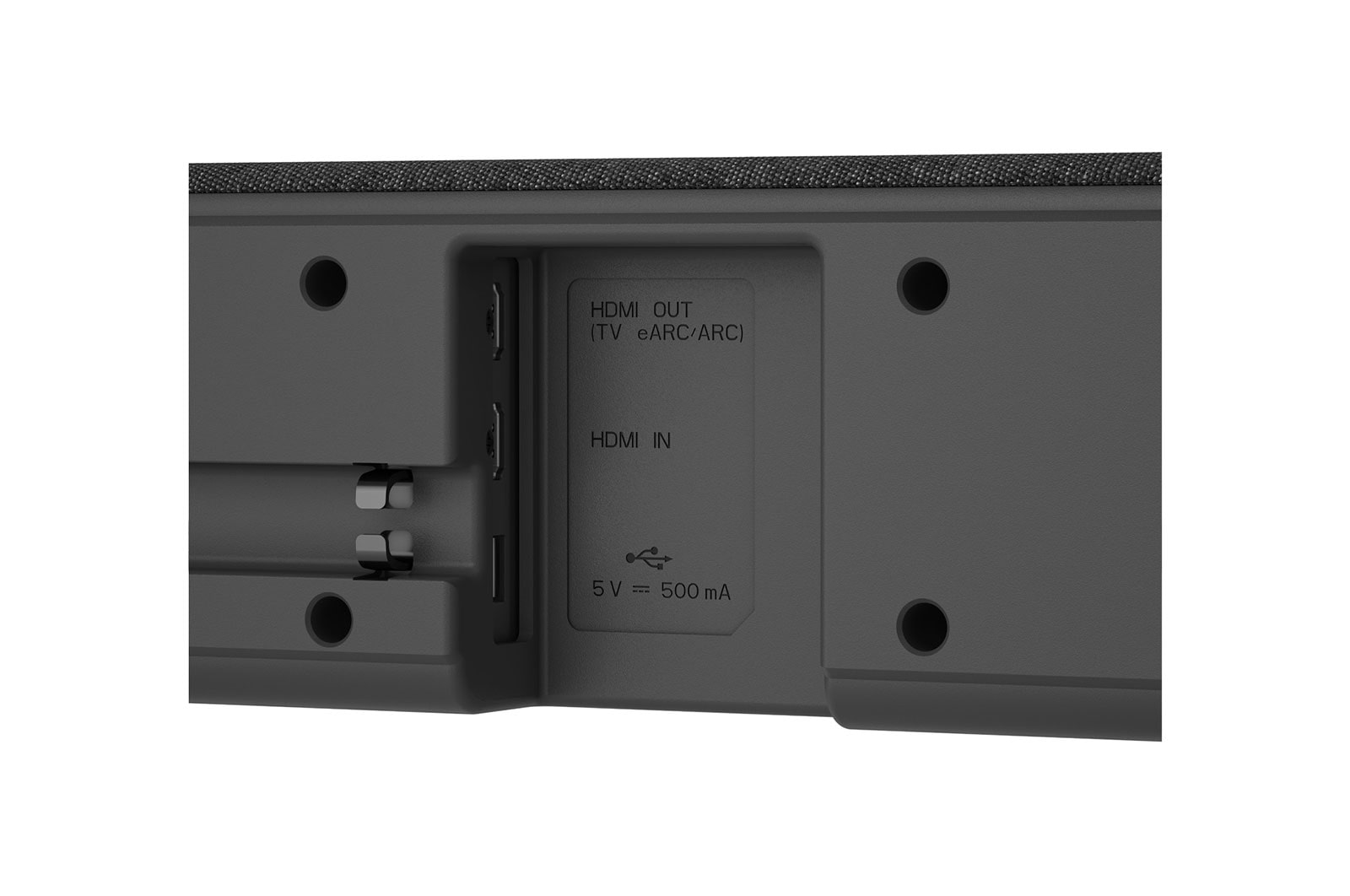

CONNECTIVITY_GENERAL

  • Optical

    Yes (1)

  • HDMI 1.4 (HDCP 1.4) - In / Out (4K Pass-through X)

    Yes (1) / Yes (1)

  • USB

    Yes

CONNECTIVITY_WIRELESS

  • Bluetooth Version

    4.0

  • Bluetooth Codec - SBC / AAC

    Yes / Yes

  • Wireless Rear ready

    Yes (1:1)

DISPLAY INFORMATION

  • Display Type

    LCD (5 char.)

HI-RESOLUTION AUDIO

  • Sampling - "24bit/192kHz" / "24bit/96kHz"

    No / Yes

  • Upbit/upsampling - "24bit/192kHz" / "24bit/96kHz"

    No / Yes

SOUND EFFECT

  • AI Sound Pro

    Yes

  • Standard

    Yes

  • Music

    Yes (w/ Meridian)

  • Cinema

    Yes

  • Clear Voice

    Yes

  • Sports

    Yes

  • Game

    Yes

  • Bass Blast / Bass Blast +

    Yes

  • DTS Virtual:X

    Yes

SOUND CONTROL

  • User EQ - RCU / App

    Yes / Yes

  • Night Time On/Off - RCU / App

    Yes / Yes

  • Dynamic Rage On/Off - RCU / App

    No / Yes

  • Auto Volume Leveler On/Off - RCU / App

    No / Yes

  • Surround On/Off - RCU / App

    Yes / Yes

  • SFX (Default)

    Yes

  • Soundbar Mode Control - Sound mode change through TV GUI

    Yes

  • TV Sound Share - TV "AI Sound Pro"

    Yes

CONVENIENCE

  • Remote App - iOS / Android OS

    Yes / Yes

  • Smart Phone File Playback (Bluetooth)

    Yes

  • NSU / FOTA

    No / Yes

  • Control with your TV Remote (Vol+/-, Mute)

    Yes / Yes

  • Sound Sync - Bluetooth(LG TV) / Optical

    Yes / Yes

  • Auto Power On/Off - Bluetooth (LGTV) / Optical

    Yes / Yes

  • Auto Power On/Off - RCU / APP

    Yes / Yes

  • A/V Sunc (0~300ms) - RCU / APP

    No / Yes

  • HDMI SIMPLINK

    Yes

  • HDMI Audio Return Channel (ARC)

    Yes

  • Woofer Level (-15 ~ 6dB, 1dB/Step)

    Yes

  • Channel Level (-6 ~ 6dB, 1dB/Step) - Top / Center / Surround / Rear / Rear Top

    No / Yes / Yes / Yes / No

  • Mute

    Yes

  • Auto Dimmer

    Yes

  • USB Host / Charge

    Yes / No

  • Built-in Music

    Yes (1)

  • Bluetooth Stand-By

    Yes

AUDIO FORMAT(BITSTREAM)

  • LPCM

    Yes

  • Dolby Digital

    Yes

  • DTS Digital Surround

    Yes

FILE FORMAT

  • FLAC - C4A / USB

    No / Yes

  • OGG - C4A / USB

    No / Yes

  • WAV - C4A / USB

    No / Yes

  • MP3 - C4A / USB

    No / Yes

  • WMA - C4A / USB

    No / Yes

POWER_MAIN

  • Adapter

    25V, 2A

  • Power Off Consumption

    0.5W ↓

  • Power Consumption

    47W

POWER_SUBWOOFER

  • Type (SMPS)

    100~240V, 50/60Hz

  • Power Off Consumption

    0.5W ↓

  • Power Consumption

    33W

  • Wireless Frequency

    5GHz

ACCESSORY_MANUAL

  • Web Manual (File)

    Yes (Full)

  • Built-in Manual (Book) (Simple or Full)

    Yes (Simple)

  • Wall Mount Guide

    Yes

  • Open Source - Yes (Full or Simple) / X

    Yes (Full)

  • Warranty Card

    Yes

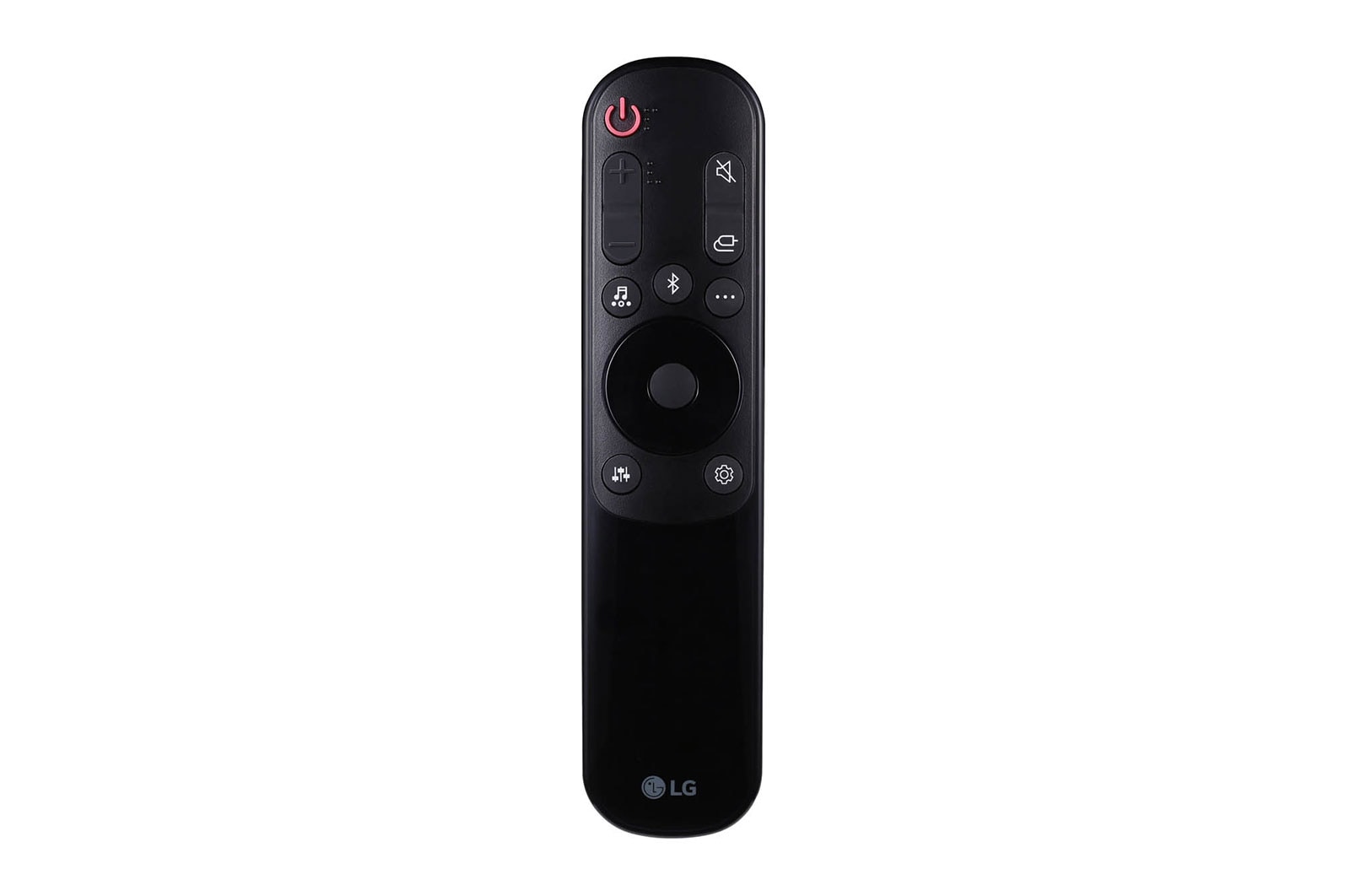

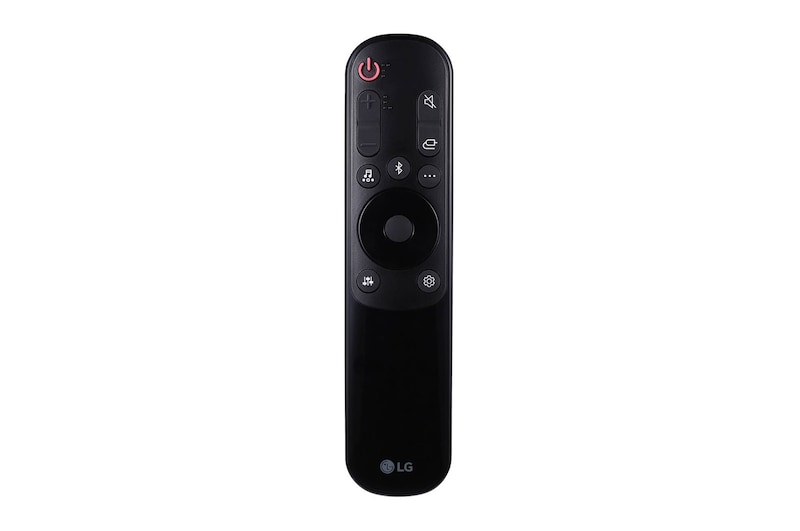

ACCESSORY_REMOTE CONTROL

  • Model Name

    RAV21 (21)

  • Battery(Size)

    AAA x 2

  • Battery Built-in

    Yes

ACCESSORY_OTHERS

  • Optical Cable

    Yes

  • Wall Mount Bracket

    Yes
