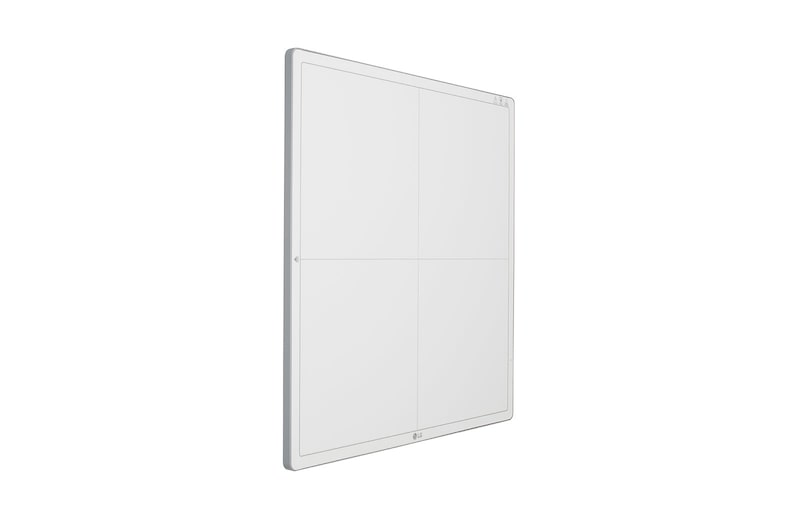

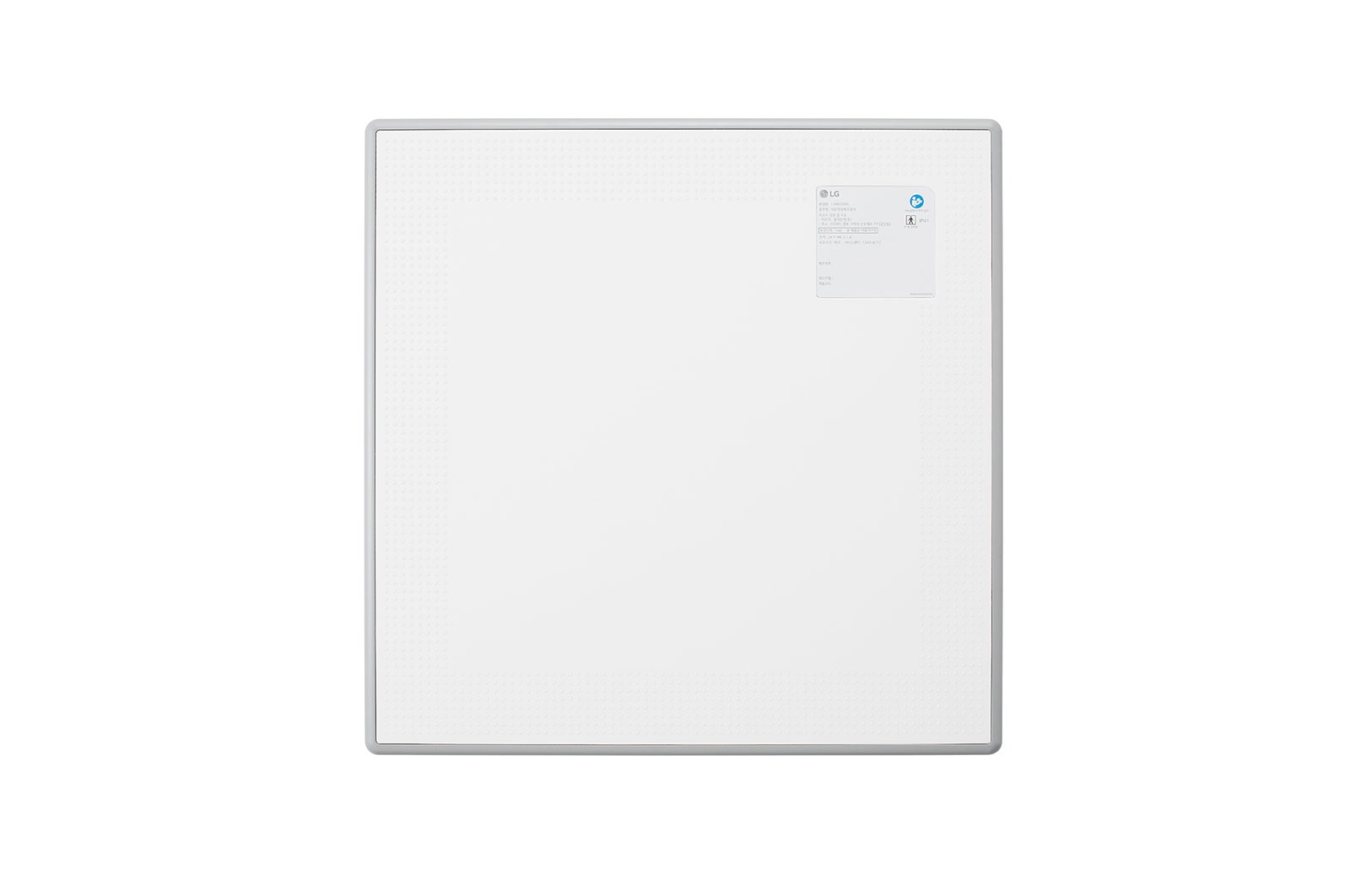

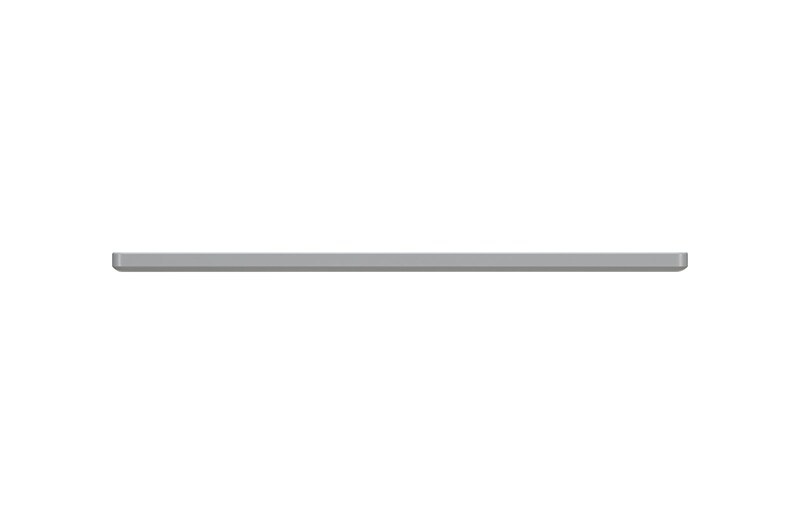

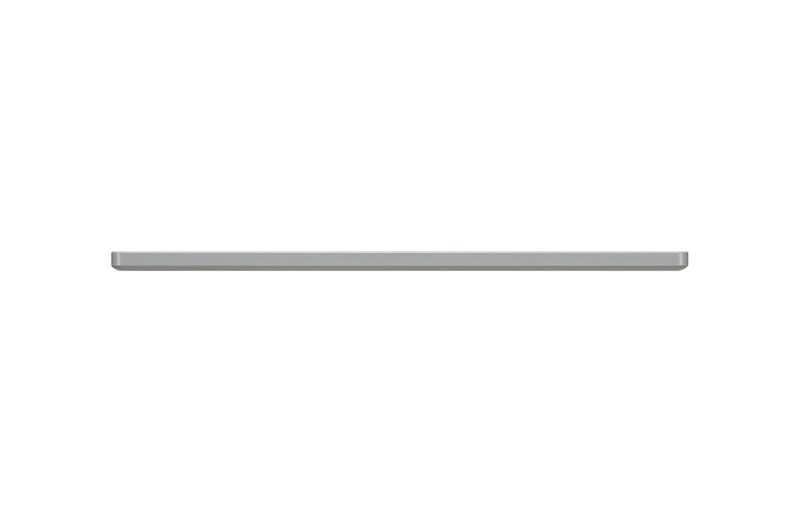

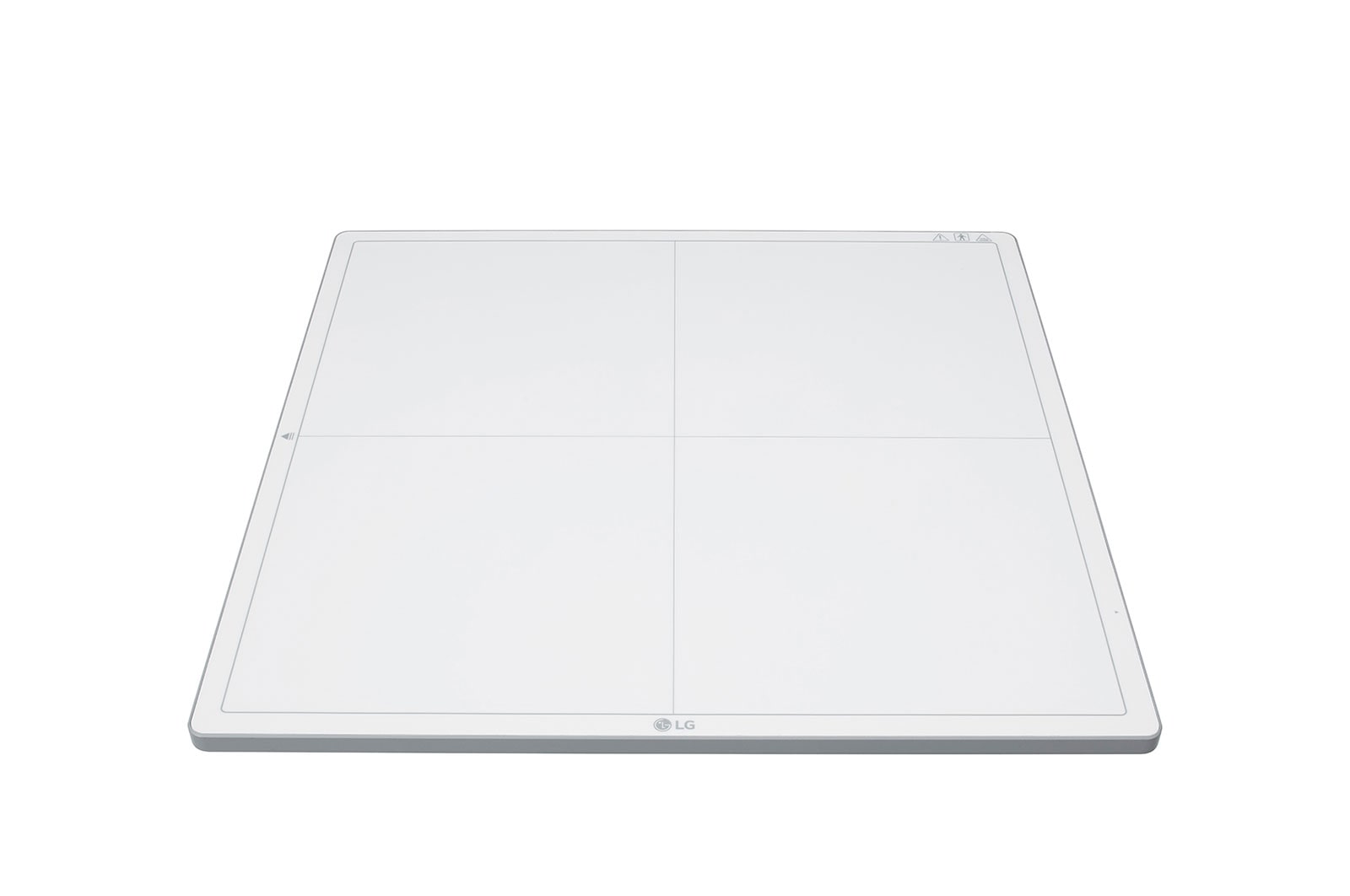

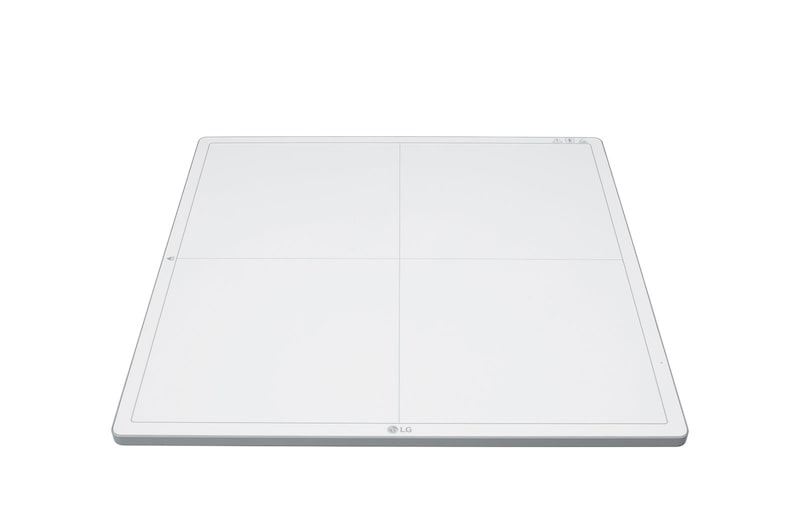

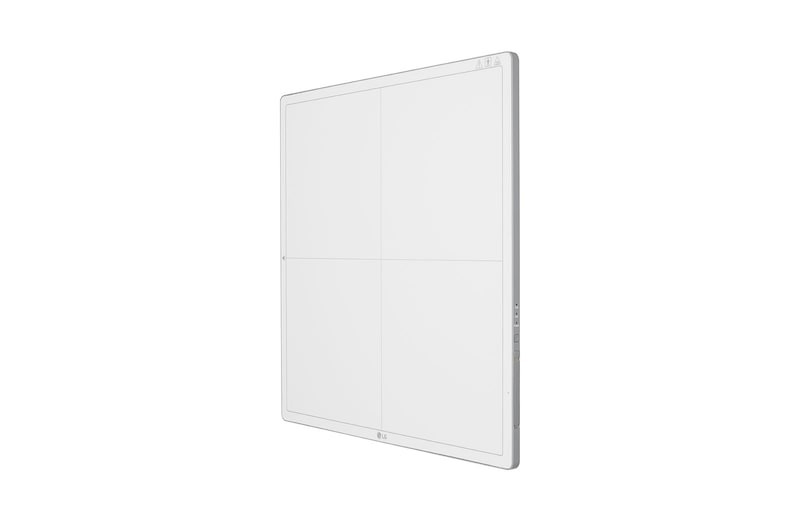

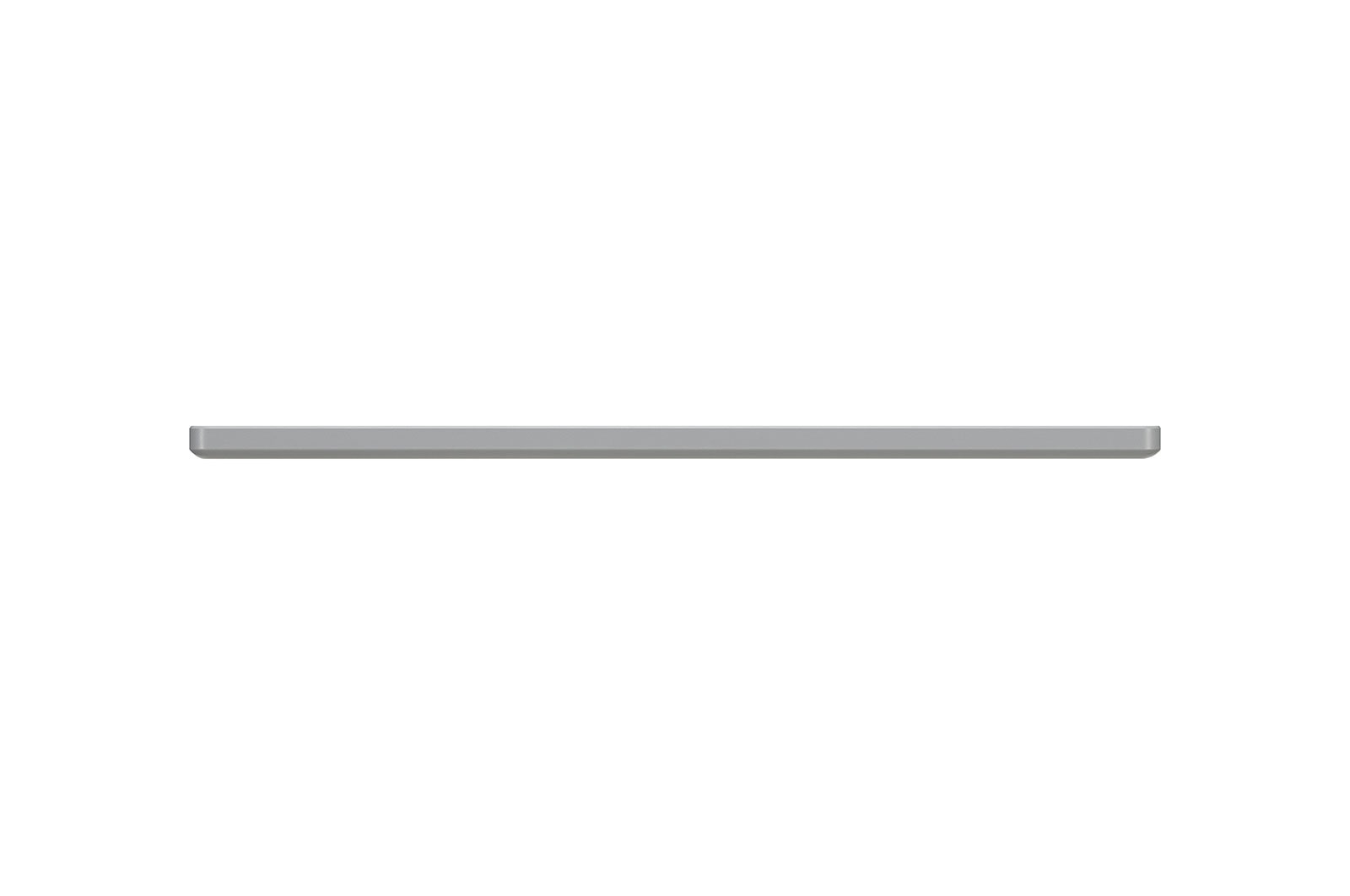

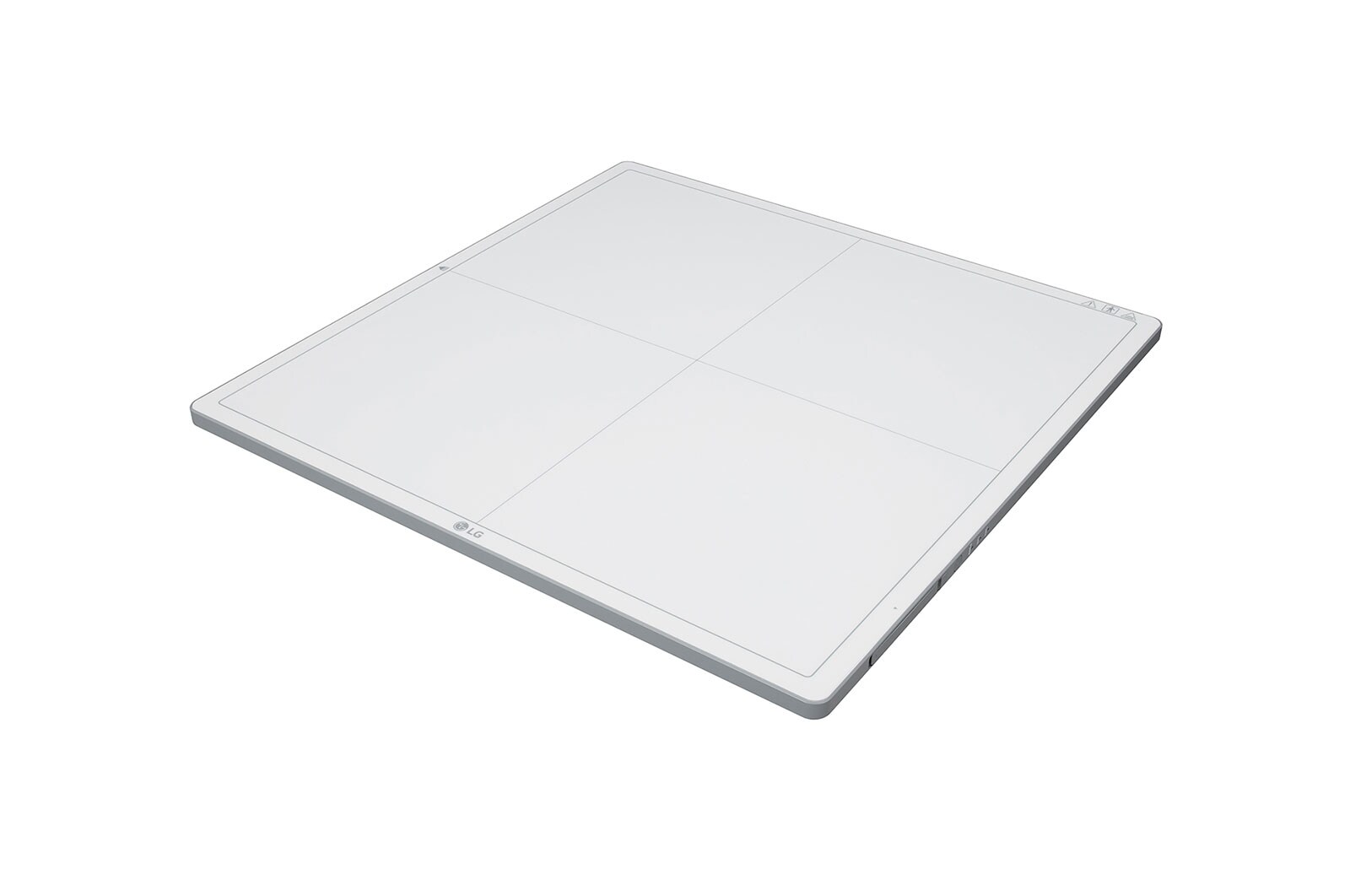

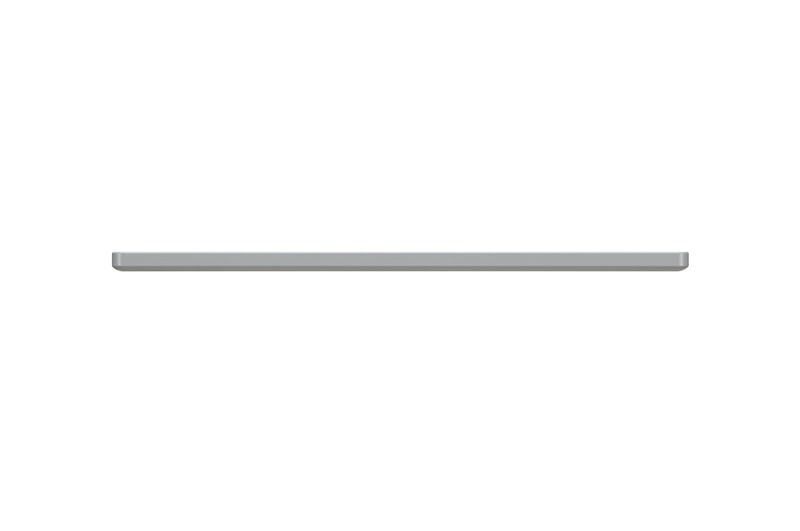

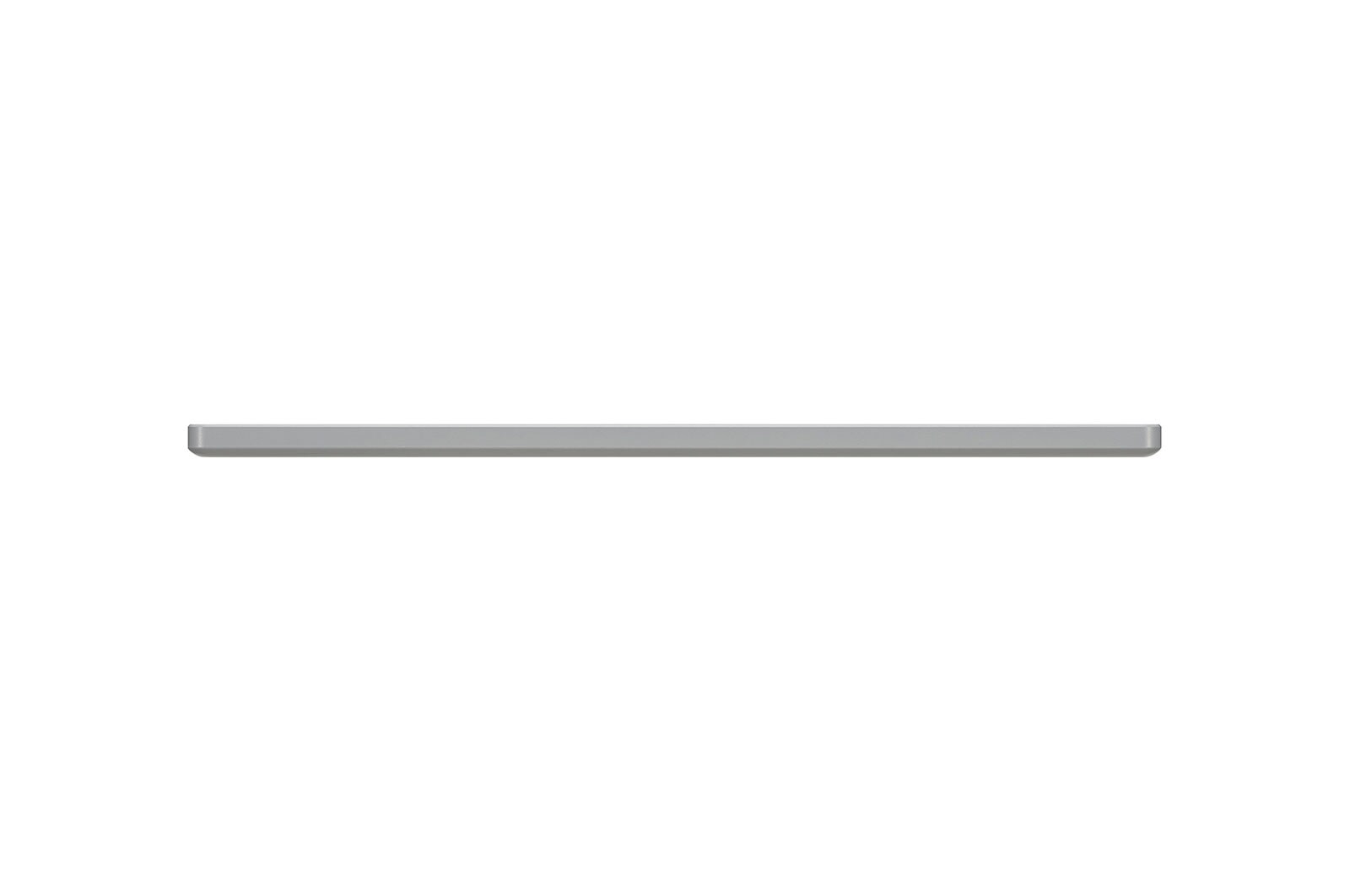

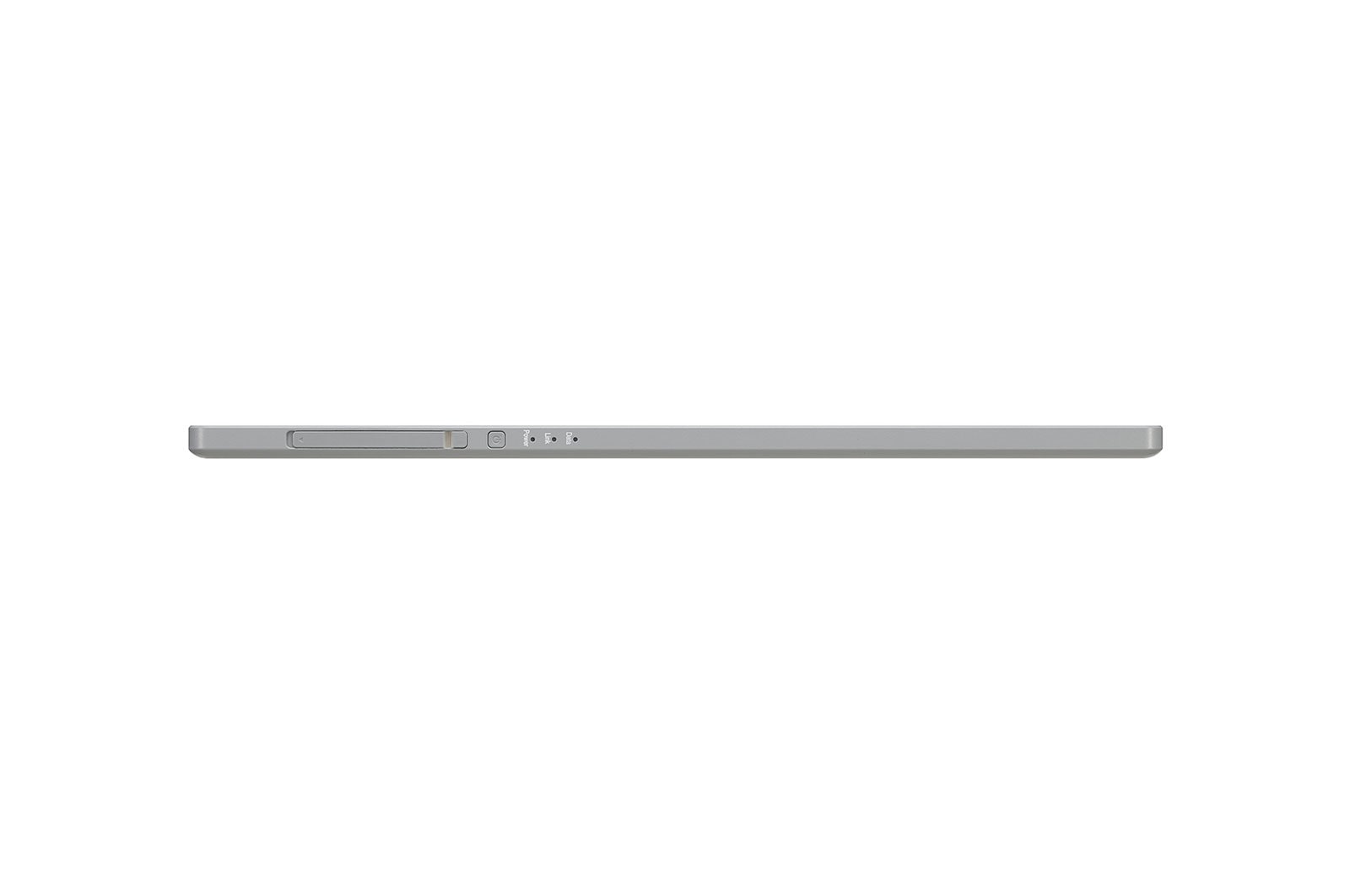

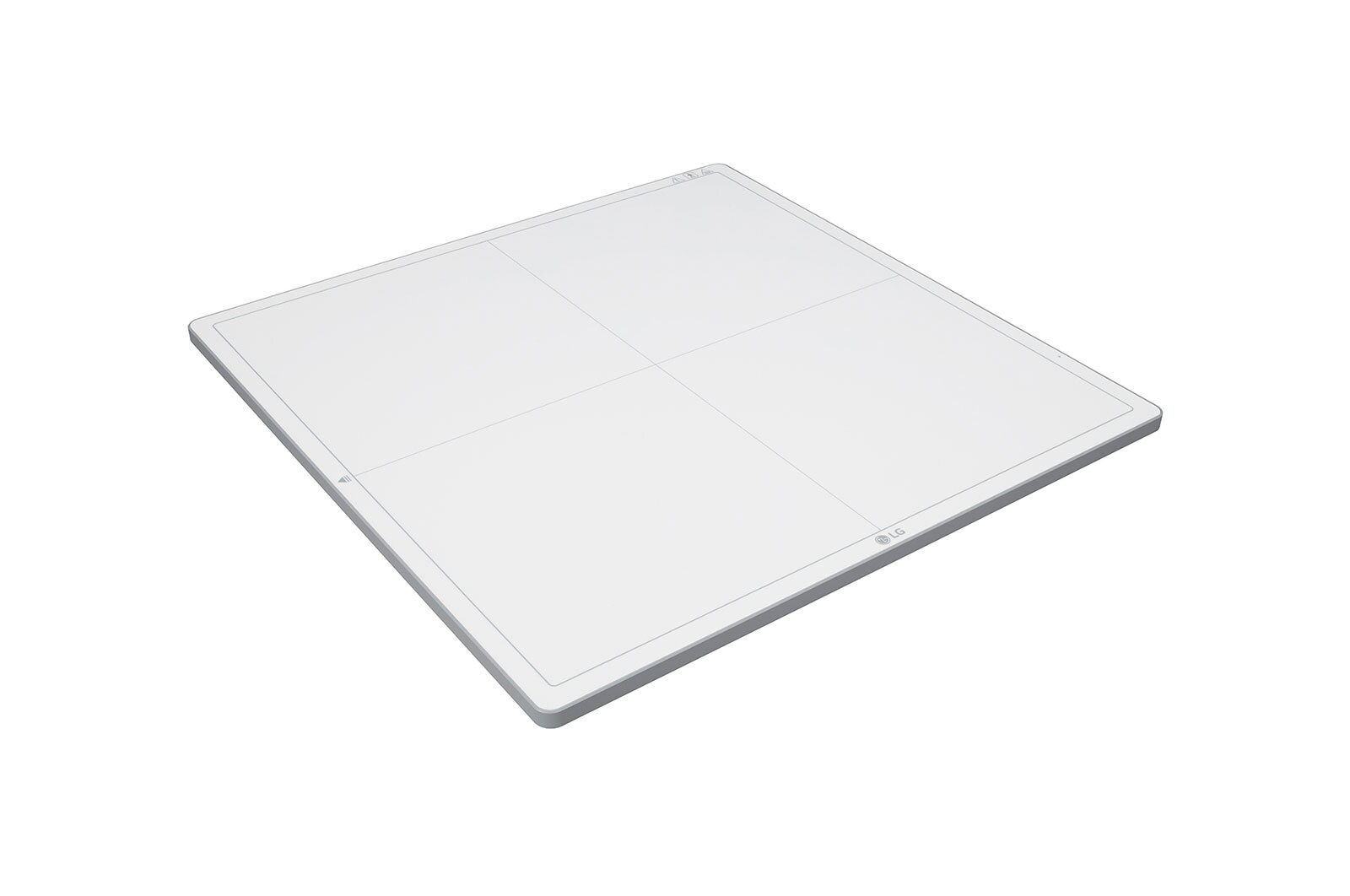

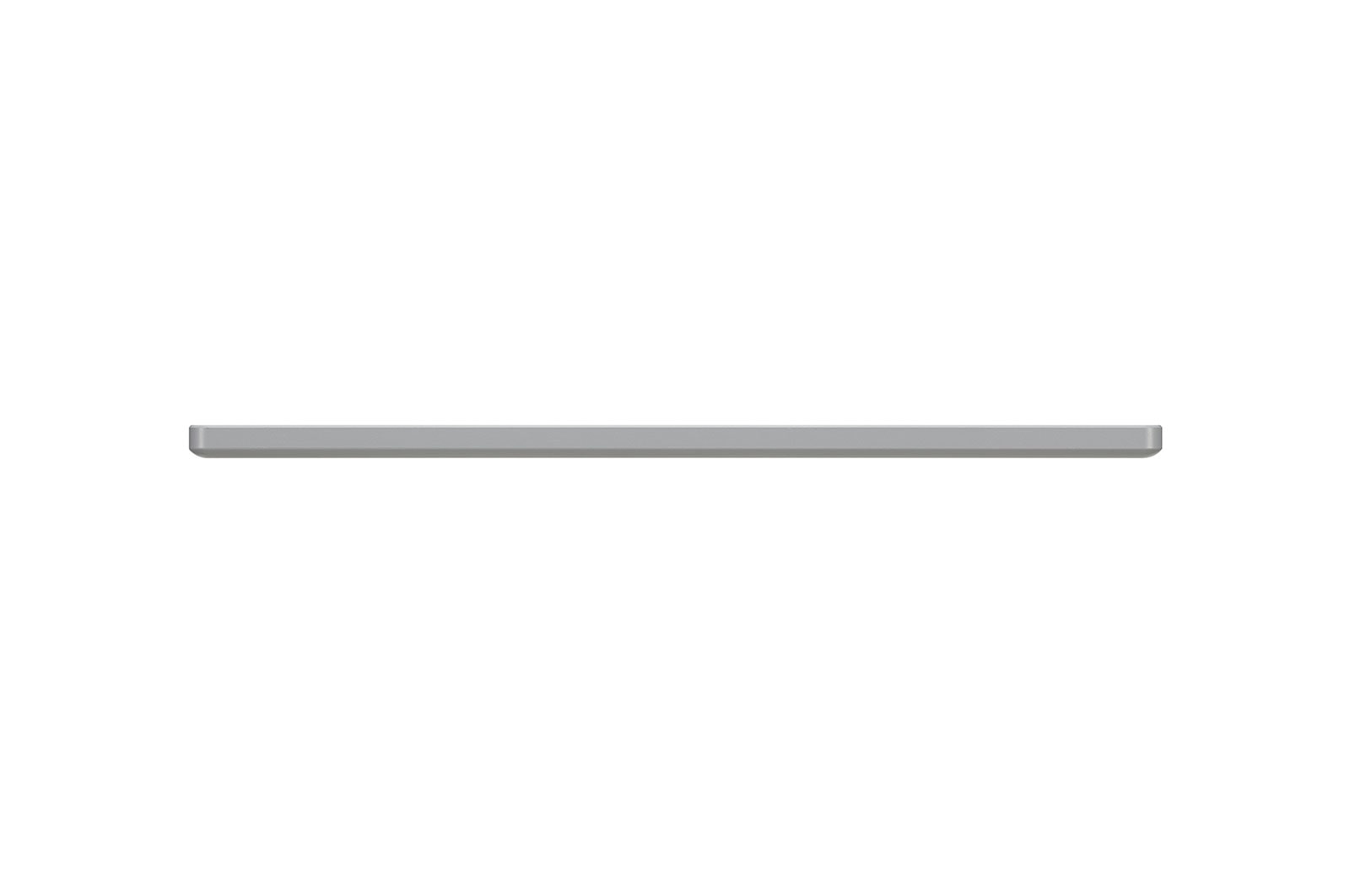

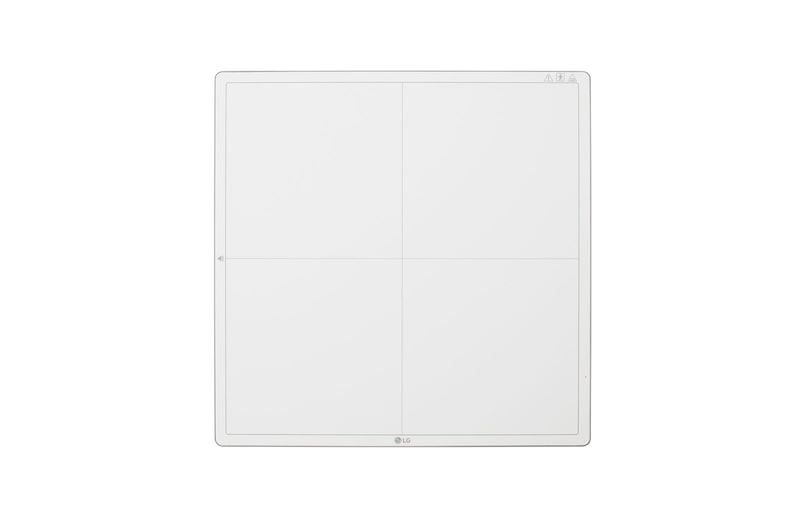

17" Draadloos/Bedraad Digital X-Ray Detector (DXD)

17HK701G-WA

17" Draadloos/Bedraad Digital X-Ray Detector (DXD)

()

17HK701G-WA

Alle specificaties

SENSOR(PANEL)UNIT

TFT Type

A-Si
Scintillator

Csi
Number of Pixels

3072 x 3072
Pixel Pitch

140㎛
TFT Dimensions(WxDxH, mm)

445 x 445 mm
TFT Active Area(mm)

430.08 × 430.08 mm
X-ray sensitive Pixel

3072 x 3072
X-ray sensitive Area(mm)

430.08 x 430.08 mm
Sensor protection plate

Carbon Fiber Plate
Input

DC24V/2.1A
Power consumption

Typ. 19.0W (No Charging),
30.5W (with Charging)
Weight(kg) / Icld. Battery (Typ.)

3.4kg
Maximum Load Weight

Full (Uniform Load) : 300kg
Local (Point Load) : 100kg
Cycle Time(Ethernet / WLAN)

8sec/11 sec (Ethernet / WLAN)
Full Image(Raw Image) (Typ.)

Wired 2 sec/Wireless 2.5 sec (Typ)
Image-lag (Typ.)

0.023%
MTF (Typ.) - MTF @ 0.5lp/mm

89%
MTF (Typ.) - MTF @ 1lp/mm

74%
MTF (Typ.) - MTF @ 2lp/mm

47%
MTF (Typ.) - MTF @ 3lp/mm

29%
DQE (Typ) - DQE @ 0.1lp/mm

72%
DQE (Typ) - DQE @ 0.5lp/mm

67%
DQE (Typ) - DQE @ 1lp/mm

61%
DQE (Typ) - DQE @ 2lp/mm

49%
DQE (Typ) - DQE @ 3lp/mm

28%
Sensitivity( lsb/uGy ) / Programmable

Typ. 900 / Yes
Degradation - Expected lifetime (Gy)

100 Gy
Degradation - Sensitivity degradation at the 'end of Life'

20%
Spatial Resolution(lp/mm)

3.57 lp/mm
A/D Conversion

16 bit
Data Output

16 bit
Auto Exposure Detection

Yes
X-ray generator voltage range

40 to 150kVp
Unit Interface

Connect to Control Box
Power unit interface

Connect to Control Box
WLAN

IEEE802.11a/b/g/n/ac, 2.4GHz/5GHz
Wired Communication

Yes
Detachable Wire (Easy to plug / unplug)

Yes (Magnetic)
X-ray period (ms) (=Window Time)

Standard: 500 (~4000)
Shock monitoring

Yes

CONTROL BOX

Power Input

AC100 to 240V, 47-63Hz
Power Output

DC24V / 2.1A
AC Power Cord

1.5m, White
Dimensions(WxDxH, mm)

125 x 255 x 109.8 mm
weight(kg)

1.3kg

MAIN CABLE(DXD-CONTROL BOX)

Length

7m

BATTERY

Type

Detachable
Nominal Capacity

30Wh (7.5V, 4000mAh)
Nominal Voltage

7.5V
Dimensions(WxDxH, mm)

204.6 x 110.5 x 7.8
weight(g)

229.86
Operation Time

Typ. 240 shots / 6.0 hrs (Condition : Interval Time 90 sec)
Battery duration in standby status

Typ. 13 hrs

BATTERY CHARGER

Input voltage

19V
Output voltage

8.7V
Charging Time

3 Hours
Slot Q'ty

3
Bundle battery Q'ty

2
Dimensions(WxDxH, mm)

125 x 255.5 x 90.5mm
weight(kg)

0.9kg

AC ADAPTER FOR BATTERY CHARGER

Dimensions(WxDxH, mm)

134 x 59.8 x 31 mm
DC Cable length

1,500 mm
AC Power Cord

Yes
Input

100 ~ 240VAC
Output

19V/3.42A
Weight(kg)

0.335 kg

ENVIRONMETAL

Storage - Temperature

-20 to 60 ℃
Storage - Humidity

Less than 90% RH, No condensation
Storage - Pressure

50 ~ 106 kPa
Storage - Attitude

Less than 12,192 m
Operating - Temperature

10 to 35 ℃
Operating - Humidity

Less than 80% RH, No condensation
Operating - Pressure

70 ~ 106 kPa
Operating - Attitude

Less than 5000 m

WATERTIGHTNESS

Watertightness

IP41
Cleaning and desinfecting products

Isopropanel 100%, Ethanol 70%, Cidex OPA, 0.9% Nacl solution
Anti-Bacteria

JIS Z 2801 0.99%

WARRANTY

Warranty

36 Month

ACCESSORIES

CD

Manual, Calibration SW
Cable

Power cord, Manin Cable 7m (LAN Cable, Sync cable Option)
Other

Book Manual, Outgonig Inspection sheet
