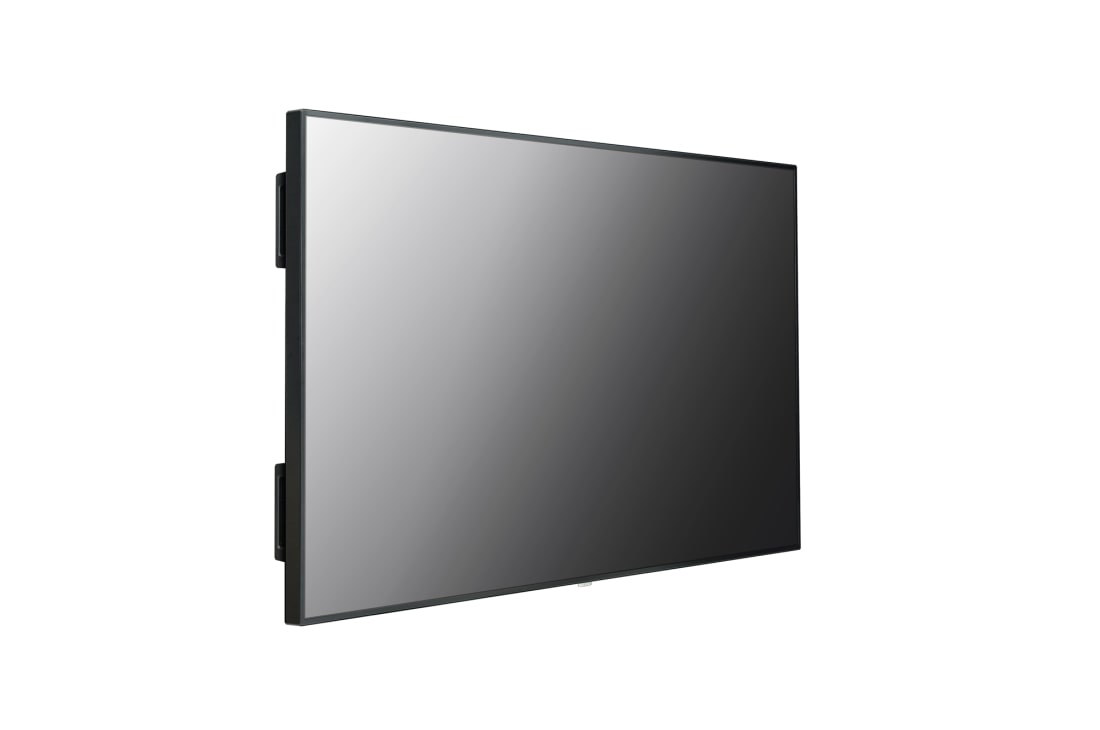

98UH5F-B component-copyModelName
UH5F Series

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (98UH5F-B)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (98UH5F-B)
    $
    $
    LG Members Price
Total
UH5F Series
LG UHD Signage Offers Lifelike Vision to Customers1 LG UHD Signage Offers Lifelike Vision to Customers2

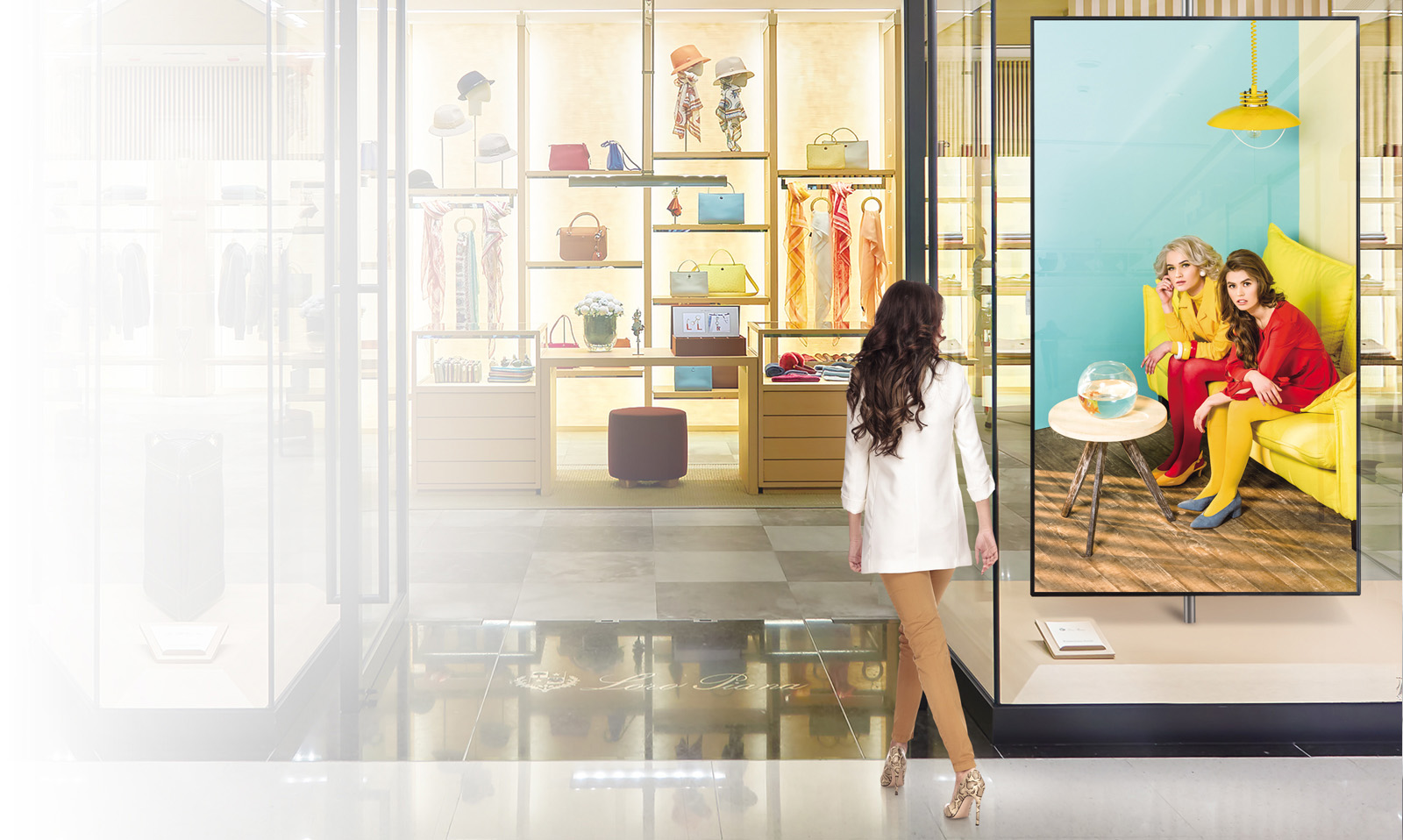

LG UHD Signage Offers Lifelike Vision to Customers

With superb picture quality and cutting-edge intelligence, the UH5F/E series enlivens colors without the aid of peripherals. Its quality and brightness capture the attention of passersby.
ULTRA HD Resolution1 ULTRA HD Resolution2
SUPERB PICTURE QUALITY

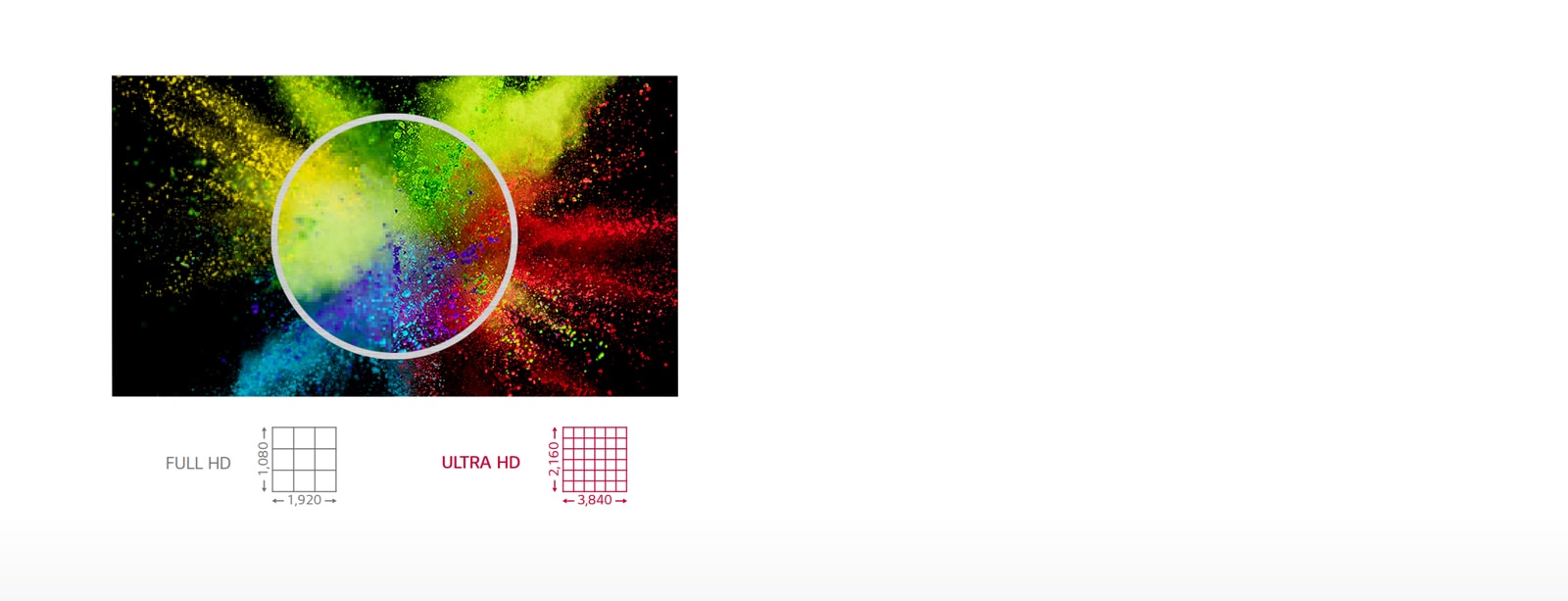

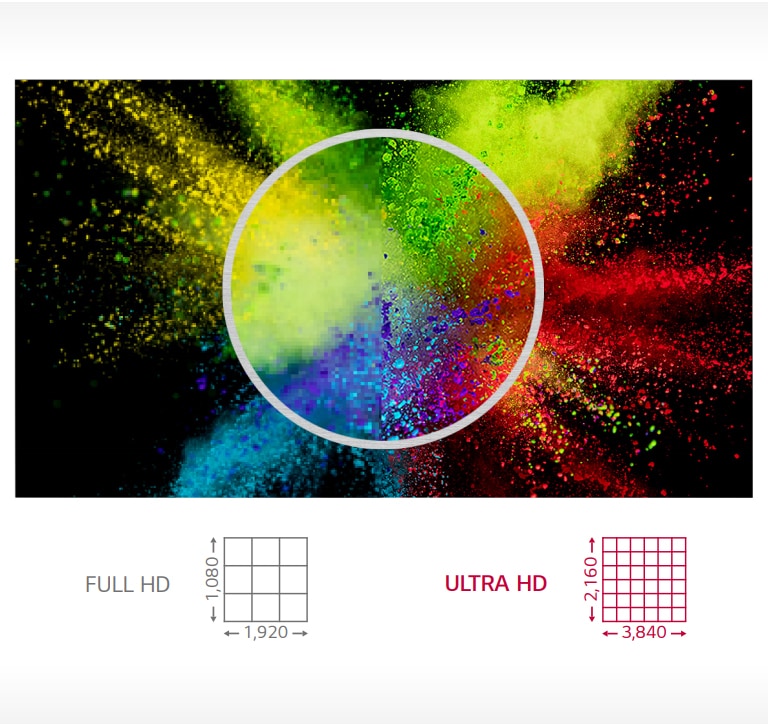

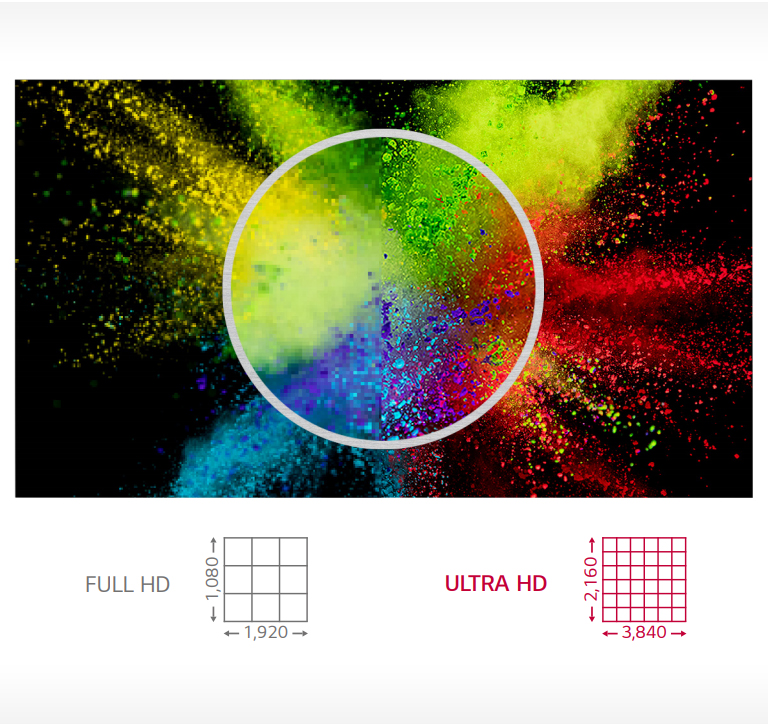

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with LG IPS Panel, provides clear contents with no distortion.
High Efficiency Video Coding1 High Efficiency Video Coding2
SUPERB PICTURE QUALITY

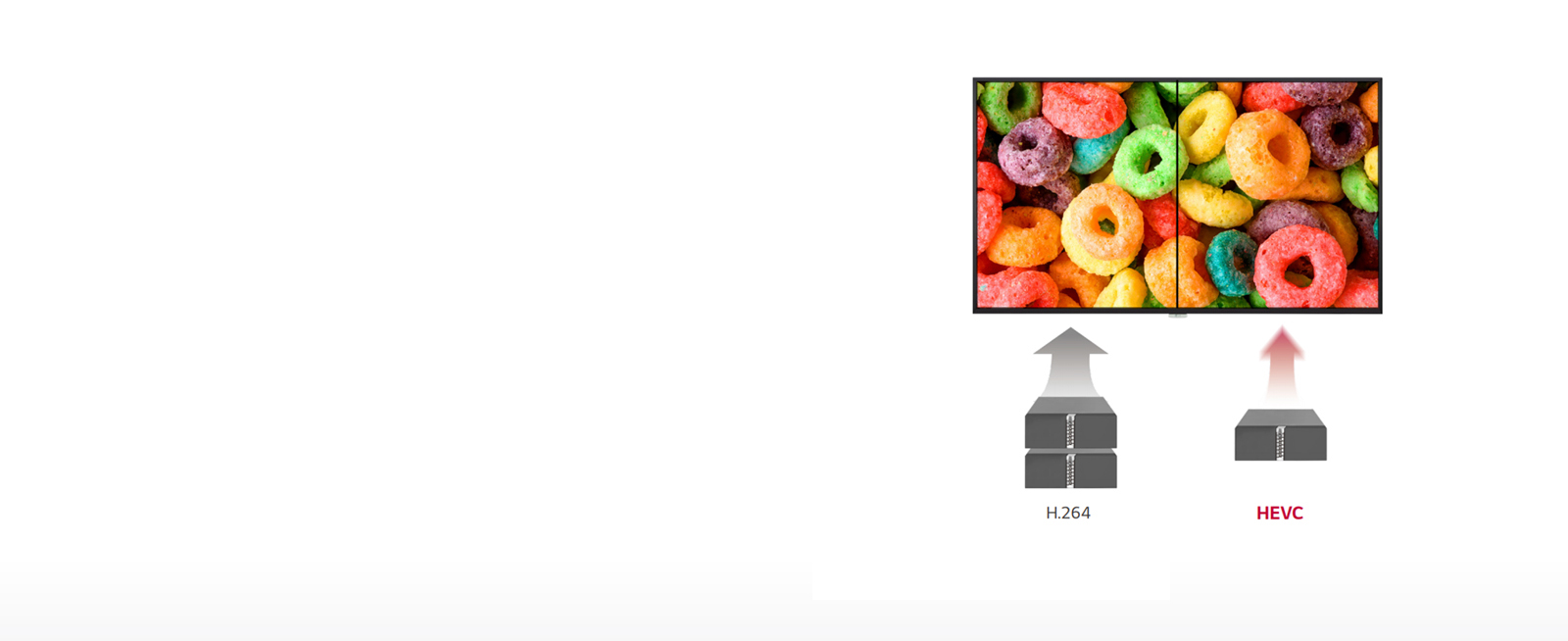

High Efficiency Video Coding

The UH5F/E series supports HEVC* which efficiently compresses/decompresses high-capacity UHD contents, playing ultra-high quality videos with half the network traffic than the existing H.264 codec.
*HEVC : High Efficiency Video Coding

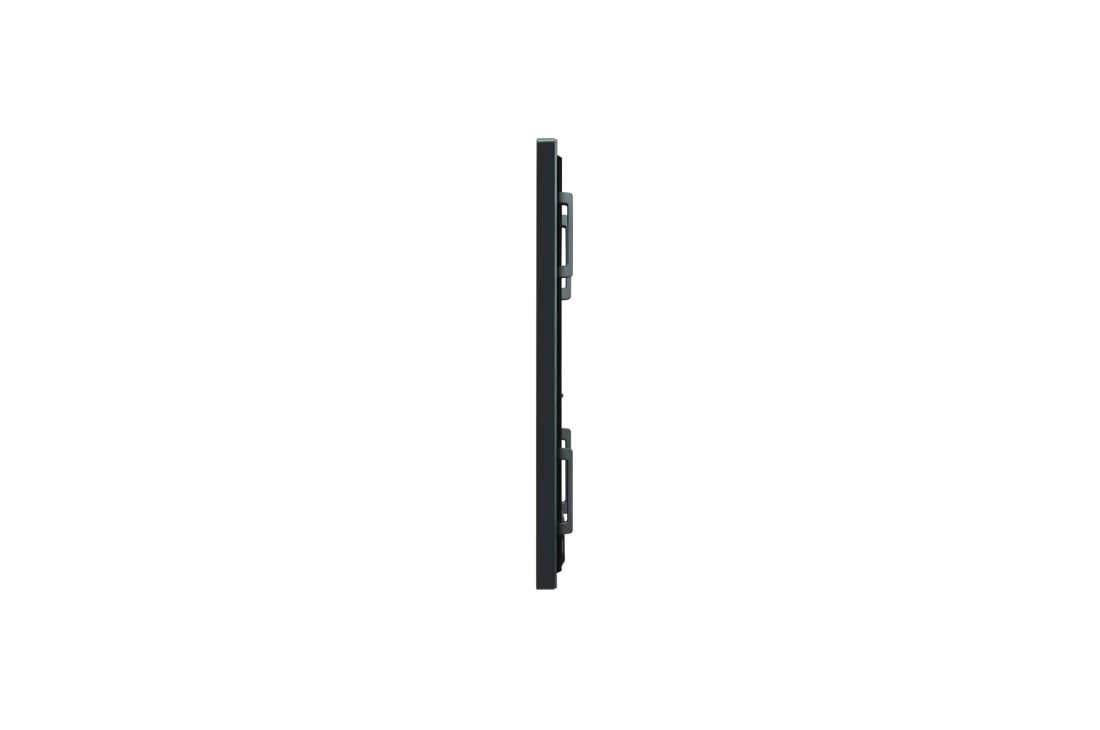

Slim Depth and Detachable Logo1 Slim Depth and Detachable Logo2
SLEEK AND PRACTICAL DESIGN

Slim Depth and Detachable Logo

Although UH5F/E series is a large-sized display, the product still has a slim depth which allows easy installation by using less space. Also, the detachable logos give users flexibility to arrange the display.
Built-in Speakers1 Built-in Speakers2
SLEEK AND PRACTICAL DESIGN

Built-in Speakers

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.
High-Performance with webOS1 High-Performance with webOS2
webOS SMART SIGNAGE PLATFORM

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.

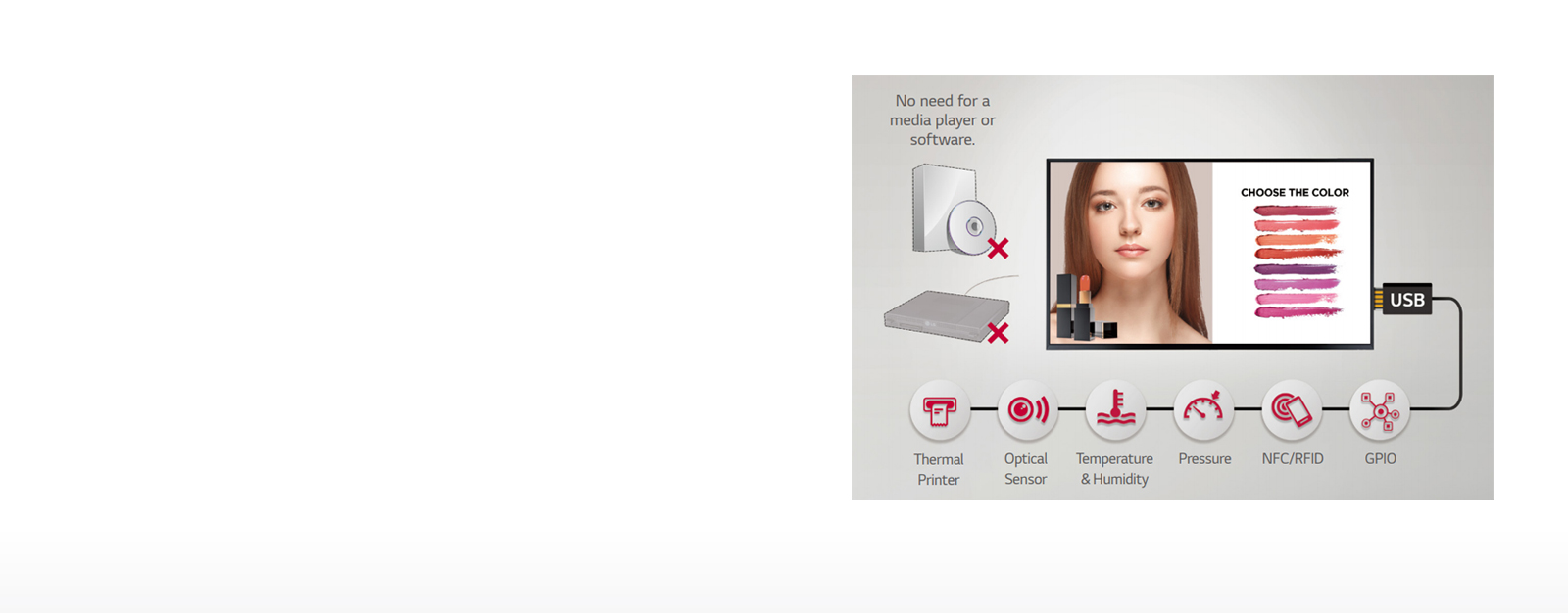

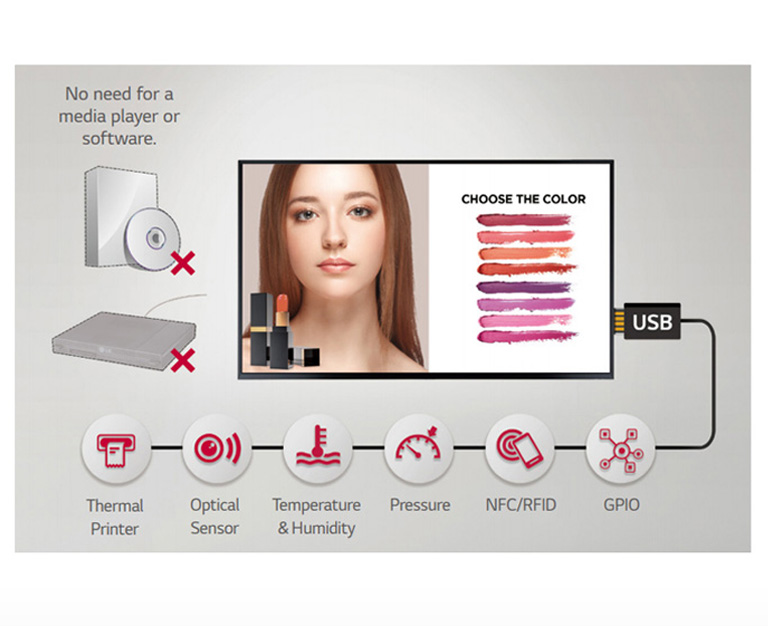

Various Sensor Applications1 Various Sensor Applications2
webOS SMART SIGNAGE PLATFORM

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

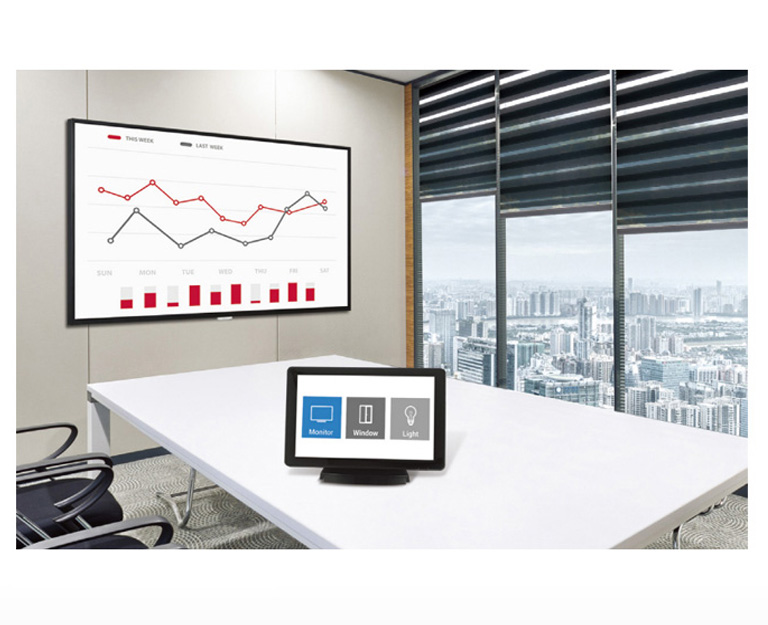

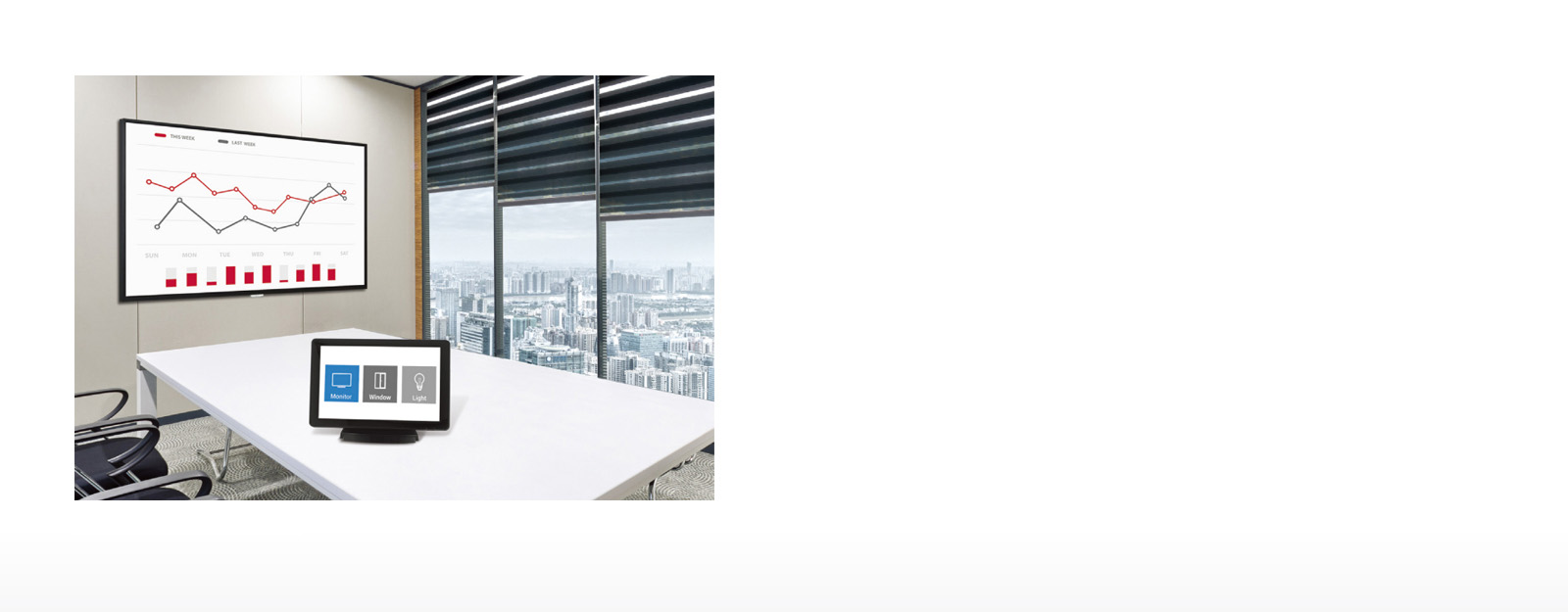

Compatible with AV Control System1 Compatible with AV Control System2
MEETING ROOM SOLUTION COMPATIBILITY

Compatible with AV Control System

The UH5F/E series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
* Network based control
Compatible with Video Conference System1 Compatible with Video Conference System2
MEETING ROOM SOLUTION COMPATIBILITY

Compatible with Video Conference System

For the optimum visual meeting, the UH5F/E series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.
* Using an HDMI cable connection
Multi Screen with PBP/PIP1 Multi Screen with PBP/PIP2
USER CONVENIENCE

Multi Screen with PBP/PIP

PBP(Picture-By-Picture) features multi screen in a single display with upto 4 input sources while PIP (Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content souce.
Real-Time Monitoring & Control1 Real-Time Monitoring & Control2
USER CONVENIENCE

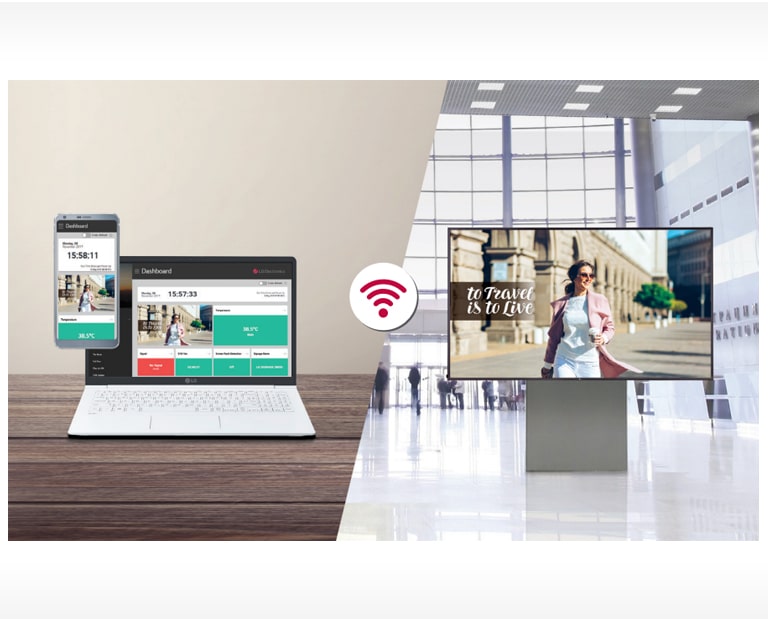

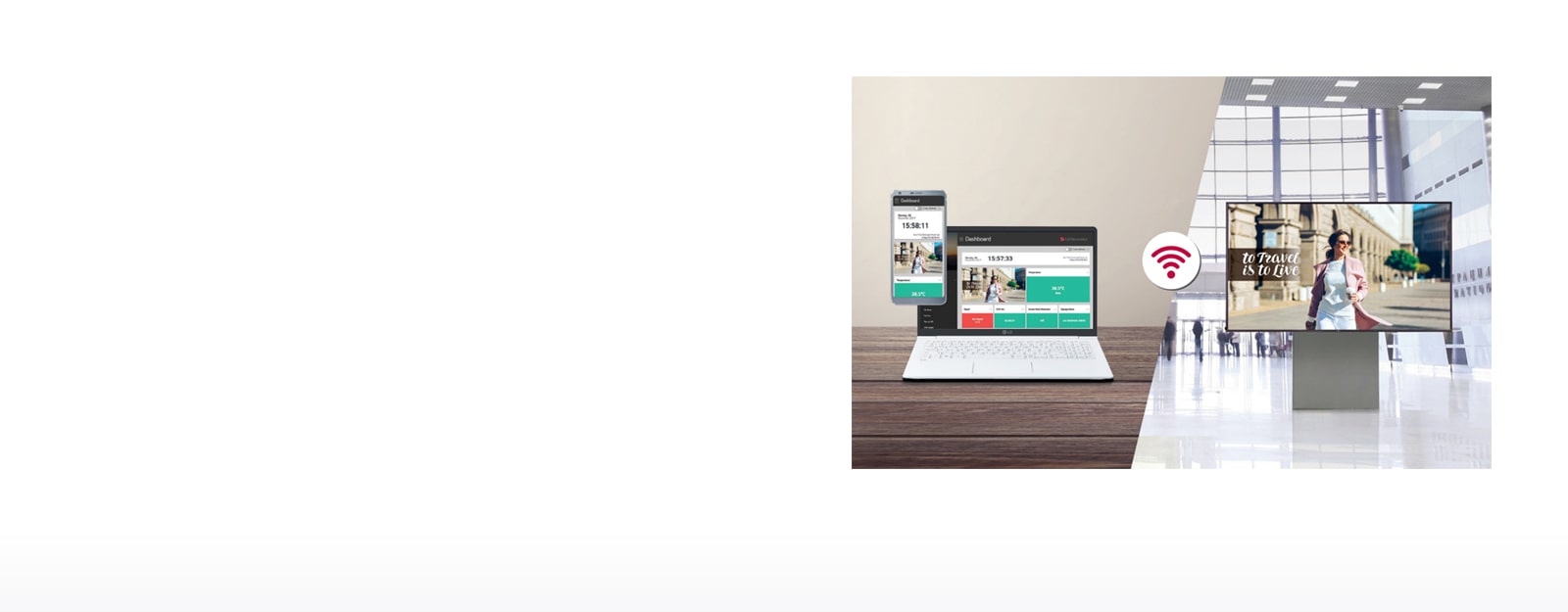

Real-Time Monitoring & Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple UH5F/E series displays in different locations in real-time. It is available on internetconnected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

USER CONVENIENCE

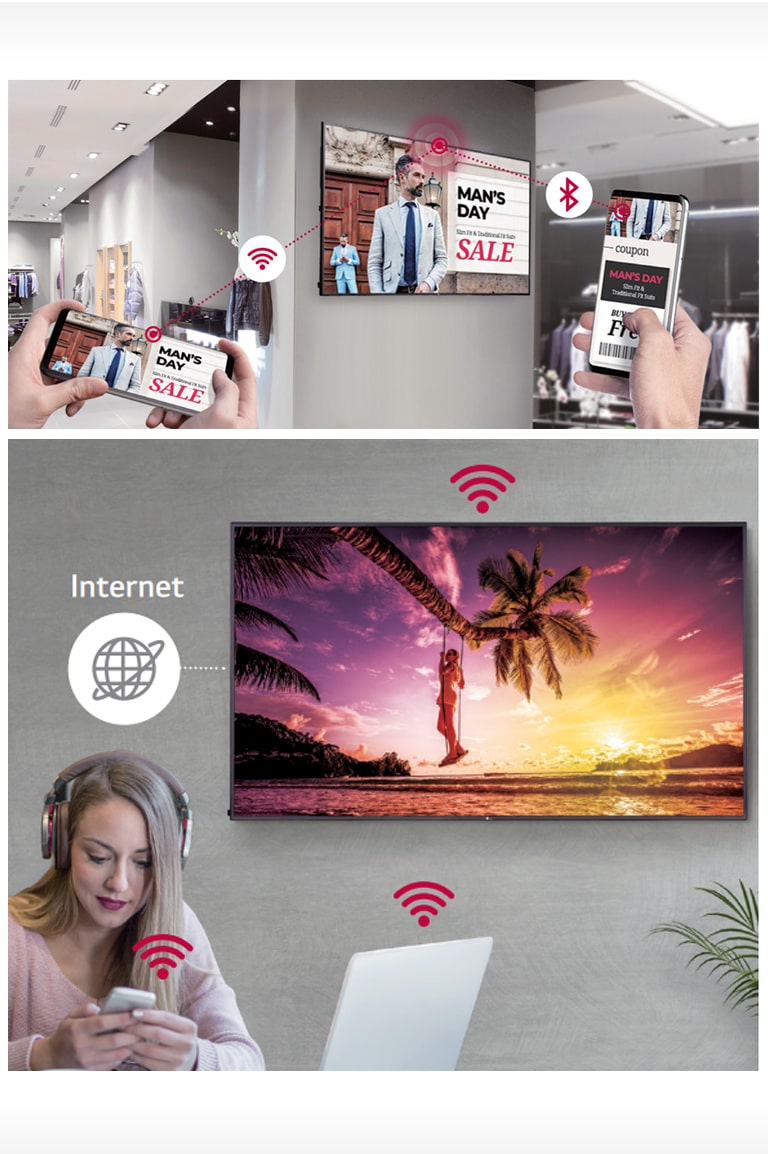

USER CONVENIENCE1 USER CONVENIENCE2

  • Content Sharing

    Content Mirroring among devices is more convenient on a Wi-Fi network.

  • Real-time Promotion

    With Beacon and BLE(Bluetooth Low Energy), shop managers can provide coupons and information in real-time.

  • Wireless Access Point

    The UH5F/E series operates as a virtual router which can be an wireless access point for mobile devices.

Close
ACCESSORY
  • Basic
    Remote Controller, Power Cord, QSG, IR/Light Sensor Receiver, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender, EYE-BOLT
    Optional
    No
CERTIFICATION
  • EMC
    FCC Class "A" / CE / KC
    ErP / Energy Star
    Yes (EU Only) / N/A
  • Safety
    CB / NRTL
CONNECTIVITY
  • External Control
    RS232C In/out (4 Pin Phone-Jack), RJ45 (LAN) In, IR In
    Input
    HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)
  • Output
    DP, Audio (Off/Fixed/Variable)
ENVIRONMENT CONDITIONS
  • Operation Humidity
    10 % to 80 %
    Operation Temperature
    0 °C to 40 °C
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    14.9 mm (Even) * Off-Bezel
  • Carton Dimensions (W × H × D)
    2,354 x 1,386 x 420 mm
    Handle
    Yes
  • Monitor Dimension (W × H × D)
    2,191.8 x 1,246.8 x 83.8 mm (without Handle and Logo)
    Packed Weight
    119 kg
  • VESA™ Standard Mount Interface
    800 x 400 mm
    Weight (Head)
    81.1 kg
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    No
PANEL
  • Brightness(Typ.,cd/m²)
    500
    Contrast Ratio
    1,300:1
  • Life Time (Typ.)
    50,000 Hrs
    Native Resolution
    3,840 x 2,160 (UHD)
  • Operation Hours
    24Hrs
    Orientation
    Portrait & Landscape
  • Panel Technology
    IPS
    Refresh Rate
    120 Hz
  • Response Time
    8ms (G to G)
    Screen Size
    98"
  • Surface Treatment (Haze)
    Haze 1%
    Viewing Angle (H x V)
    178 x 178
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Smart Energy Saving
    294 W
    Typ. / Max.
    420 W / 560 W
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/ Control+
