Pixel Configuration
3 in 1
Pixel Pitch (mm)
2.500
Module Resolution (W x H)
120 × 135
Module Dimensions (W x H, mm)
300 × 337.5
Weight per Module (kg)
0.64 (-RK,-CK)/ 1.40 (-CKF)
No. of Modules per Cabinet (W × H)
2x2 (-RK)/ 1x2 (-CK,-CKF)
Cabinet Resolution (W × H)
240x135 (-RK)/ 120x135 (-CK, -CKF)

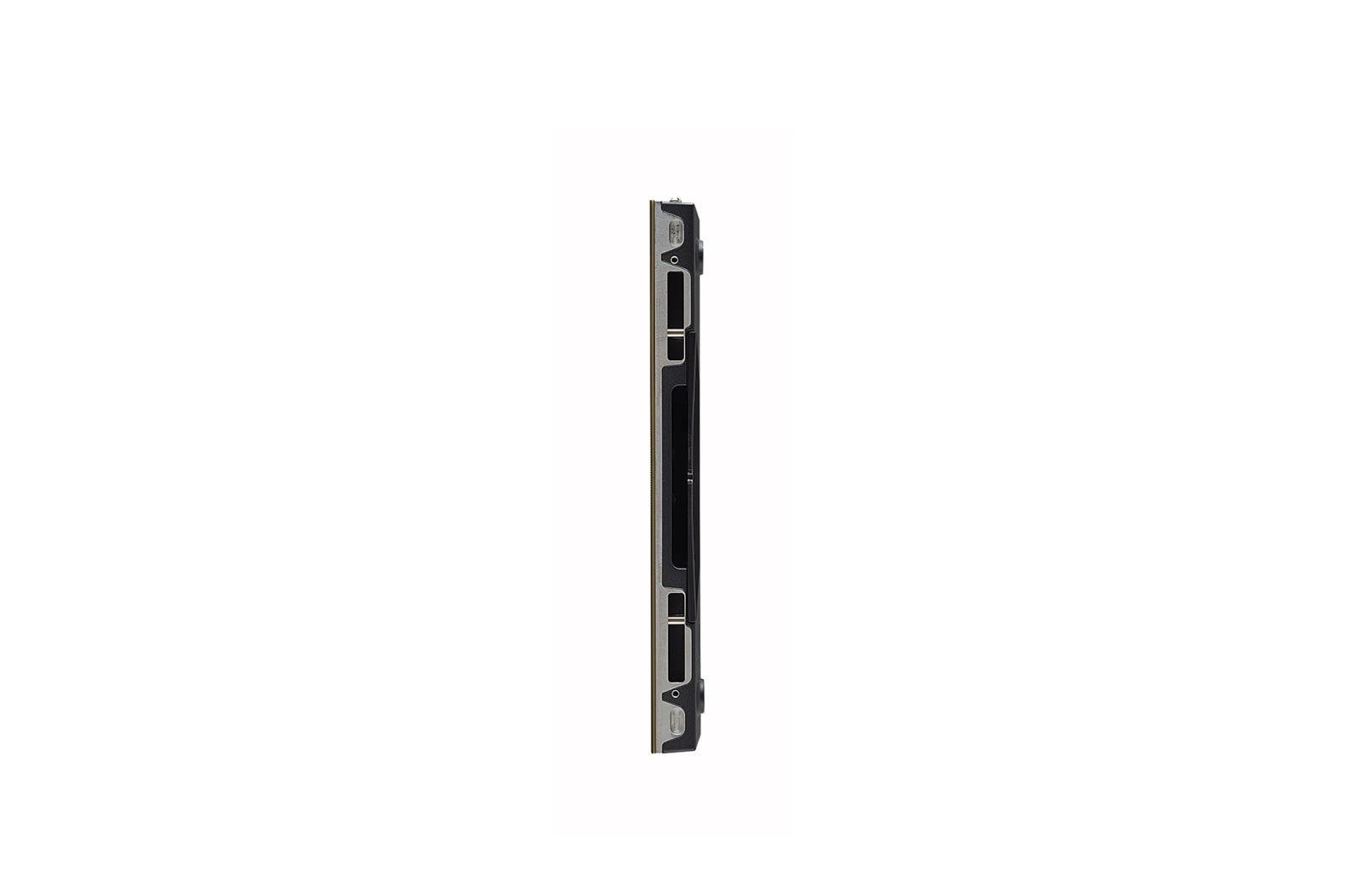

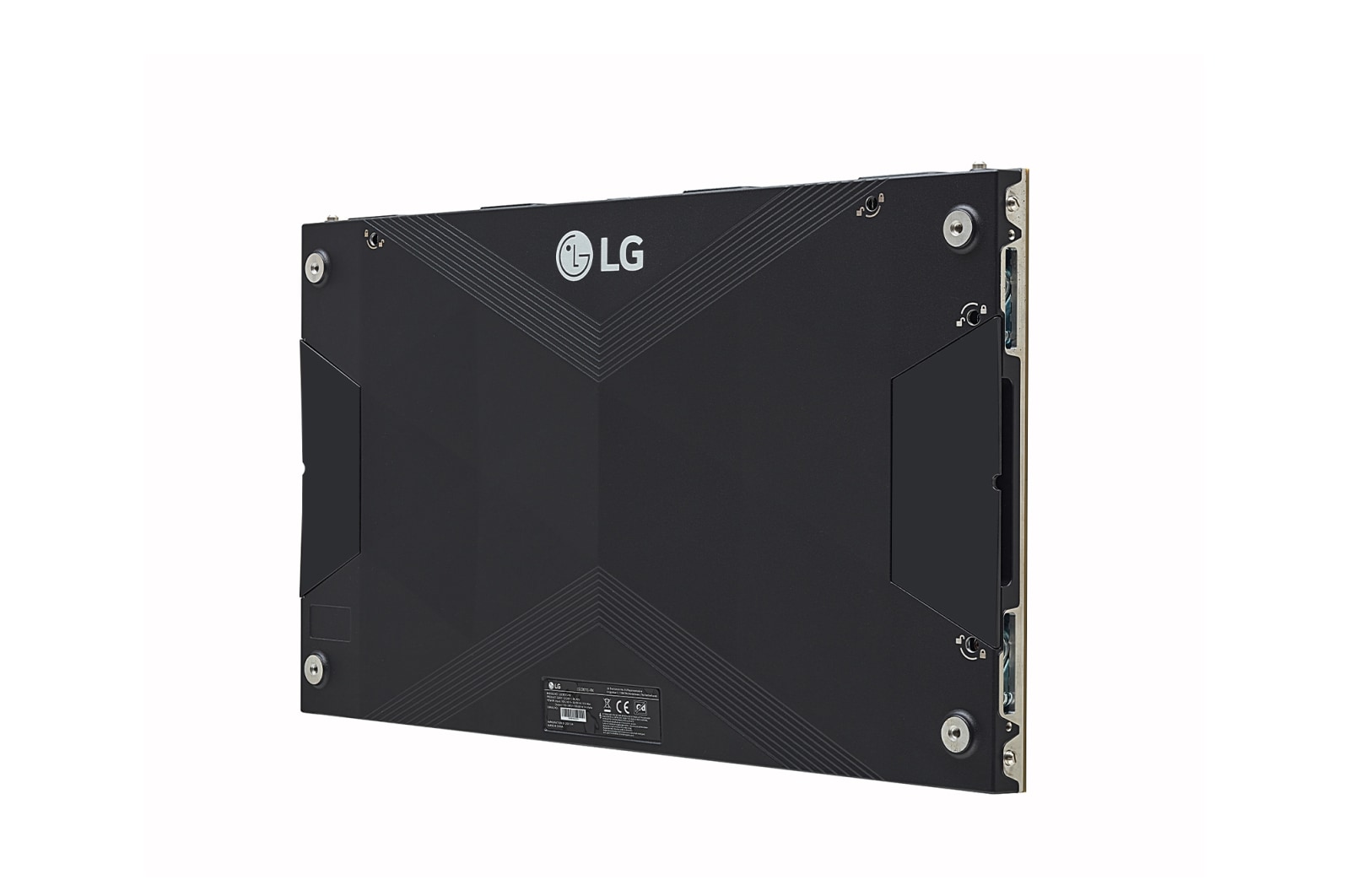

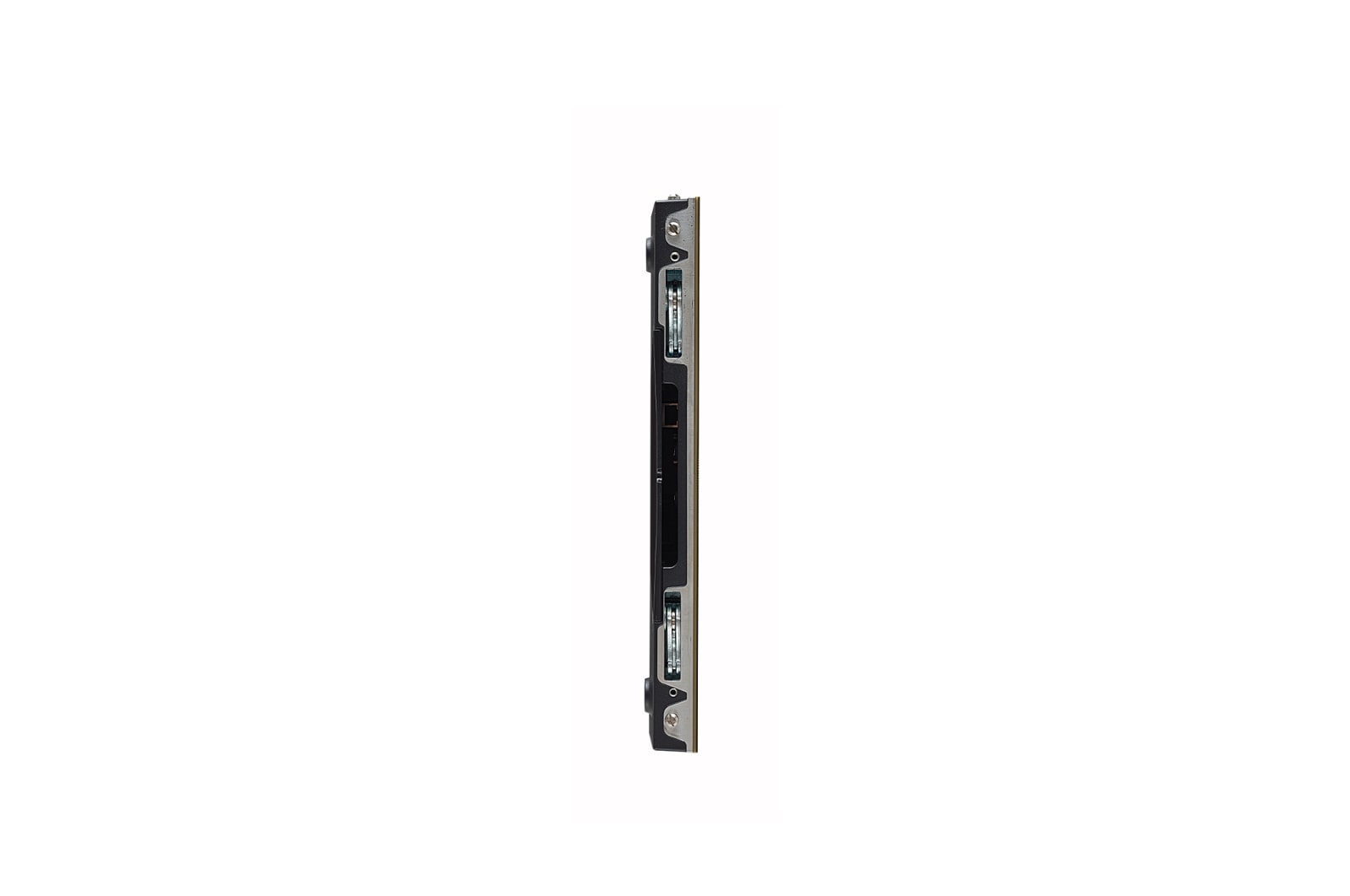

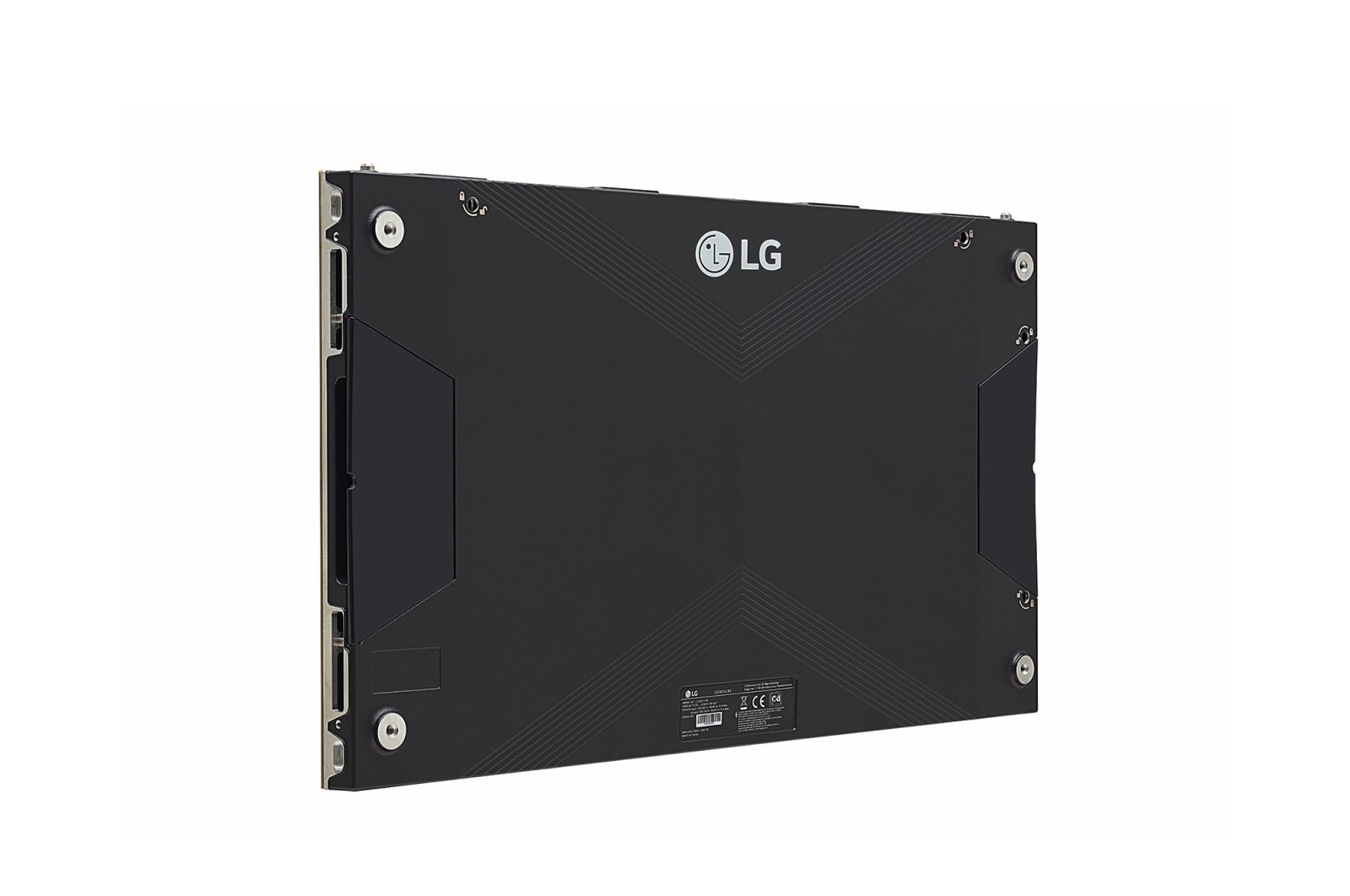

Cabinet Dimensions (W × H × D)
600x337.5x34 (-RK)/
300x337.5x29.7 (-CK)/
300x337.5x35.6 (-CKF, Cabinet Mounting Depth)
Cabinet Surface Area (m²)
0.203 (-RK)/ 0.101 (-CK, -CKF)
Weight per Cabinet (kg/unit)
5.3 (-RK)/ 4.0 (-CK)/
3.1 (-CKF, Weight Changes for Different Curves)
Weight per Square Meter (kg/m²)
26.2 (-RK)/ 39.0 (-CK)/ 30.6 (-CKF)
Physical Pixel Density (pixels/m²)
160,000
Flatness of Cabinet
± 0.1 mm
Cabinet Material
Die Casting Aluminum Alloy (-RK)/
Aluminum Machine (-CK, CKF)
Service Access
Front
Max Brightness (After Calibration)
800
Color Temperature
3,200-9,300 (K)
Visual Viewing Angle (H×V)
160 × 160
Brightness Uniformity
97%
Color Uniformity
± 0.003 Cx,Cy
Contrast Ratio
5,000 : 1
Processing Depth (bit)
14 (HDR10, HDR10 Pro)
Lifetime (Hours to Half Brightness)
100,000
Operating Temperature (°C)
-10° to +45°
Operating Humidity
0 - 80 % RH
IP rating Front / Rear
IP30 / IP30
Input Interface
HDMI / DP / OPS / USB
Input Resolution
3,840 x 2,160 @60Hz
Output Signal
Gigabit Ethernet (16 ea)
Output Fiber Optical
No
Control RJ45
Yes
Control USB
No
Electrical Power Consumption (W)
50
Electrical Power Supply (V)
AC 100-240 V
Mechanical Size (mm)
443 (W) × 307.5 (D) × 63 (H) → EIA Standard Rack
(2U)
Mechanical Weight (kg)
4.9
Feature Signal Redundancy
Yes
Feature HDR10
Yes
Input Interface
HDMI / DVI
Input Resolution
1,920 x 1,200 @60Hz
Output Signal
Gigabit Ethernet (4 ea)
Output Fiber Optical
No
Control RJ45
No
Control USB
Yes
Electrical Power Consumption (W)
16
Electrical Power Supply (V)
AC 100-240 V
Mechanical Size (mm)
482.6 (W) × 250 (D) × 44.45 (H) → EIA Standard
Rack (1U)
Mechanical Weight (kg)
2.9
Feature Signal Redundancy
Yes
Feature HDR10
No
Input Interface
HDMI / DVI / DP
Input Resolution
3,840 x 2,160 @60Hz
Output Signal
Gigabit Ethernet (16 ea)
Output Fiber Optical
4 ea
Control RJ45
Yes
Control USB
Yes
Electrical Power Consumption (W)
30
Electrical Power Supply (V)
AC 100-240 V
Mechanical Size (mm)
482.6 (W) × 250 (D) × 96 (H) → EIA Standard Rack
(3U)
Mechanical Weight (kg)
4.6
Feature Signal Redundancy
Yes
Feature HDR10
Yes
