49VL5F Series

Specs

Support

Resource

49VL5F Series

Share this content.

You can share the items you like with your friends

49VL5F Series

49VL5F-A
()
  • Front view of 49VL5F Series 49VL5F-A
  • LG 49VL5F Series, 49VL5F-A
  • LG 49VL5F Series, 49VL5F-A
  • LG 49VL5F Series, 49VL5F-A
  • LG 49VL5F Series, 49VL5F-A
  • LG 49VL5F Series, 49VL5F-A
  • LG 49VL5F Series, 49VL5F-A
  • LG 49VL5F Series, 49VL5F-A

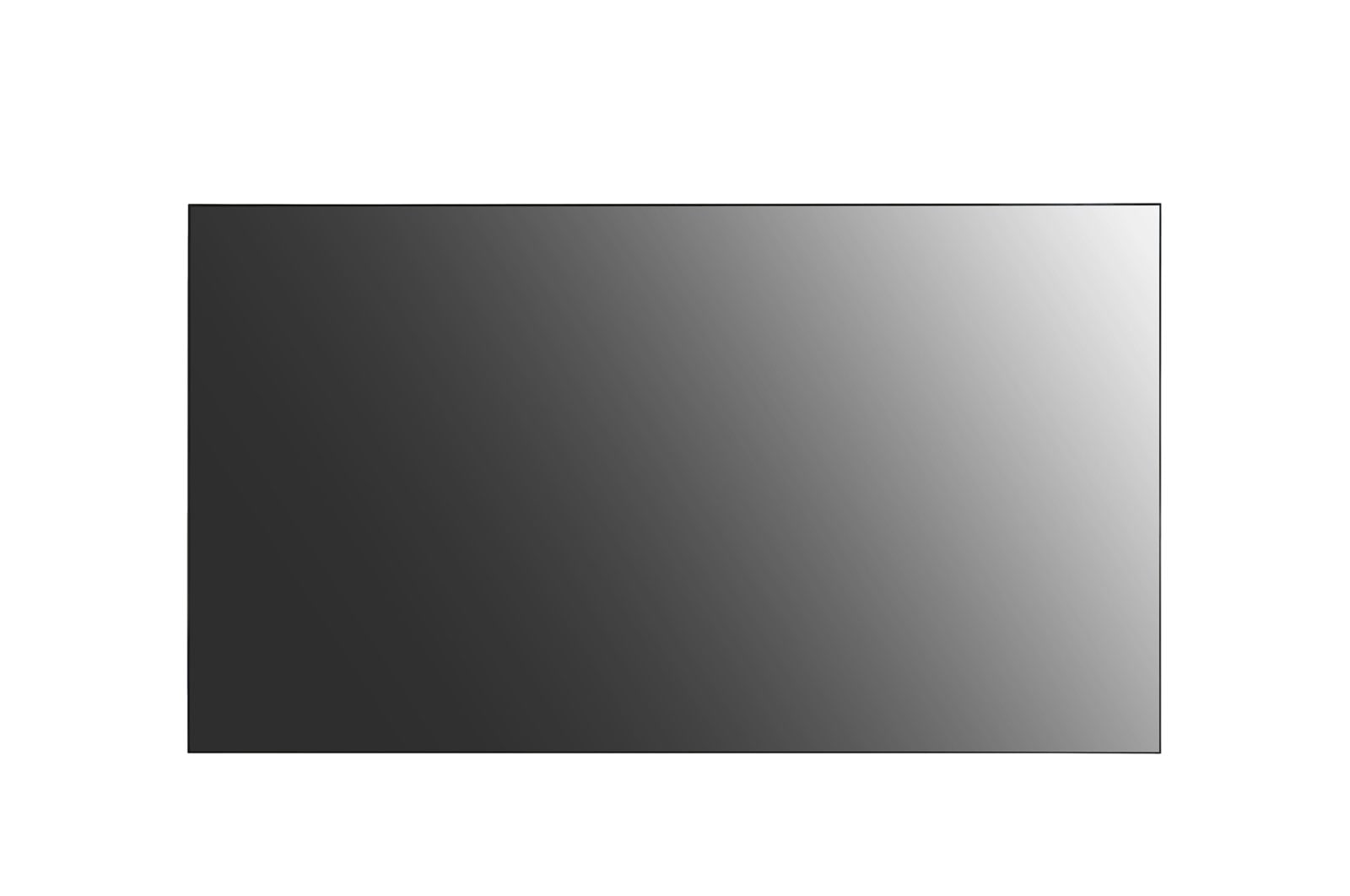

Front view of 49VL5F Series 49VL5F-A
LG 49VL5F Series, 49VL5F-A
LG 49VL5F Series, 49VL5F-A
LG 49VL5F Series, 49VL5F-A
LG 49VL5F Series, 49VL5F-A
LG 49VL5F Series, 49VL5F-A
LG 49VL5F Series, 49VL5F-A
LG 49VL5F Series, 49VL5F-A

Key Features

  • Bezel : 2.25 mm (T/L), 1.25 mm (B/R)
  • Narrow bezel for more immersive viewing
  • IPS with wide viewing angle
  • Simple white balance adjustment
More
Print

All Spec

PANEL

  • Screen Size

    49" (123cm)

  • Panel Technology

    IPS

  • Aspect Ratio

    16 : 9

  • Native Resolution

    1,920 x 1,080 (FHD)

  • Brightness (Typ.)

    450 cd/m2

  • Contrast Ratio

    1,300:1

  • Dynamic CR

    500,000:1

  • Viewing Angle (H x V)

    178 x 178

  • Colour Depth

    1.07 Billion

  • Response Time

    8ms (G to G)

  • Surface Treatment

    Haze 3%

  • Life Time (Typ.)

    50,000 Hrs

  • Operation Hours

    24 Hrs

  • Orientation

    Landscape & Portrait

CONNECTIVITY

  • Input

    HDMI, DP, DVI-D, RGB, Audio, USB 2.0

  • Output

    DP, Audio

  • External Control

    RS232C In/out, RJ45 (LAN) In, IR In

MECHANICAL SPECIFICATION

  • Bezel Colour

    Black

  • Bezel Width

    2.25 mm (T/L), 1.25 mm (B/R)

  • Monitor Dimension (W x H x D)

    1,077.6 x 607.8 x 89.7 mm

  • Weight (Head)

    17.8 kg

  • Carton Dimensions (W x H x D)

    1,214 x 778 x 263 mm

  • Packed Weight

    22.8 kg

  • Handle

    Yes

  • VESA™ Standard Mount Interface

    600 x 400 mm

KEY FEATURE

  • Key Feature

    Temperature Sensor, Tile Mode (Up to 15x15), Natural Mode@Tile Mode, ISM Method, DPM Select, Smart Energy Saving, USB Cloning, Easy Brightness Control, Contents Scheduling (USB), Calibration Mode, Sync Mode, PM Mode, HDMI-CEC1) , Wake on LAN, OSD Portrait Mode, Fail Over, No Signal Image, OPS Power Control, Scan Inversion (with Pivot Mode)

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10% to 80%

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Type

    Built-in Power

  • Power Consumption -Typ.

    90W

  • Power Consumption - Max.

    110W

  • Power Consumption - Smart Energy Saving

    55W

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    AS/NZS CISPR32, RCM (Class A)

  • ErP / Energy Star

    Yes(EU Only) / Yes (Energy Star 8.0, US Only)

MEDIA PLAYER COMPATIBILITY

  • OPS type compatible

    No

SOFTWARE COMPATIBILITY

  • Content Management Software

    SuperSign CMS

  • Control and Monitoring Software

    SuperSign Control/Control+

ACCESSORY

  • Basic

    Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual

  • Optional Accessories

    Wall mount (Landscape: WM-L640V, Portrait: WM-P640V)

To access more technical documentation and resources, please visit the LG B2B partner portal.
