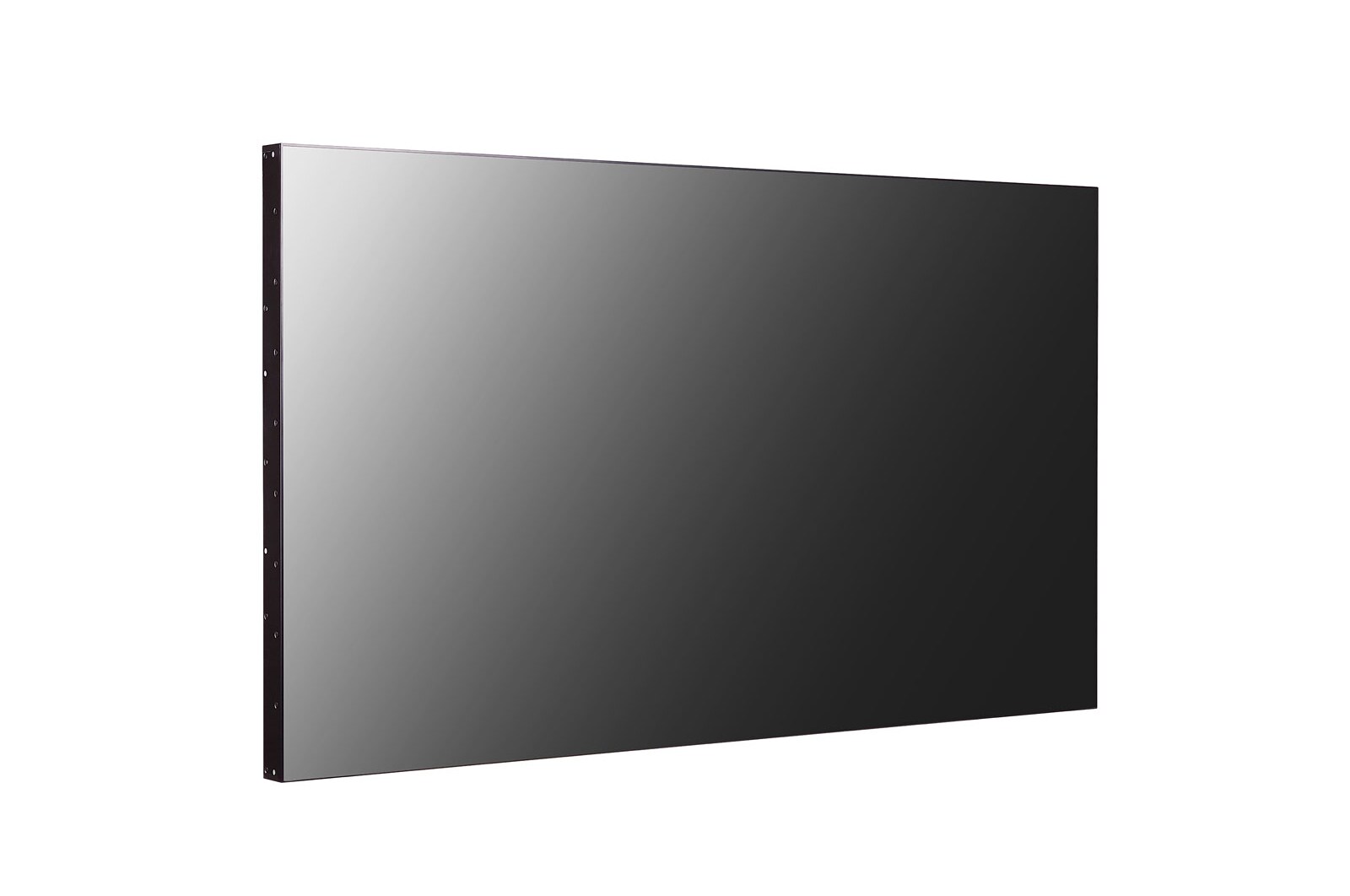

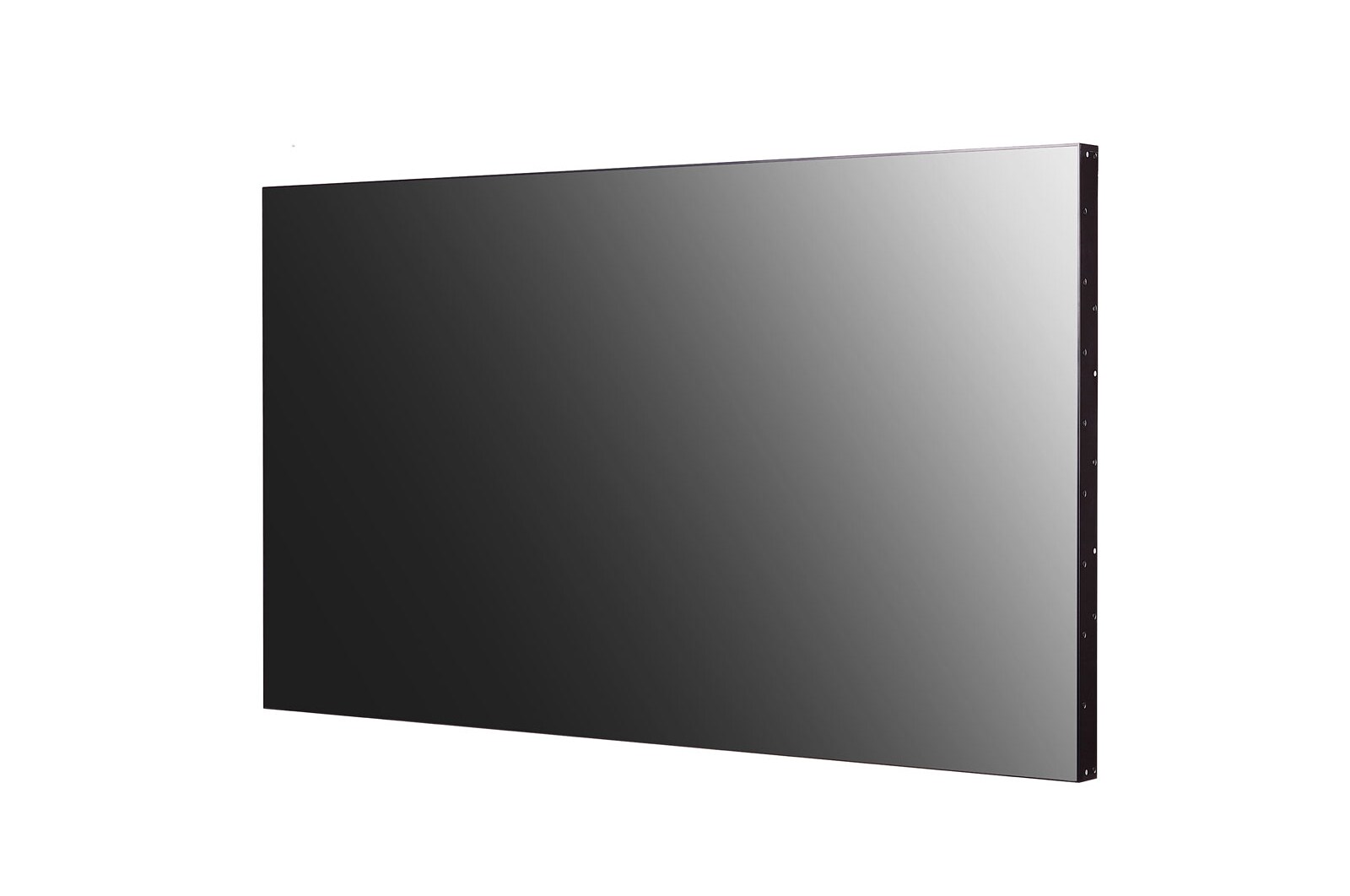

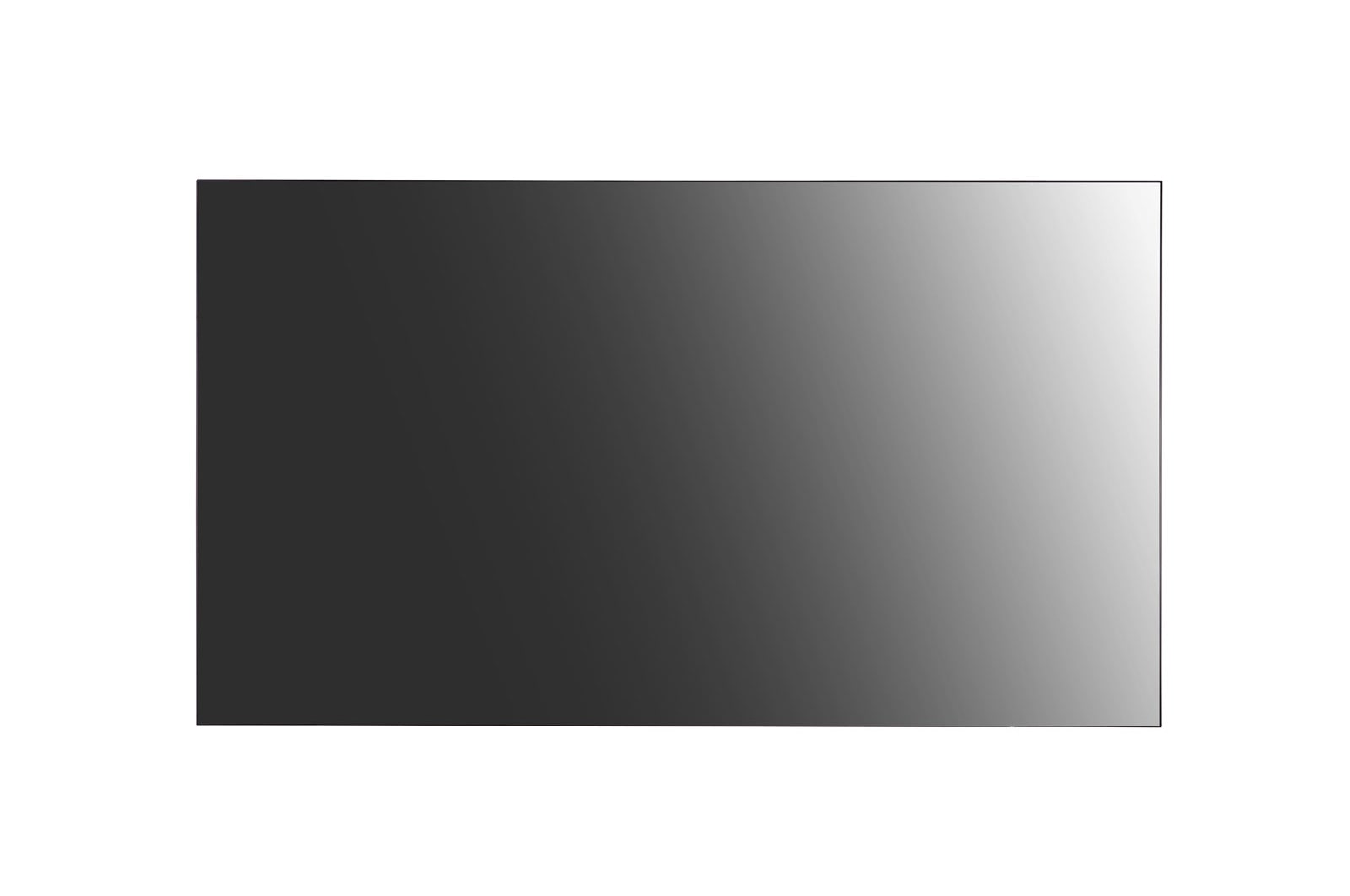

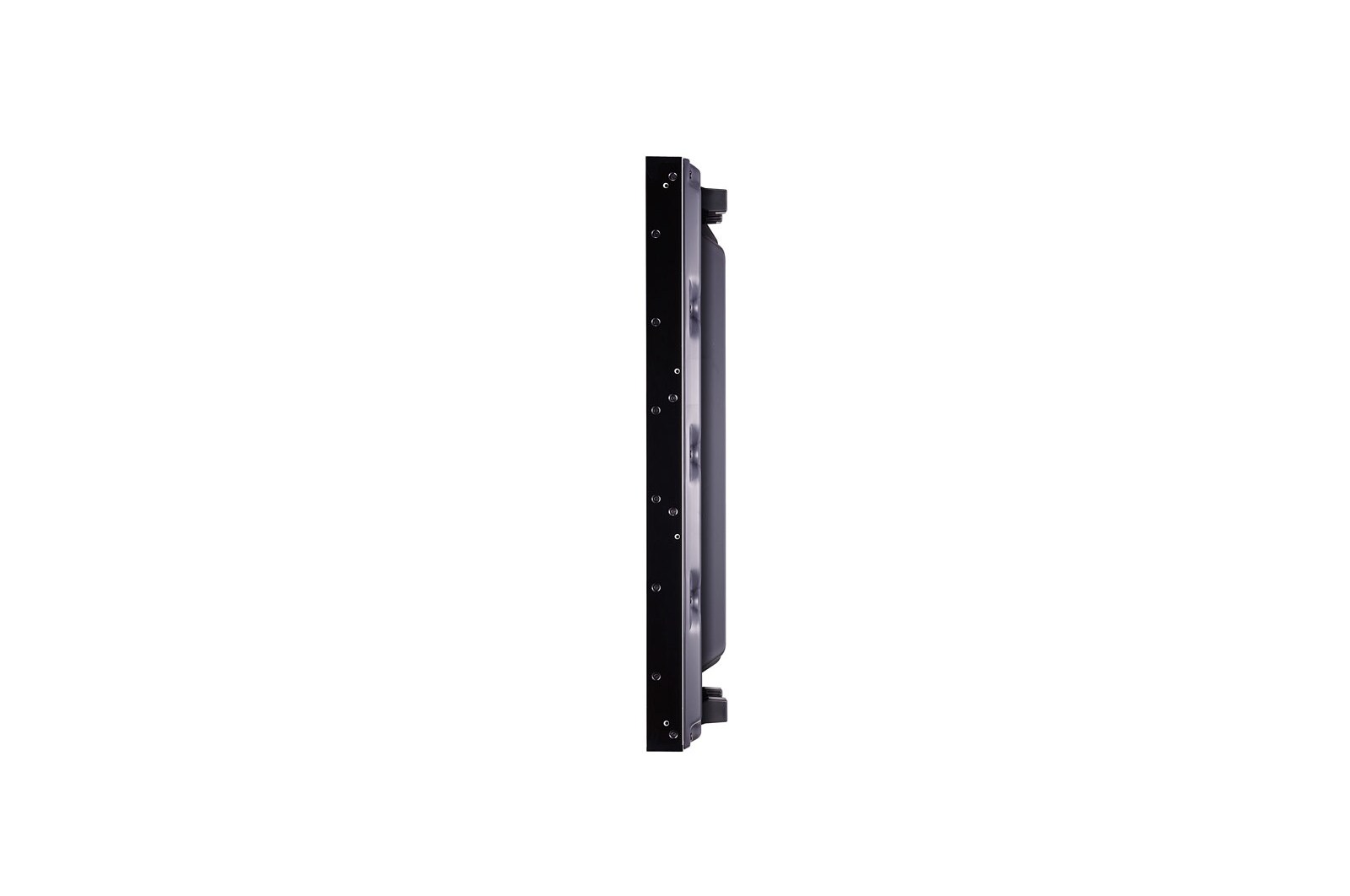

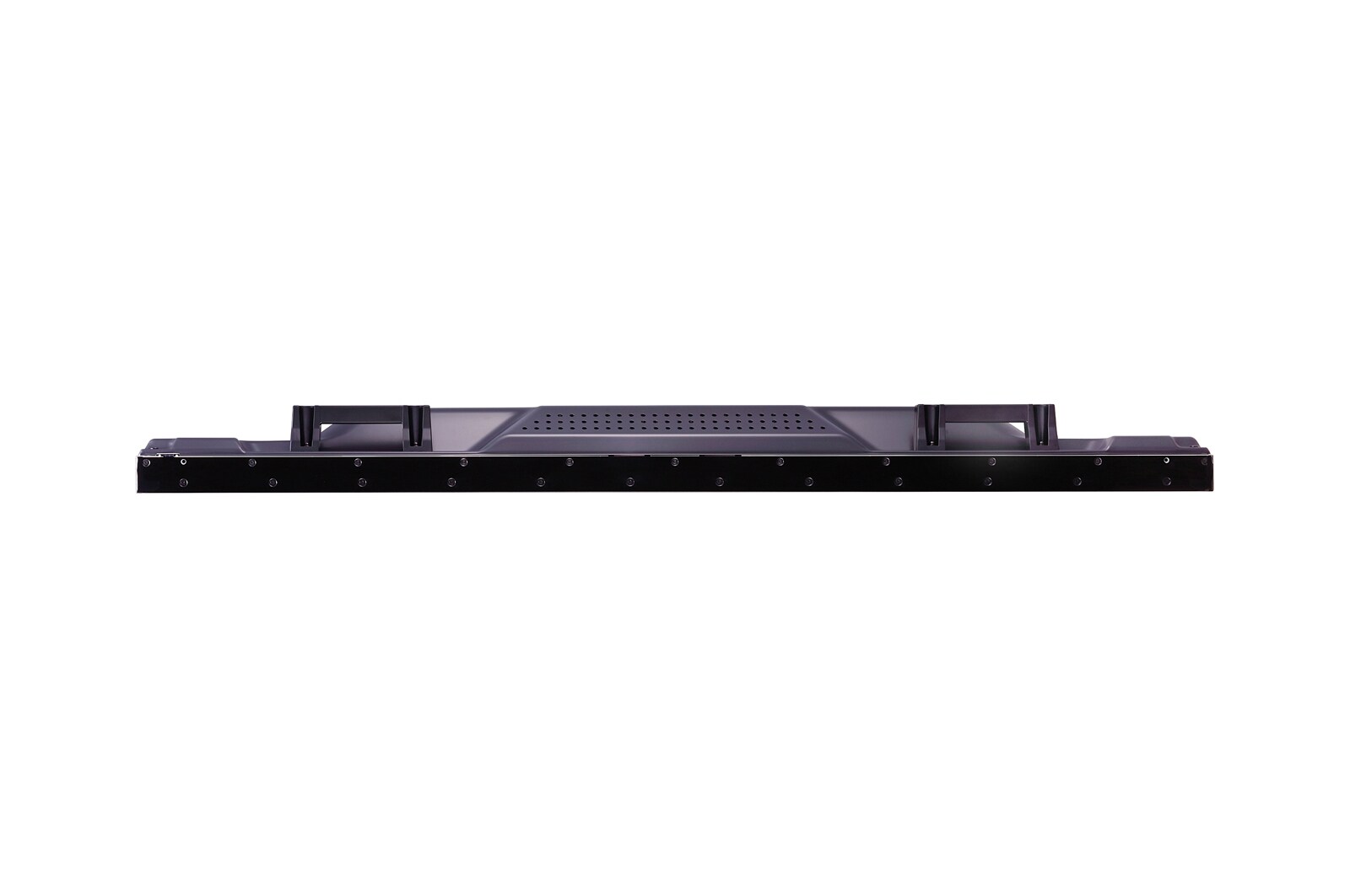

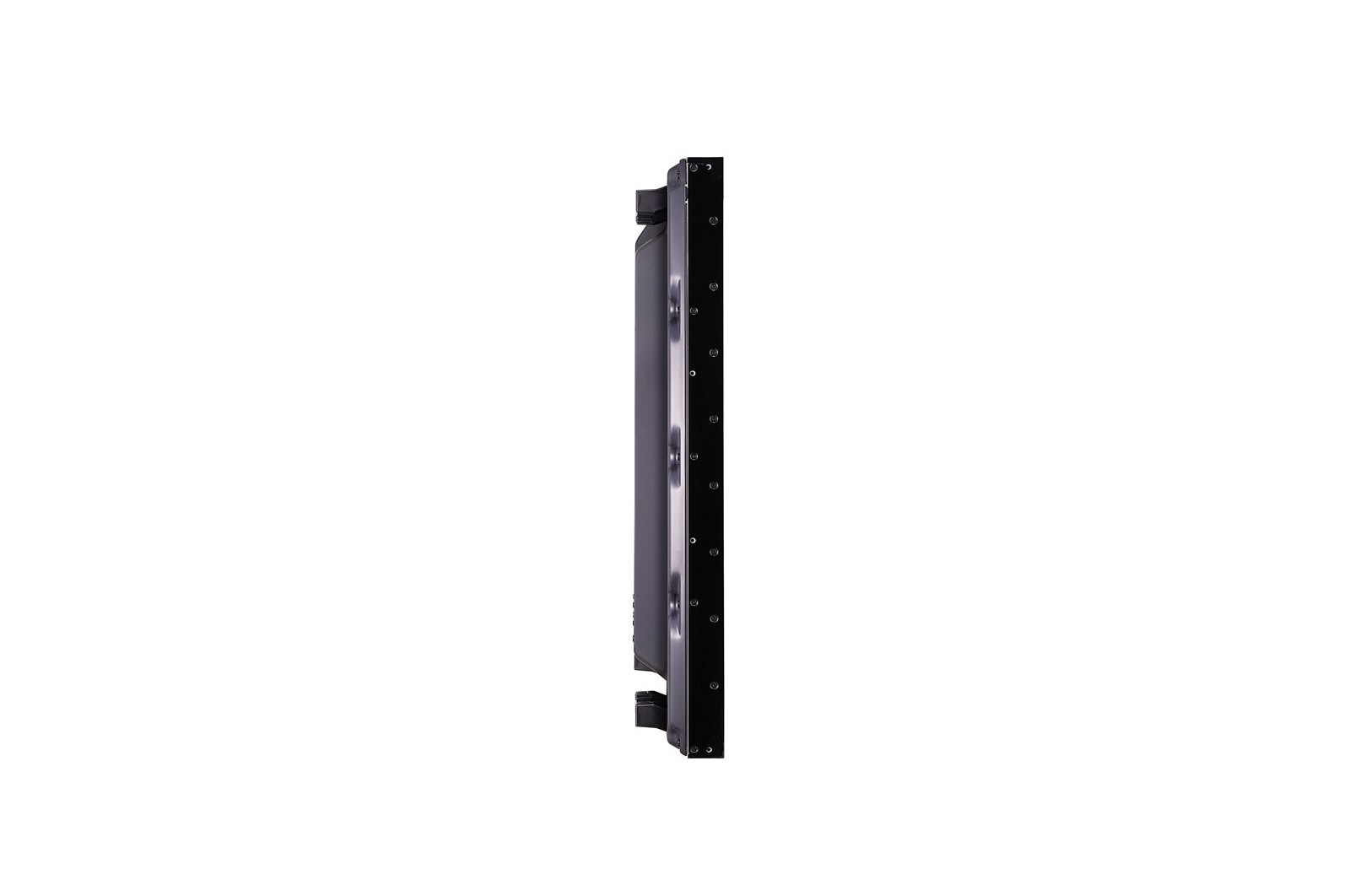

VL7D Series
All Spec
PANEL
-
Screen Size
49"
-
Aspect Ratio
16:9
-
Native Resolution
1,920 × 1,080 (FHD)
-
Brightness
700 cd/m2
-
Viewing Angle (H x V)
178 × 178
-
Surface Treatment
Hard Coating (3H), Anti-glare Treatment of the Front Polariser (Haze 3%)
-
Life Time
50,000 Hrs
-
Operation Hours
24 Hrs
-
Orientation
Landscape & Portrait
CONNECTIVITY
-
Input
HDMI, DVI-D, RGB, USB
-
Output
DVI-D
-
External Control
RS232C In/out, RJ45 In, IR Reveiver In
PHYSICAL SPECIFICATION
-
Bezel Colour
Black
-
Bezel Width
2.3 mm (L/T) / 1.2 mm (R/B)
-
Monitor Dimension (W x H x D)
1,077.6 x 607.8 x 89.7 mm
-
Weight (Head)
17.8 kg
-
Carton Dimensions (W x H x D)
1,214 x 778 x 263 mm
-
Packed Weight
22.8 kg
-
Handle
Yes
-
VESA™ Standard Mount Interface
600 x 400 mm
SPECIAL FEATURES
-
Special Features
Temperature sensor, Tile mode (up to 15x15), Natural mode @Tile mode, ISM method, DPM select, Energy saving, Smart energy saving, File play with USB
ENVIRONMENT CONDITIONS
-
Operation Temperature Range
0°C to 40°C
-
Operation Humidity Range
10% to 80%
POWER
-
Power Supply
100-240V~, 50/60Hz
-
Power Type
Built-In Power
-
Power Consumption (Typ.)
130 W
-
Power Consumption (Smart Energy Saving)
50 W
STANDARD(CERTIFICATION)
-
Safety
AS/NZS 60950,CB Scheme
-
EMC
AS/NZS CISPR32,RCM(Class A)
-
ErP / Energy Star
Yes (EU Only) / Yes (Energy Star 8.0, US Only)
MEDIA PLAYER COMPATIBILITY
-
Slot PC Compatible (optional)
No
-
External Media Player Attachable
Yes
SOFTWARE COMPATIBILITY
-
Content Management Software
SuperSign CMS
-
Control and Monitoring Software
SuperSign Control/Control+
ACCESSORIES
-
Basic
Remote Controller, Power Cable, DVI Cable, Manual, IR Receiver, RS232C Cable, Guide Bracket, Screw
-
Optional
Wall mount (Landscape: WM-L640V, Portrait: WM-P640V)
-
