Absorption Chiller Hybrid Type

Absorption Chiller Hybrid Type uses heat instead of electricity. This highly efficient solution is best for areas with severe power shortages.

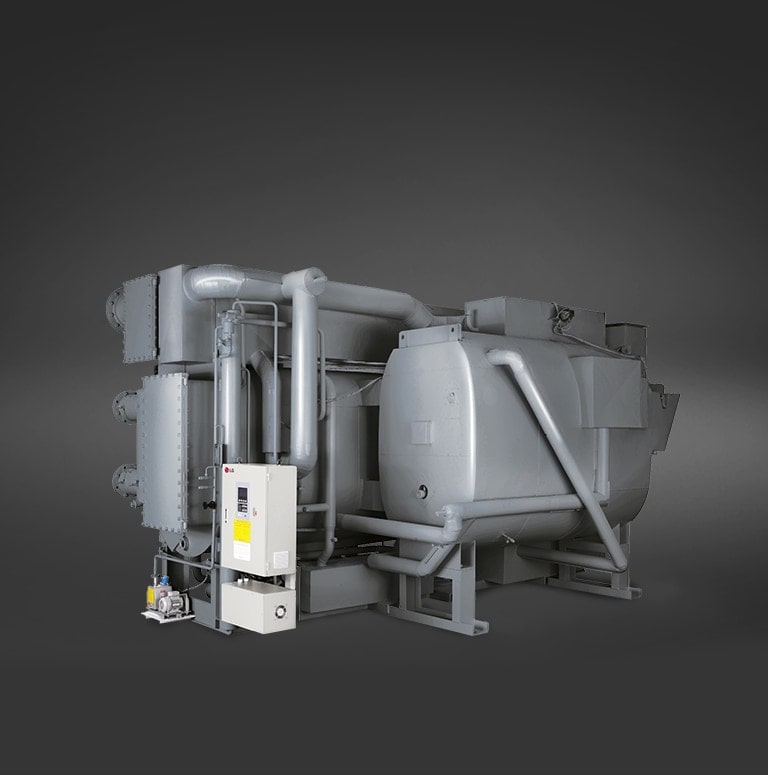

LG Absorption Chiller Hybrid Type, showcased in a dark grey hue, consists of a series of linear and cylindrical pipe assemblies.

Absorption Chiller Hybrid

Features

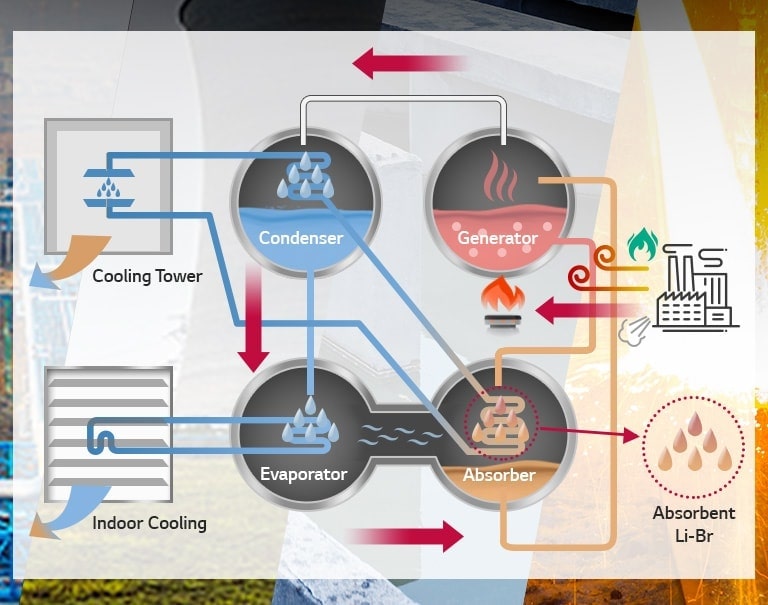

Flow diagram displays a Hybrid Absorption Chiller cycle with four components and a power plant outline with a hybrid on the right boiling generator.

Absorption Chiller Hybrid Type

Absorption Chiller Multi Heat Source Type uses heat instead of electricity, which is highly recommended for areas with electricity shortage. It is an economical and efficient product because it can use multiple heating heat sources according to installation environment and need.

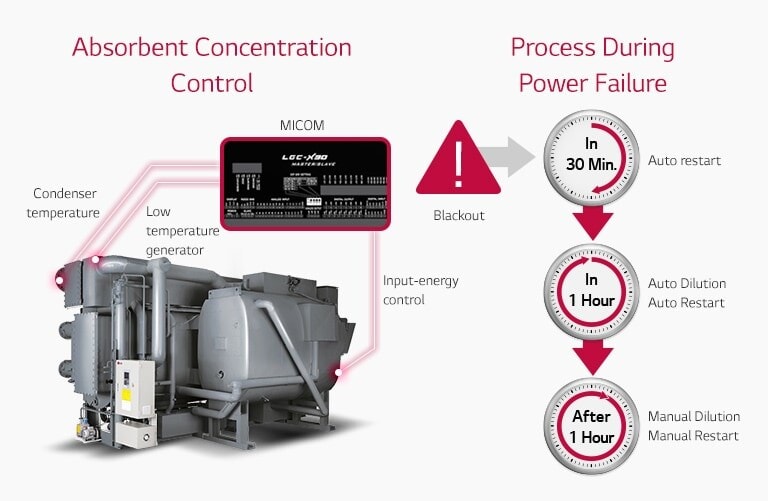

Three red lines show the connection between the LG Absorption Chiller and MICOM on the left. The right illustrates a power failure process.

Absorbent Concentration Control & Prevention of Power Failure

The absorption control concentration is calculated by the crystalization control protection logic built in the controller, and the prevention control is executed when the concentration rises above the set value. By controlling the absorption liquid concentration automatically, it prevents the pre-absorption of liquid crystals and calculates the time from the power failure to the completion of power recovery through the independent timer built in the product.

Superior Installation Convenience

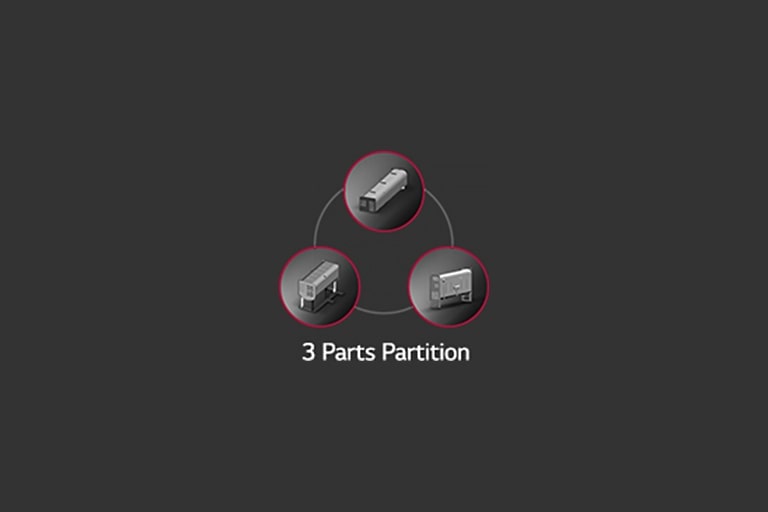

3 Parts Partition enables easy installation at narrow places such as remodeling & renovation sites.

Easy Pipe Cleaning

When cleaning the piping, only the water box cover can be opened without disconnecting the piping.

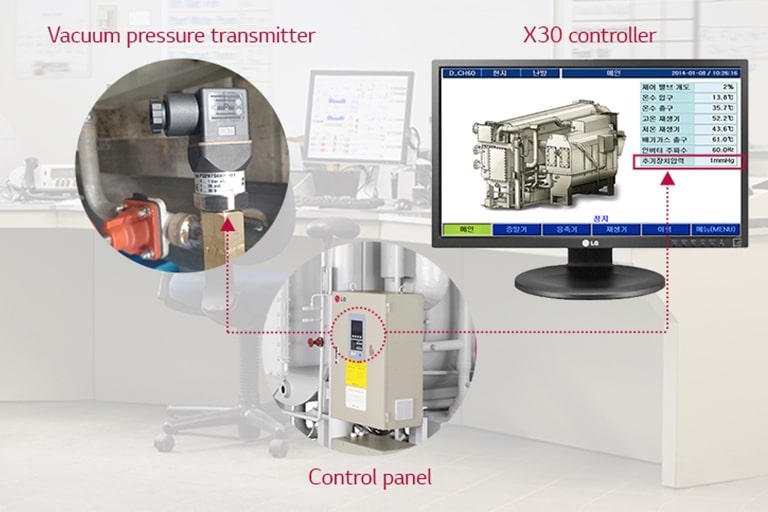

Digital Pressure Check

Digital pressure gauge is used to monitor the pressure inside the refrigerator in real time. The vacuum rate is automatically set and saved. The saved data can be used to accurately and quickly monitor and diagnose leakage.

Optimized Central Control

Control solutions such as ACP and AC Smart enable easy monitoring and allow remote control to manage various HVAC models at anywhere.

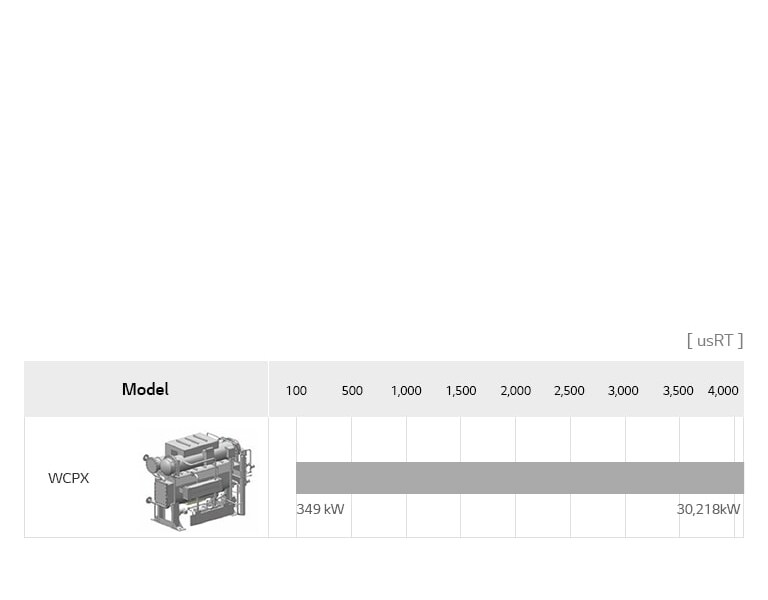

LG Absorption Chiller Multi Heat Source Type lineup chart includes WCPX, detailing model name, and usRT.

Absorption Chiller Multi Heat Source Type Line Up

A man in a suit holds a smartphone in his right hand, displaying the LG website.

Inquiry To Buy

Please inquiry to buy for more information on the product and we will get in touch with you soon.
