Air-cooled Screw Heat Pump

LG Air-Cooled Screw Heat Pump is a highly efficient and economical system that supplies hot water with the temperature up to 80℃ by using 70-80% of unused energy.

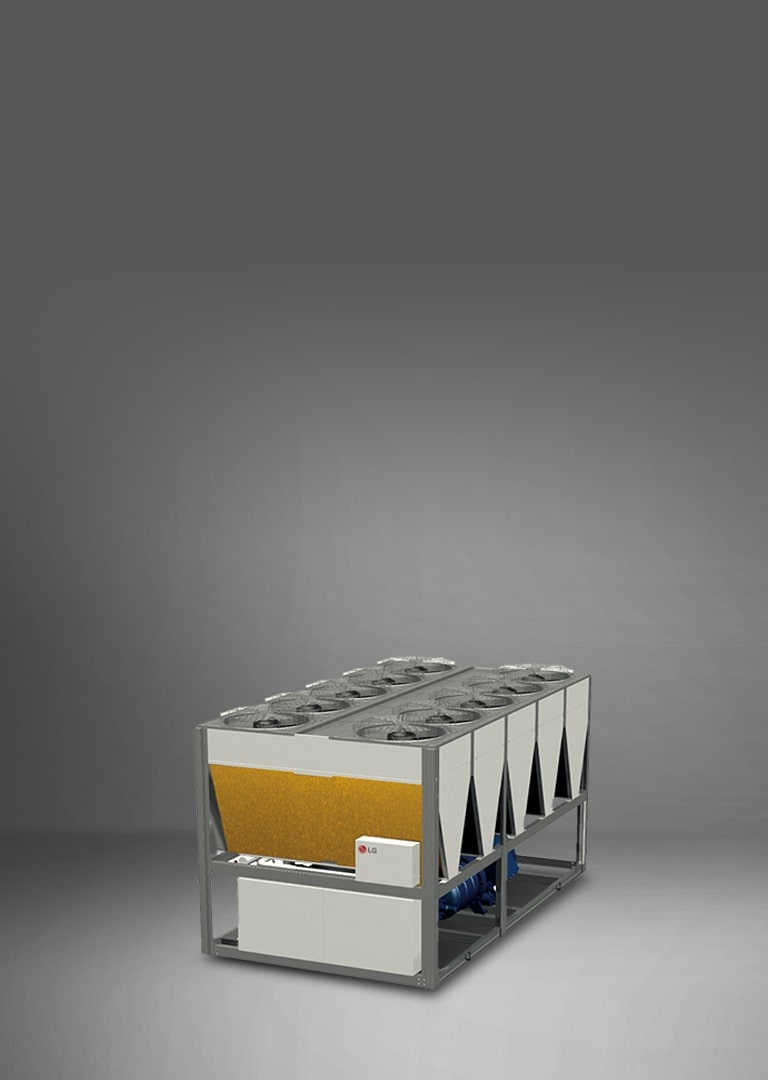

Displayed is an LG Air-cooled Screw Heat Pump in grey and white, with a rectangular fan and gold-coated, bare fin structure.

Air-cooled Screw Heat Pump

Features
LG Air-cooled Screw Heat Pump at the center, flame encircled on the left, curved lines in the circle on the right. Transmission tower on top left.

Utilizing Unused Energy as Heat Source with LG Heat Pump Solution

It is a system that supplies high temperature water up to 80℃ by using 70-80% of unused energy such as waste heat source, river water and ground water discharged from power plants and sewage treatment plants. It can save energy economically because it draws low temperature heat energy to high temperature heat energy with small amount of energy.

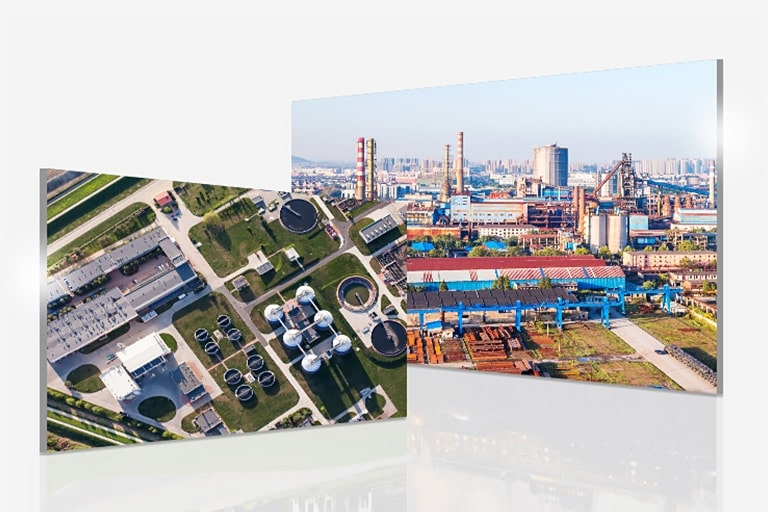

Applicable for Various Sites

Hot water production is possible at various sites such as industrial site and sewage treatment plant. Specialized solution is provided to offer stable and efficient operation even under harsh conditions.

Economical Energy Saving System

With Water Cooled Screw Heat Pump, 70% of the operational cost and 80% of the greenhouse gas emission can be saved in comparison to fossil fuels.

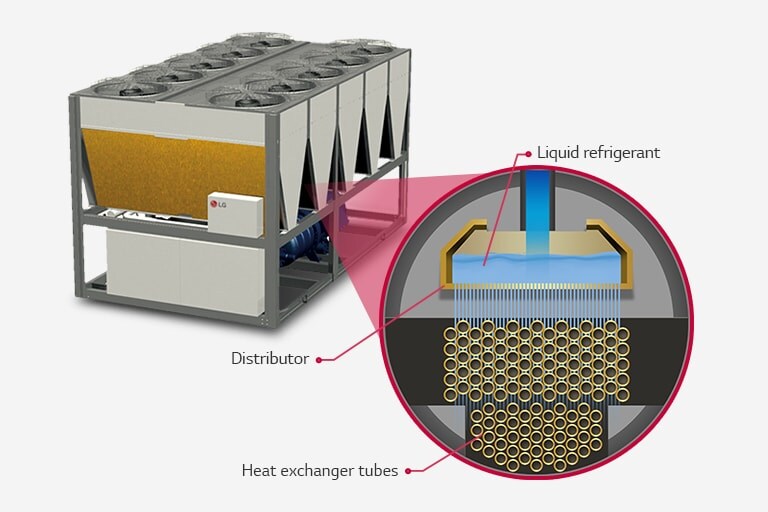

High Efficiency Load Evaporator

By applying gravity type refrigerant distribution system, reliable operation is provided, and evaporation efficiency is improved by optimizing arrangement of eliminator and evaporator tube.

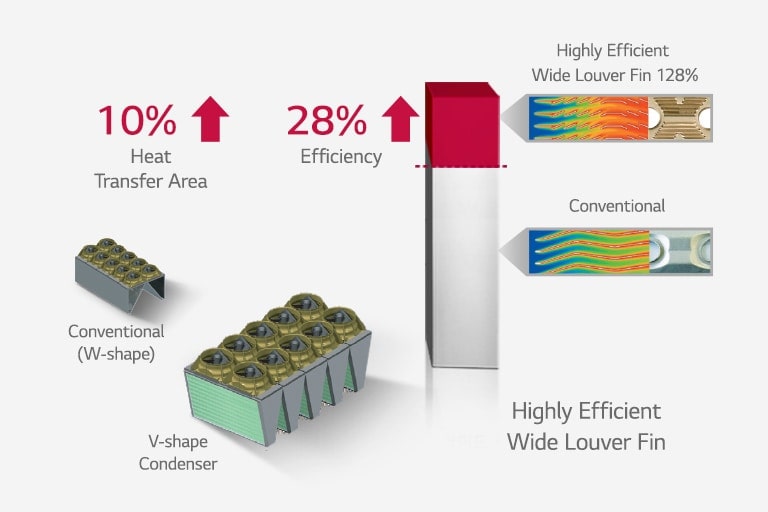

High Efficiency Condenser & Wide Louver Fin*

The V-shaped condenser structure has increased the heat transfer area as opposed to the conventional W-type model. The heat transfer efficiency is greatly improved in comparison to the conventional product by applying Wide Louver Fin.

*pH 2.8~3.0 sea water acetic acid spray test
*After 1,000hrs, fin bondage check and 4.5MPa leakage test Propeller type fan is applied, which should have proper airflow. Also it should have proper strength for rotational speed and be operated stably through balance test.

A person holds a tablet displaying a control solution. Four red lines extend from the tablet, connecting to buildings on the left.

Optimized Central Control

Control solutions such as ACP and AC Smart enable easy monitoring and allow remote control to manage various HVAC models at anywhere.

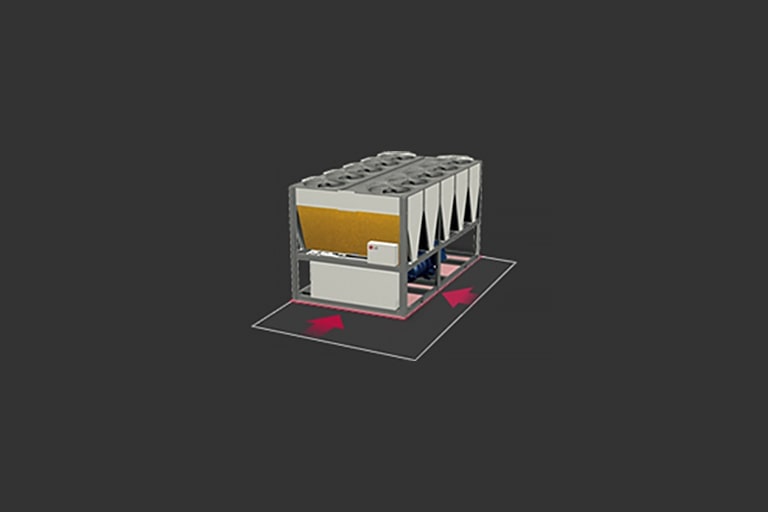

Reduced Weight & Size

Valuable floor space can be saved by reducing installation area and weight.

Noise Reduction

It minimized turbulence in intake port and reduced inconvenience of noise by preventing outflow.

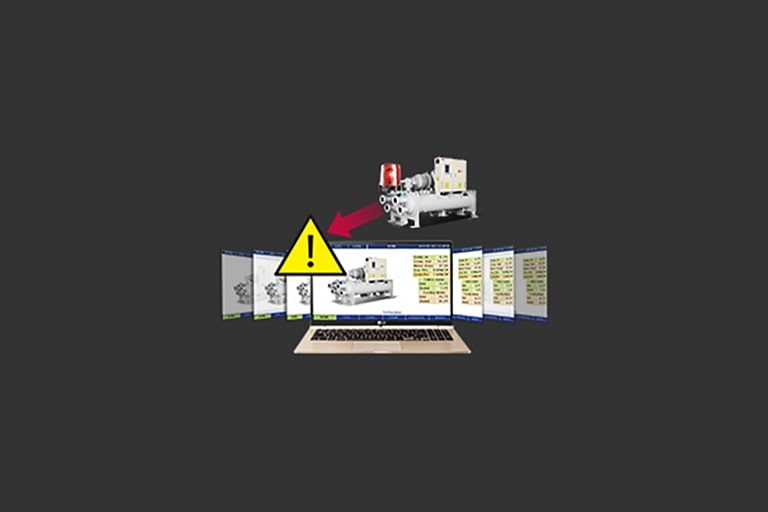

Black Box Feature

It stores and analyzes operation record for quick diagnosis to provide solution in case of failure.

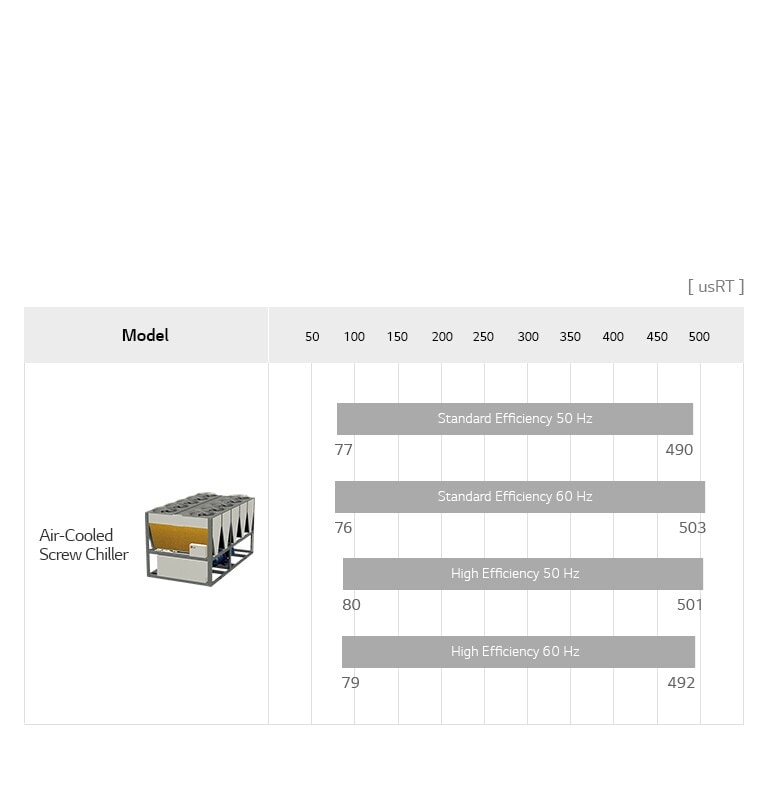

LG Air-cooled Screw Heat Pump lineup chart includes Air-cooled Screw Chiller, detailing model name, and usRT.

Air-cooled Screw Chiller Line Up

*Heat Pump type can be manufactured only on special orders.
